YMD-9 Acrylic Numpad (Soldering Bface Programmable/Gaming Photoshop using)

Regular price $23.99

Shipping calculated at checkout.

Package Included

Case Plate +PCB with RGB + Screws + Feet + Keycap + Cable + Switches +Assemble


This link is for 9 Key Pad DIY.Support Marco function.Every key can be defined which is good for gaming Photoshop Stock etc.

 If you want QMK hotswap edition,Click QMK Hotswap.

We put 123456789 key as default.If you want other keys or Macro keys,please program it yourself with the manuals below.Pleave not leave bad review this such kind of things.

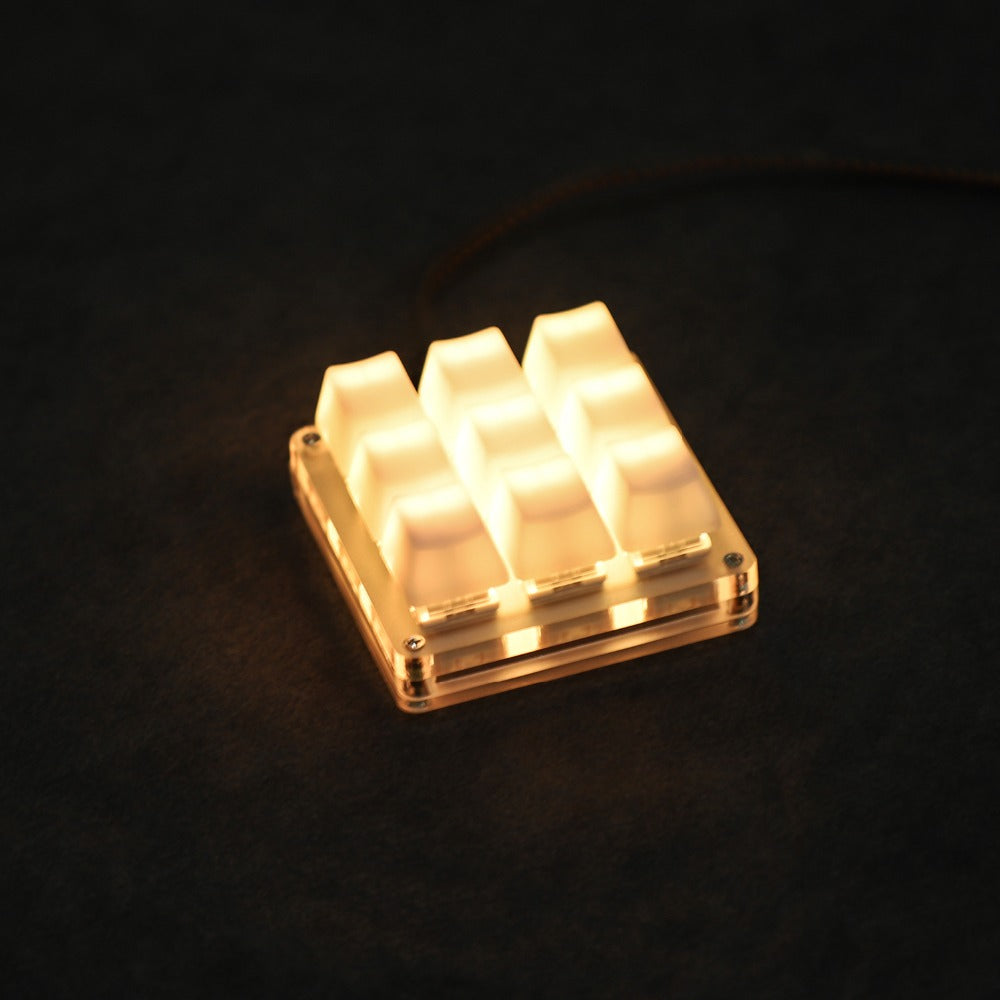

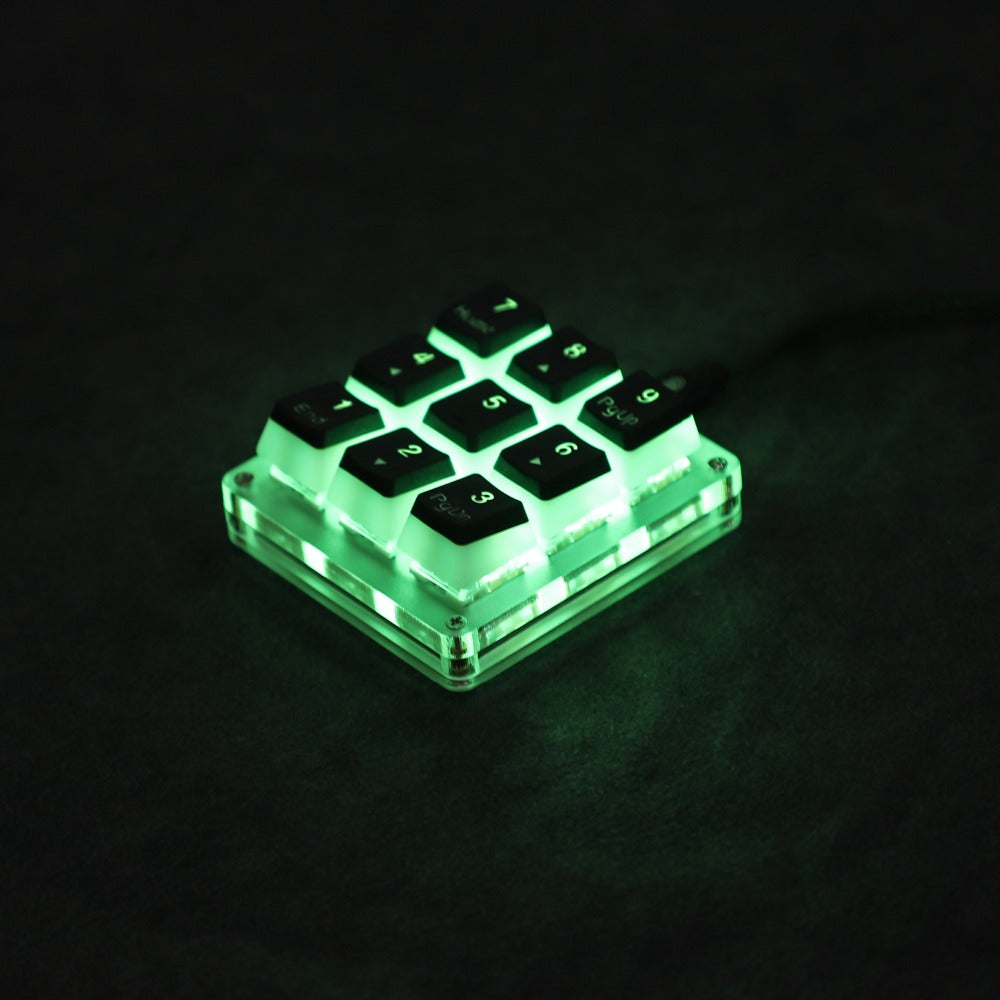

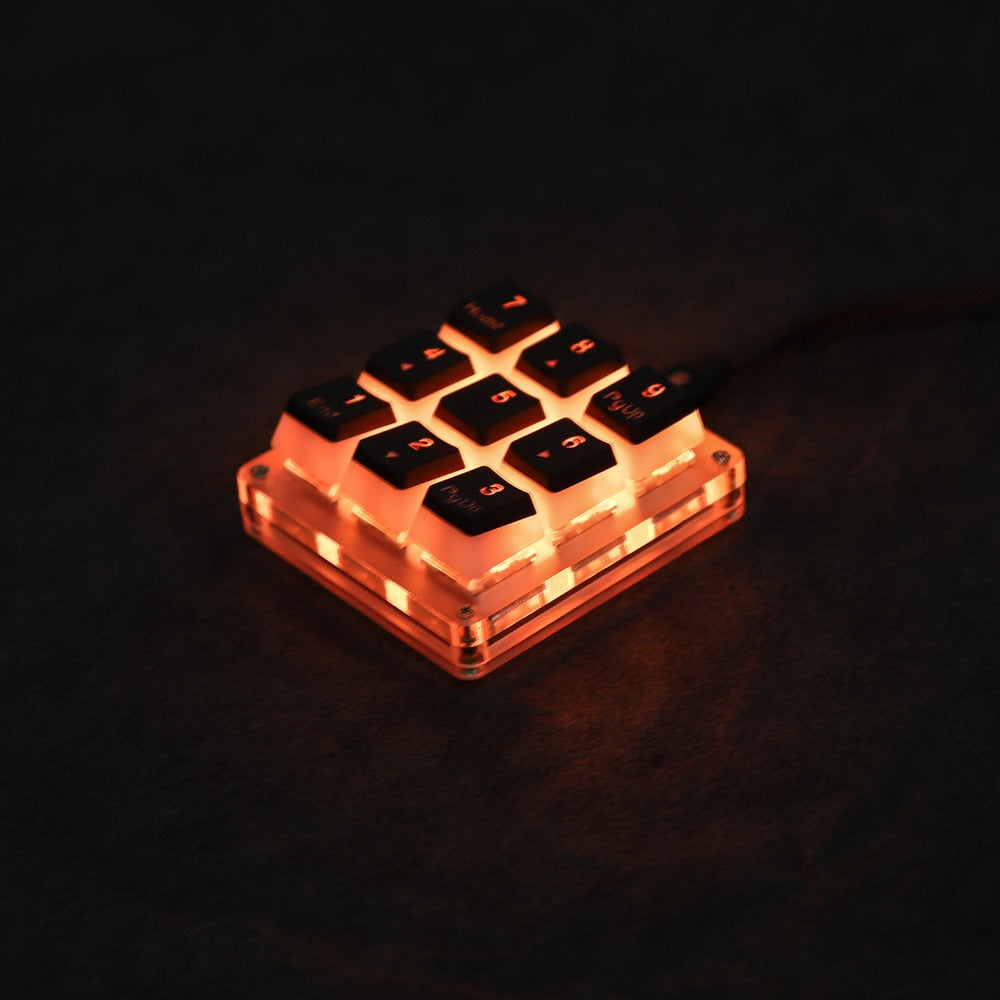

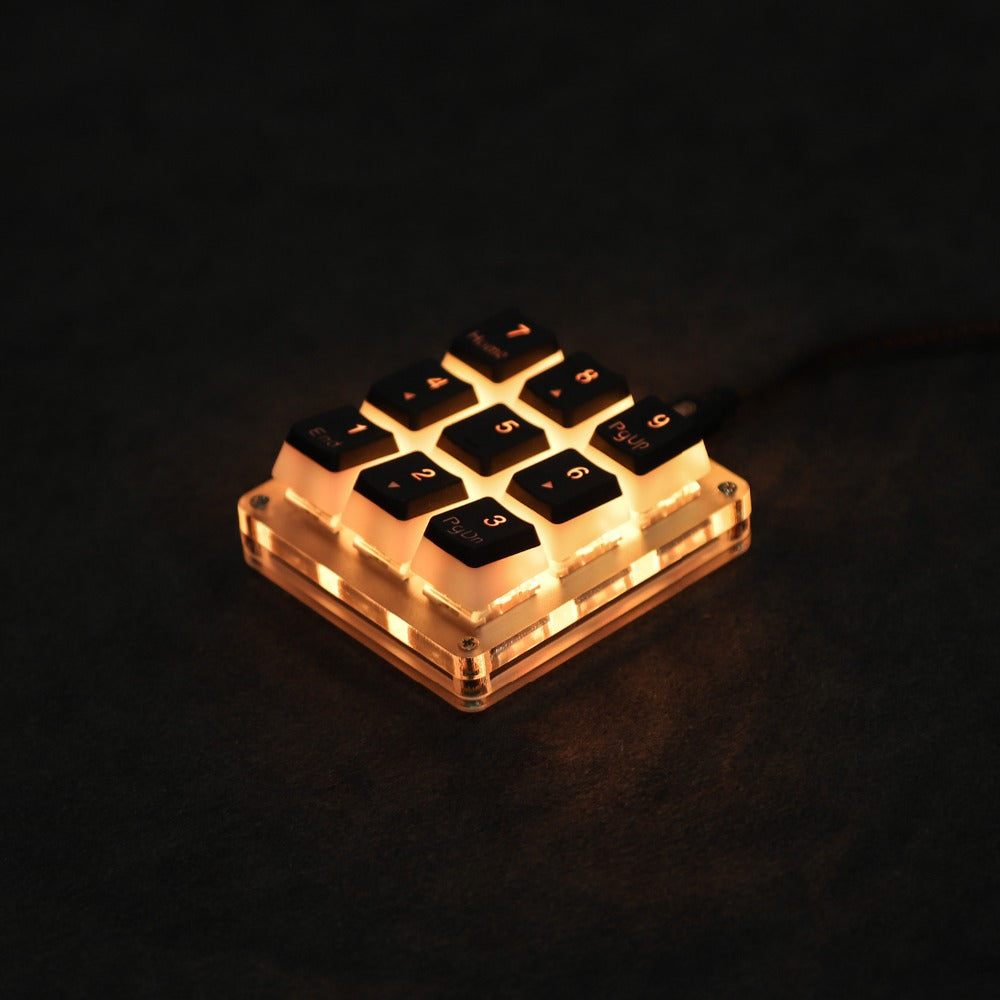

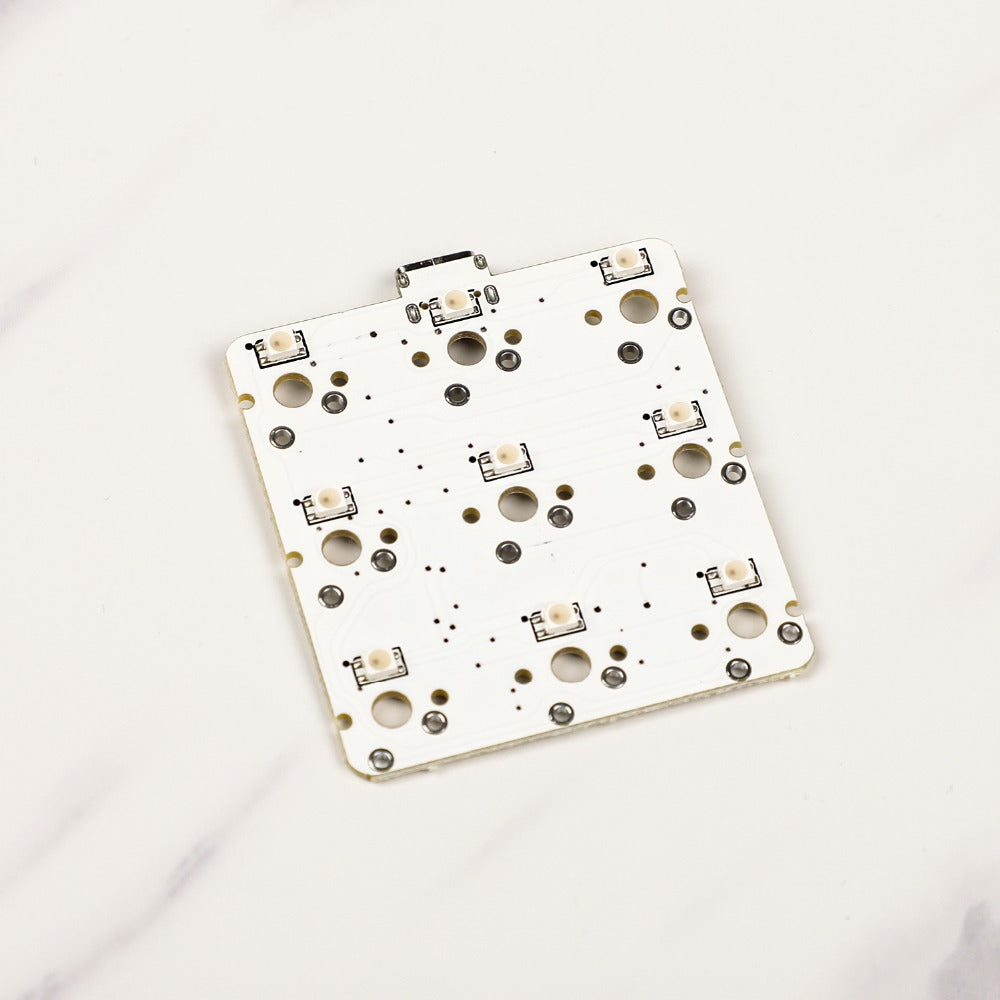

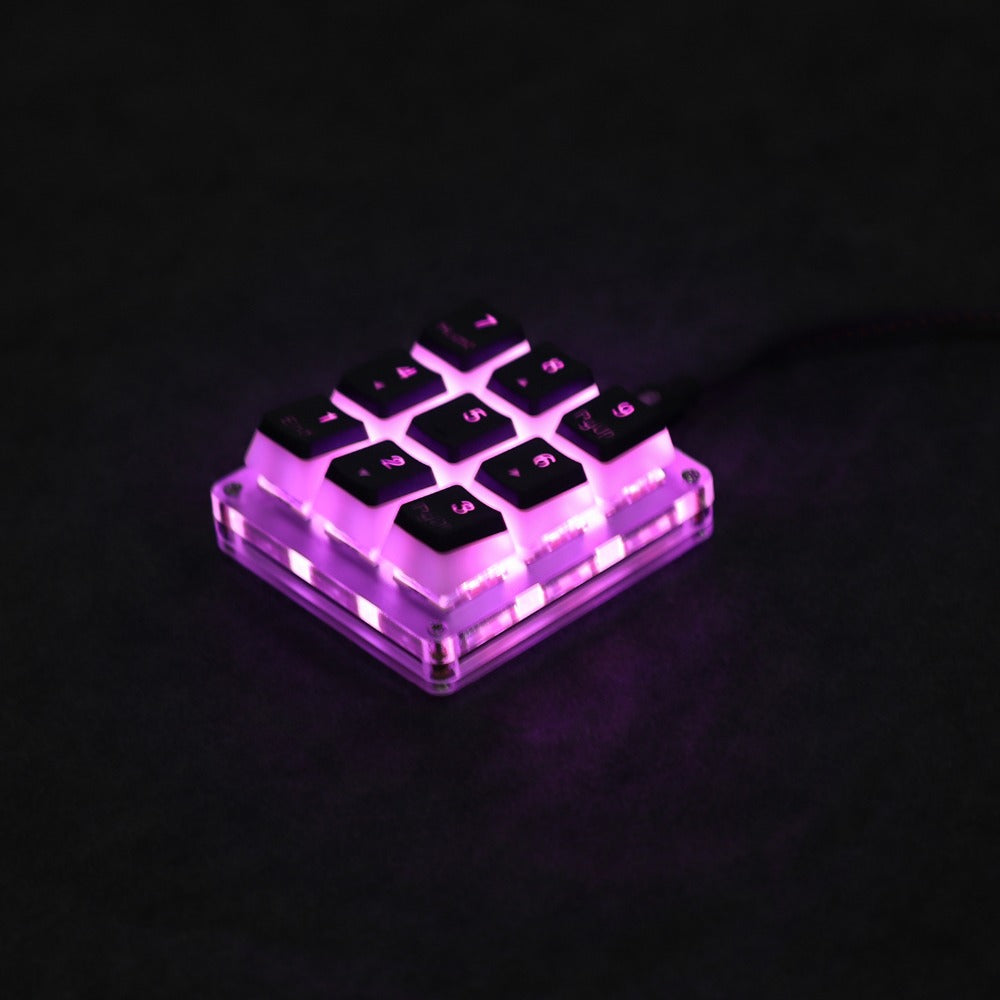

This PCB supports switch RGB,there is 3528 RGB led under per switches.The led effects is maily on upper side of the keyboard,the bottom led effects is only reflected by black board under the keyboard.

​The led is 3528,so Cherry SMD switches can't use for it,Cherry SMD switches led hole is very small.

Gateron SMD Kailh SMD Kailh Speed Kailh Pro Kailh Box Outemu SMD all is compatible.

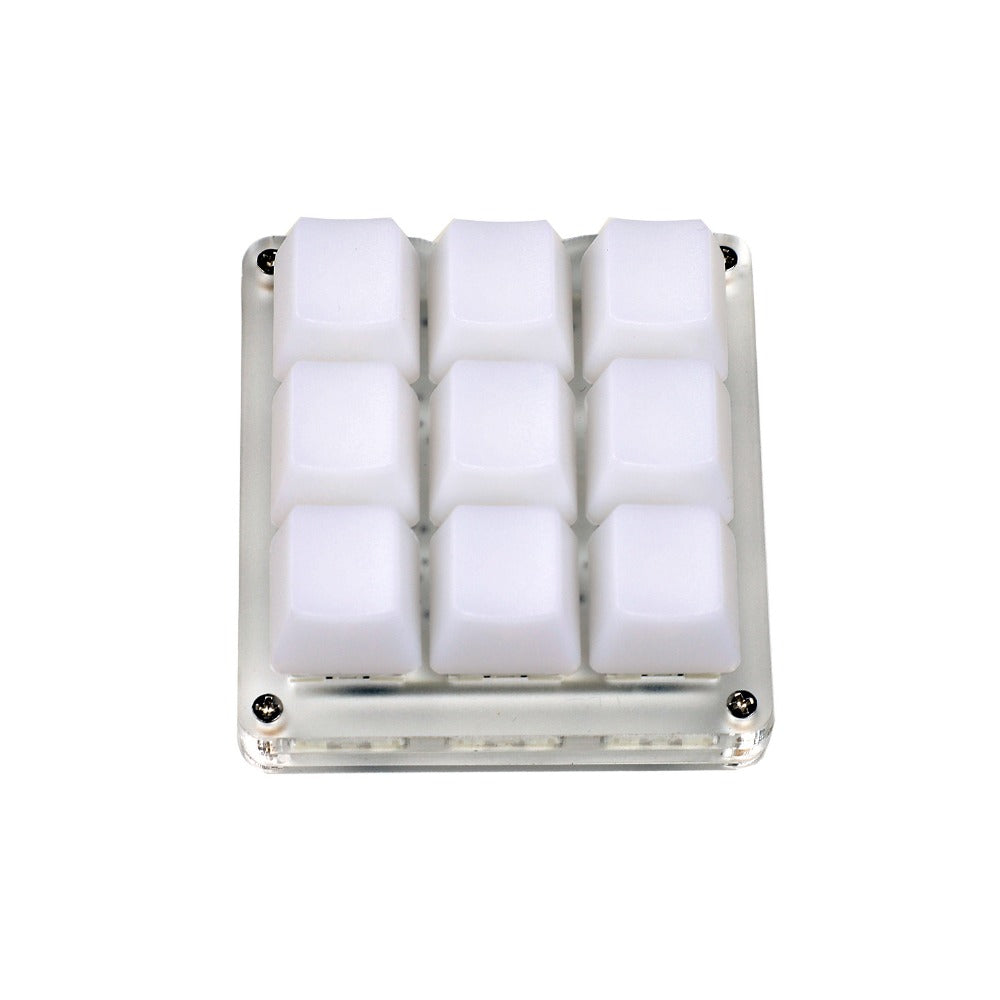

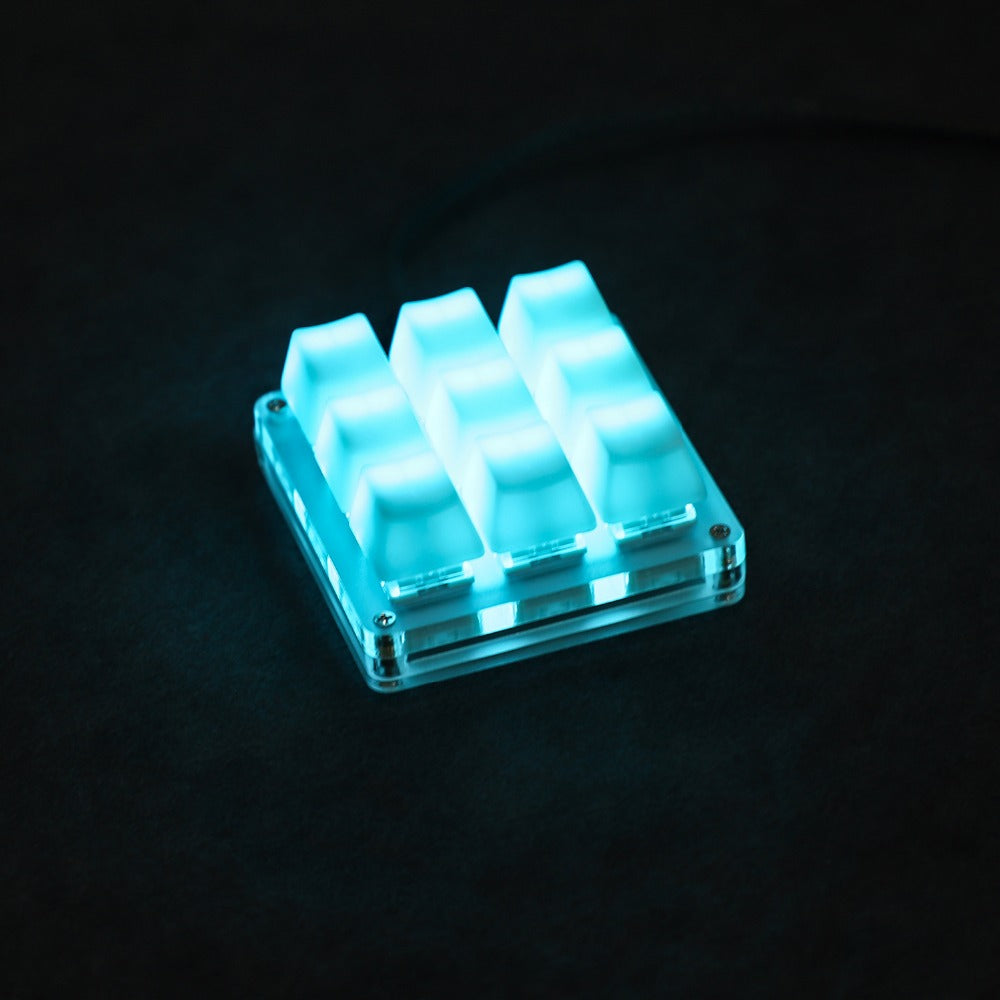

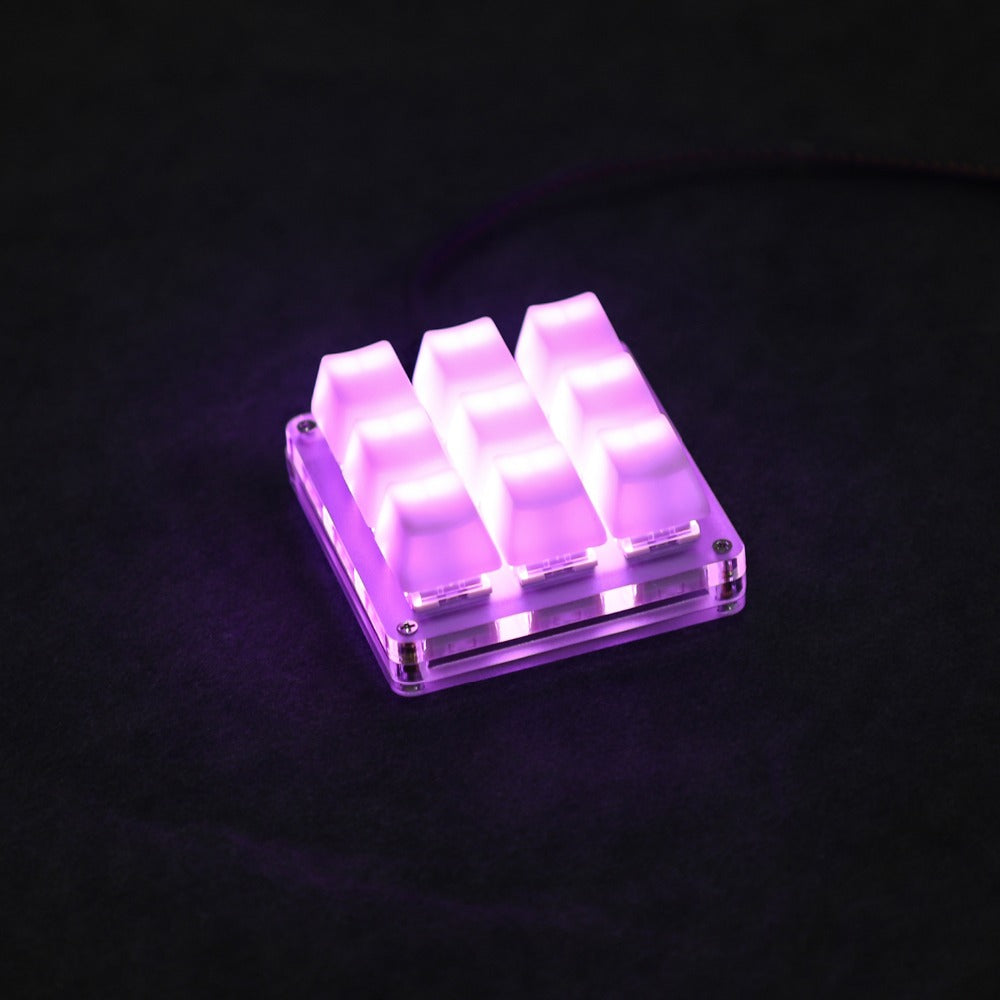

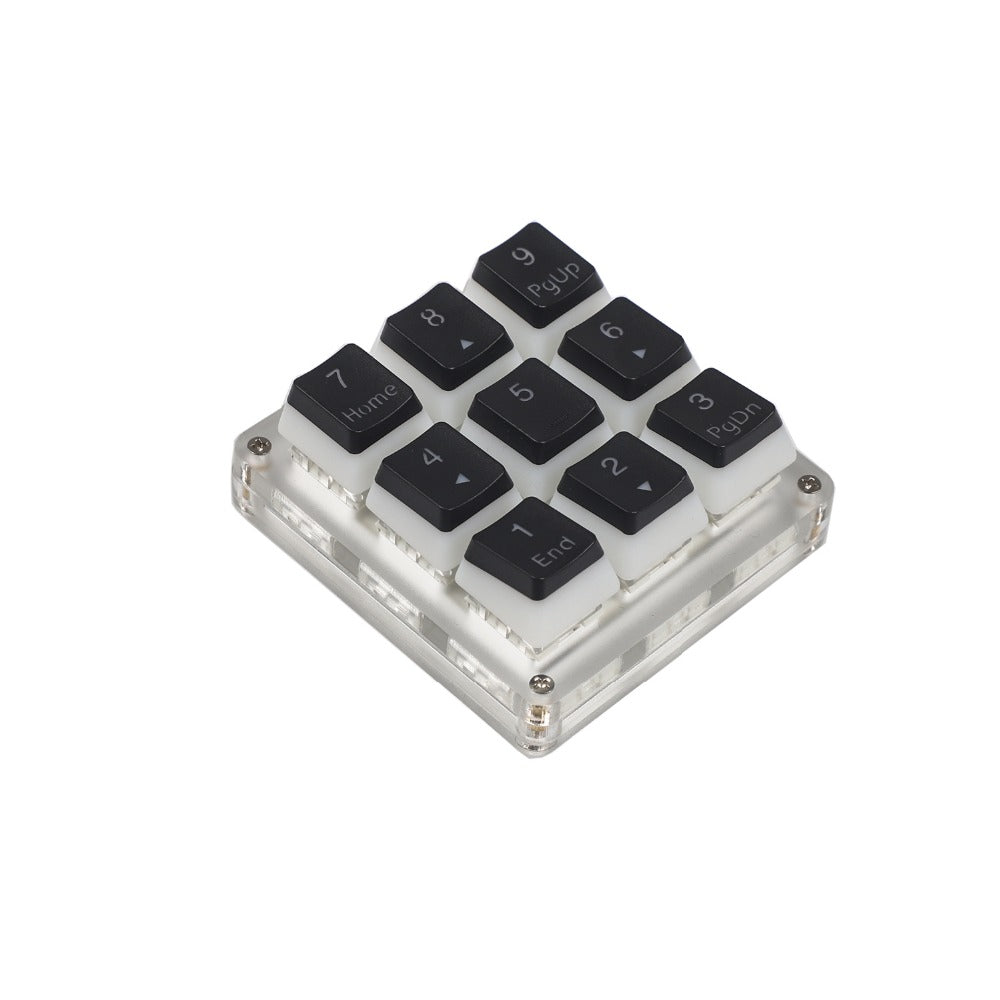

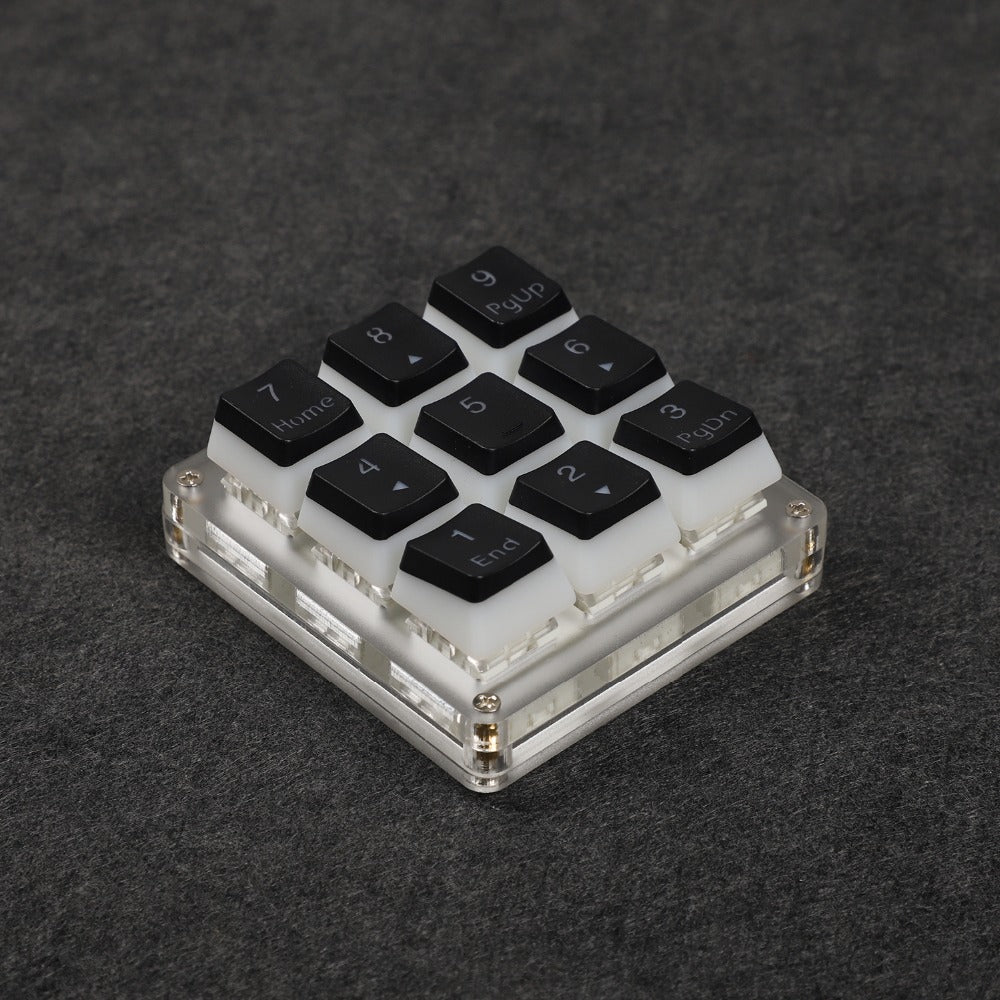

The case plate is made of acrylic.The Pudding keycaps is PBT double shot,the thickness is around 1.1mm.Milk white keycaps is ABS blank,the thickness is around 1.5mm.

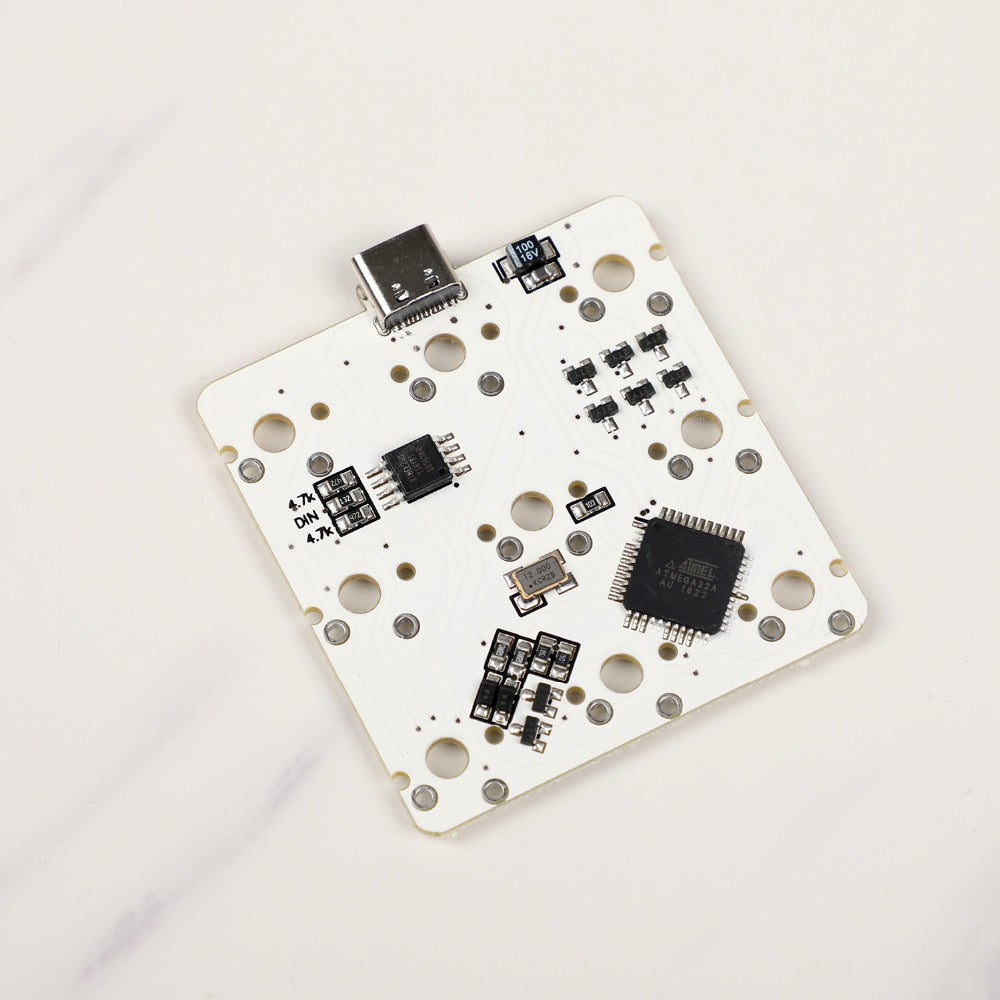

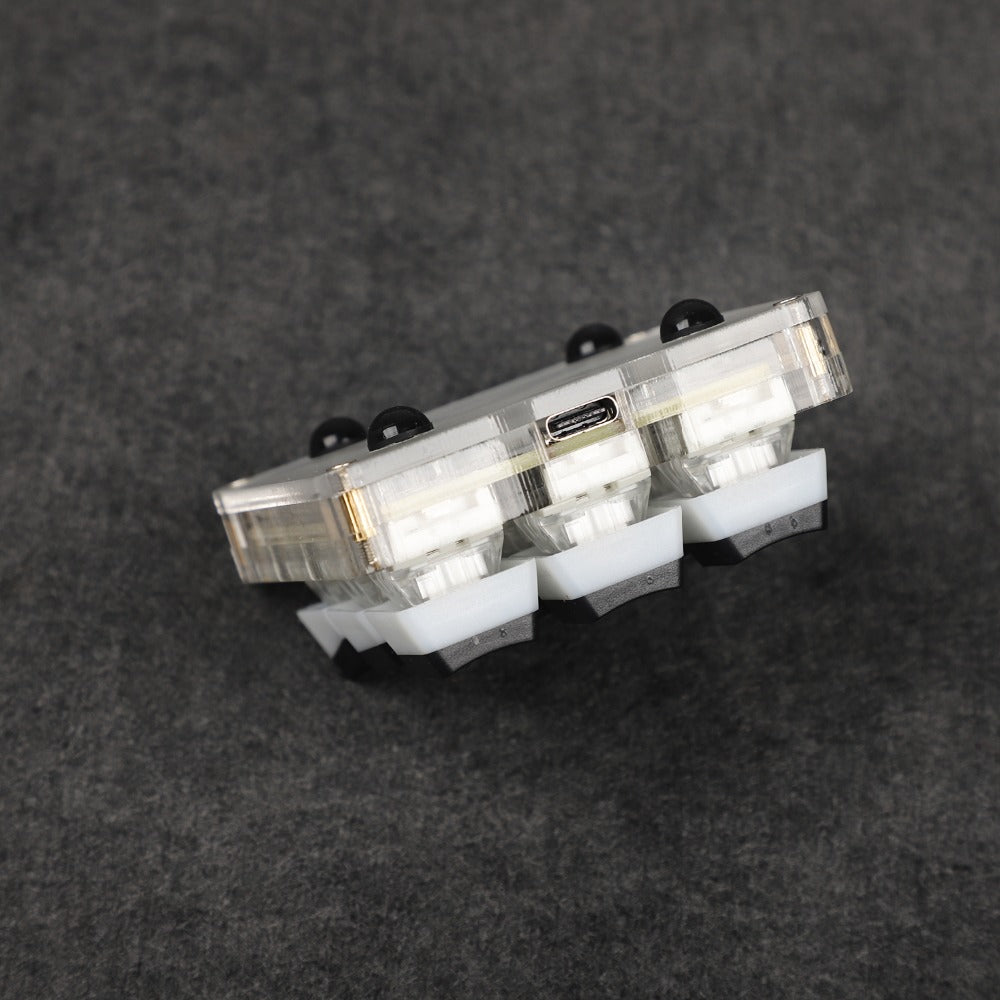

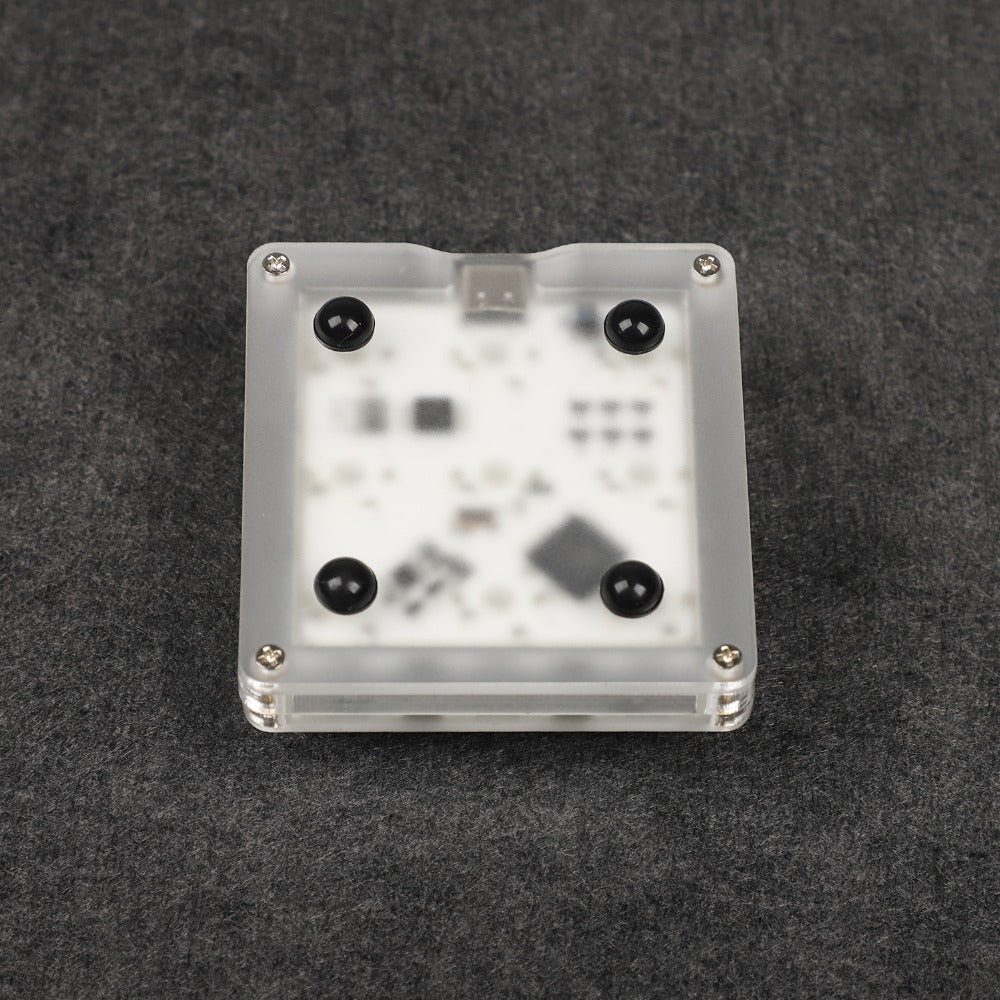

This PCB is Type C port,can program with bootloader.Here is the link to download the software and manuals:

Switches Details

Kailh speed

Copper switches: Tactile, 40 g springs - 1.1mm +/- 0.3 mm in pre travel

Silver switches: Linear, 40 g springs - 1.1mm +/- 0.3 mm in pre travel

Gold switches: Clicky, 60 g springs - 1.4mm +/- 0.3 mm in pre travel

Pink switches: Clicky, 50 g springs - 1.1mm +/- 0.3 mm in pre travel  【New structure】

Bronze switches: Clicky, 50 g springs - 1.1mm +/- 0.3 mm in pre travel

Kailh Pro

The burgundy feels smooth and has a slight curve to it when starting out.

The purple feels really nice. The bump is decently strong and smooth. It feels comparable to a Zealio 65g.

The light green is more comparable to a Cherry Blue click. Its consistent and feels pretty nice.


Kailh Box

BOX Heavy Dark Yellow is linear switches,around 70g operating force

BOX Heavy Burnt Orange is tactile not clicky,around 60g operating force

BOX Heavy Pale Blue is tactile clicky,around 60g operating force

Box Navy is tactile clicky,spring force is the same as heavy pale blue,and the clicky feeling is more obvious.

Box Jade is tactile clicky,spring force is same as box white,the clicky feeling is little resistant feeling

Box Royal is tactile not clickey,actuation is around 75g,the feeling is close to Cherry clear

Box Pink is tactile cliky switches,operating force is around 55g±15gf,tactile force is around 65g±10gf

Box White is tactile clicky switches,around 45g operating force

Box Black is Linear switches,around 60g operating force

Box Red is linear switches,around 45g operating force

Box Brown is tactile switches,around 45g operating force


Gateron SMD

Red black white yellow switches are linear switches moving straight up and down without any additional tactile feedback or loud clicking noise.For operating force,Black>Yellow>Red>White.

Gateron brown switches are tactile and non-clicky,between red and blue handle feeling.It's both good for gaming and typing which depends your preference.

Gateron Blue and green shaft is tactile and clicky,green is stiffer version of Blue.
