GK61 GK61X RGB Hot Swap Independent Driver Wired and Bluetooth Tyce-C ANSI Mechanical keyboard DIY kit Plastic Case Plate PCB

Regular price $70.00

Shipping calculated at checkout.

Package Included

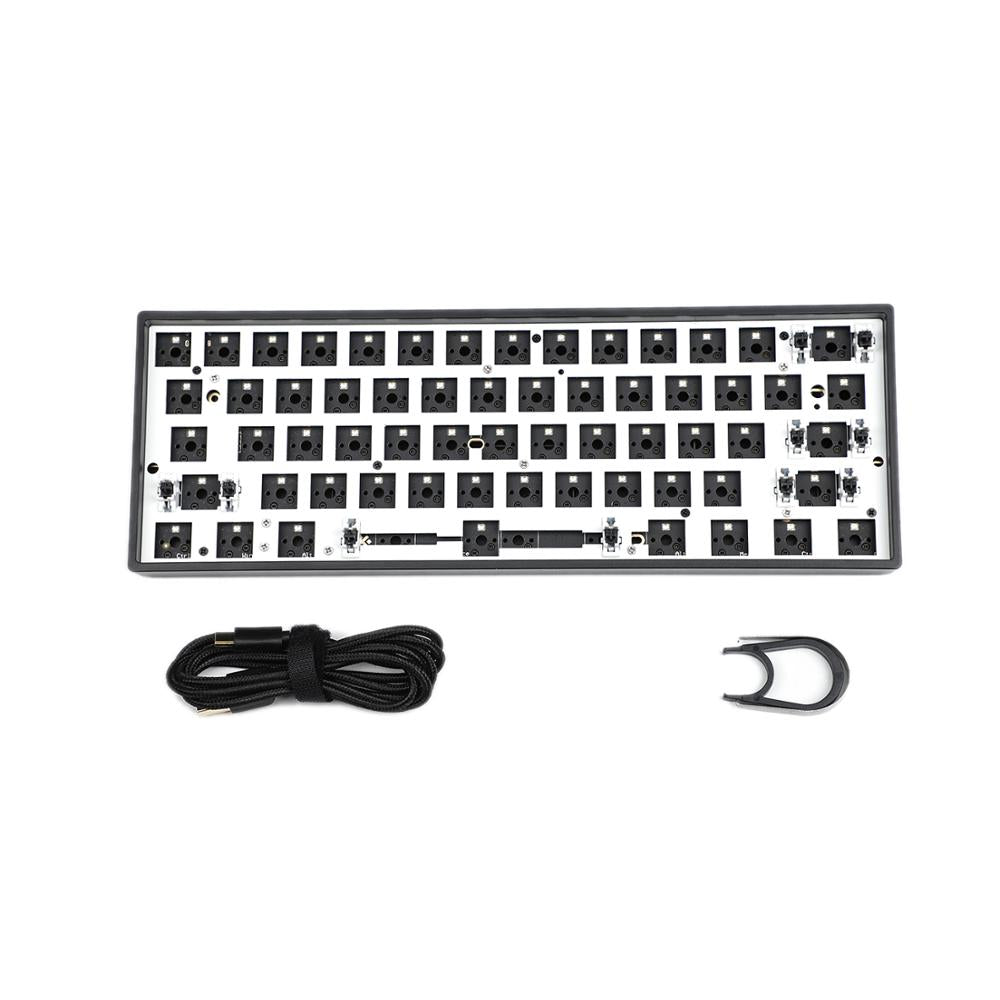

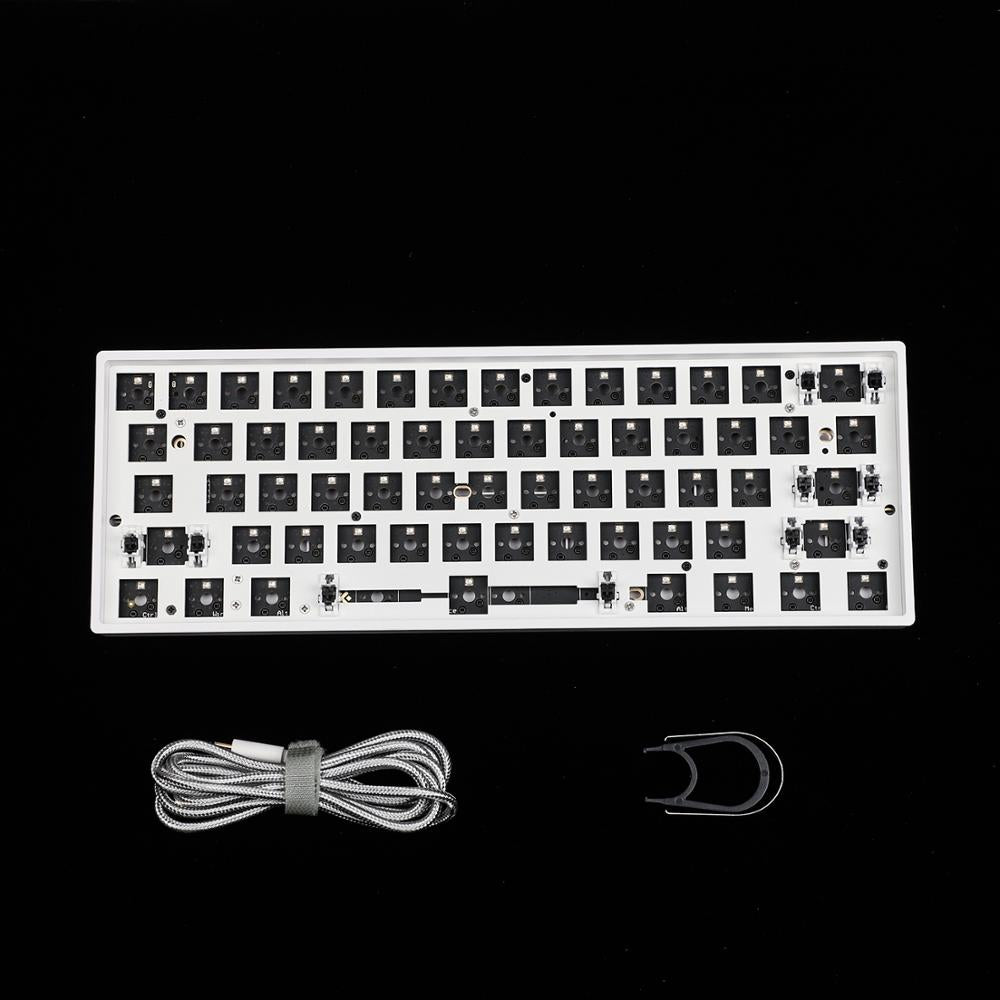

Case + Feet + Stabilizers + GK61x/GK61xs Hot Swap PCB + Plate + USB Cable + Switch Removal Tool

GK61xs is bluetooth edition,Bluetooth edition has an 1900mAh volume battery.

​If you want CNC alu kit with different color plate,pls order in another link.

​Attention

After inserting switches,if some key not act,check the hot socket whether it's loose,and switch pin whether it's bent.

Details

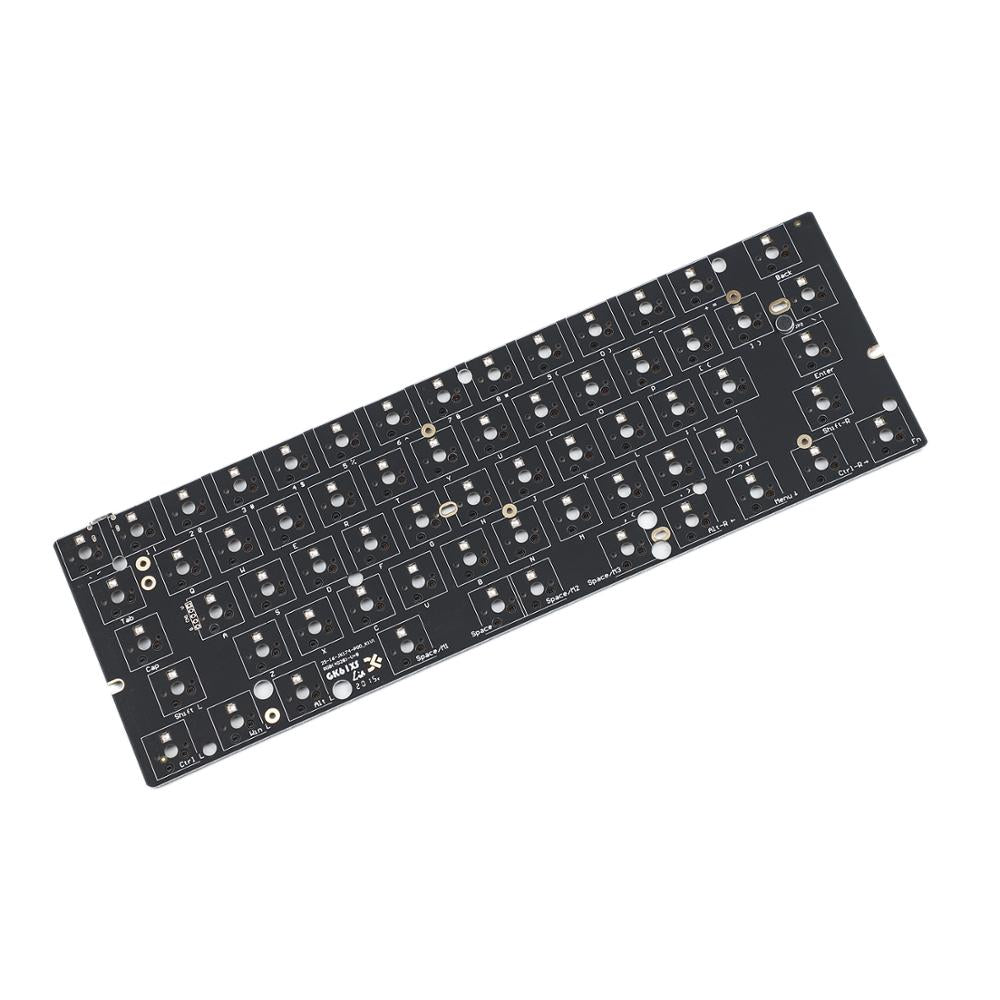

GK61X is wired edition which is upgraded for GK61.PCB is black high quality.GK61XS is bluetooth edition upgraded fro GK61x,battery is 1900mah.



The stabilizers is produced by Gateron factory which is tighter and better than before.

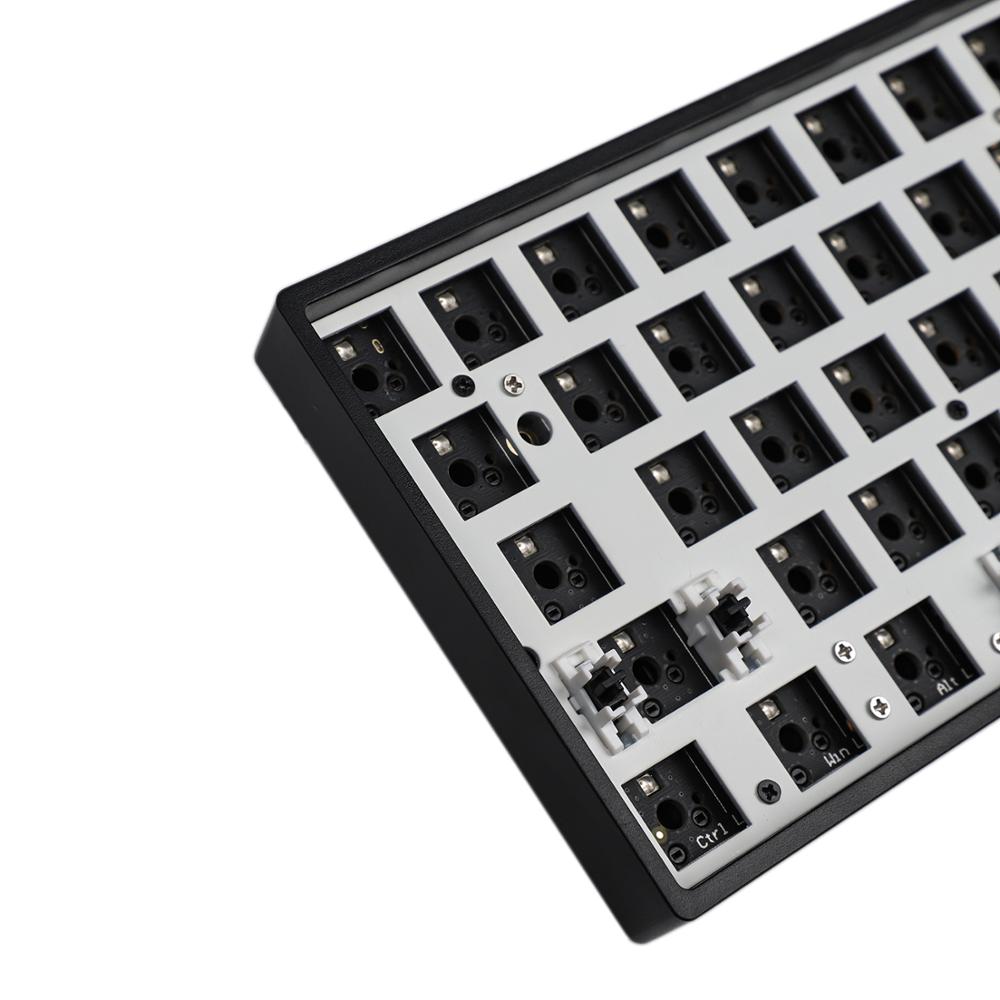

GK61x/GK61xs has 2 options: Standard plate and Space Replacable plate.

The one sold at the moment are all standard plate which only support 6.25u space.Standard plate edition can use in most GH60 case in the market directly.If you are not sure whether your 60 aluminum case can be used or not,just message me to confirm it.All aluminum wooden GH60 case in our store can replace gk61x/gk61xs original case plate directly

GK61x GK61xs adds insert for underglow RGB strip now.

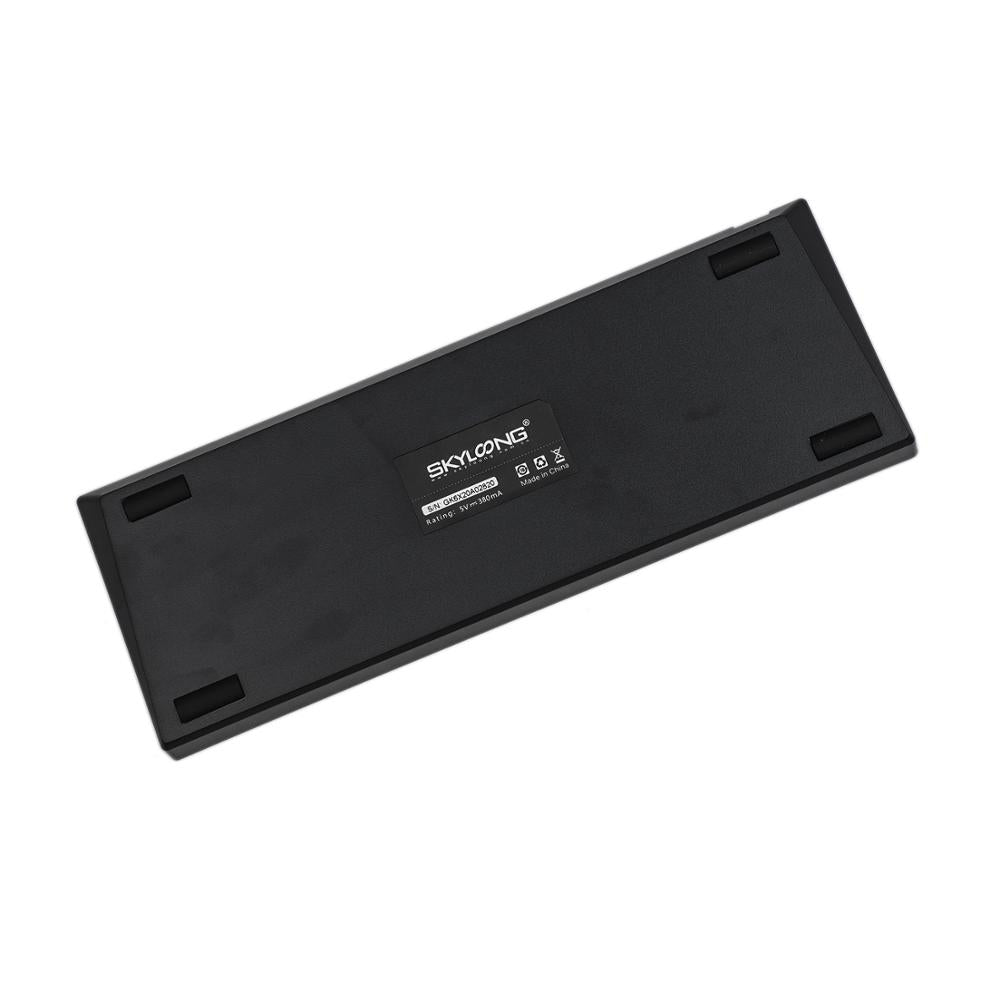

The new plastic case is ABS amoulded by Zealio factory which is higher quality and looks better than before.

Pls note: This pcb is fully programmable,however Fn sits at the right of bottom row and place can't change.

The chipset is MCU 32 bit,8M Flash,3 pcs 256*256*256 RGB drive to support full 16.8 million RGB.

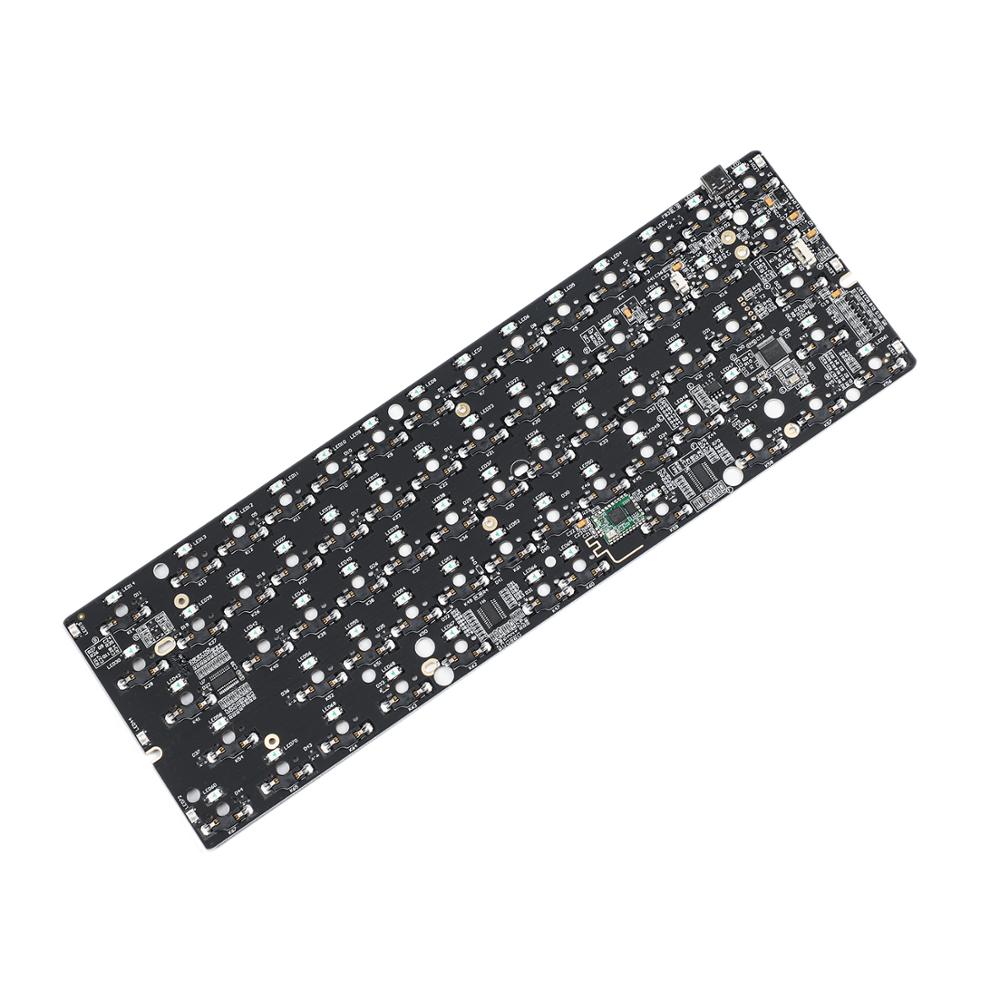

PCB has RGB presoldered,it's under per switch.PCB RGB can support by music.

Bluetooth option is bluetooth 5.1,uses broadcom bluetooth chip and program which is more stable even than some 4.0 in the market.You can switch wired and bluetooth mode with Fn+Spc,enter into pairing mode by Fn+ZXC,can connect 3 device at most.

Bluetooth option RAlt ZXC Space key led is related to bluetooth mode,such as when battery volume is low,Ralt led will change color.So if these led color is different from other leds,it's not broken.

​Bluetooth stand by time is around 10 days,if you use it without led,it can last around 6-8 days,if you use it with leds,it last around 2-4 days.The battery will charge in auto when you insert USB to PC or charger when the capacity is under 90%.

There is no switches in the kit,you can order Cherry Gateron Kailh SMD Box switches etc yourself.Just put in switches in is ok,no need soldering again.3 pin 5 pin both supported

PCB is programmable with the software below: (Can download on official website)

drive.google.com/open?id=1NQxMtKlI5PnjdT355soHQ4GN_JoaRMLT
