GK64 GK64x GK64xs RGB Hot Swap Programmable Bluetooth Wired CNC Case PCB Plate Cherry MX Keyboard DIY kit

Regular price $130.00

Shipping calculated at checkout.

Package Included

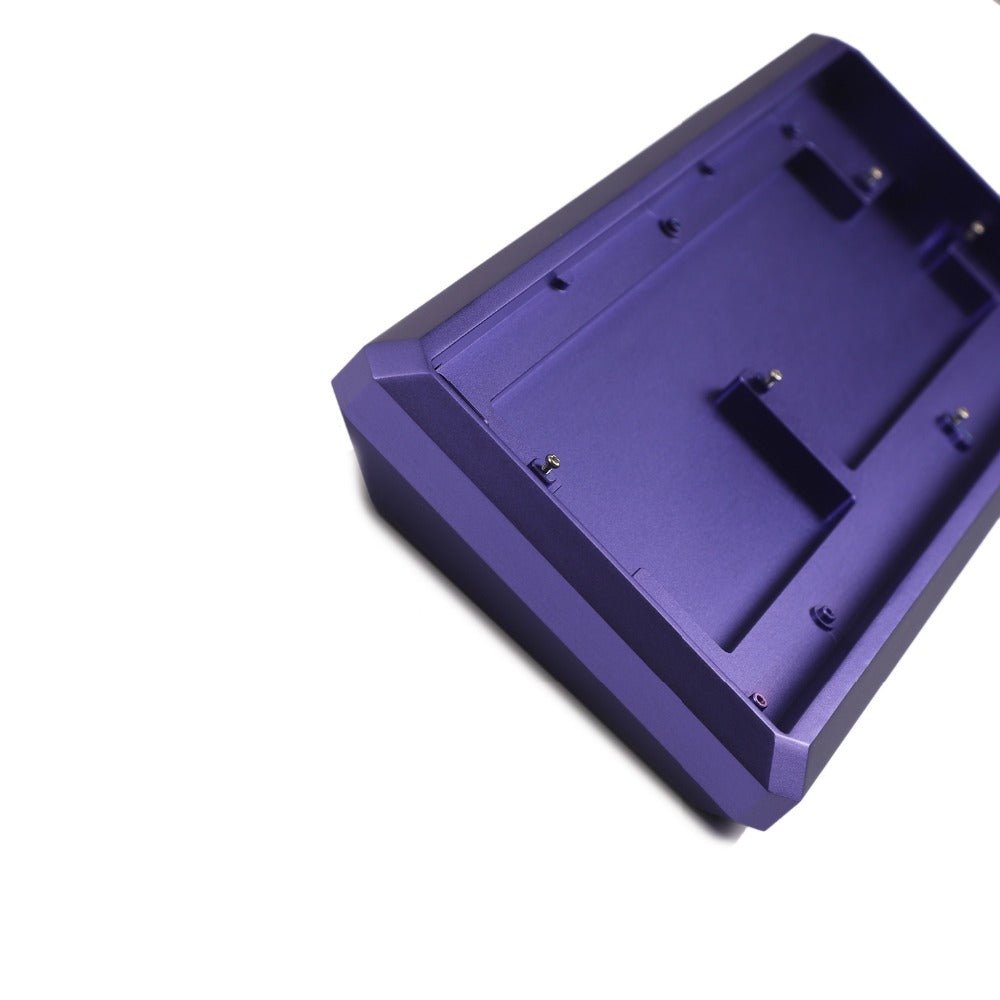

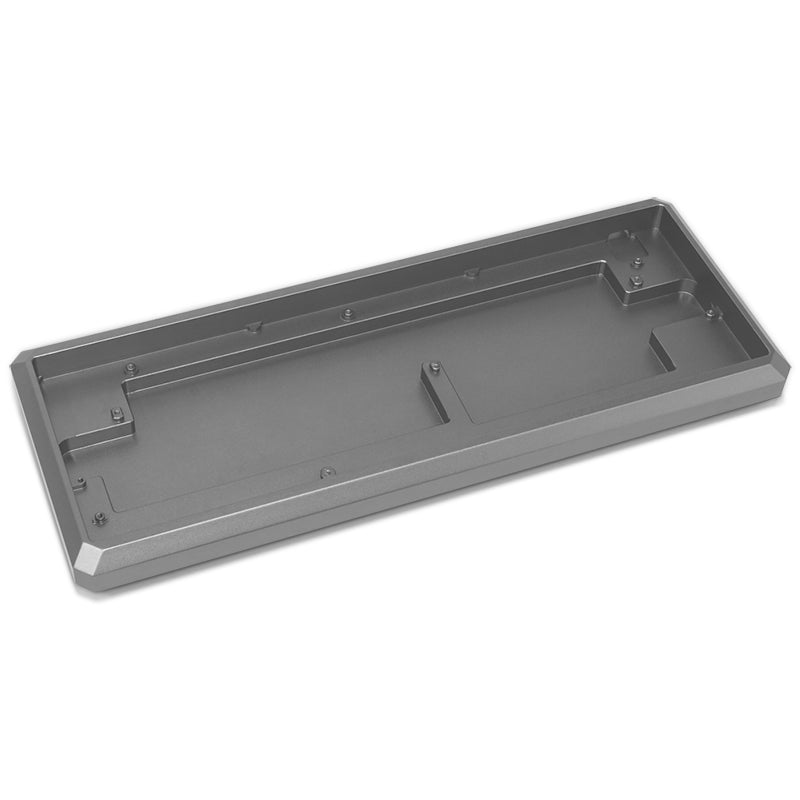

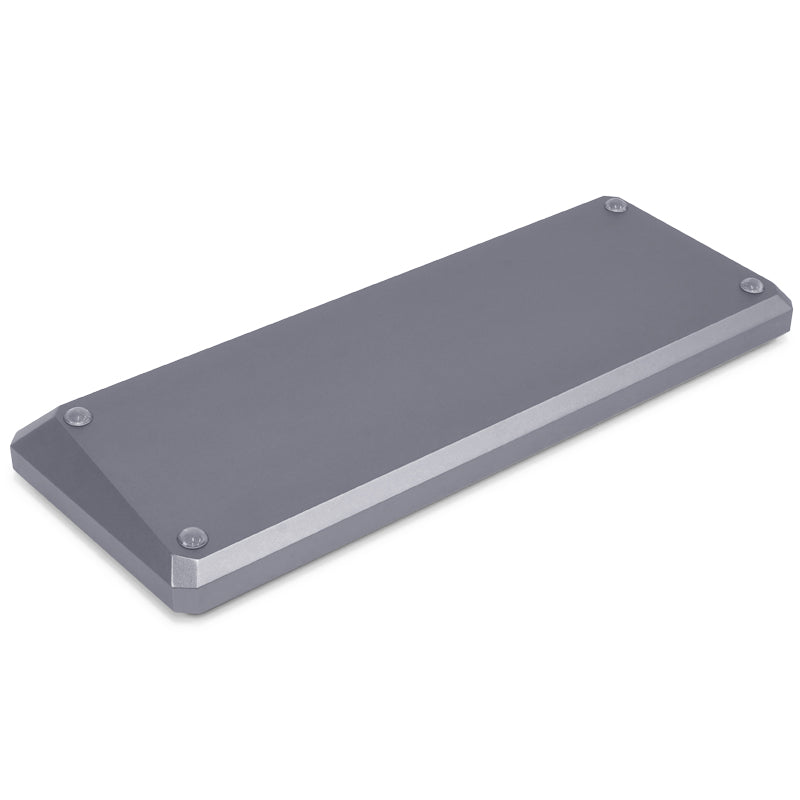

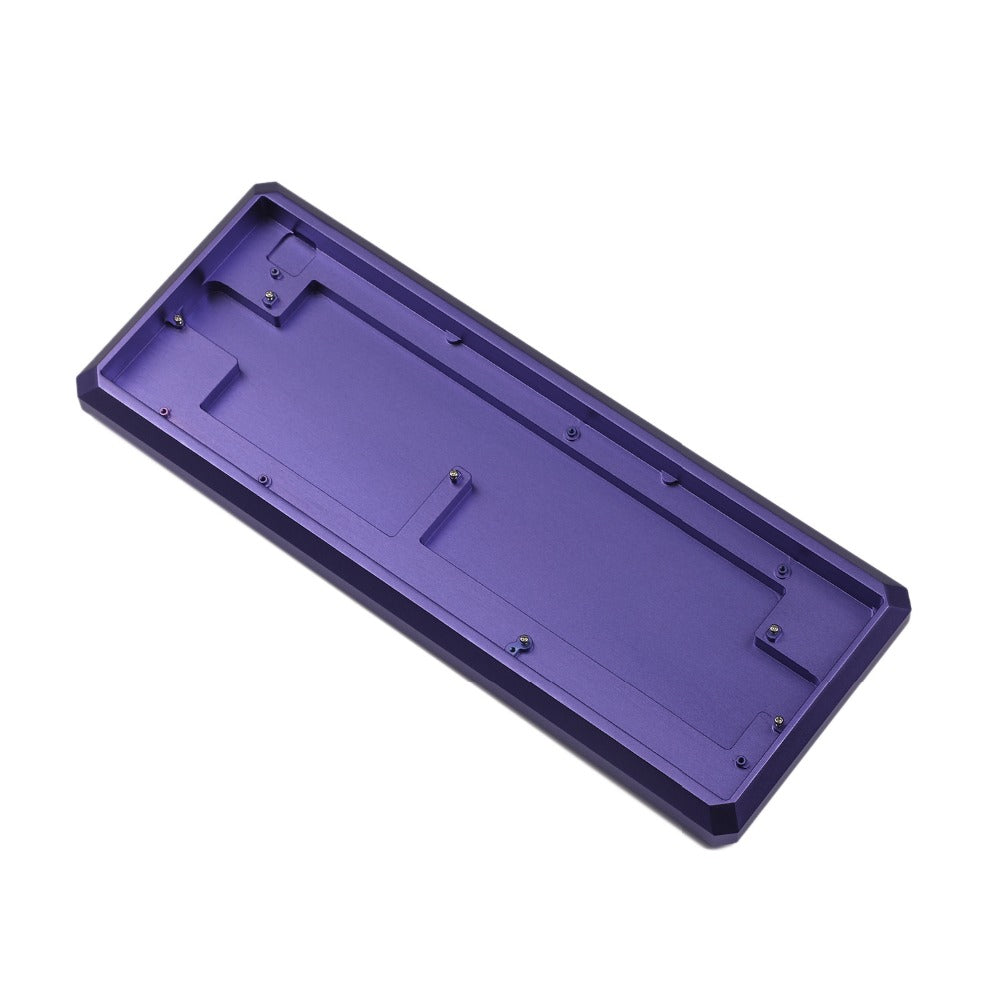

Case + Feet + Hotswap Type C PCB + Steel Plate + Cable + Switch Puller + Stabilizers (You only need to prepare switches and keycaps to get it work)

GK64x is wired,GK64xs is bluetooth which support both wired and bluetooth.If you choose GK64xs bluetooth PCB,there will be a 2000mah battery inside

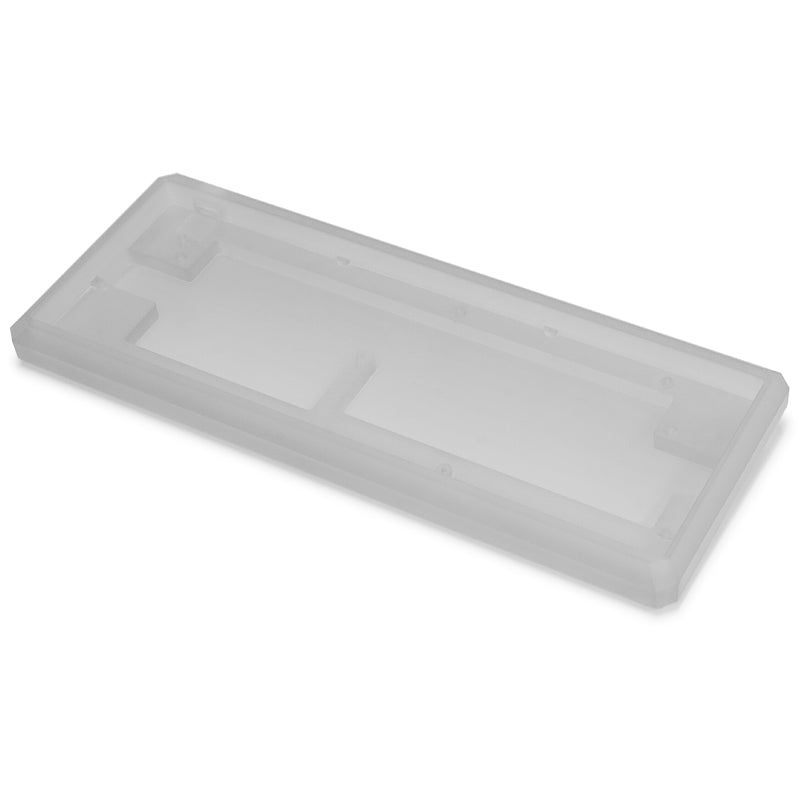

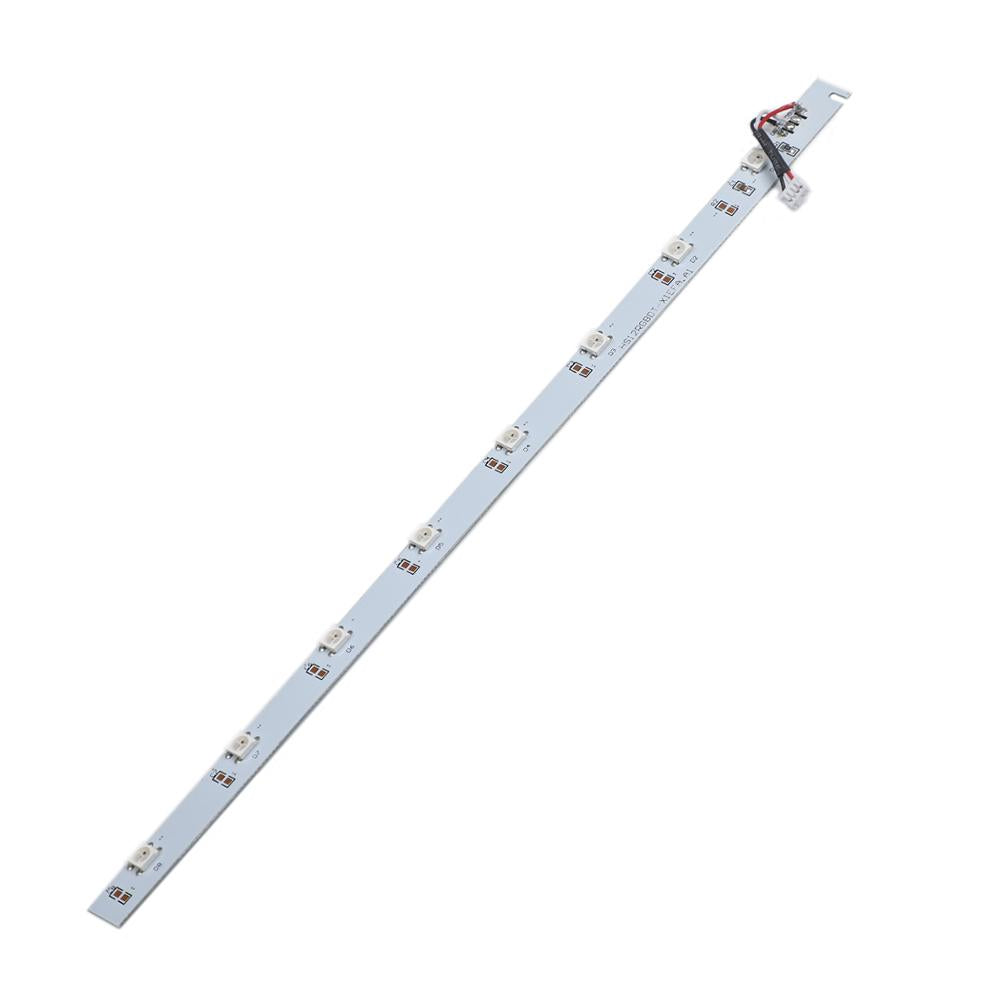

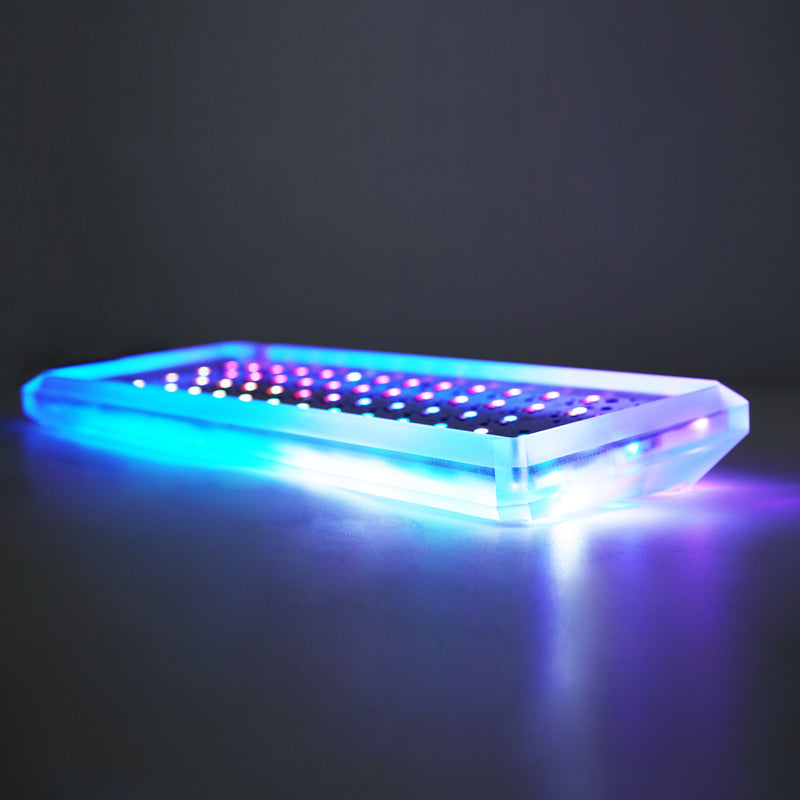

​Led strip can use for GK64x /GK64xs.It can plug in directly.If you choose PC case,you can add it in cart.The PC case with RGB effects below have added led stripe.If no RGB stripe,the underglow effect is bad


GK64X is wired edition which is upgraded for GK64.PCB is black high quality.GK64XS is bluetooth edition upgraded for GK64s.Bluetooth edition support wired and bluetooth both.

GK64x /GK64xs adds connector for underglow RGB strip now.

Pls note: This pcb is fully programmable,however Fn sits at the right of bottom row and place can't change.

The chipset is MCU 32 bit,8M Flash,3 pcs 256*256*256 RGB drive to support full 16.8 million RGB.

PCB has switches RGB presoldered,it's under per switch.There is no underglow RGB presoldered.

Bluetooth option is bluetooth 5.1,uses broadcom bluetooth chip and program which is more stable even than some 4.0 in the market.You can switch wired and bluetooth mode with Fn+Spc,enter into pairing mode by Fn+ZXC,can connect 3 device at most.

Bluetooth option RAlt ZXC Space key led is related to bluetooth mode,such as when battery volume is low,Ralt led will change color.So if these led color is different from other leds,it's not broken.

​Bluetooth stand by time is around 10 days,if you use it without led,it can last around 6-8 days,if you use it with leds,it last around 2-4 days.The battery will charge in auto when you insert USB to PC or charger when the capacity is under 90%.


PCB is programmable with the software below (Can download on official website)

Windows: drive.google.com/file/d/1oCvUmodD5n5TpfFfcPPB0IMwD2BCdzVh/view?usp=sharing

Mac system: drive.google.com/file/d/1Mbi6M30gf7LhLt8psYK99mUoXnubYjdS/view?usp=sharing
