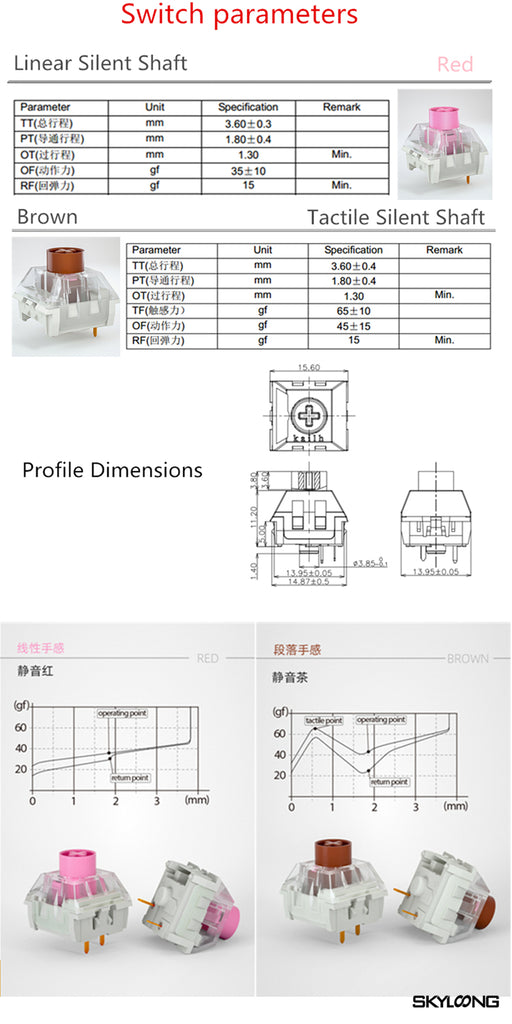

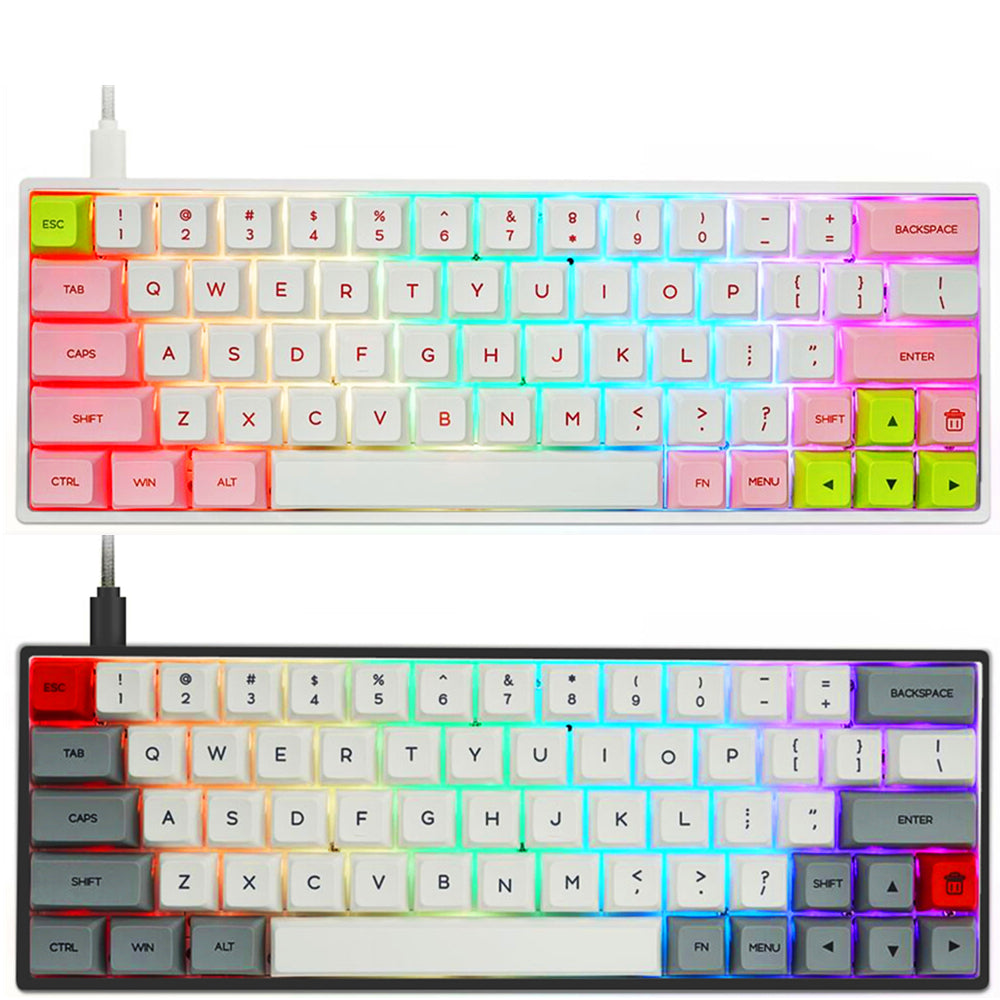

1x GK64x/GK64xs Keyboard 1xCable+1xSwitch puller+1 Keycap Puller (With Kailh Silent Box Switches and dye sub keycaps)

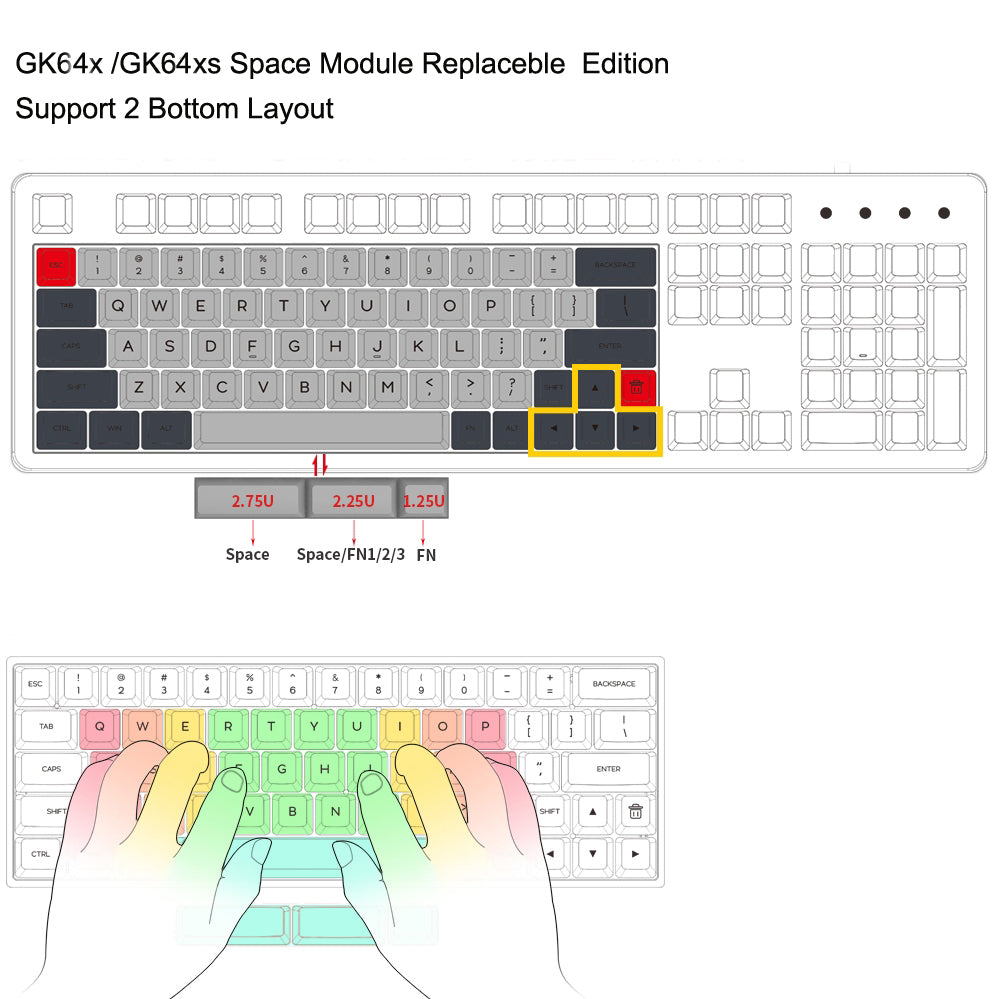

The keycap has additional 2.25 and 2.75 blank keys for spilt layout
For GK64xs,there is 1900mah battery included.With battery if you choose express method,can only ship with HK airport which is around 2 weeks late than normal method to US Canada Europe.
GK64X is wired edition which is upgraded for GK64.PCB is black high quality.GK64XS is bluetooth edition upgraded fro GK64s,battery is 1900mah.Bluetooth edition support wired and bluetooth both.
The stabilizers is produced by Gateron factory which is tighter and better than before.For linear switches,please unistall the stabilizer and clip it to get better tactile feeling.If clicky switches,can just keep as it is.

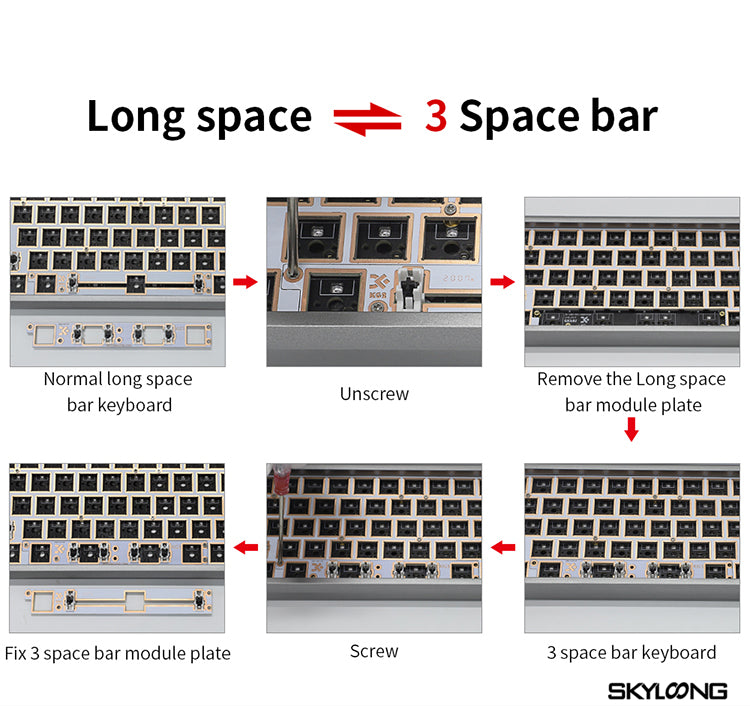

Replacable space module is screwed to case directly.If you want to replace to GH60 case,you need to replace a GH60 size plate which support 64 layout
GK64x /GK64xs adds insert pin for underglow RGB strip now.
The new plastic case is ABS amoulded by Zealio factory which is higher quality and looks better than before.

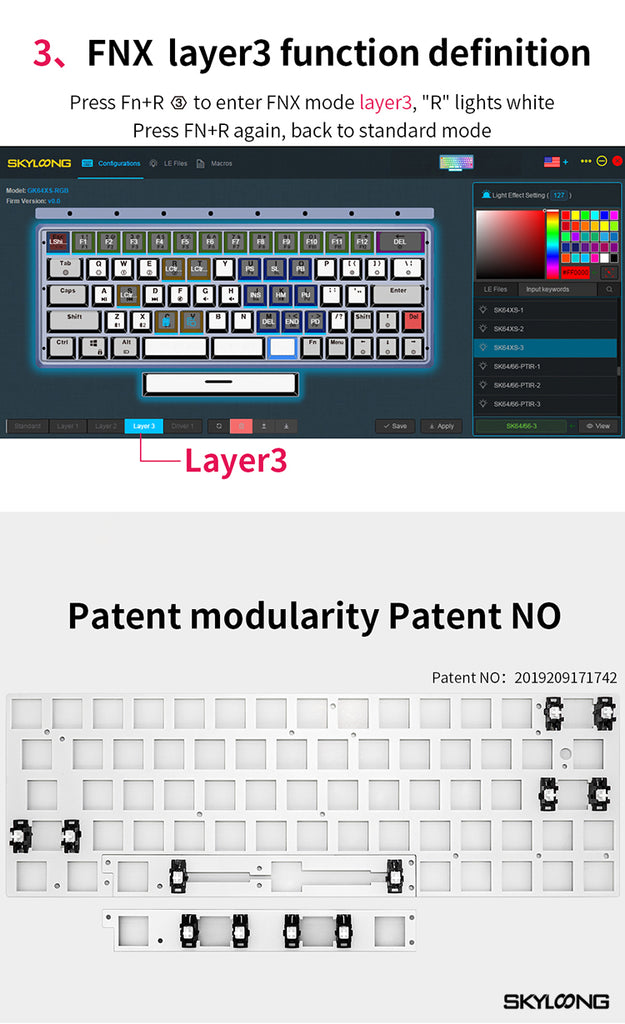

Pls note: This pcb is fully programmable,however Fn sits at the right of bottom row and place can't change.
The chipset is MCU 32 bit,8M Flash,3 pcs 256*256*256 RGB drive to support full 16.8 million RGB.

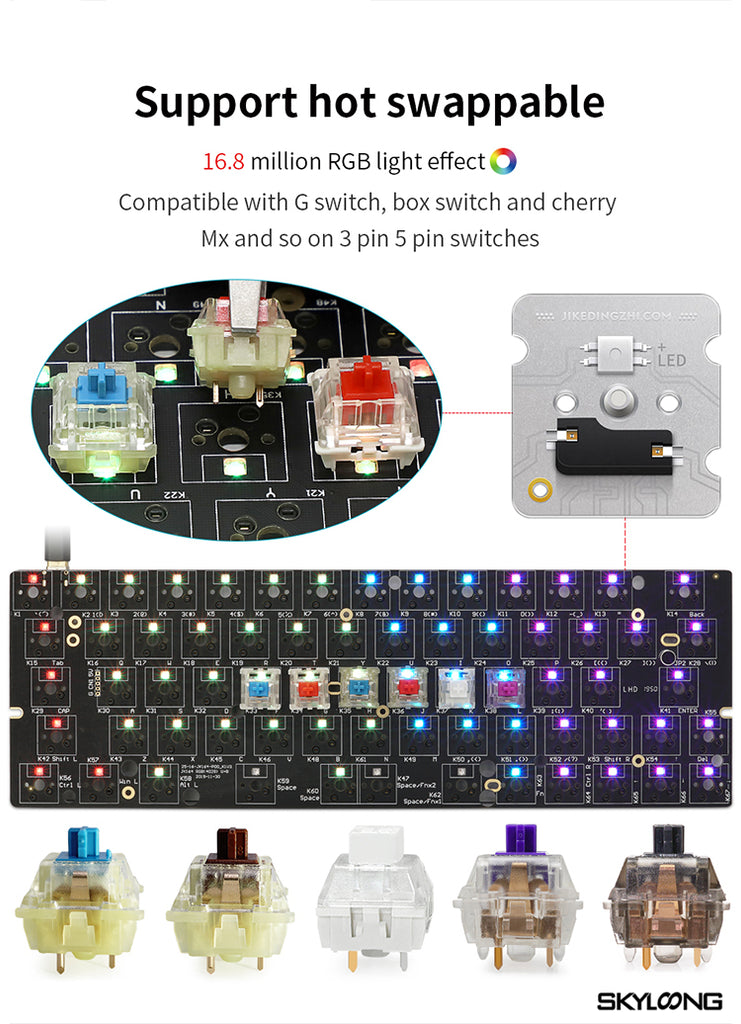

PCB has switches RGB presoldered,it's under per switch.There is no underglow RGB presoldered.
Bluetooth option is bluetooth 5.1,uses broadcom bluetooth chip and program which is more stable even than some 4.0 in the market.You can switch wired and bluetooth mode with Fn+Spc,enter into pairing mode by Fn+ZXC,can connect 3 device at most.
Bluetooth option RAlt ZXC Space key led is related to bluetooth mode,such as when battery volume is low,Ralt led will change color.So if these led color is different from other leds,it's not broken.
Bluetooth stand by time is around 10 days,if you use it without led,it can last around 6-8 days,if you use it with leds,it last around 2-4 days.The battery will charge in auto when you insert USB to PC or charger when the capacity is under 90%.

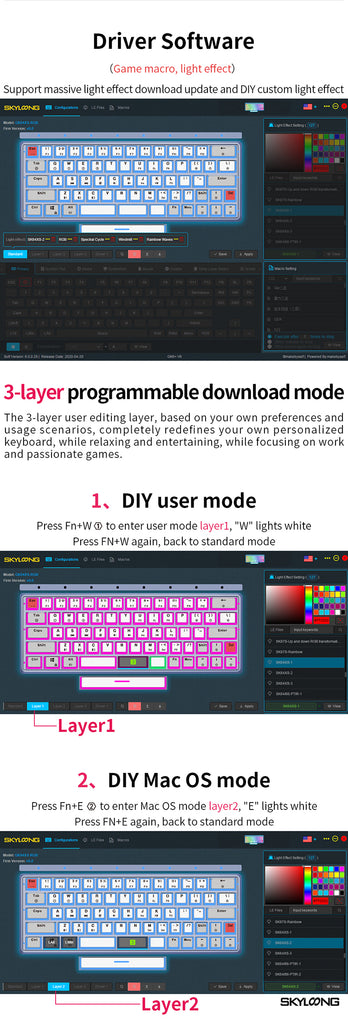

PCB is programmable with the software below (Can download on official website)
Mac system: drive.google.com/file/d/1Mbi6M30gf7LhLt8psYK99mUoXnubYjdS/view?usp=sharing
