YMDK Hot Swap Fully Programmable 96 Aluminum Case Plate PCB Stabilizers Support ANSI ISO DIY Kit

Regular price $138.00

Shipping calculated at checkout.

Package Included

Aluminum Case + Plate + Hot Swap PCB (Type C Connector) + Stabilizers needed + Rubber Feet + Switch puller

Stabilizers included 1x6.25u+7x2u (You only need to prepare switches and keycaps and cable to get a fully working keyboard)

Note: Please check the box whether it's in good edition before signing for the parcel.If the box has some hole outside,please request to open the box to check the case.Express shipping company all can check before signature.If it's broken,please refuse to sign for it.

Additonal Product to make a full keyboard

Switches Click Here

Leds Click Here

Keycap click Here

Hot led Socket 200 pcs (Need to solder on yourself,if you want us to solder it for you,pls choose assembly service)

Upgrade brass plate add 40 pcs this links

Details

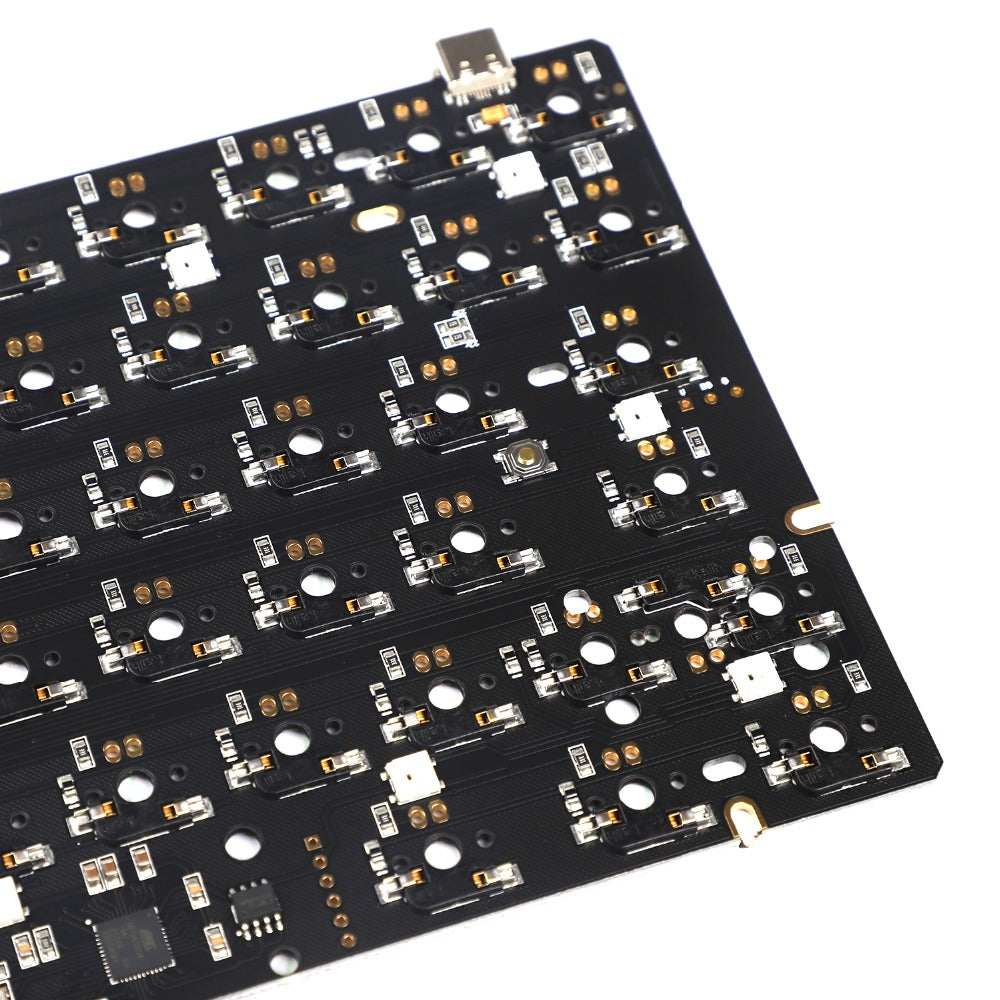

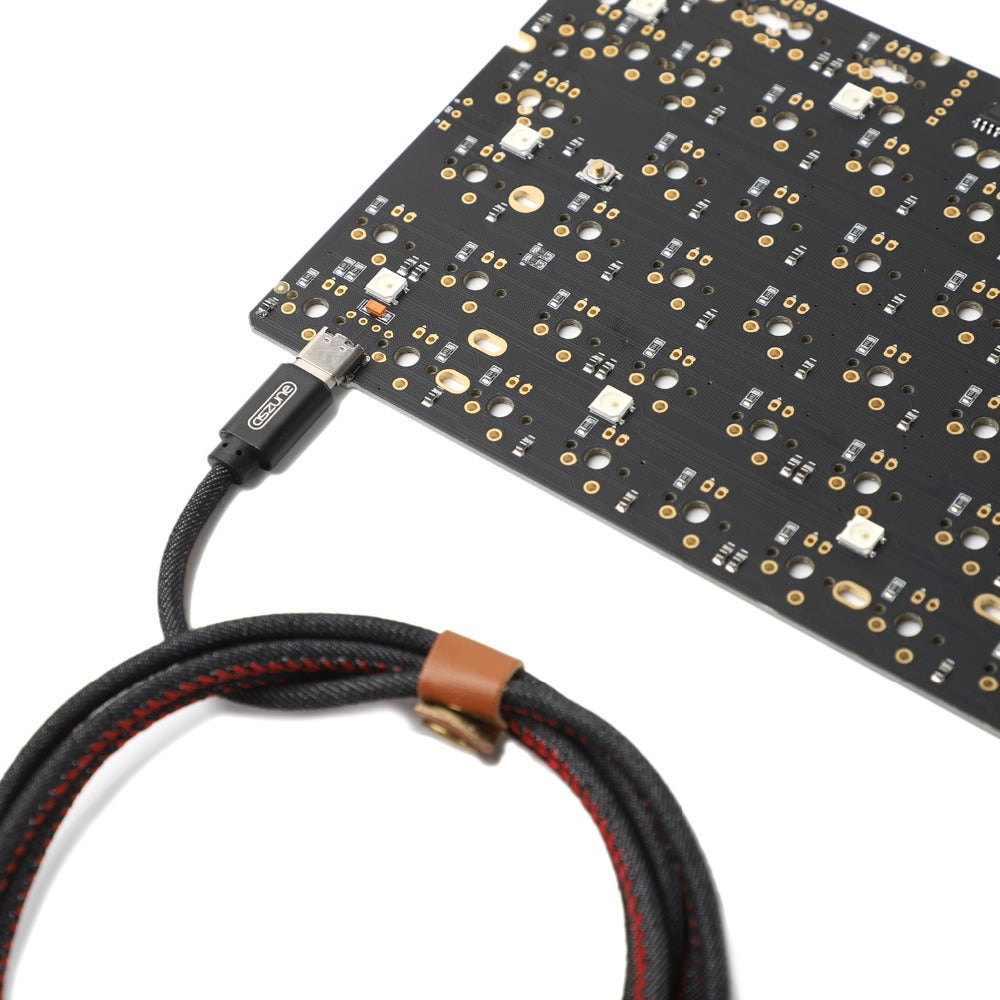

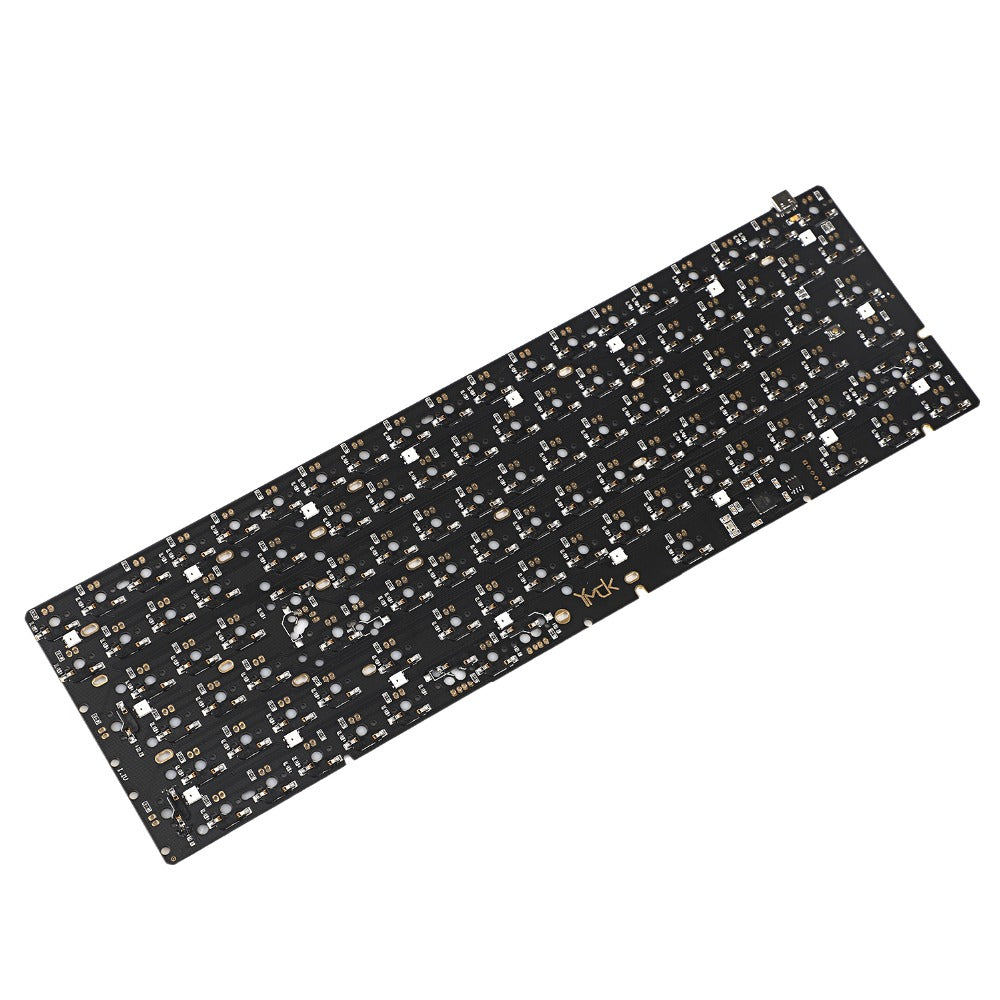

PCB is presoldered with Kailh socket,there is 4 most popular layout for your option.

If you choose non hot swap PCB,it's normal gold pad Type C QMK PCB which can support all layout as YMD96.And you need to solder switches.

If you want switch led,we suggest you use 2x3x4 squre leds.It need to solder youself. To fit existed case plate,this PCB size is limited and Esc F1 Rcrtl switch led hole is put reserved .Except you use side lit keycaps,there will be no influence.

Manuals

Non hotswap 96 QMK manual:  drive.google.com/open?id=1oJmSfjgs_DugsvloO9VaO5KWvwS4T2OX

Hotswap 96 QMK Manuals:  drive.google.com/file/d/17u2PHPyHBGkvnsnkOrZEATtR9OkS_guG/view?usp=sharing

Hotswap 96 VIA Manuals: drive.google.com/file/d/18RPcr01UgIxzFhyI94FR7OwCYUdHYH_y/view?usp=sharing   (If you want us to use VIA for non hotswap 96 PCB,the keycode for Enter \| need to reversed)



Image Display

Kit

Upgrade to brass plate

Add Switches installed

Add Keycaps installed

Note 1

Ymdkey only support paypal now,thanks for understanding.

Note 2

Kindly note all price listed in page don't include destination taxes since every country is different policy.

If you located in EU UK,will charge VAT for orders under Euro150 when checkout since 1,July.

If you order is over Euro150,please pay VAT /customs fee yourself in destination.

For shipping and invoice details,just message us directly is ok.
