YMD-75% 84 V4 RGB Hotswap PCB+Plate(North Facing/ANSI ISO VIA VIAL Fully Programmable)

Regular price $53.50

Shipping calculated at checkout.

Quantity

Description
Required noting

Package Included(ANSI/ISO)

YMD-75% 84 V4 RGB Hotswap PCB(+Plate)

Details

For 75% case and kit in our store,the only pcb still is needed as the replacement when the pcb is damaged because some reasons,so we list it alone.This one is V4 RGB VIA VIAL version.

PCB uses kailh socket,that supports many mx switches.

ANSI and ISO for PCB of options.

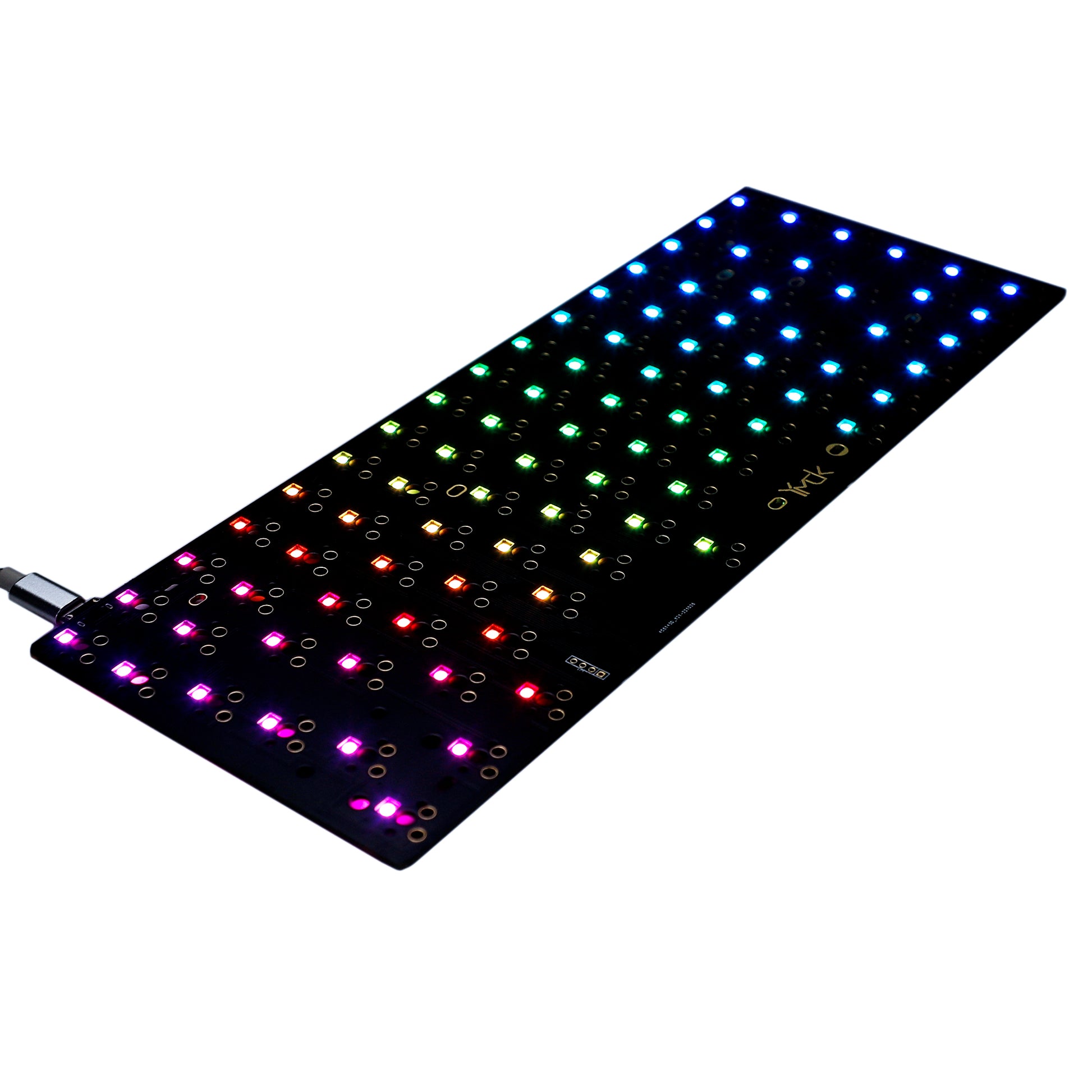

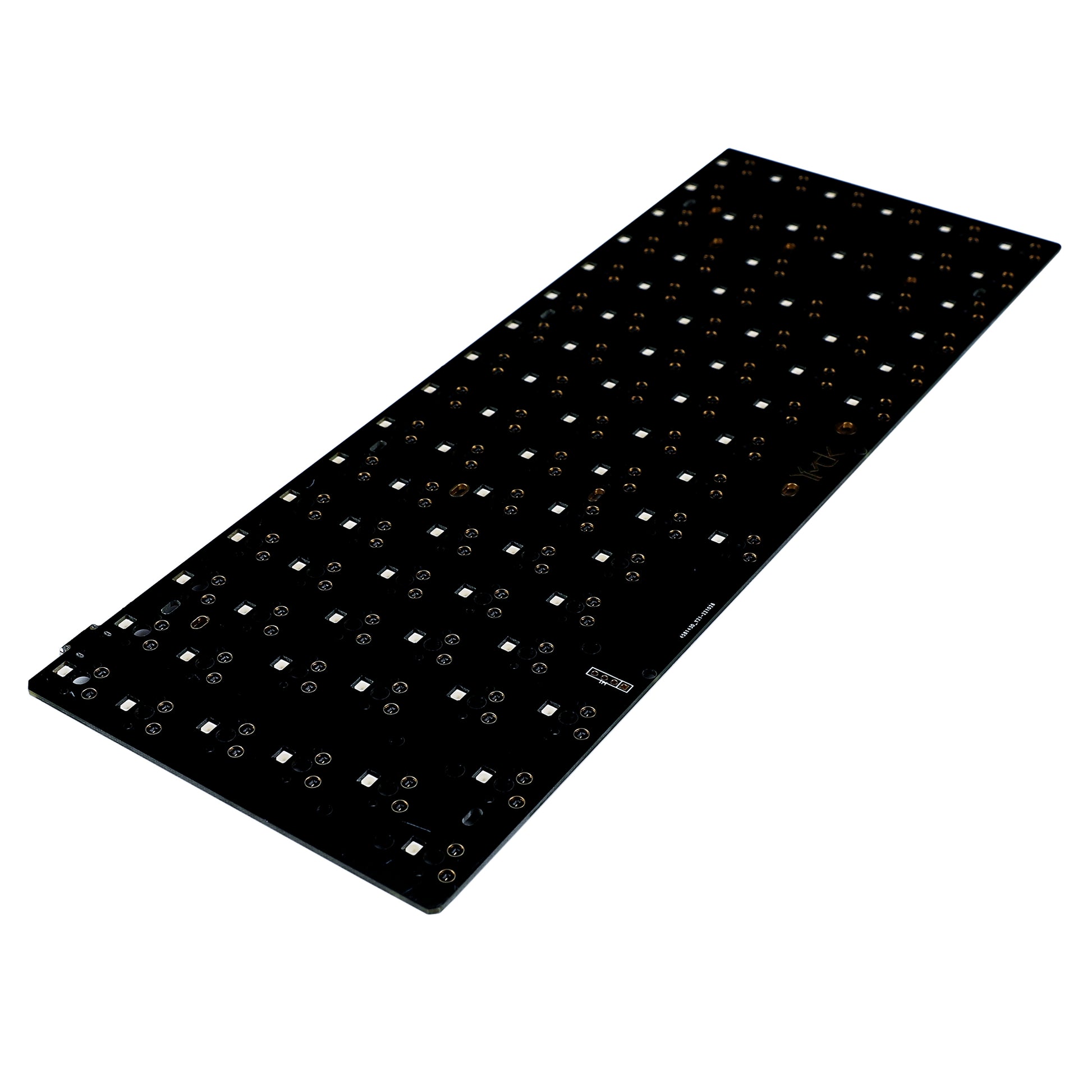

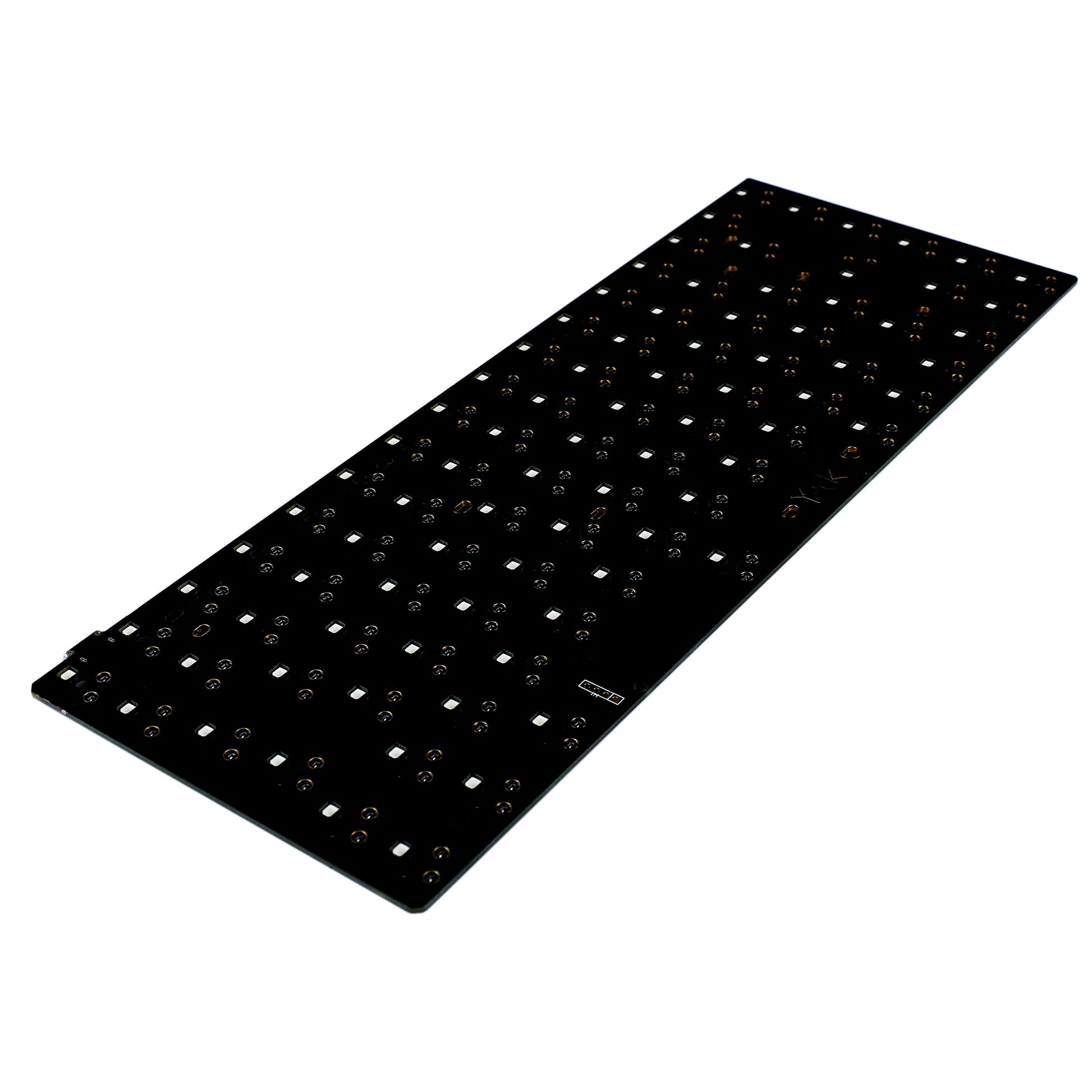

North facing hotswap rgb backlit and underglow type-C port PCB,supports many 75% cases.Like our store of wood/acrylic case.

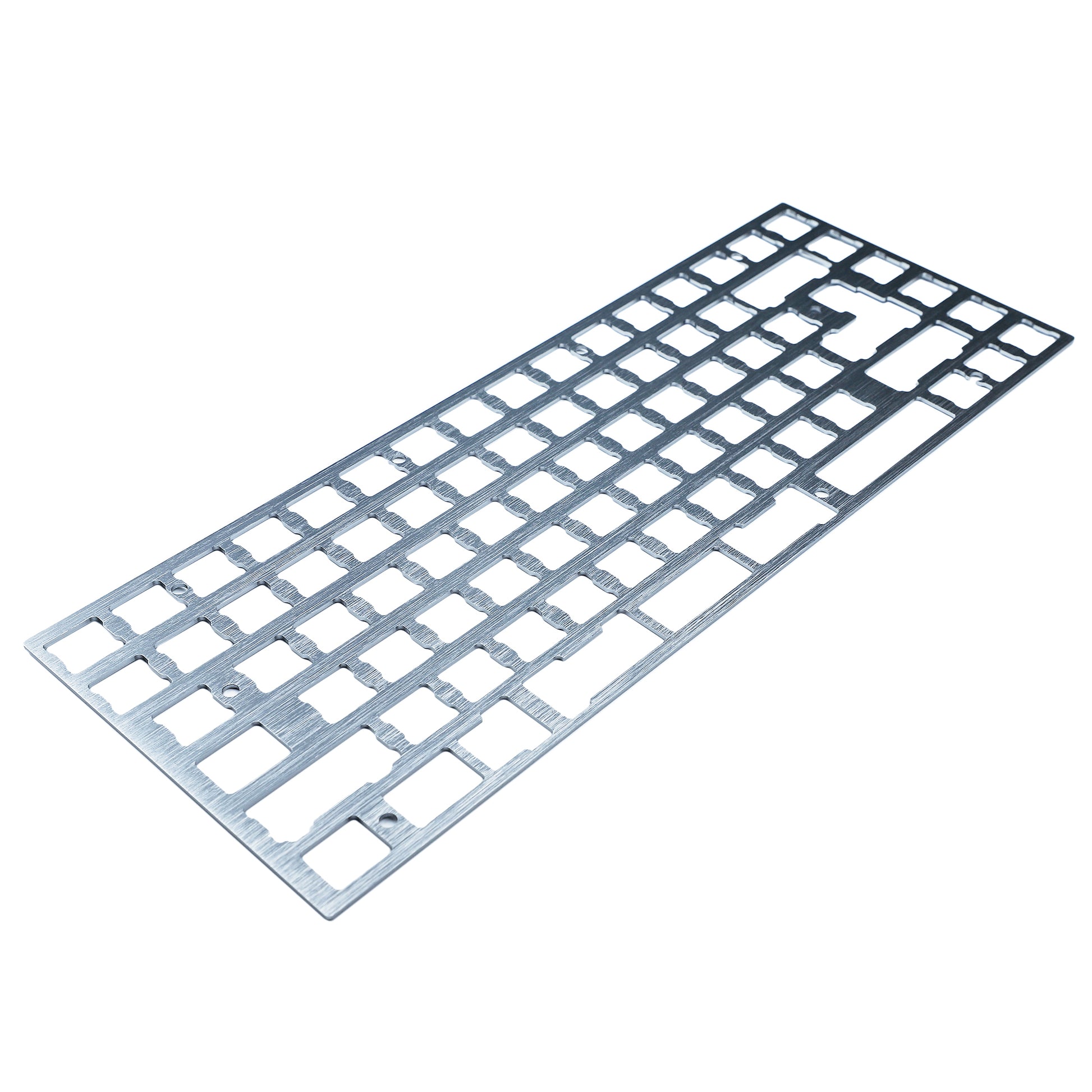

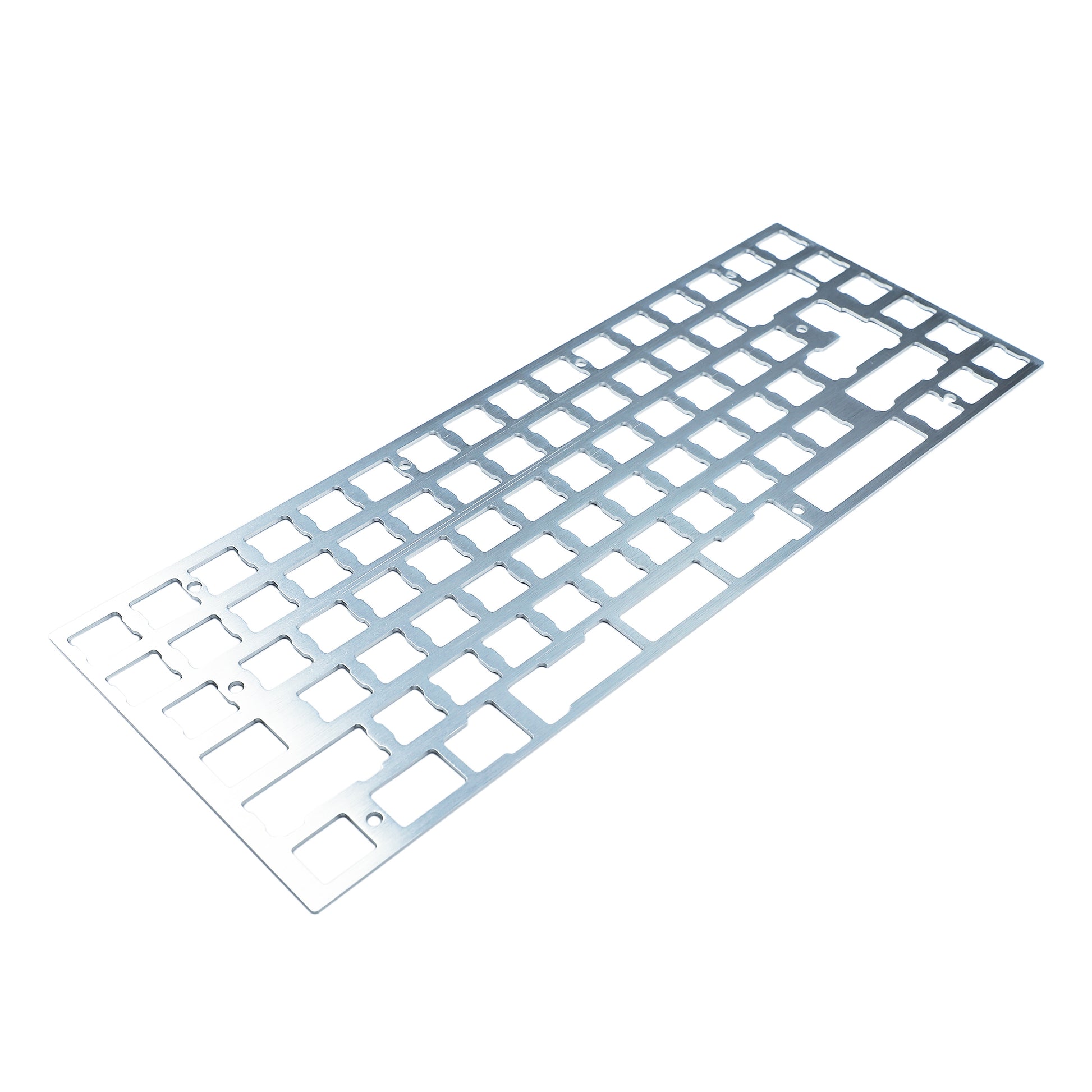

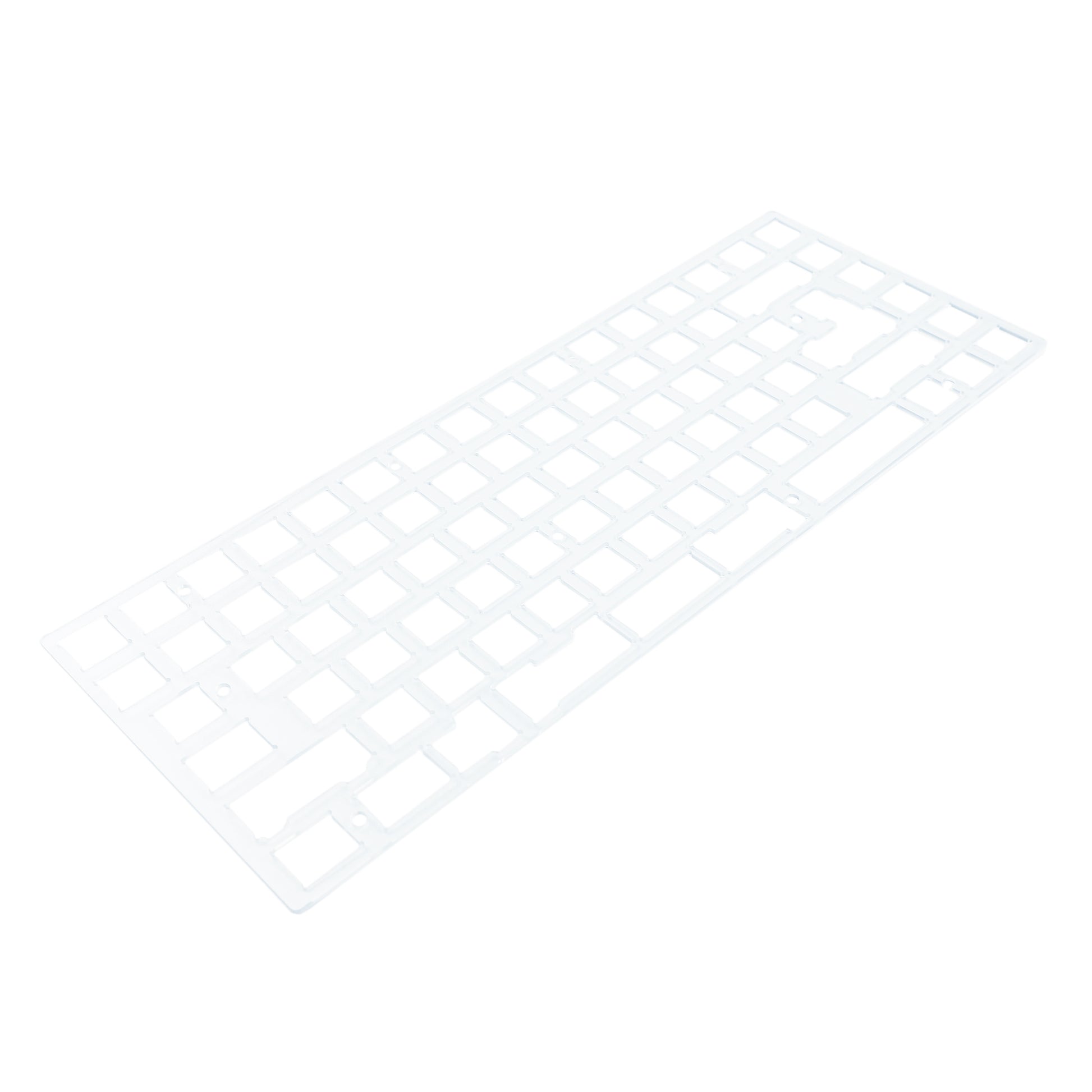

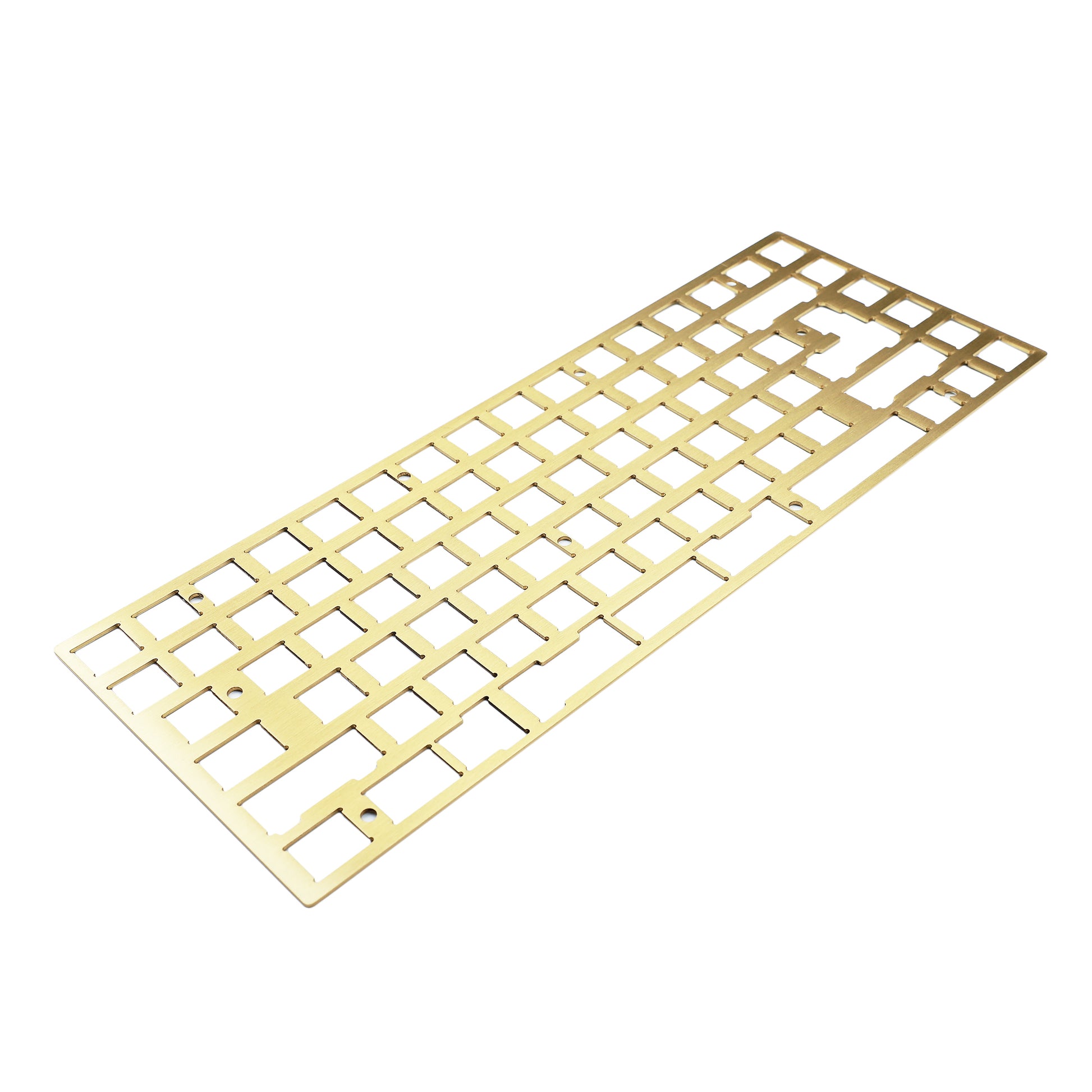

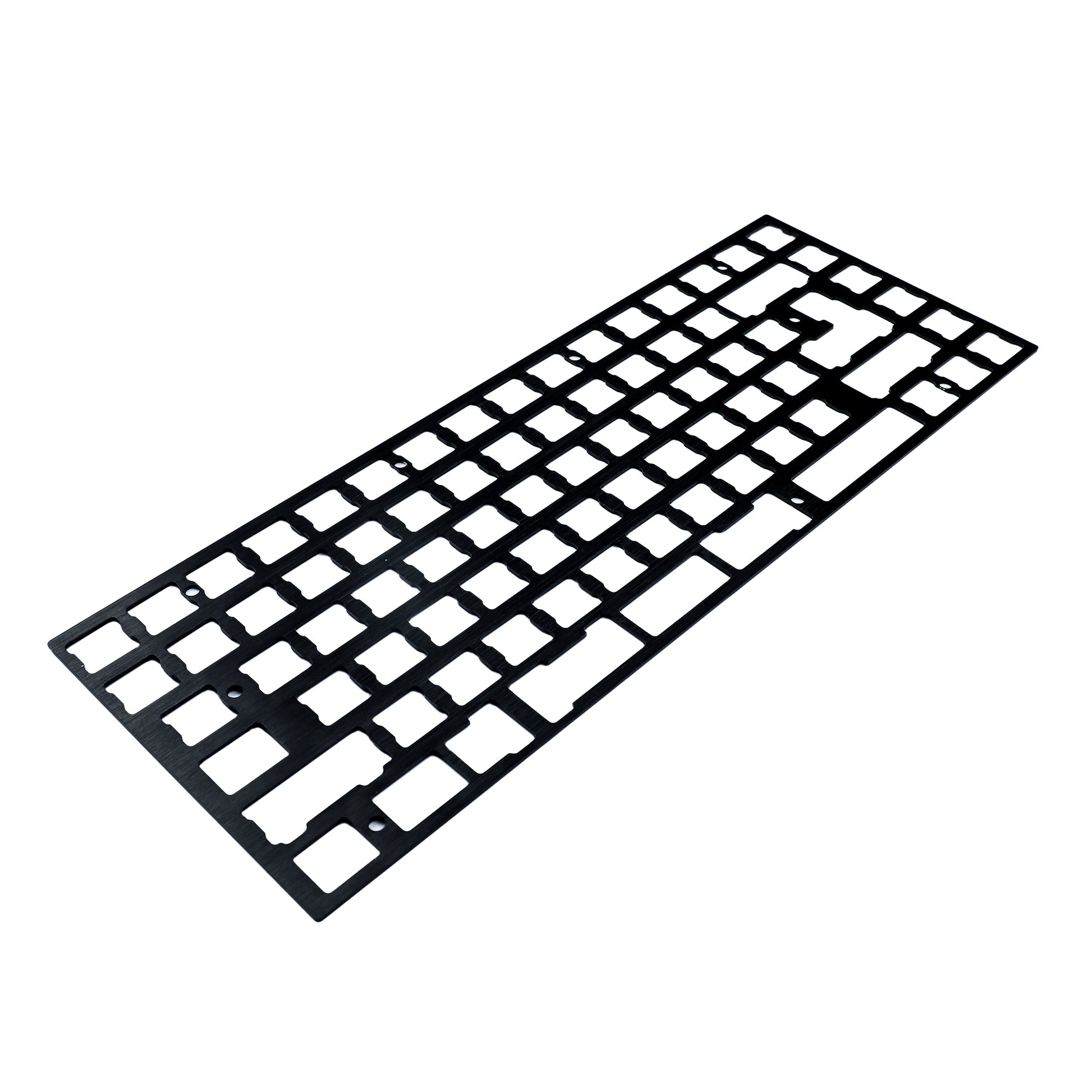

Plate has brass/aluminum/PC material,please use it without integrated plate in case.

Manuals

Just download VIAL software or open VIA site below and then open it,change the keycode directly is ok.No need to reset PCB.

VIAL: drive.google.com/file/d/134pbPlonLtRwuDfBxpeSjdlnG7RoL5by/view?usp=share_link

VIA: usevia.app

How to install PCB plate kit

1.Install stabilizers to PCB at first

2.Amount around 5-6 switches onto plate corners and middle part totally

3.Amount these switches pin to PCB socket totally.After PCB plate fixed,plug other switches in around 90 degree is ok.When plugging you can put PCB onto desk which can avoid big damage when plugging switches.

4.If there is any big resistance when plugging switches,especially when you use kailh switches,don’t put it in forcely.Make sure the switch pin is not bent and the switches is around 90 degree.

5.After plugging switches,if 1 or 2 key not working,check the switch pin whether it’s bent at first.Then check whether the back socket is plugged loose.

Even hotswap PCB don’t need to solder as normal,however the socket is easily to be plugged loose or off after many times replacing,so if you can prepare a cheap solder iron in hand,1 hotswap PCB can use for many years.We sold many brand hotswap PCB now,these are experience from many customers.

Images Display

ANSI

ISO
