Diamond 61 GK61 GK61x GK61xs Kit CNC Anodized Aluminium case PC Case Plate Hot Swap GK61 PCB Stabilizers GK61 Bluetooth

Regular price $145.00

Shipping calculated at checkout.

Package Included

CNC Case + Aluminum Plate + GK61 Wired or Bluetooth PCB + Plate Stabilizers + Screws + Brass Blot + Rubber Feet

Bluetooth edition also has an 1900mAh volume battery in addition to above items

You only need to prepare switches and keycaps yourself to get a fully keyboard.3 pin and 5 pin MX switches all is compatible

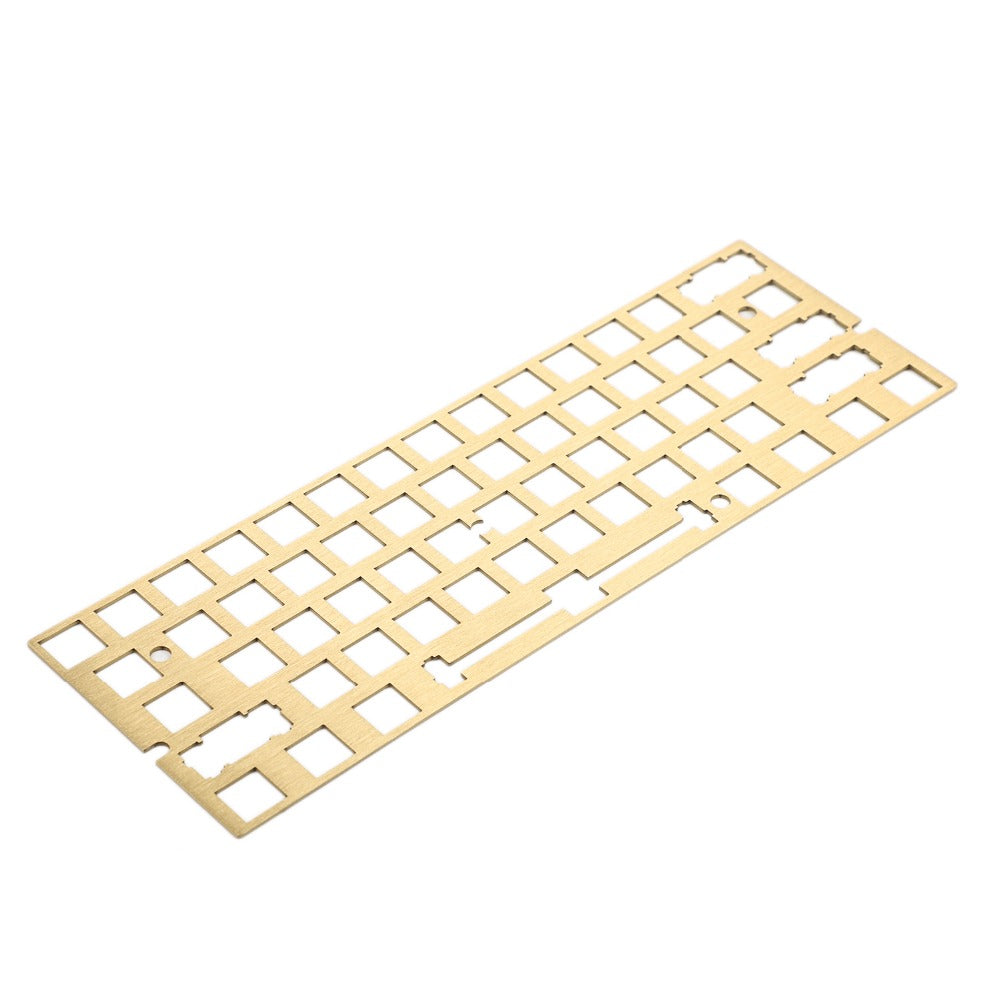

GK61 Aluminum Plate PCB

3 OptionsFor Plate: Silver Gray Black

2 Options For PCB: GK61 Wired and GK61 Bluetooth.

All can be chosen directly


Pls note: This pcb is fully programmable,however Fn sits at the right of bottom row and place can't change.

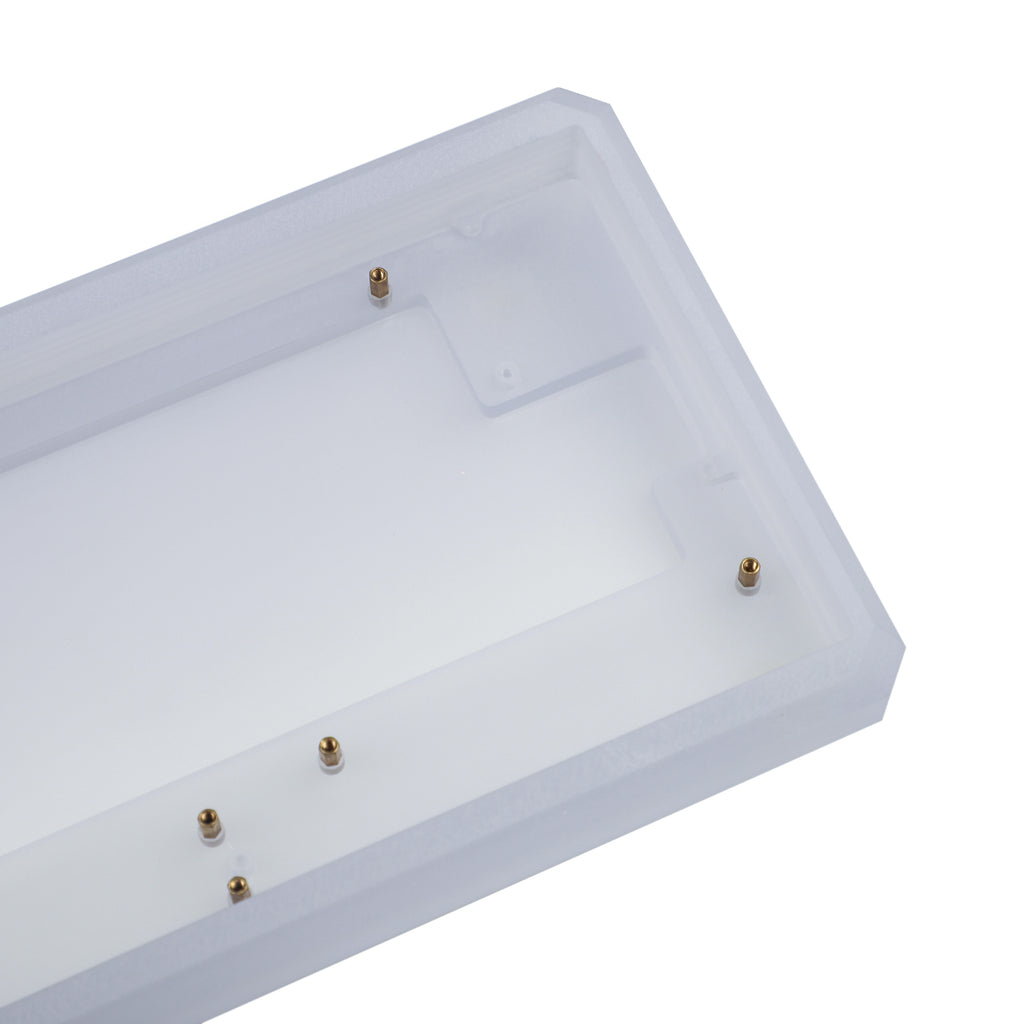

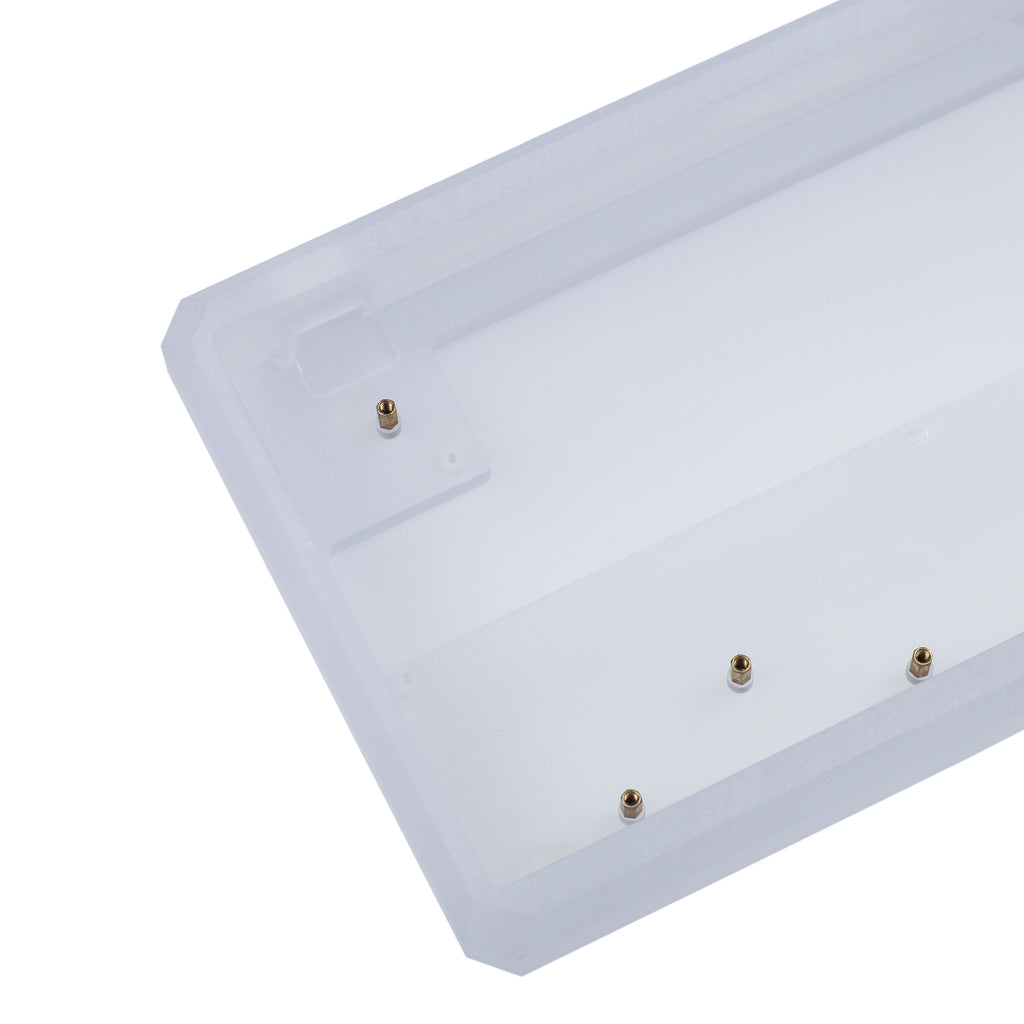

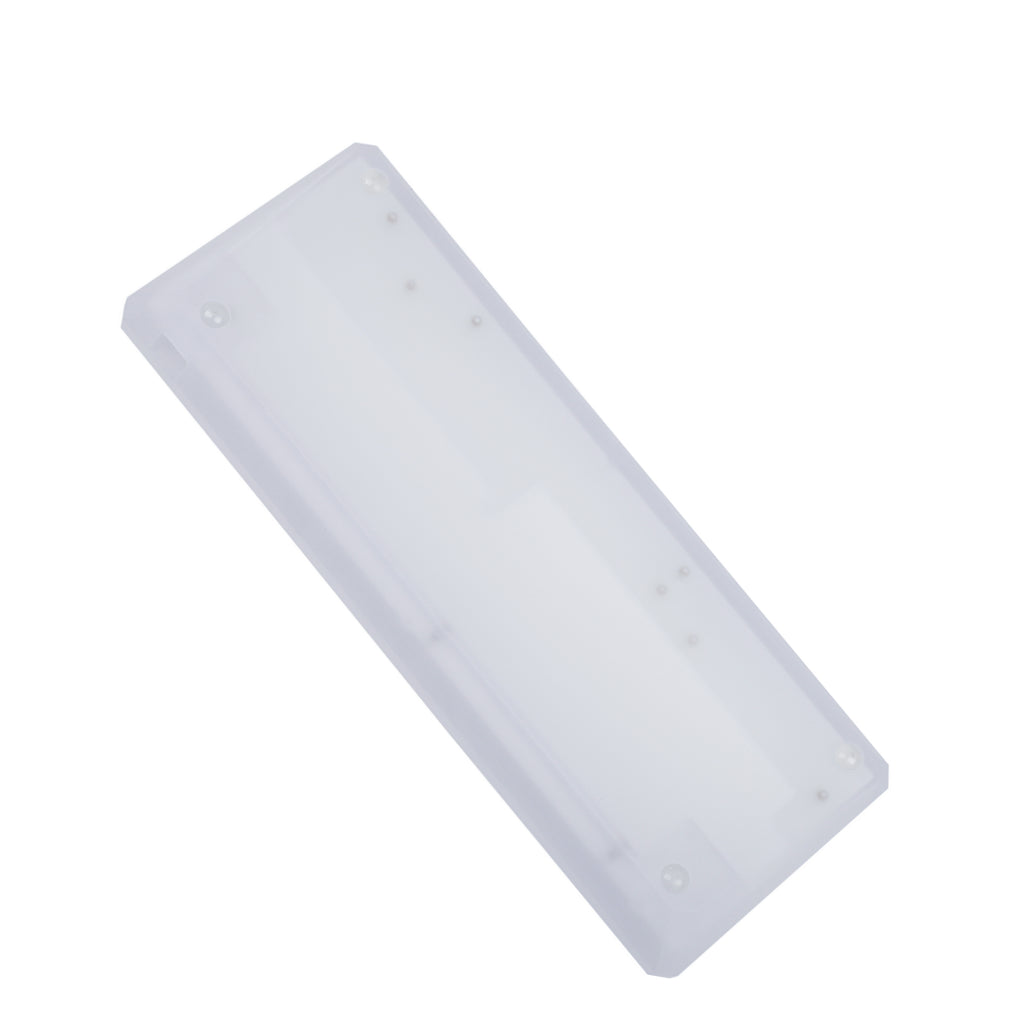

To install GK61 PCB,pls use brass bolt and M2-6 screws.Acylic case is CNC frosted,Aluminum case is CNC anodized.

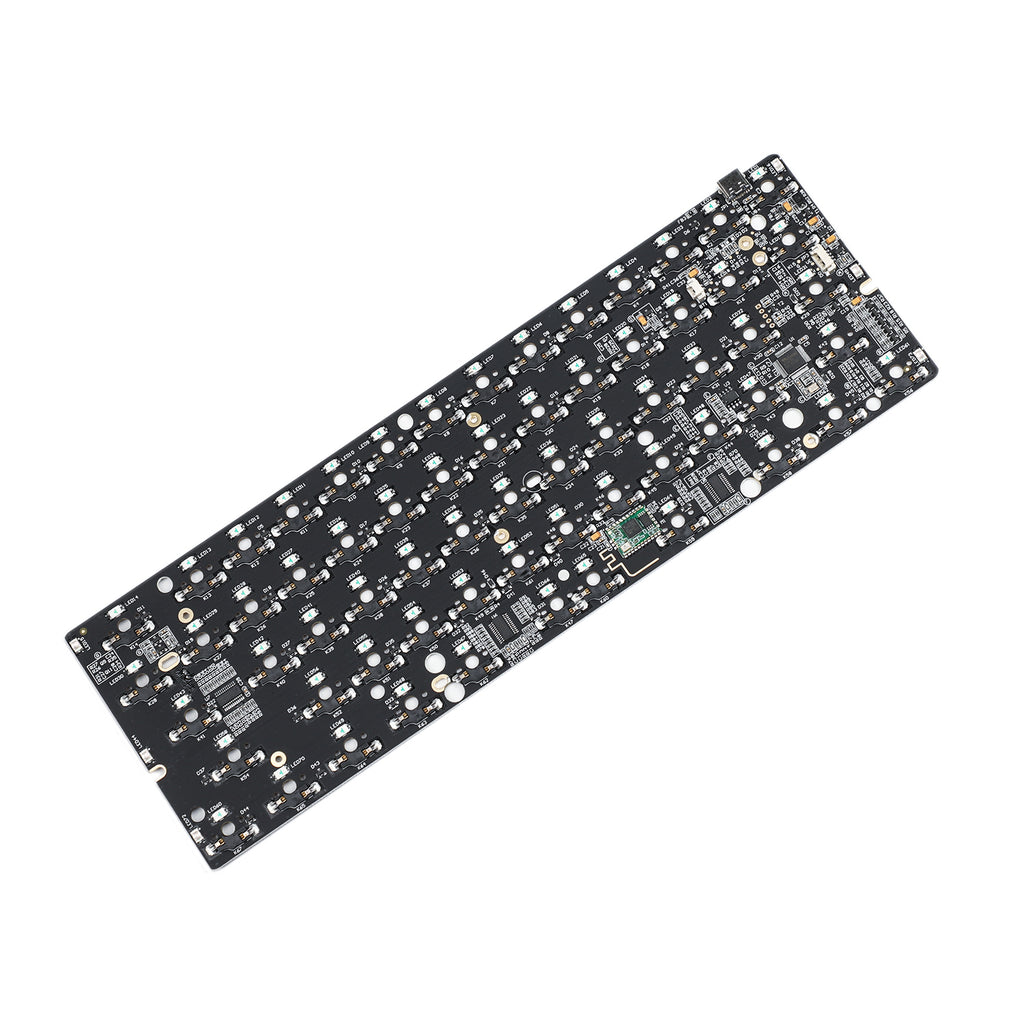

The chipset is MCU 32 bit,8M Flash,3 pcs 256*256*256 RGB drive to support full 16.8 million RGB.

PCB has RGB presoldered,it's under per switch.PCB RGB can support by music.

Bluetooth option is bluetooth 3.0,uses broadcom bluetooth chip and program which is more stable even than some 4.0 in the market.You can switch wired and bluetooth mode with Fn+Spc,enter into pairing mode by Fn+ZXC,can connect 3 device at most.

Bluetooth option RAlt ZXC Space key led is related to bluetooth mode,such as when battery volume is low,Ralt led will change color.So if these led color is different from other leds,it's not broken.

​Bluetooth stand by time is around 10 days,if you use it without led,it can last around 6-8 days,if you use it with leds,it last around 2-4 days.The battery will charge in auto when you insert USB to PC or charger when the capacity is under 90%.

There is no switches in the kit,you can order Cherry Gateron Kailh SMD Box switches etc yourself.Just put in switches in is ok,no need soldering again.


PCB is programmable with the software below (Can download on official website)


After Service

If the case you received is broken,pls contact immediately.

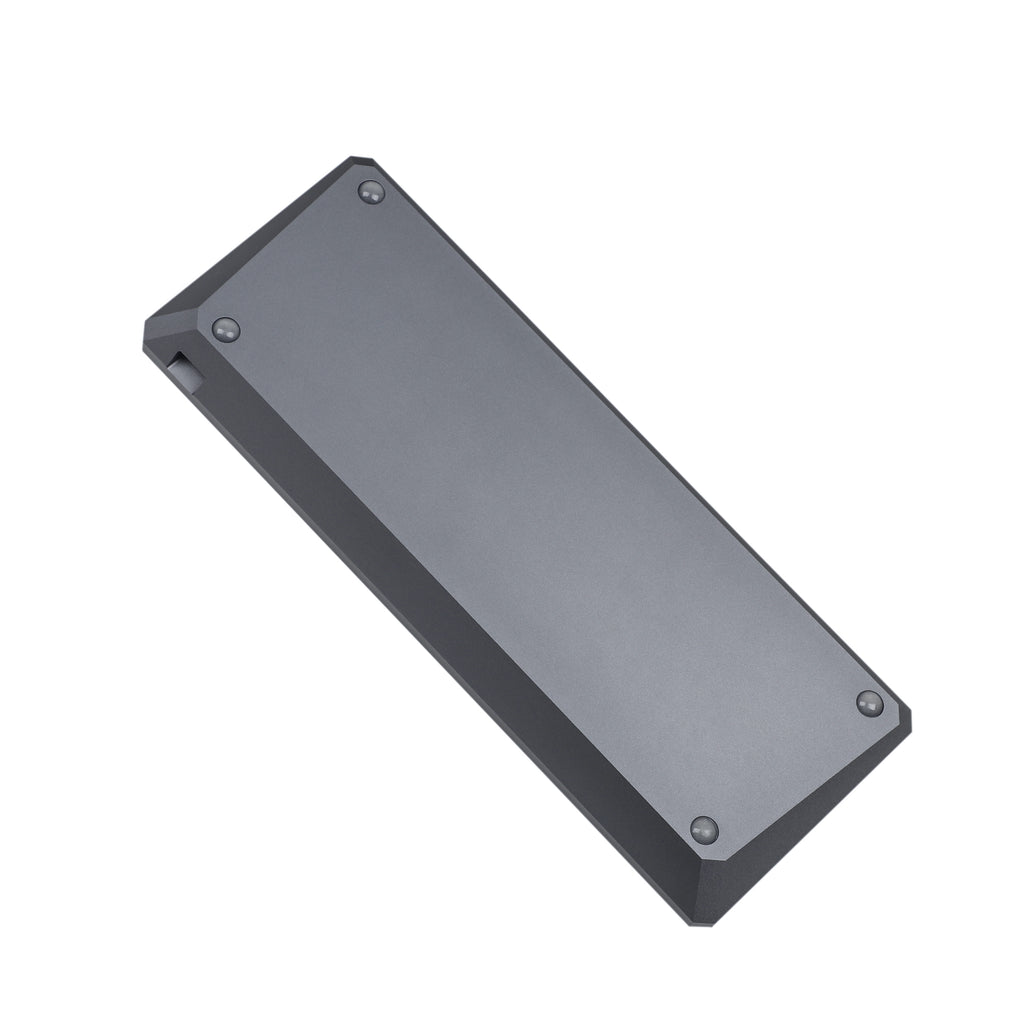

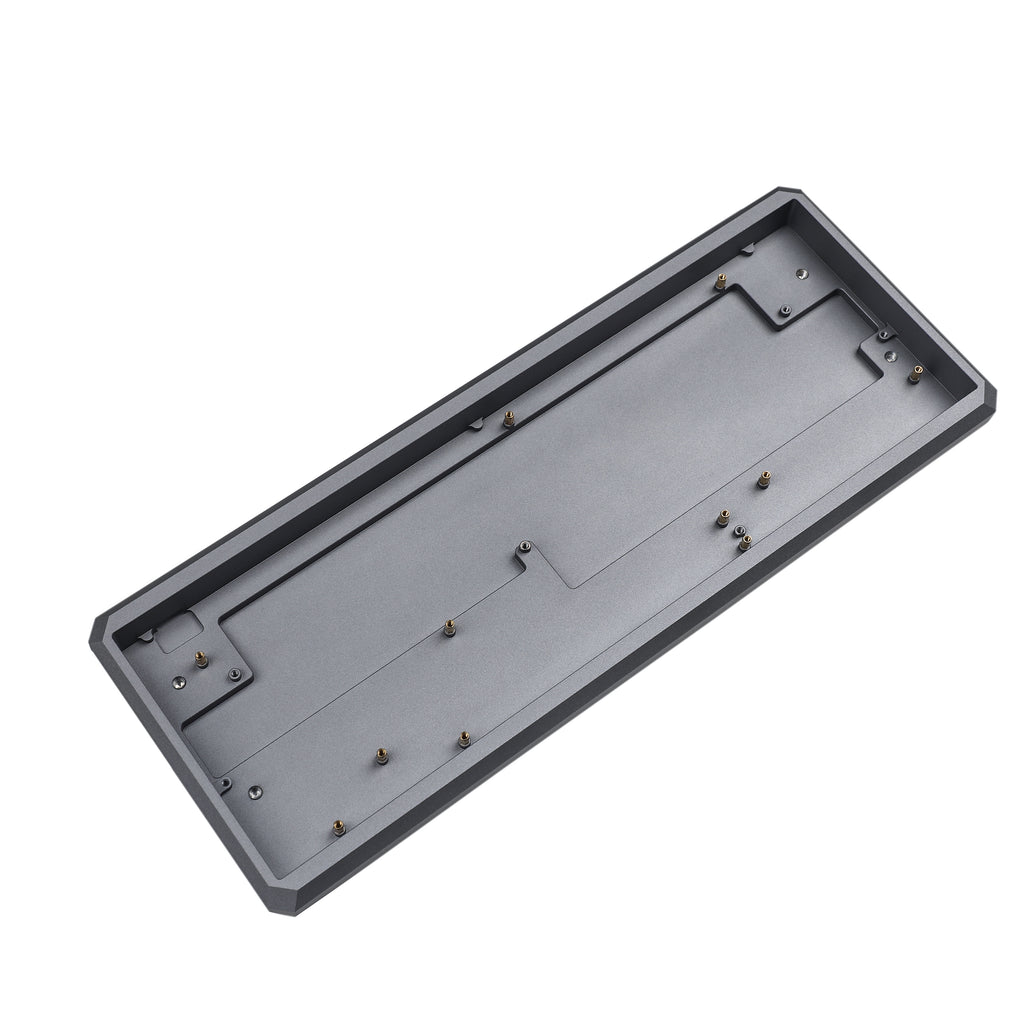

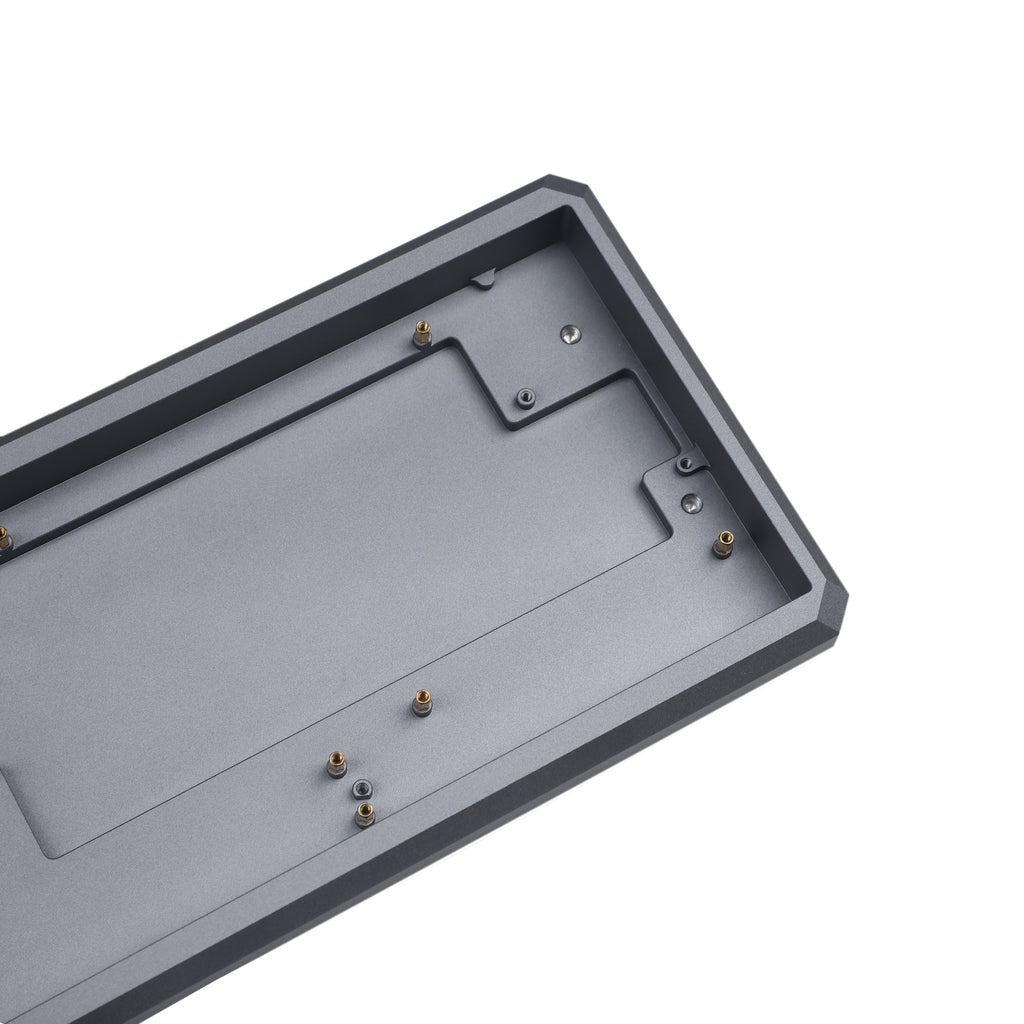

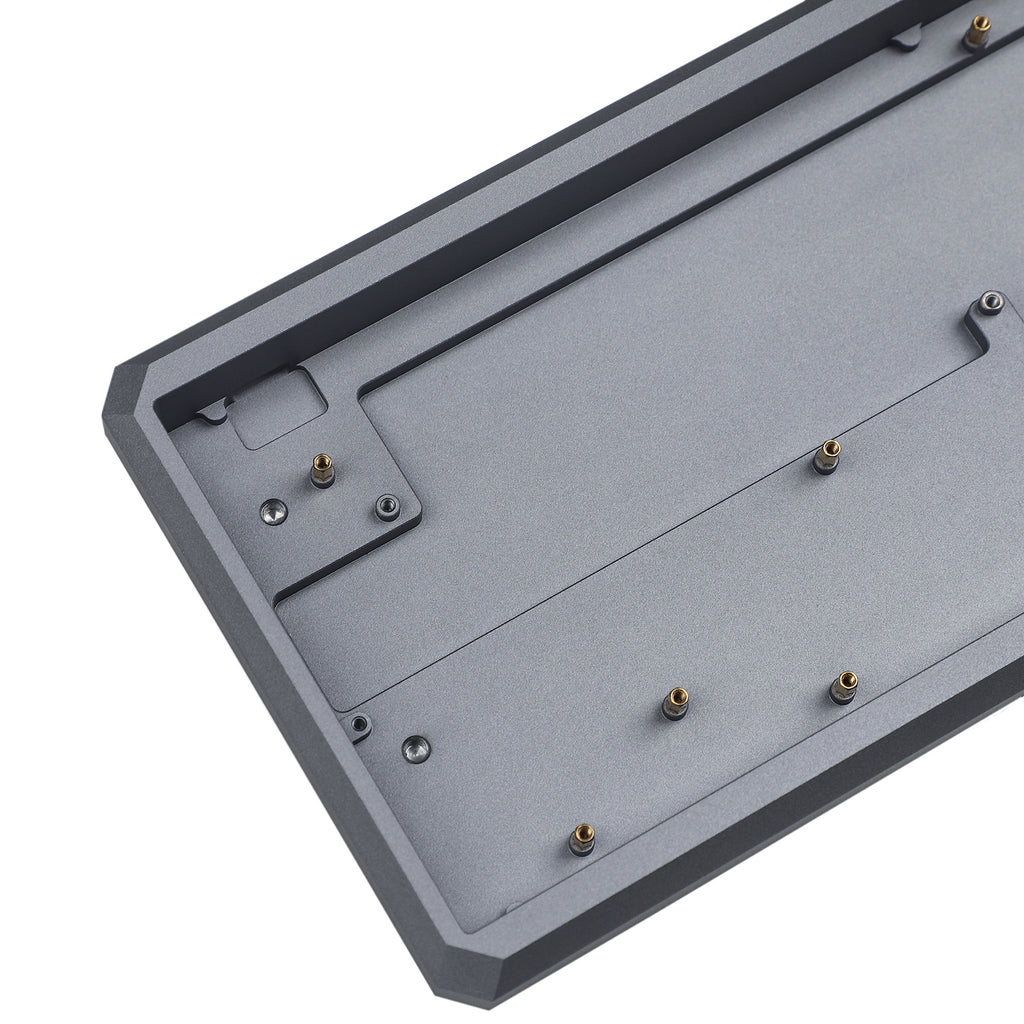

Gray Alu

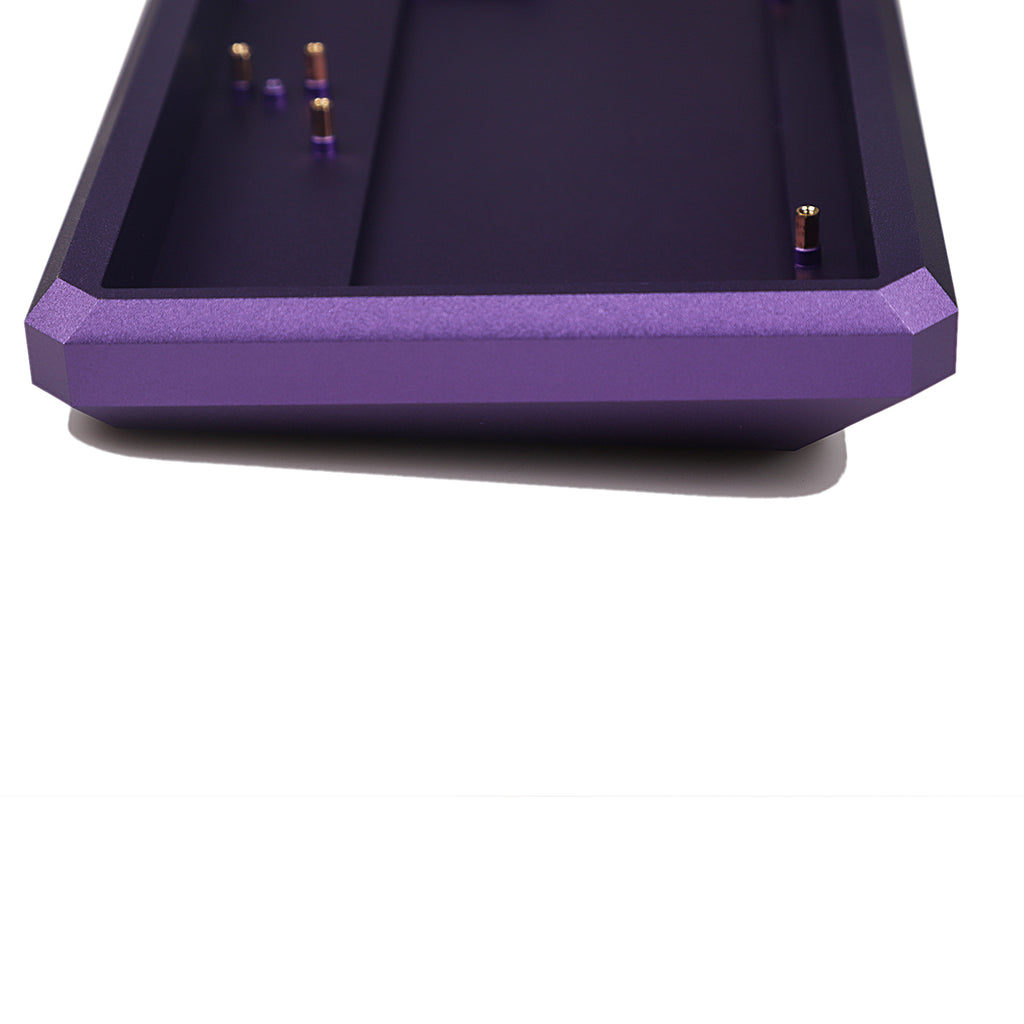

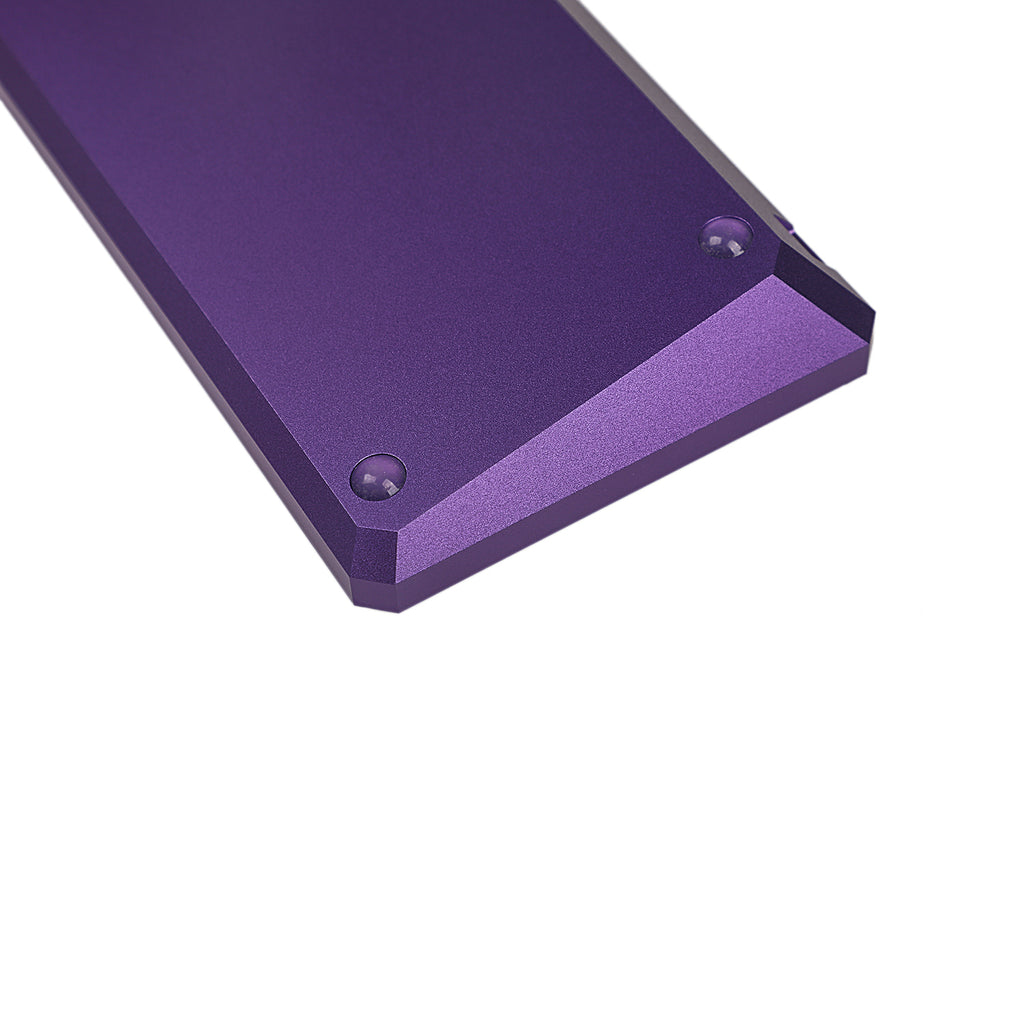

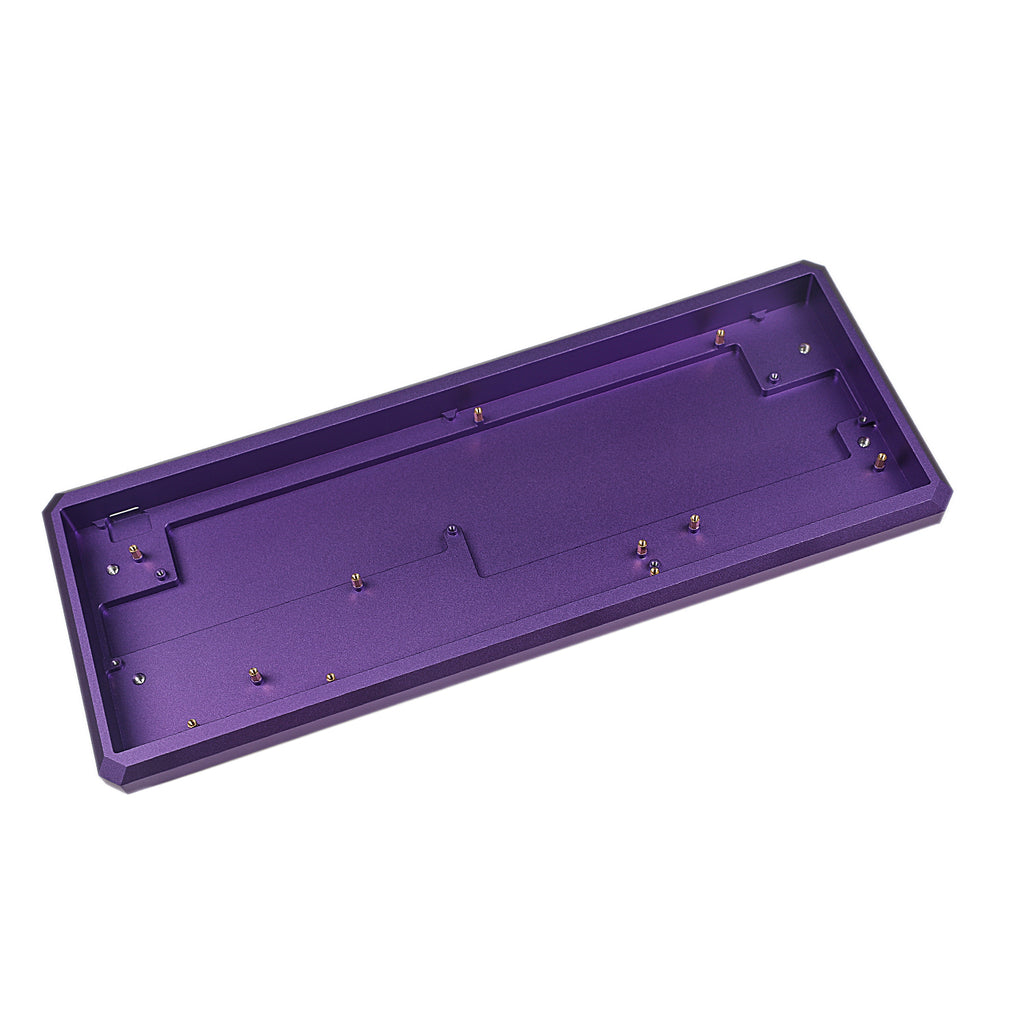

Purple Alu
