DIY Crystal Base Switch Hot Plug Hot Swap Sip Socket(Wings YMD40v2 YMD21v2 YD64MQ YMD75v2 Using)

Package Included

This link is only switch hot pin hot plug For Wings \YMD40V2\ YMD21v2 (QMK) PCB \YD64MQ (QMK new edition)\ YD64MB

For Wings and YD64MQ (YD60MQ) ,it can only use for the PCB which is ordered after 1,April

For YMD75 v2 white PCB, A left switch hole and \| Left hole (under Backspace) can't use.Other keys all is ok

Details

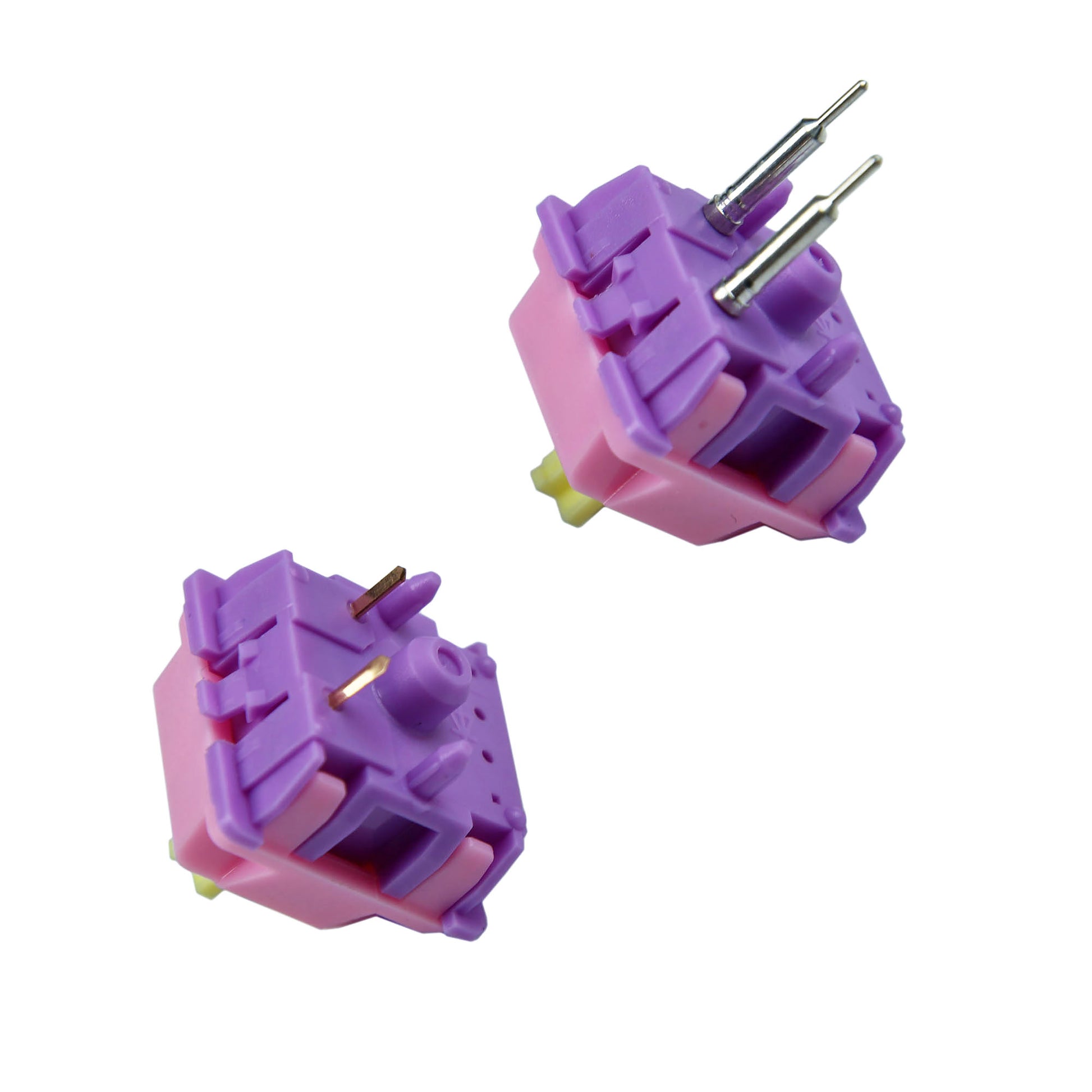

1 switch needs 2 hot plug.

This switch plug can support all cherry MX switches and clones such as Gateron Kailh Outemu

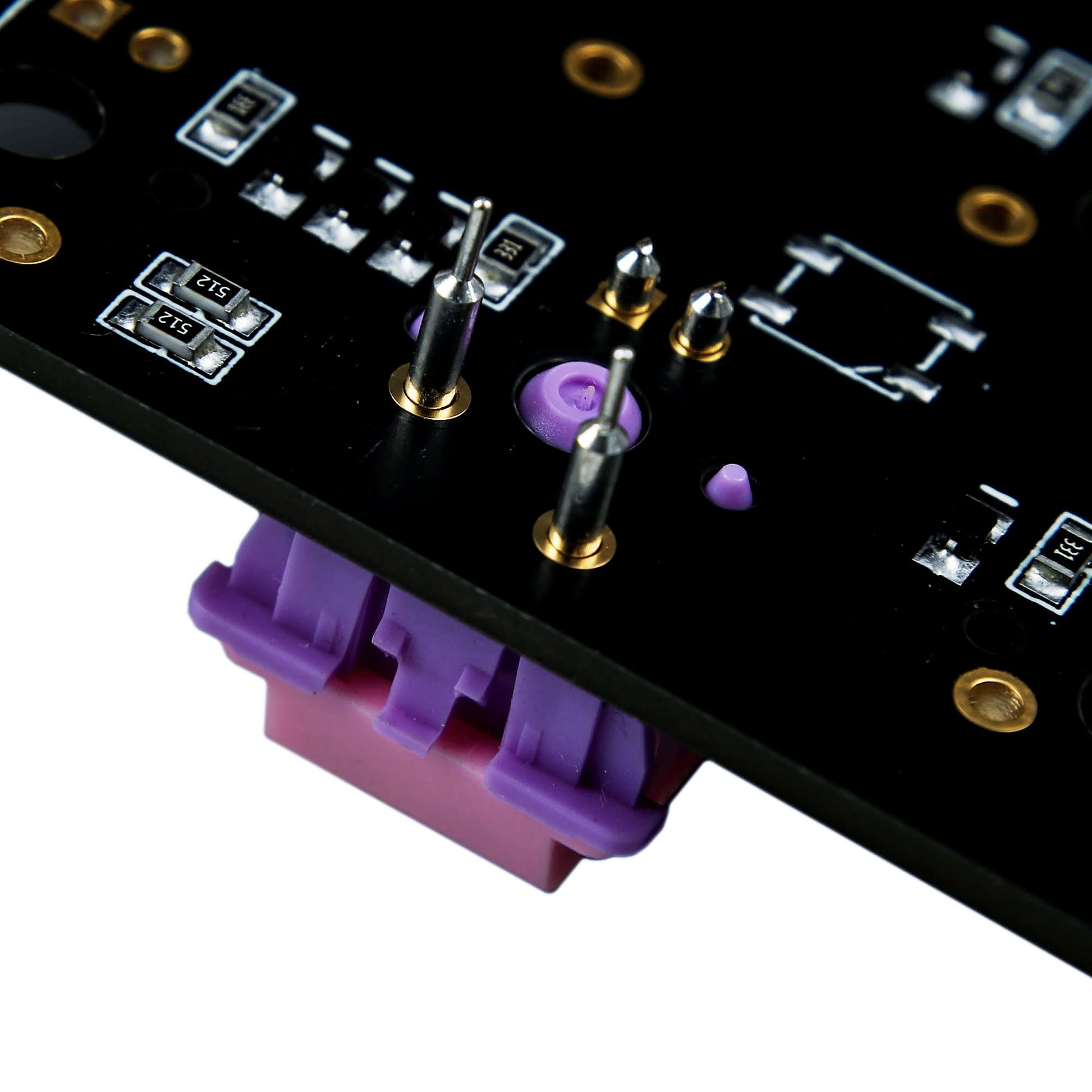

You can see the video below how to install it.After installing,just cut the long pin outside to suit the case and switch is ok

Priority

This hot pin is customized size for YMDK PCB.There will be more and more YMDK new PCB will support this hot pin in future.

This hot pin no need soldering

This hot pin can support many layout except regular ones.You can just plug the hot pin to the layout which you want.Such as if you plug on YD64MQ,you can get Minila 64 61 split space layout as your wish.

This hot pin not only can support outemu switches,it can also use cherry gateron kailh etc in the market

With this hot pin,it won't plug the socket off as the Kailh socket

Notice

The hot pin can't use for other brand PCB model except the ones in our listings

If you use with the plate PCB which don't have copper stand to attach each other,please install 4-5 switches in the plate corner and then plug to PCB socket.After place fixed and then plug other switch in is ok

YHMD21 v2 is using acrylic plate now which is not tight as aluminum plate.If you care about this,can wait for aluminum plate in next month
