Package Included

Switch*quantities(10/35/70/90/105 as options)

Detials

New independent mold, improve accuracy and smoothness.

The joint development with JWK lasted more than 1 year, using a new material POK as the housing material, POK has outstanding water resistance, chemical resistance, toughness and super wear resistance, which is 14 times that of POM material.

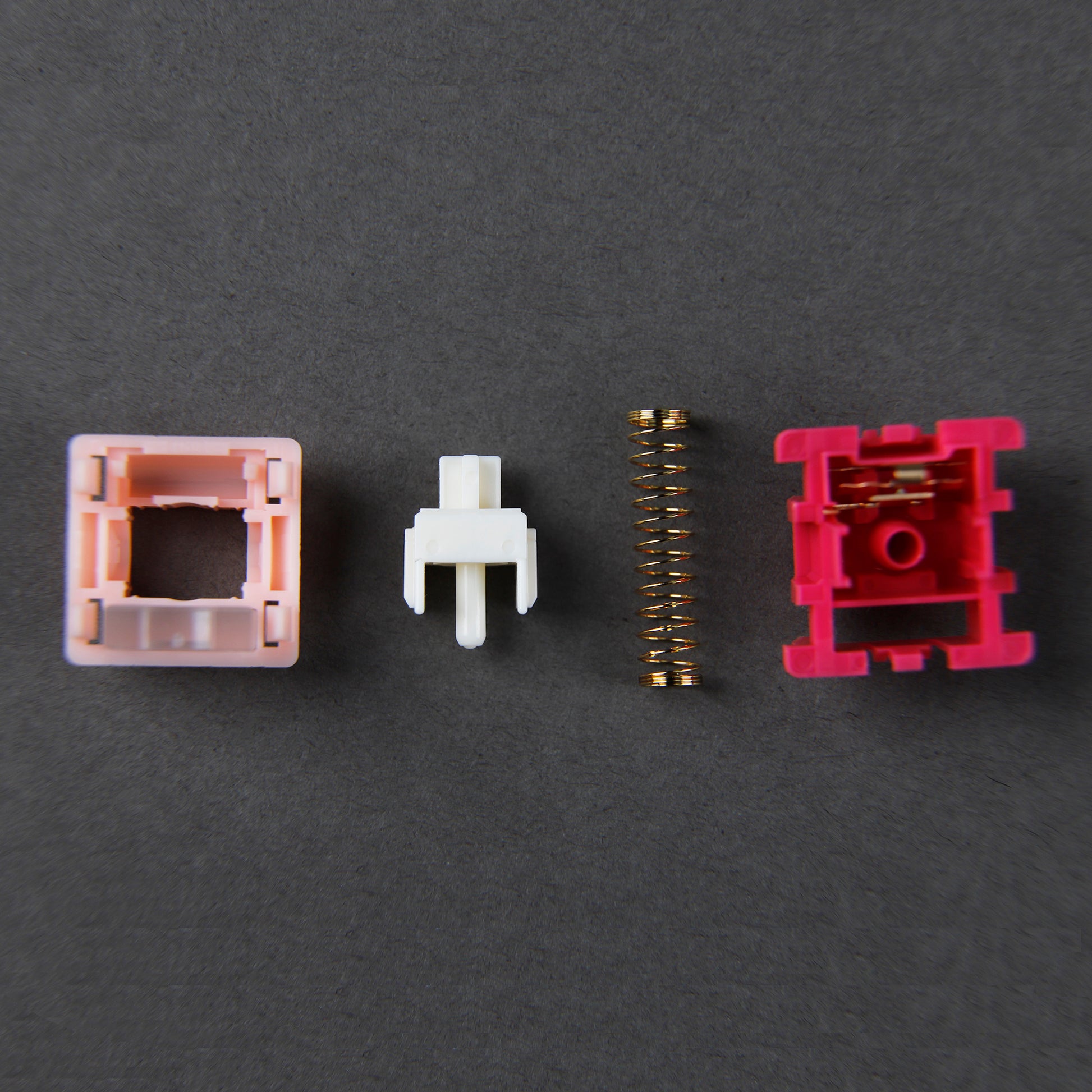

Switch stem and the inner design of the bottom shell to optimize the bottom sound and control the feedback of the sound size within a reasonable range. We want to pursue the comprehensive quality of switch balance to cope with the use of various scenarios.

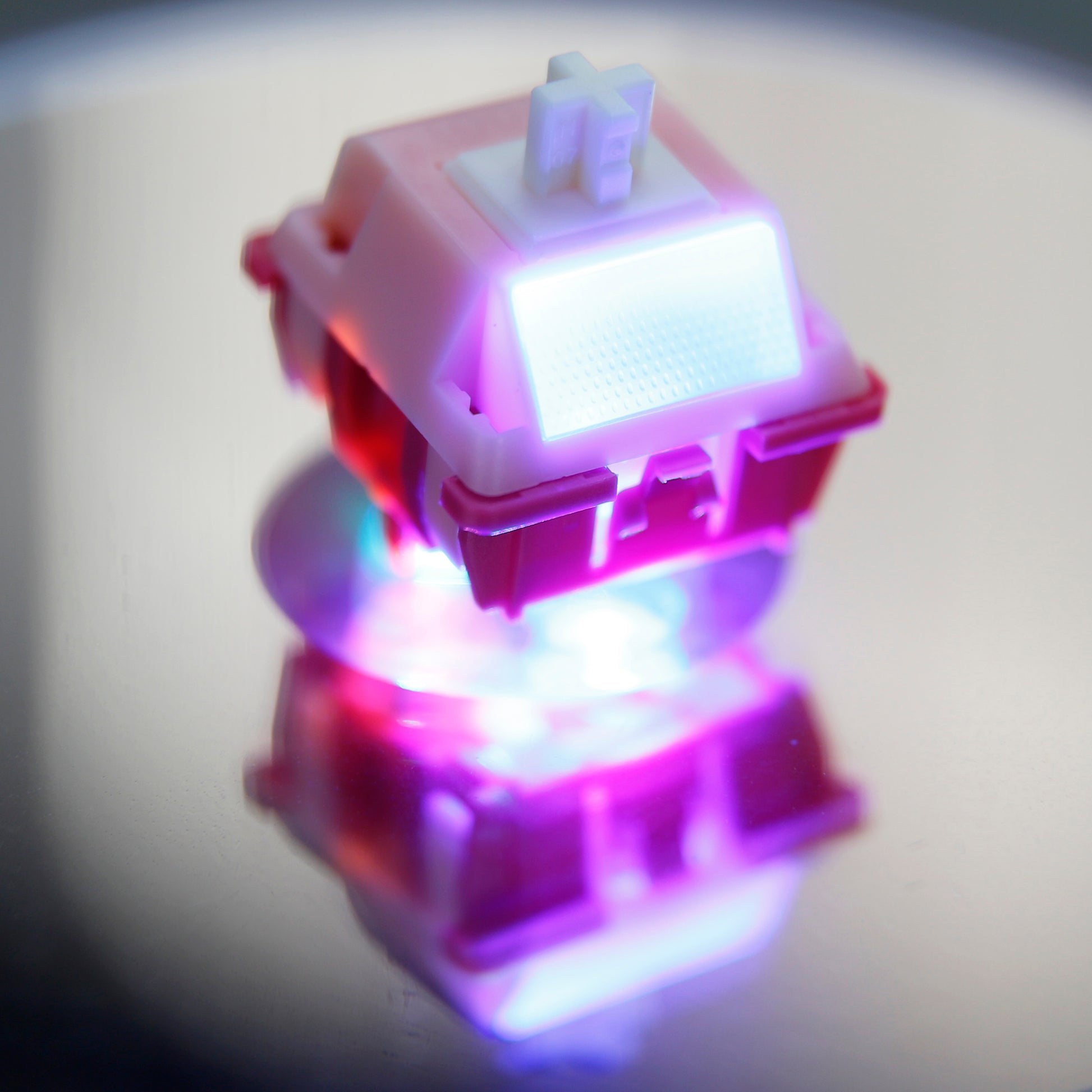

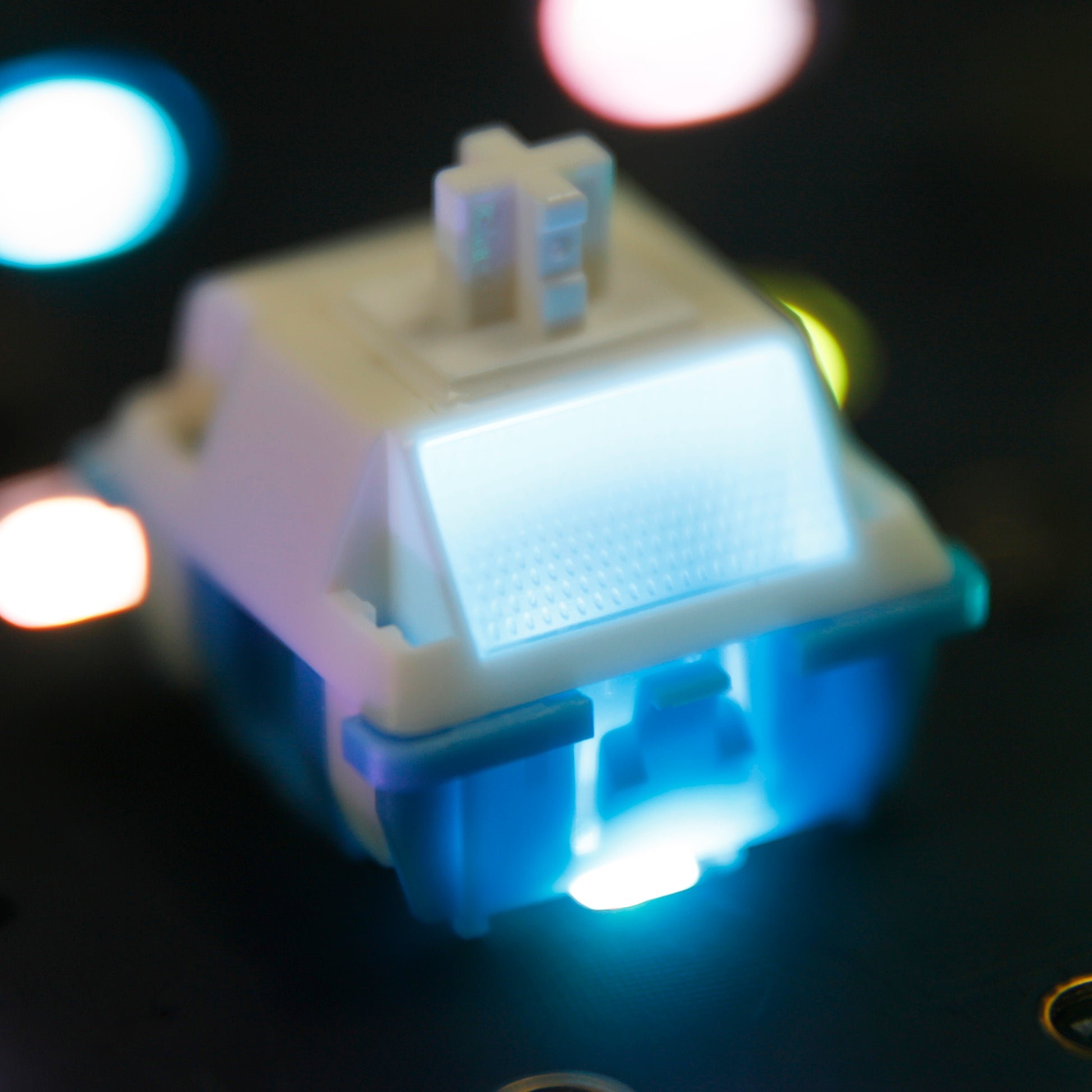

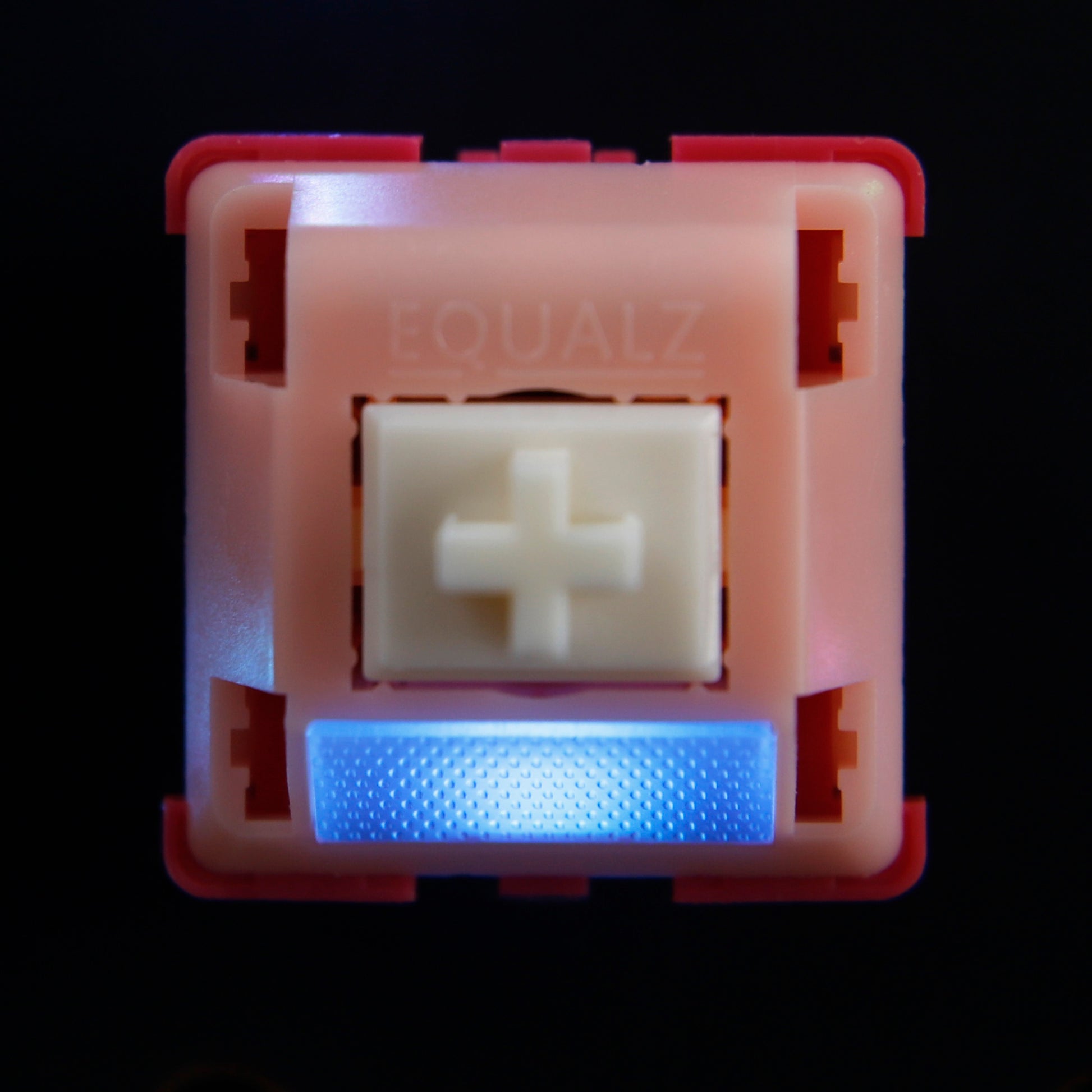

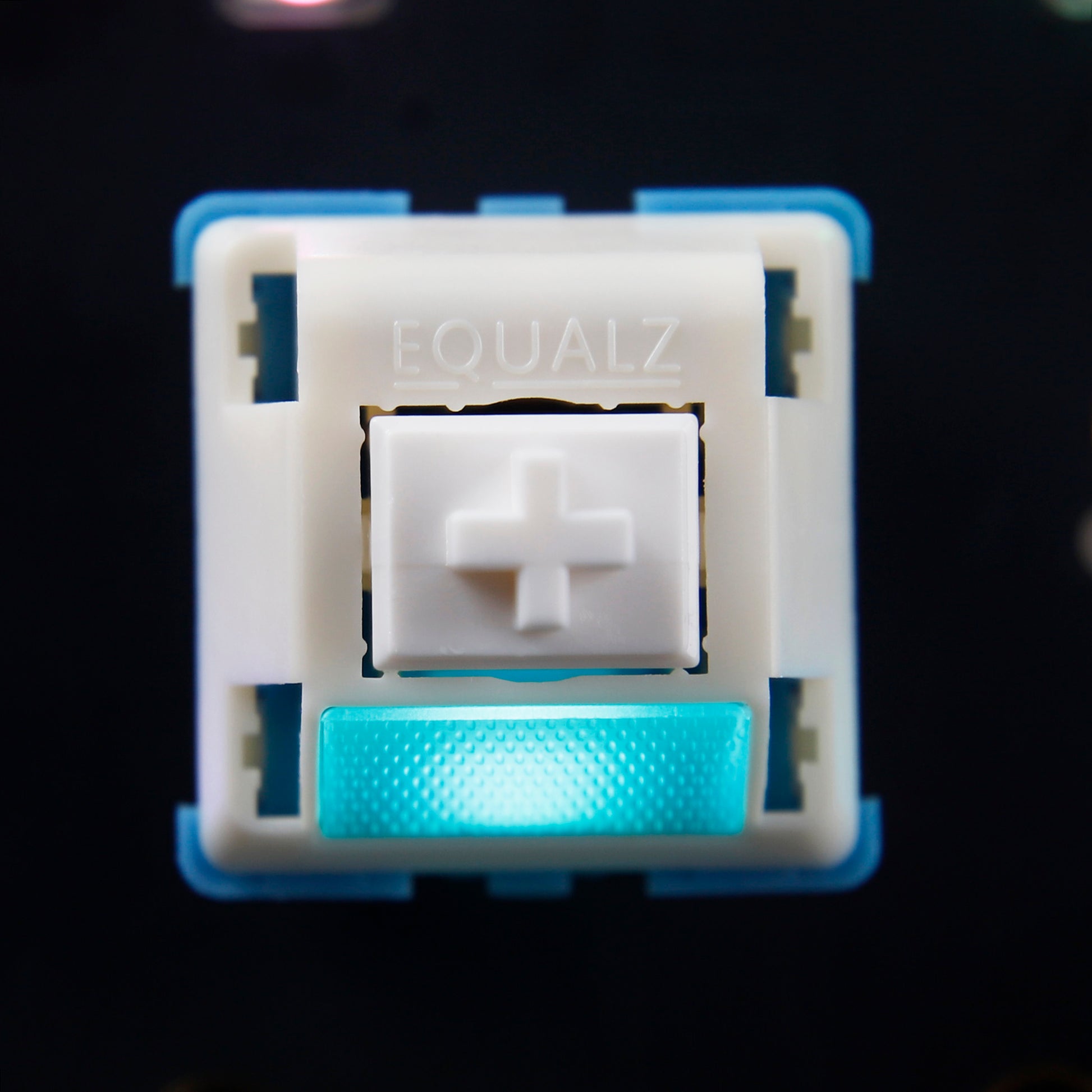

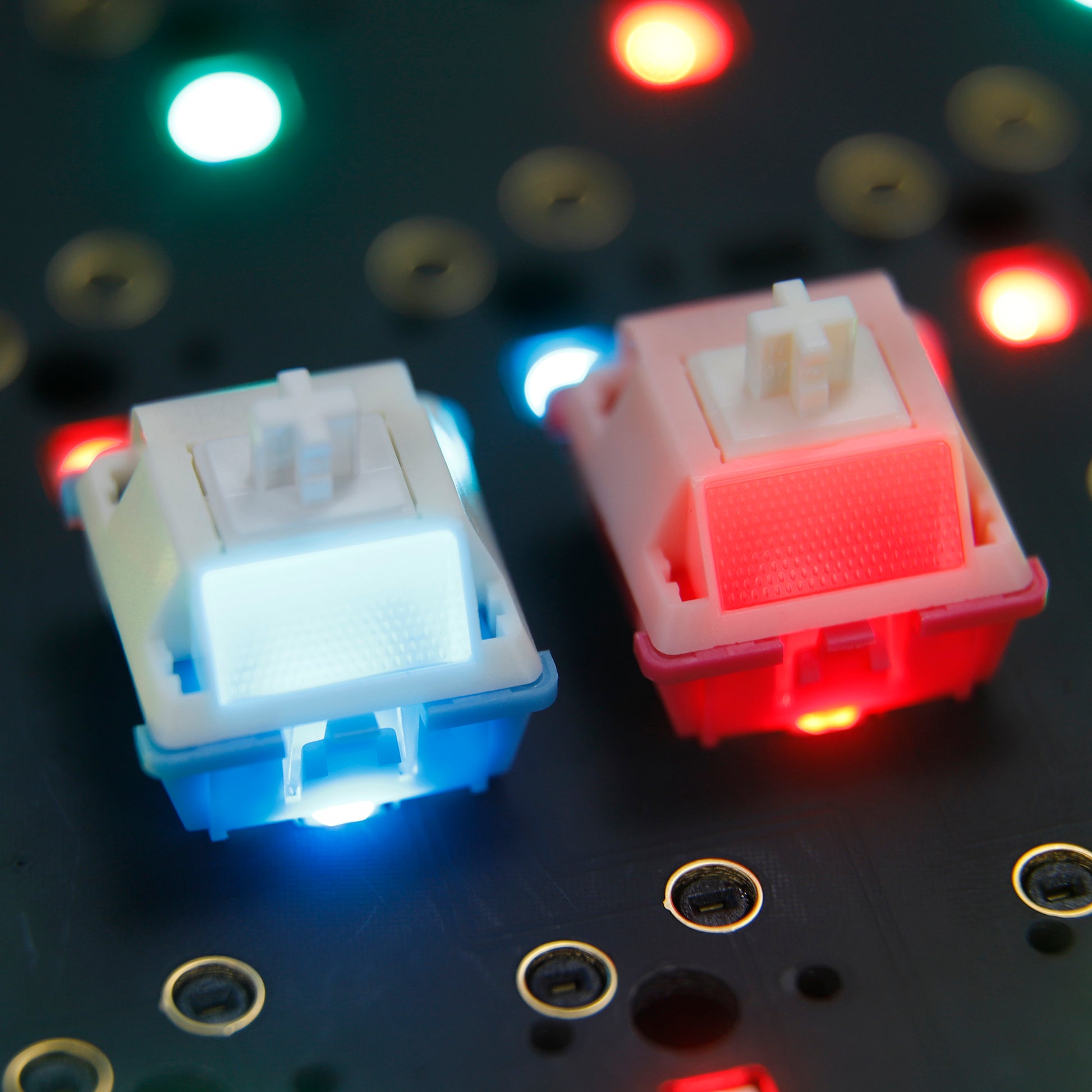

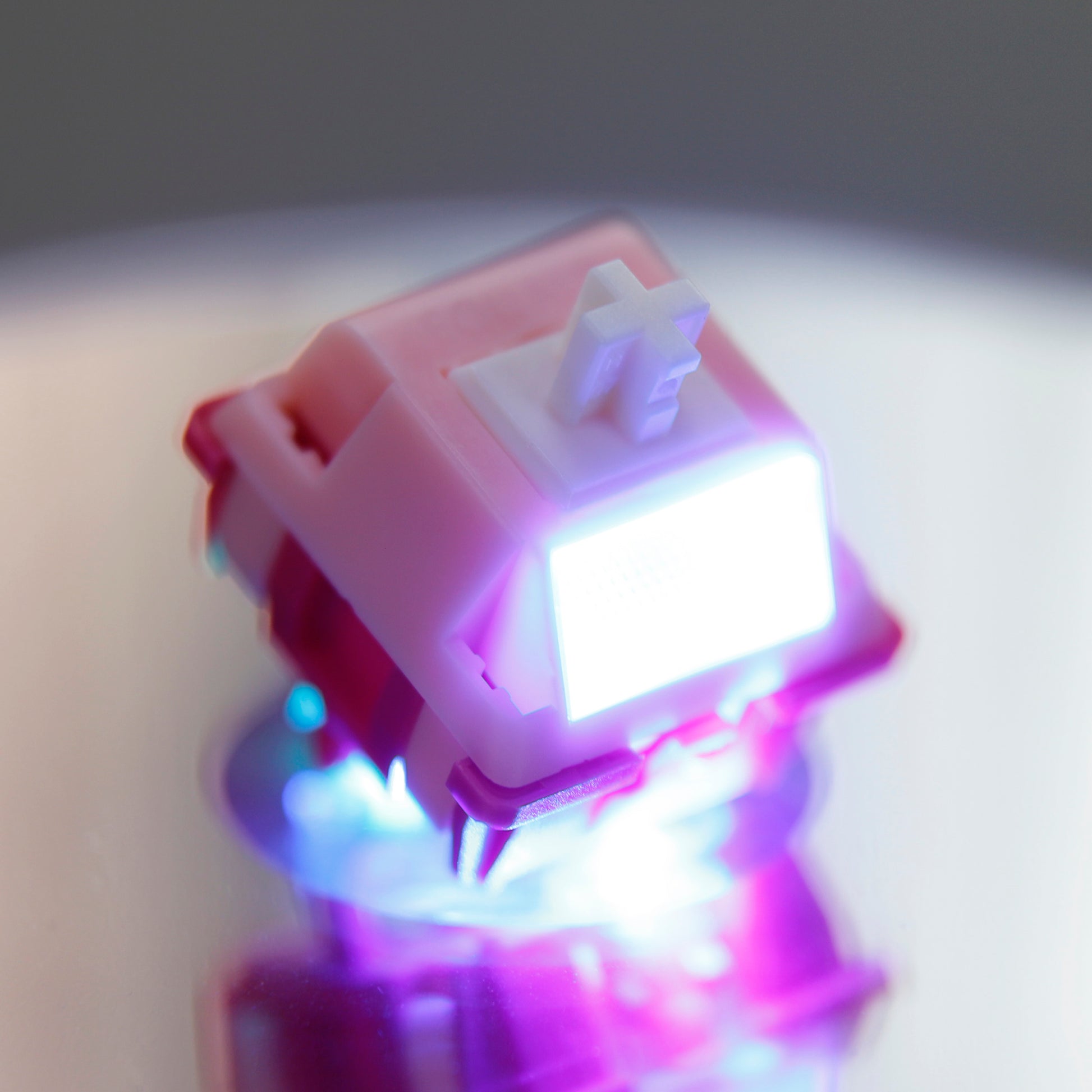

A new generation of light guide column design, compatible with various types of lamp beads while optimizing the lighting effect.


Spec

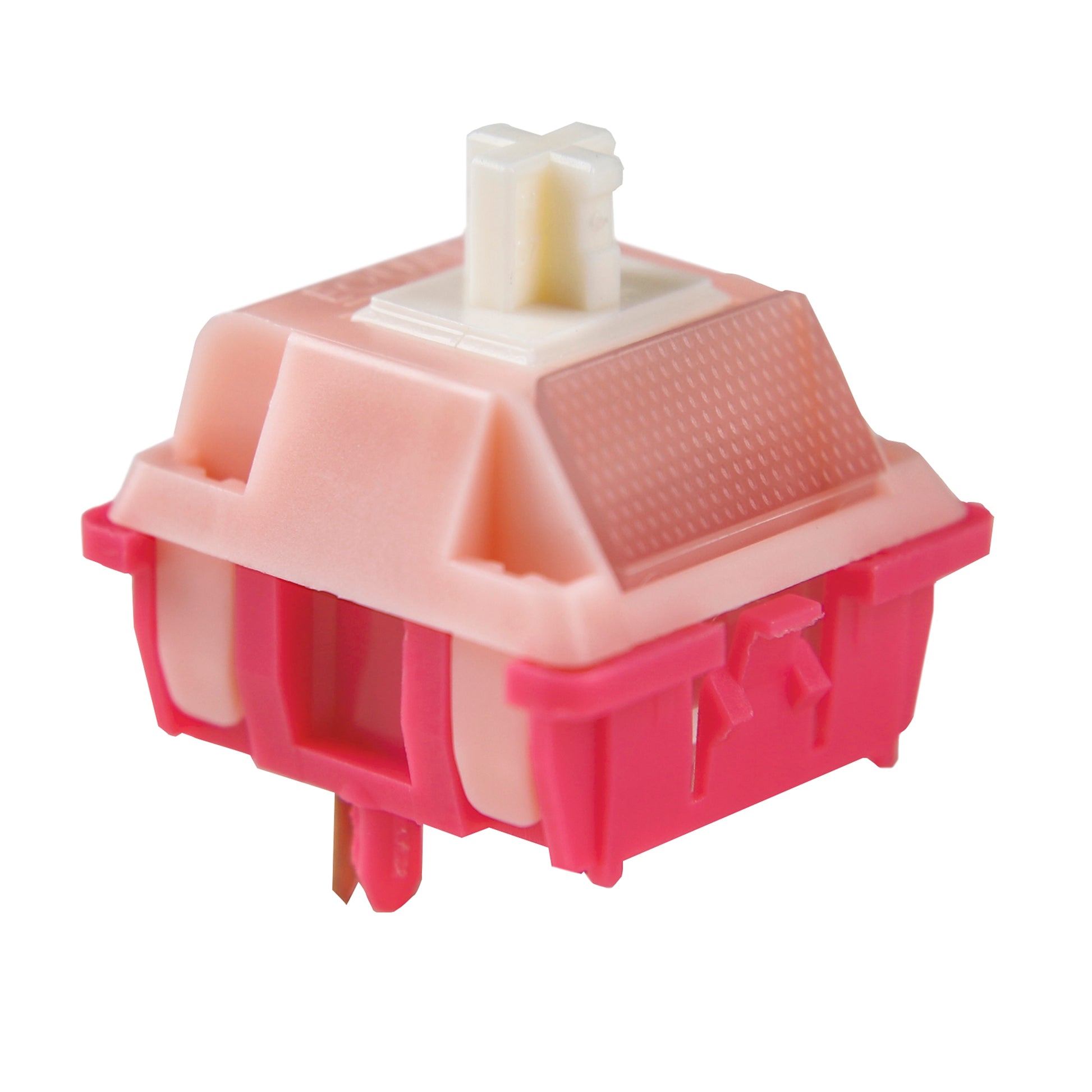

Grapefruit Soft Sweets Switch

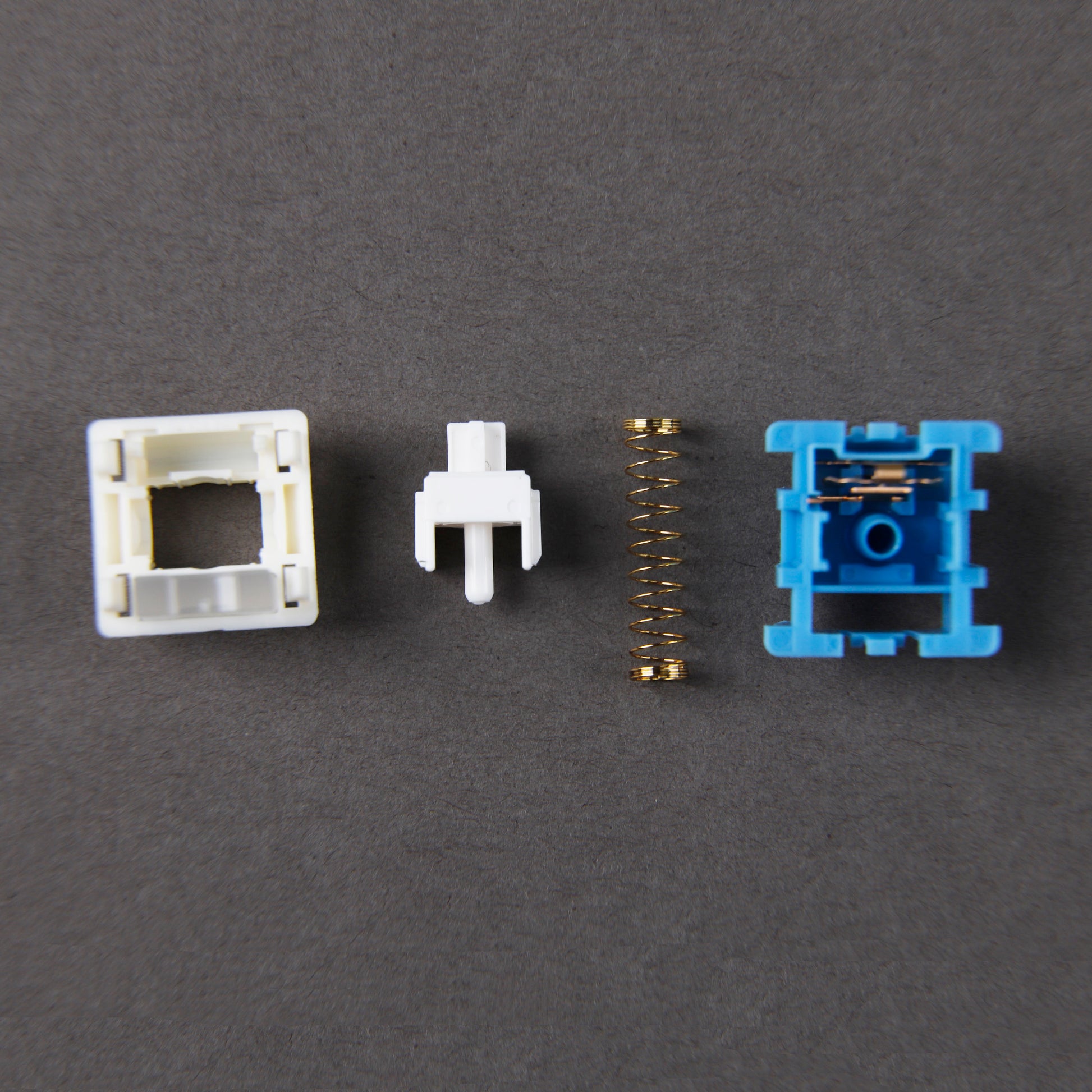

Top cover: Modified POK

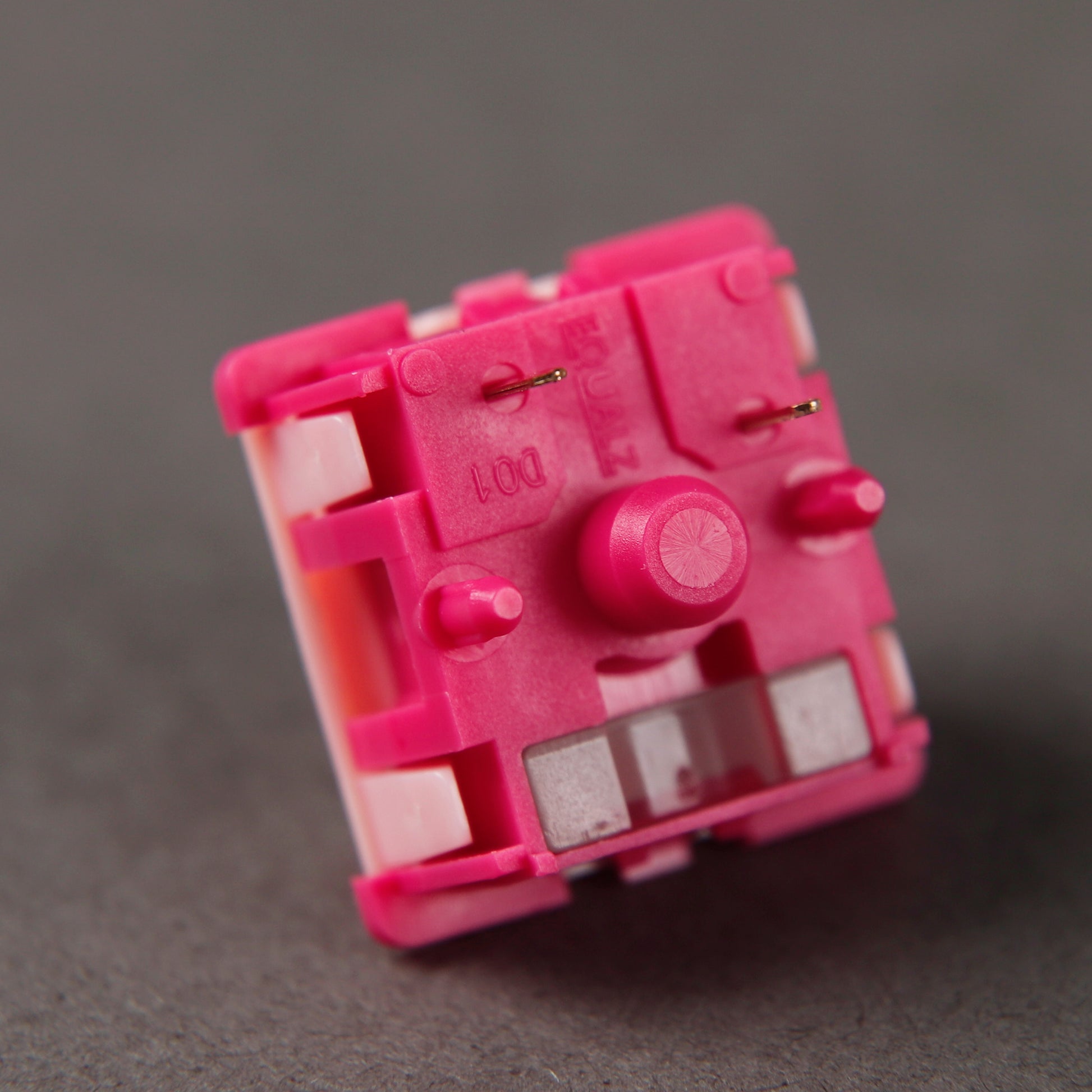

Base shell: Modified POK

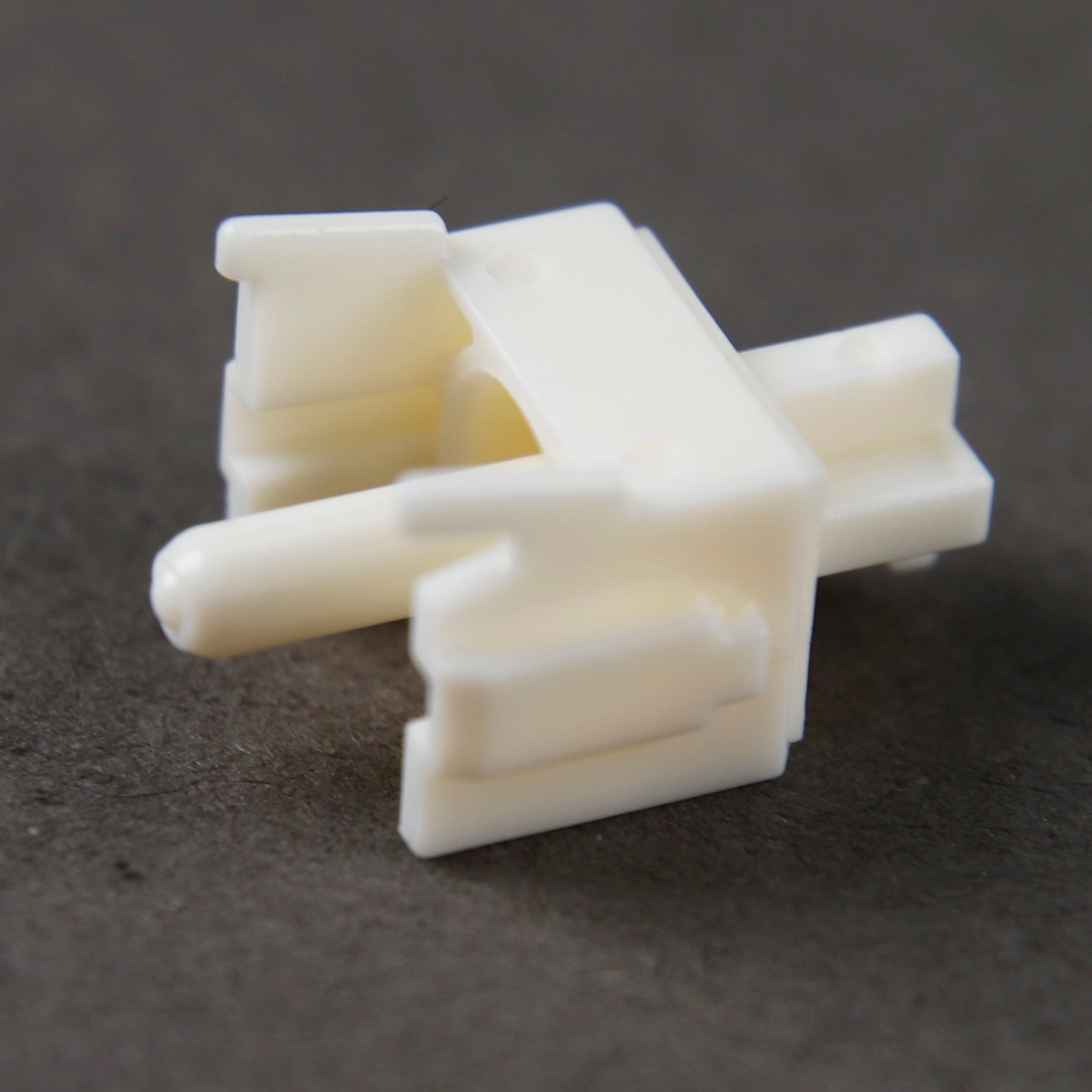

Switch stem: E1(exclusive new material, featuring low friction coefficient and increased hardness)
Spring：18mm single extension gold-plated spring
Imported coated steel wire
Bottoming mode: switch wall bottoming
Service life : 80 million times
Bottom out force: 45g
Total travel: 4 mm

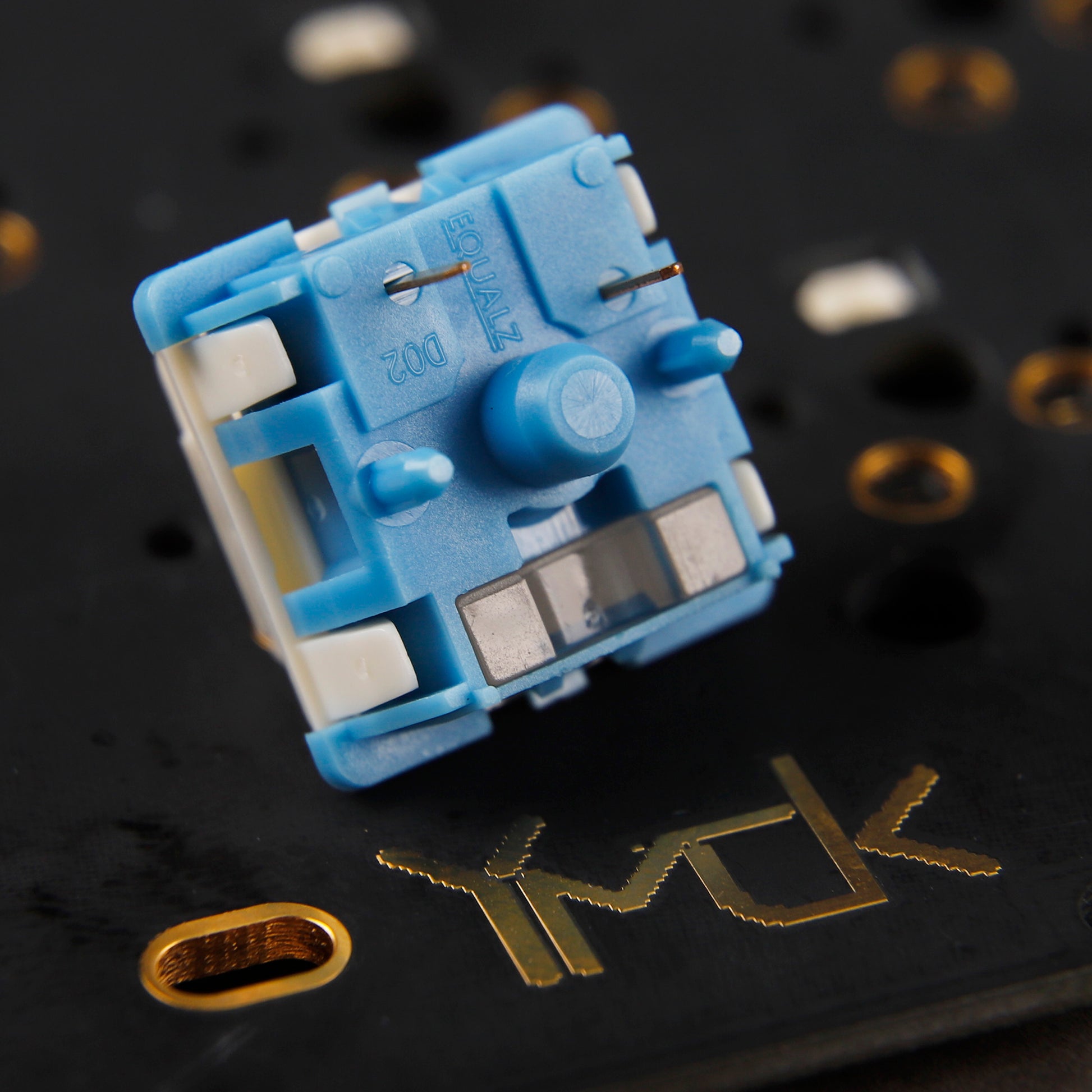

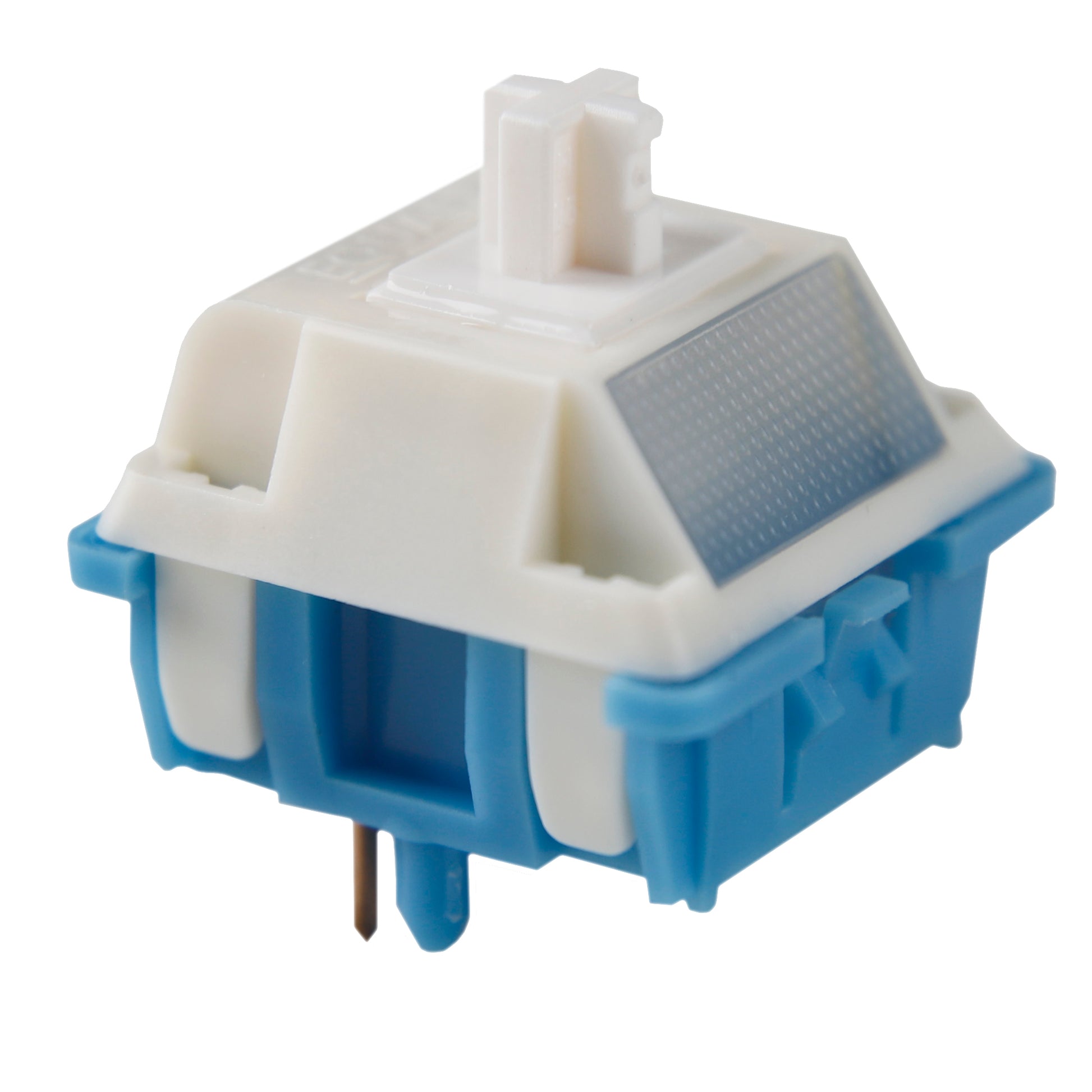

Blueberry Milk Candy Switch
Top cover: Modified POK
Base: Modified POK
Switch stem: E1(exclusive new material, featuring low friction coefficient and increased hardness)
Spring：18mm single extension gold-plated spring
Imported coated steel wire
Bottoming mode: switch wall bottoming
Service life : 80 million times
Bottom out force: 55g
Total travel: 4mm

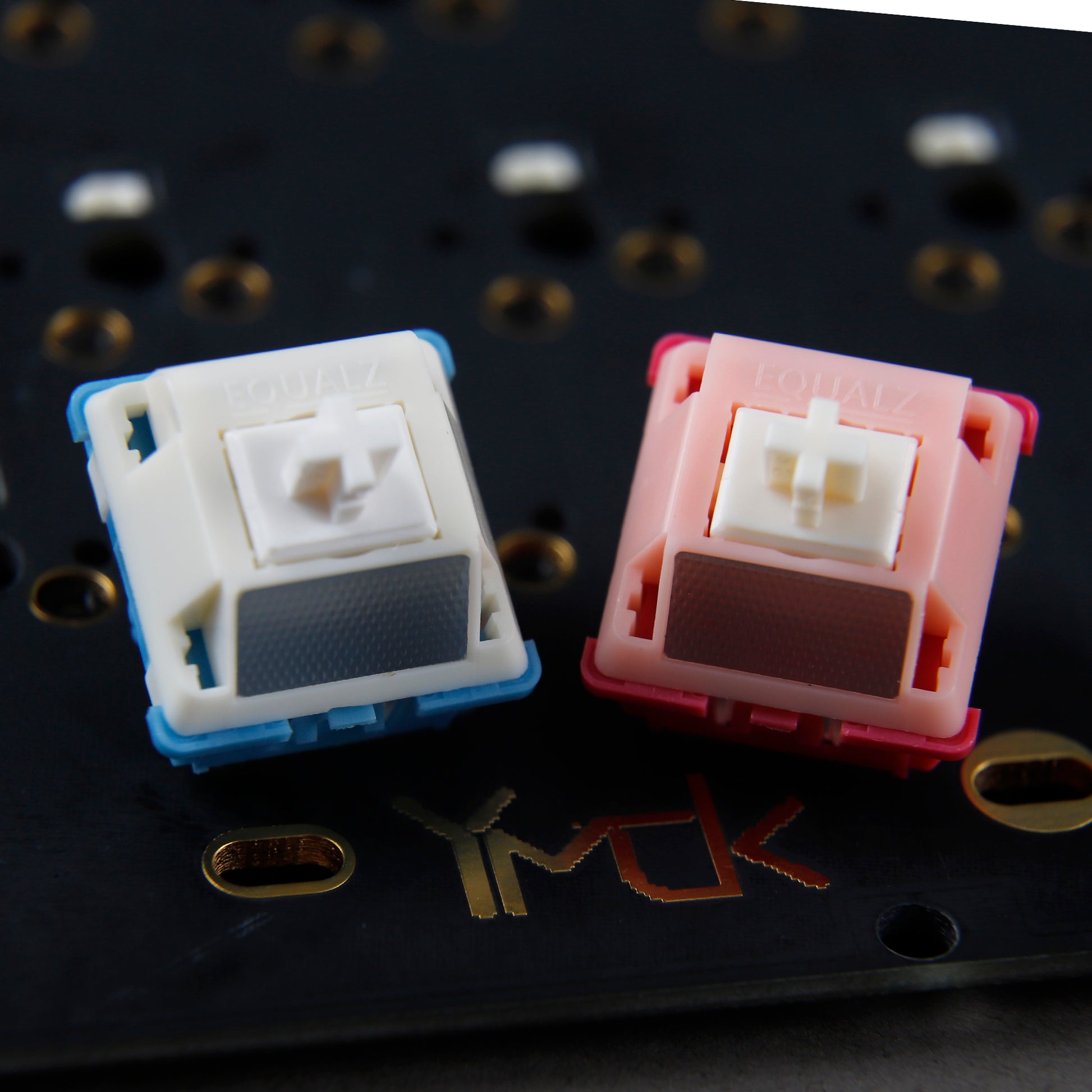

Images Display
