For Nuphy Gopolar Azure Dragon V4 Switches（SMD 5 pin Tactile 63g ）

Package Included(Nuphy 5 pin Gopolar Azure Dragon V4 Switches)

Switch*quantities(10/30/70/90/110 as options)

Details

Nuphy use Azure Dragon as the theme,connect the newest Pom and PC material with the newest mold,but use the longer double segment spring to add the new look and handle feel,do a new file for switches of mechanical MX keyboard.

V4 add the light guide and upgrade the bottom material to PA66 nylon,tactile feeling better now.
The pin is upgraded from the original 0.2mm to a thick pin of 0.3mm, which is more stable and durable

Type: 5-pin

Total Travel: 3mm Max

Actuation Distance: 1.7±0.3mm

Operating Force: 46±15gf

Bottom-Out Force: 60±5gf

Switch Core: POM

Top Housing: PC

Bottom Housing: Nylon

Spring: 46gf

Single-distance 18mm

Pre-Lubricated: Factory pre-lubricated for smooth operation

Mechanical Life: 50 million

Top house is made of PC,stem is made of POM

Support smd led only now.

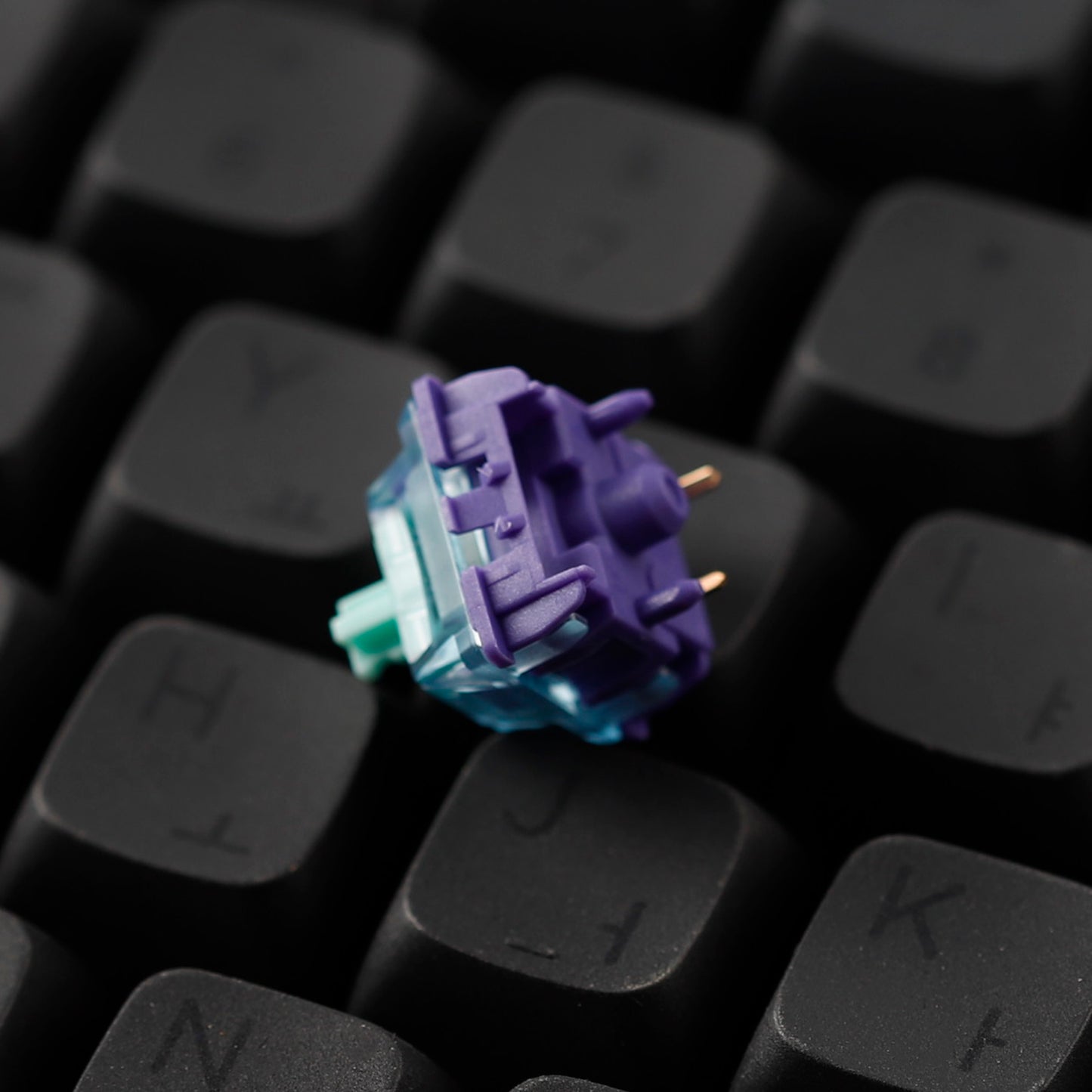

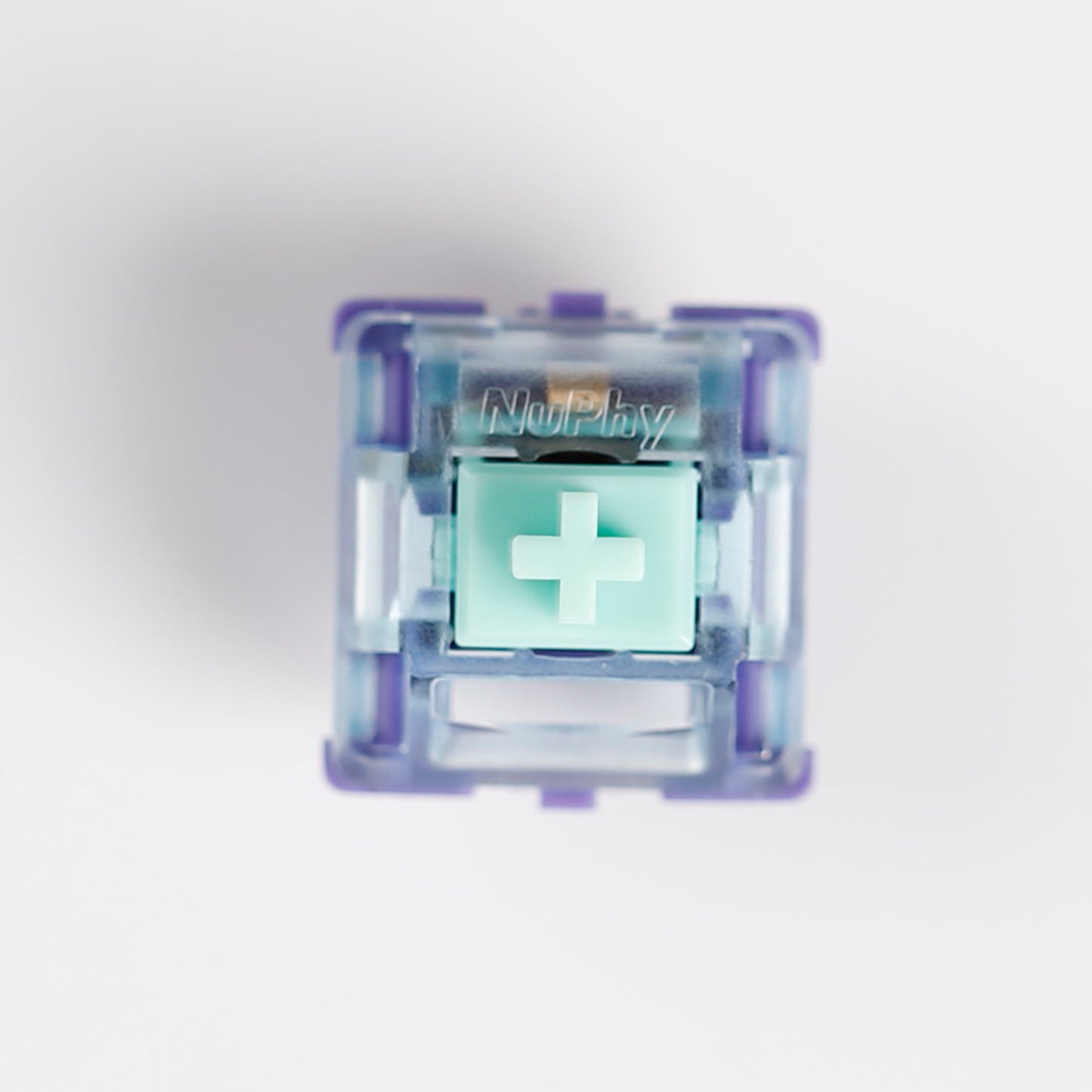

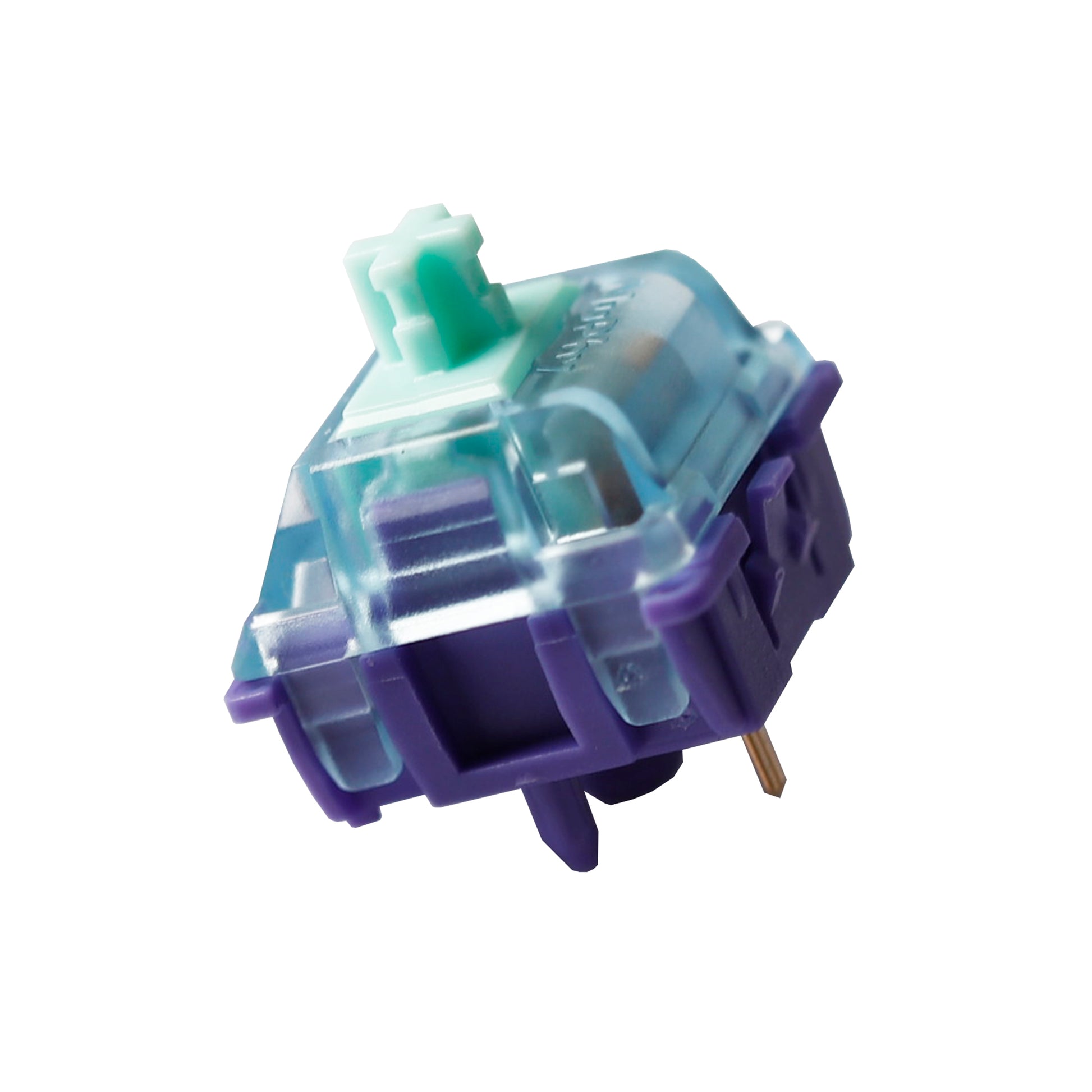

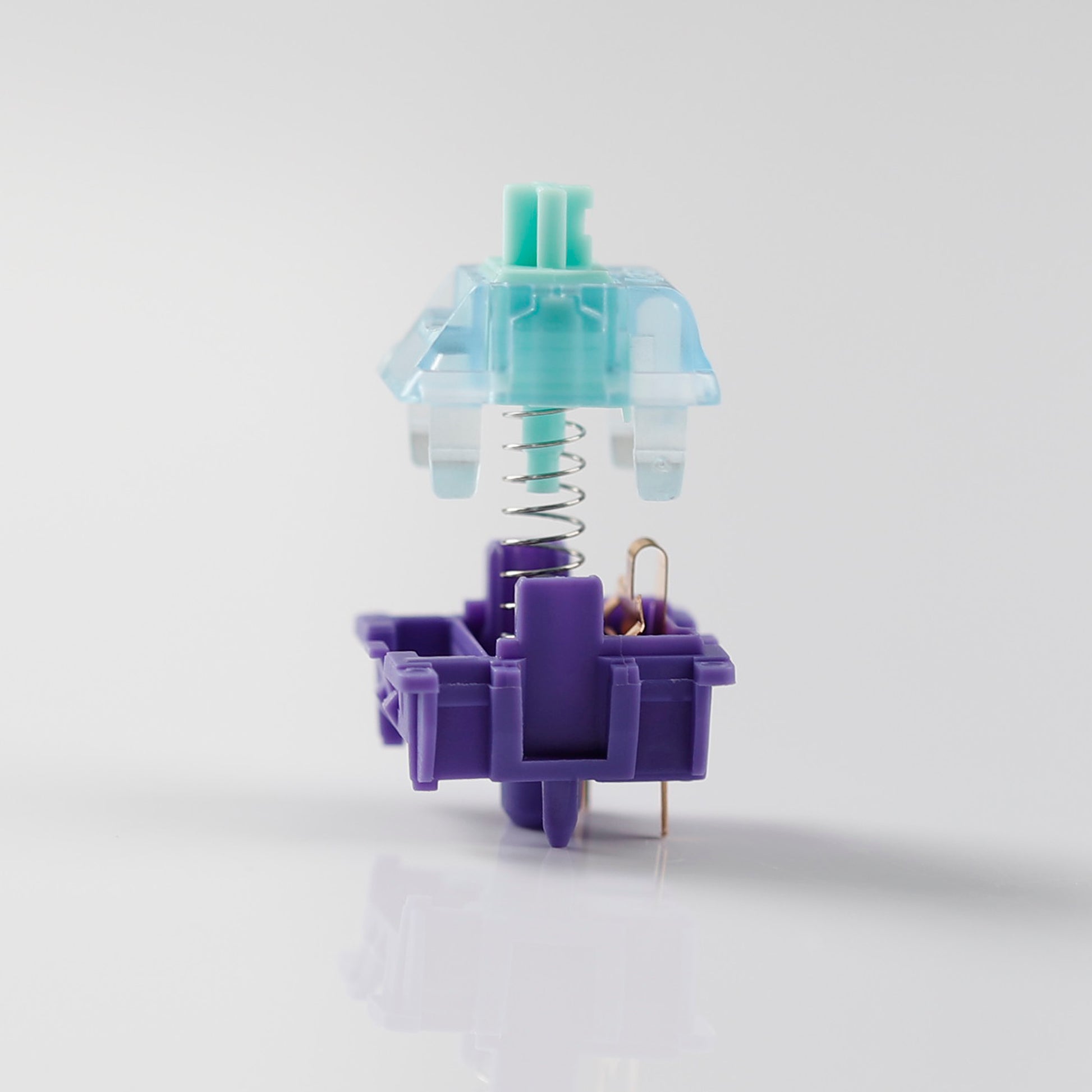

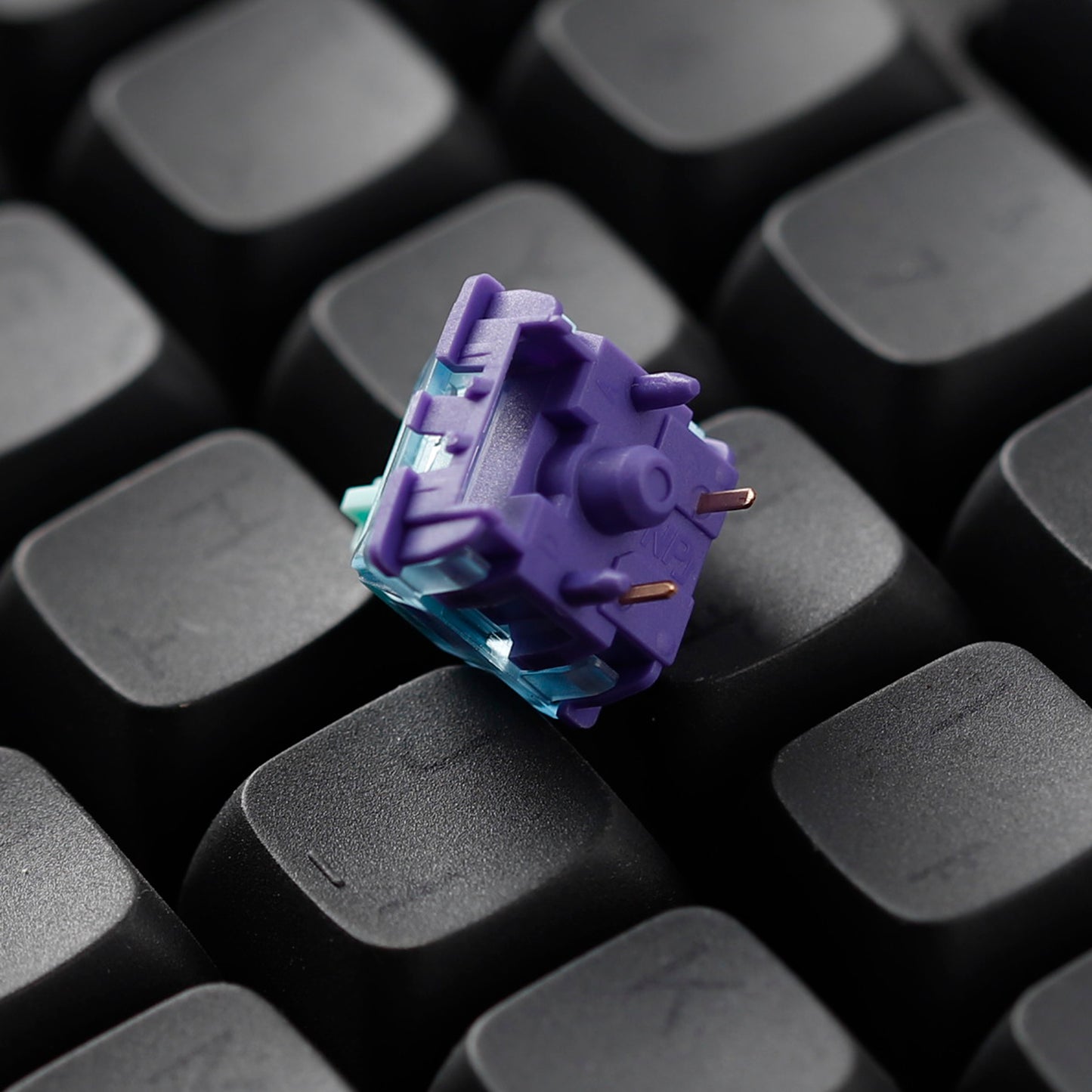

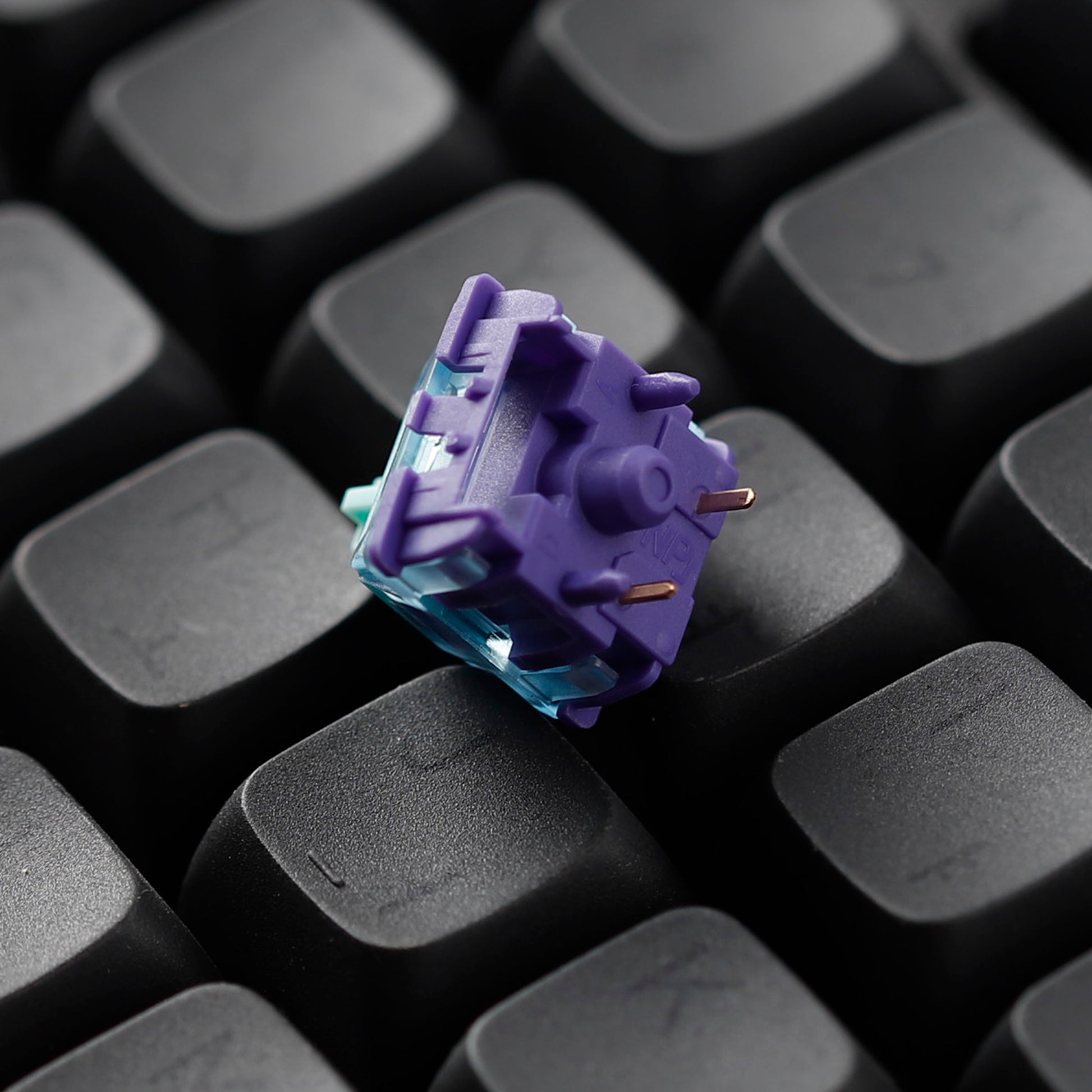

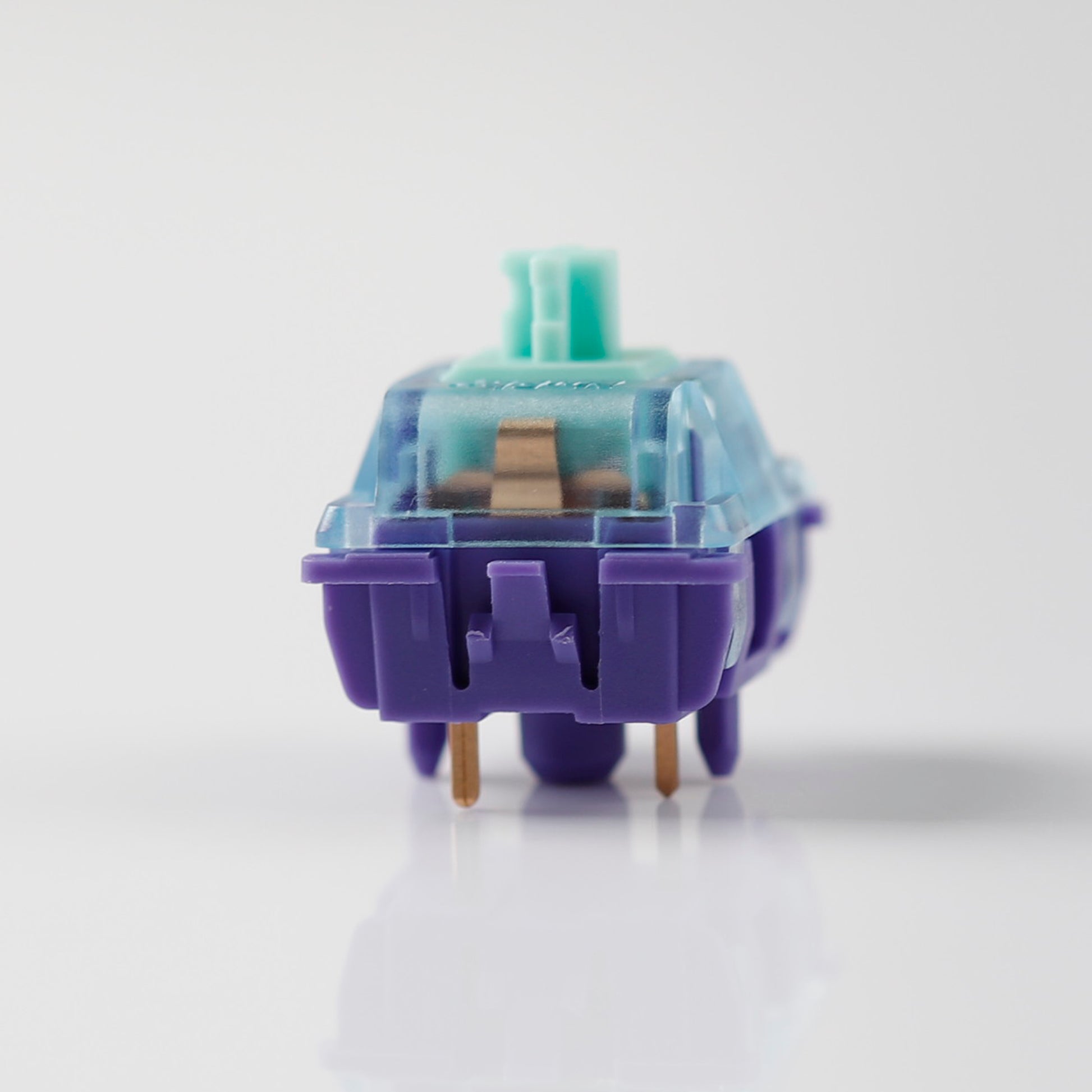

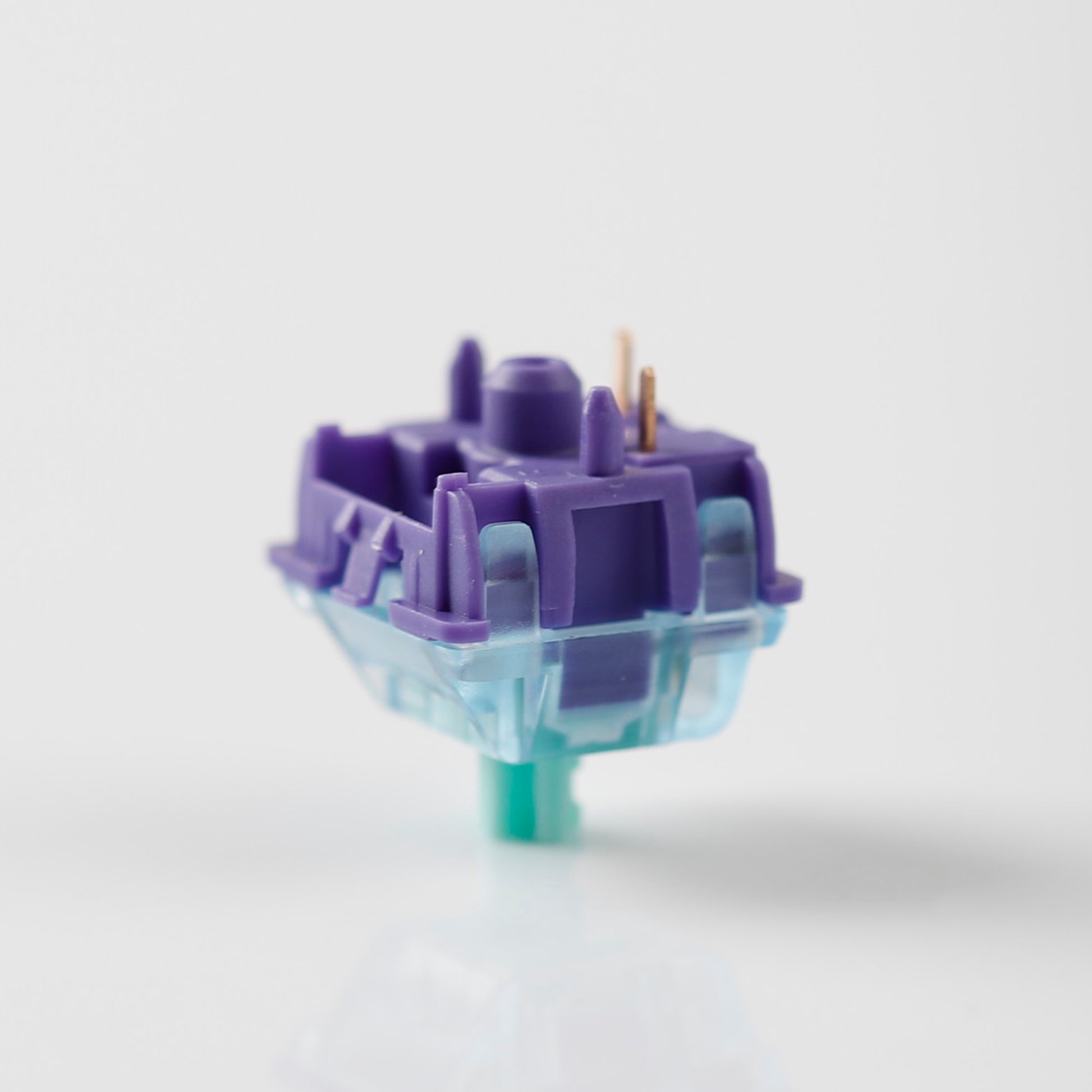

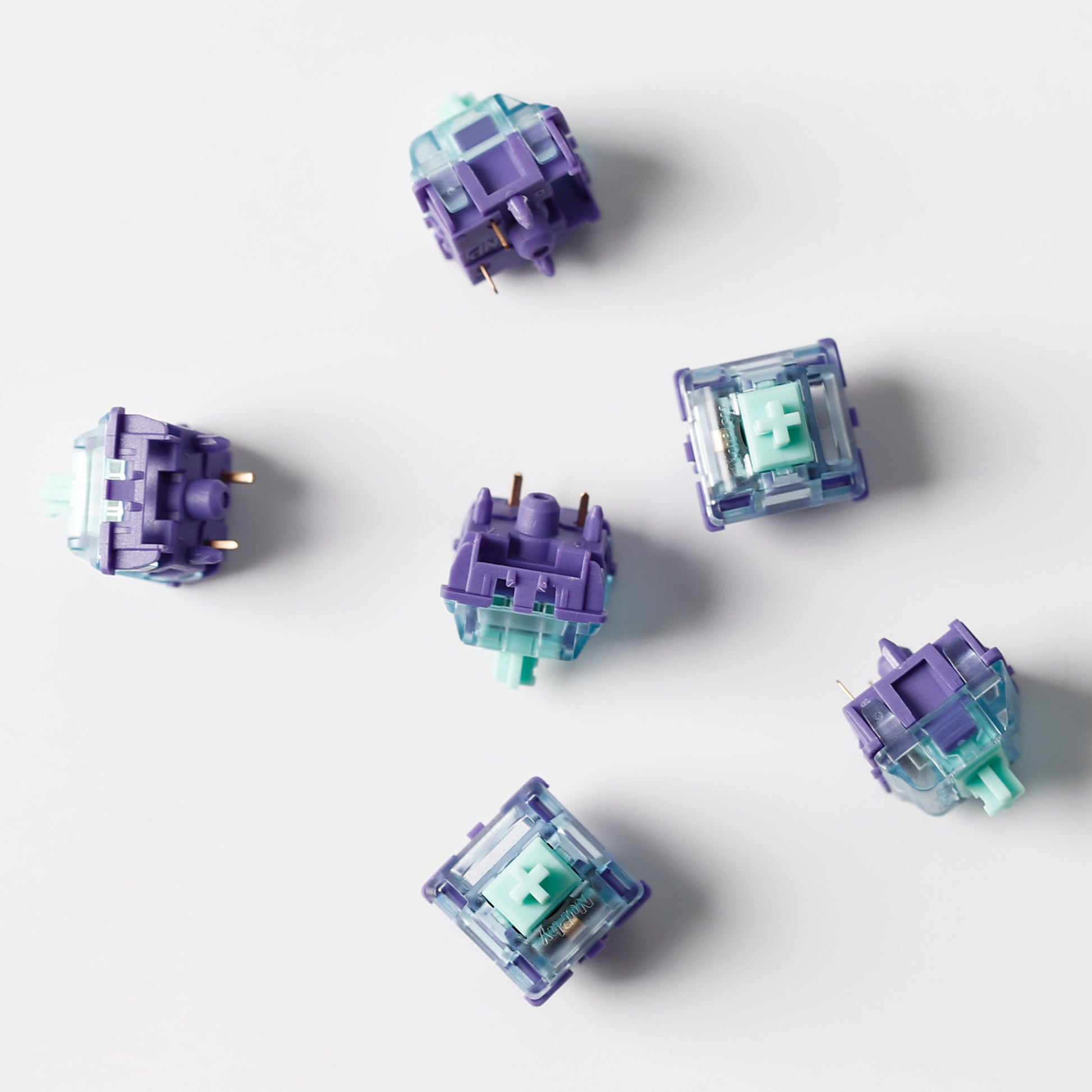

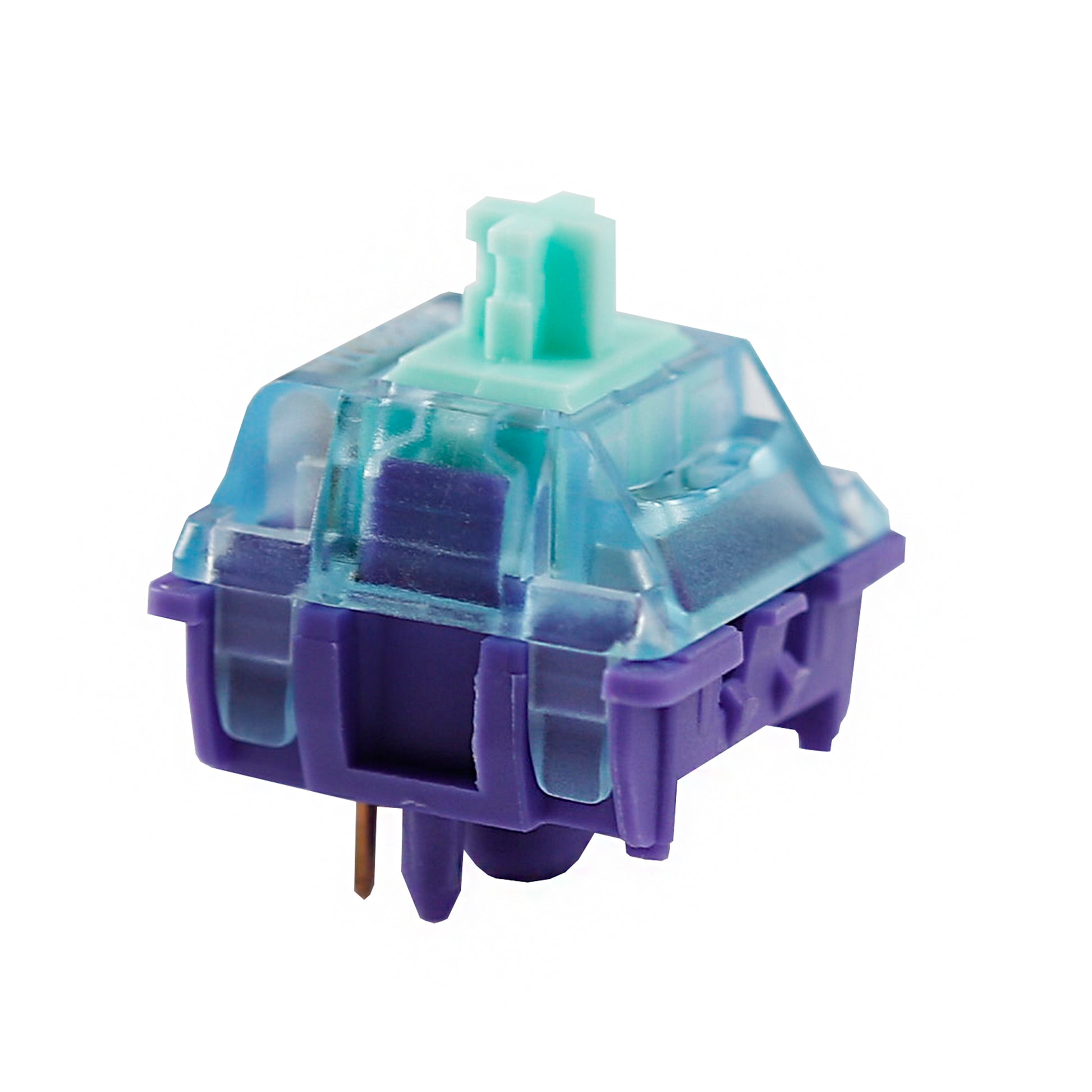

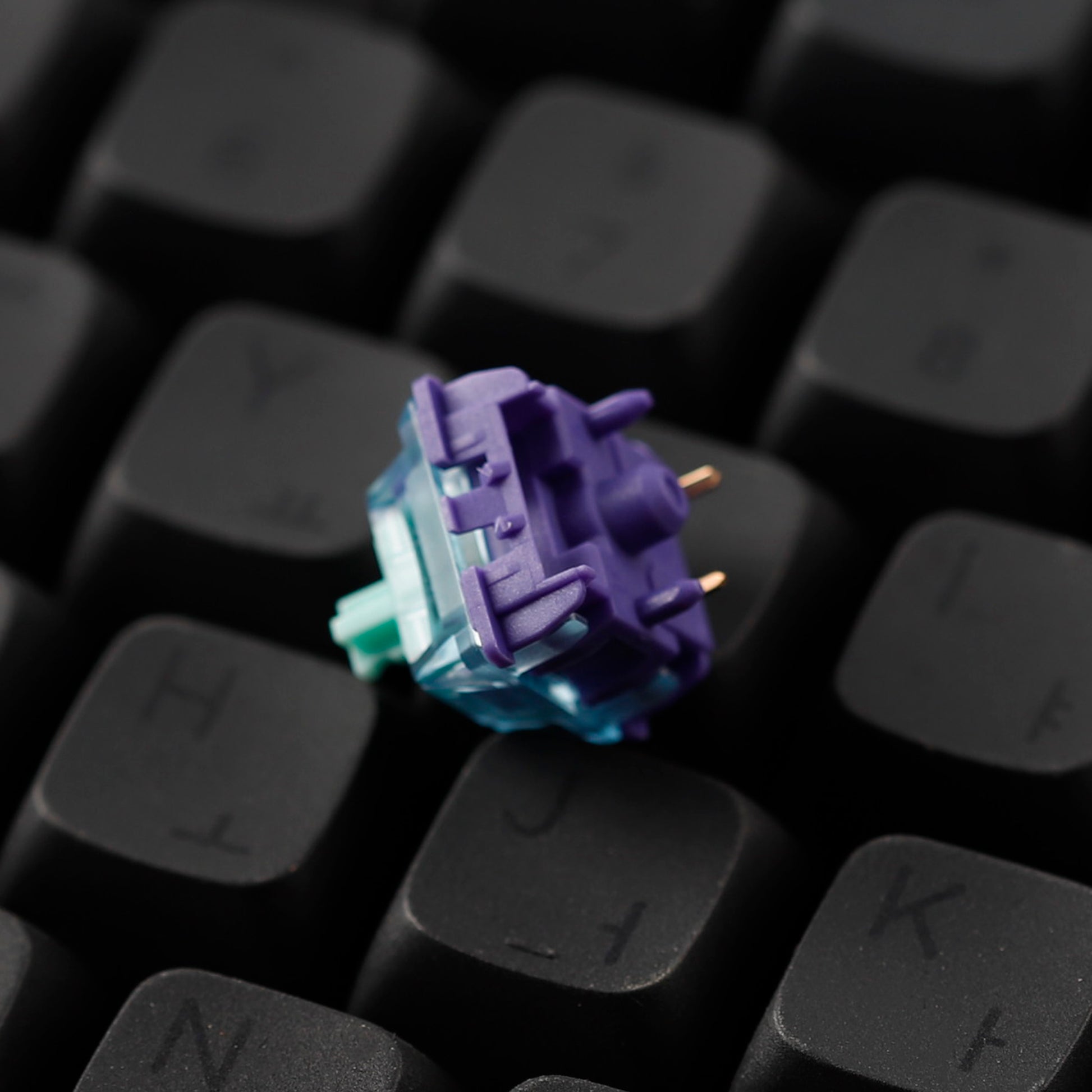

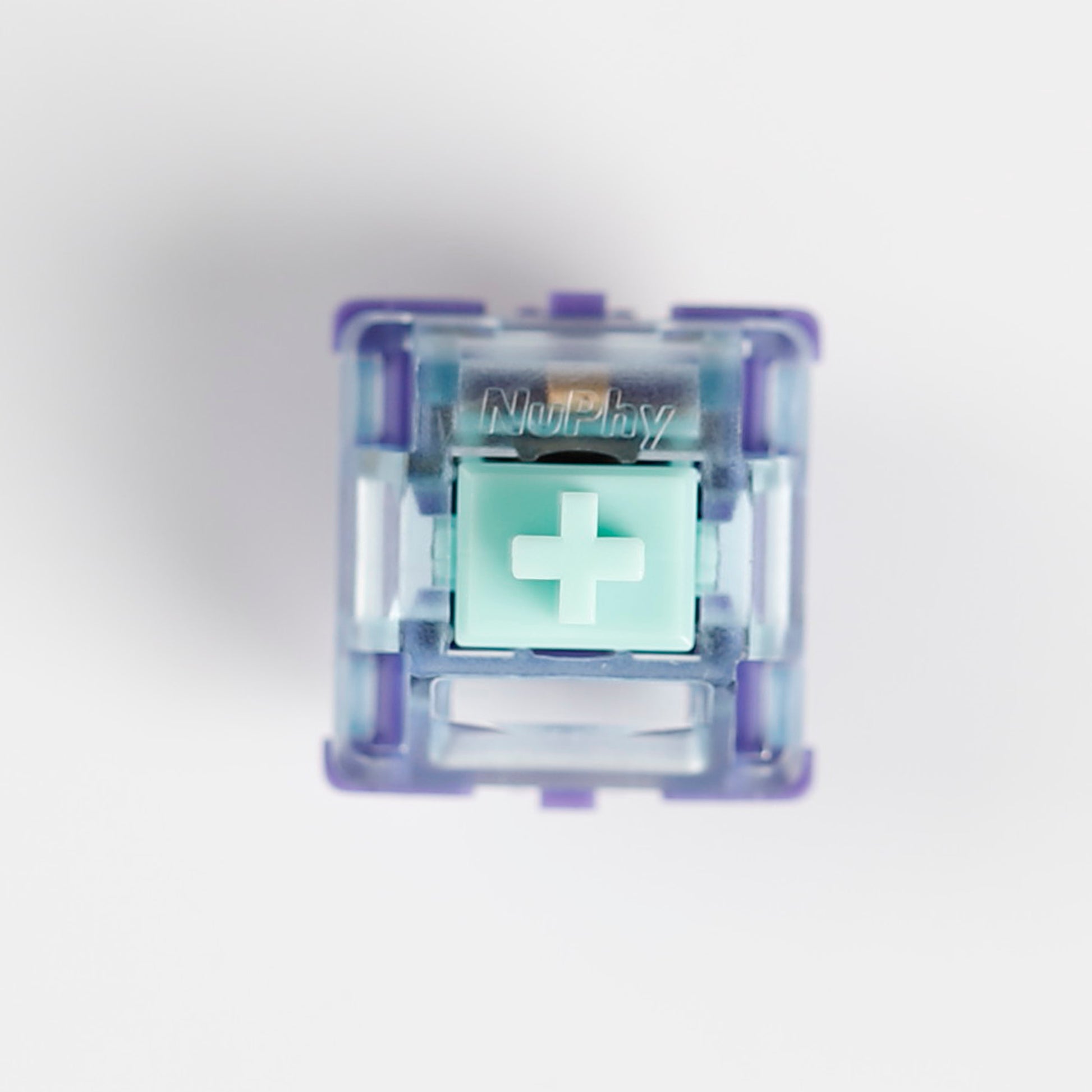

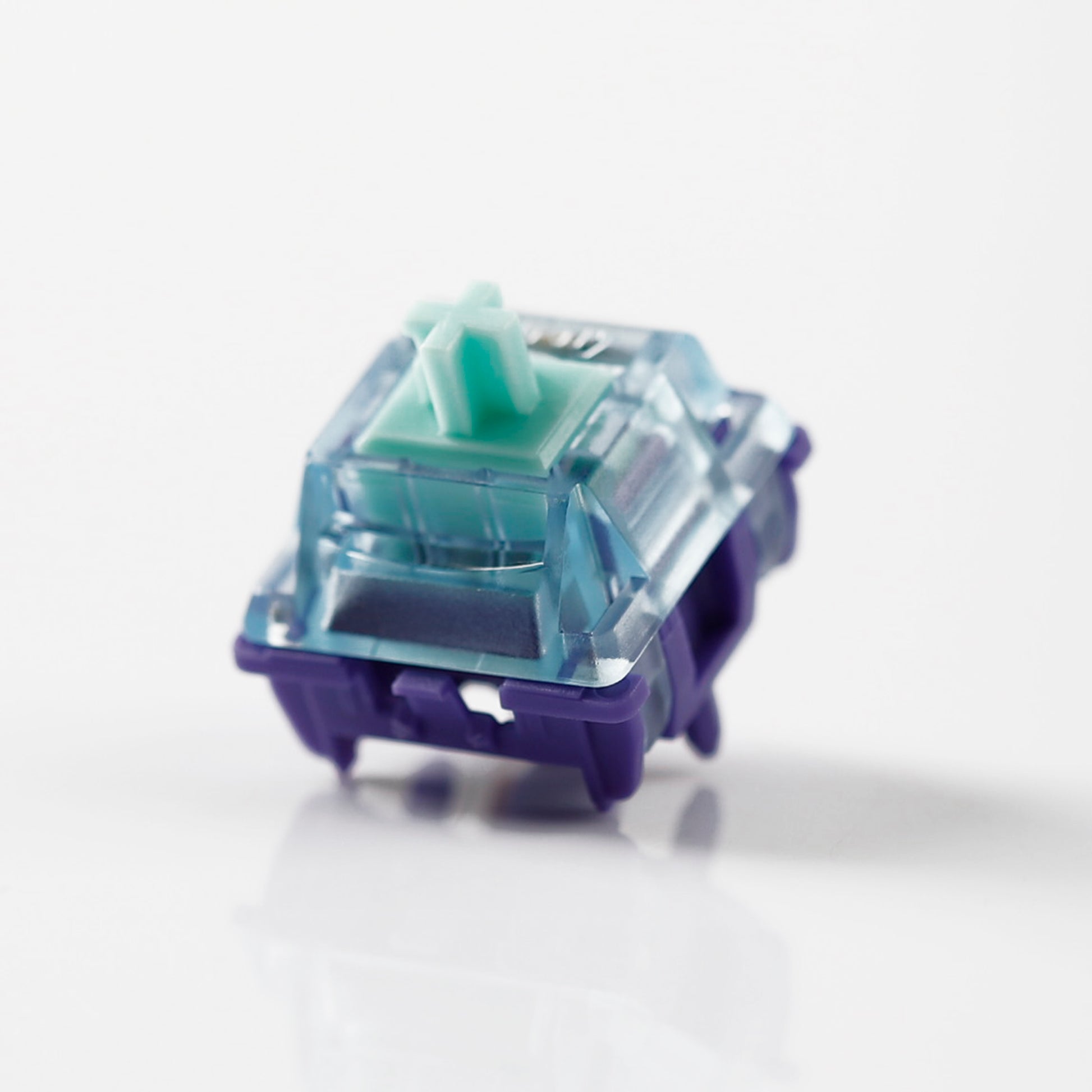

Images Display
