NCR-80 NCR80 R2 VINTAGE MECHANICAL KEYBOARD KIT

Package Included(NCR-80 NCR80 R2 VINTAGE MECHANICAL KEYBOARD KIT)

Option 1: NCR-80 R2 Case+ Solder PCB+Screws+Stabs

Option 2: NCR-80 R2 Case+ Solder PCB+Plate+Screws+Stabs

Option 3: NCR-80 R2 Case+ Hotswap PCB+Plate+Screws+Stabs

We prepare the special ShenPo Keycaps for the NCR-80 Kit,if you need,click here.

Please note that the cool gray of color is very similar with the vintage beige in case of top part before ordering.

Details

Reimagination of the classic rebranded Cherry G81-3000 by NCR.

NCR-80 is an affordable keyboard kit inspired by iconic vintage keyboards.

R2 brings in a cooler shade of gray (from NCR-3007) and a vintage beige for all the retro aesthetics.

From 87/TKL layout to the special WKL layout without three keys but add three indicator ldes,the designing with retro theme to be continued.

Better plastic case with two colors.

Hotswap R2 south facing PCB,supports qmk and via together.

Soldering south facing pcb supports qmk and via together,but you need prepare a soldering iron to install it.

Plate has two version,glass fiber or carbon fiber.If you need choose one,can leave a message in cart of page about this.Otherwise,we will use a random one.

Kit Size: 382*299*19-41 mm.(Had not added the switches and keycaps of height)

Note

Now the keyboard does not need studs, just use the switch to fix the PCB and plate, and then use screws to install the PCB.

For hotswap R2 PCB,the capslock has 2 sockets to support both stepped and unstepped edition which get the middle switch stem hole slightly smaller than usual.When you plug capslock key,please cut the middle switch stem off or cut it smaller is ok.

For three indicator ldes,you still need a soldering iron to install it normal.But if you order switches with kit,we will install all parts for you directly.So there will include the leds of installing.

The chipset is STM 401 which is much bigger flash storage.（Soldering PCB）

This soldered PCB support both ANSI and ISO layout.

Soldering PCB Layout Support

VIA Manuals

Hotswap PCB

drive.google.com/file/d/1qKQi0a67r6pT62Rez7PGqOB1lnEoJjr1/view?usp=sharing

Soldering PCB

drive.google.com/file/d/1ixeBB7u2lbM3ep5X0mcvrjYhrd45x9kY/view?usp=sharing

Images Display

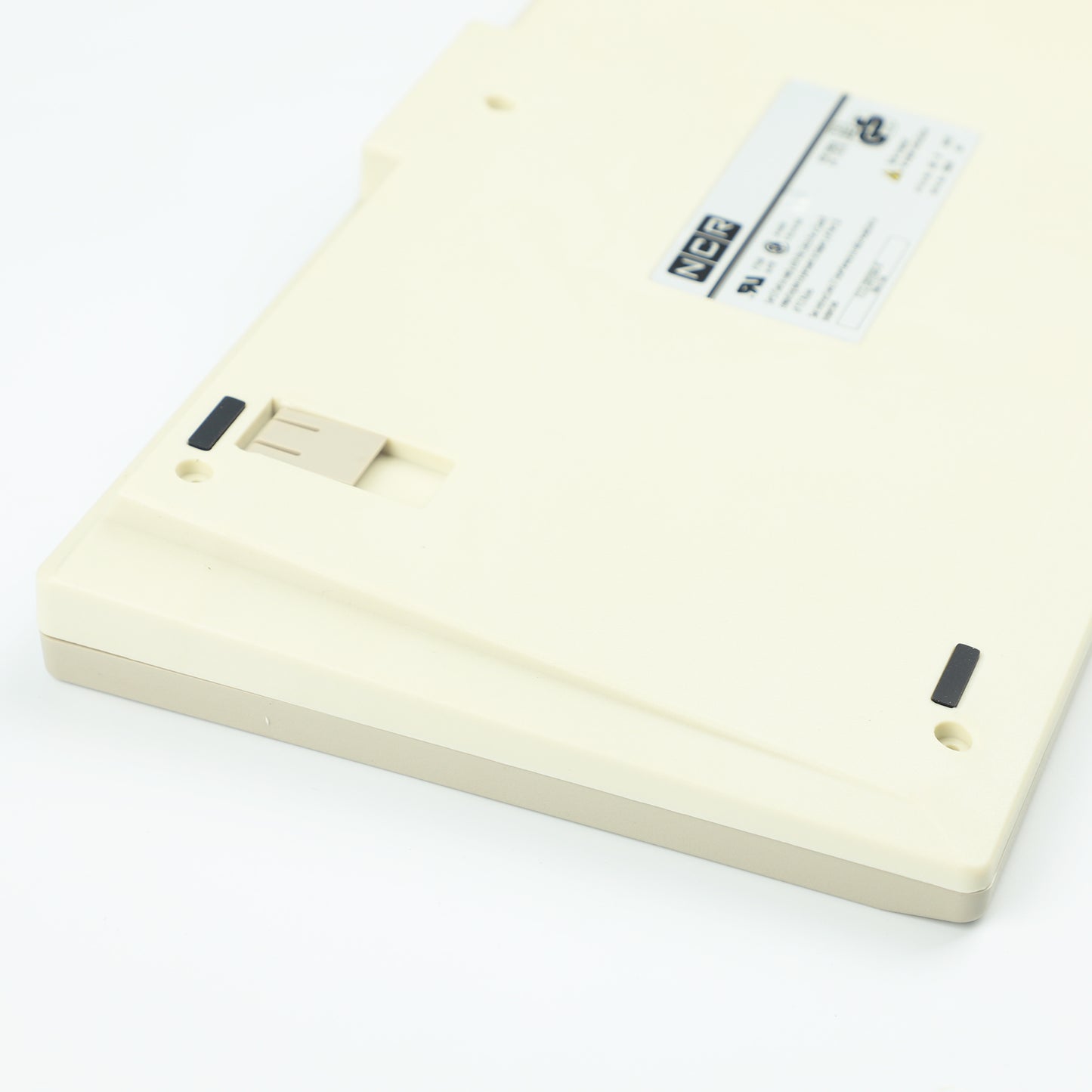

Vintage Beige

Light Gray Top |Beige Bottom

Dark Gray top |Light Gray Bottom
