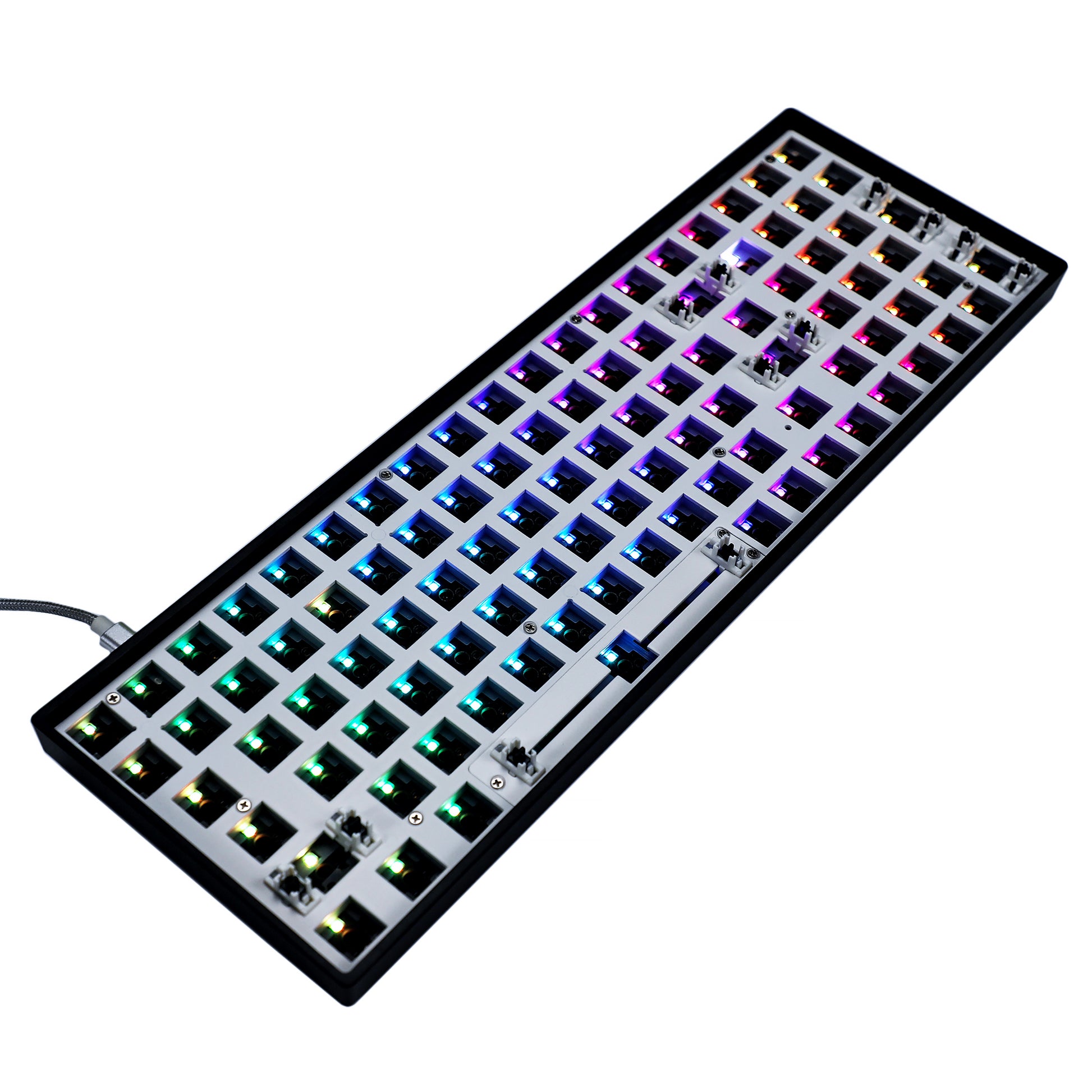

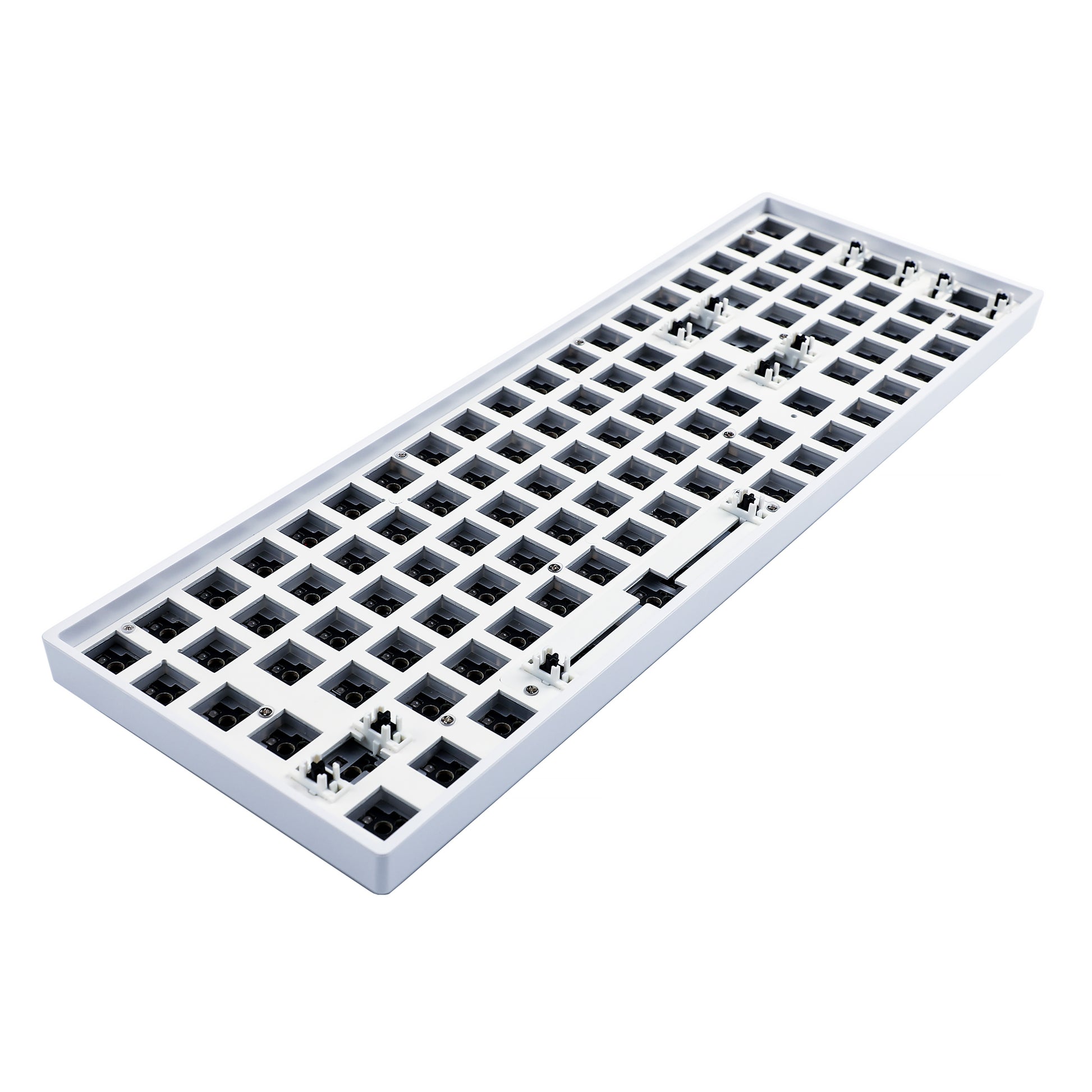

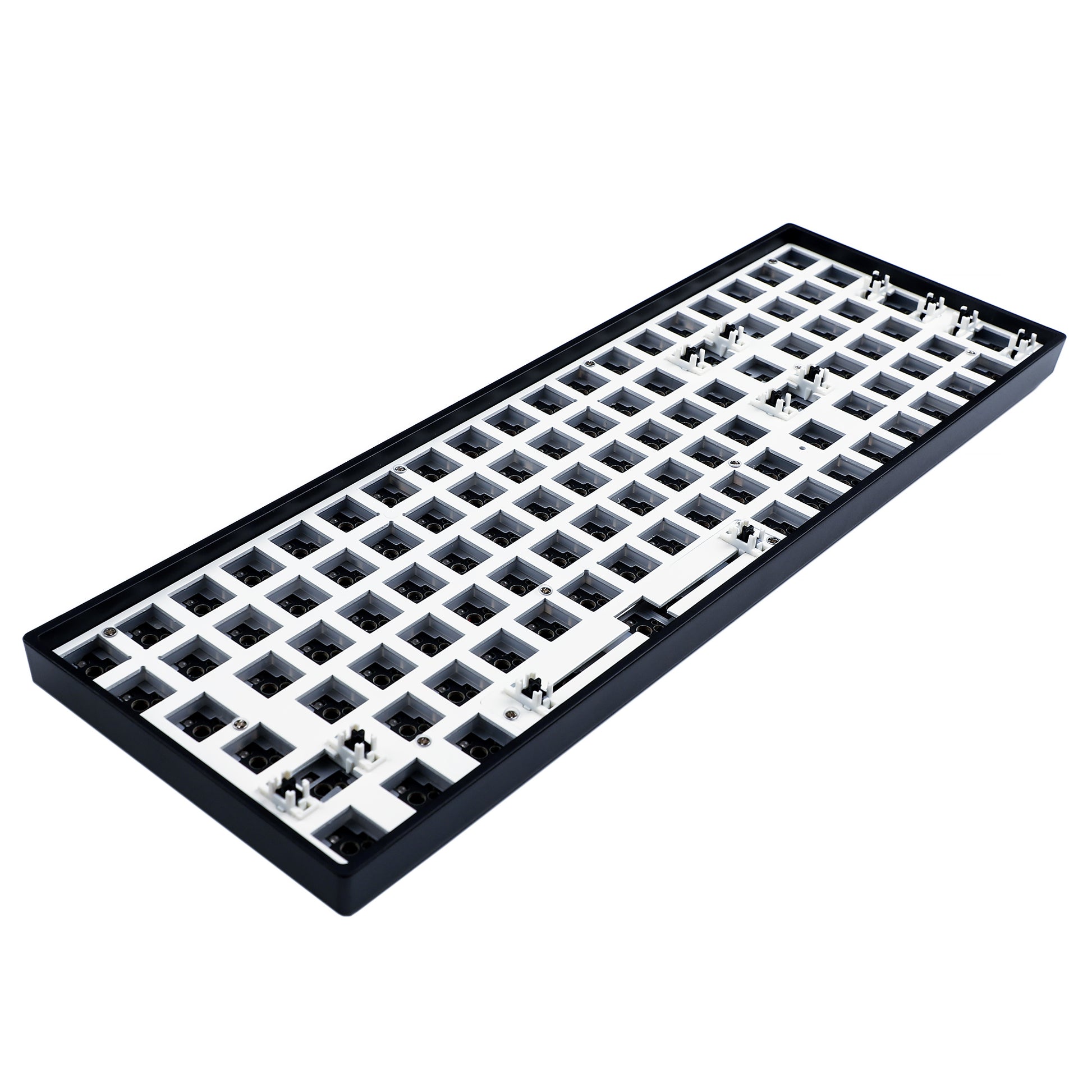

GK96xs V3 Gasket Lite Kit(RGB Hotswap PCB/Bluetooth Programmable)

Regular price $99.00

Shipping calculated at checkout.

Package Included

GK96xs V3 Gasket Lite Kit: Plastic Case + Feet + Stabilizers + GK96xs Bluetooth Wired Dual Mode Hotswap Type C PCB + Plate + Cable + Removal Tool + Space Module + Silica Foam + Bottom Foam

GK96xs Lite Gasket Bluetooth edition has an 4000mAh volume battery.It support bluetooth and wired mode both.

GK96xs Lite Gasket is called v3 which is specially designed and add silica foam between PCB and plate which reducing much sound and get better tactile feeling than before.

There is no switches in the kit,you can order Cherry Gateron Kailh SMD Box switches etc yourself.Just put in switches in is ok,no need soldering again.3 pin 5 pin both supported

Details

The stabilizers is produced by Gateron factory which is tighter and better than before.For linear switches,please unistall the stabilizer and clip it to get better tactile feeling.If clicky switches,can just keep the status.

The new plastic case is ABS amoulded by Zealio factory which is higher quality and looks better than before.

Pls note: This pcb is fully programmable.

The chipset is MCU 32 bit,8M Flash,3 pcs 256*256*256 RGB drive to support full 16.8 million RGB.

PCB has switches RGB presoldered,it's under per switch.There is no underglow RGB presoldered.

Bluetooth option is bluetooth 5.1,uses broadcom bluetooth chip and program which is more stable even than some 4.0 in the market.You can switch wired and bluetooth mode with Fn+Spc,enter into pairing mode by Fn+ZXC,can connect 3 device at most.

Bluetooth option RAlt ZXC Space key led is related to bluetooth mode,such as when battery volume is low,Ralt led will change color.So if these led color is different from other leds,it's not broken.

GK Manuals

Windows: drive.google.com/file/d/1oCvUmodD5n5TpfFfcPPB0IMwD2BCdzVh/view?usp=sharing

Mac system: drive.google.com/file/d/1Mbi6M30gf7LhLt8psYK99mUoXnubYjdS/view?usp=sharing

Images Display

Note 1

Ymdkey only support paypal now,thanks for understanding.

Note 2

Kindly note all price listed in page don't include destination taxes since every country is different policy.

If you located in EU UK,will charge VAT for orders under Euro150 when checkout since 1,July.

If you order is over Euro150,please pay VAT /customs fee yourself in destination.

For shipping and invoice details,just message us directly is ok.
