Package Included:

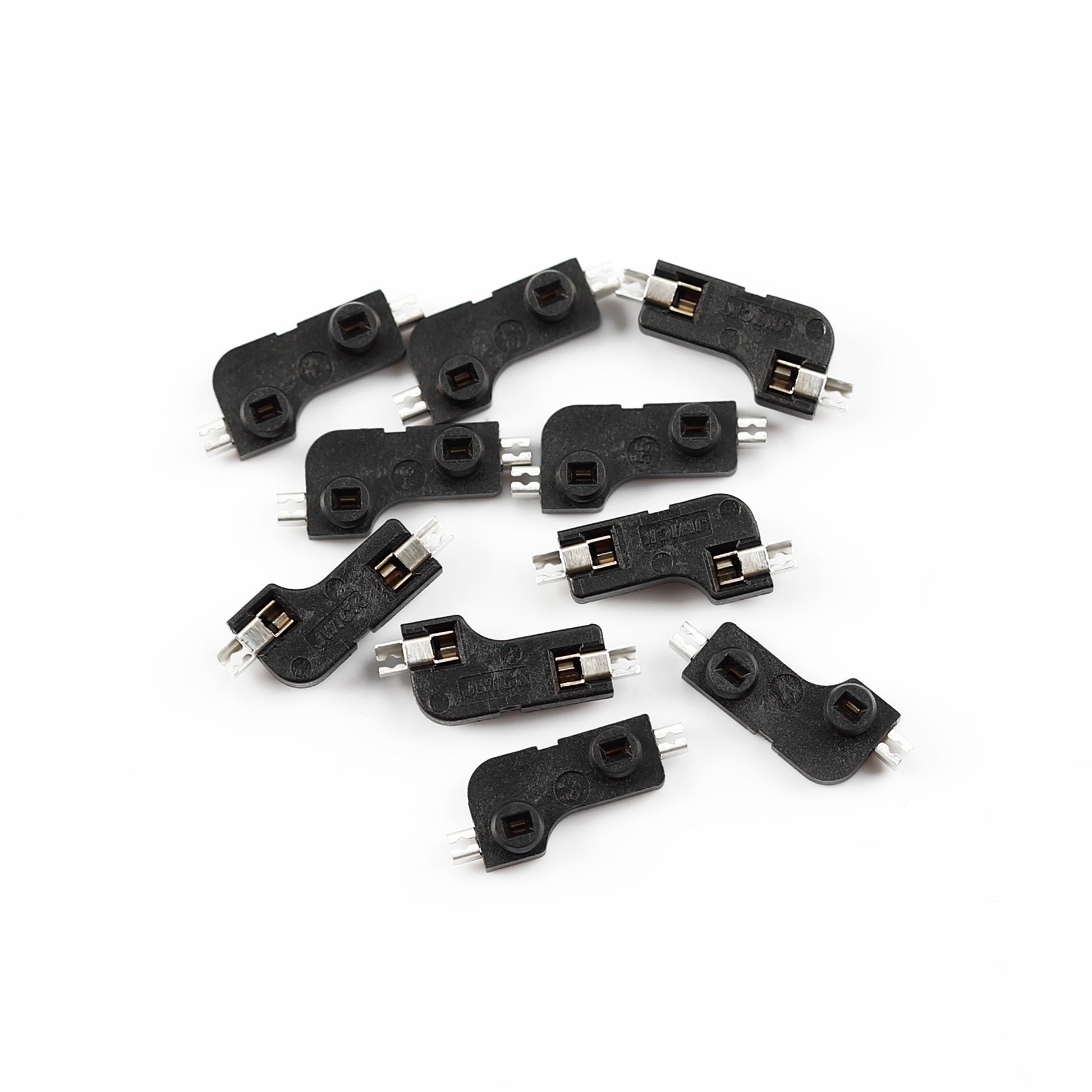

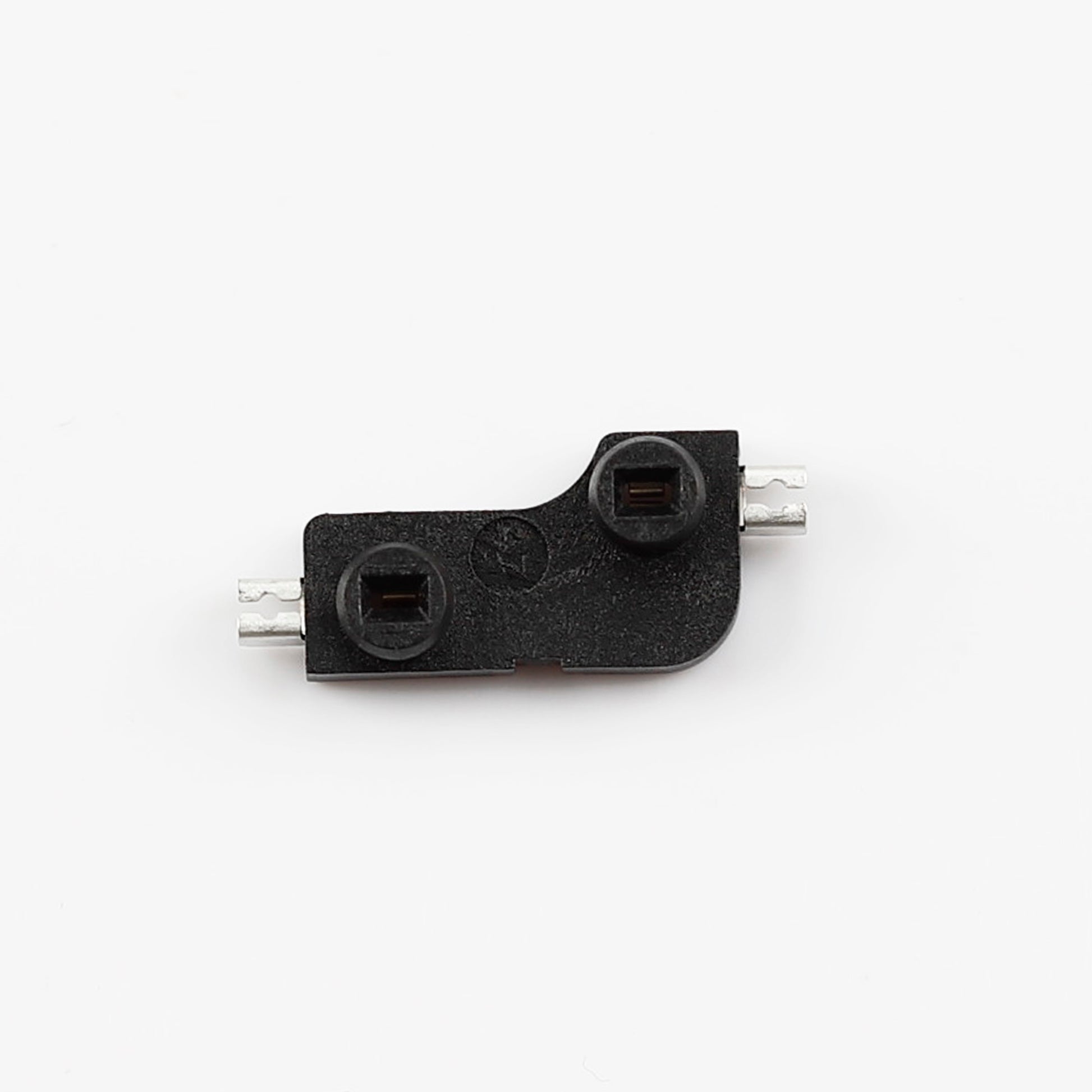

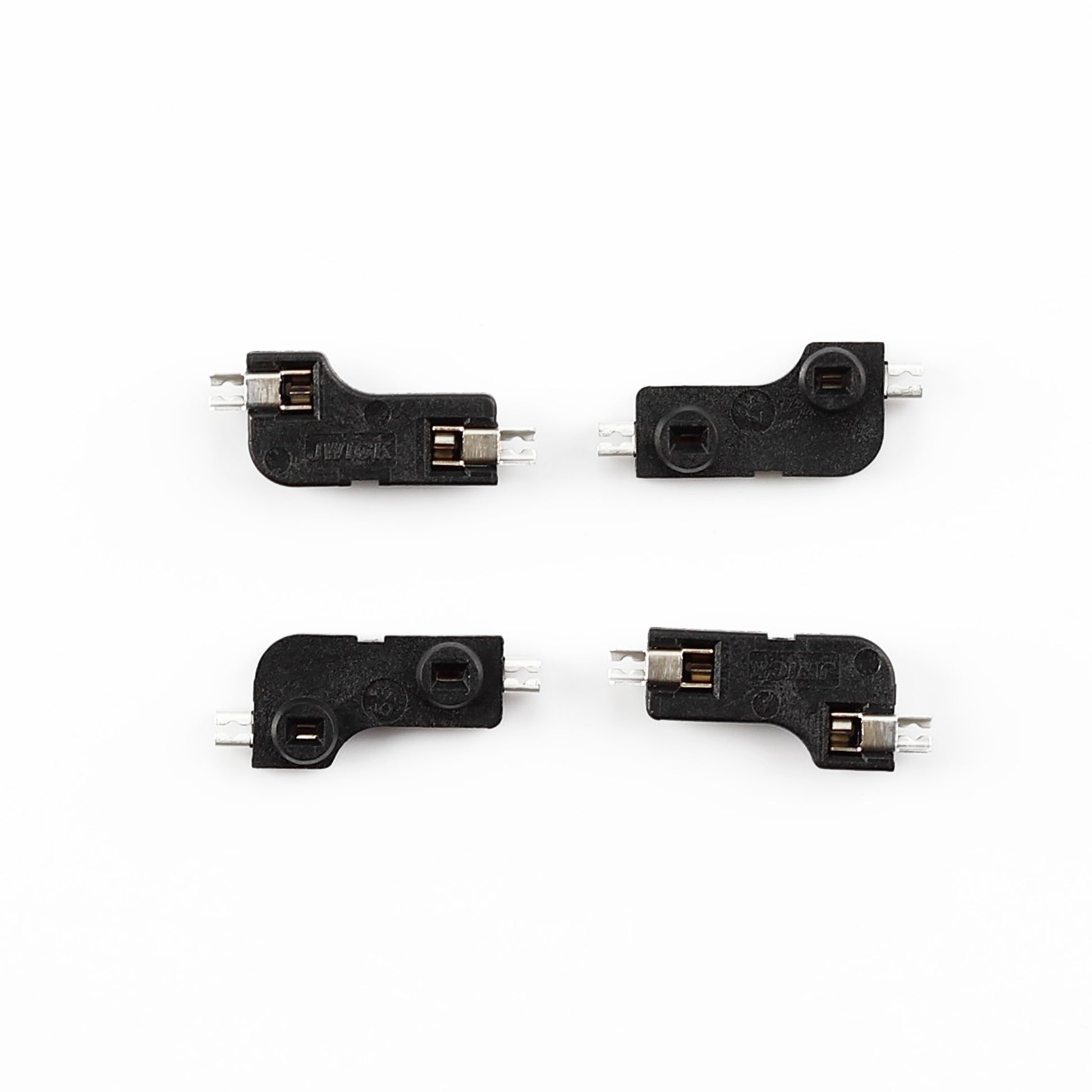

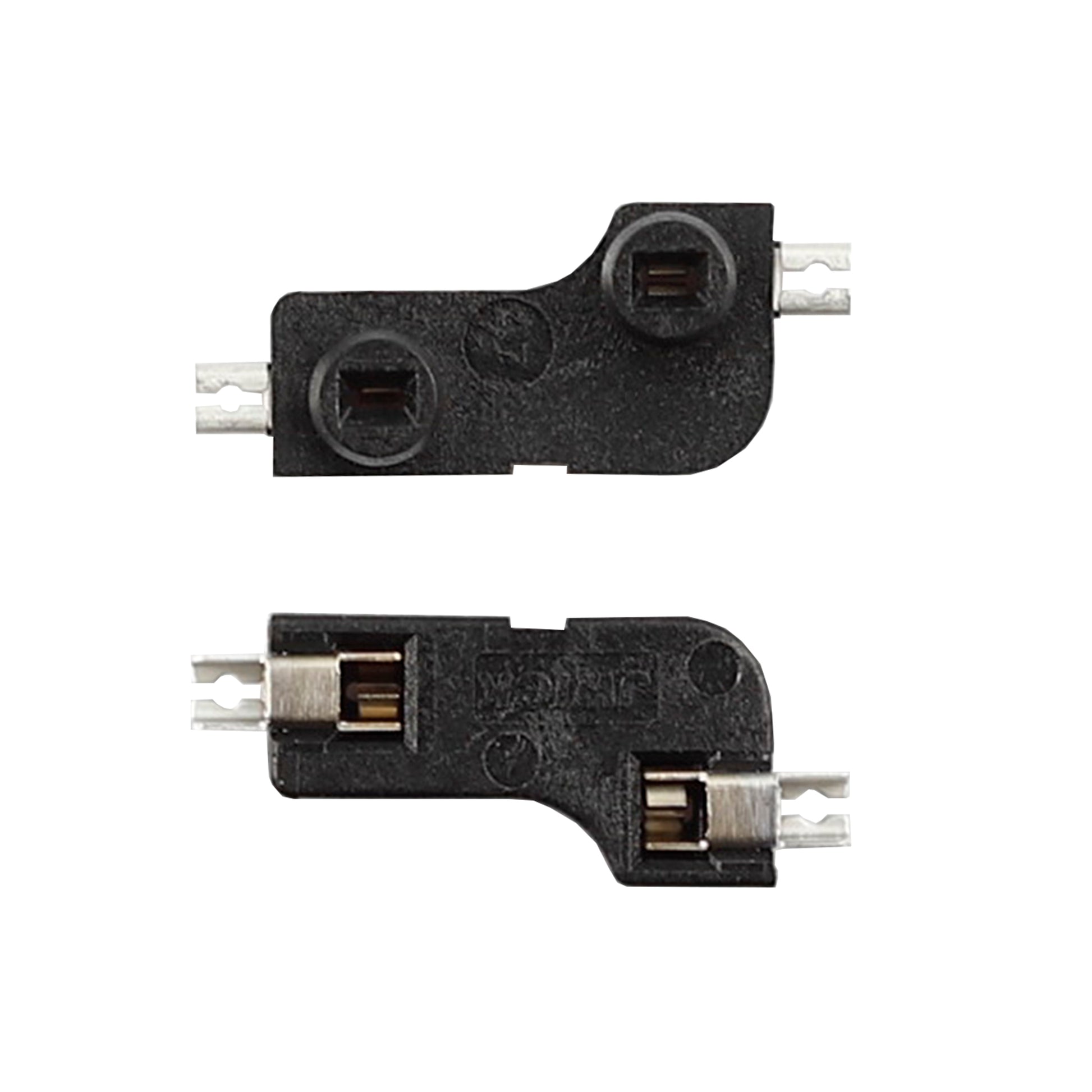

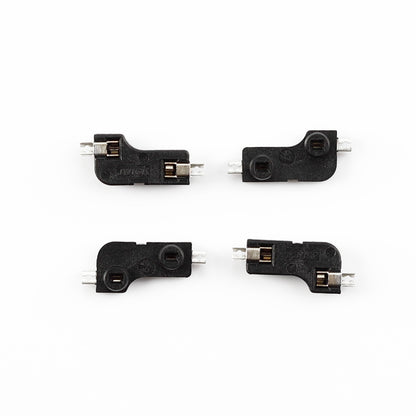

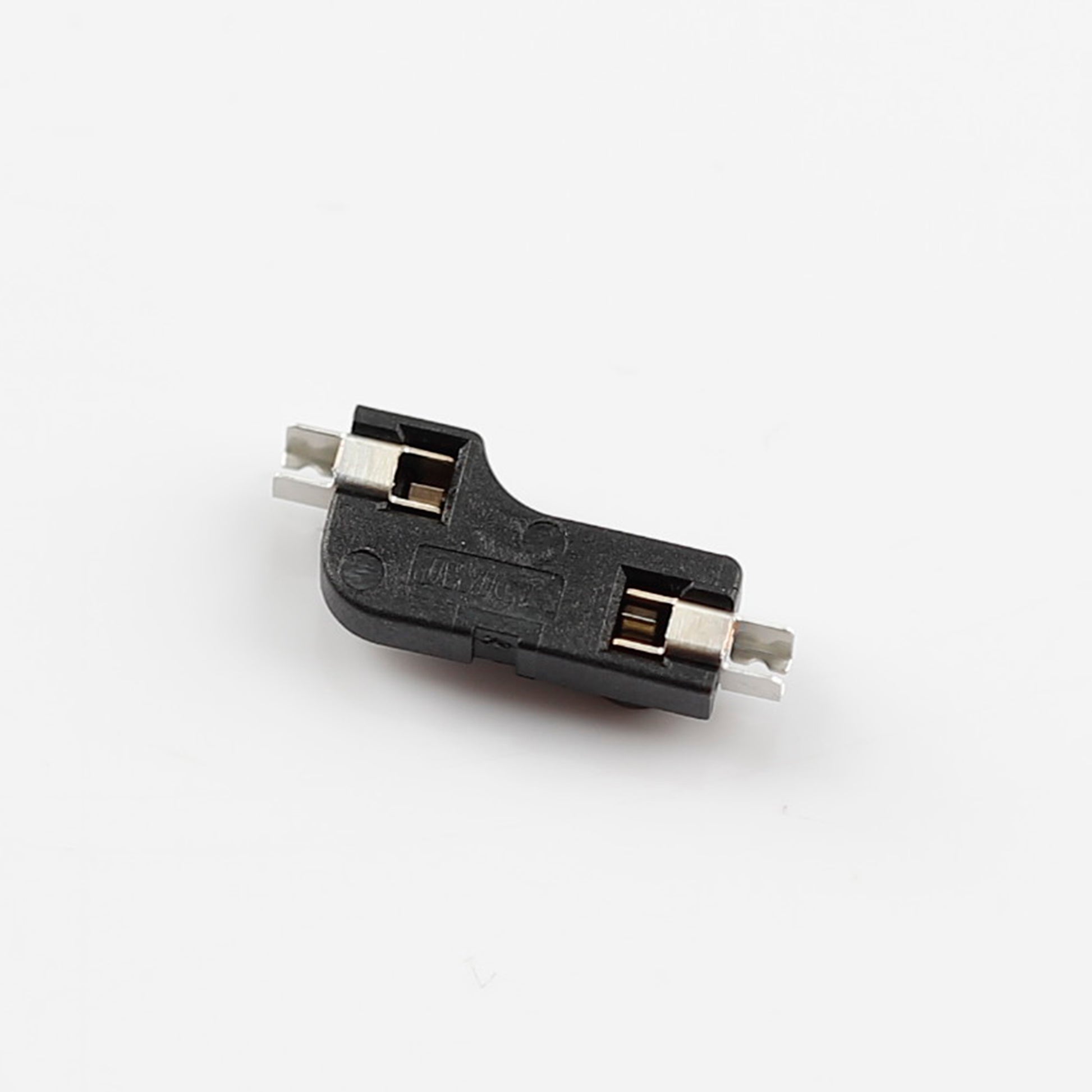

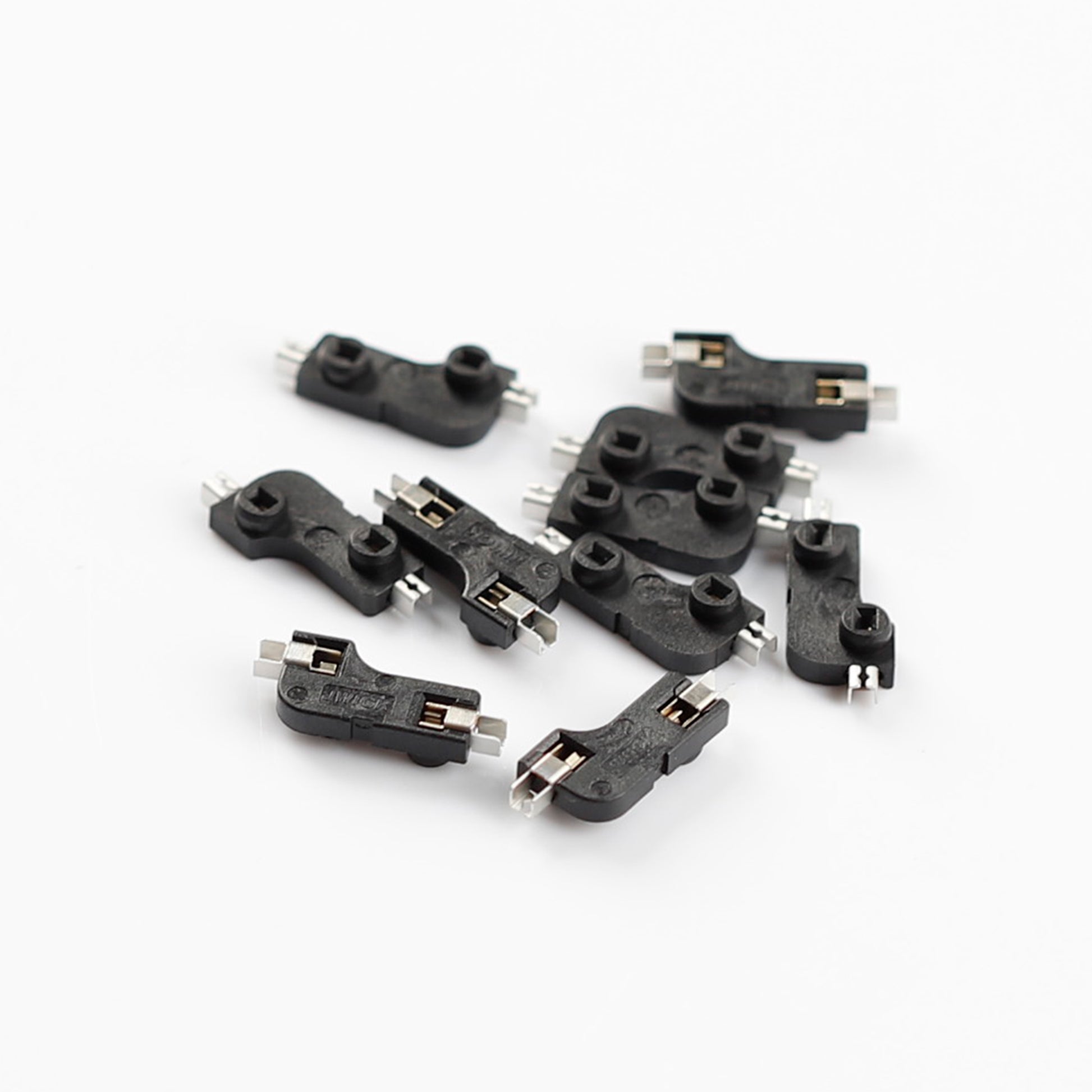

JWK SW-5 Hot-swappable PCB Socket Sip socket Hot Plug

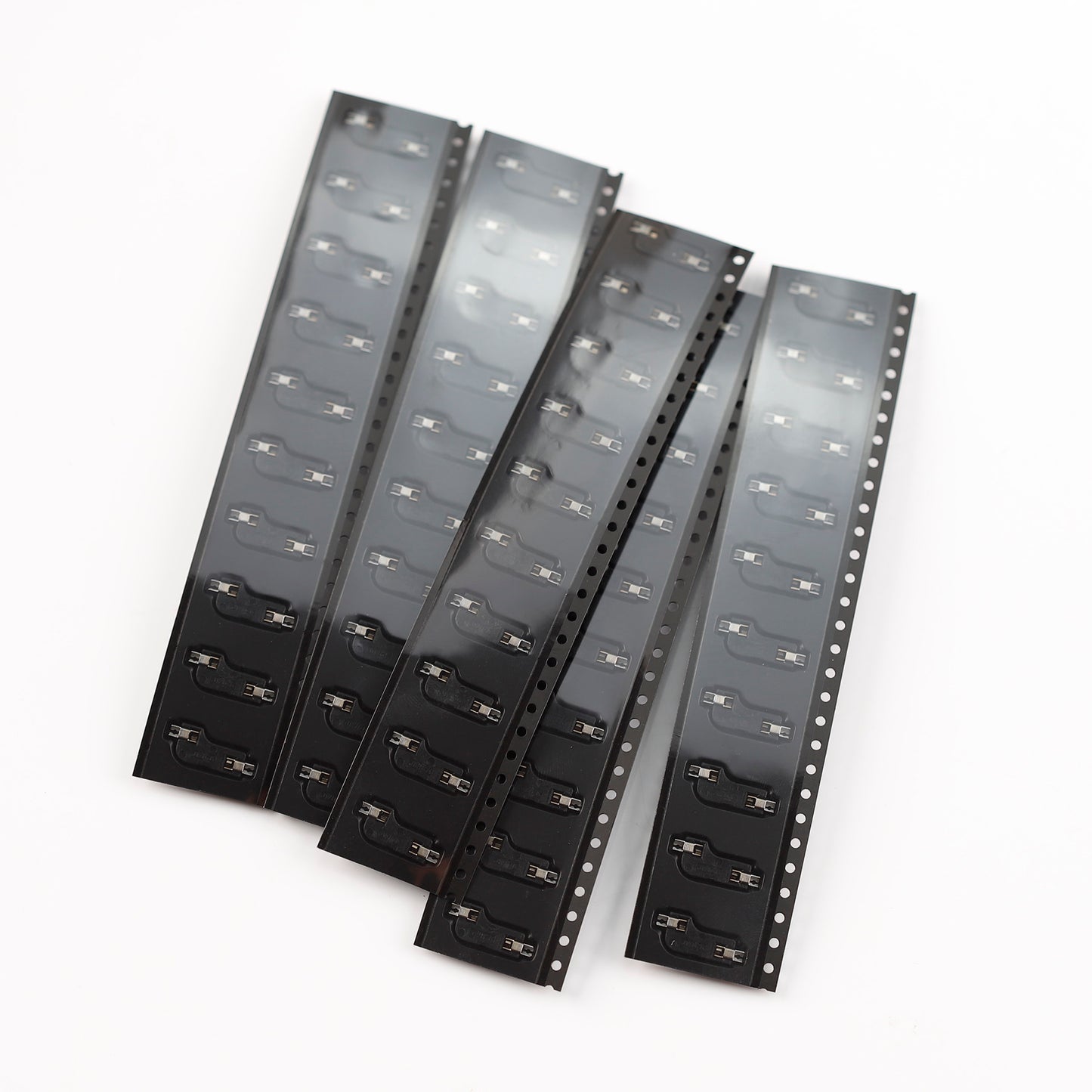

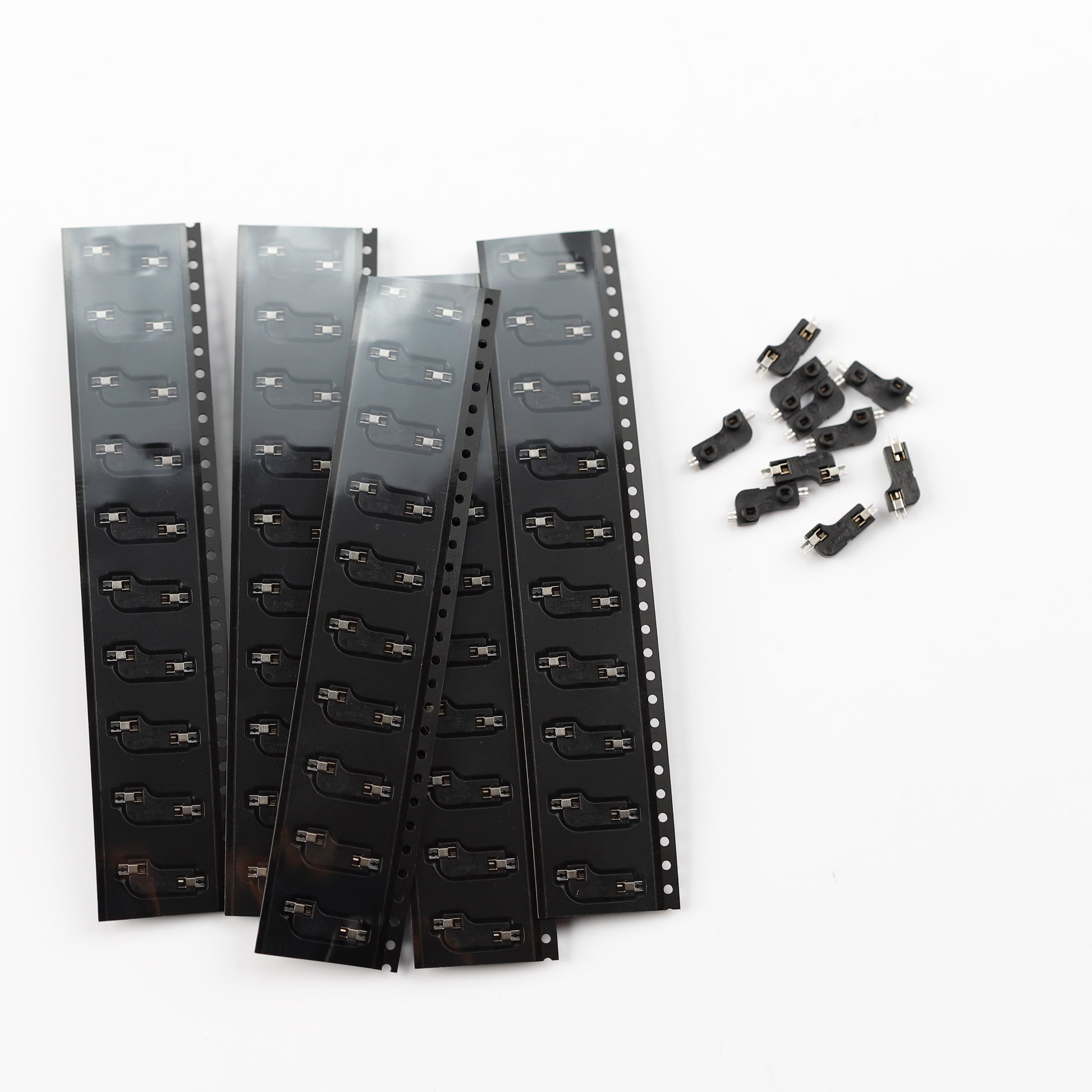

Quantity 50/100/2000 as options

Details:

Alternative PCB Hot-Swappable Sockets for Kailh & Gateron

It can be used to fix some problems in pcb,or some pcbs need the sockets to finish working by soldering.

Mainly applied on computer keyboards,cash registers equipment and Man-Machine interface.

Rating voltage: 12V AC/DC (maximum) and 2V AC (minimum)

Rating current: 10mA AC/DC (maximum) and 10μA DC (minimum)

Contact resistance: 200mΩ (maximum)

Insulation resistance: 100mΩ (minimum) (100V DC)

Withstand Voltage: AC100V(50-60Hz)

Motion Force: 3.0kgf max

Operating Life: 100 Cycles (can replace switches 100 times)
