Kailh Box Switches(SMD 3 Pin Or 5 Pin/IP56 Water-proof)
Kailh Box Switches(SMD 3 Pin Or 5 Pin/IP56 Water-proof)
Couldn't load pickup availability
Package Included(Kailh Box Switches)
Switch*quantities(10/24/65/90/110 as options)
Details

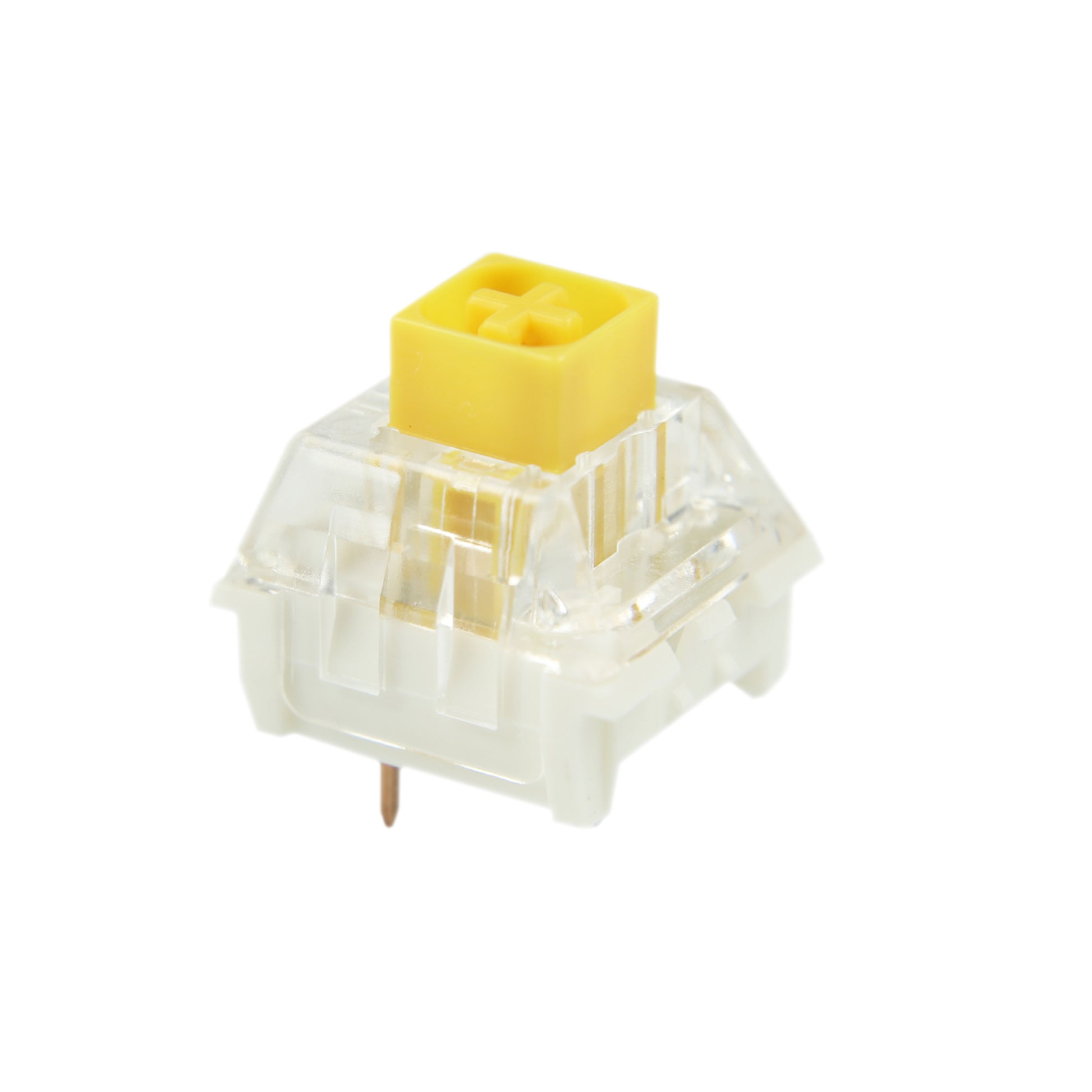

BOX Heavy Dark Yellow is linear switches,around 70g operating force

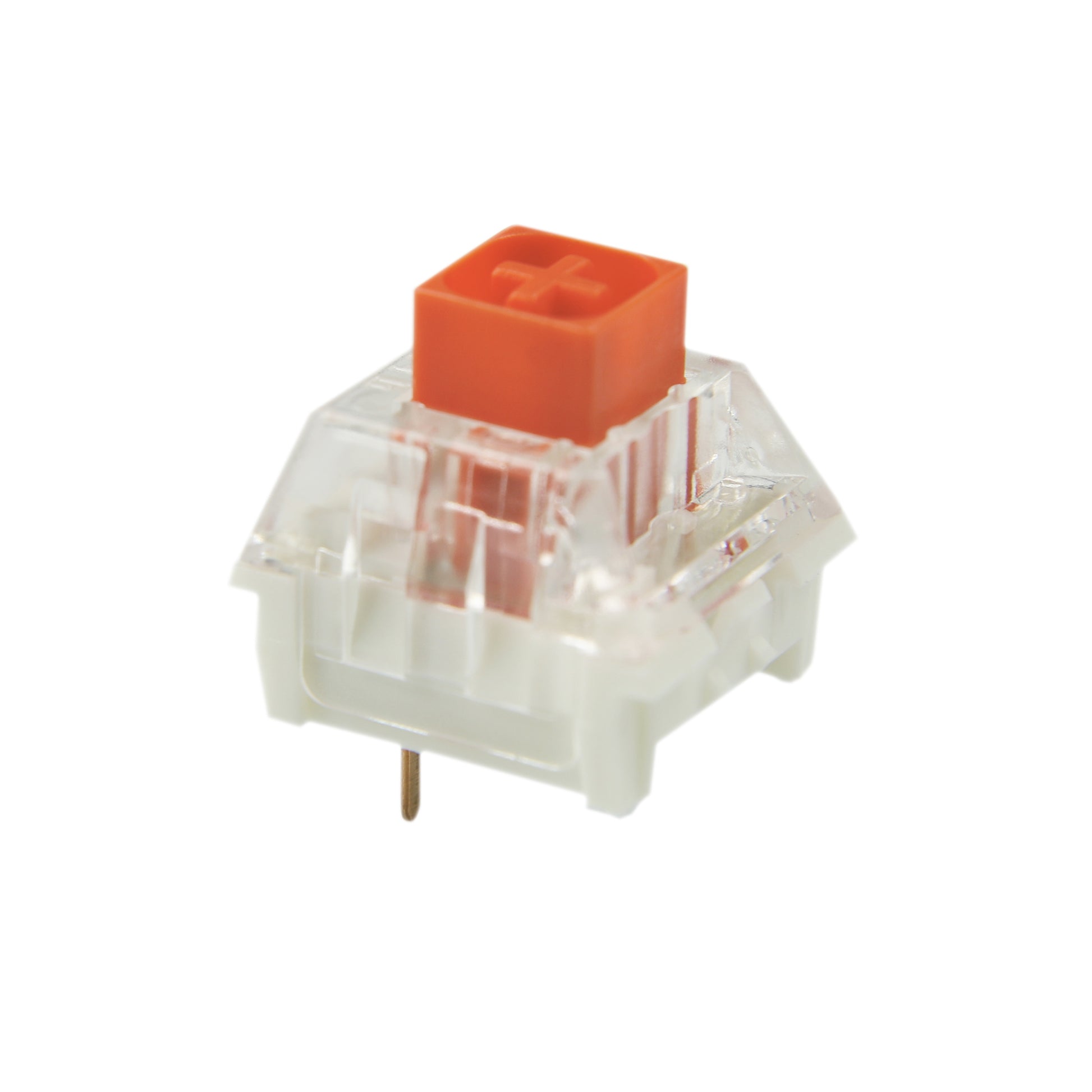

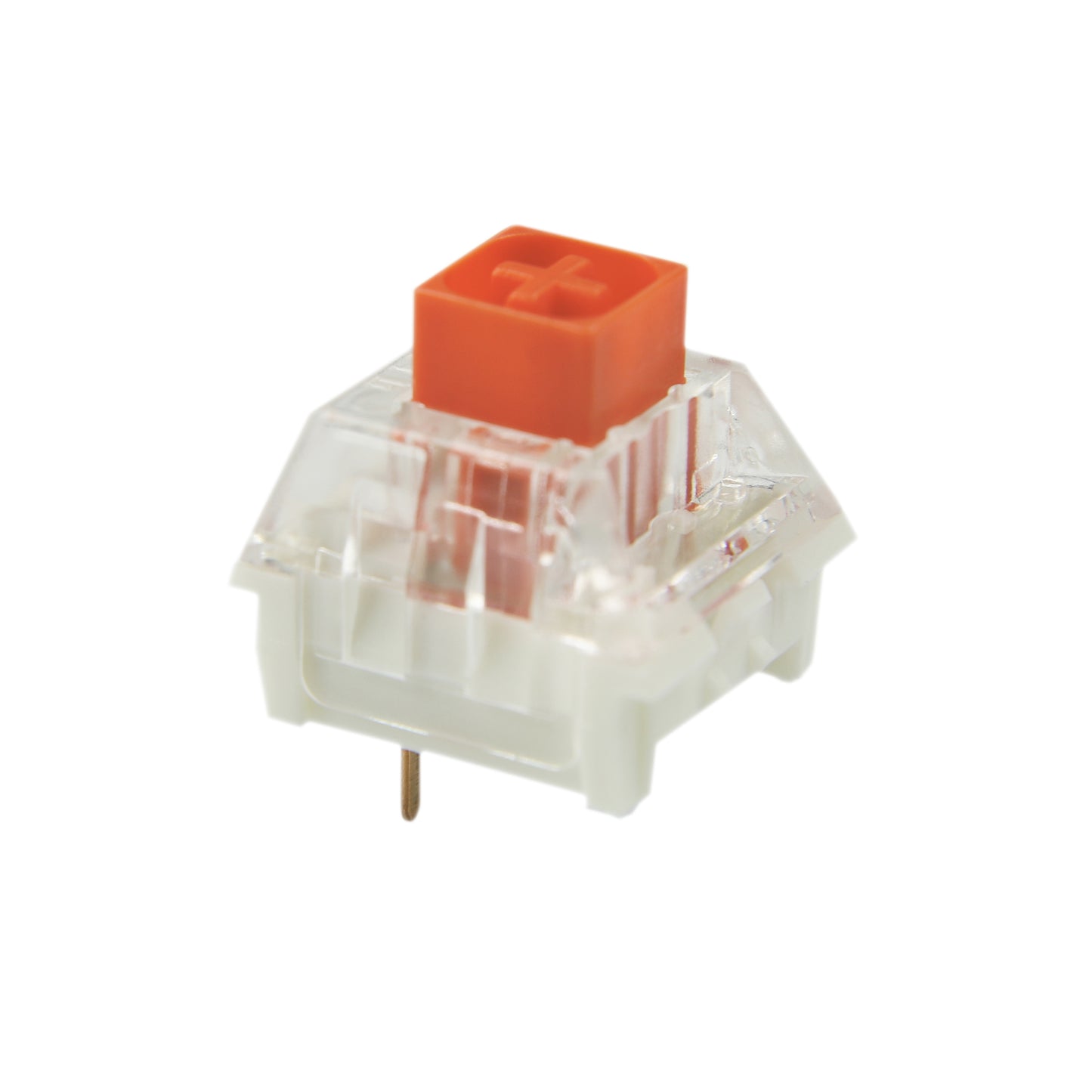

BOX Heavy Burnt Orange is tactile not clicky,around 60g operating force

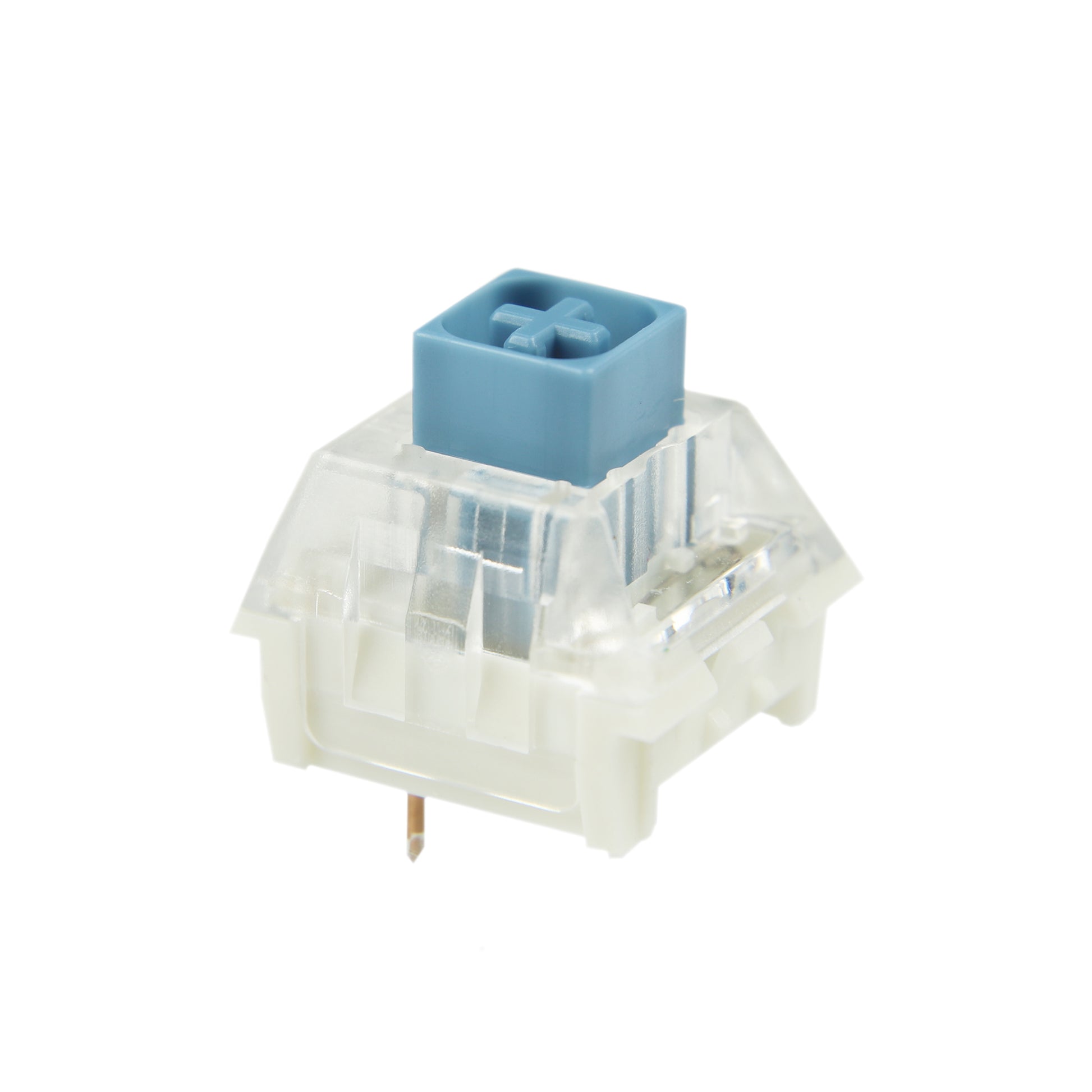

BOX Heavy Pale Blue is tactile clicky,around 60g operating force

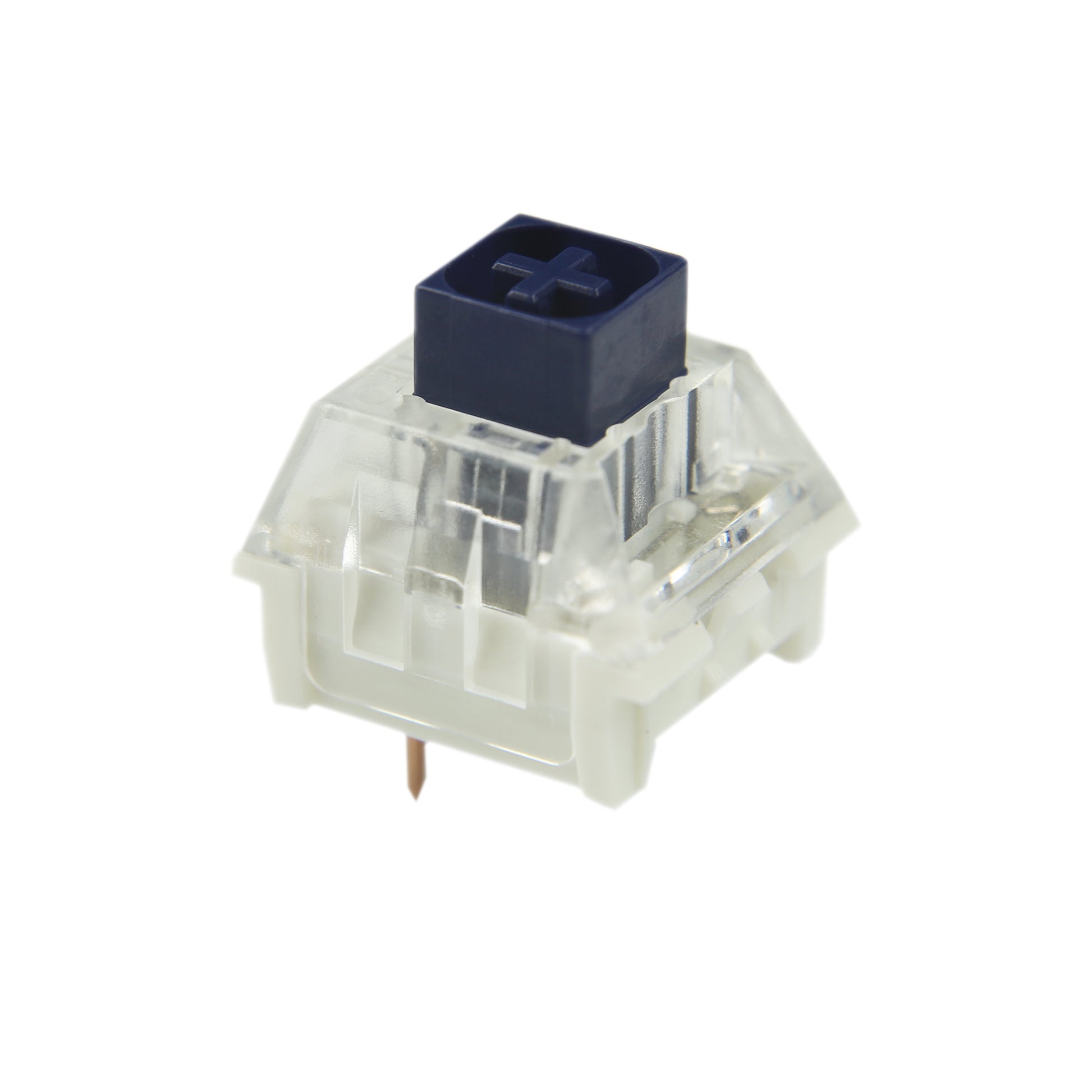

Box Navy is tactile clicky,spring force is the same as heavy pale blue,and the clicky feeling is more obvious.

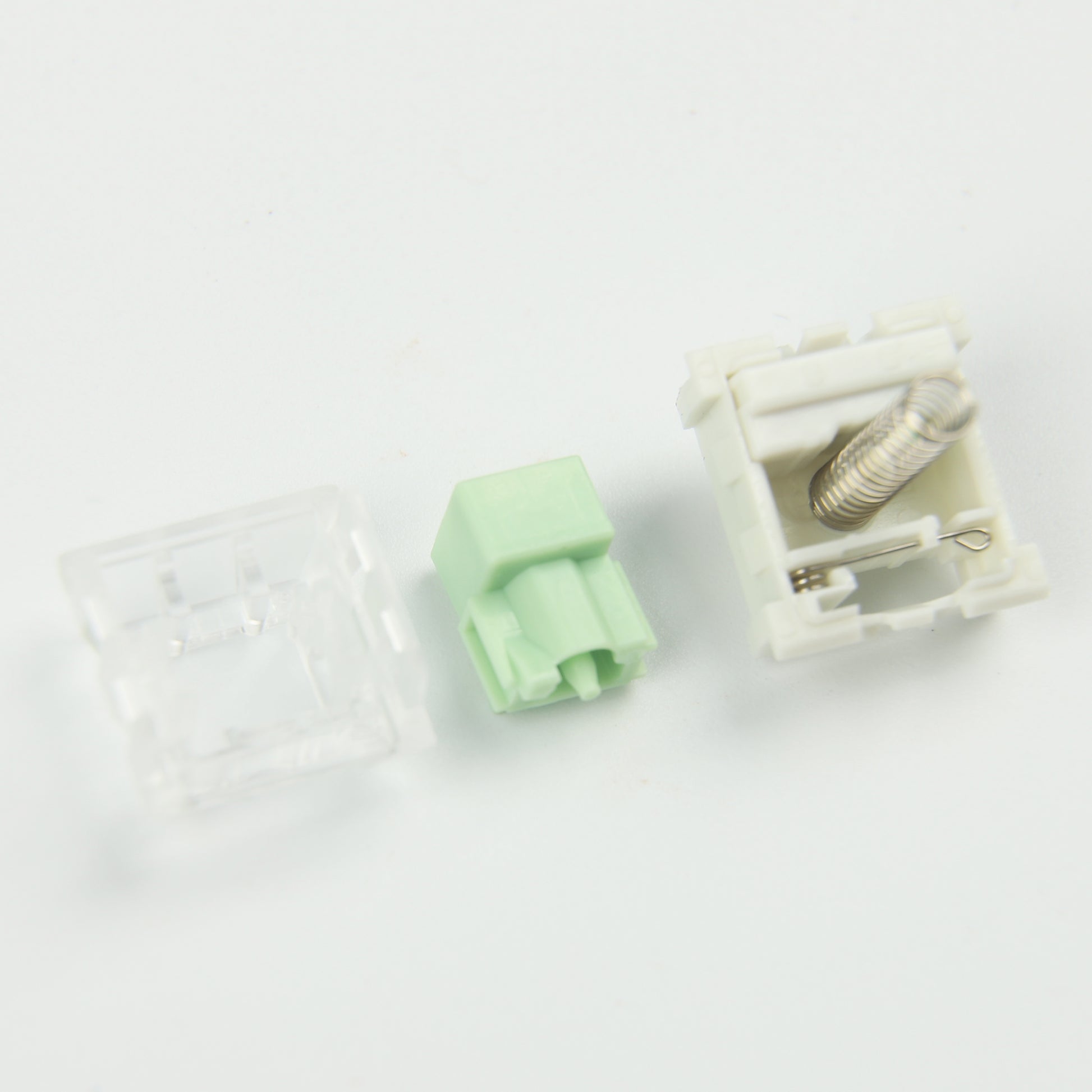

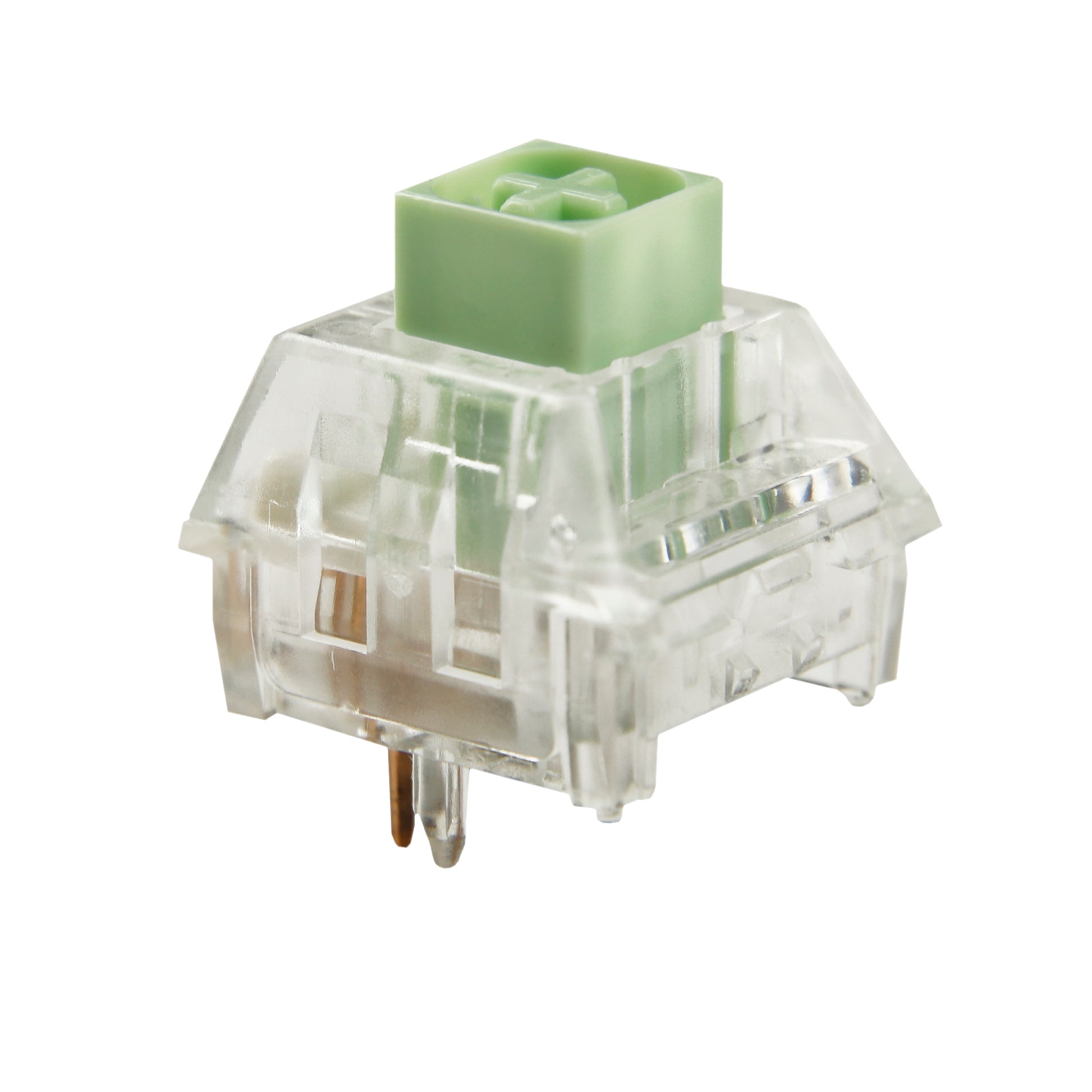

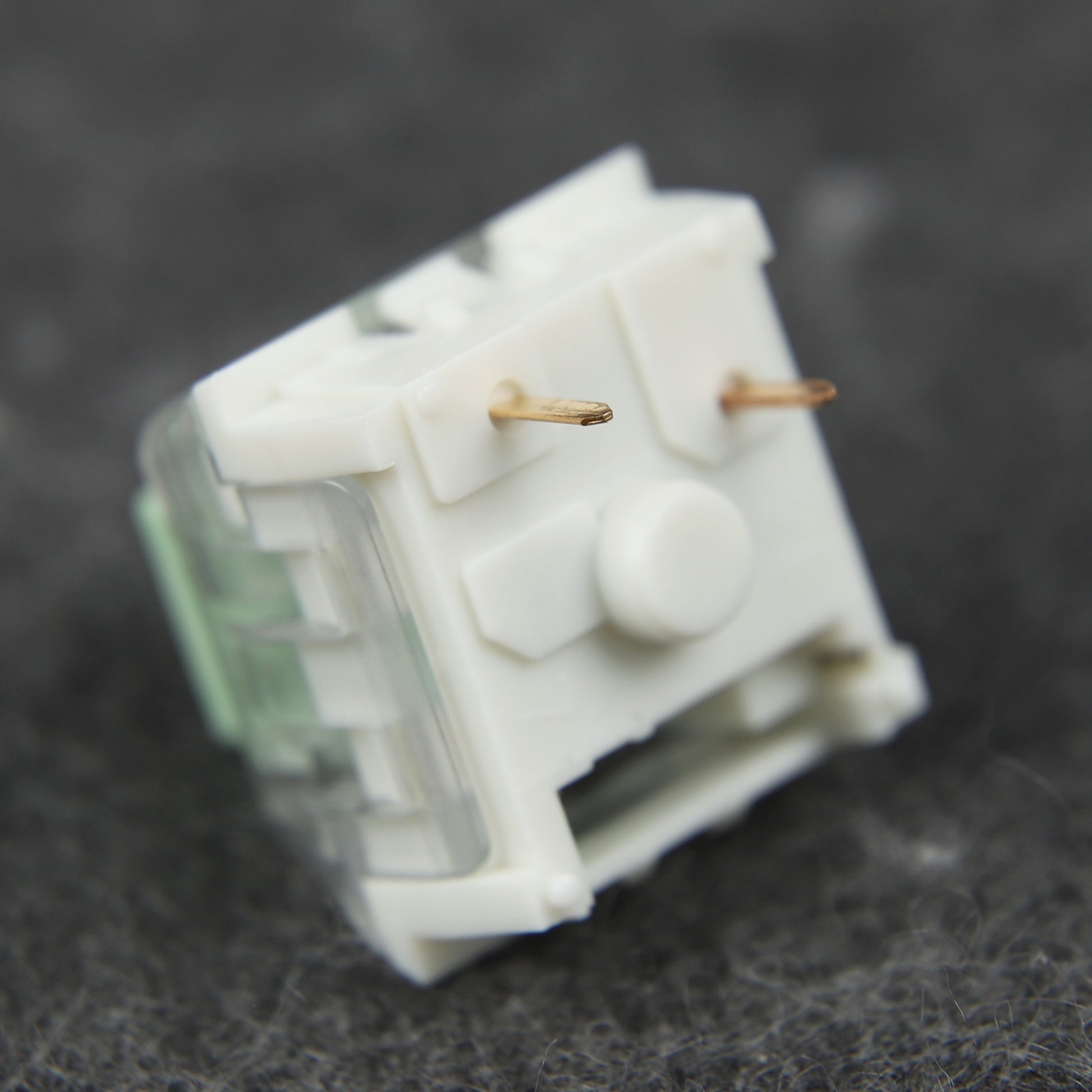

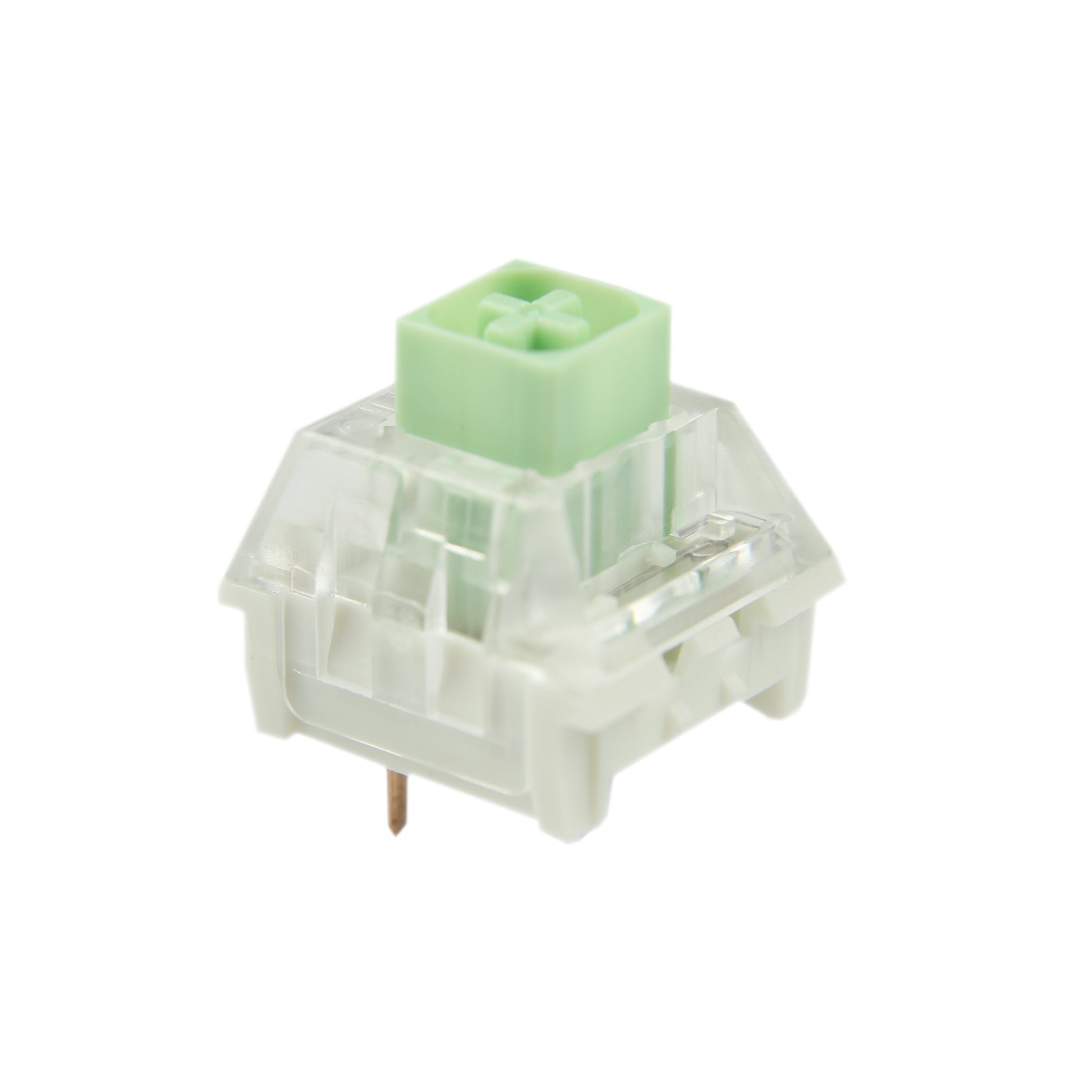

Box Jade is tactile clicky,spring force is same as box white,the clicky feeling is little resistant feeling

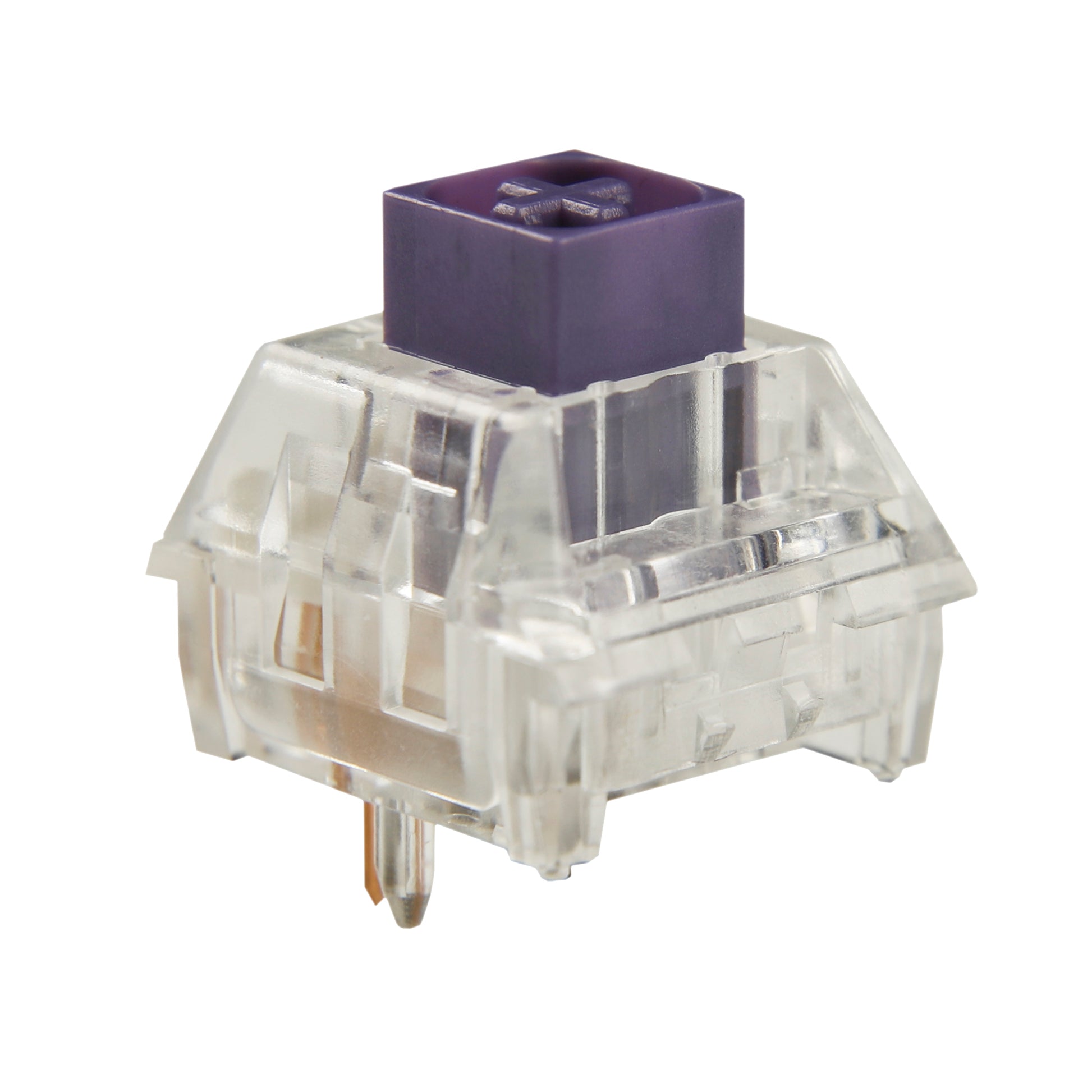

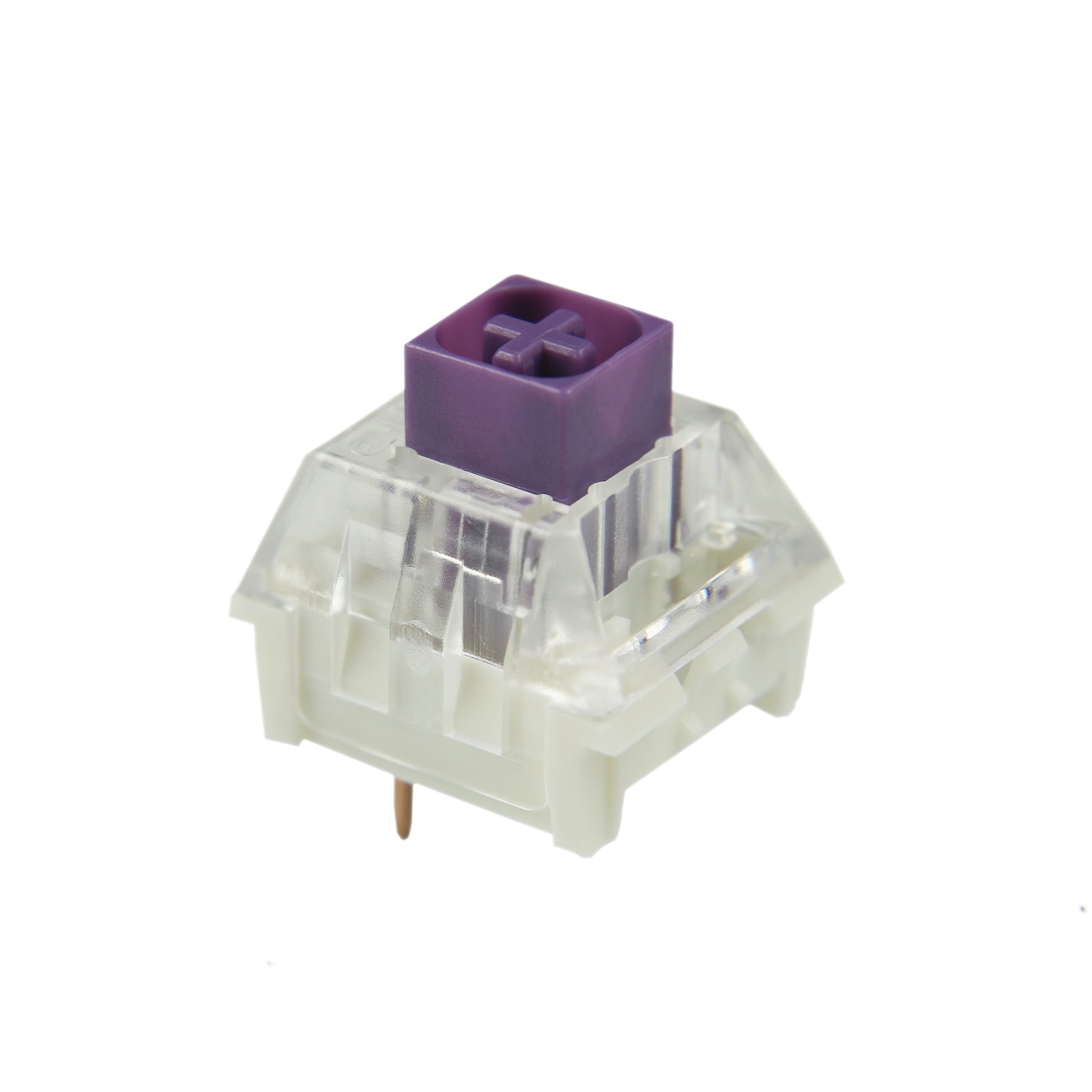

Box Royal is tactile not clickey,actuation is around 75g,the feeling is close to Cherry clear

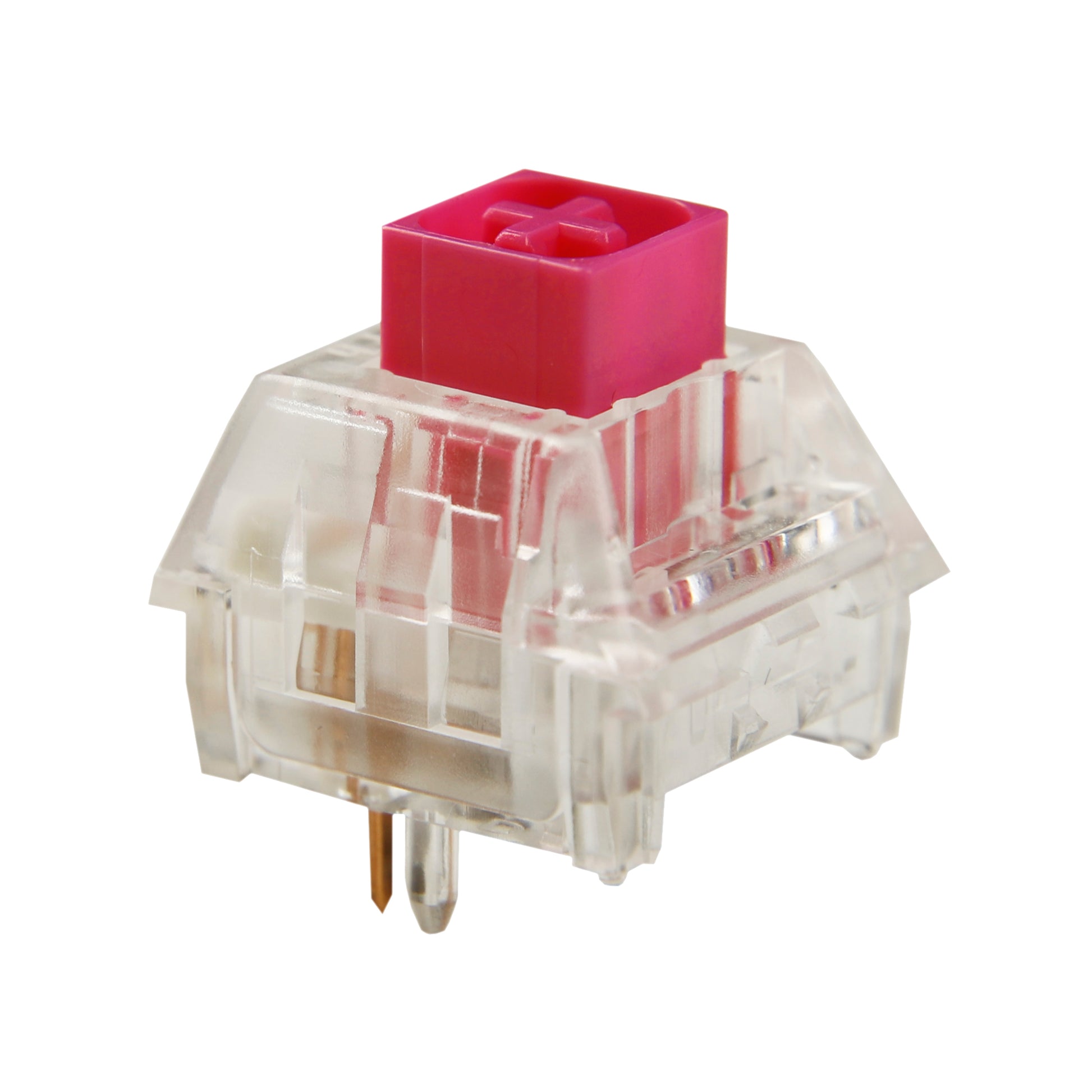

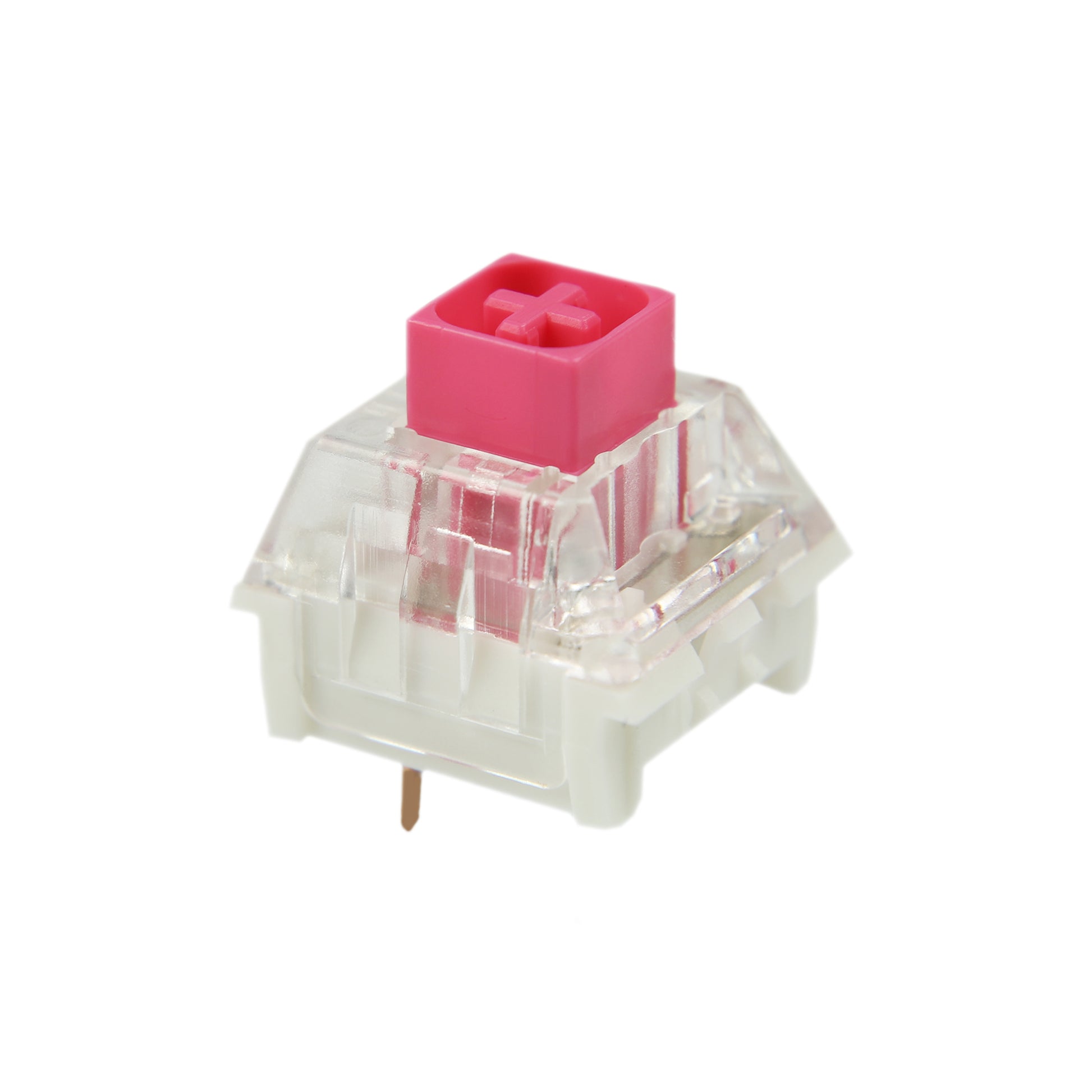

Box Pink is tactile cliky switches,operating force is around 55g±15gf,tactile force is around 65g±10gf

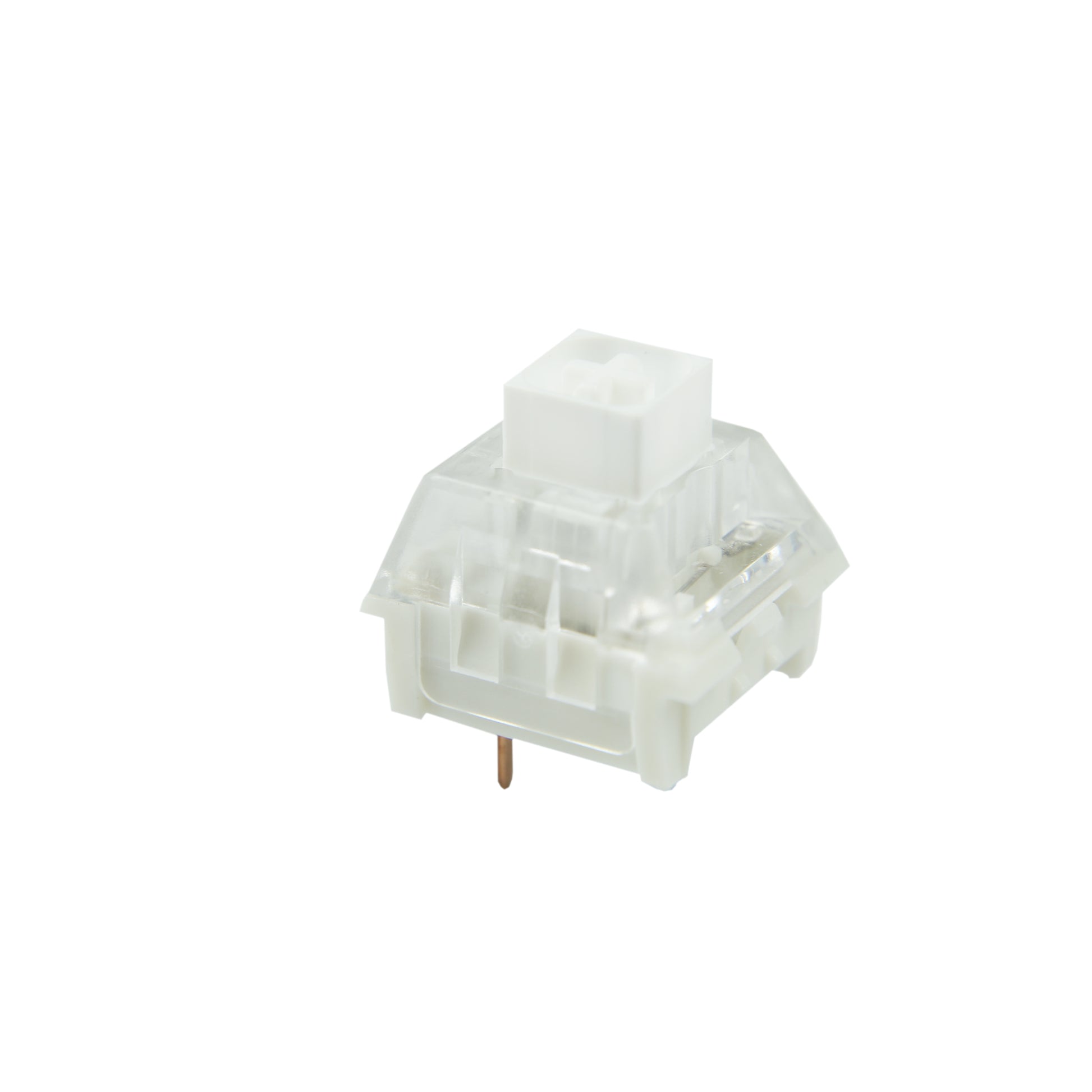

Box White is tactile clicky switches,around 45g operating force

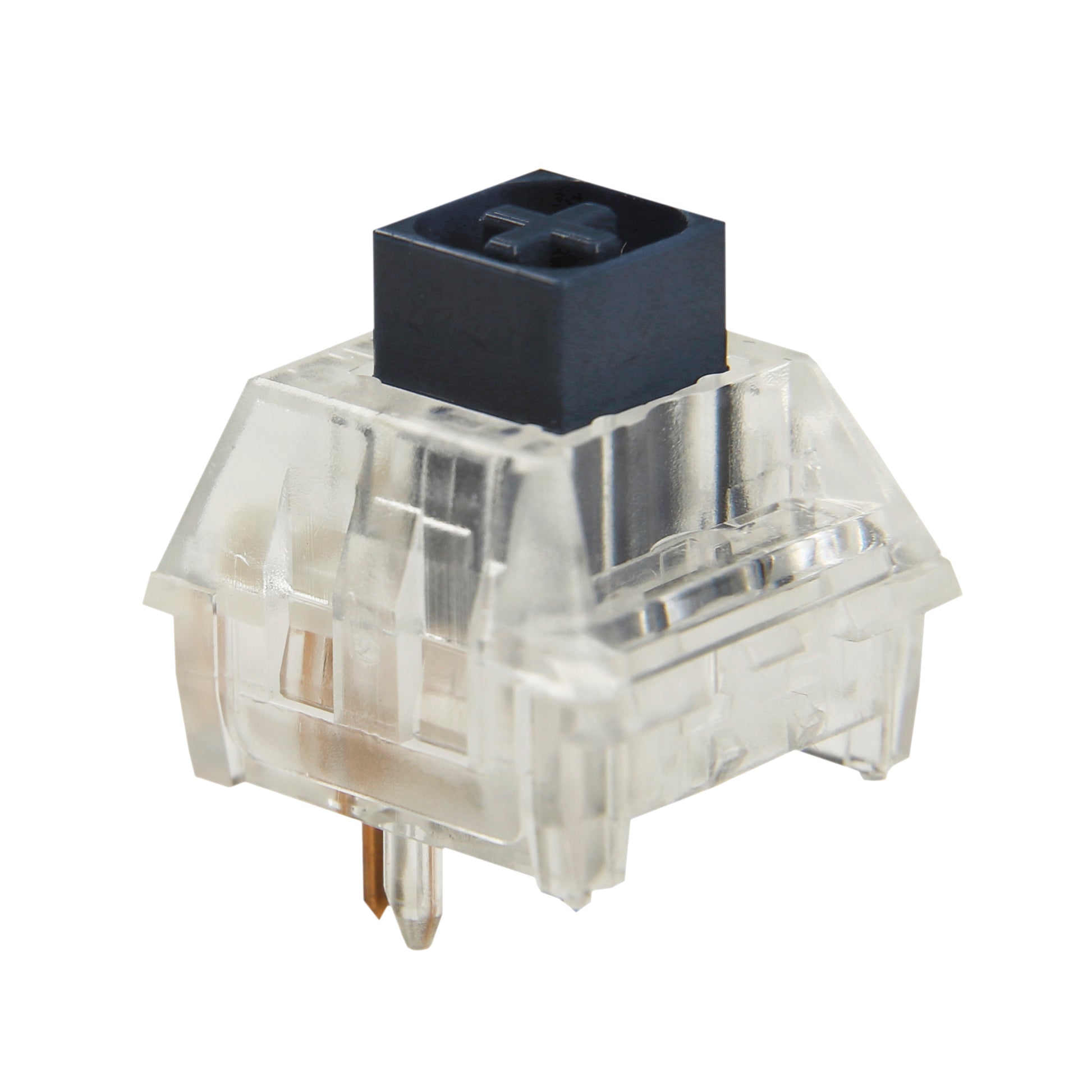

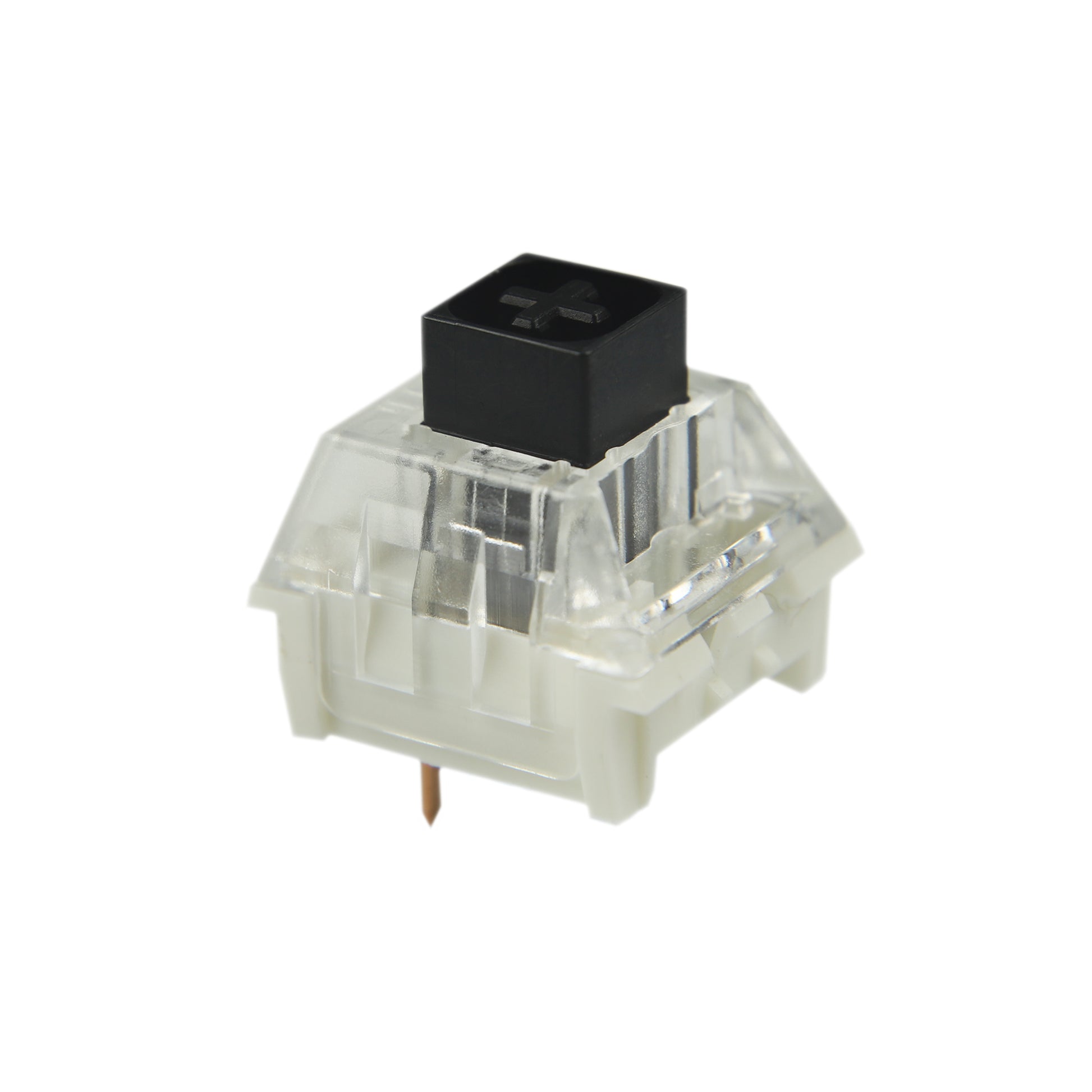

Box Black is Linear switches,around 60g operating force

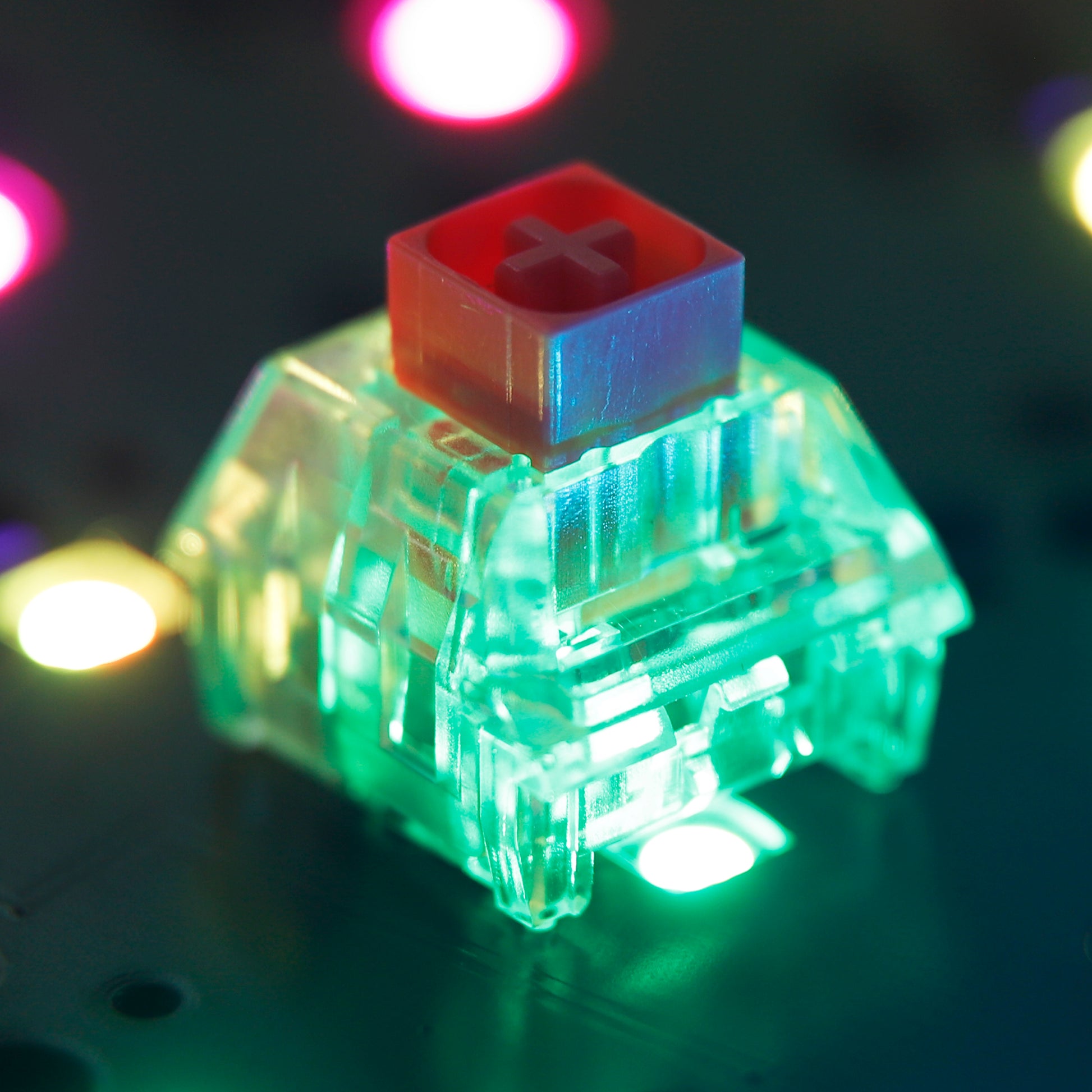

Box Red is linear switches,around 45g operating force

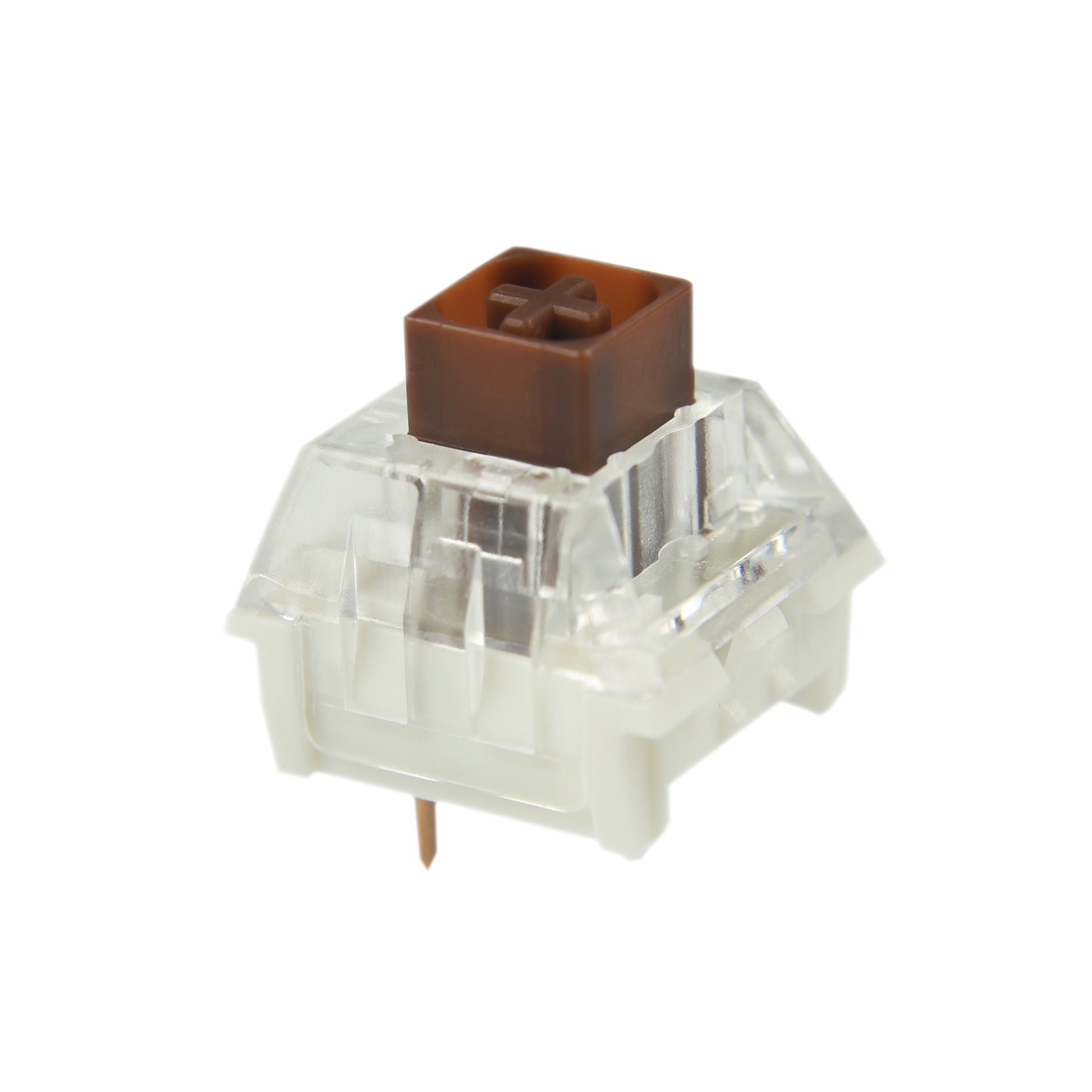

Box Brown is tactile switches,around 45g operating force

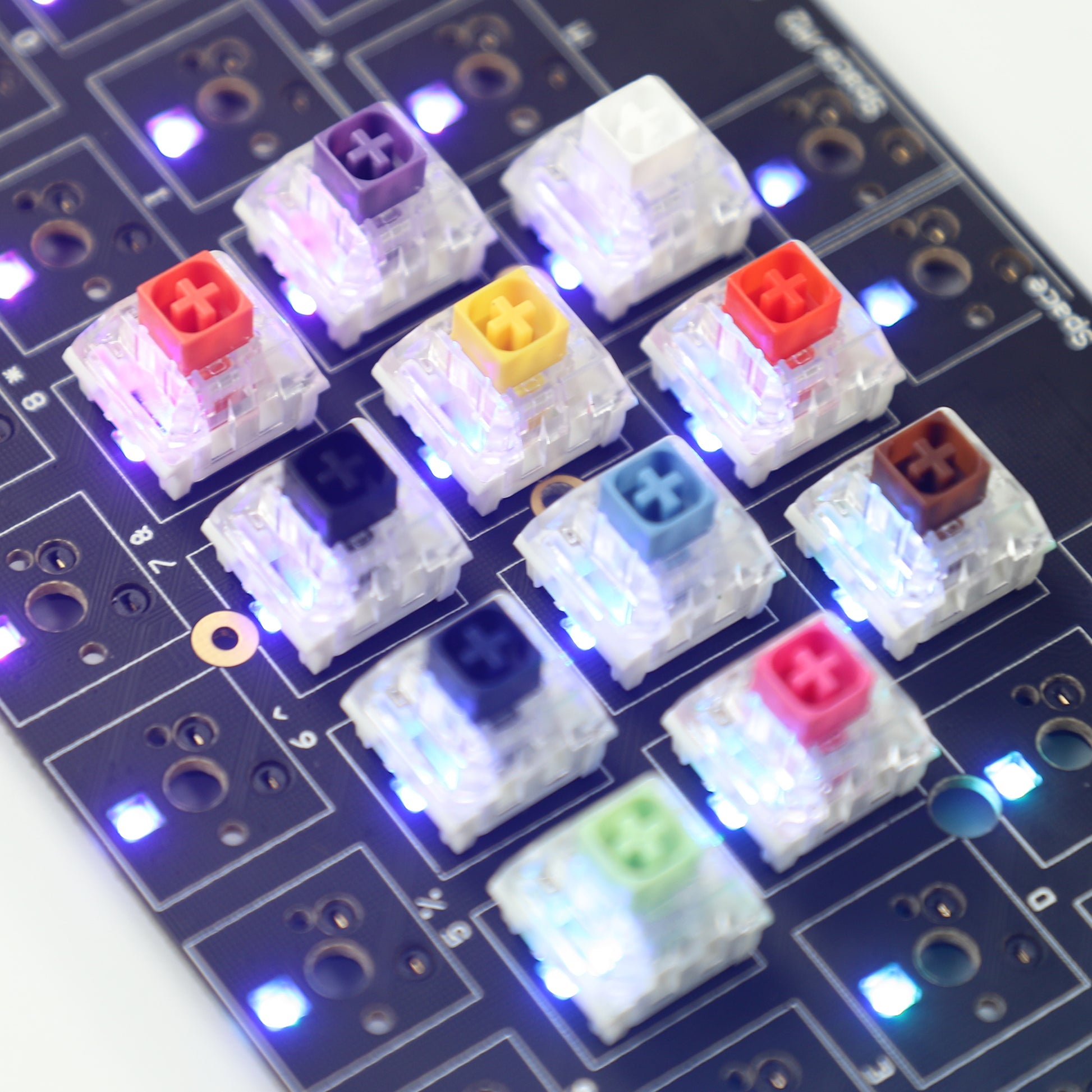

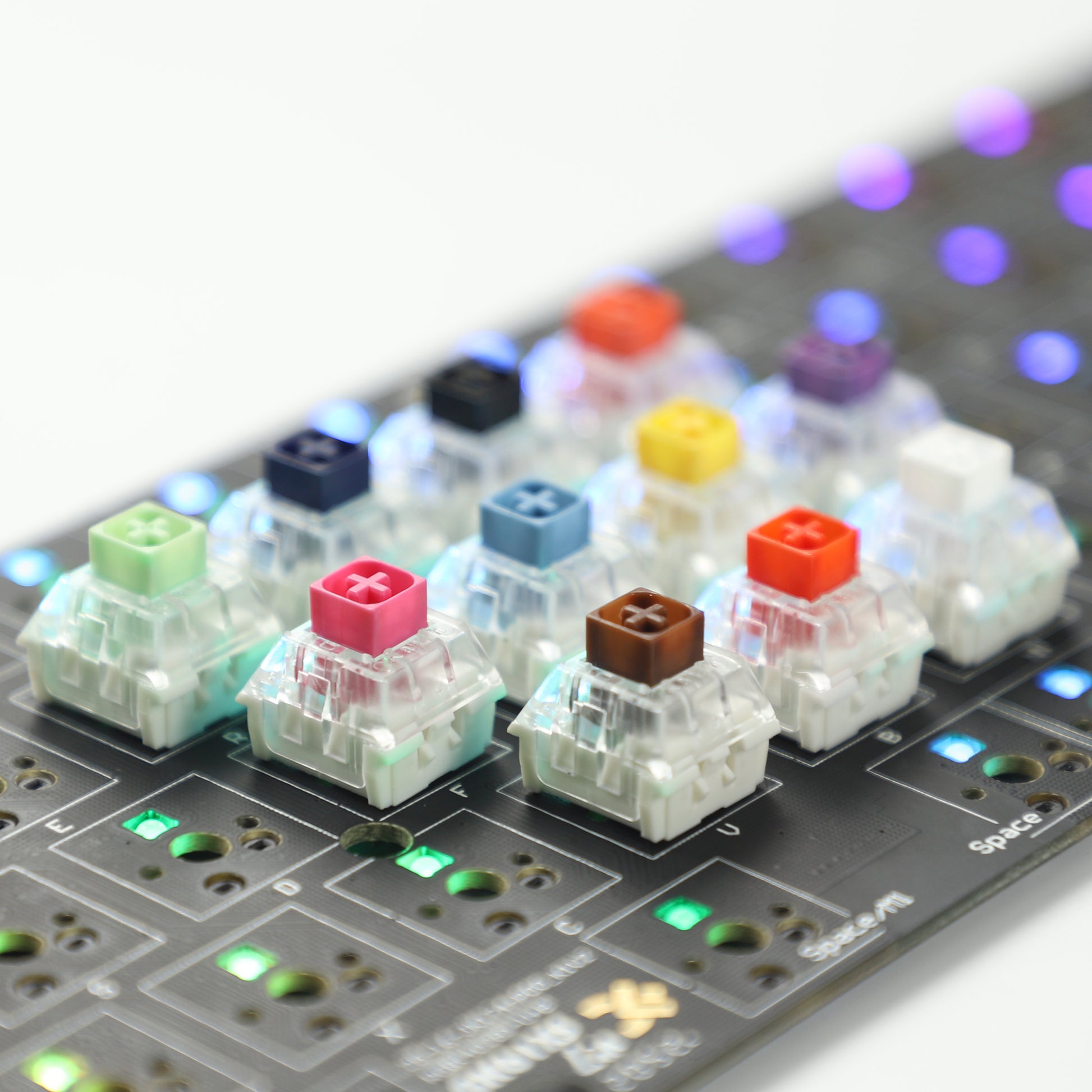

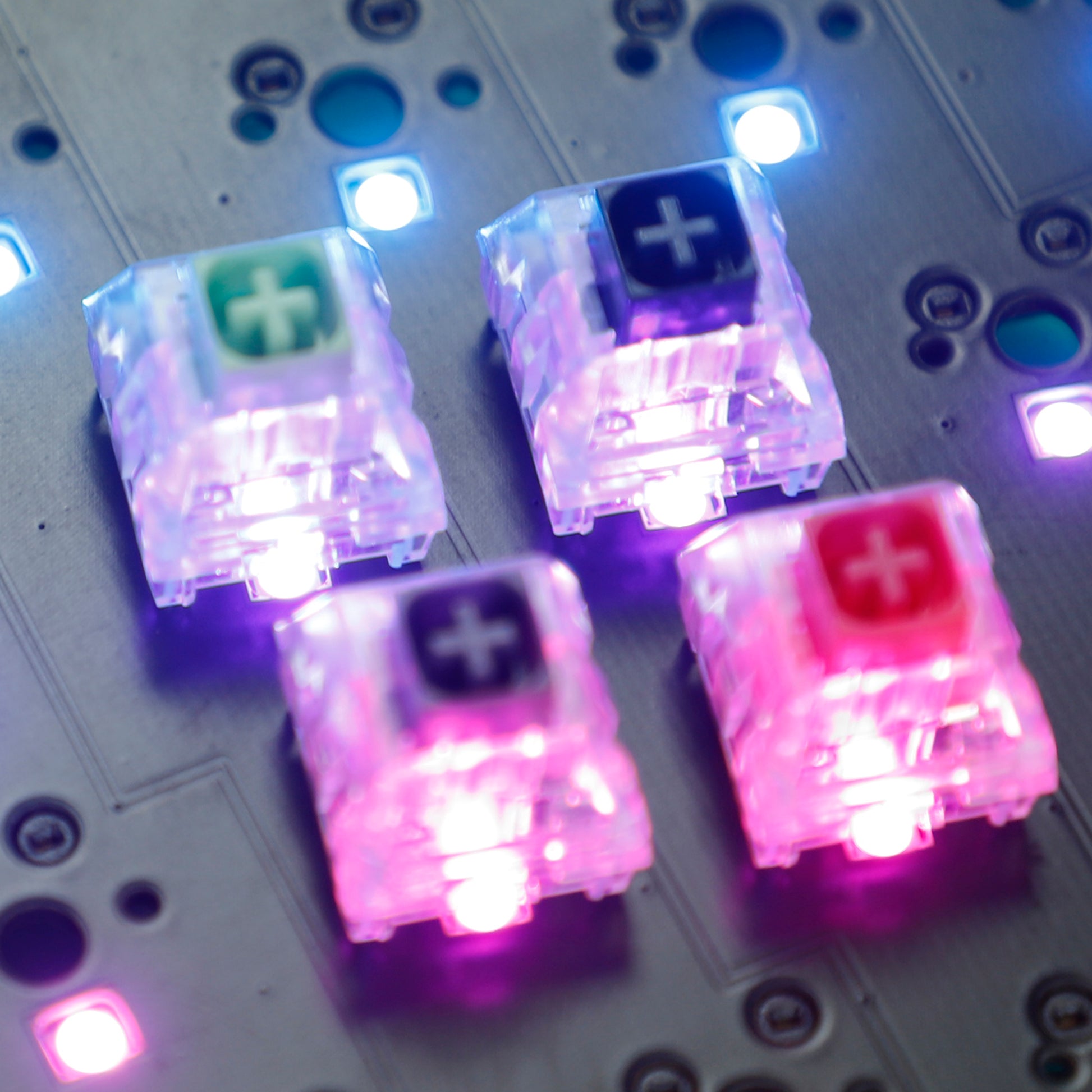

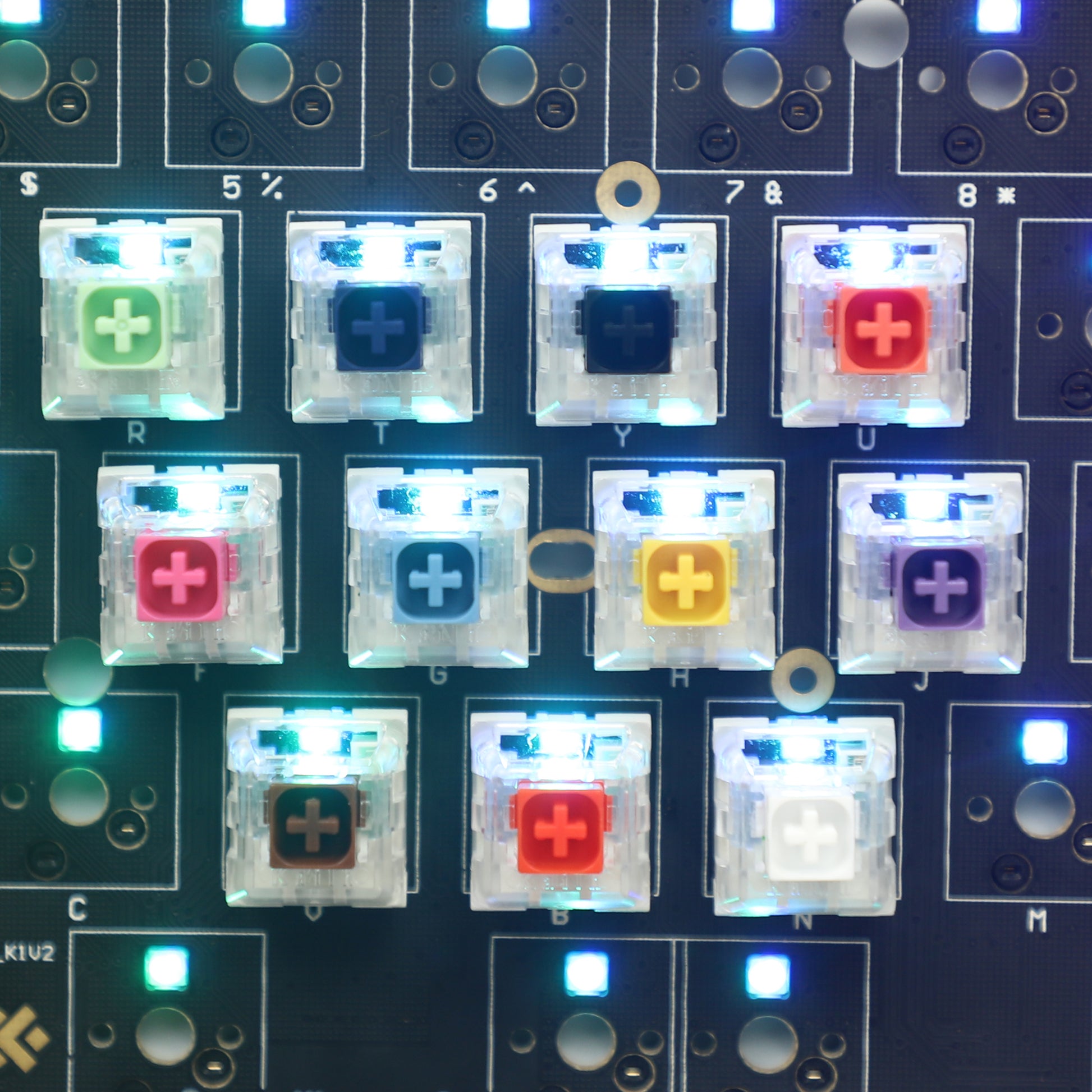

Crystal Jade /Navy /Pink /Royal is clear cover which is better for SMD switch RGB.Crystal switches are all 5 pin.If you only want to use 3 pin,just cut the plastic pin yourself is ok
Note
It is IP56 water-proof and dirt-proof.Has used 18k gold crosspoint technology which makes press feeling better.
The life-time is around 80 million times which is longer than usual switches.
It can be compatible with 2x3x4mm led and 1.8mm led,however need to solder led to PCB at first,then solder switches on.3mm round can't use even you solder led before switches.
It fit SMD Leds and GMK Keycaps.

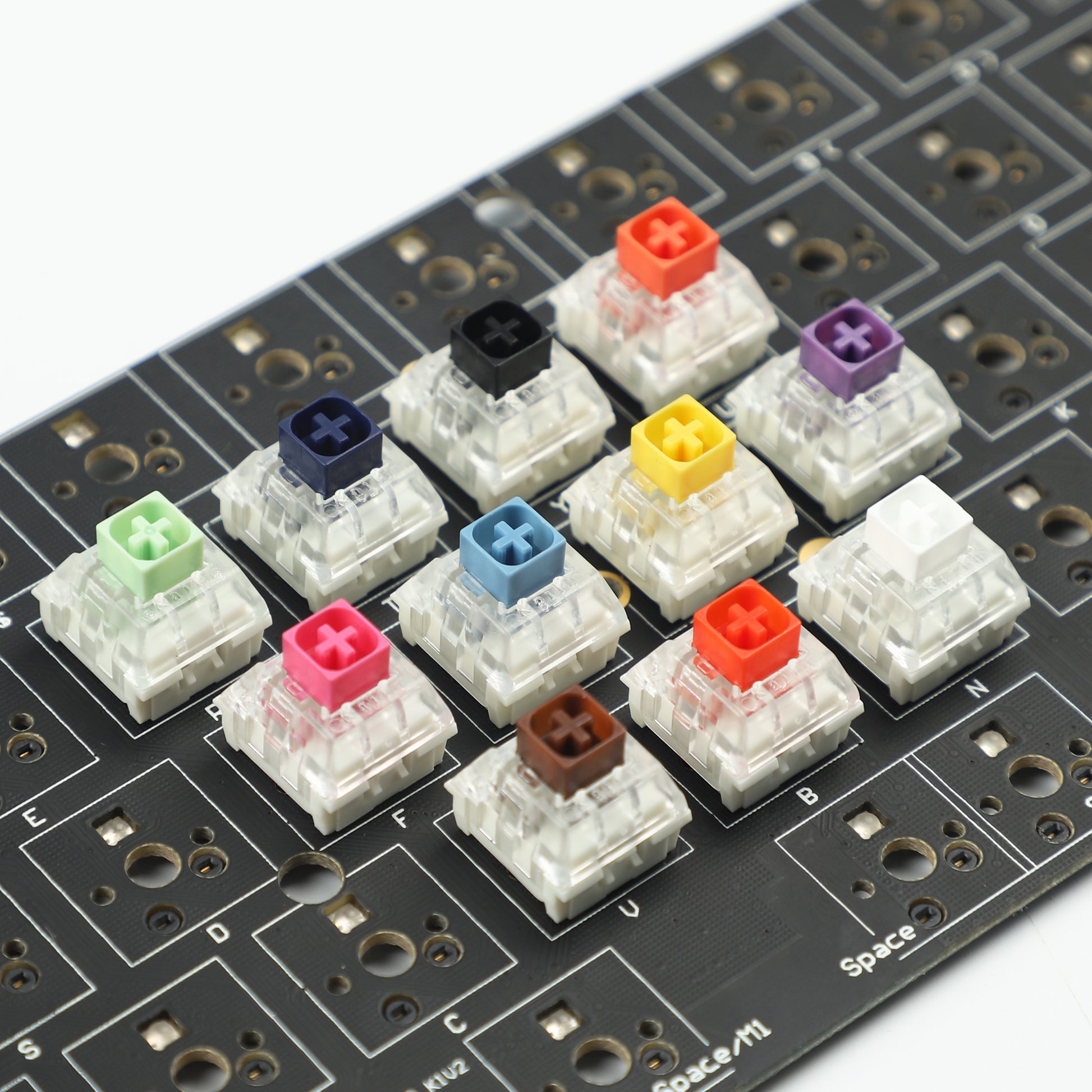

Images Display
