Package Included

 Only kailh 1350 choc switch



Details

This link is only the shaft and switches for low profile switch mechanical keyboard which use Kailh 1350 switches.If your keyboard not use 1350,then it can't replace.You can just pull one cap to see the top surface can confirm it

Spec

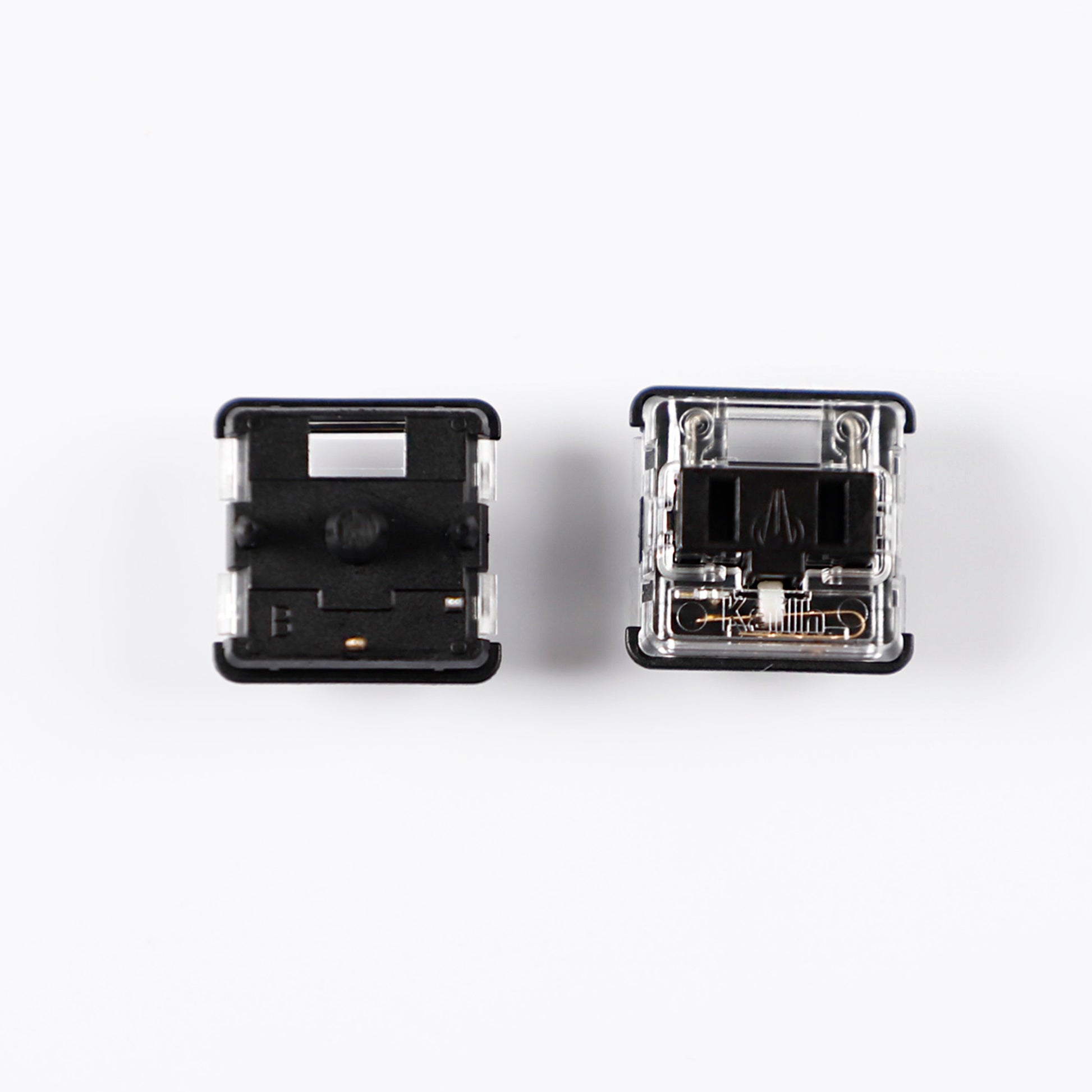

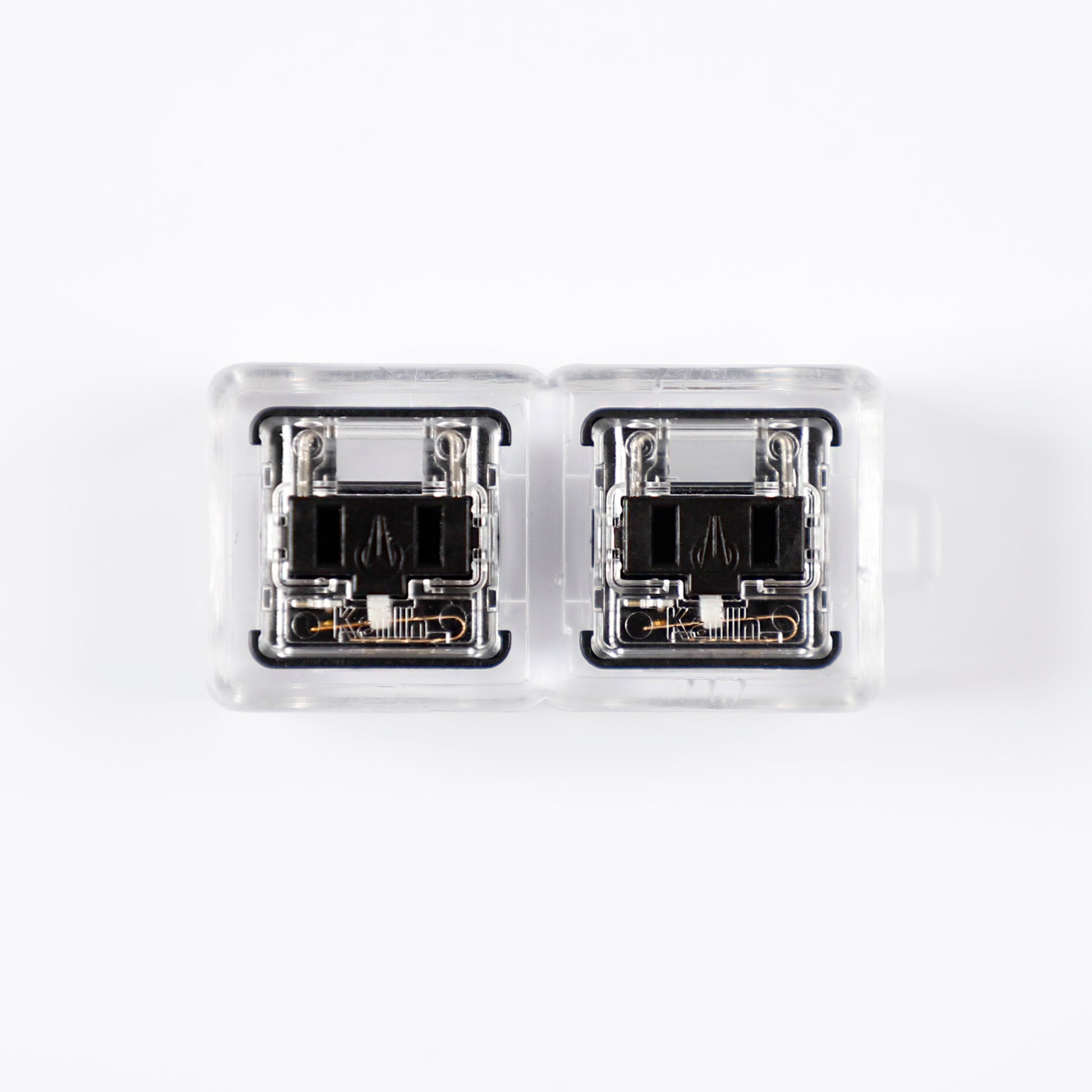

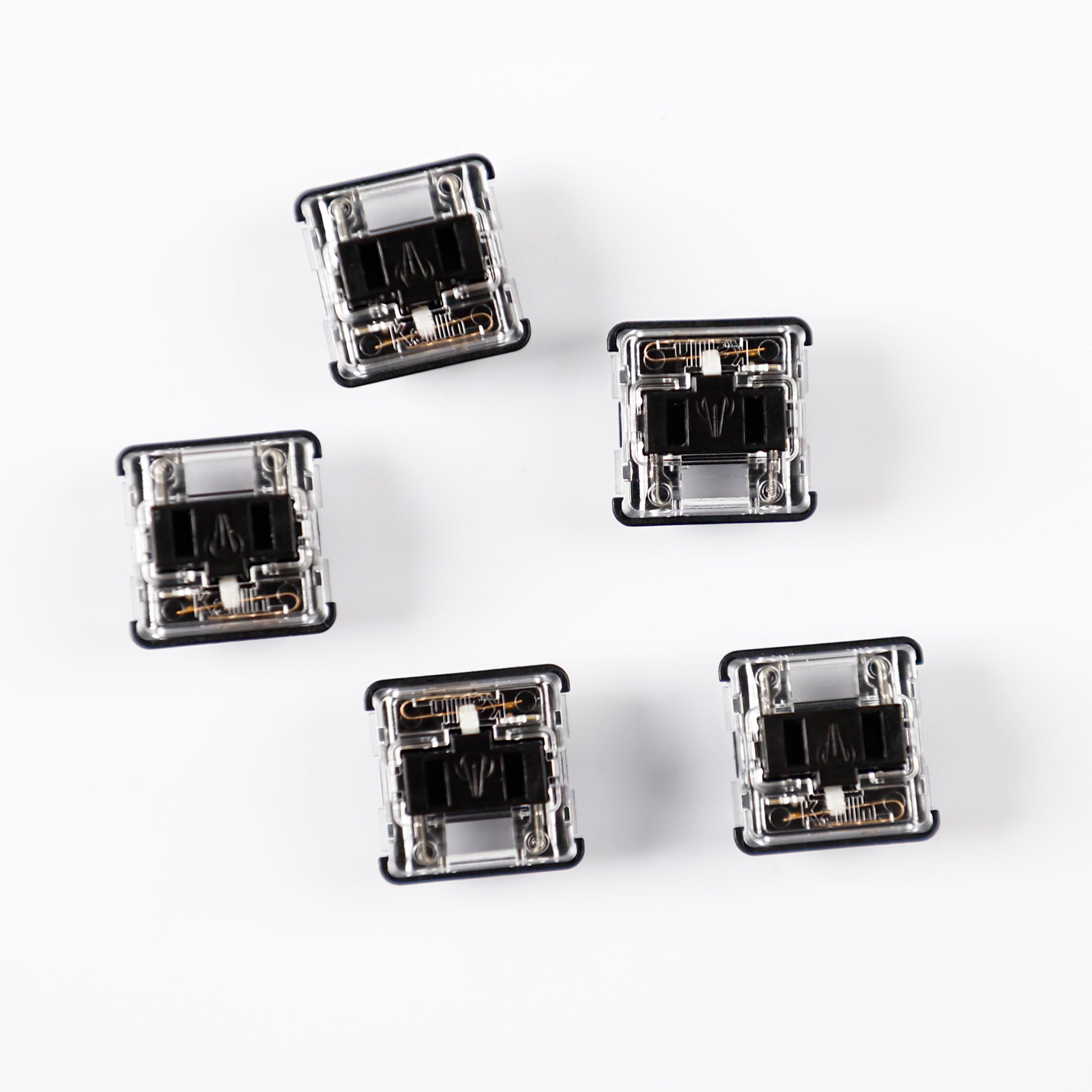

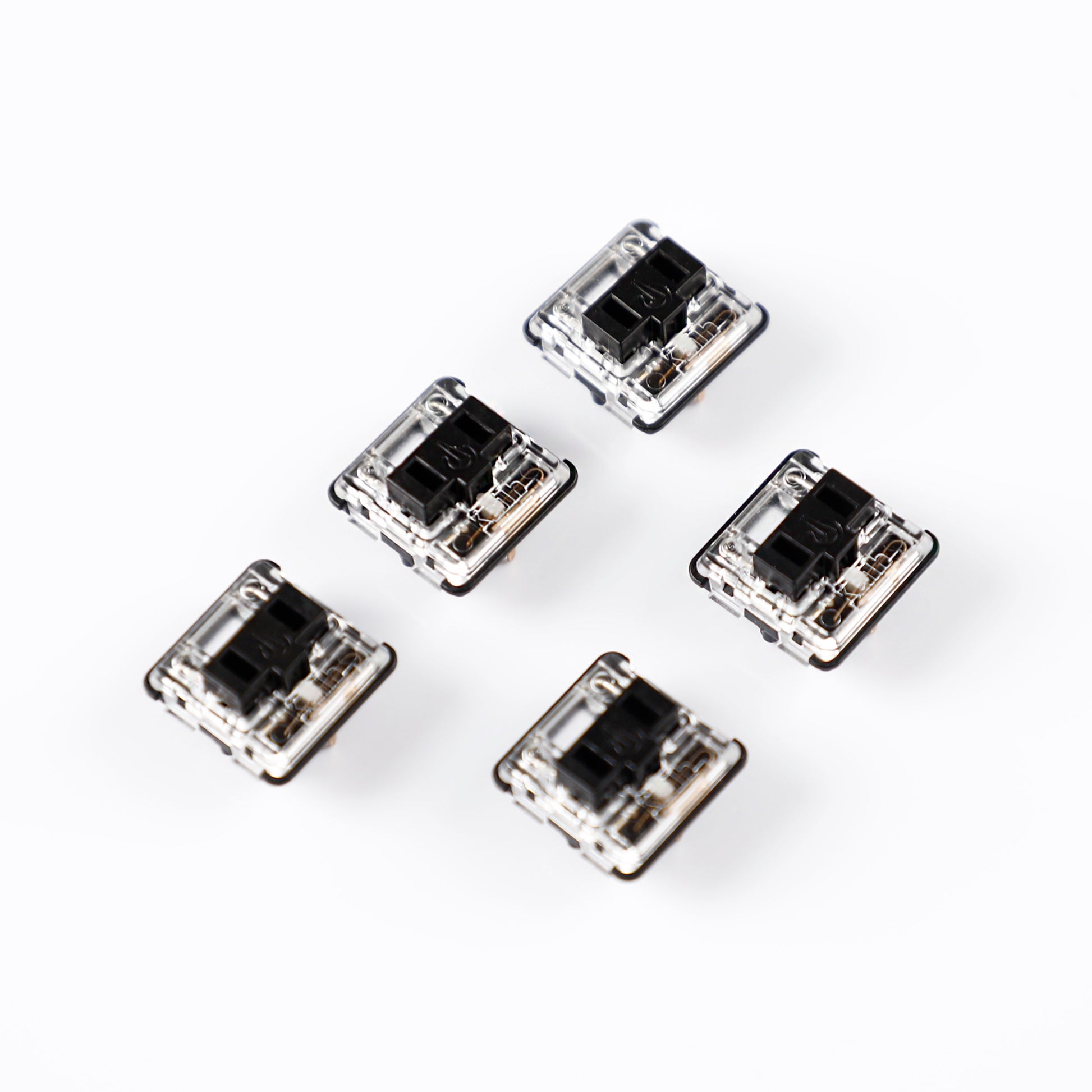

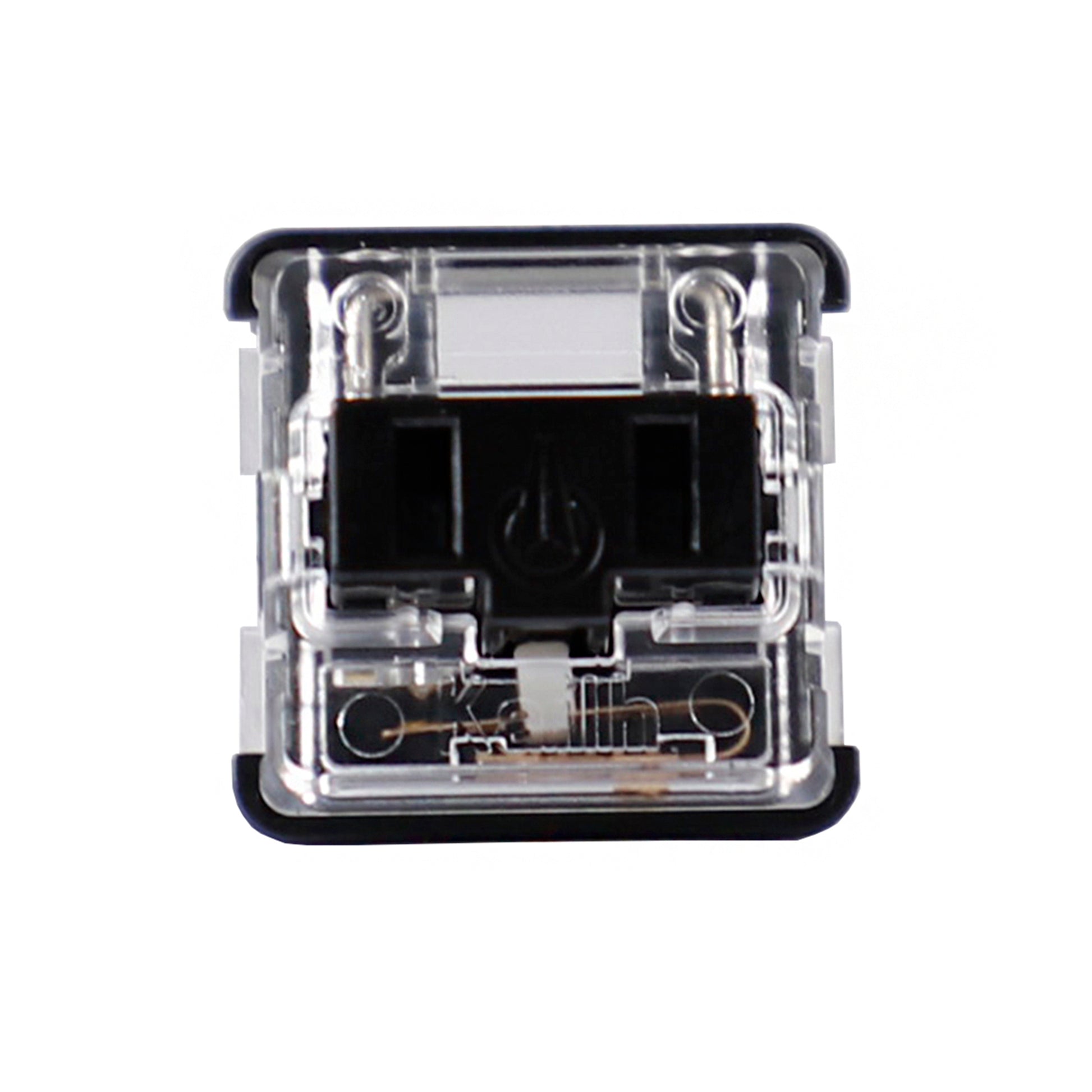

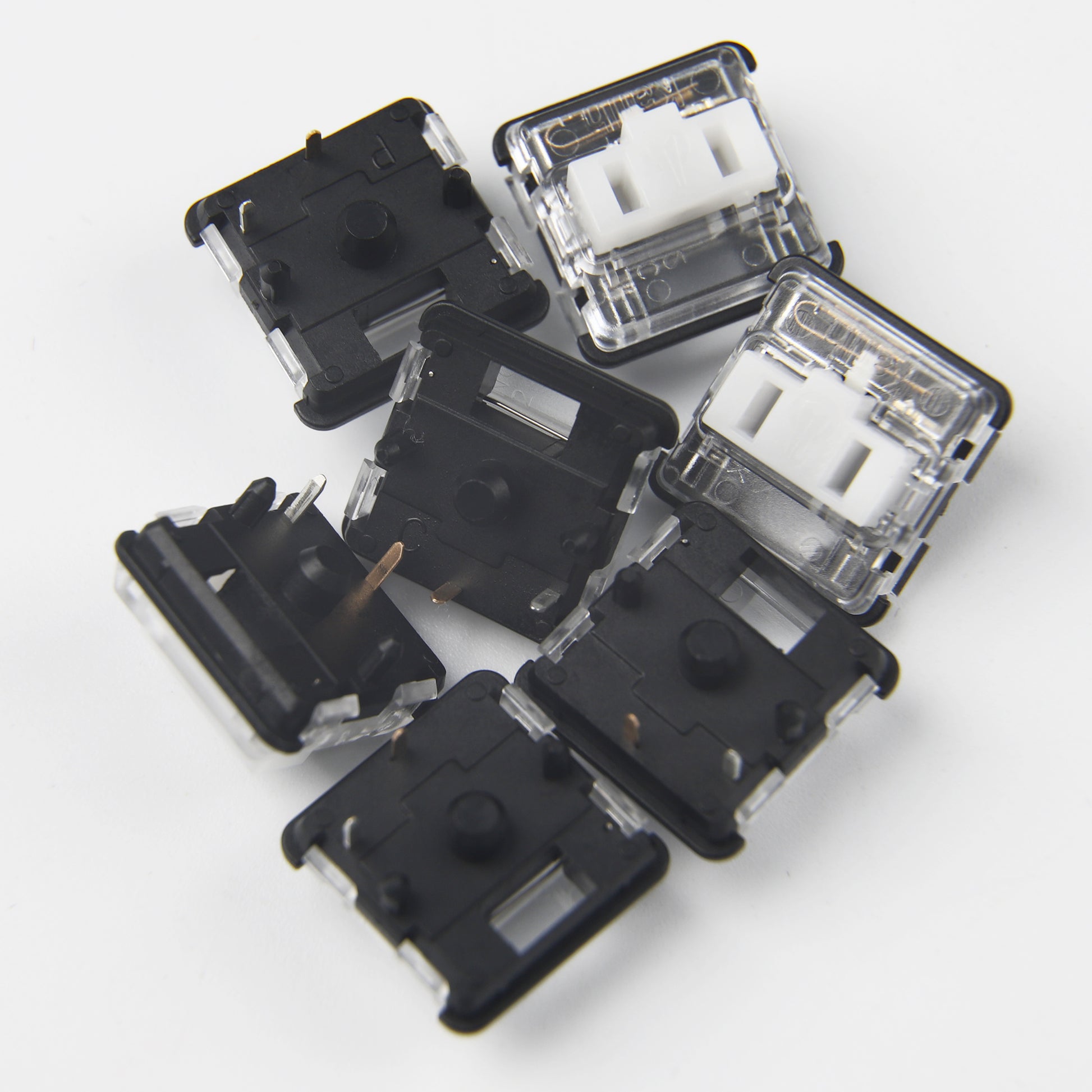

PG1350, also called Kailh Chocolate Switch or Kailh Choc Switch is a series of low-profile metal contact switches from Kailh.

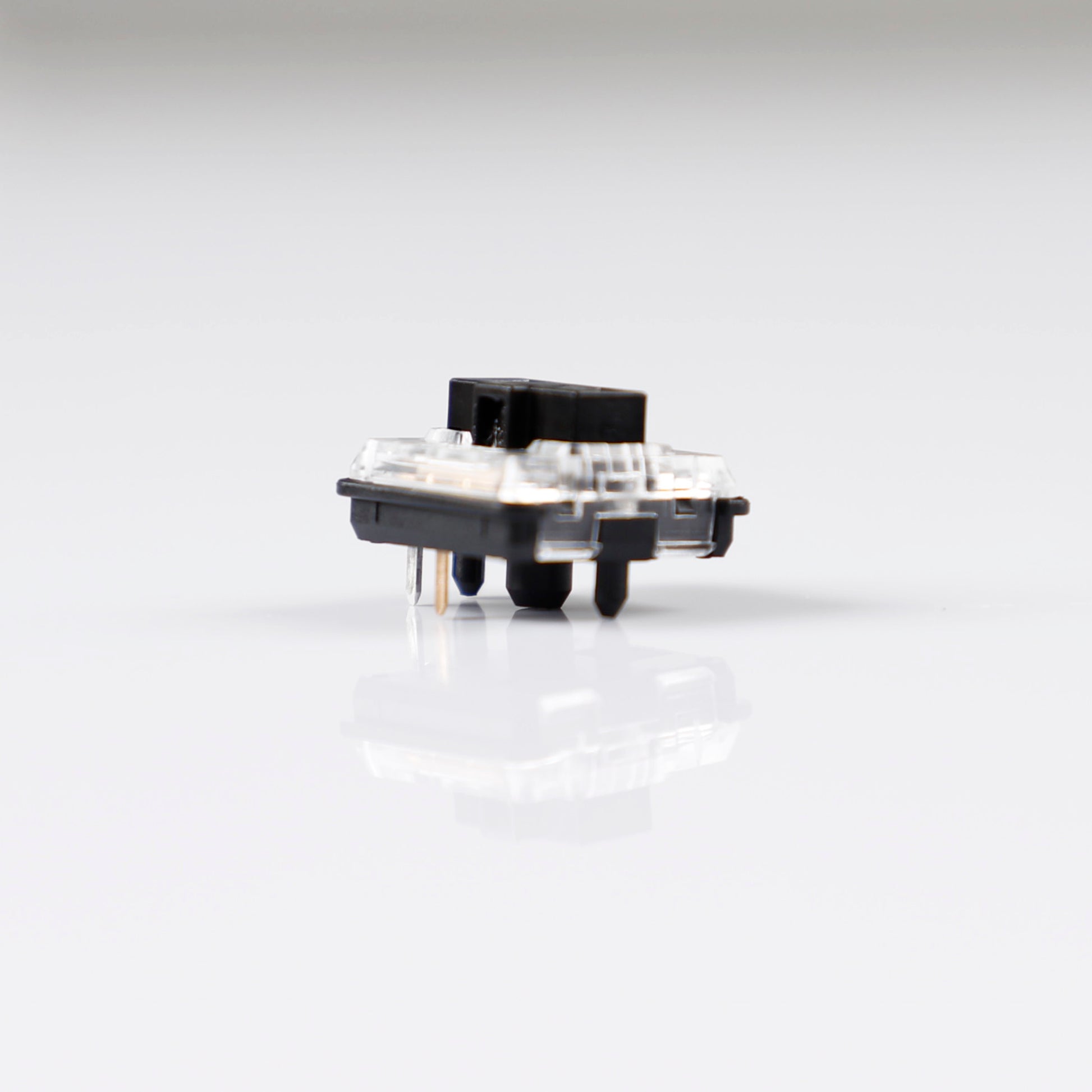

Choc 1350 size is 15x15x8mm

The keycap mount is inspired by Kailh switch but the two types are not compatible.

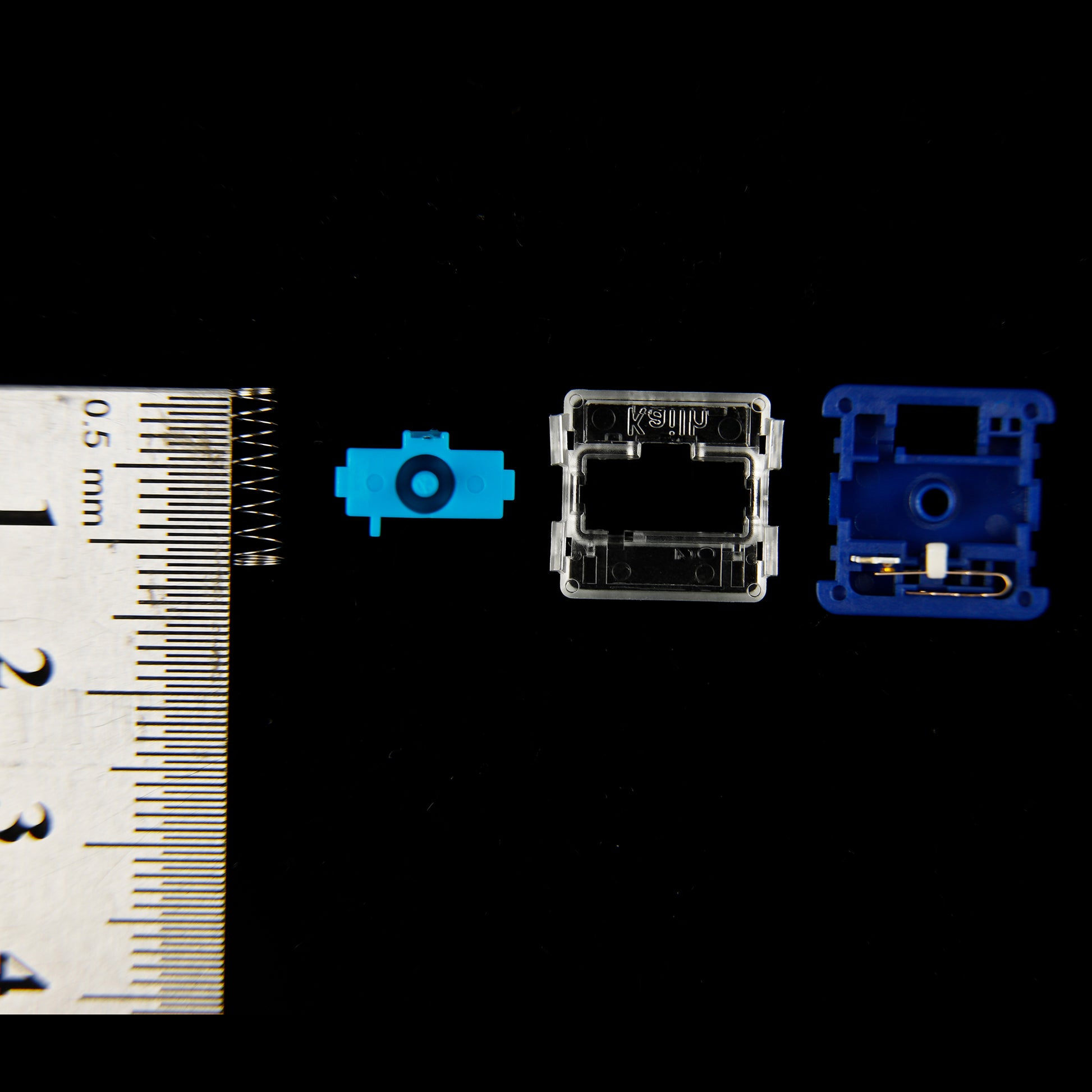

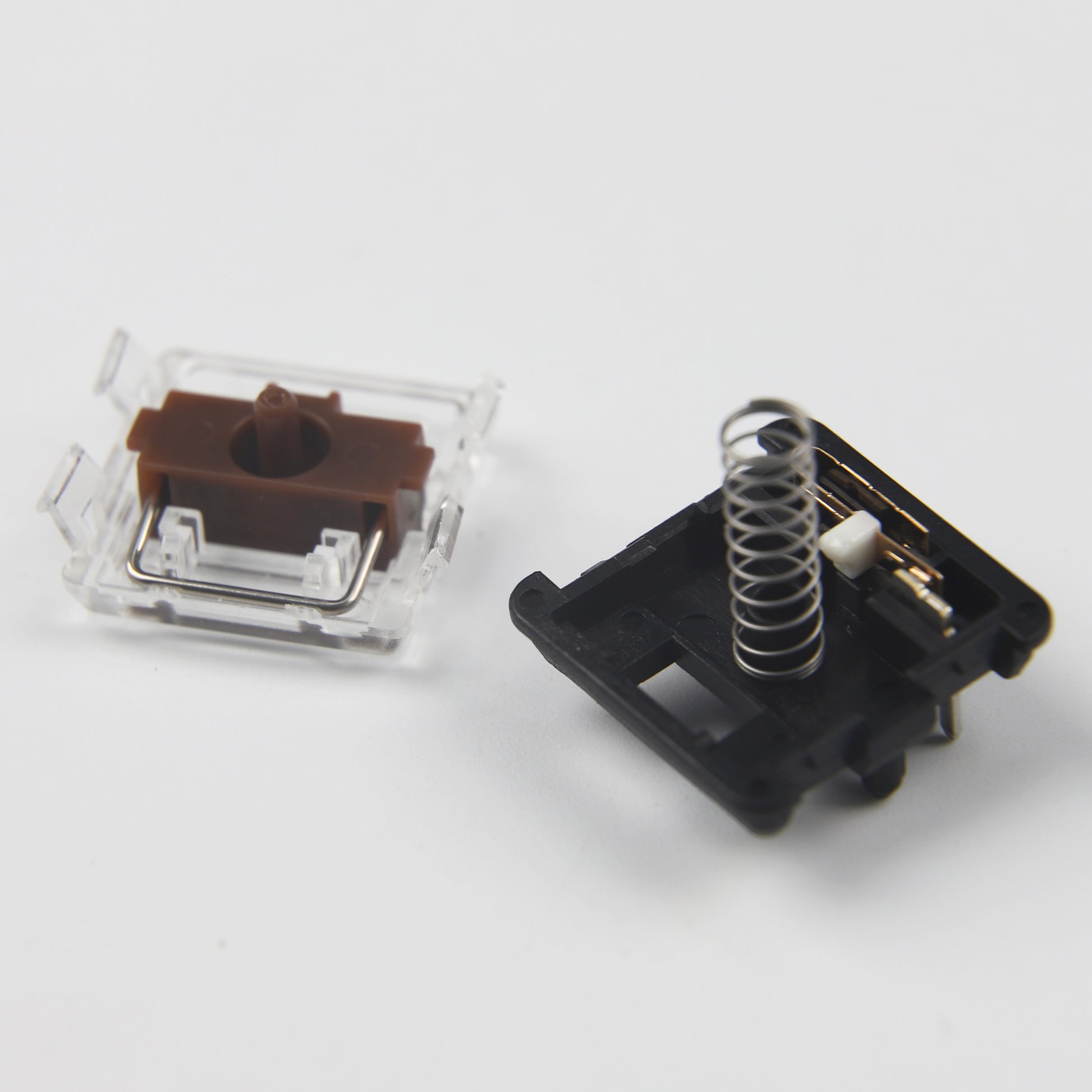

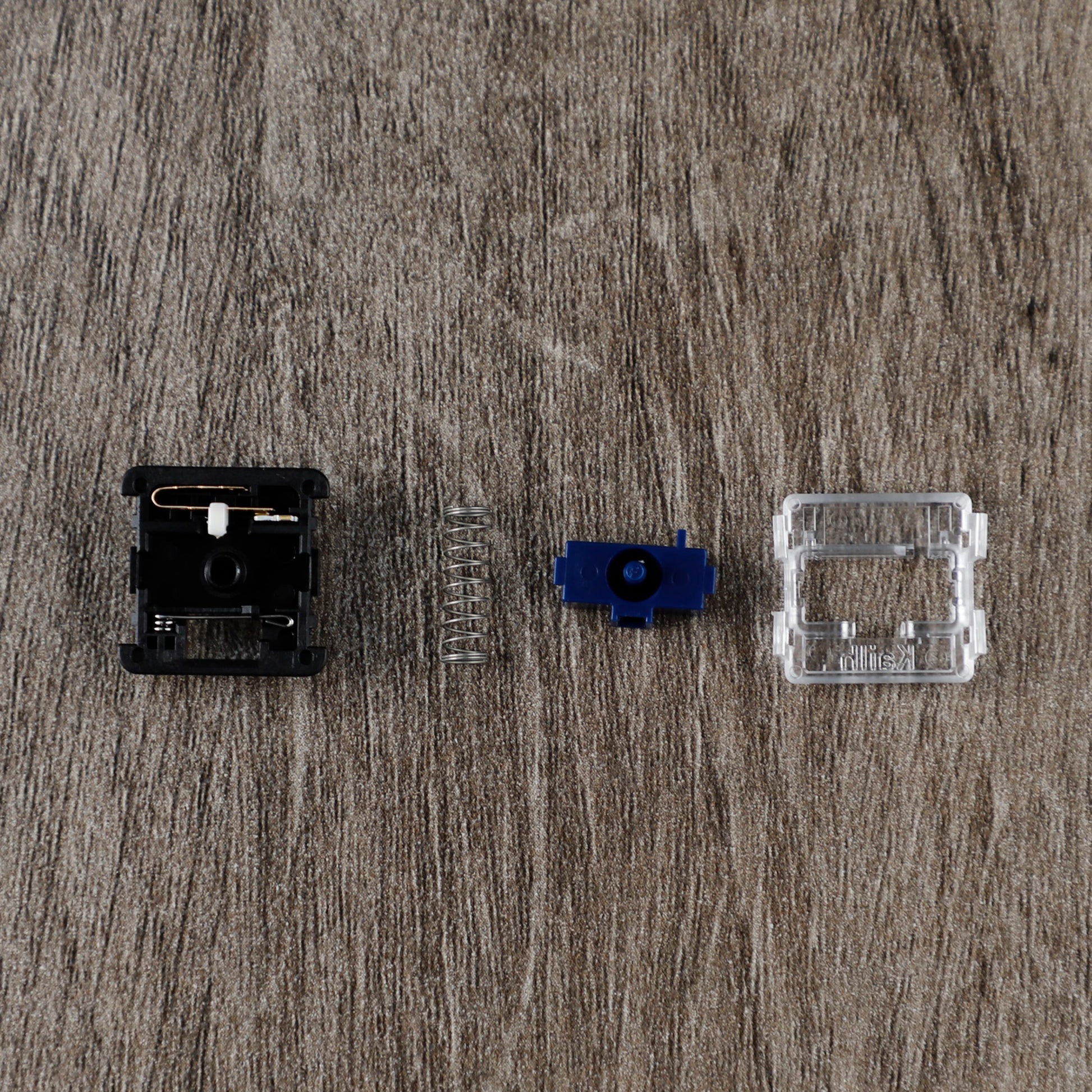

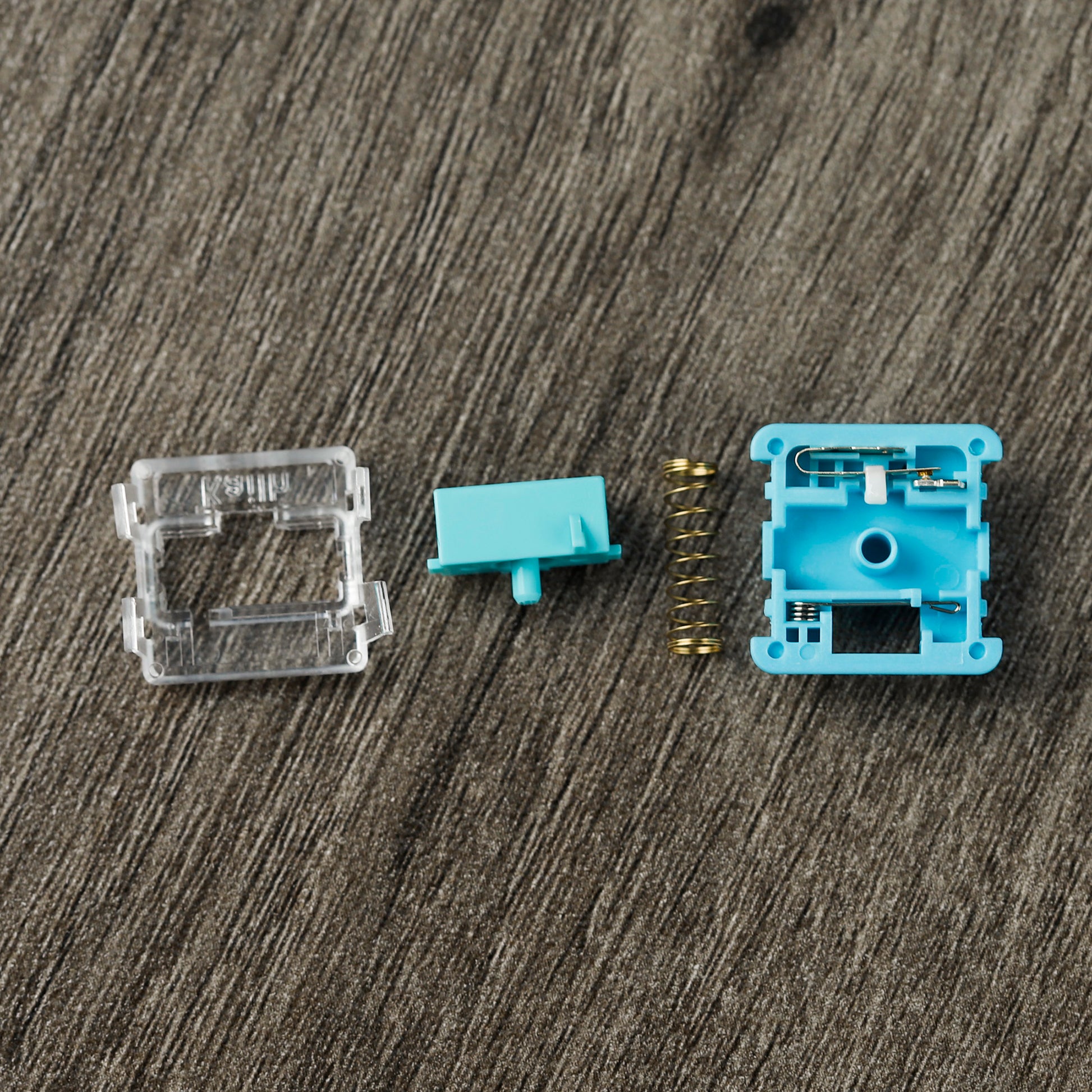

Likely due to the size, the switch contacts are not the scaled-down Cherry-style contacts as found in SteelSeries QS1; the movable contact instead uses lateral movement. As the size prohibits the use of a click collar, a "click bar" is used instead, which is a rod spring that is pushed aside in a manner similar to that of a click leaf.

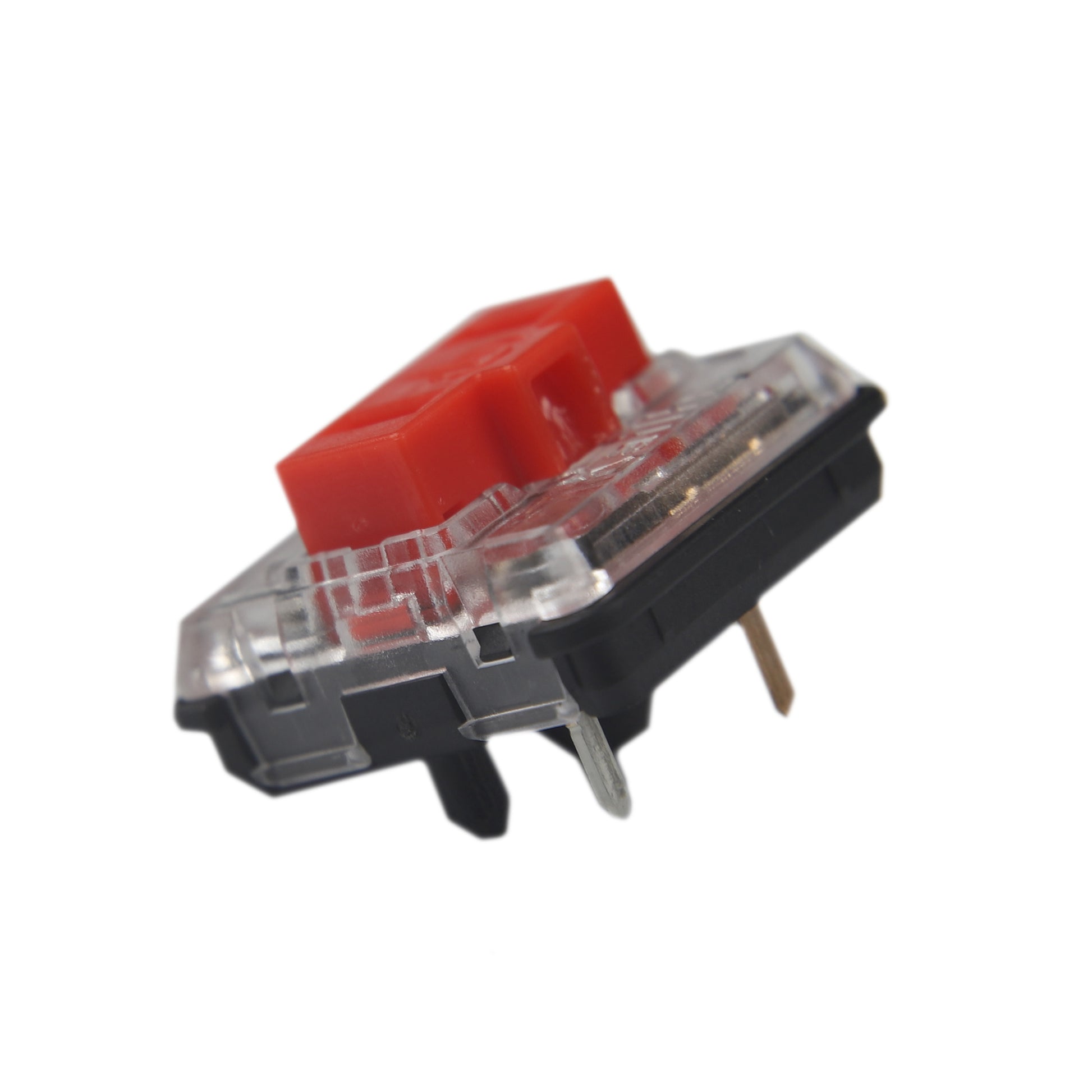

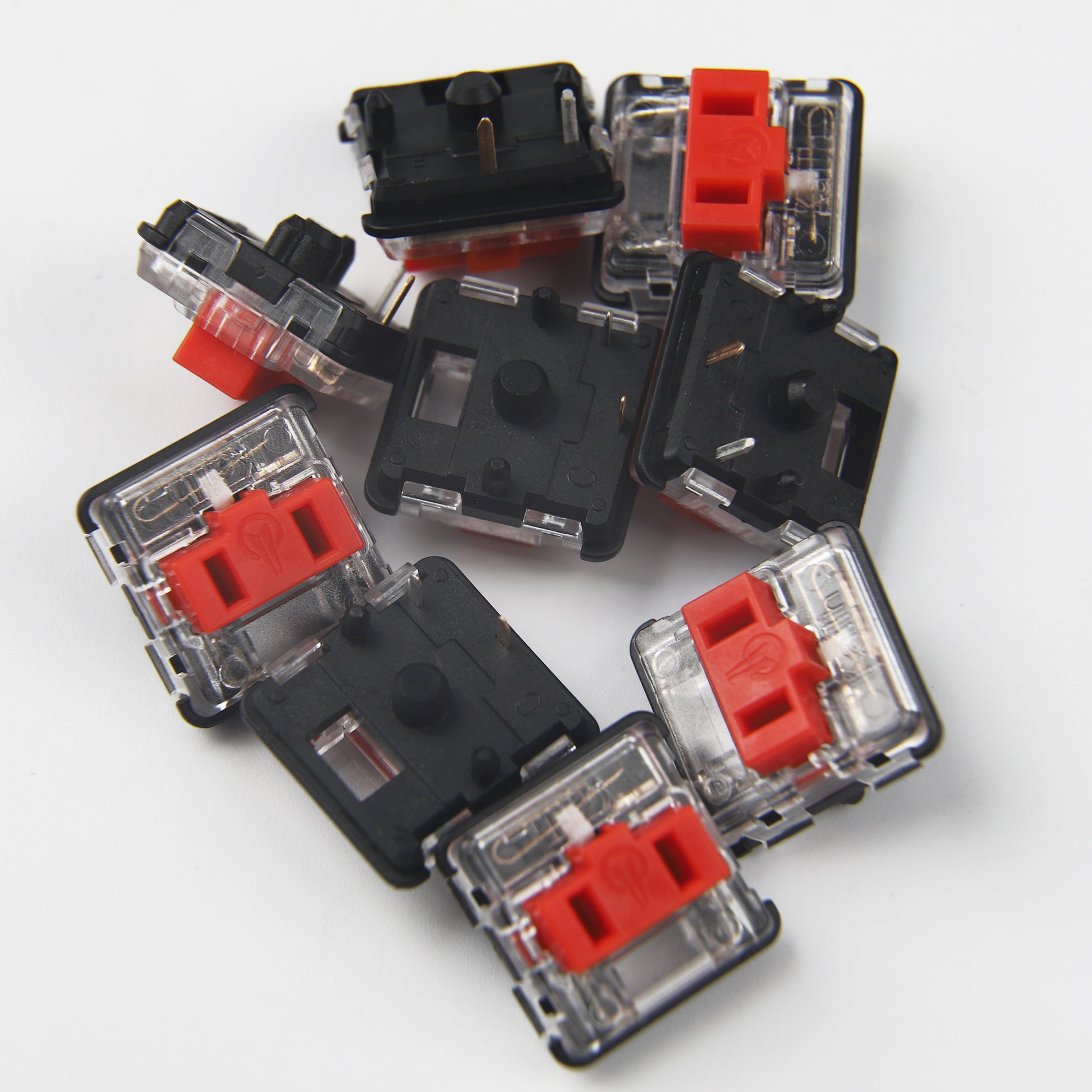

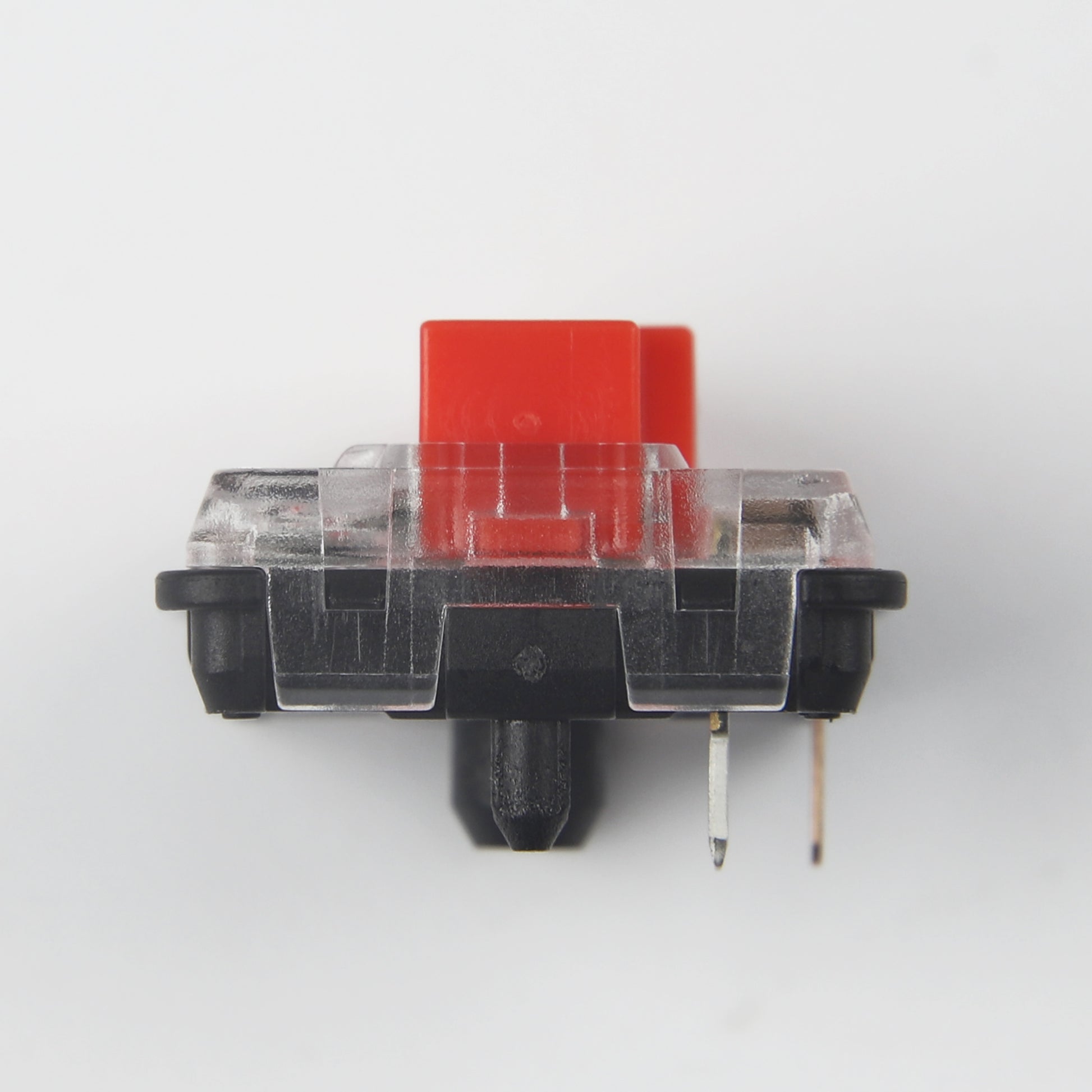

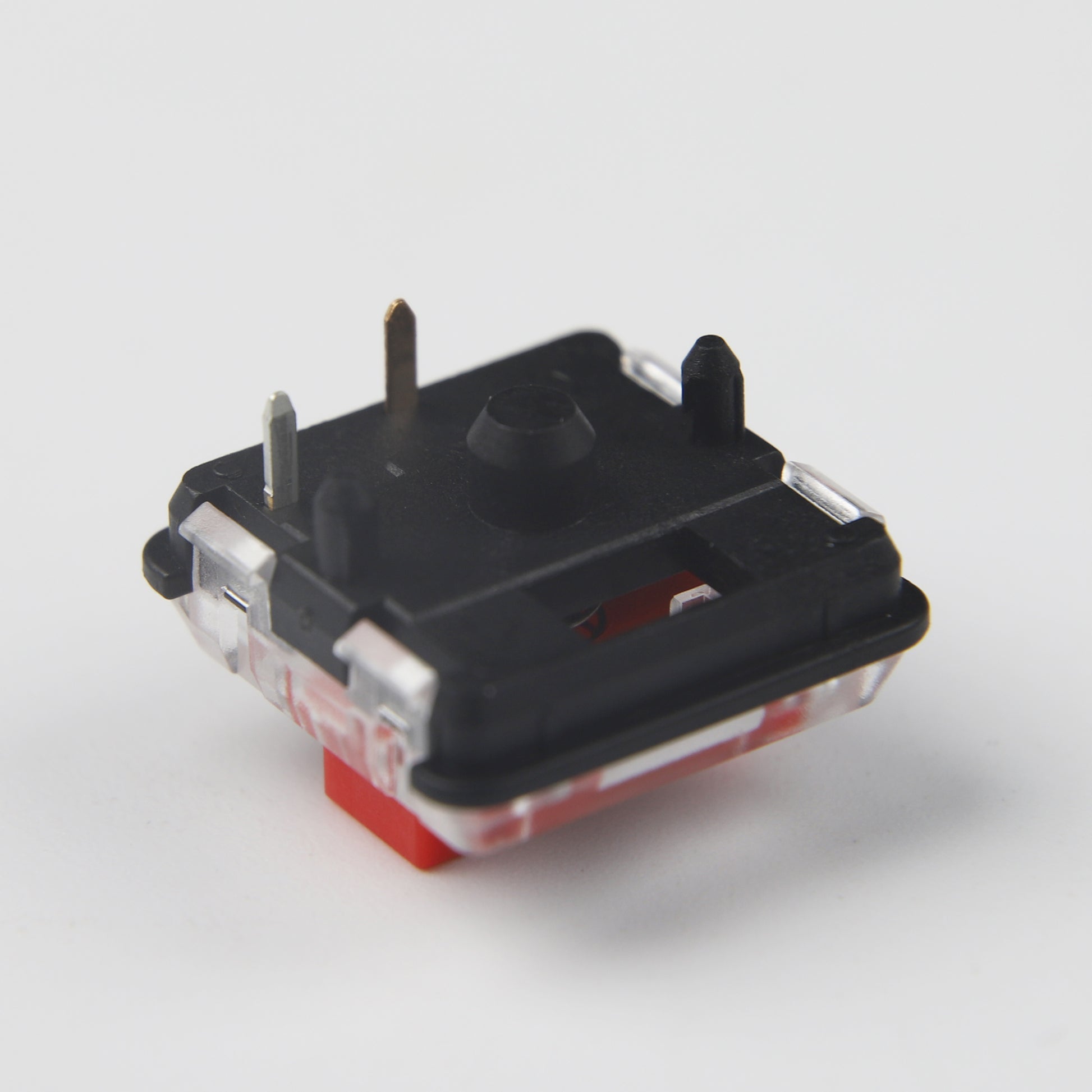

Choc Red Switch (Linear Switch)
Operation Force 50+-10gf /Operation Travel 1.5+-0.5mm /Total Travel 3.0+-0.5mm

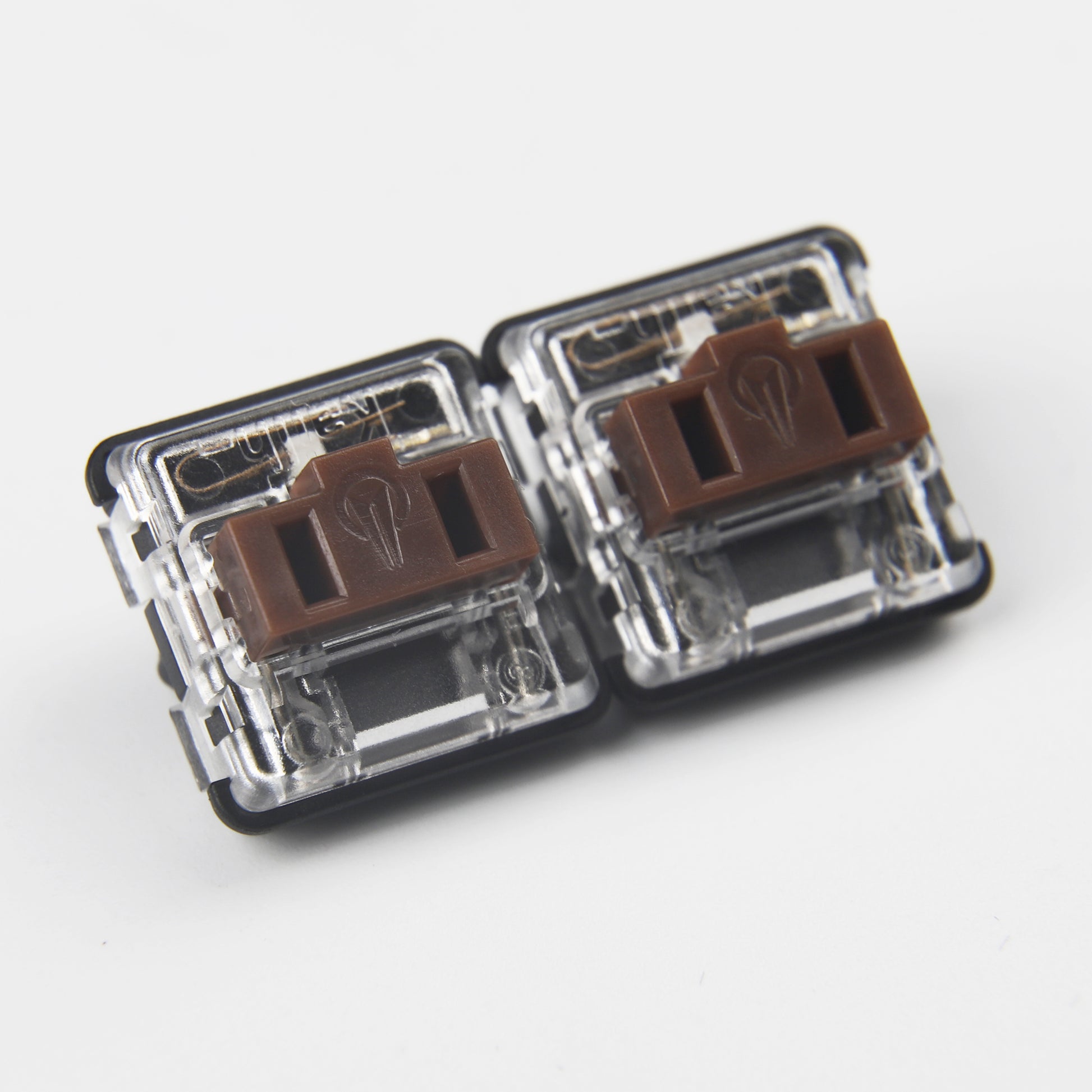

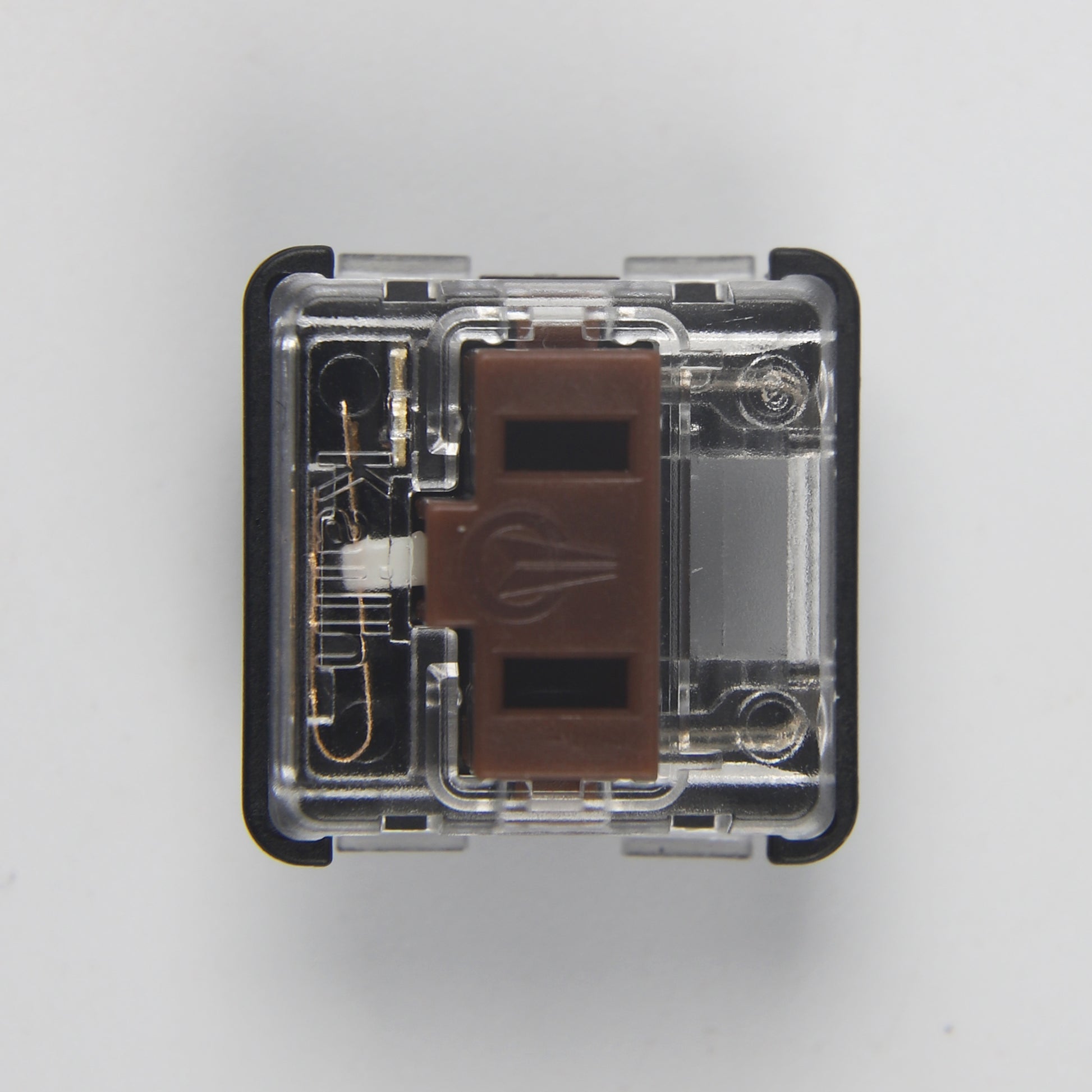

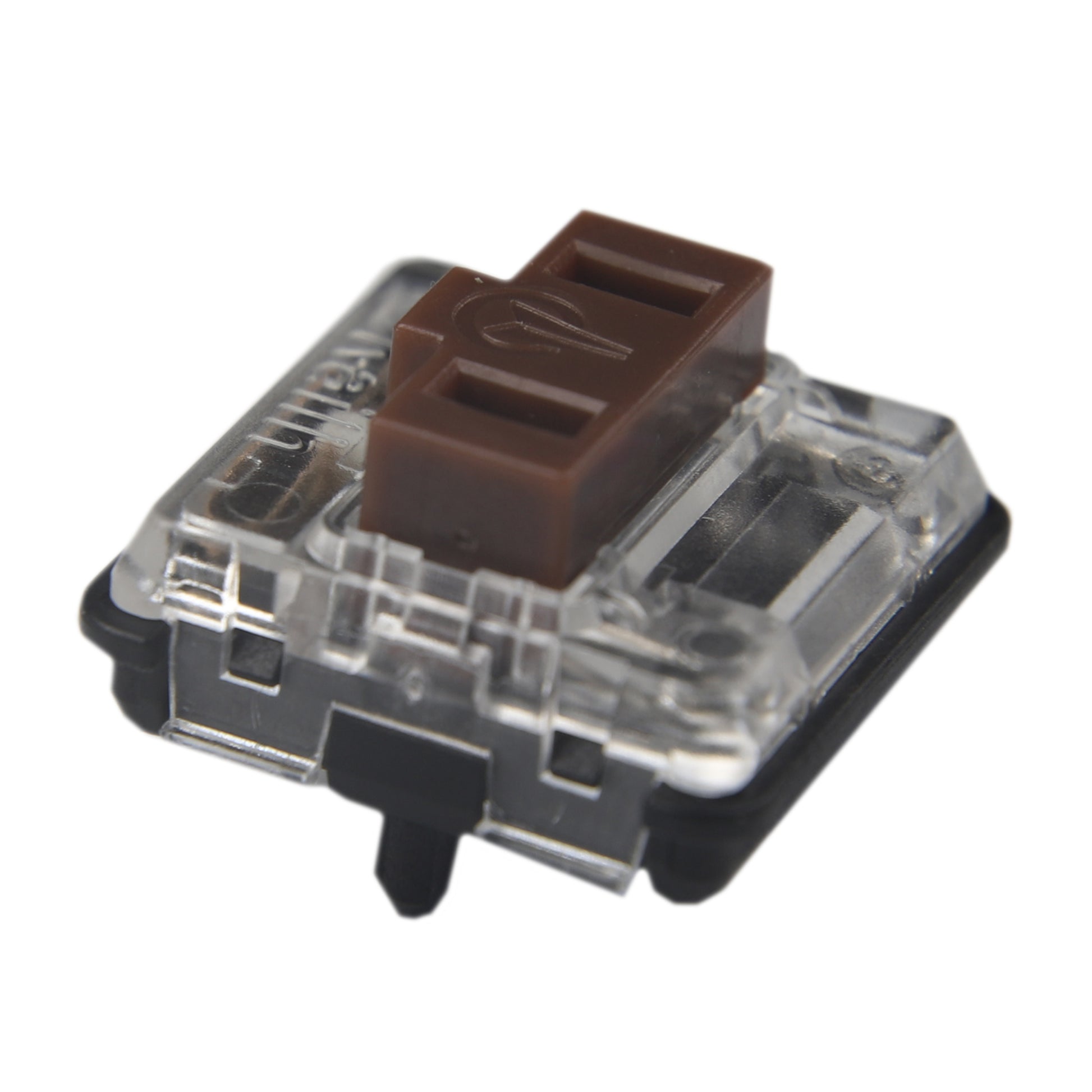

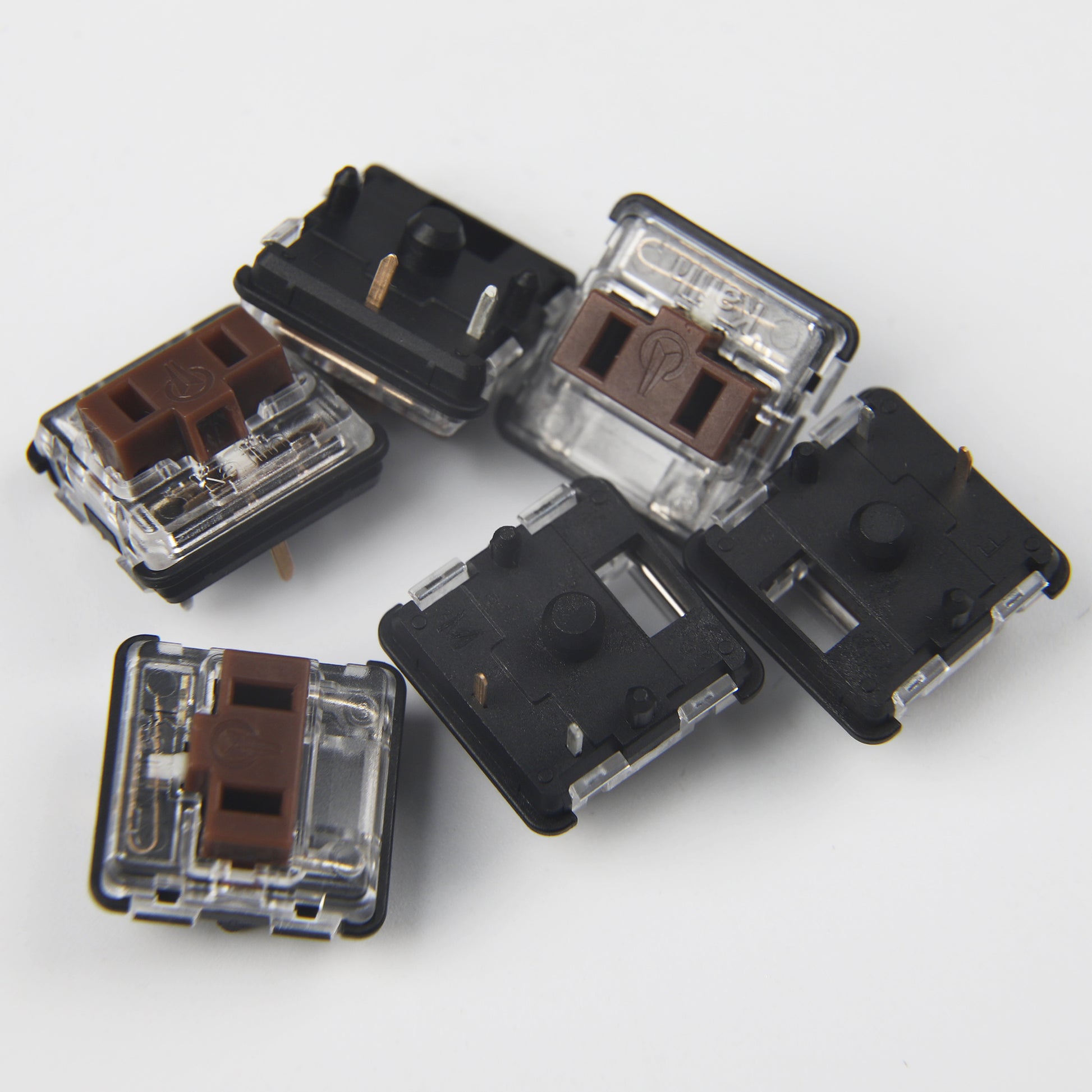

Choc Brown Switch (Tactile Switch)
Operation Force 50+-10gf /Tactile Force 60+-10gf /Operation Travel 1.5+-0.5mm /Total Travel 3.0+-0.5mm

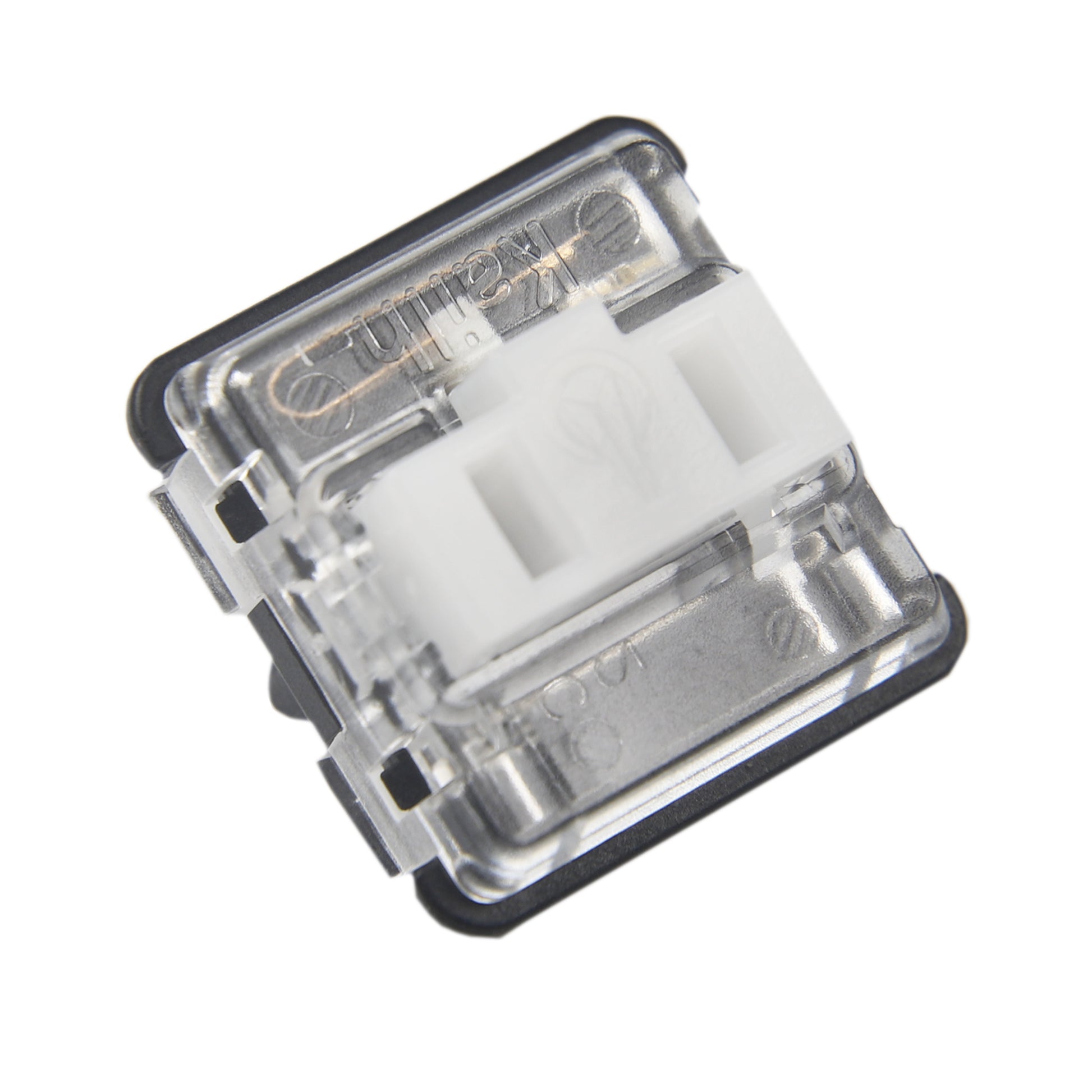

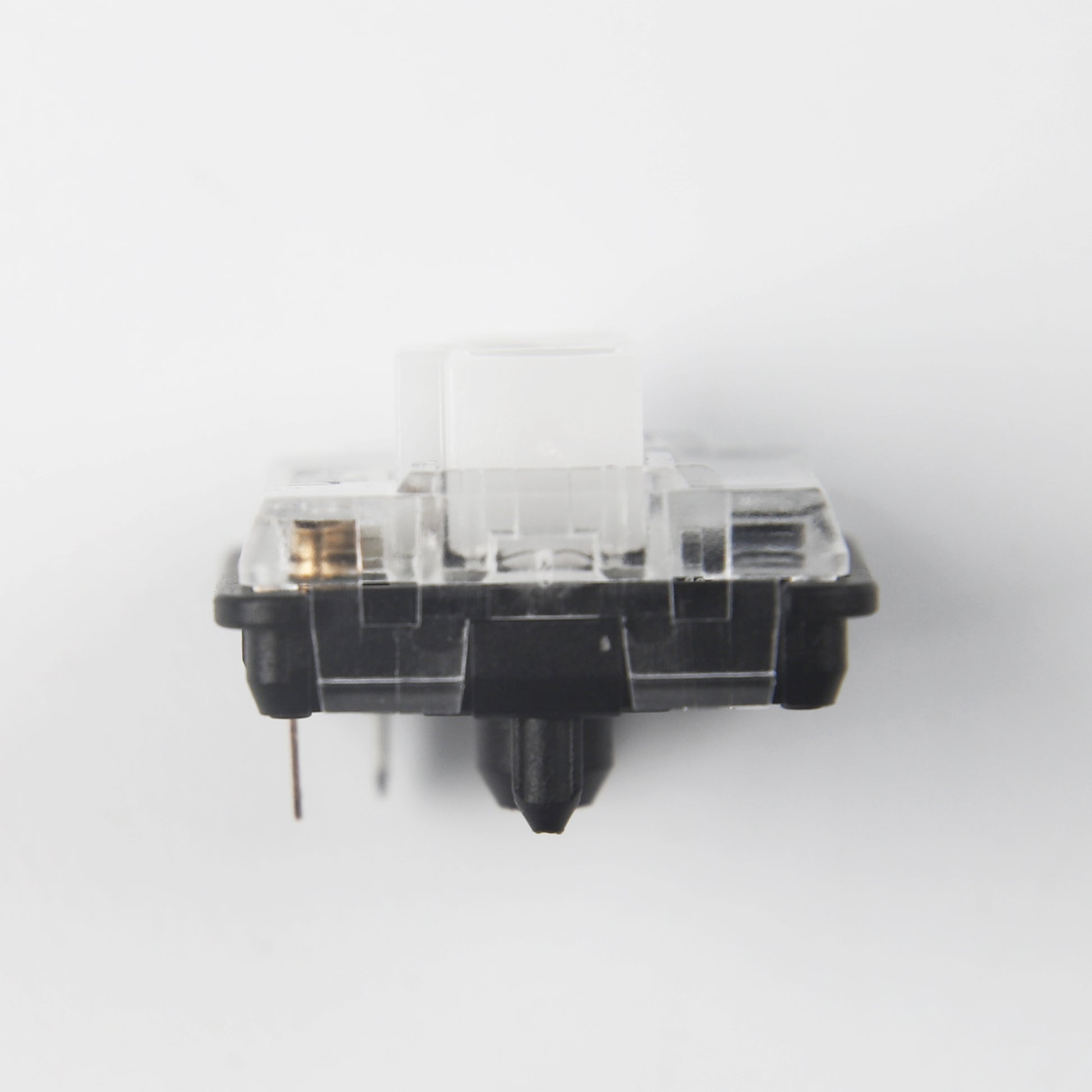

Choc White Switch (Clicky Switch)
Operation Force 50+-10gf /Tactile Force 60+-10gf /Operation Travel 1.5+-0.5mm /Total Travel 3.0+-0.5mm

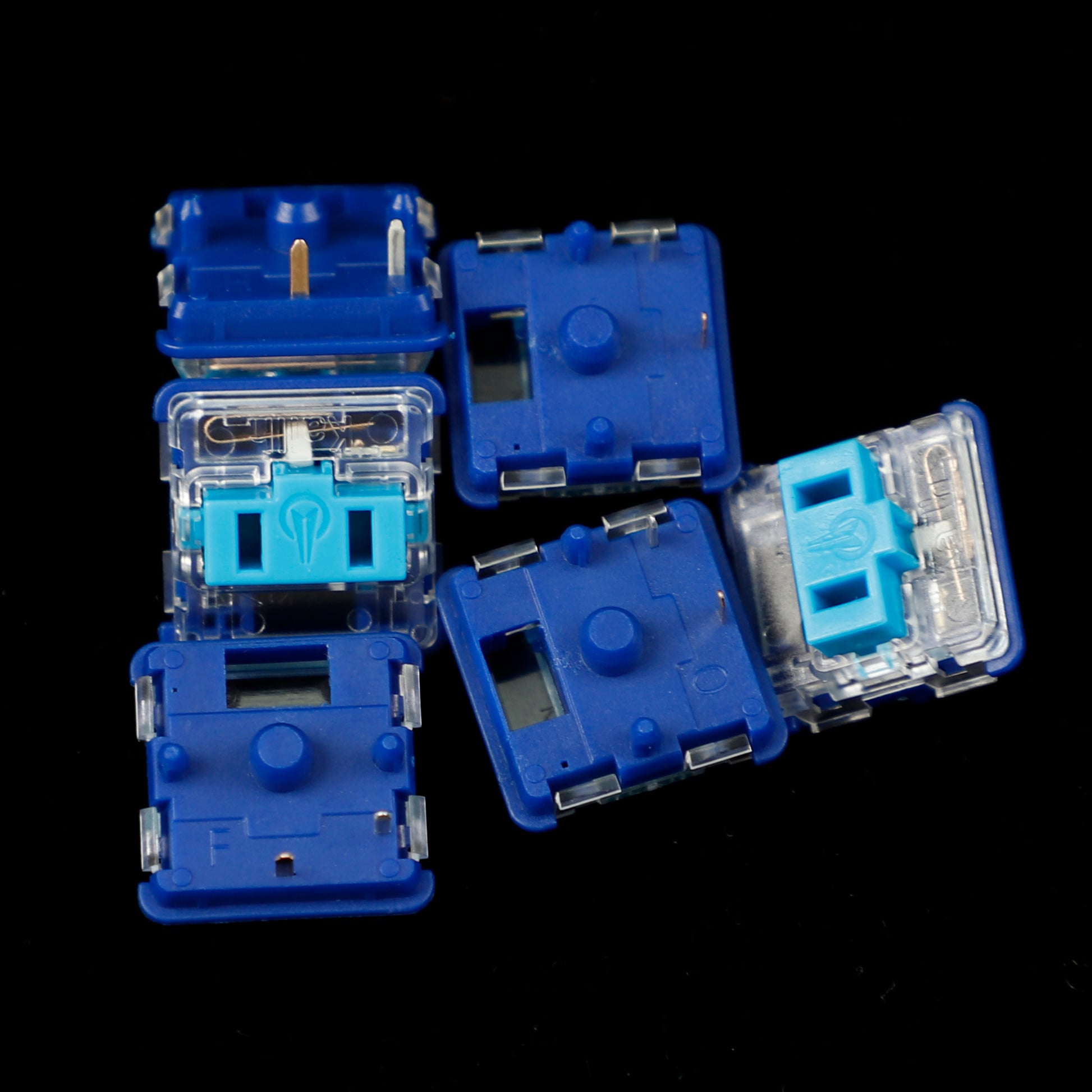

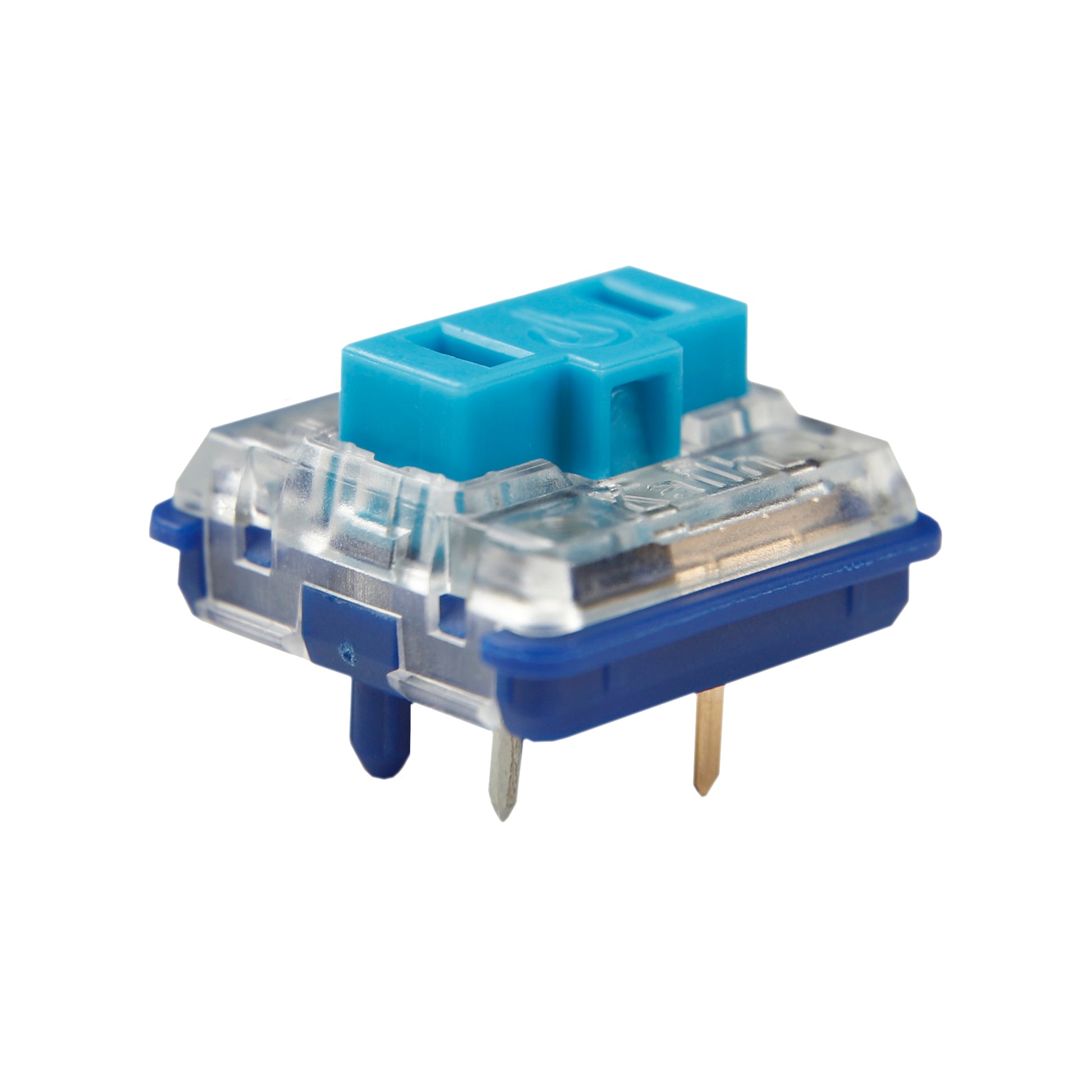

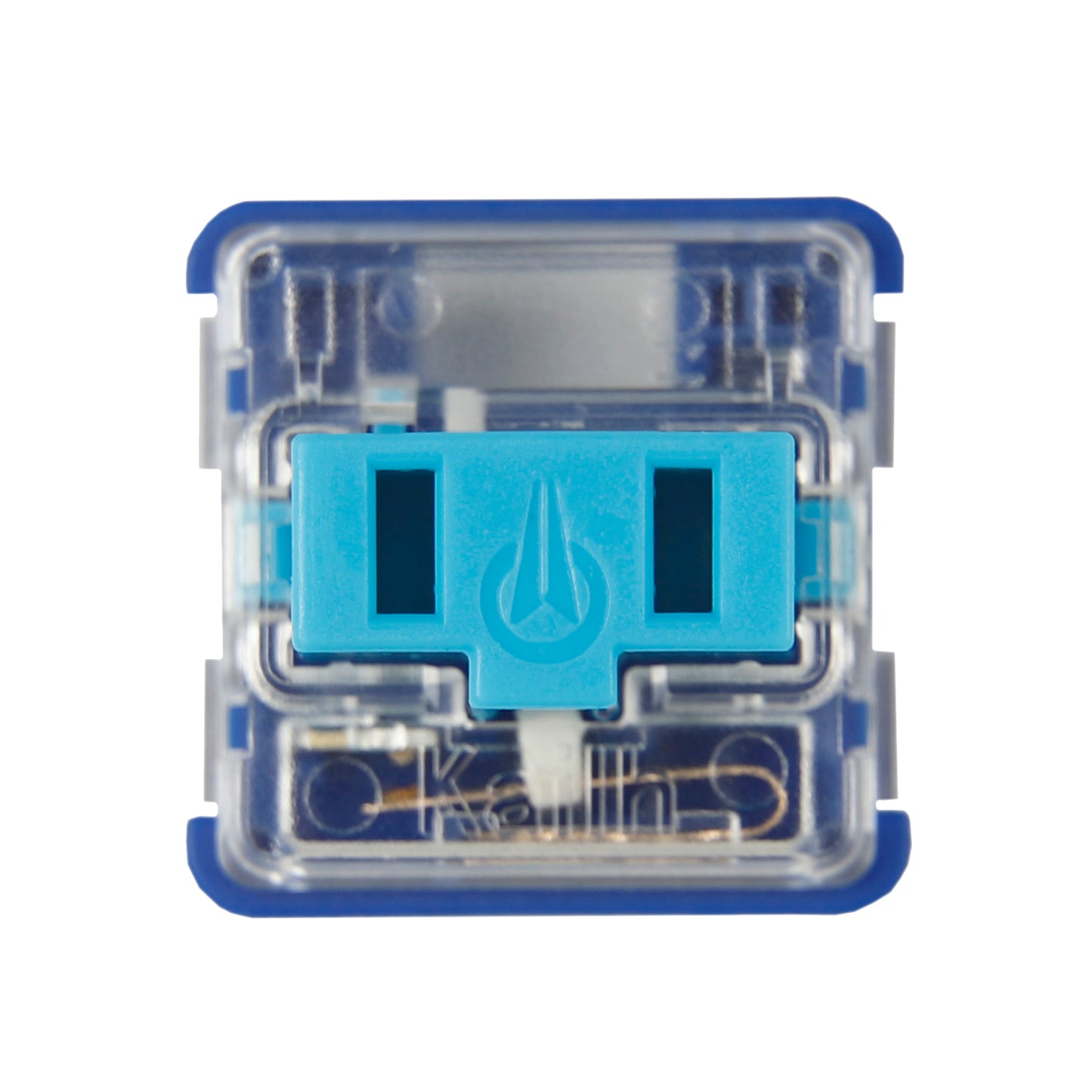

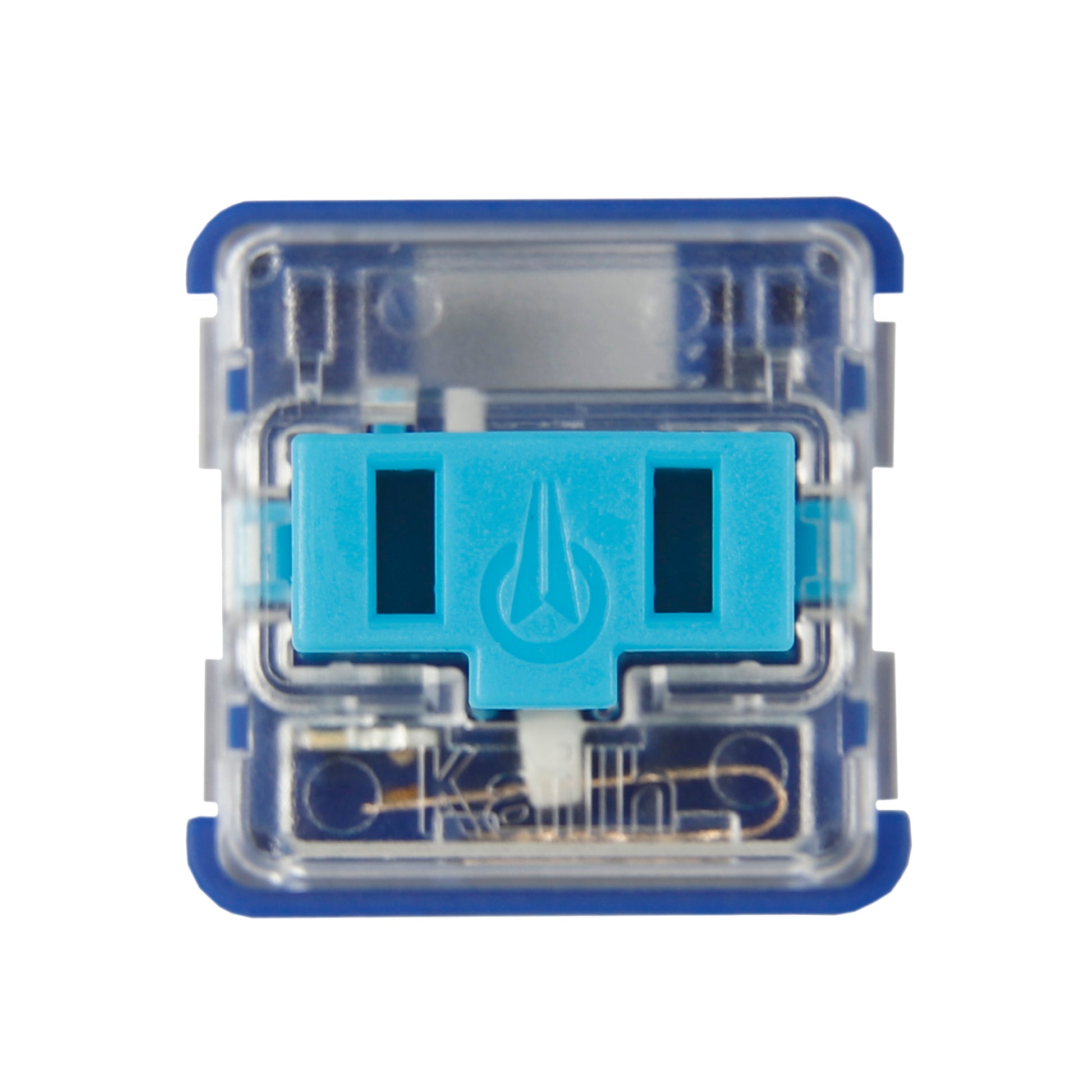

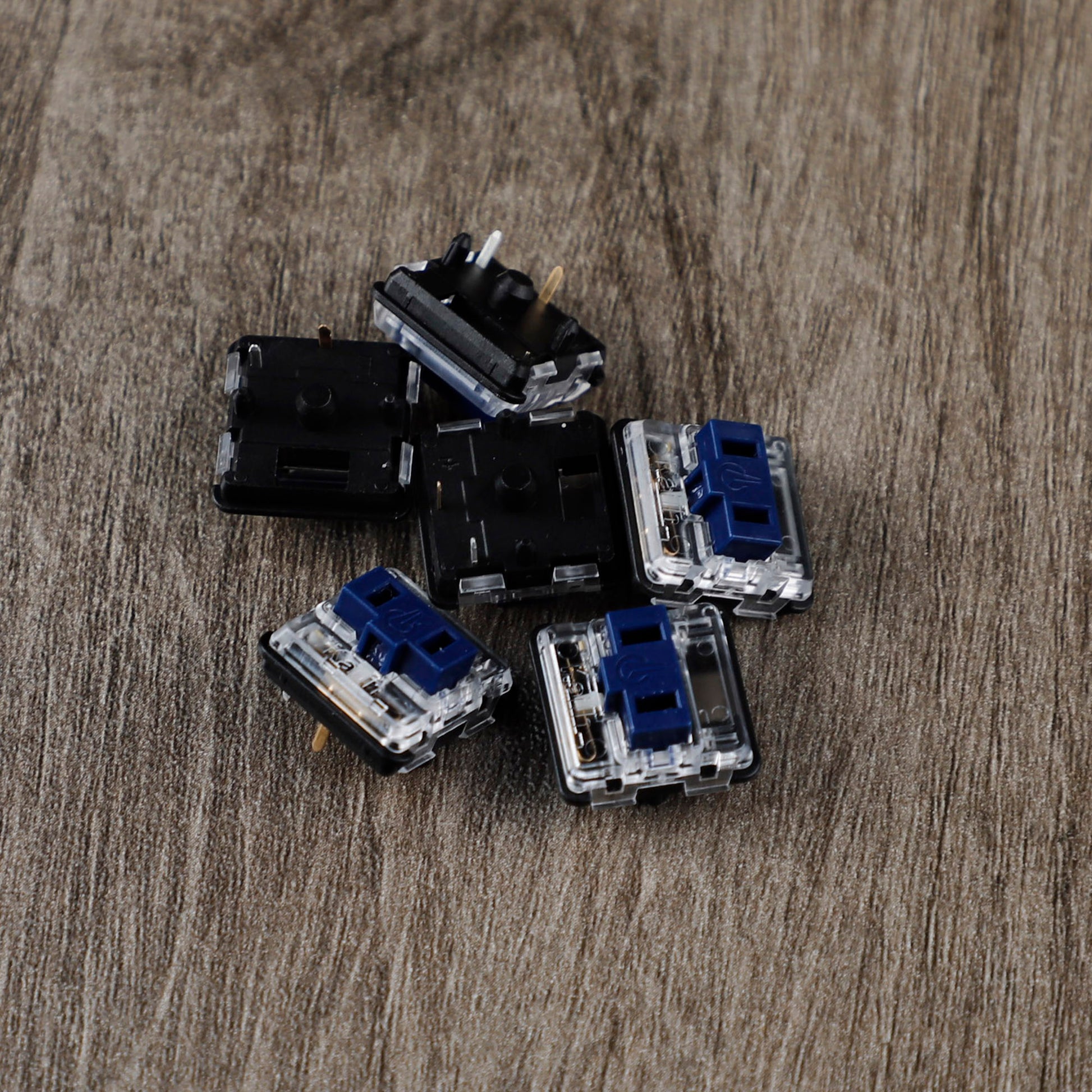

Choc blue Switch (linear Switch)
Operation Force 25+-5gf /Operation Travel 1.5+-0.5mm /Total Travel 3.0+-0.5mm.

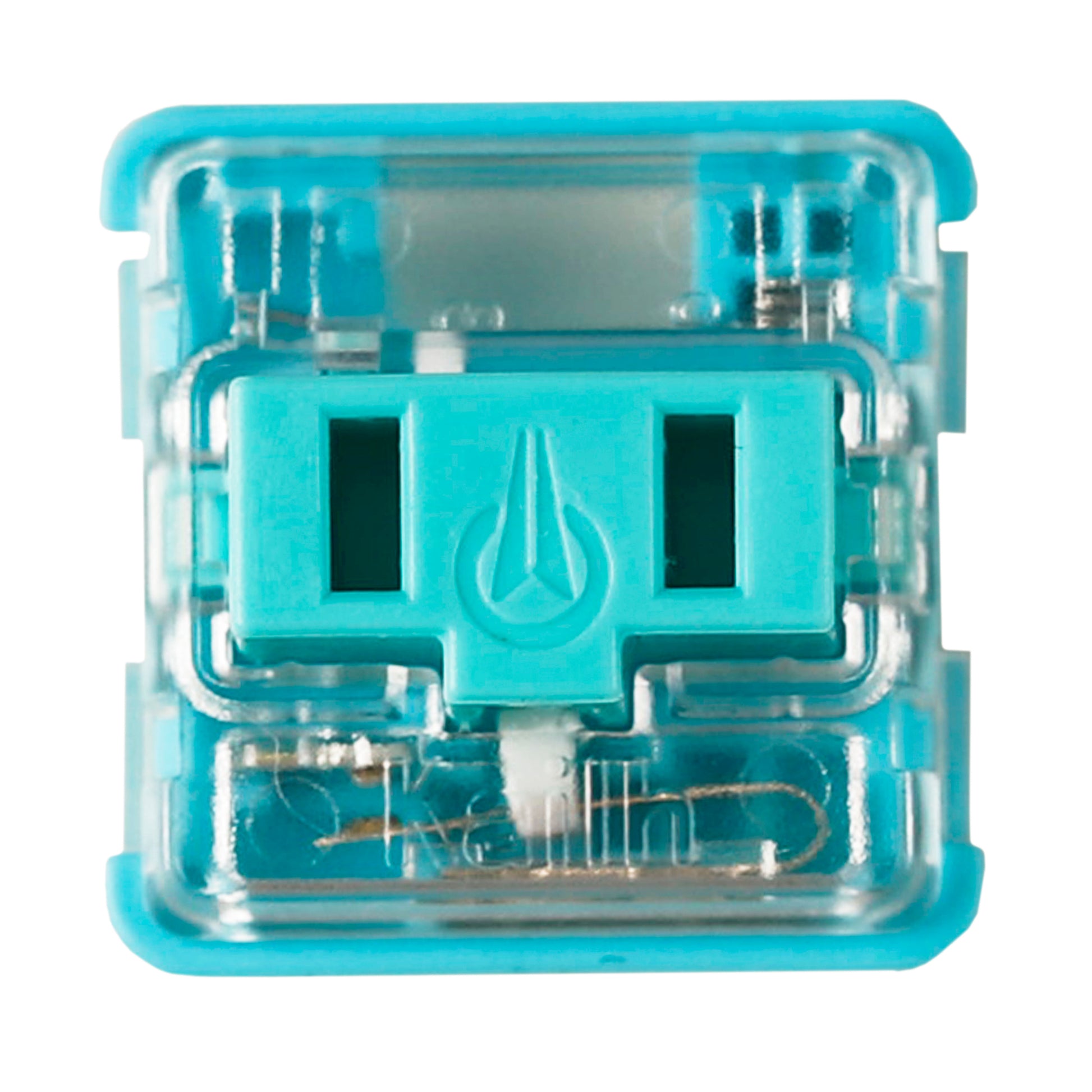

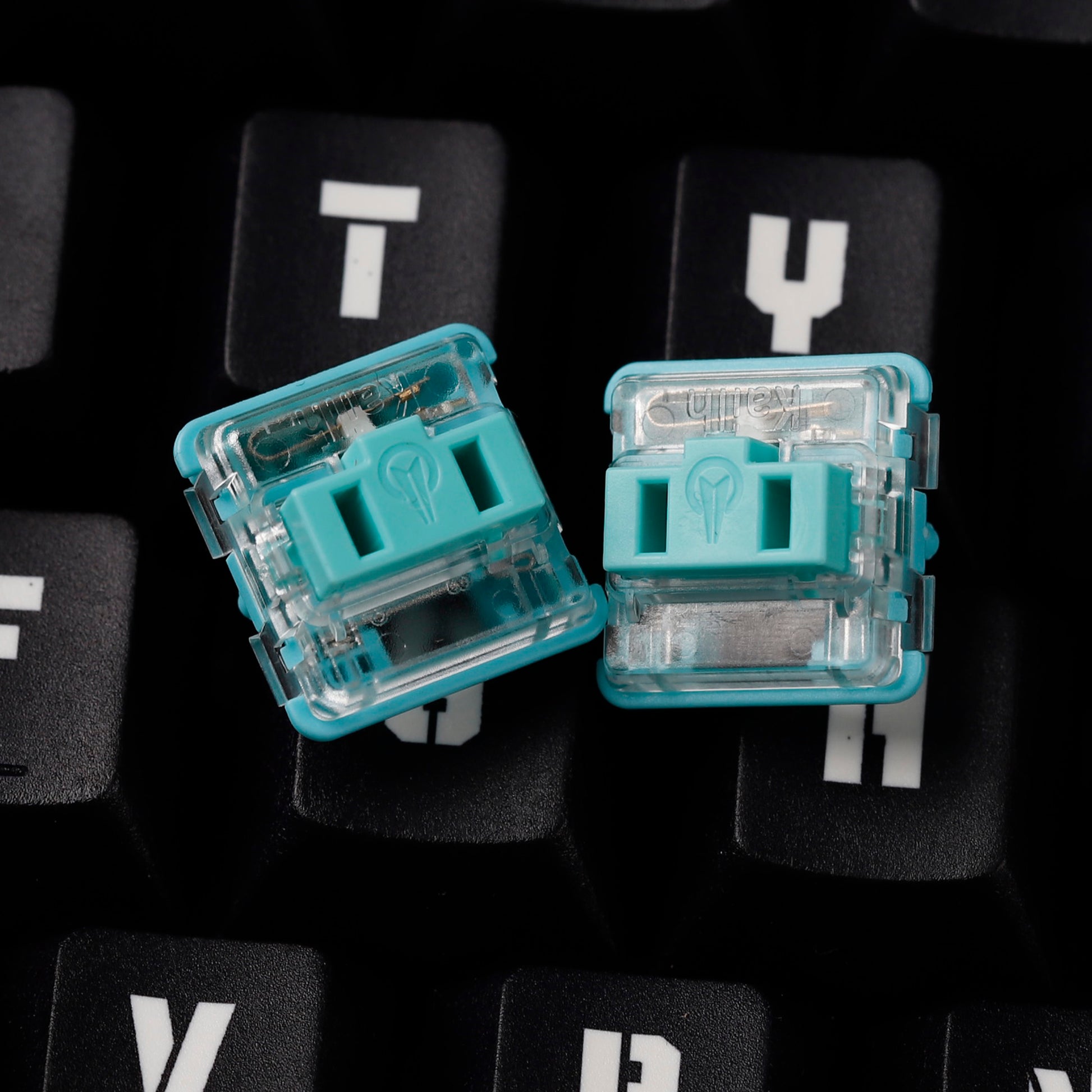

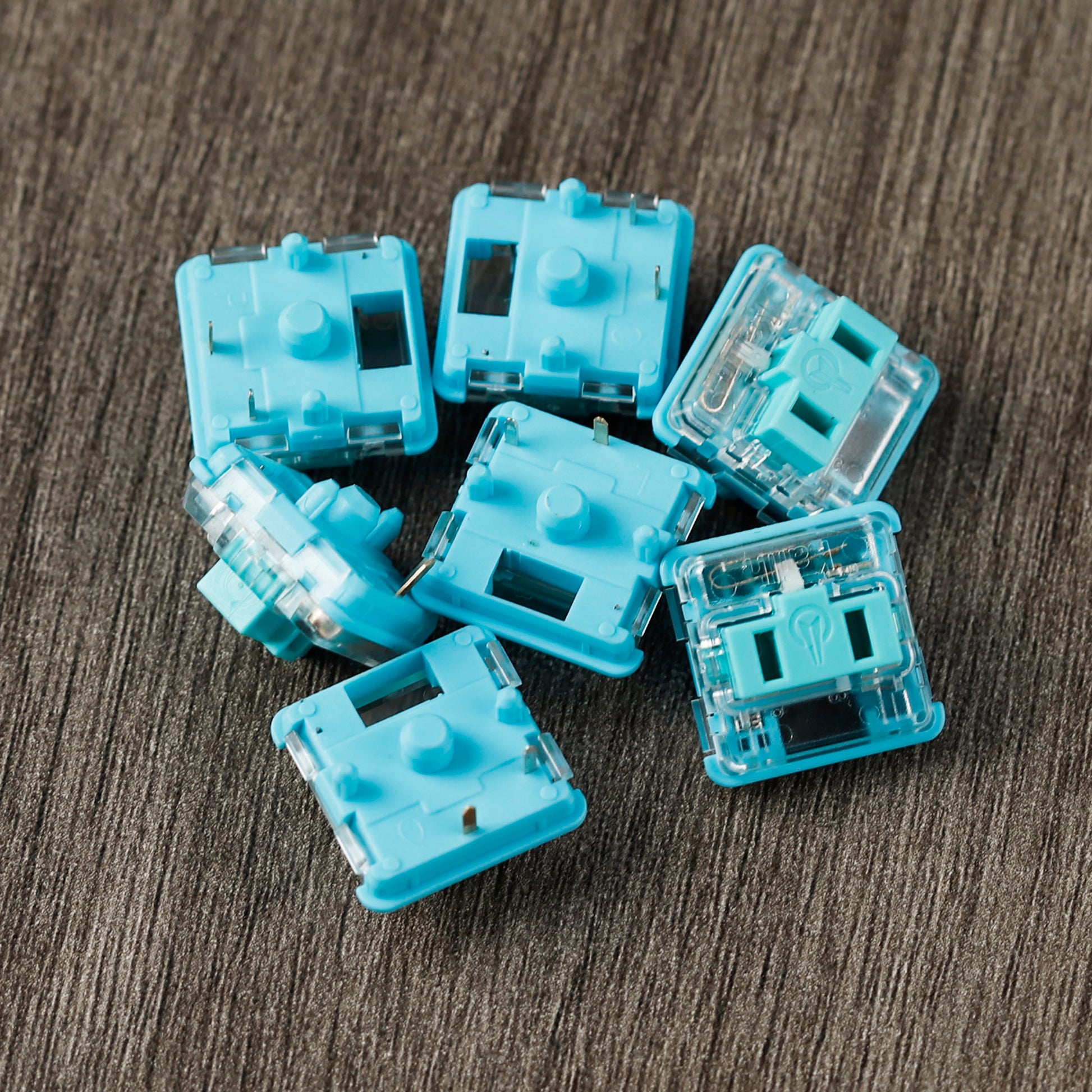

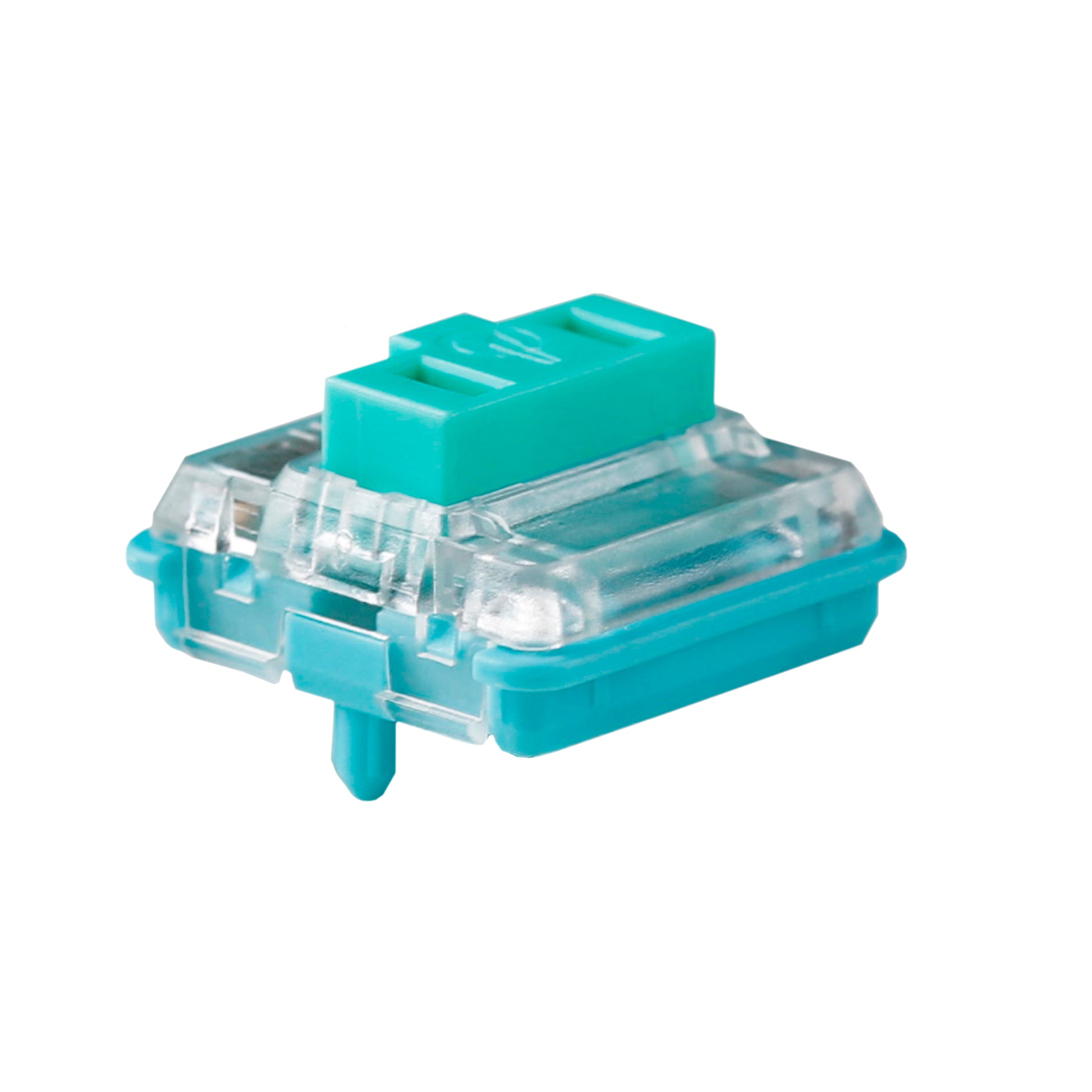

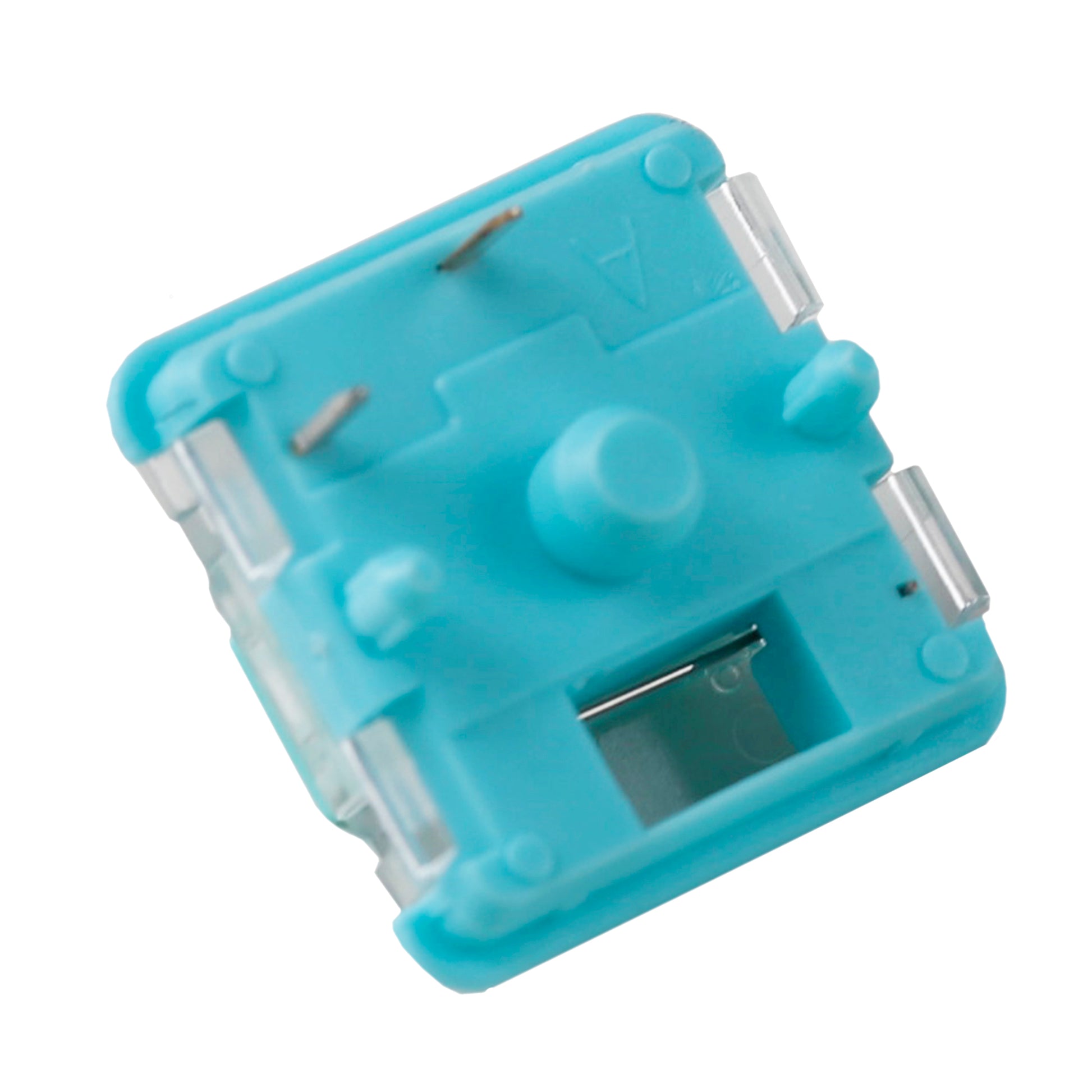

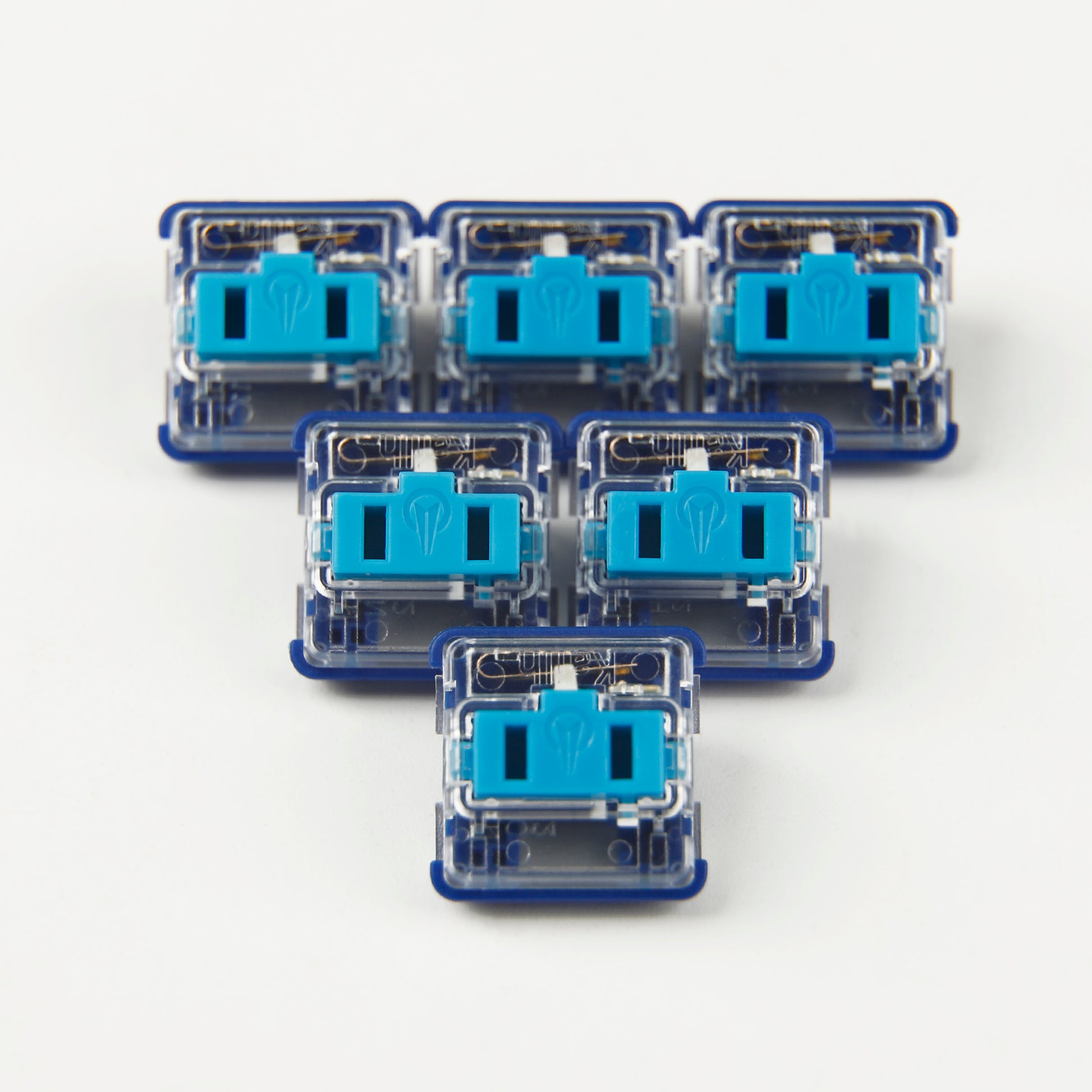

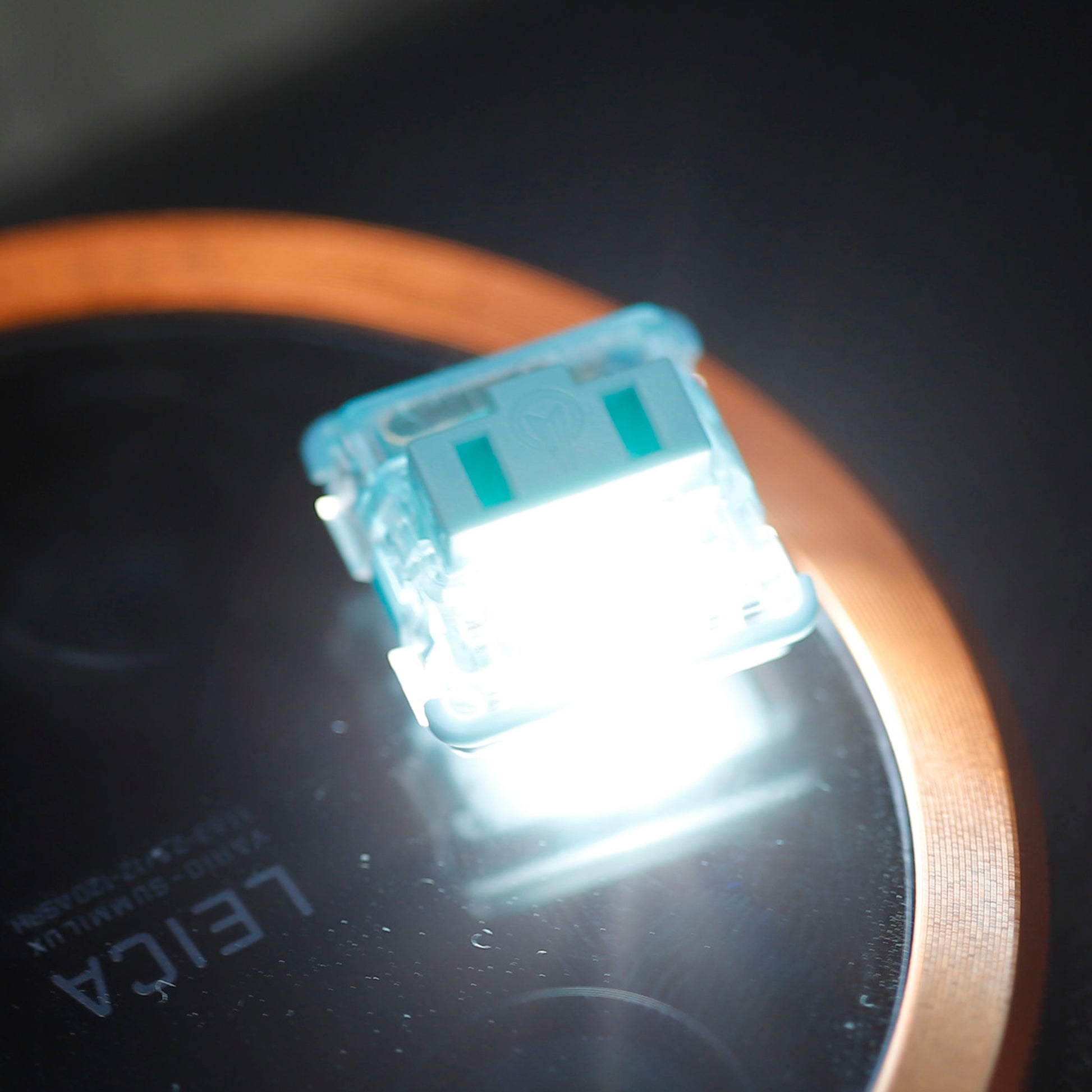

Choc Tiffany Switch (Clicky Switch)
Bottom Force 60g/Operating Life 50 Million cycles

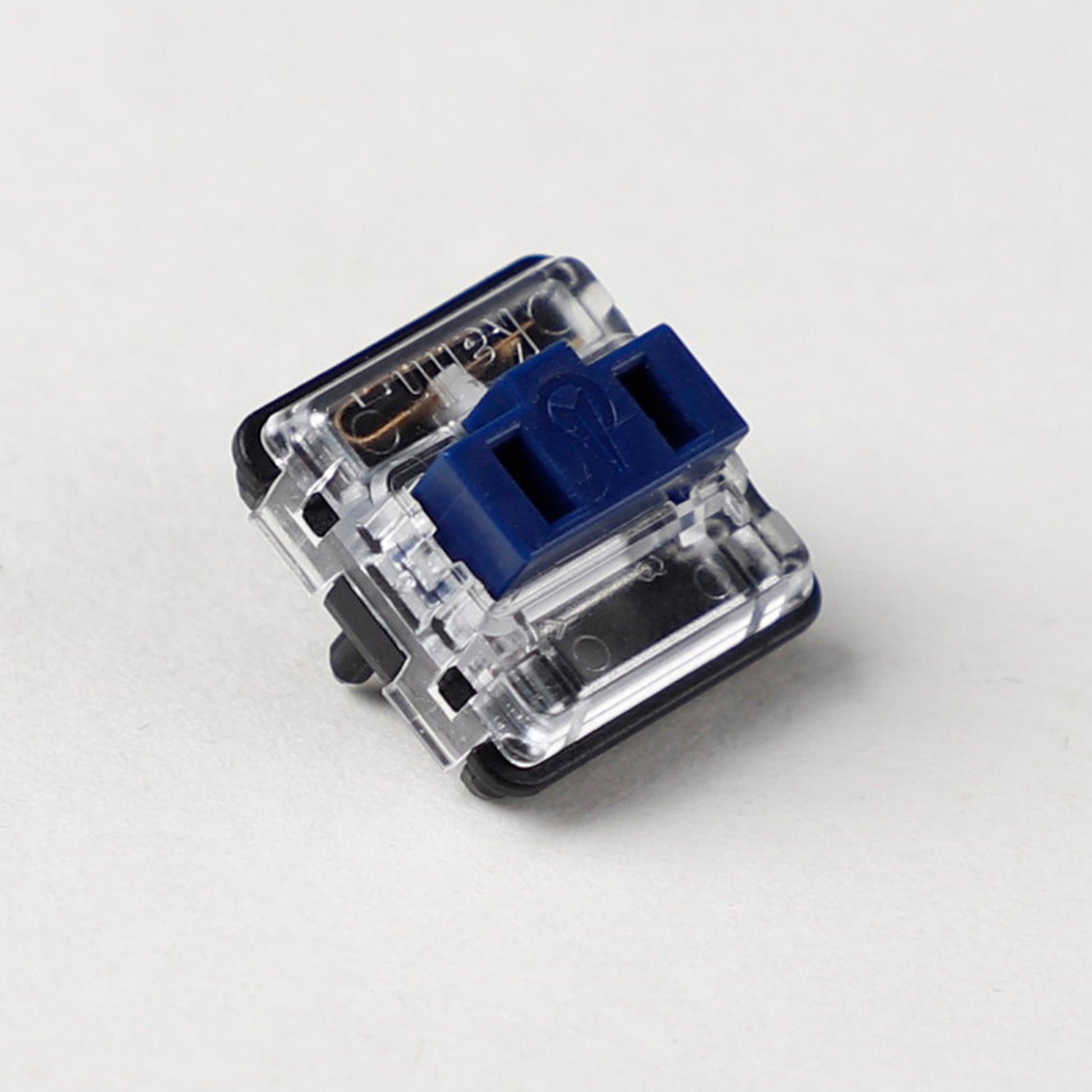

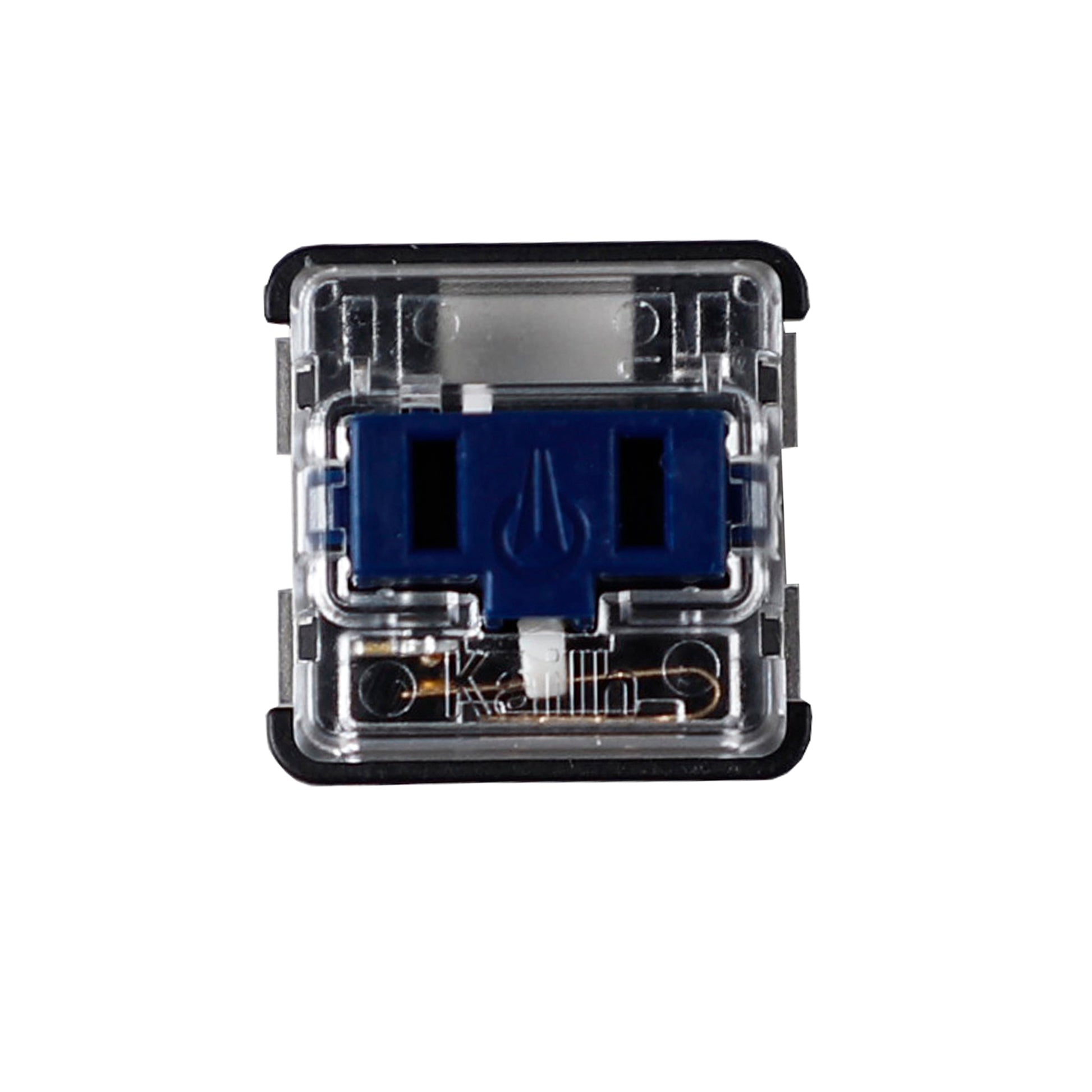

Choc Navy Blue Switch (Clicky Switch)
Bottom Force 60g/Operating Life 50 Million cycles

Choc Blue Switch (Linear Switch)
Bottom Force 20g/Operating Life 50 Million cycles
