YMD-96 Melody 96 Kit 1(Top Aluminum Bottom Acrylic/Standard ANSI ISO QMK Hotswap 96 Kit)

Regular price $150.00

Shipping calculated at checkout.

Package Included

YMD-96 Melody 96 Kit 1: Aluminum Top + Acylic bottom + Alu plate + Hot swap PCB (or Classic PCB) + Enough Stabilizers + Screws + Rubber Feets

Please check the box whether it's in good edition before signing for the parcel.If the box has some hole outside,please request to open the box to check the case.Express shipping company all can check before signature.If it's broken,please refuse to sign for it.

Upgraded Parts

Change Alu plate To Brass plate,Add 40 pcs via Freight Link

Change OEM PCB Stabilizers to Clear Gold screw-in stabilizers, add 10pcs links

If you want Kit 2,Click Here

Details

From 100% to 90%-96 layout,keep some function keys but make the keyboard of size smaller.Create a full integrated keyboard from 100% to the new version-90% special layout.Change the way in keyboard of using totally,96 will be a better layout.

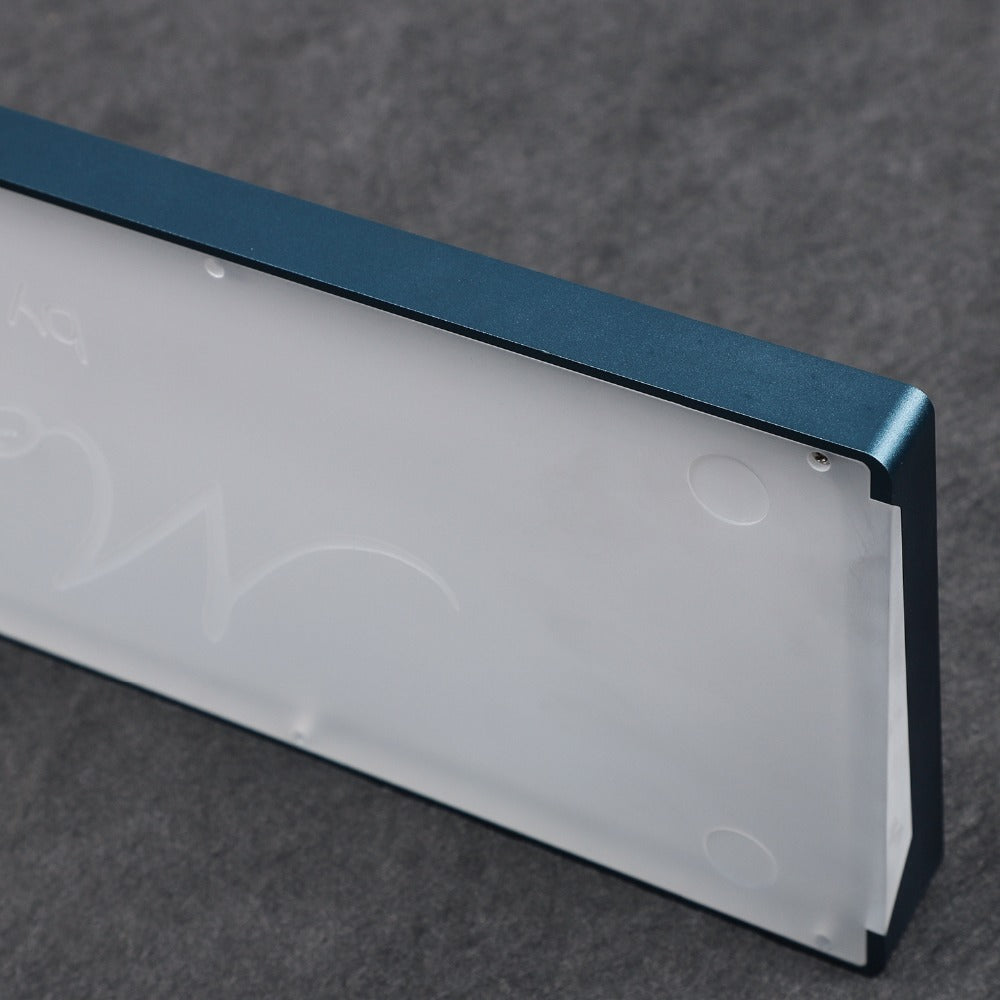

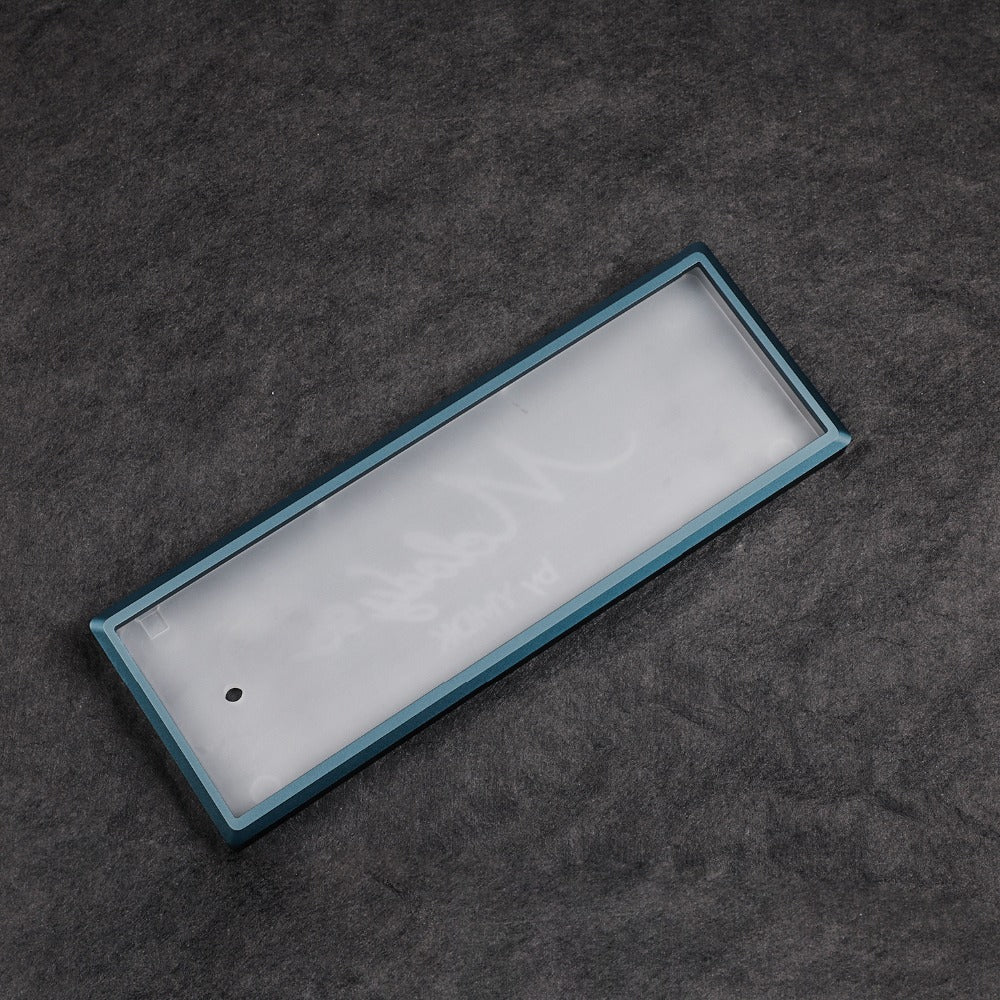

CNC anodized top aluminum bottom acrylic case for rgb underglow,but protect pcb of working better.

South facing solderin pcb support many layouts,fit qmk and via together.

Hotswap PCB have two version,V1 south facing or V2 north facing.It is different in some keys of direction,but all fit qmk and via.You can check the link for pcb.

Anodized aluminum plate,black/gray/silver/red/cyan/gold/rose gold/purple for case of color.

Note

If you need add leds yourself,please note that it only support one color now for backlit.And some keys of places is different in leds of direction for hotswap pcb,like right 1u alt ctrl,left 2.25u shift etc keys.

Soldering PCB support many layouts,but you need prepare a soldering iron to install switches.

Hotswap need not soldering for installing.

VIA Manuals

drive.google.com/file/d/18RPcr01UgIxzFhyI94FR7OwCYUdHYH_y/view?usp=sharing (The keycode for Enter \| need to reversed in soldering pcb)

Layout Description

Hotswap PCB

Non Hotswap Classic PCB can support all layout listed below

Images Display

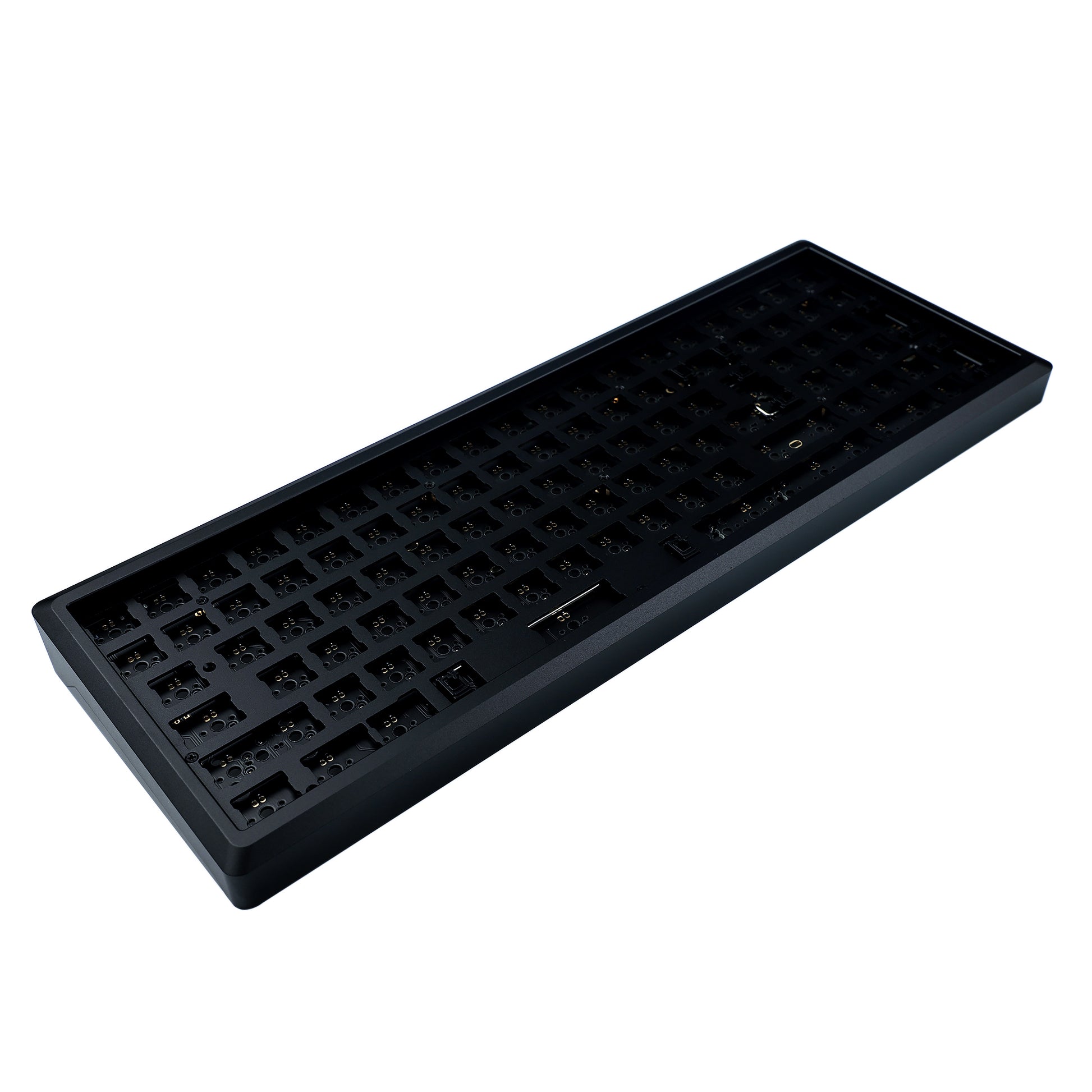

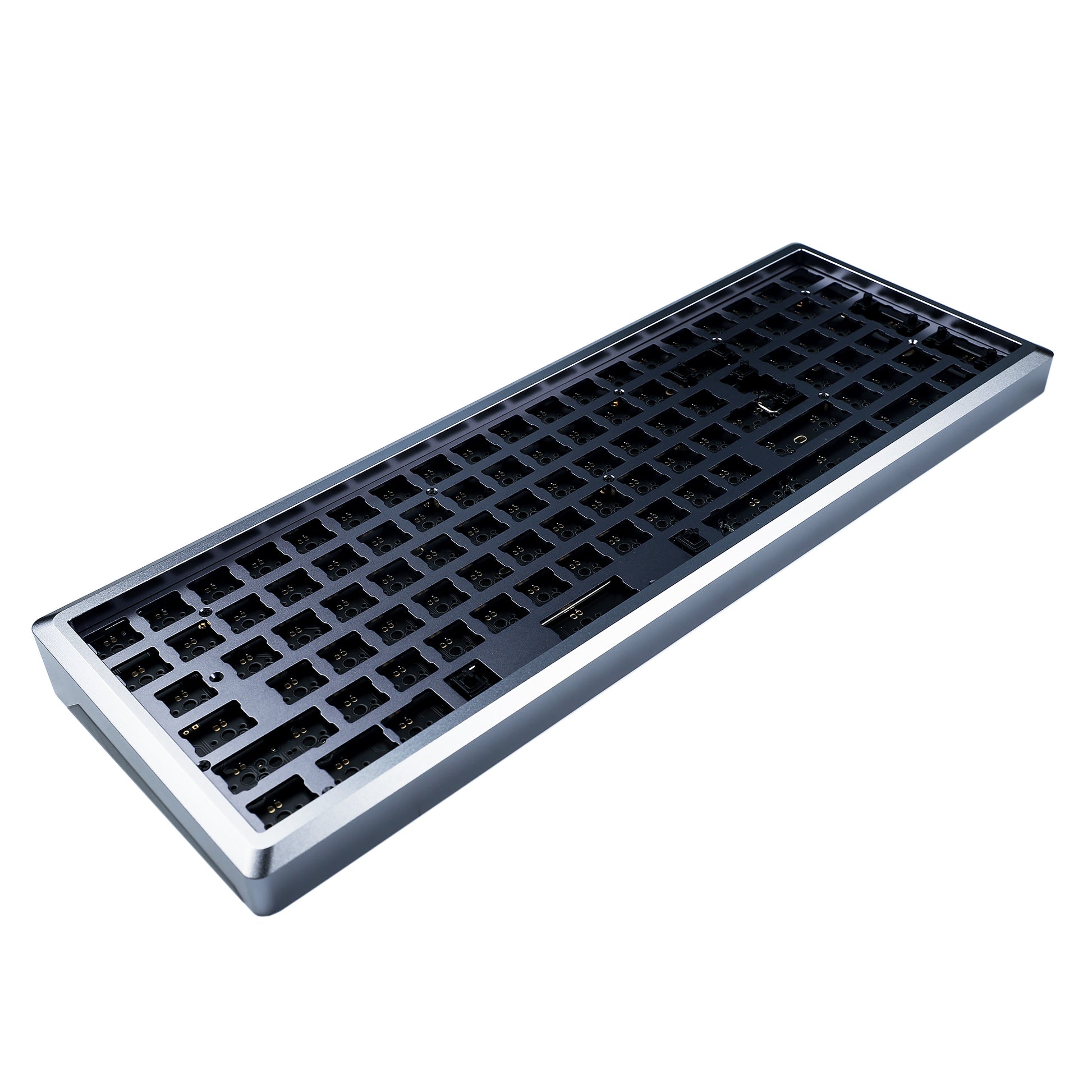

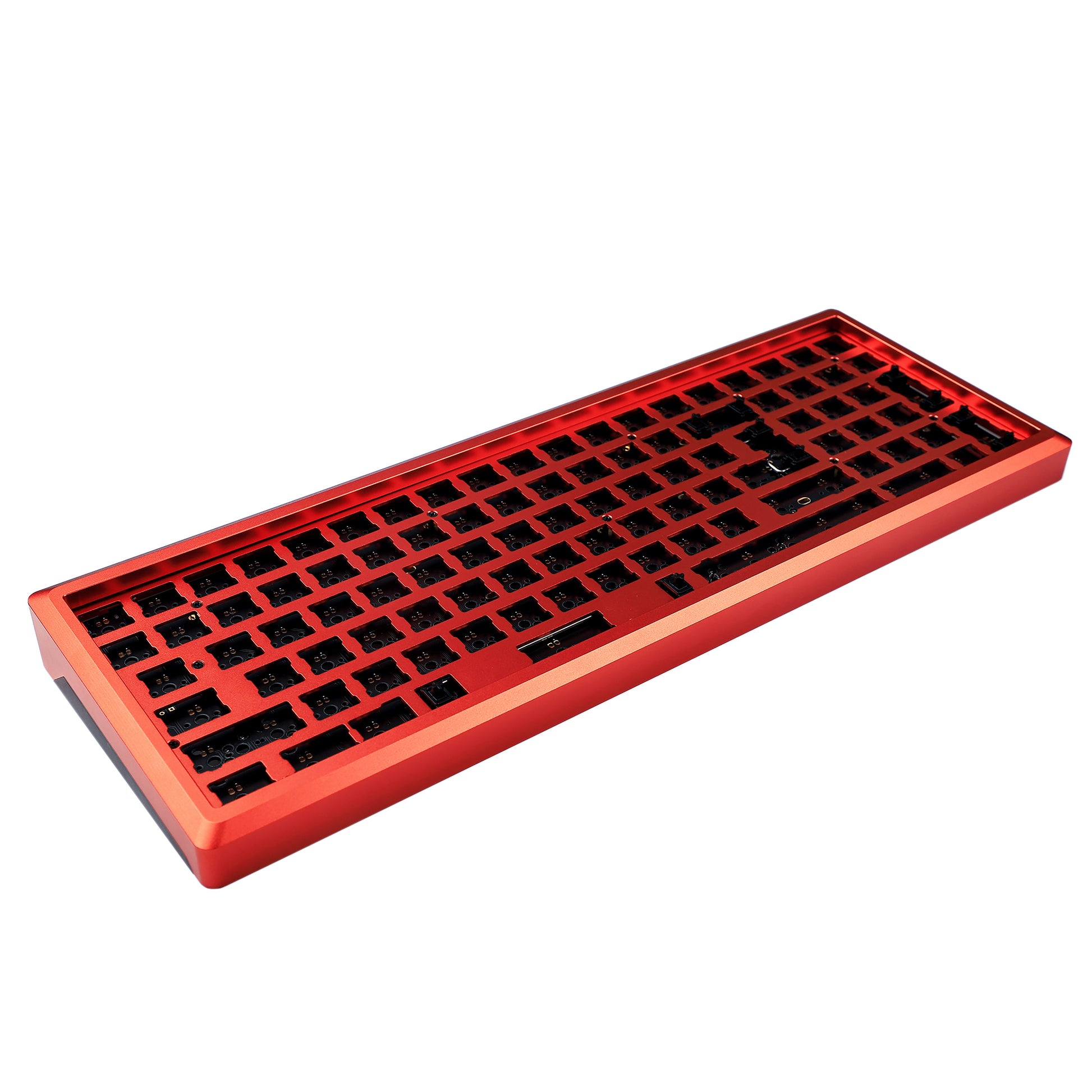

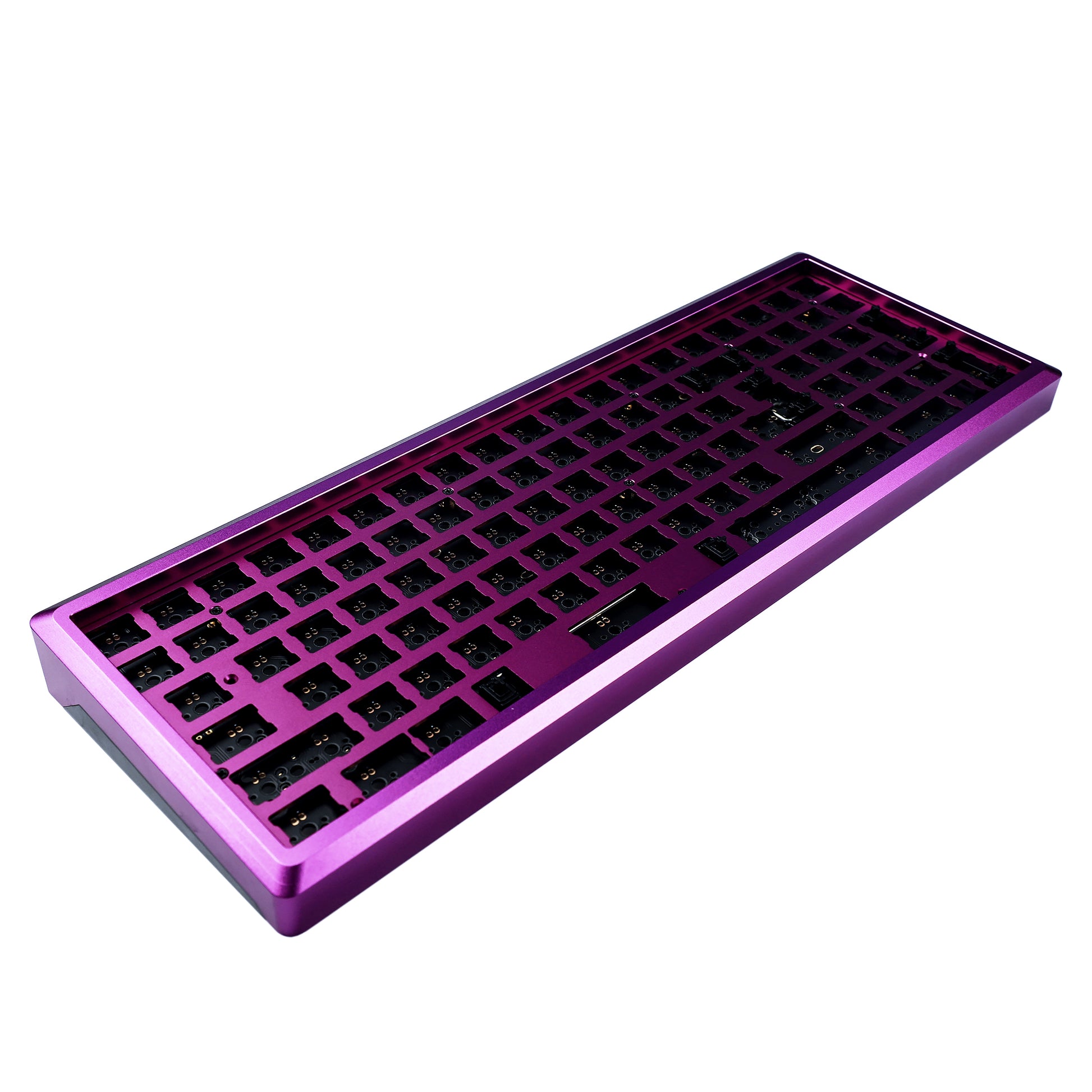

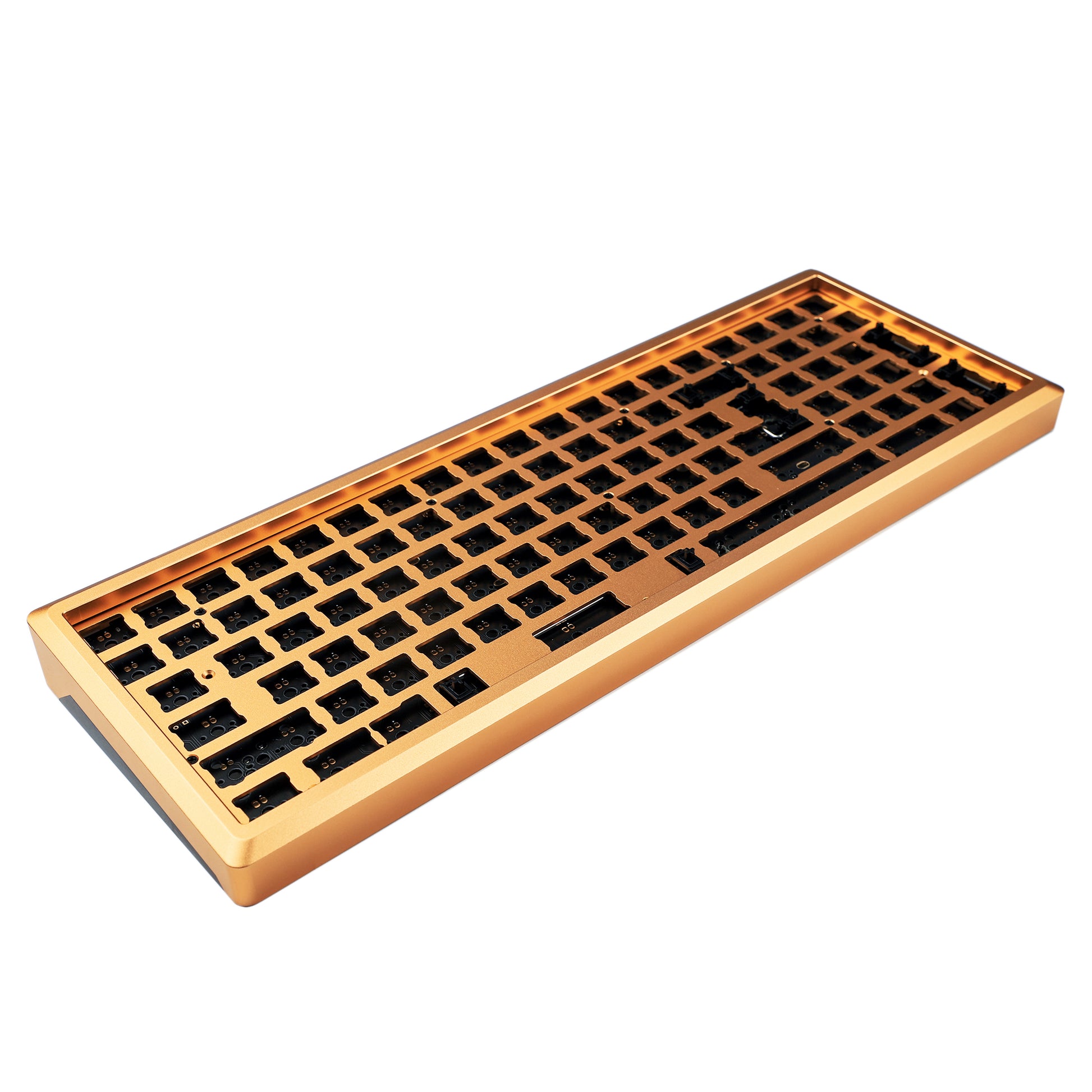

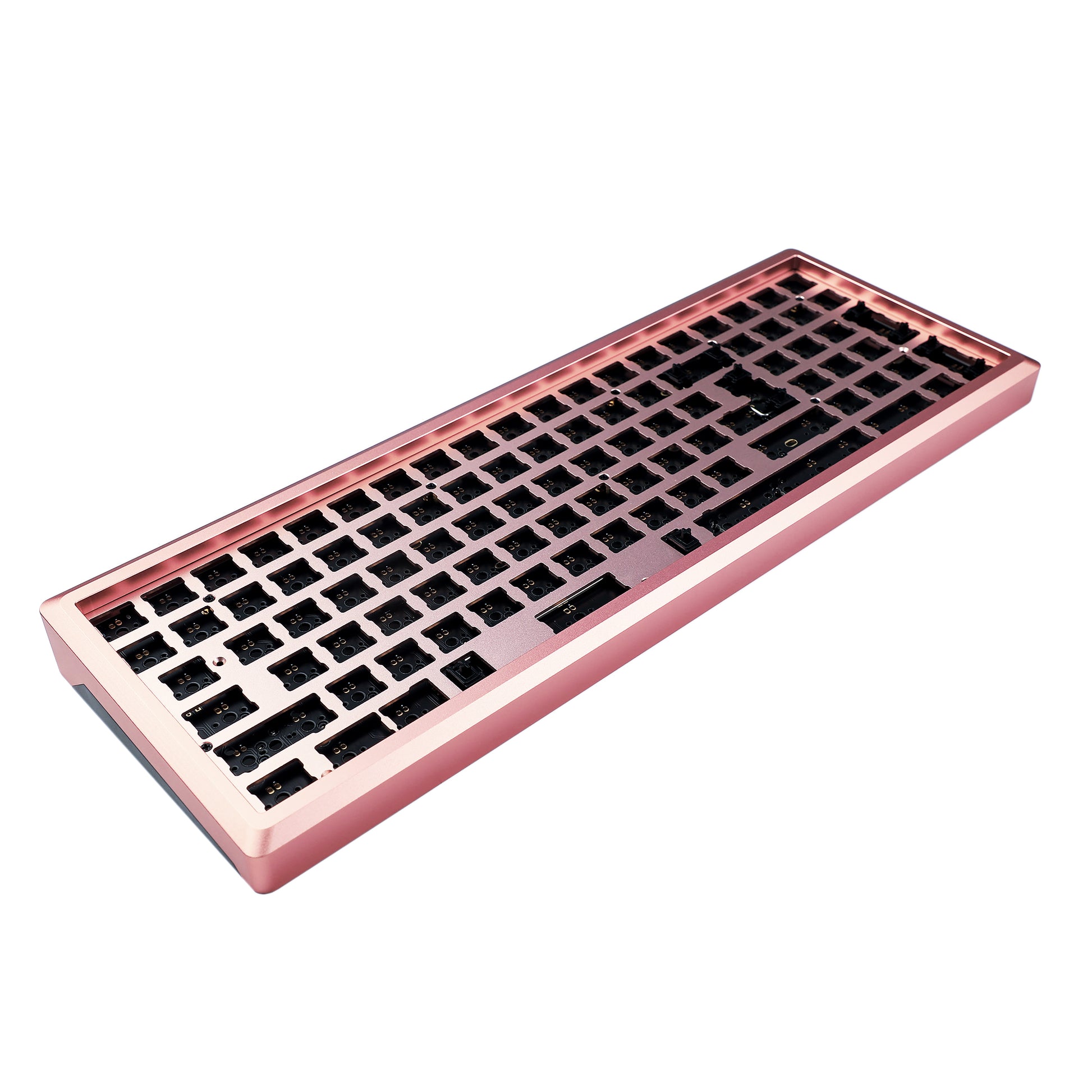

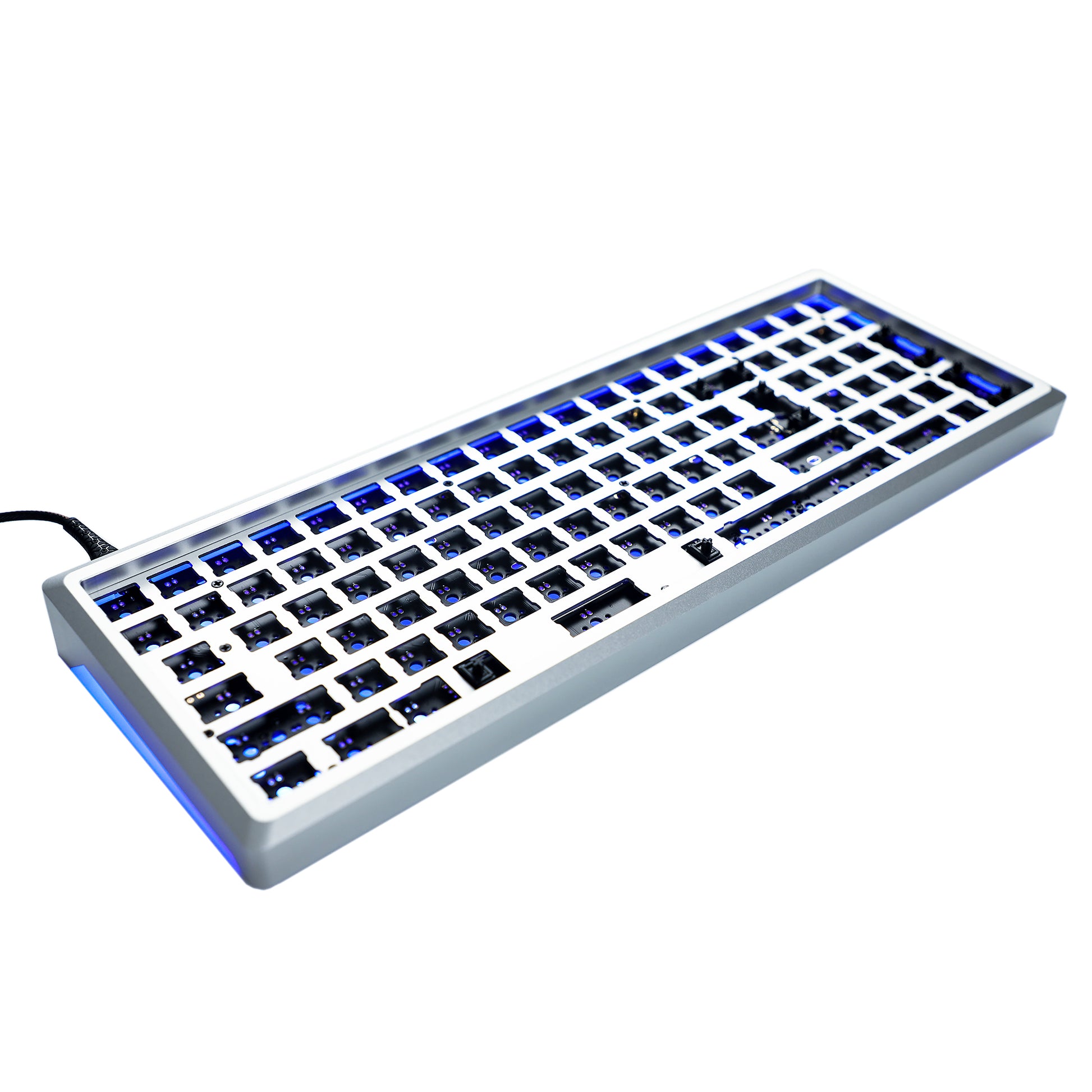

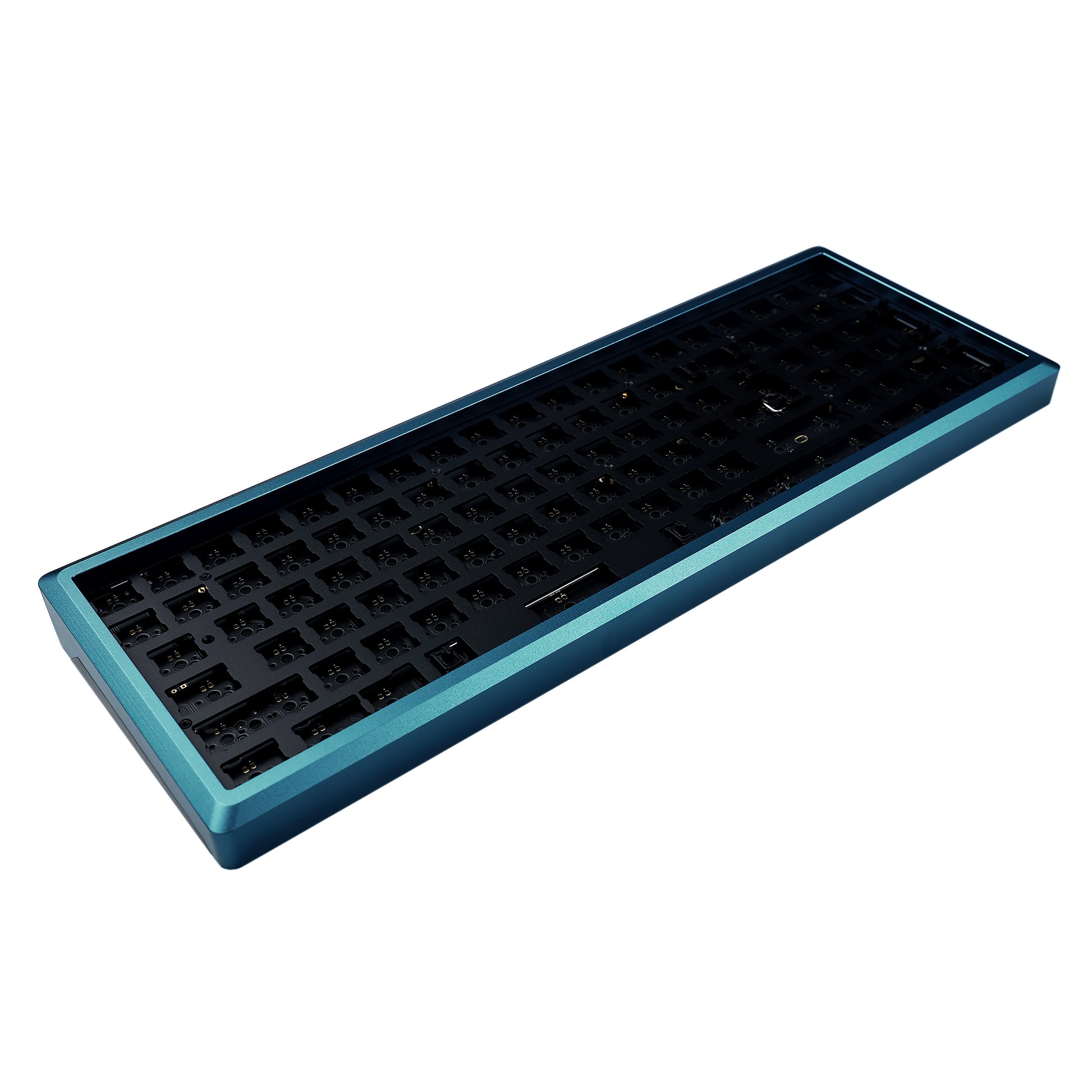

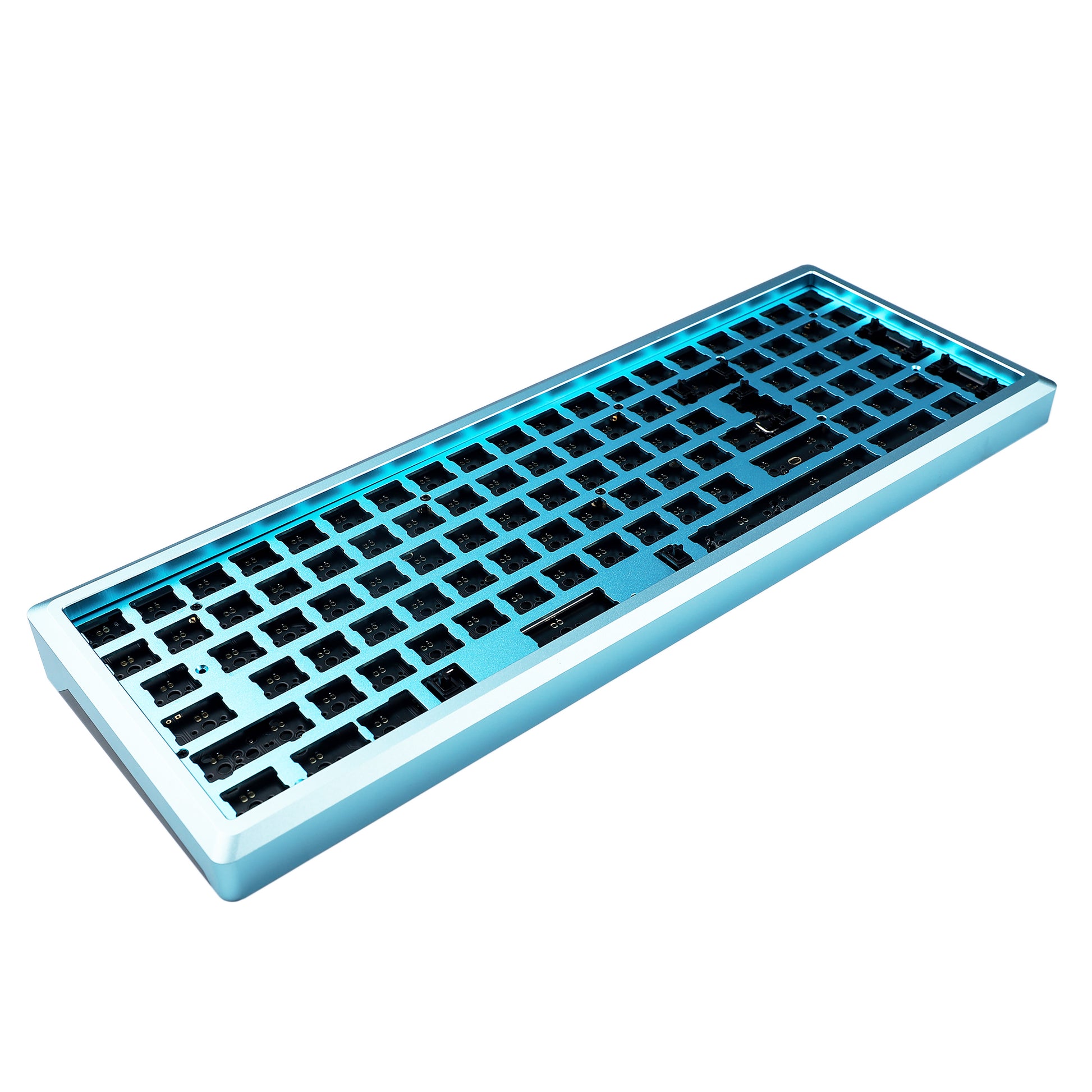

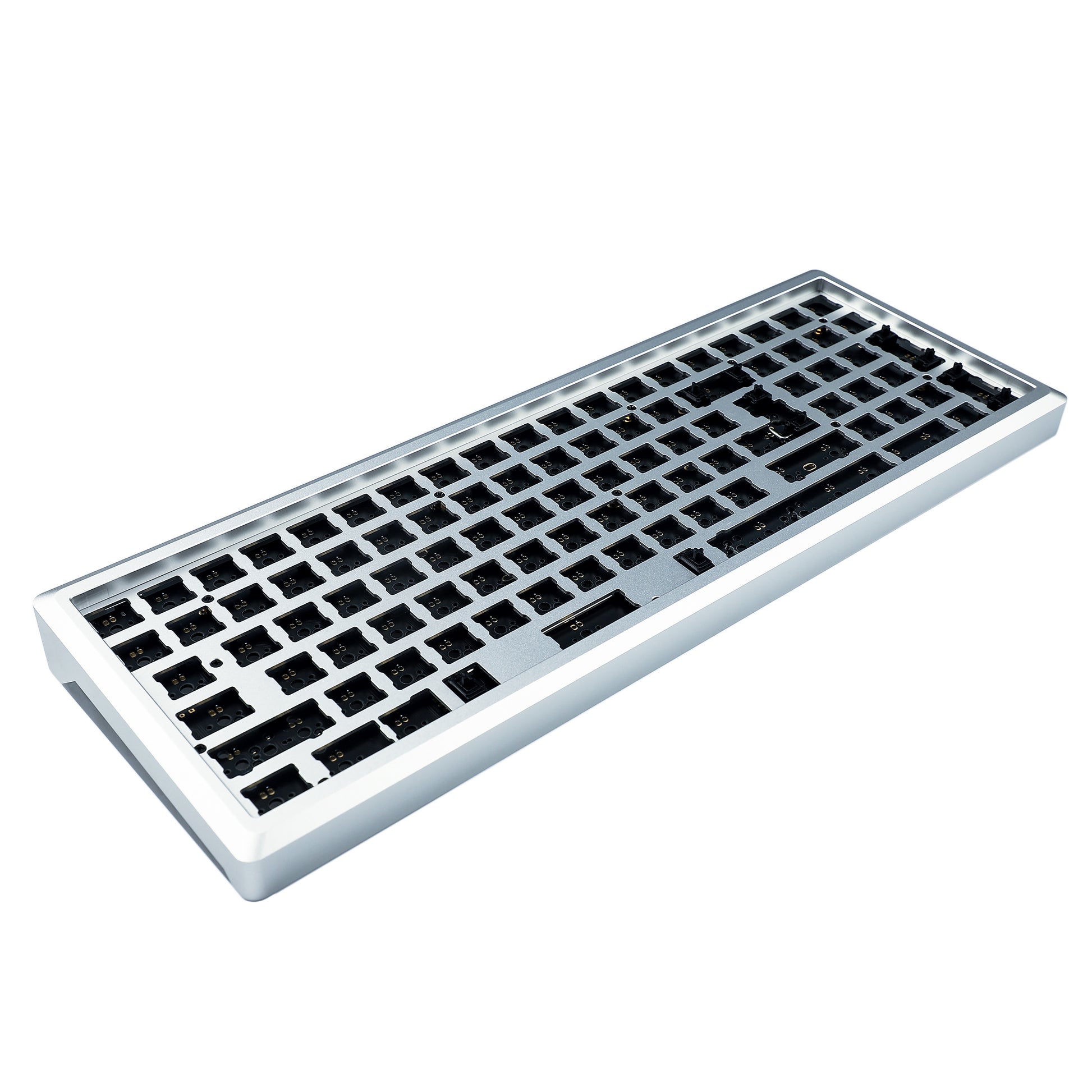

Kit

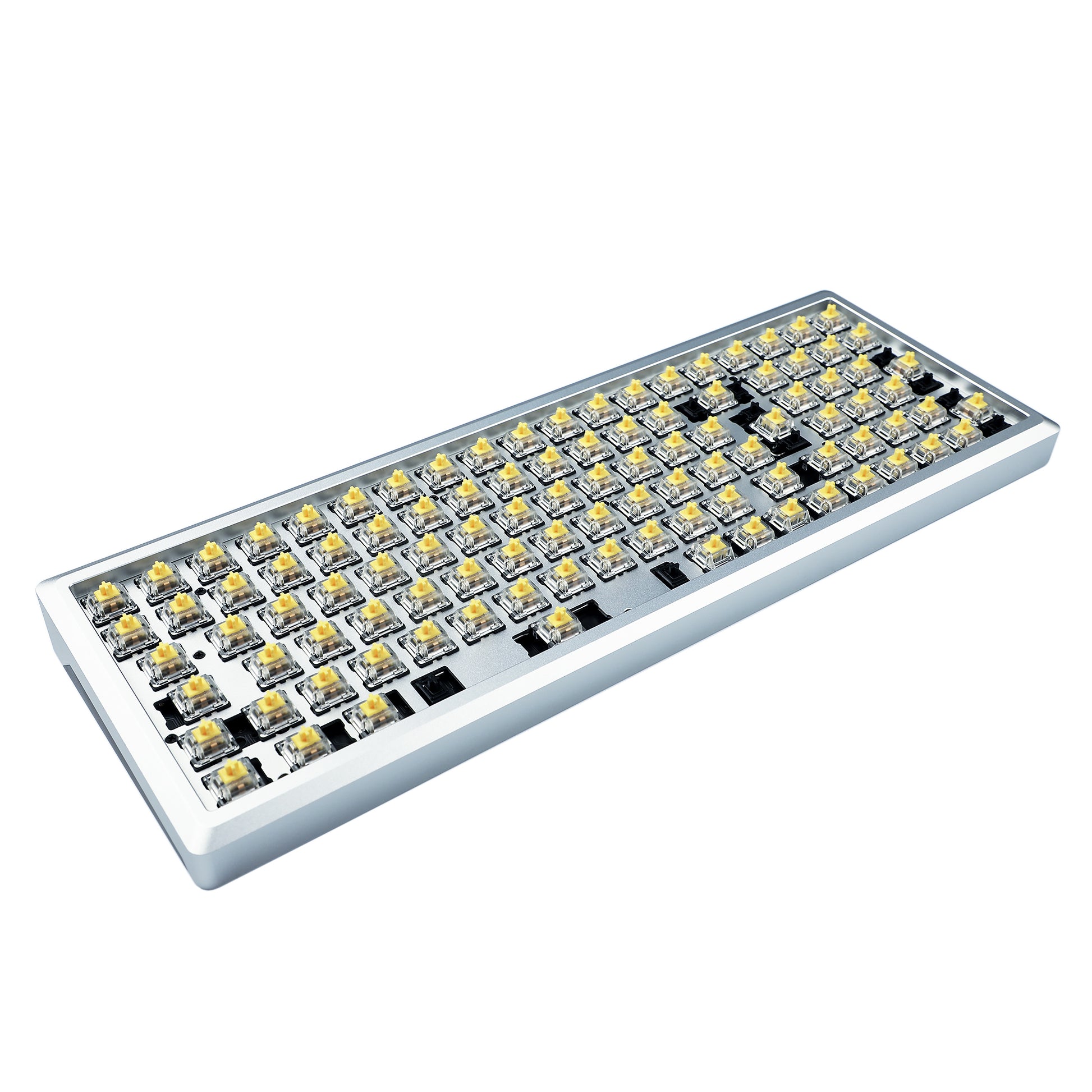

Add Switches installed

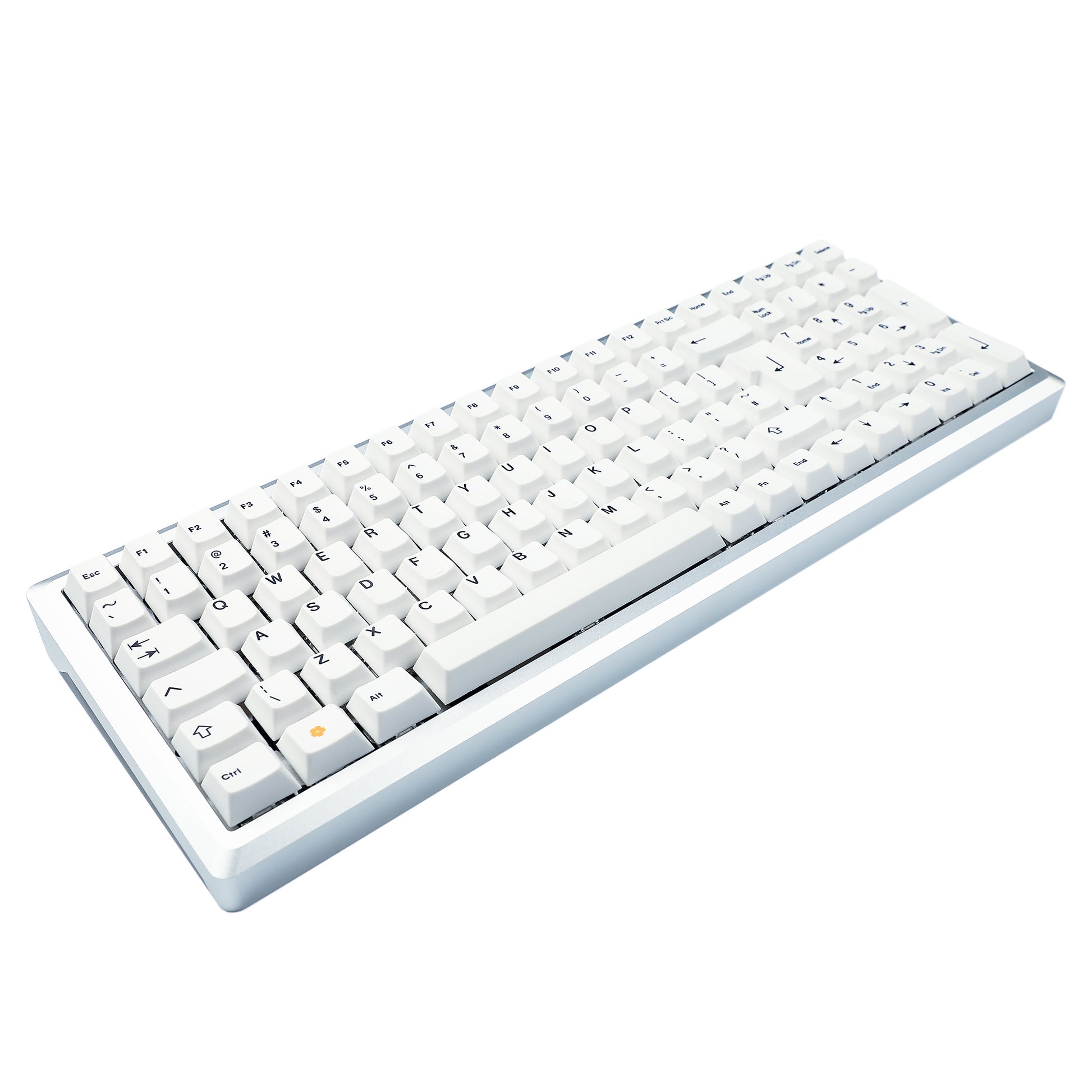

Add Keycap installed
