Kit 2 - Aluminum CNC Top Bottom Brass Weight YMDK Melody 96 Hotswap Type C PCB Keyboard Kit

Regular price $200.00

Shipping calculated at checkout.

Package Included

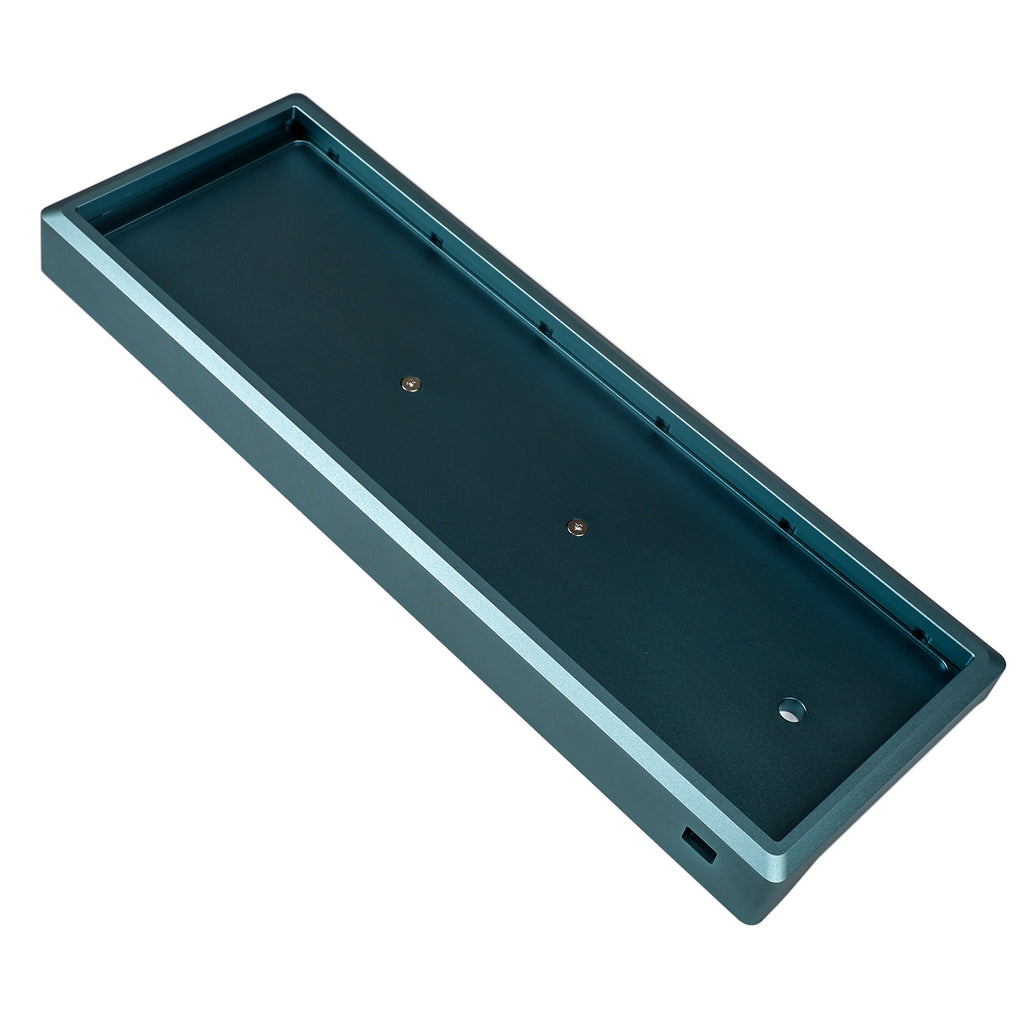

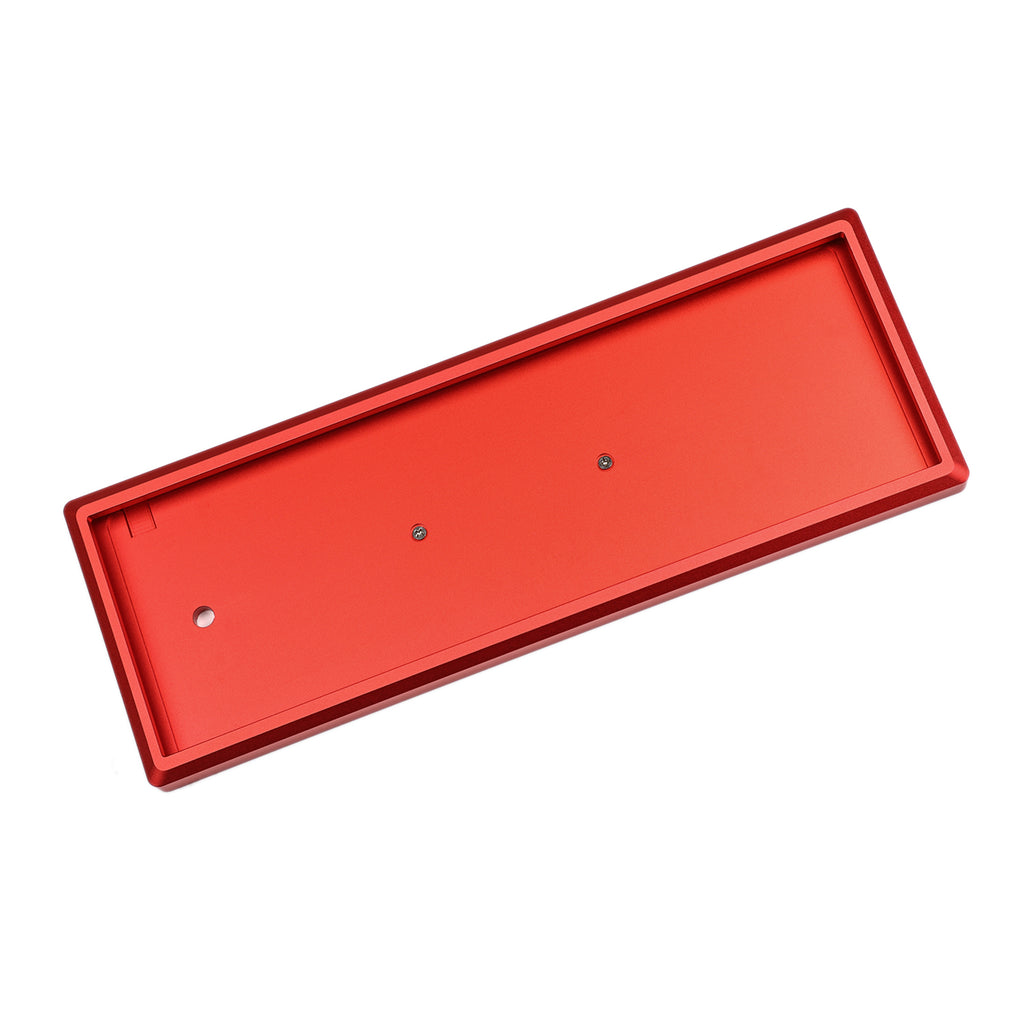

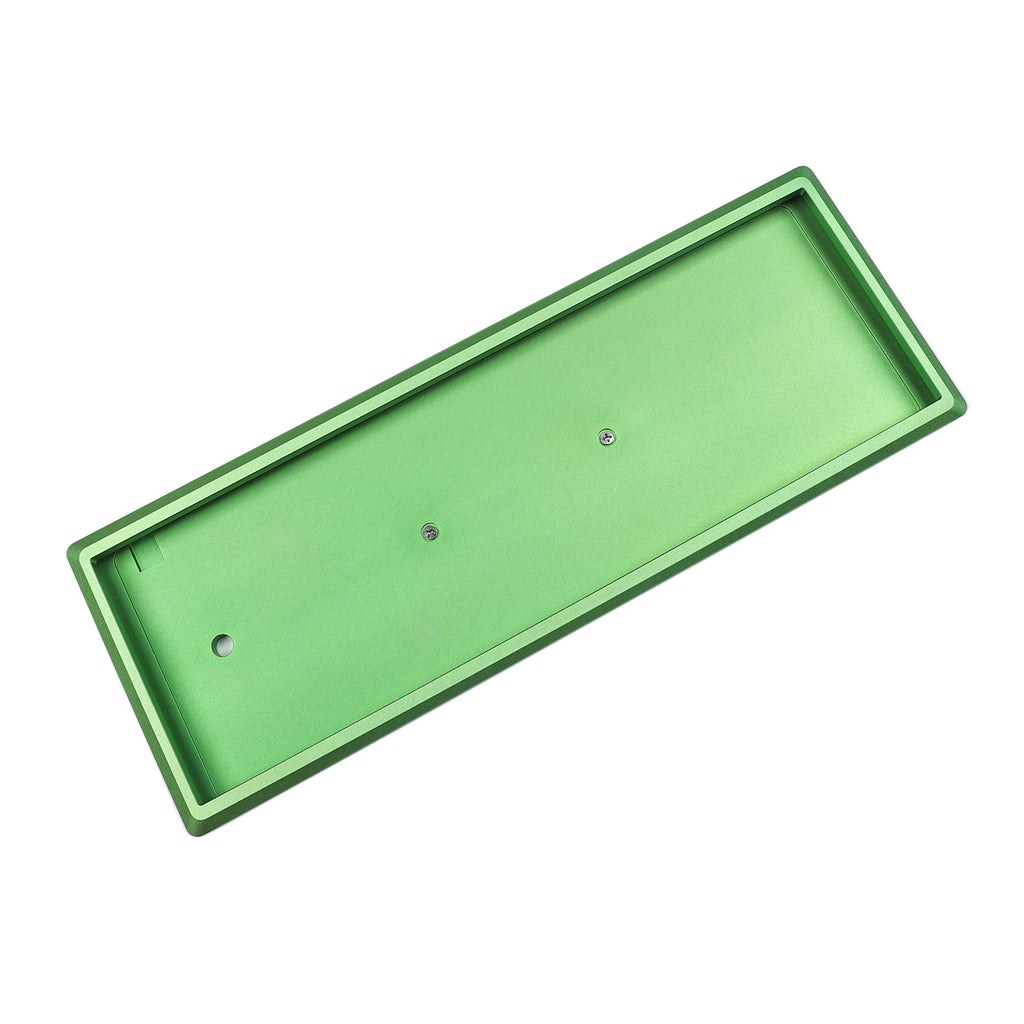

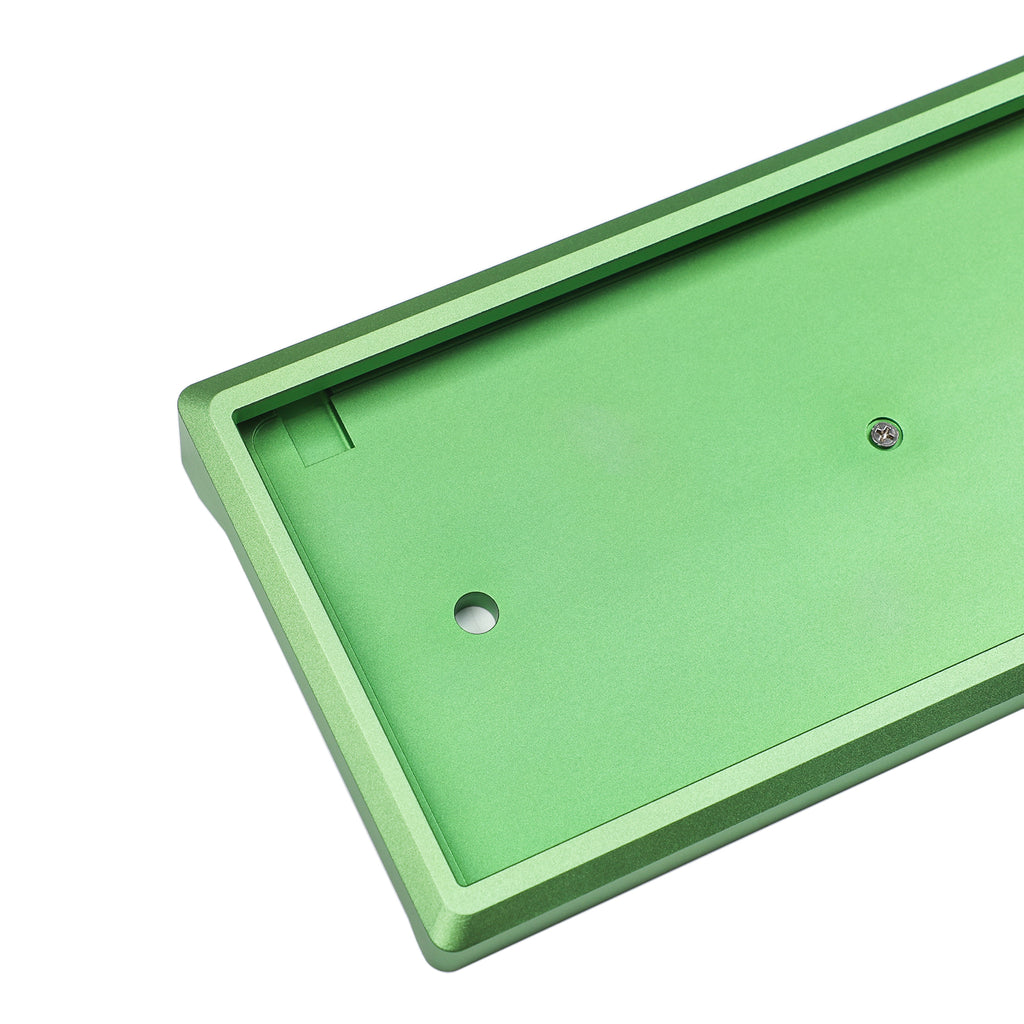

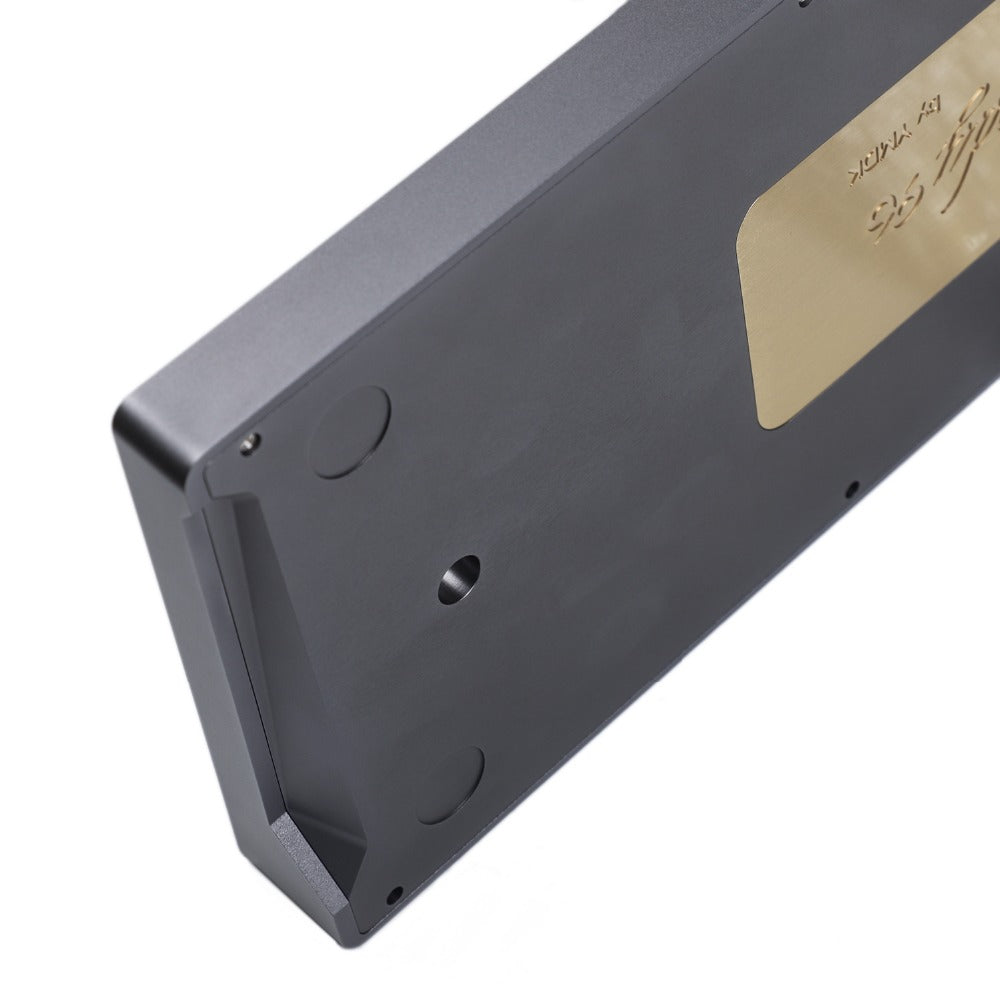

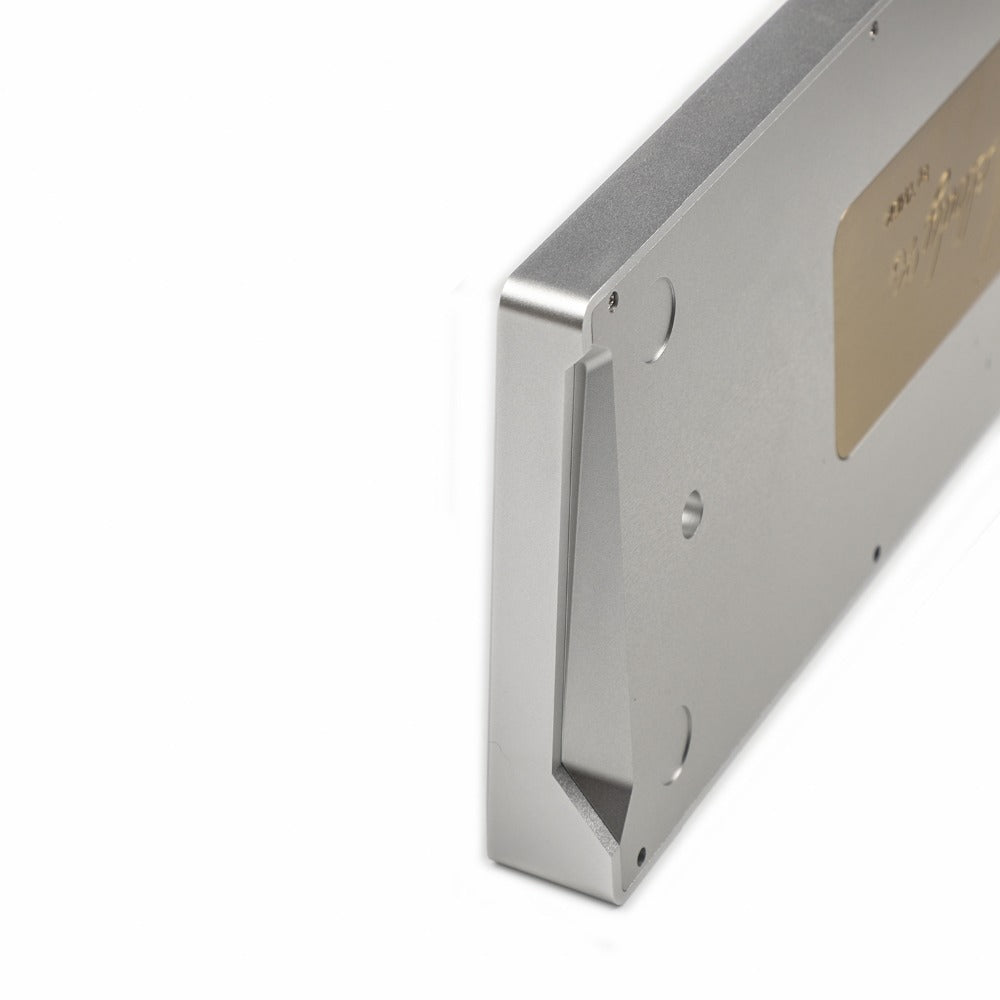

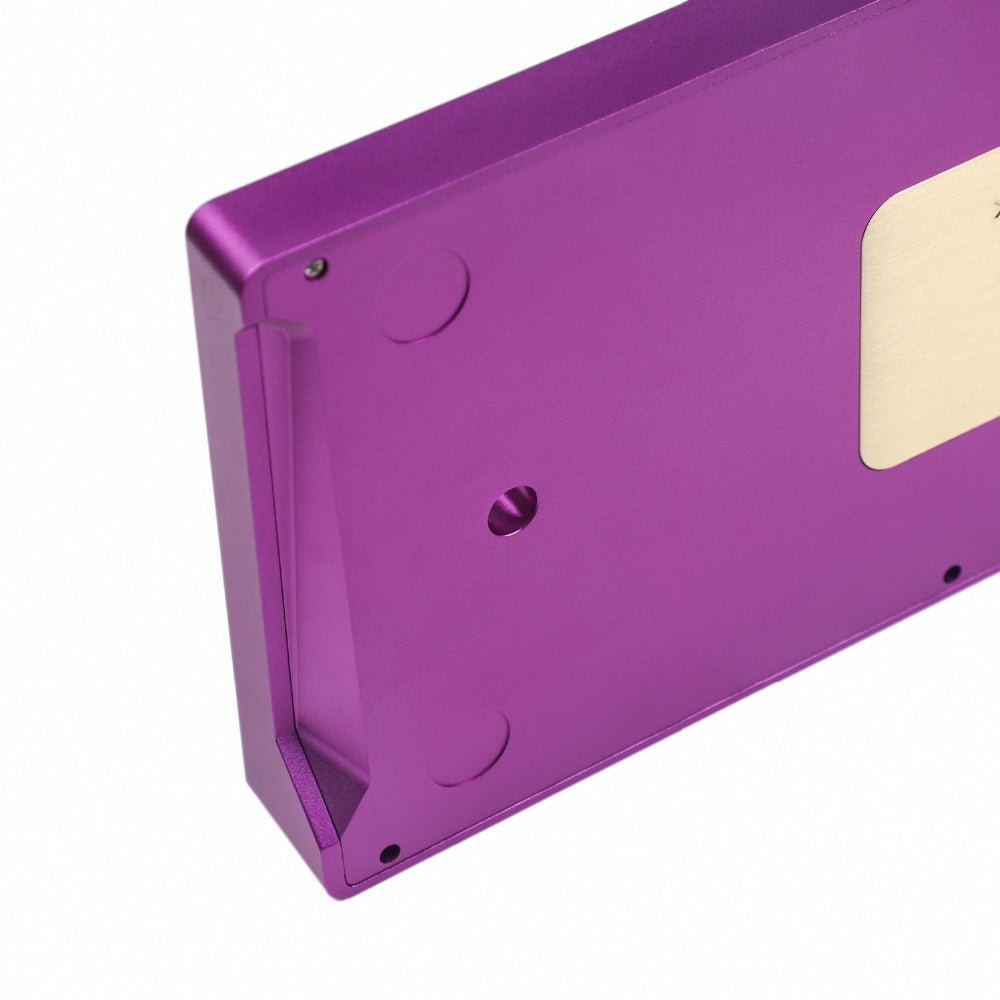

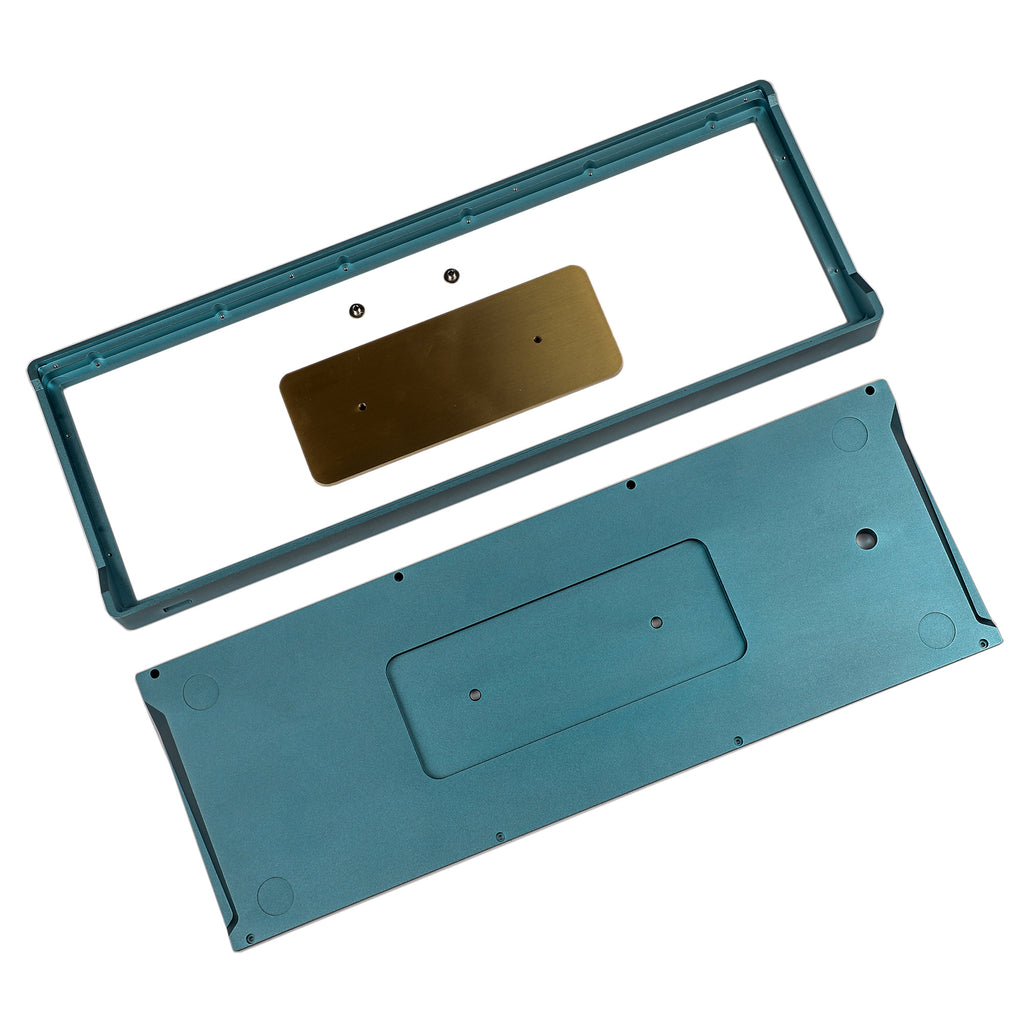

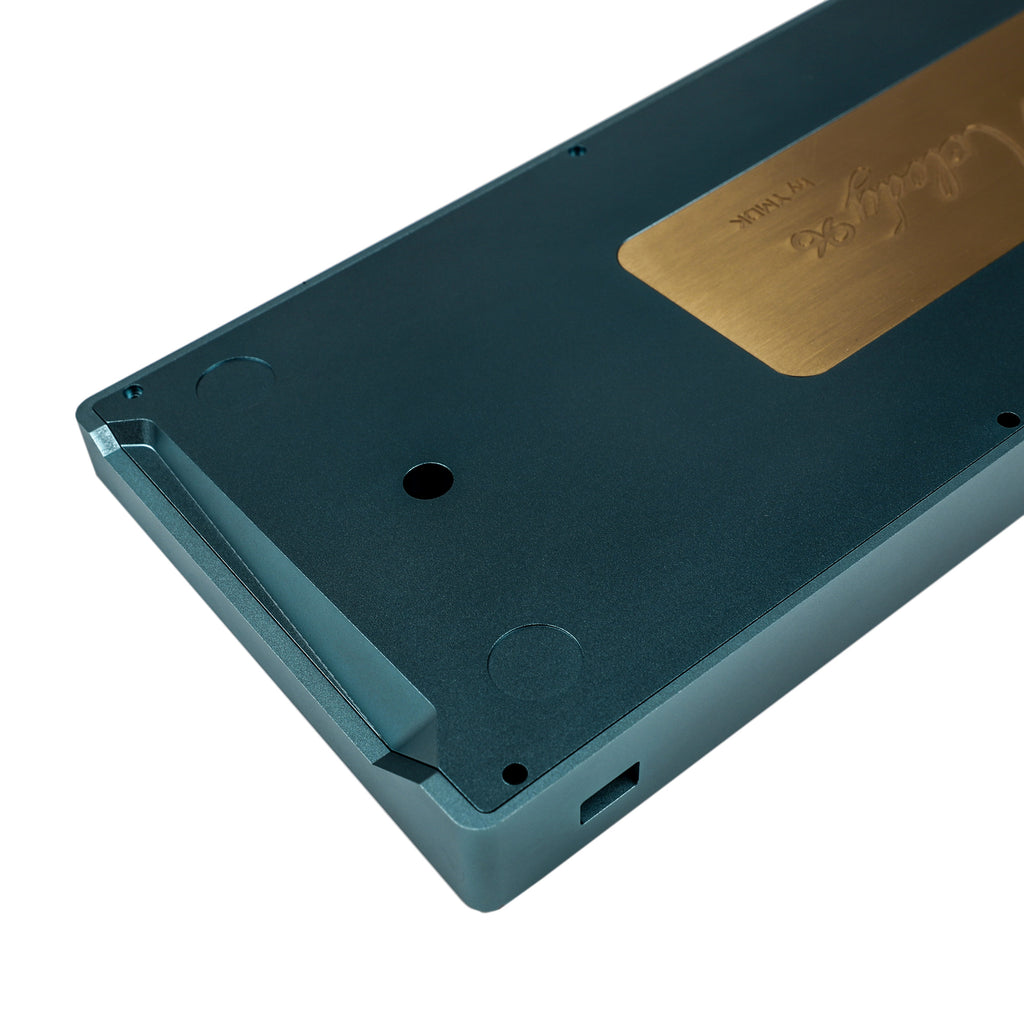

Aluminum Top bottom + Brass weight + Alu plate + Hot swap PCB (or Classic PCB) + Enough Stabilizers + Screws rubber feet

We have two style hotswap pcb,south facing or north facing,if you need south facing hotswap pcb,can just leave a message to choose after order.

And we will use norht facing pcb as default if you have not leaved a message to choose.



For Gray case /Gray Top Silver base case,plate color is gray as default

For Cyan case,the plate is cyan color as default,if no stock will use silver instead

For Silver case,the plate color is silver as default

For Pink case,the plate color is pink as default

For Black case,the plate color is black as default

Note: Please check the box whether it's in good edition before signing for the parcel.If the box has some hole outside,please request to open the box to check the case.Express shipping company all can check before signature.If it's broken,please refuse to sign for it.

If you need switches,leds,just click link below to order,you only need to choose normal shipping for switchs leds,we will ship them together with 96 Kit shipping method.Such as,if you choose DHL for 96 kit,switches leds China post,we will ship all via DHL.

Change Alu plate To Brass plate,Add 40 pcs via Freight link

Change OEM stabilizers to Cherry screw-in stabilizers Add 12 pcs via Freight link

Add an Acrylic Bottom,Click Here

Switches Click Here

Leds Click Here

Keycap click Cherry profile Dye-sub   OEM profile Dye-sub   OEM Laser-Eteched   DSA Dye-sub    DSA 9009

If you want Kit 1 Click Here

Details

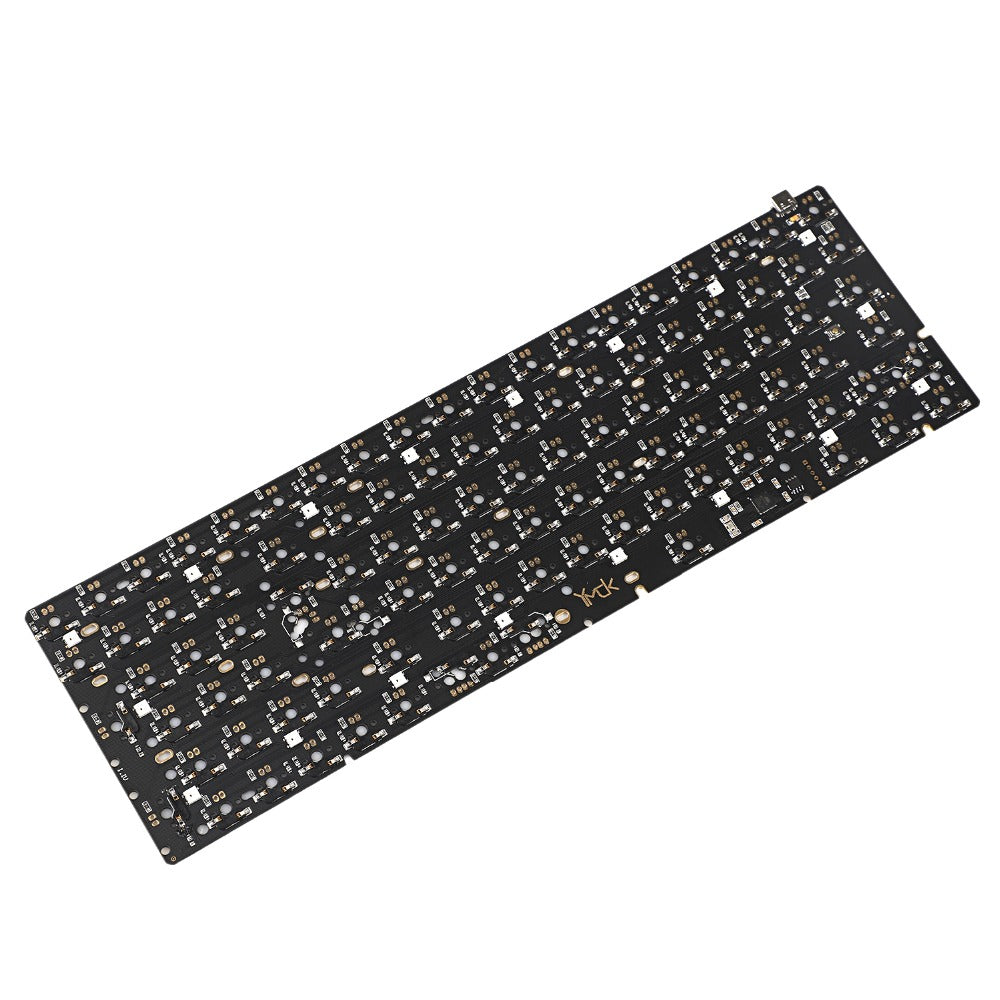

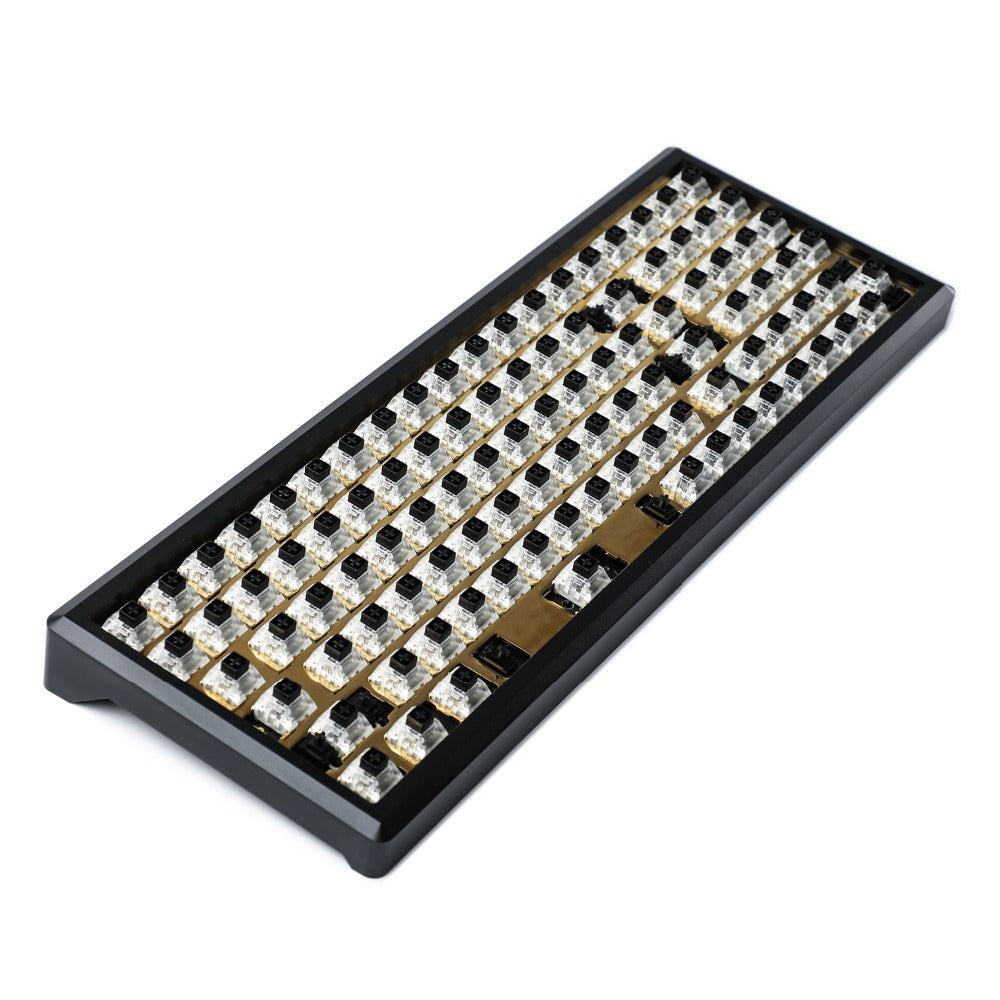

PCB is presoldered with Kailh socket,there is 4 most popular layout for your option.If you choose non hot swap PCB,it's normal gold pad Type C QMK PCB which can support all layout as YMD96.And you need to solder switches.

Hotswap PCB layout can be chosen directly.Non hot swap PCB is classic Melody 96 PCB which support many layout,however you need to solder the switches

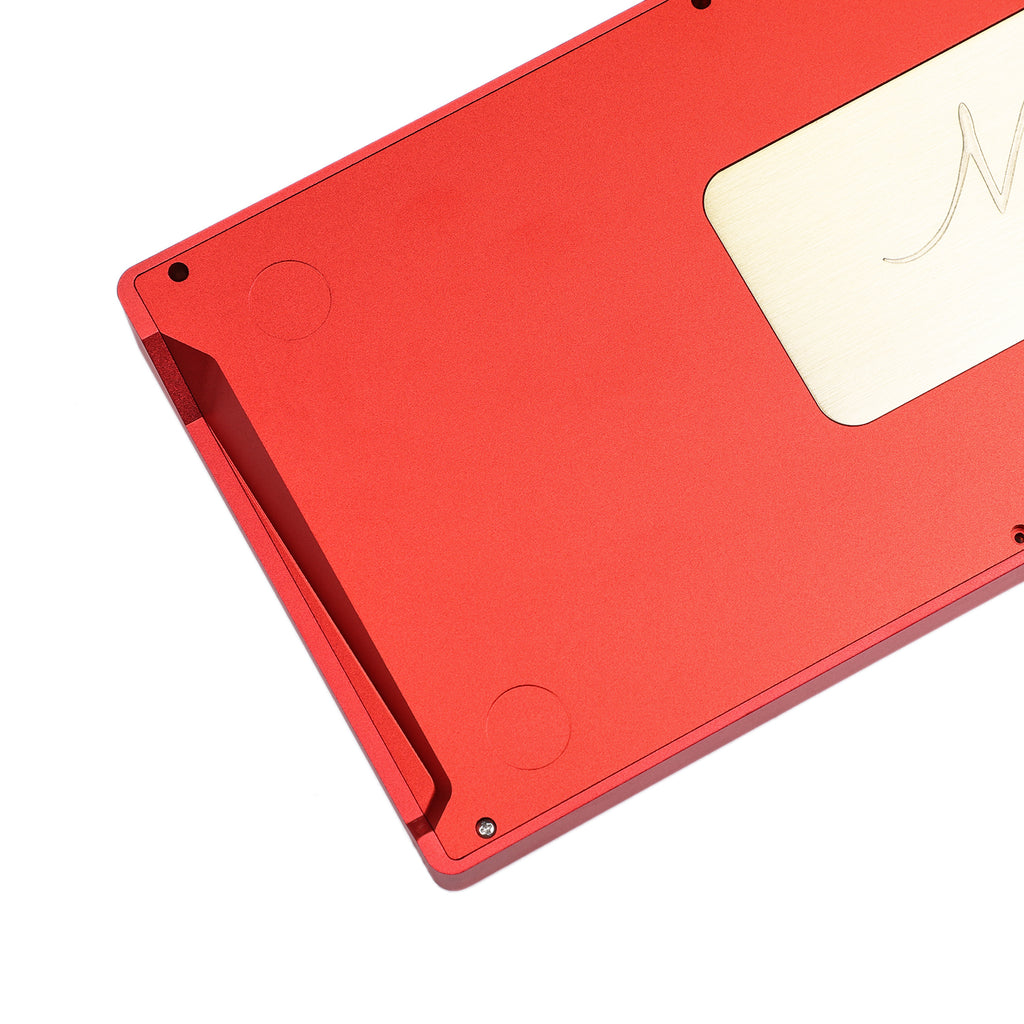

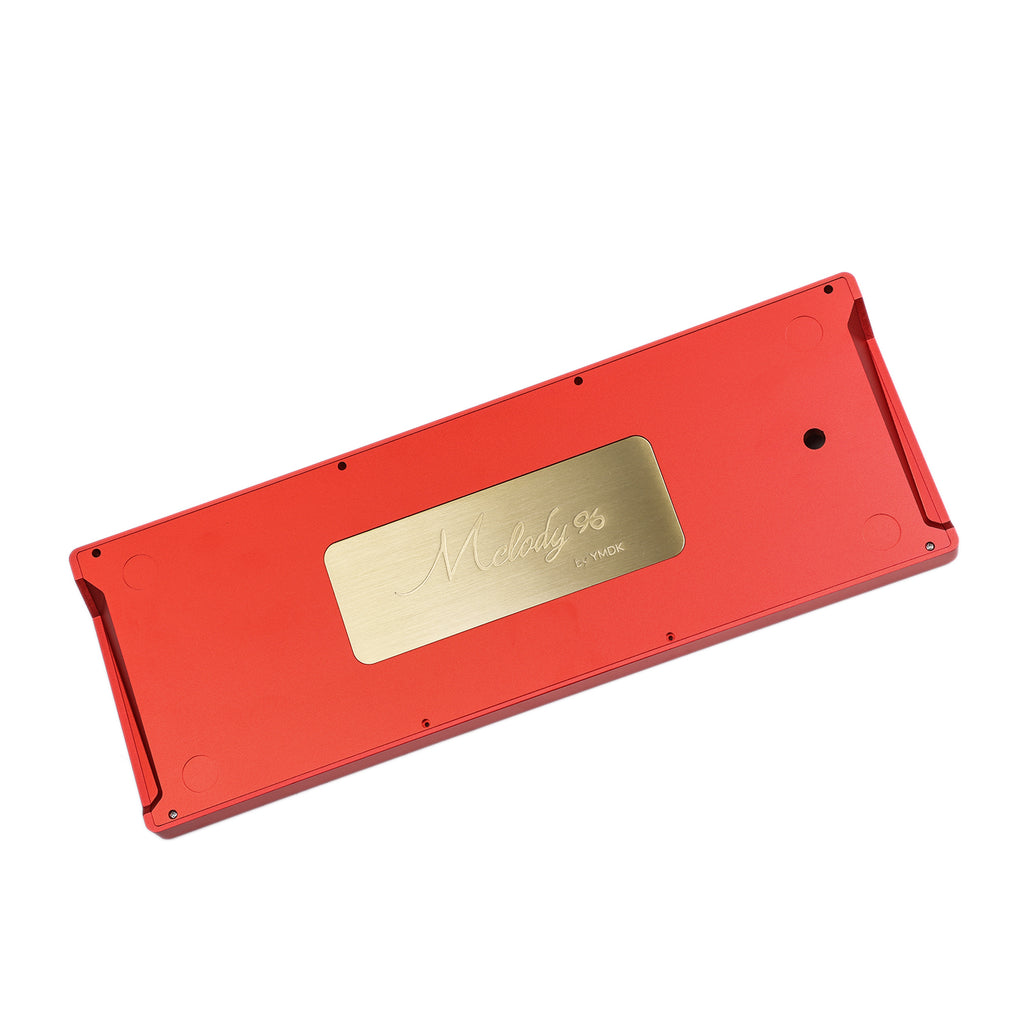

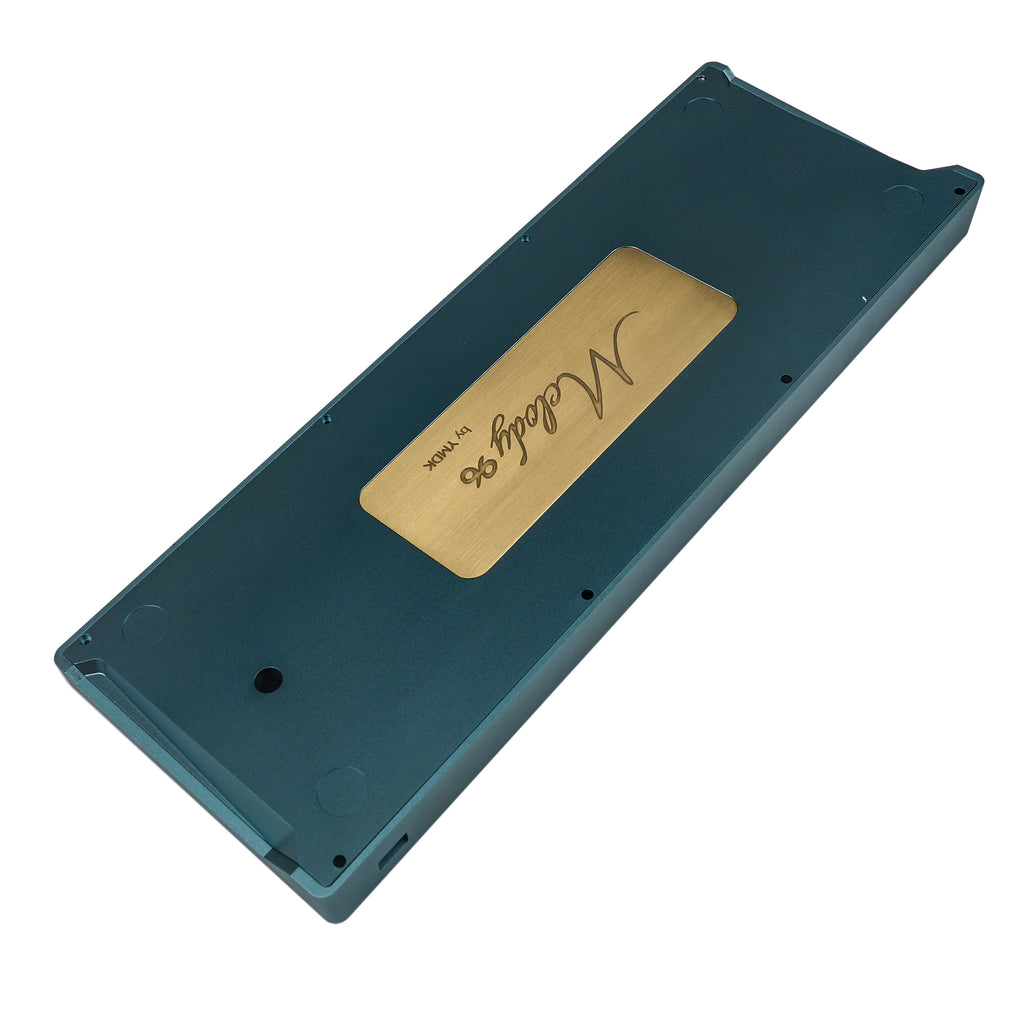

Brass weight is brush finished then PVD.

To fit existed case plate,this PCB size is limited and Esc F1 Rcrtl switch led hole is put reserved .Except you use side lit keycaps,there will be no influence.

Manuals

Non hotswap 96 QMK manual:  drive.google.com/open?id=1oJmSfjgs_DugsvloO9VaO5KWvwS4T2OX

Hotswap 96 QMK Manuals:  drive.google.com/file/d/17u2PHPyHBGkvnsnkOrZEATtR9OkS_guG/view?usp=sharing

Hotswap 96 VIA Manuals: drive.google.com/file/d/18RPcr01UgIxzFhyI94FR7OwCYUdHYH_y/view?usp=sharing   (If you want us to use VIA for non hotswap 96 PCB,the keycode for Enter \| need to reversed)

Layout Description

Non Hotswap Classic PCB can support all layout listed below

Image Disaply

Note 1

Ymdkey only support paypal now,thanks for understanding.

Note 2

Kindly note all price listed in page don't include destination taxes since every country is different policy.

If you located in EU UK,will charge VAT for orders under Euro150 when checkout since 1,July.

If you order is over Euro150,please pay VAT /customs fee yourself in destination.

For shipping and invoice details,just message us directly is ok.
