Package Included

Only GrayWood V4 Switch

Details

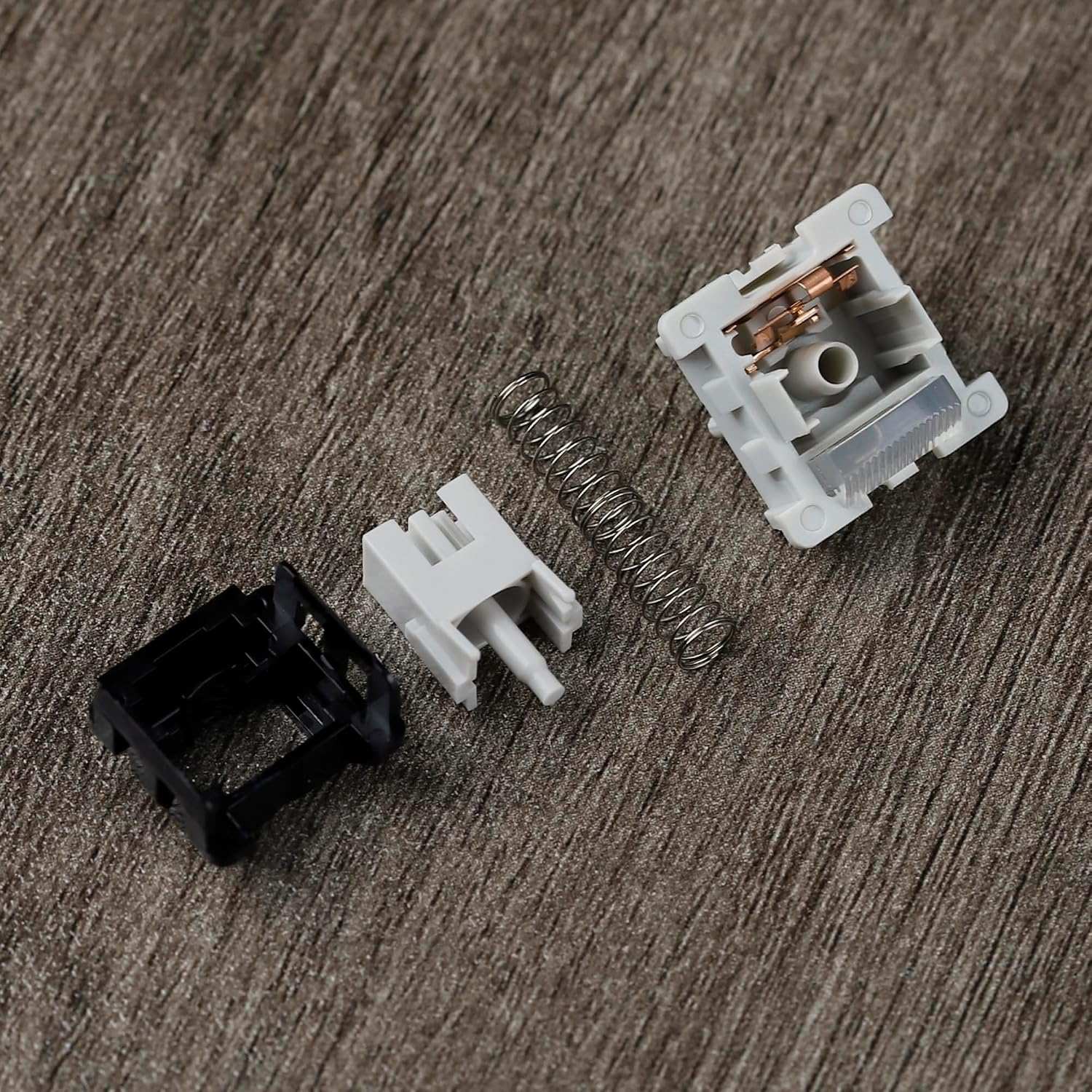

Notice: The new version of the condenser, can be disassembled/installed, a variety of choices.

The updated parameters of GrayWood V4 are consistent with those of V3, and the hand feel has not changed much. Compared with V3, the main change is the color of the shell, and the black and white color scheme looks better.

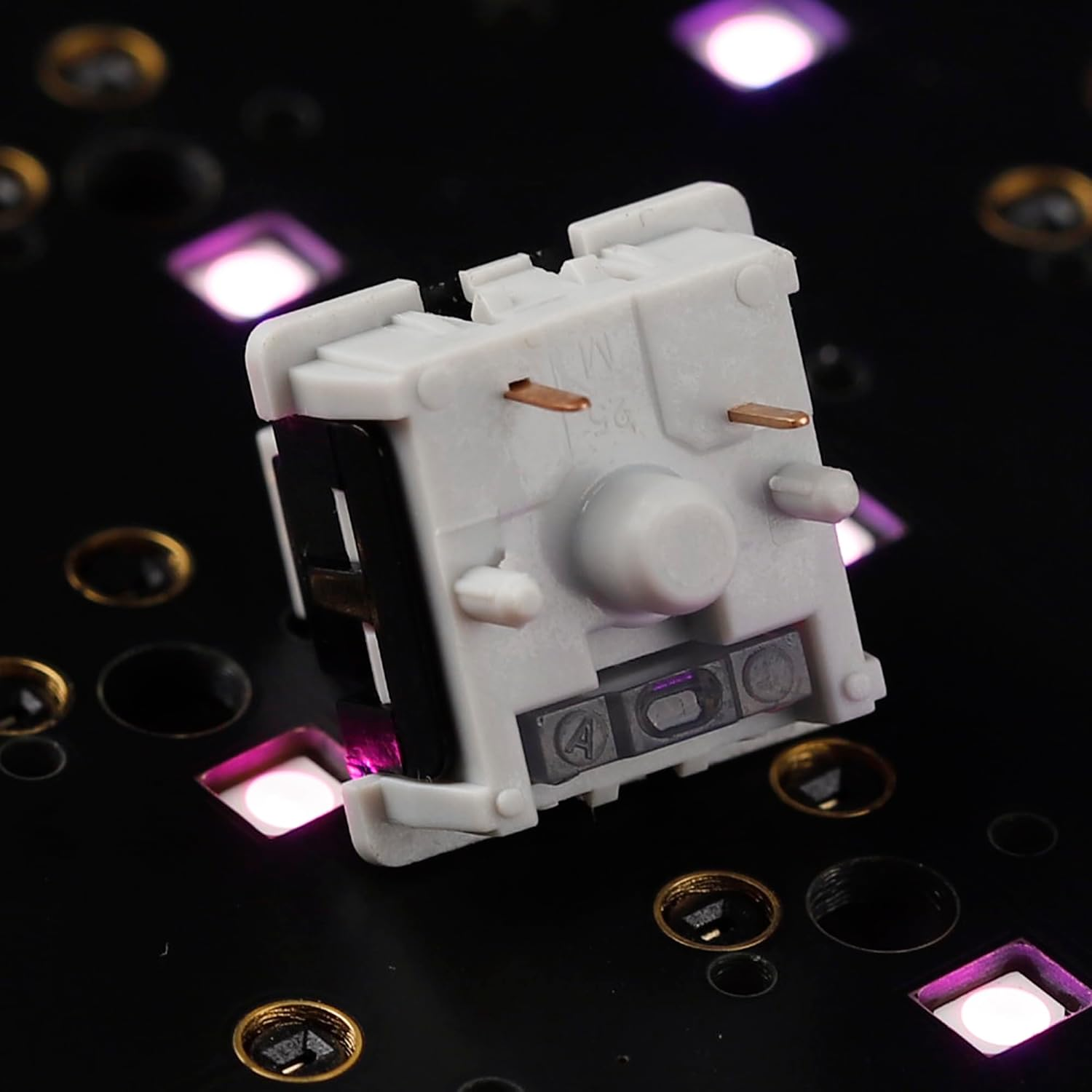

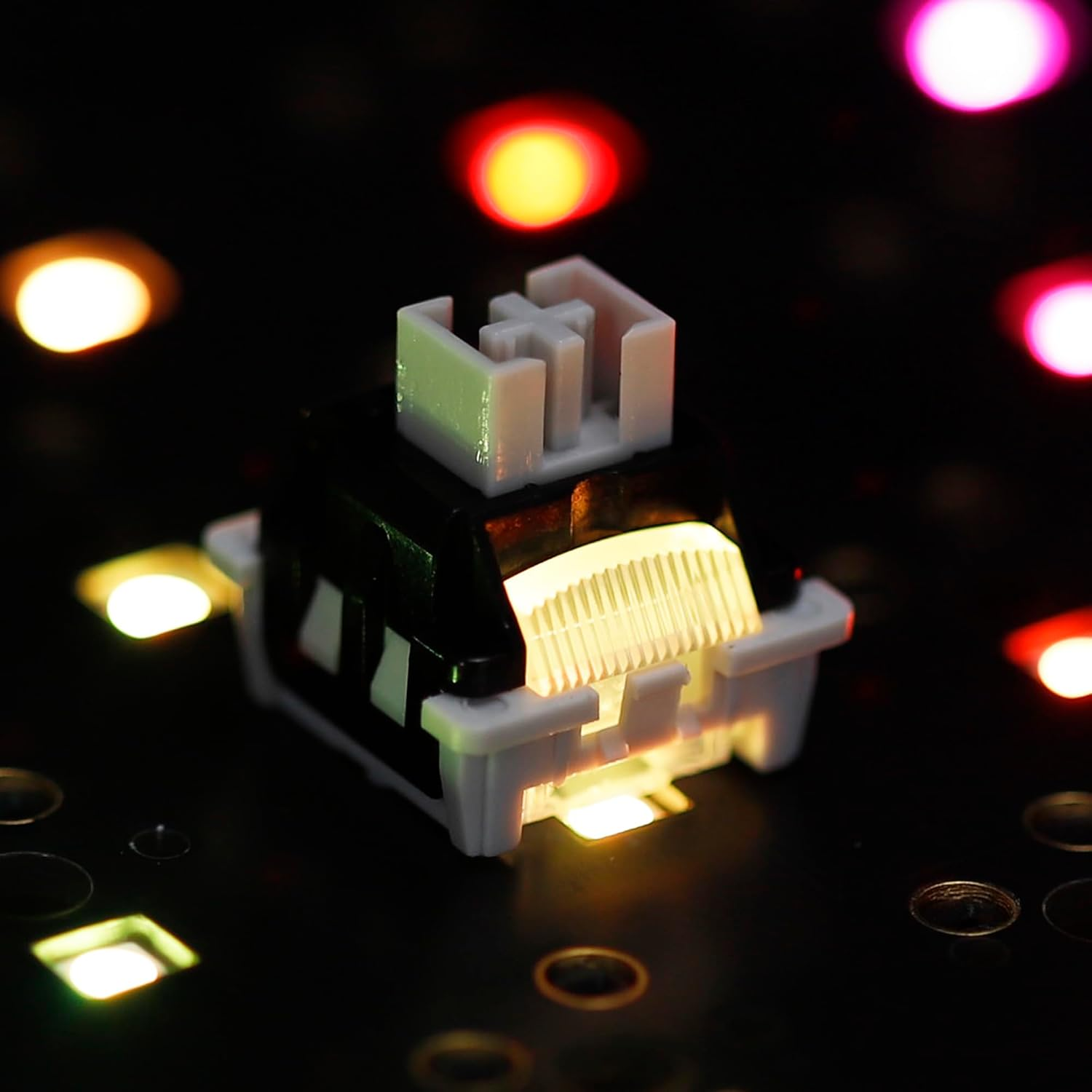

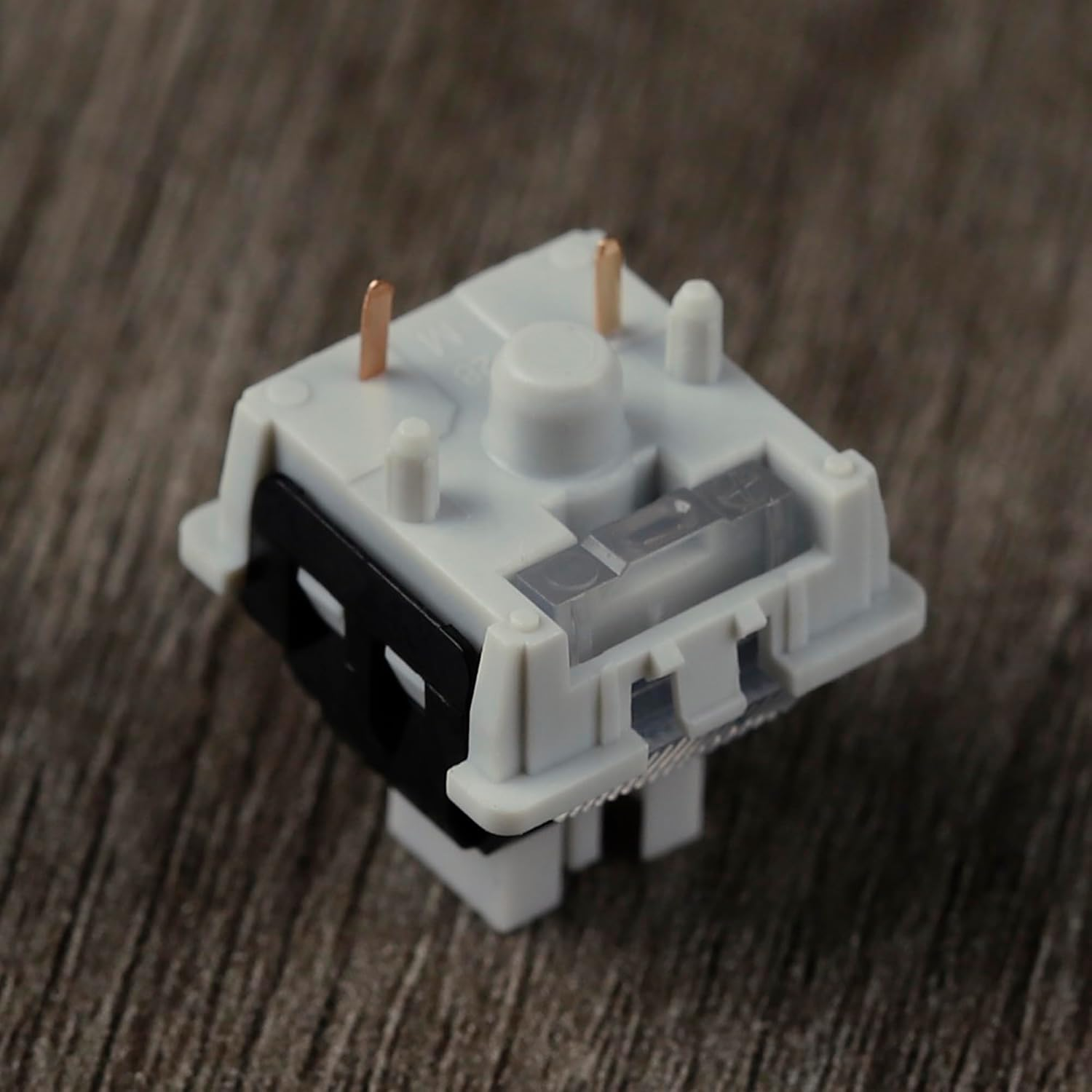

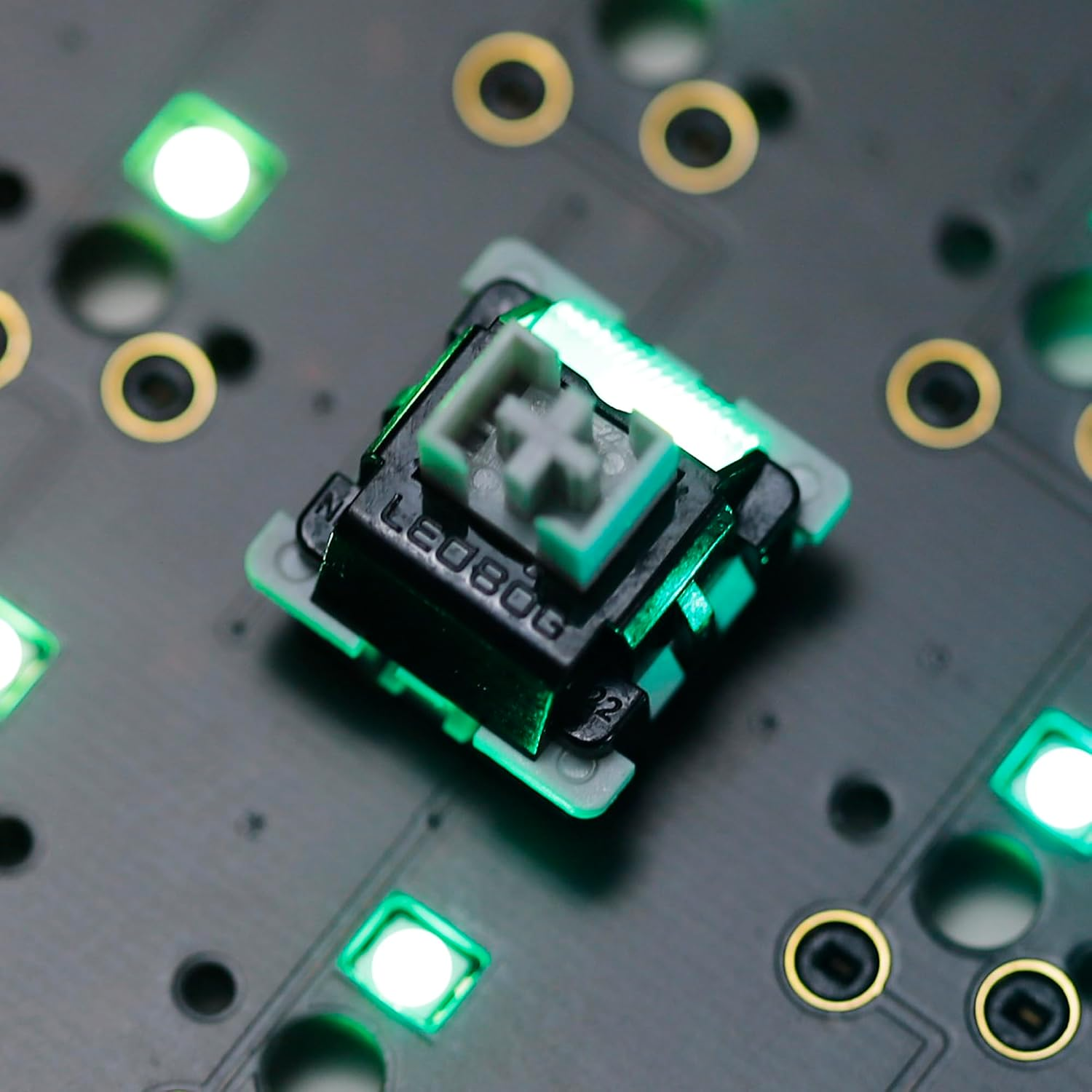

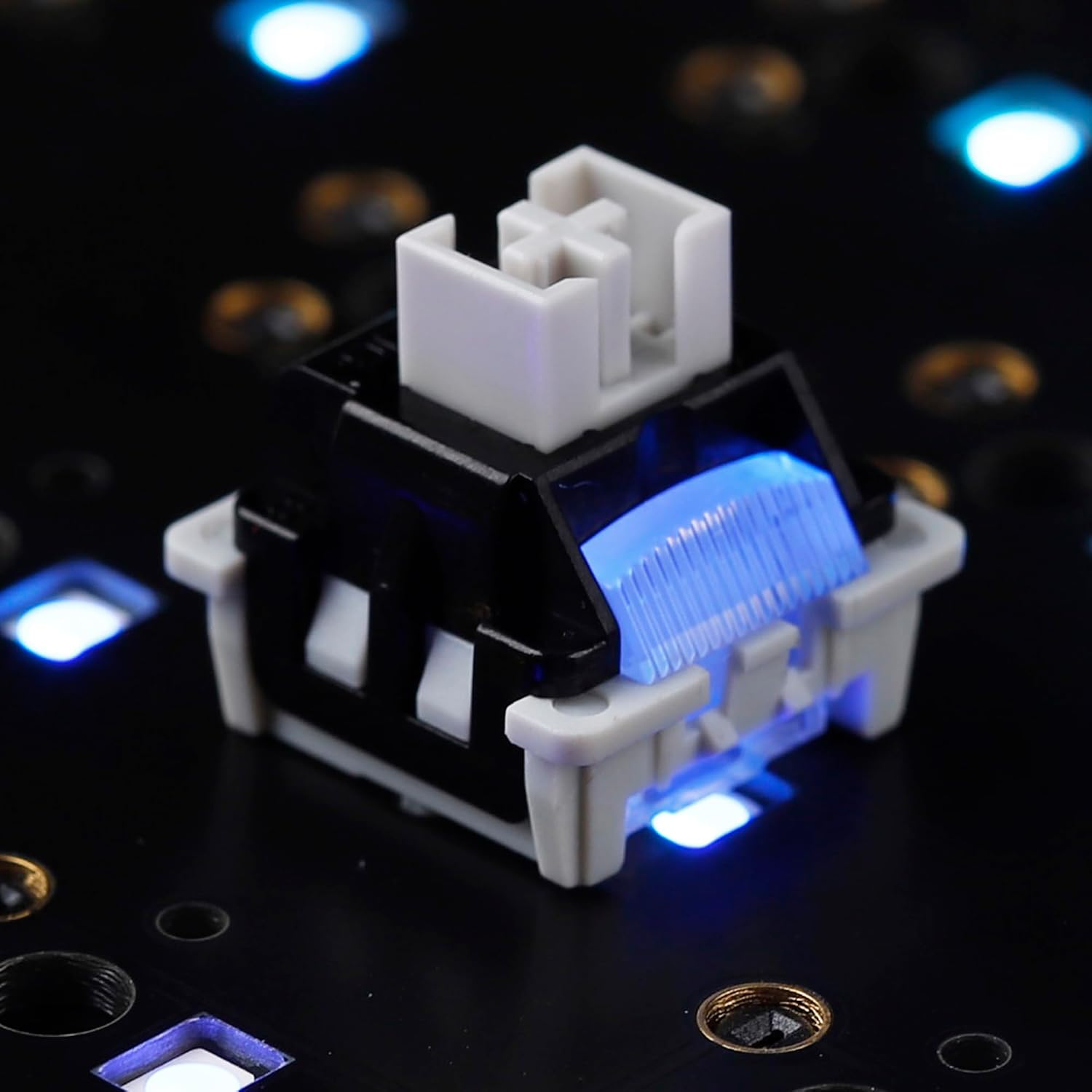

Has added a light guide column.It can effectively improve the previous problems of low light transmission and light dispersion. Two shaft feet are added to the bottom case to enhance the stability of the switch after installation. The inside of the switch is still factory Lubricated

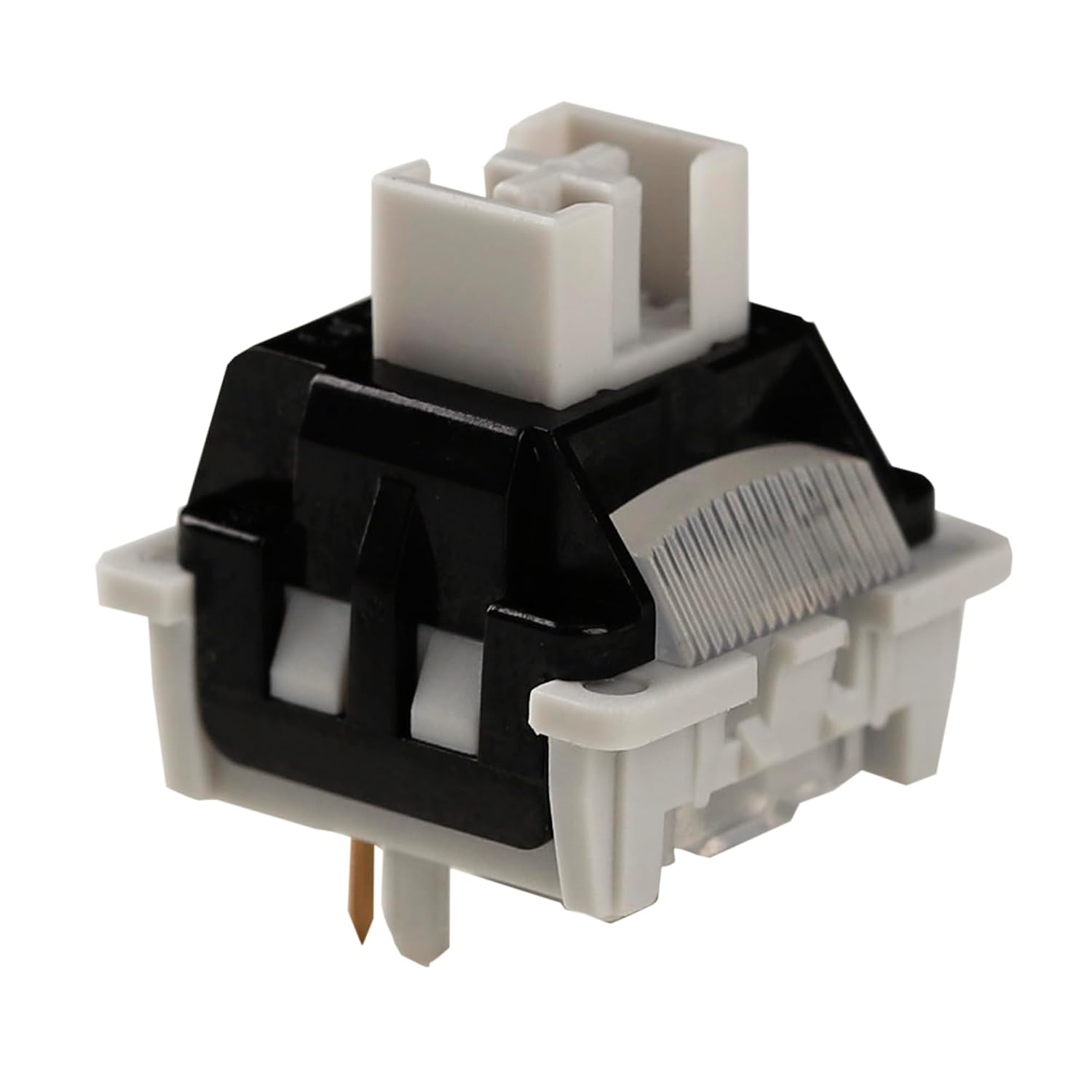

Name：GrayWood V4 Switch

Switch Type: Linear Switch

Switch Material: POM

Operating Force: 40gf±3gf

Ground Force: 50gf±3gf

Pre travel: 1.5mm±0.3mm

Total Travel: 3.6mm±0.3mm

Switch Pin：5Pin
