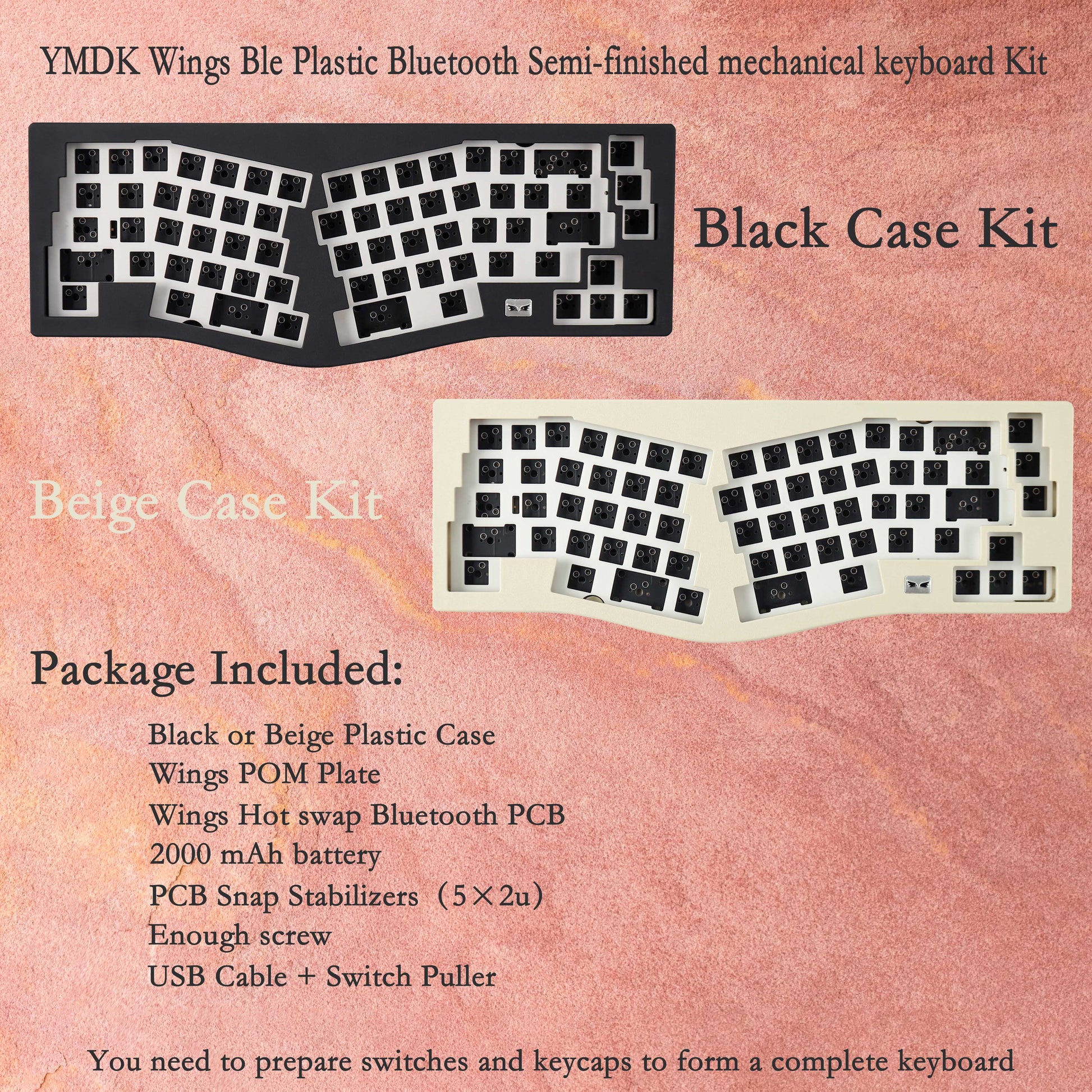

Package Included
Beige or Black Plastic Case + POM Plate + Bluetooth Hot Swap Type C PCB + 2000mah Battery + PCB Snap Stabilizers + Enough Screws + USB Cable + Switch puller
(No Keycaps and switch-leds,need to assemble yourself)
(The stabilizers is 5x2u)
We have most switch models in the market,if you want to add switches,can search it in our store or message us to recommend is ok.
To program it with VIA,please use the wired mode.

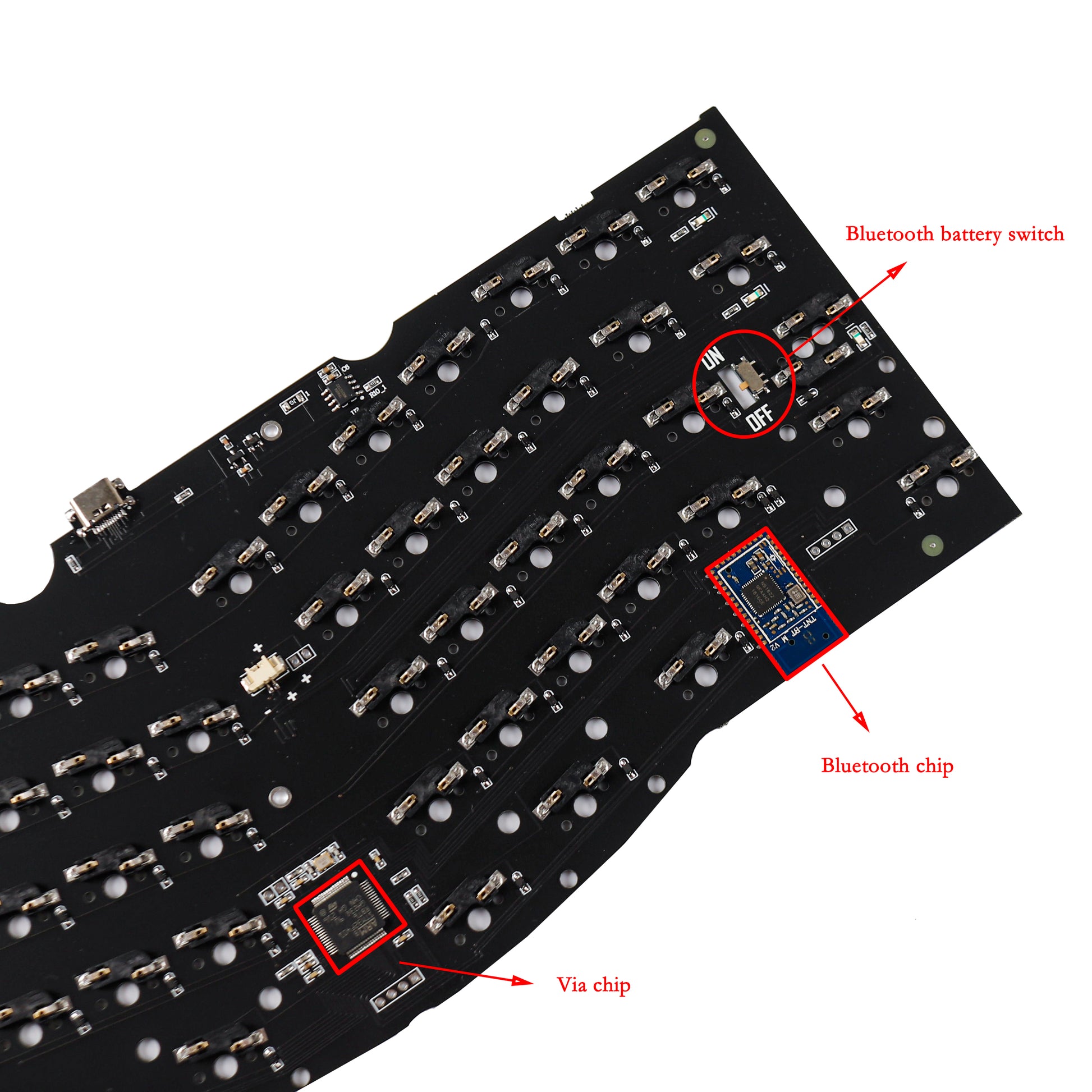

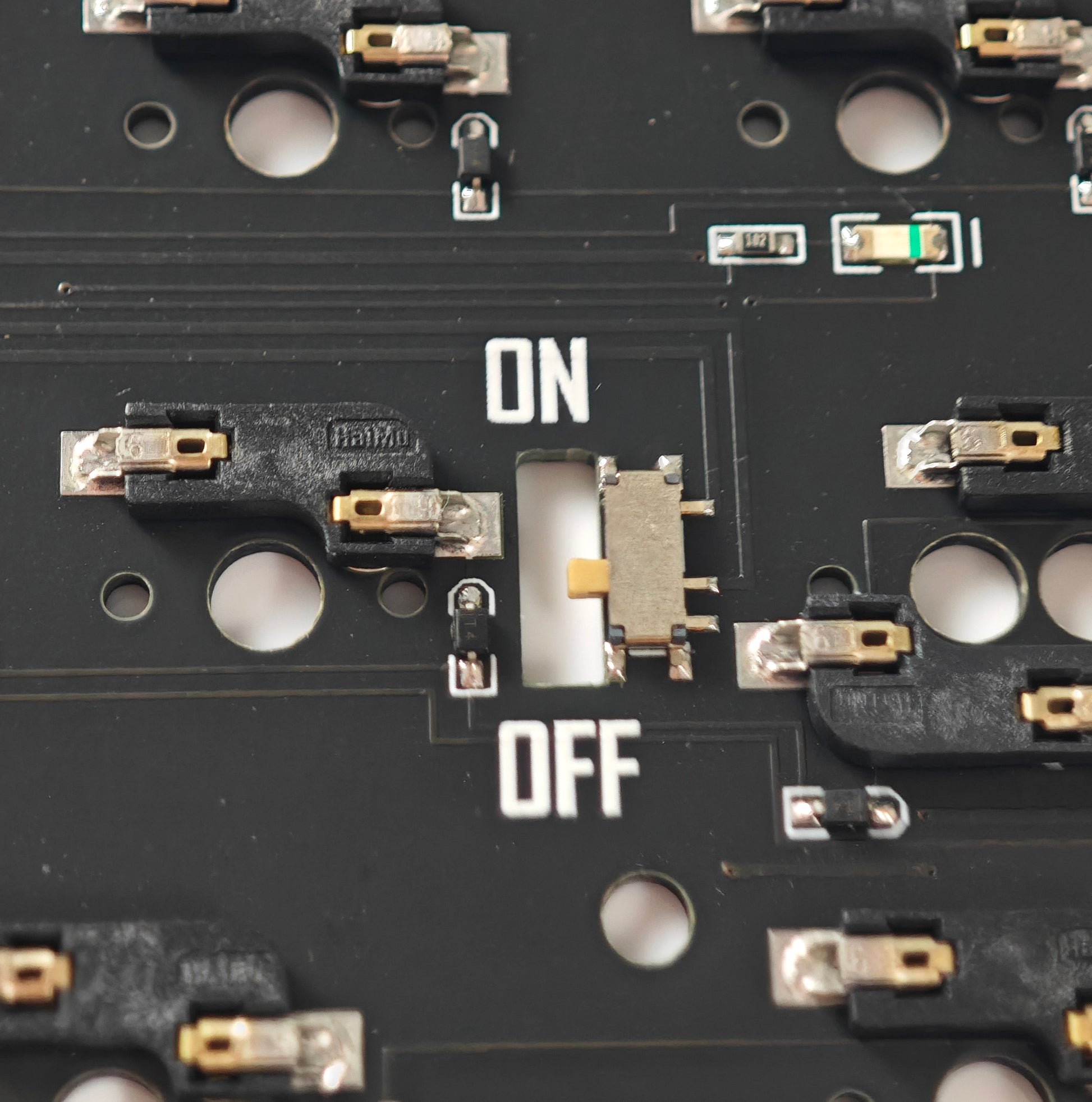

When you connect the cable to PC,it will be wired mode in auto.If you pulled the cable off PC,and turn on the bluetooth,it will be bluetooth mode.Bluetooth switch is under capslock A place.
As default,we setup
Fn+ reset to go to bootloader mode
Fn+I O P to choose bluetooth chanel (you can open bluetooth switch,then choose bluetooth channel and then connect the bluetooth).
Fn+<, is used to delete bluetooth connection. Fn+>. is used to reset former bluetooth connection.This only need to use when the channel used up.
The bluetooth board will sleep after 8s without using.It can weak up immediately when you press any keys.
If you can't connect to VIA,can try to close bluetooth switch and try again.
Additional Items Can Add
Can add usd5 (10 pcs) to upgrade to Black clear Screw-in stabilizers
Link:
Details
Name:YMDK Wings Ble

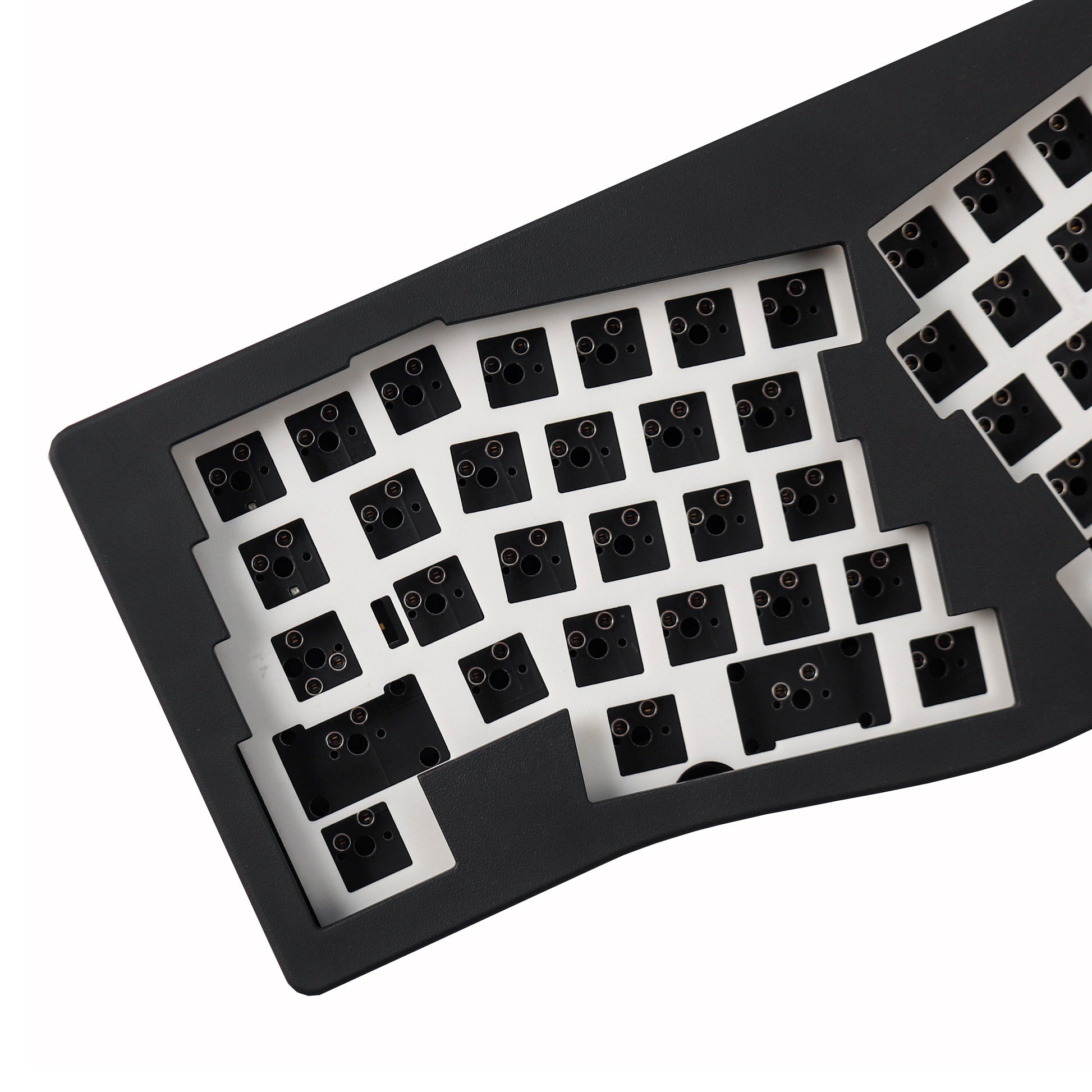

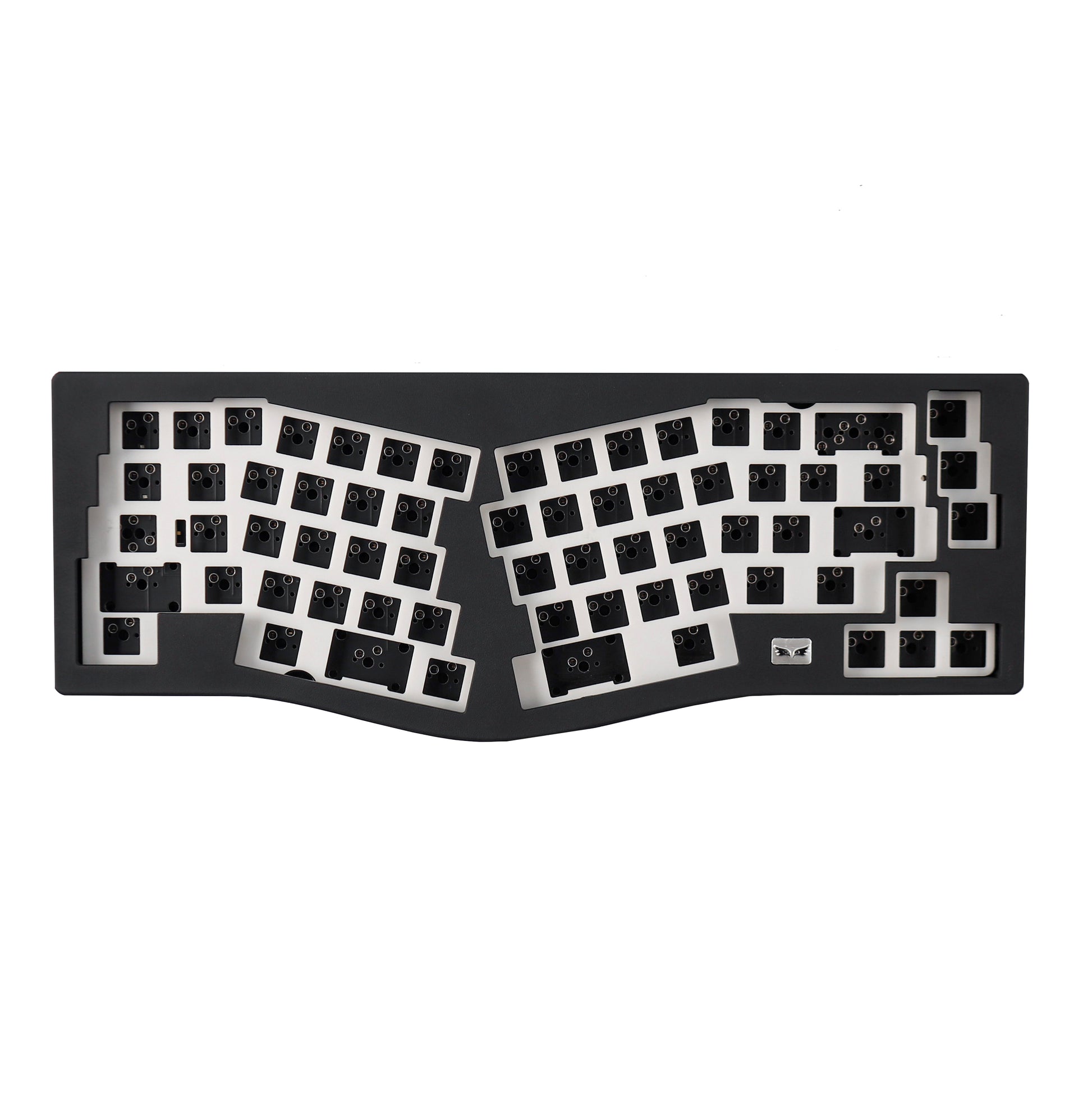

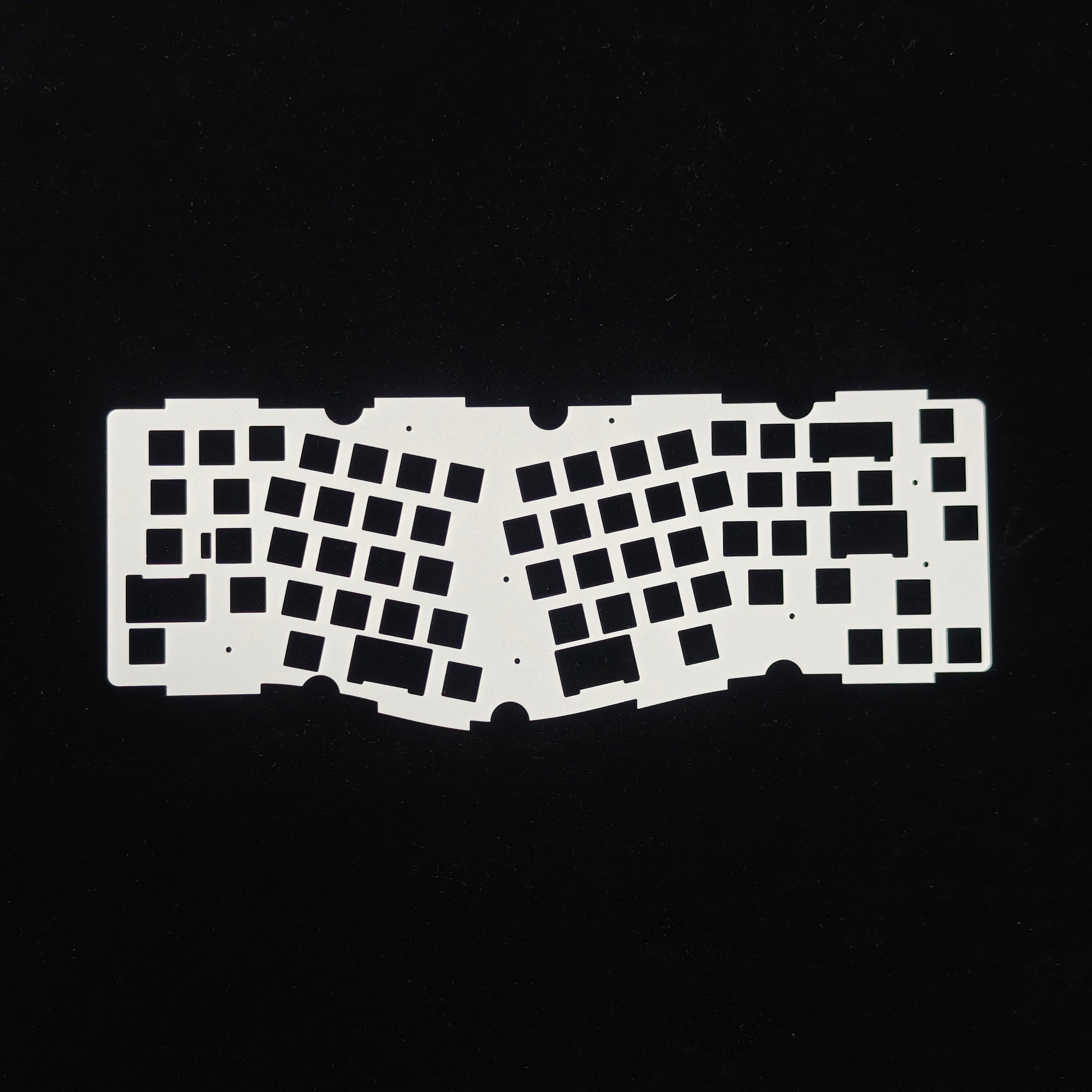

Material:Plastic case、POM plate

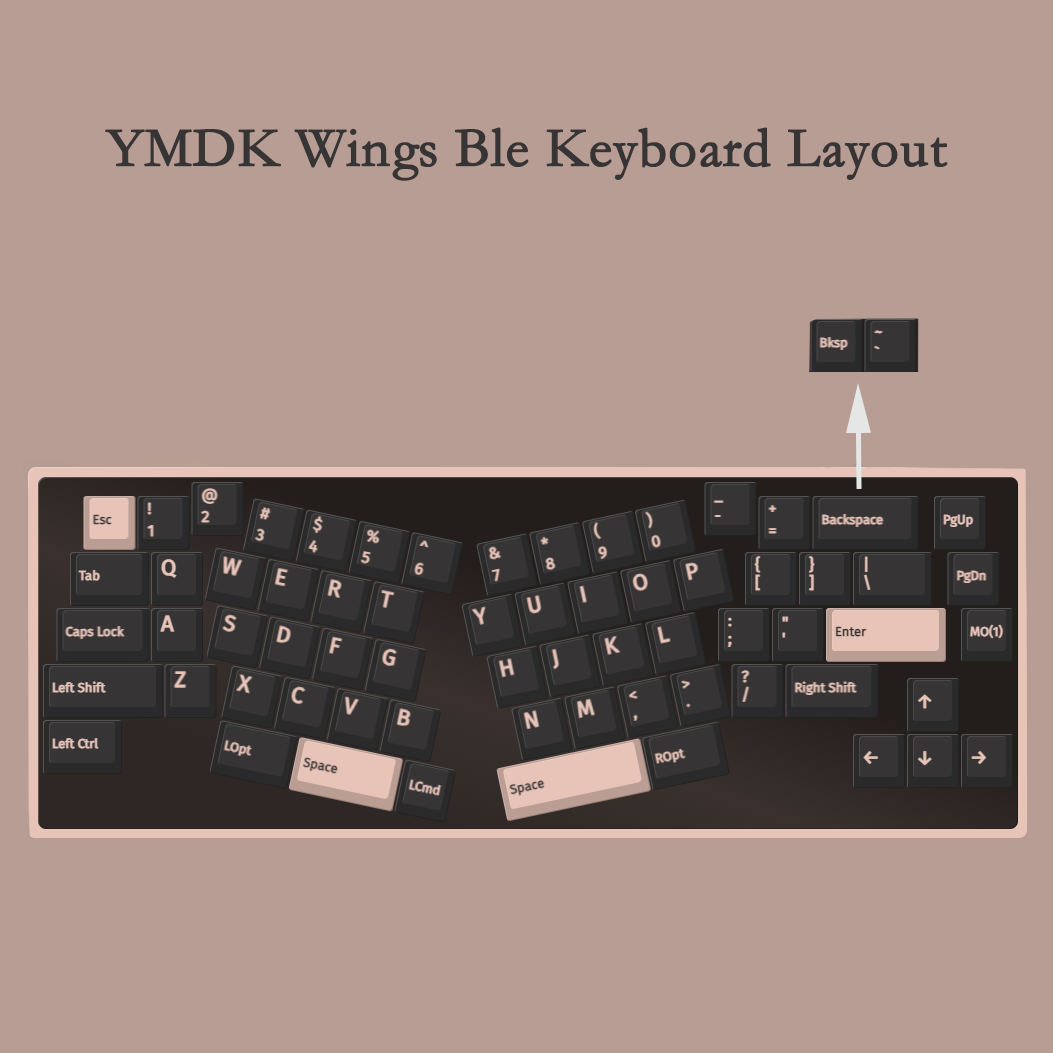

Total Keys: 66 keys(or 67keys)
Switch Type:Both MX series 5 pin and 3 pin can be installed
Characteristic:
Ergonomic keyboard for more comfortable typing.
This link is for 60% YMDK Wings Ble hotswap keyboard kit.
This YMDK customized edition is called Wings Ble which is after sales by YMDK only.

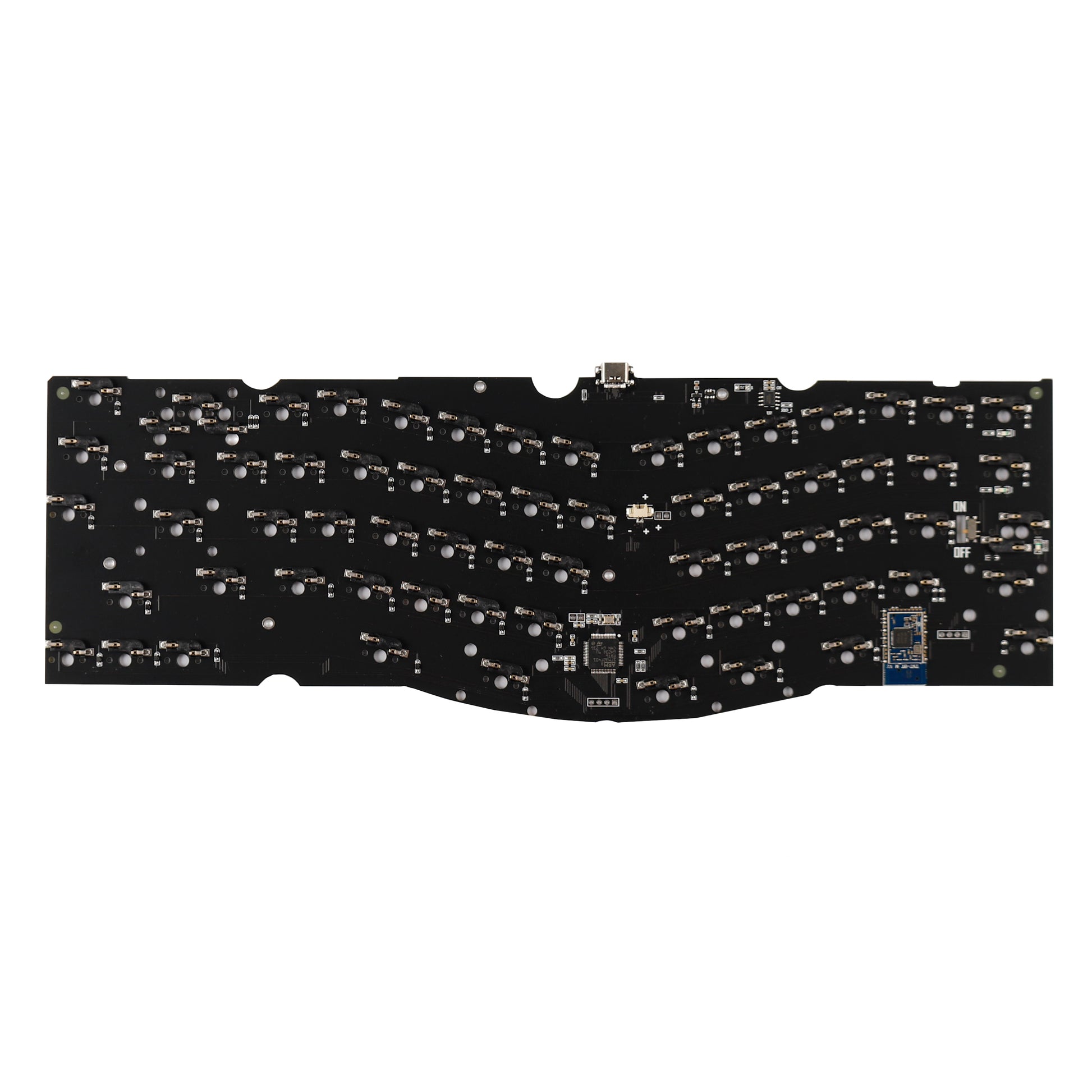

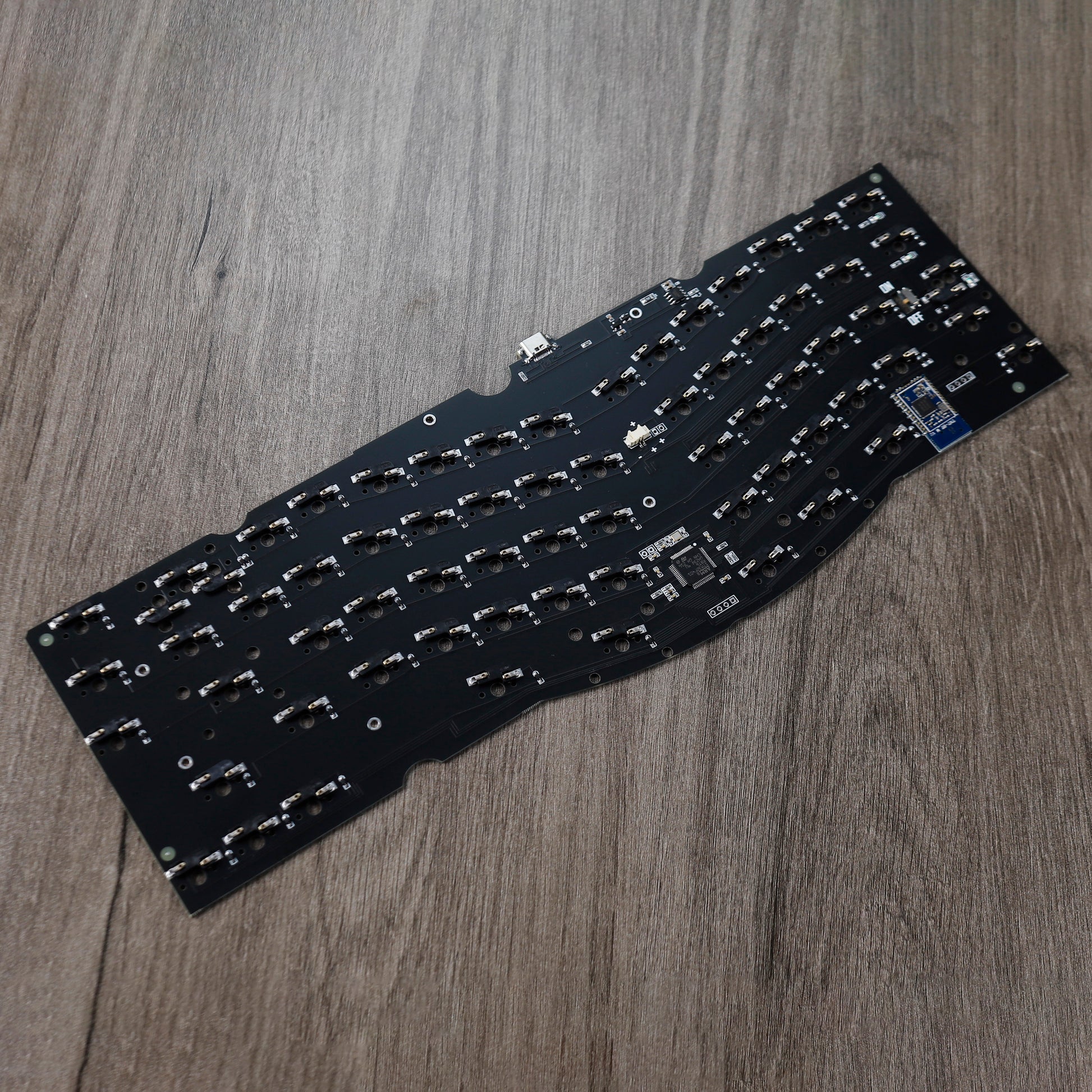

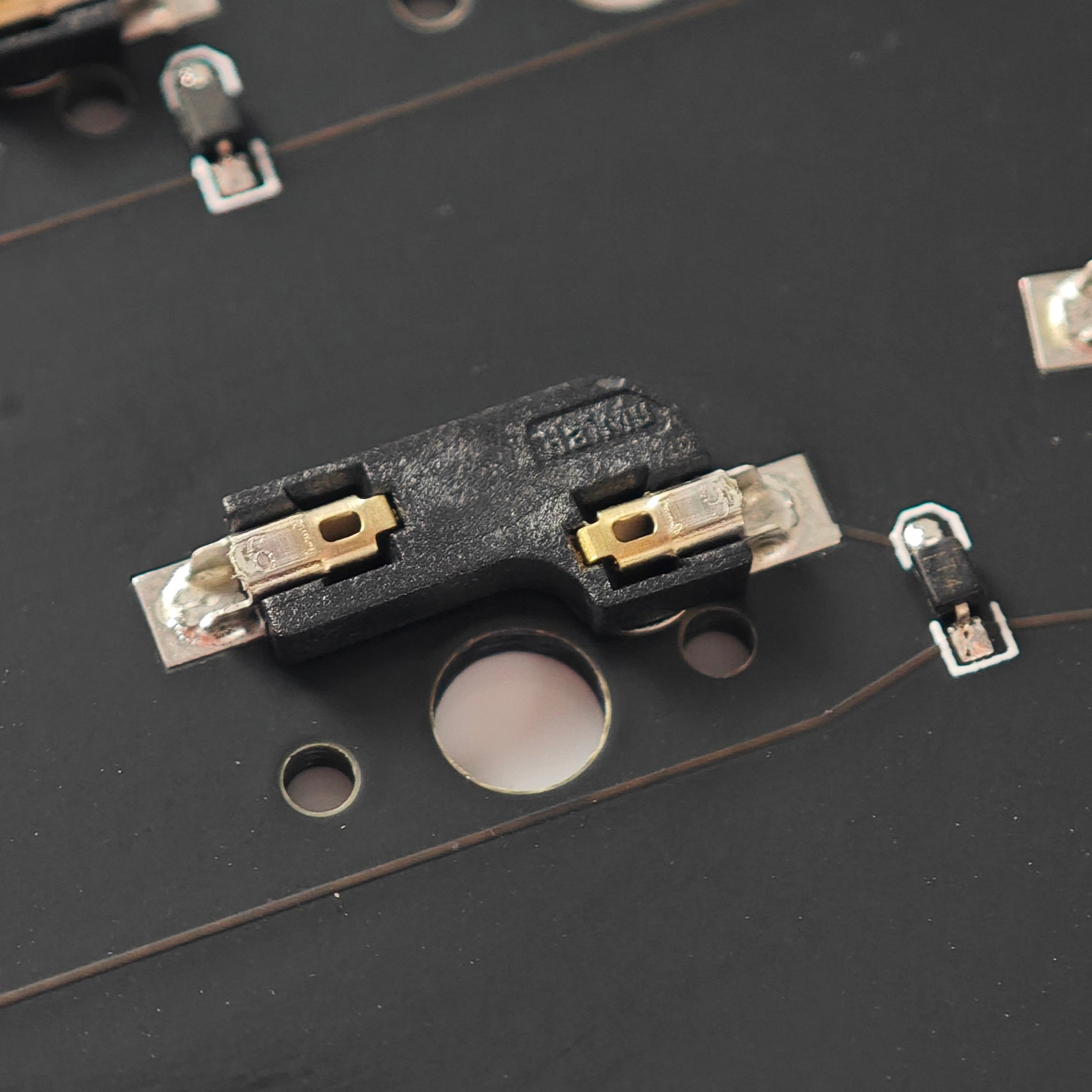

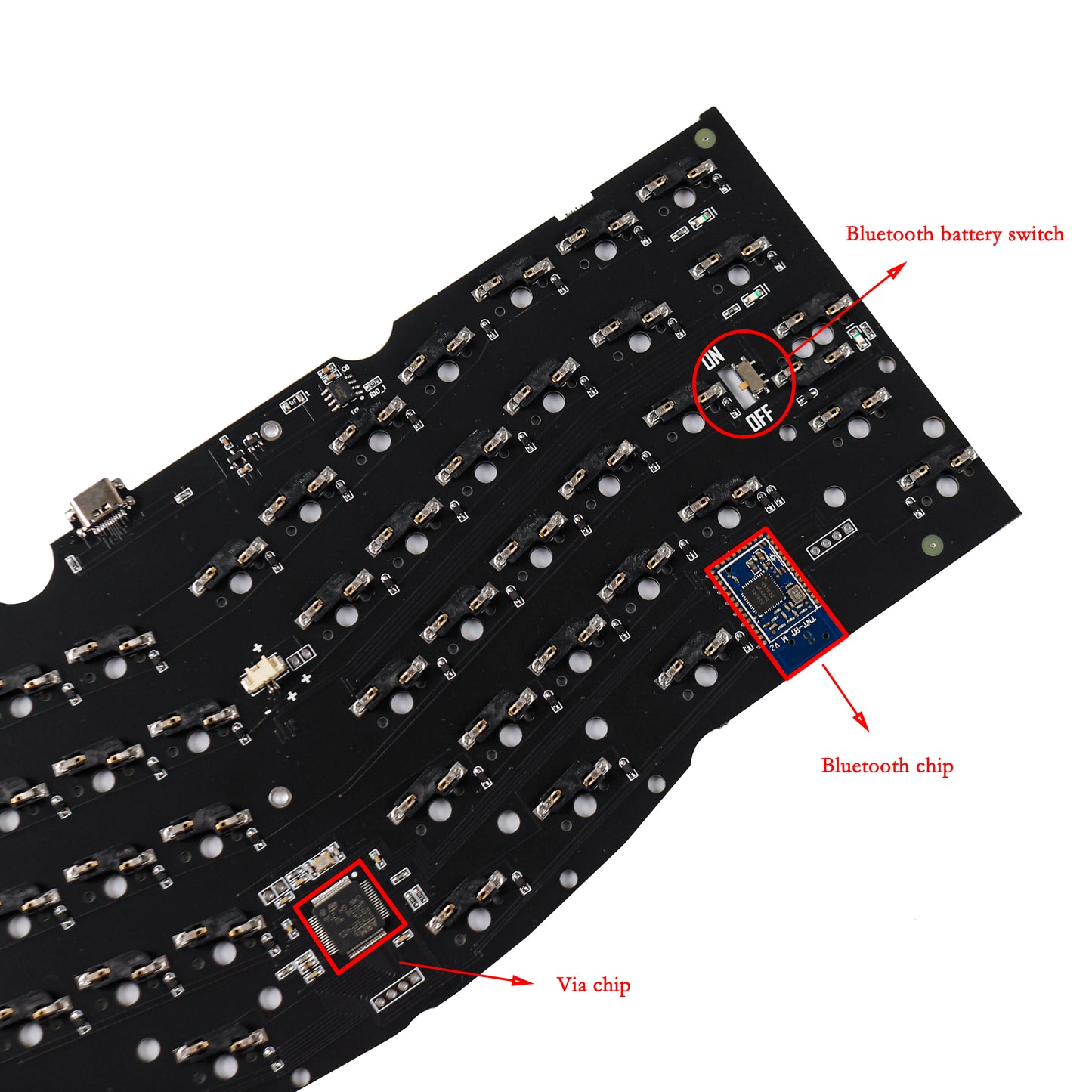

The new PCB is STM chipset which get bigger flash memory.It does't need qmk toolbox.Can drag file to PCB directly.
The PCB is fully programmable and support VIA.
Just download VIA software to change keycode /layout is ok.No need to reset PCB.
Via Link:https://usevia.app/
Manuals
https://drive.google.com/file/d/1WkgeUGyAPBxb0u4K6V5Fiv-PIdHklz7p/view?usp=sharing

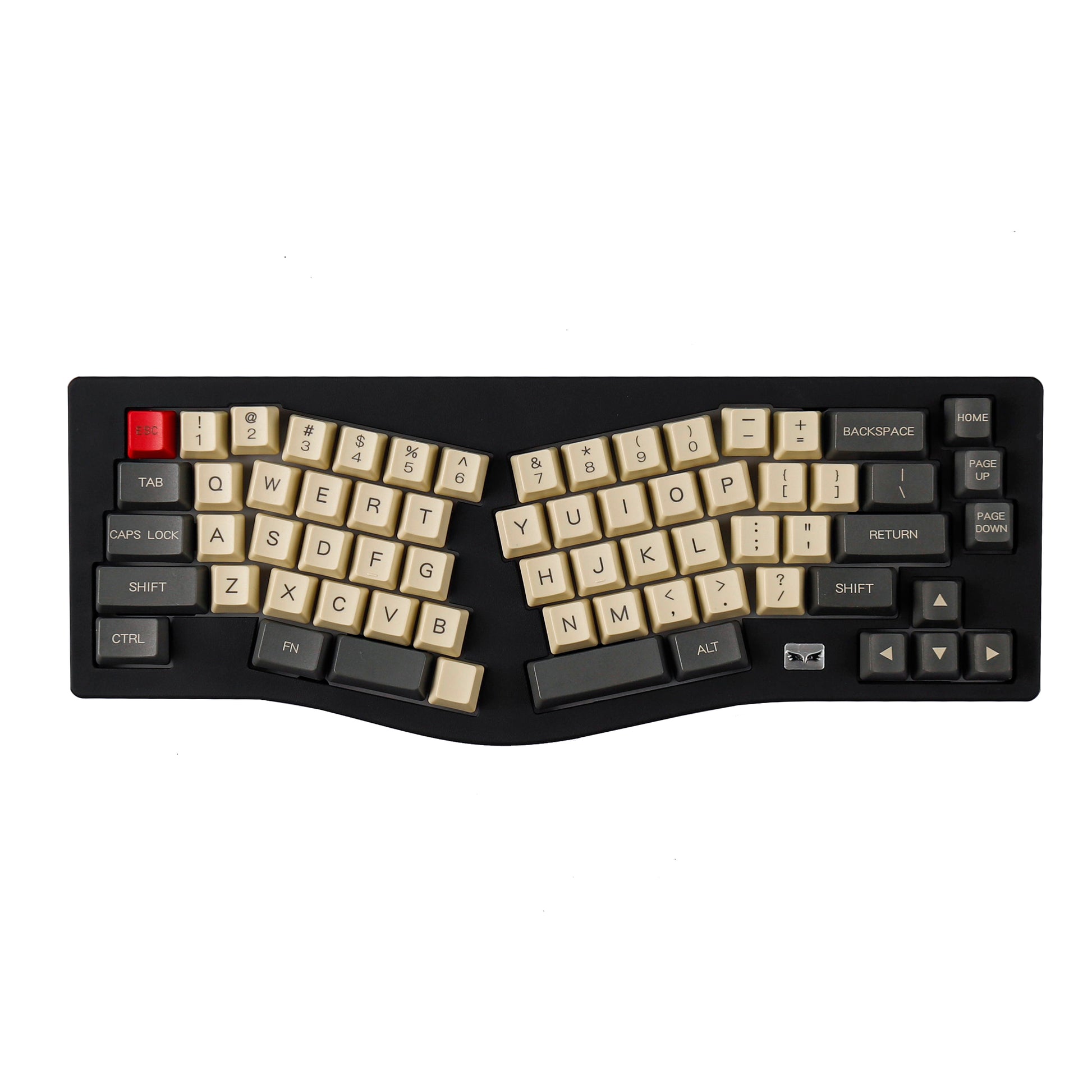

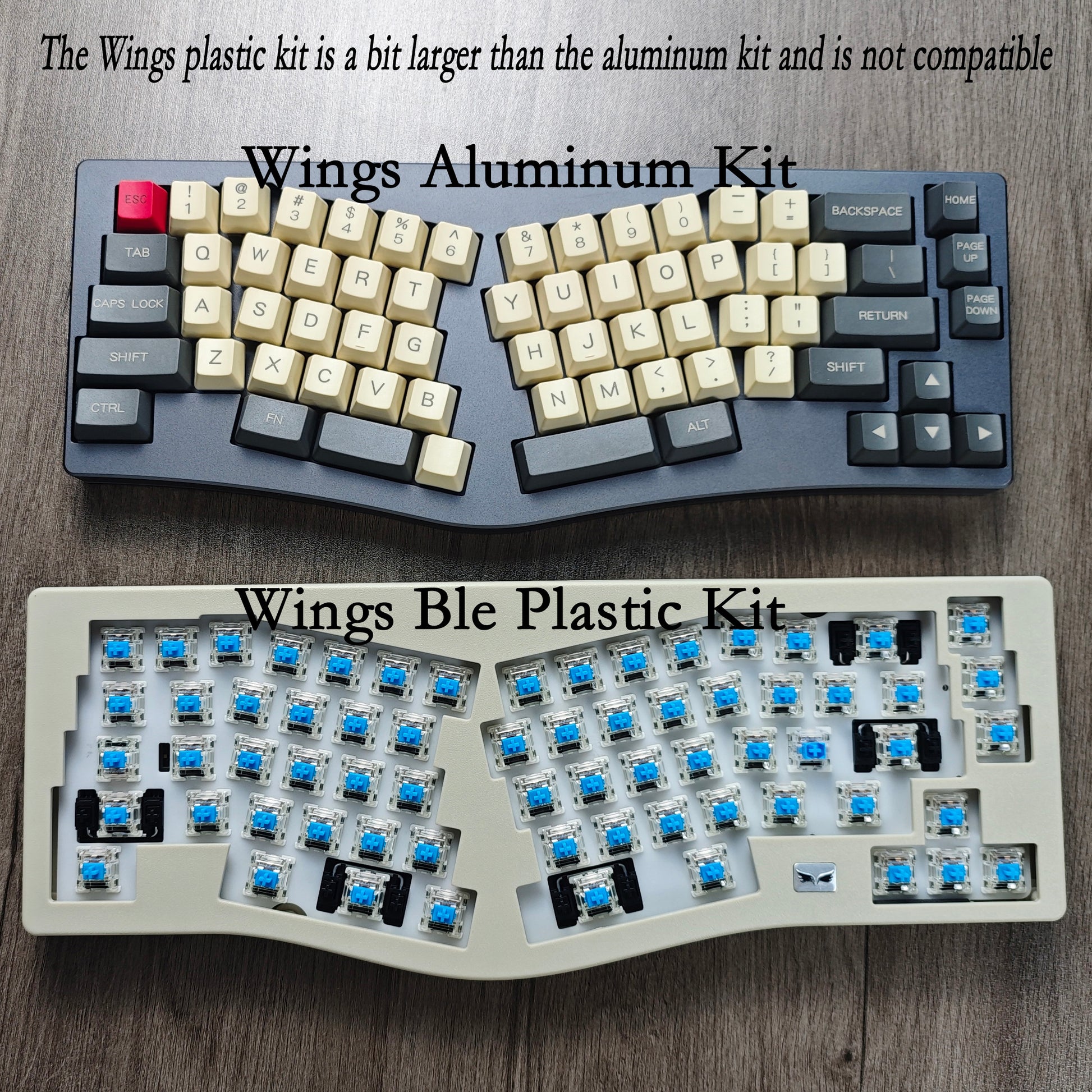

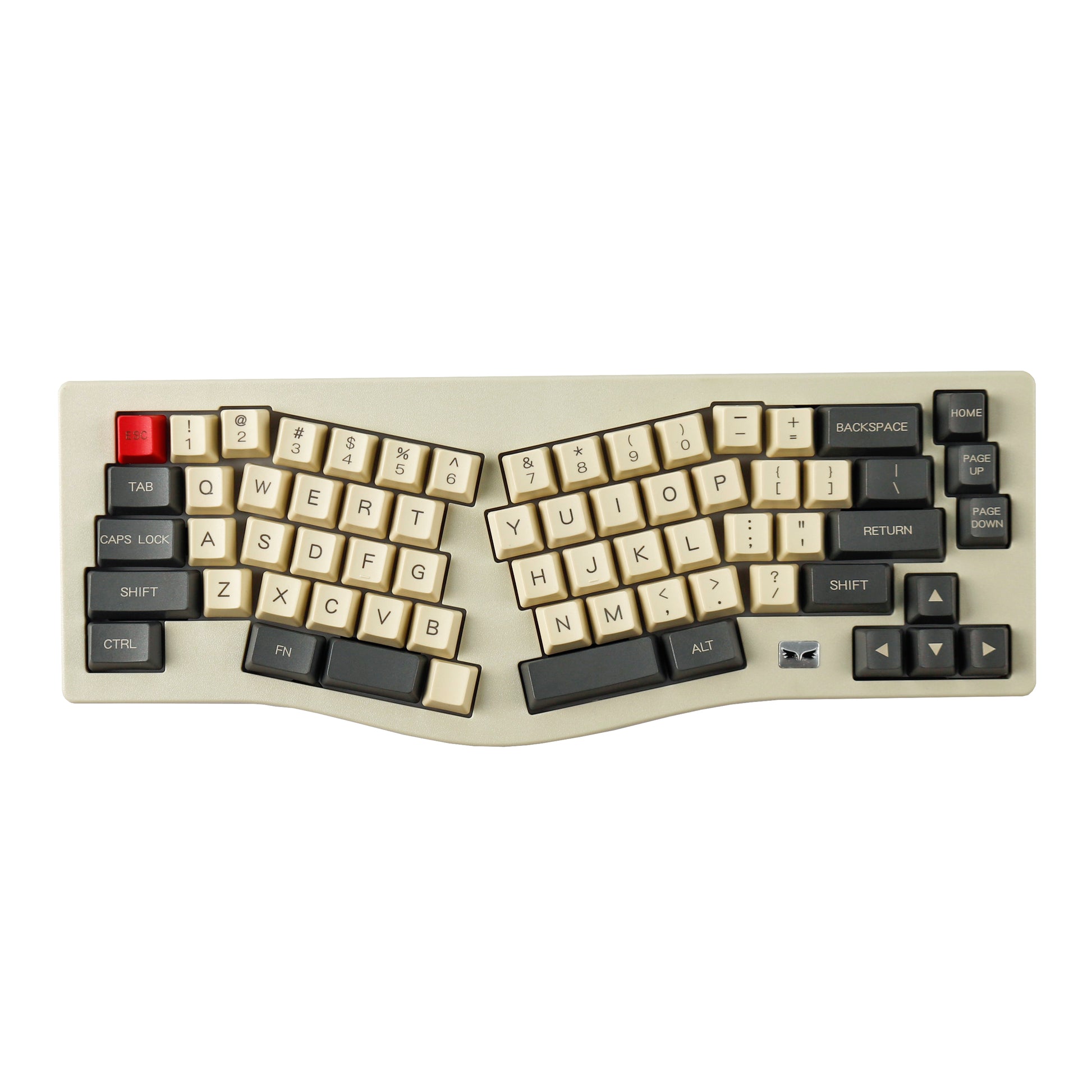

Complete keyboard display
Just for display, does not include keycaps and switches
