Package Included

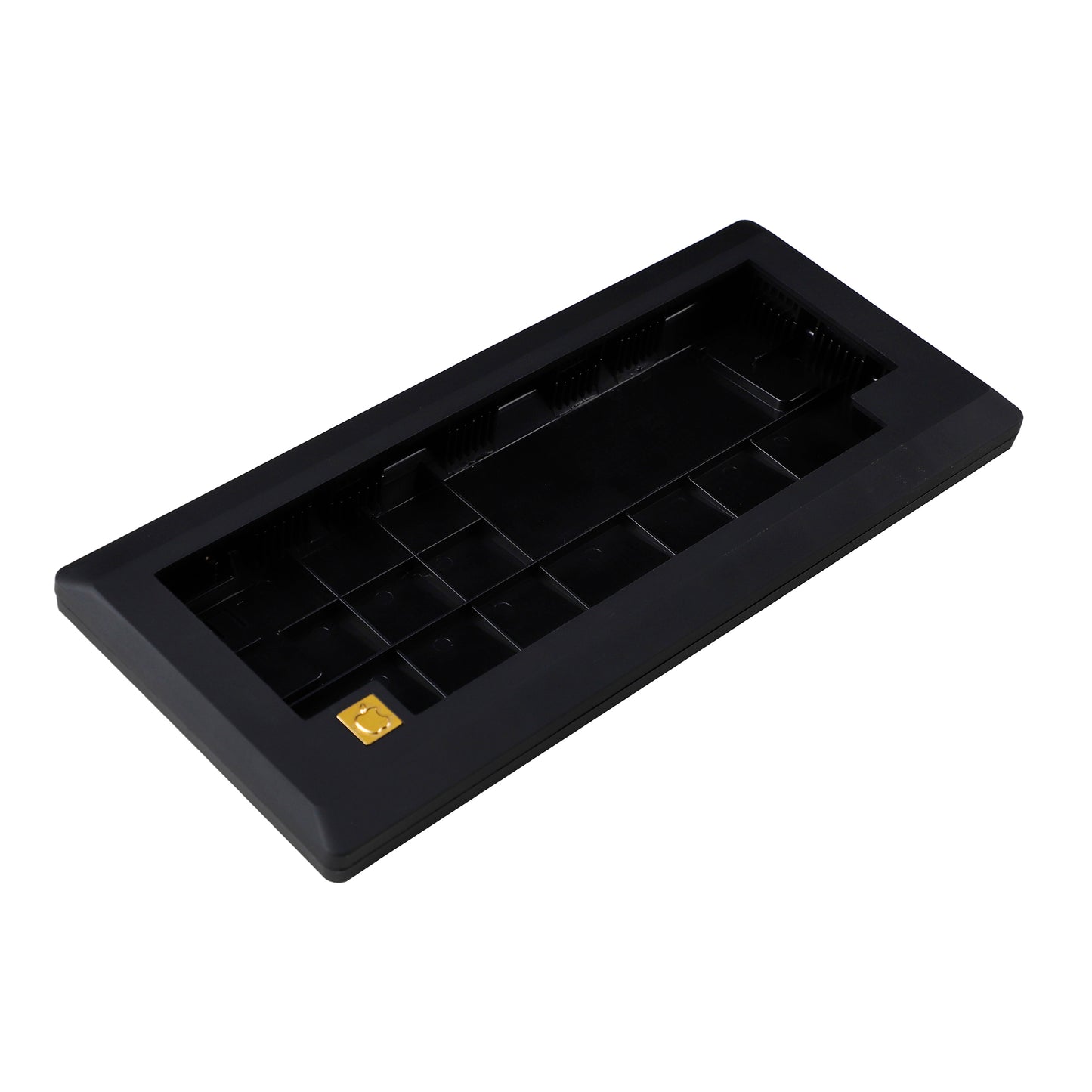

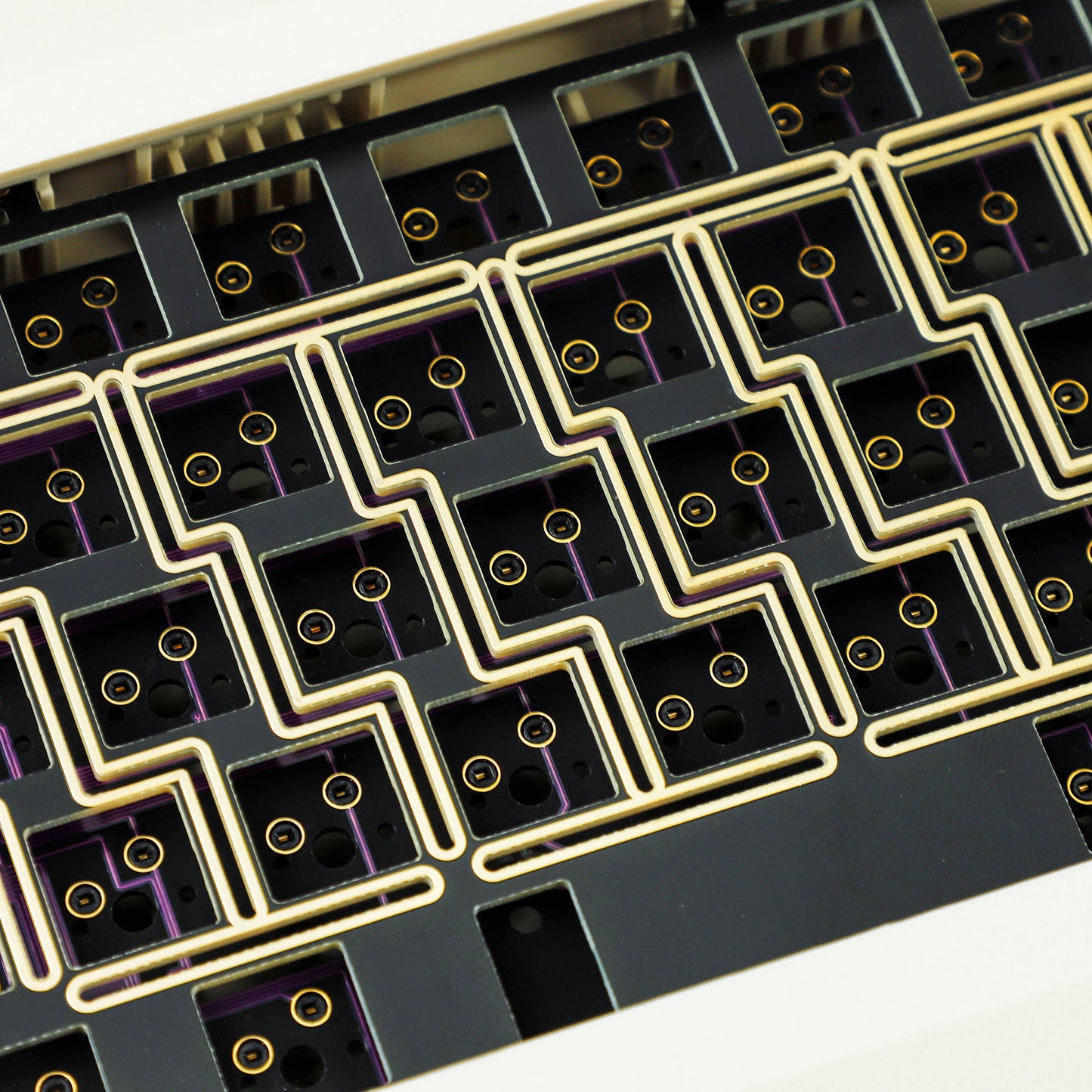

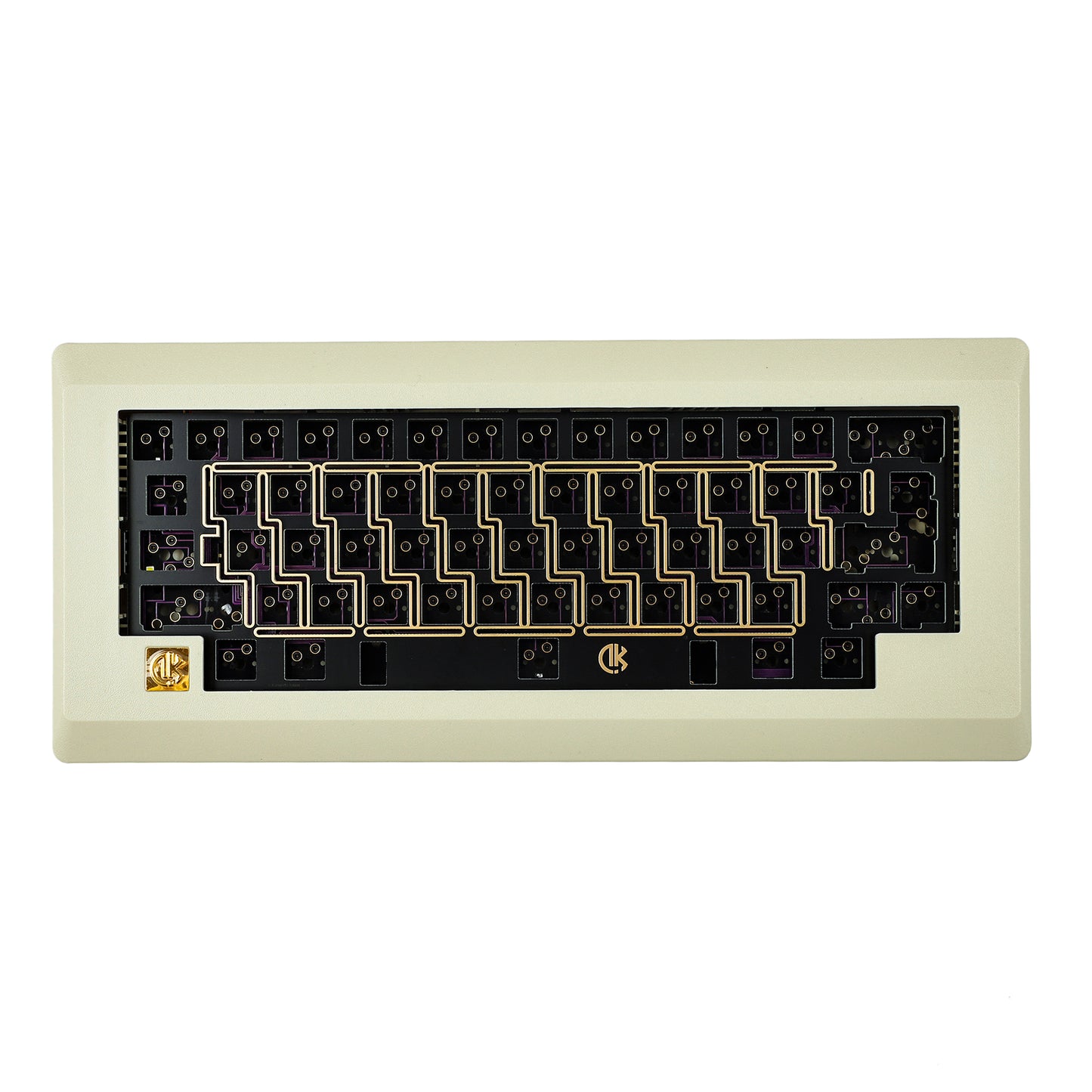

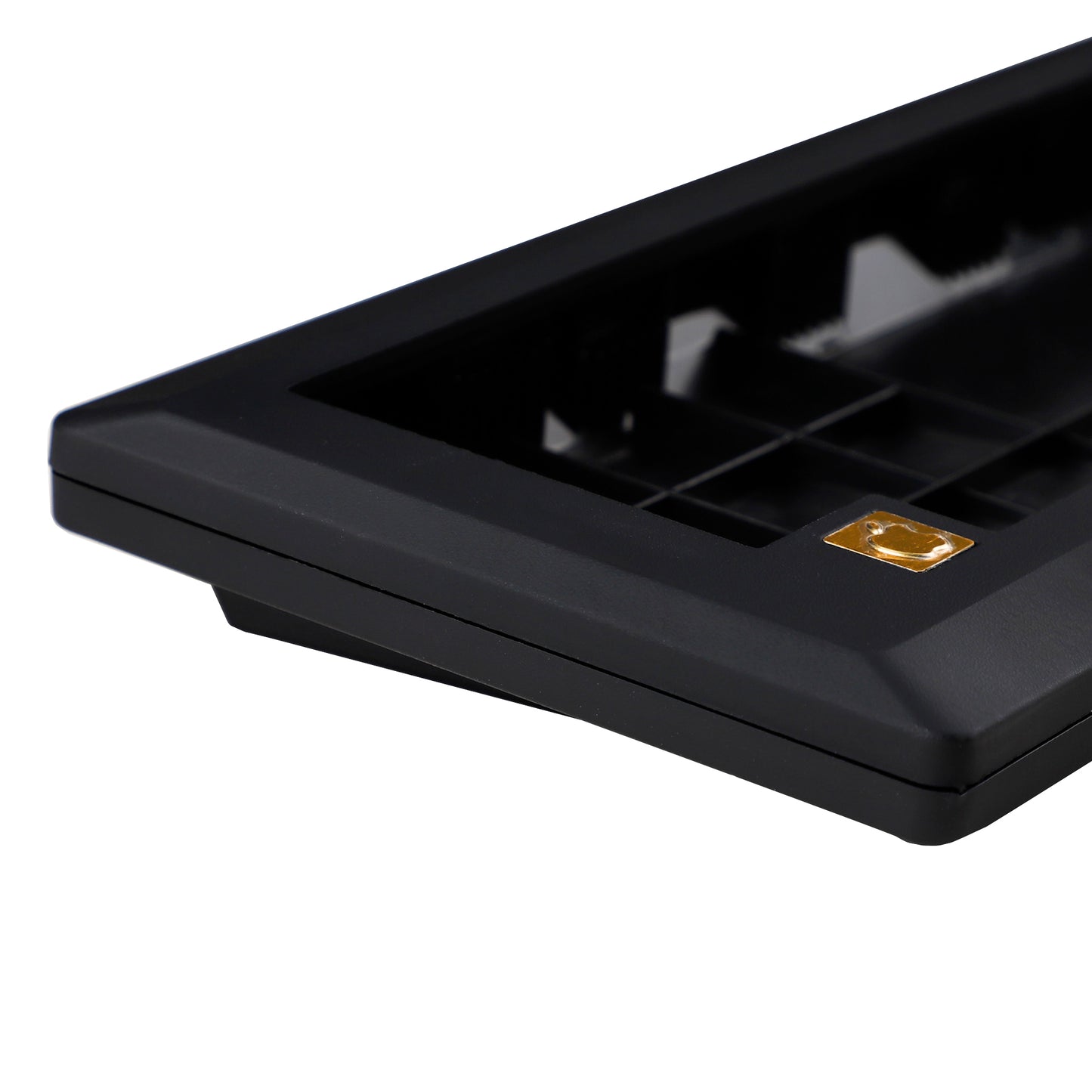

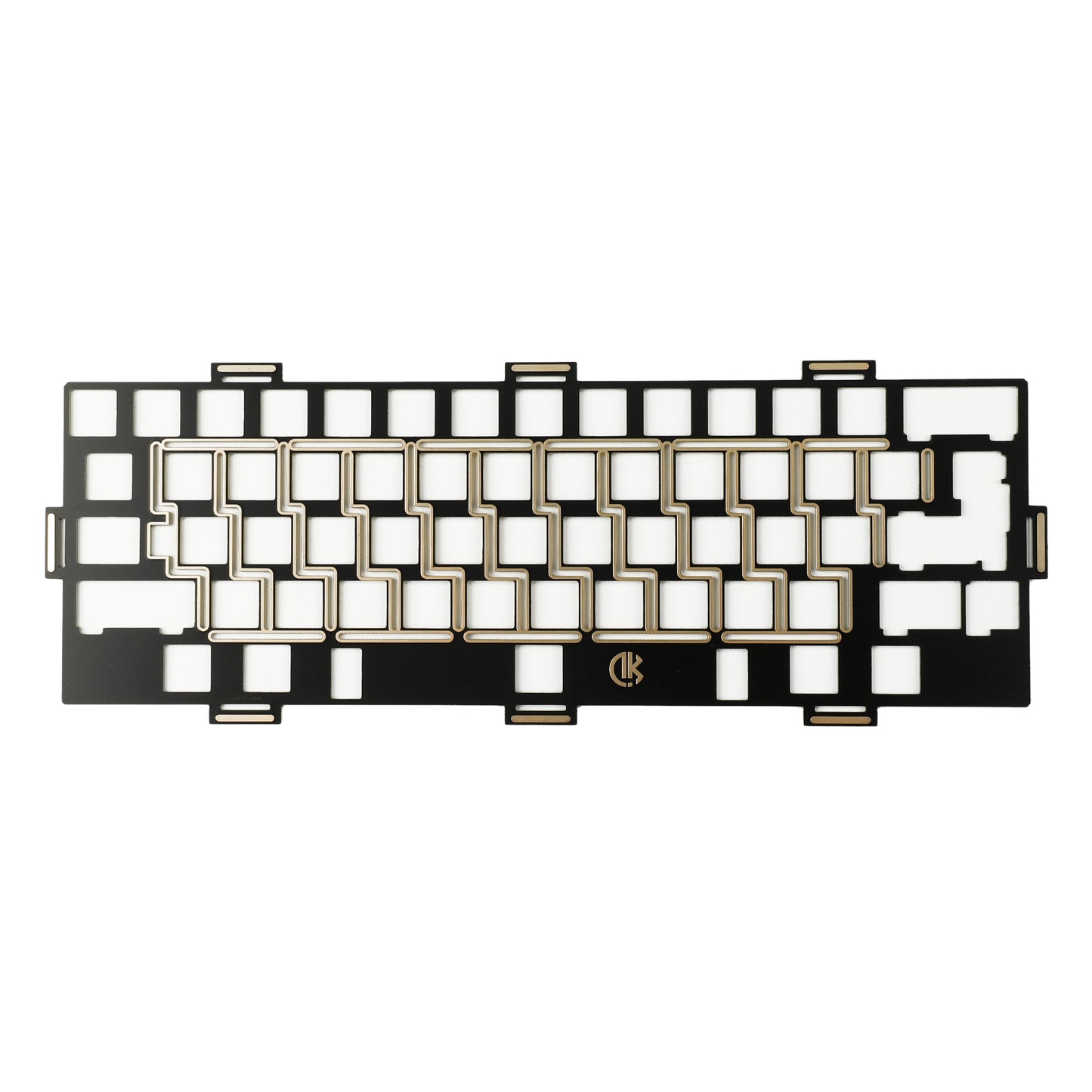

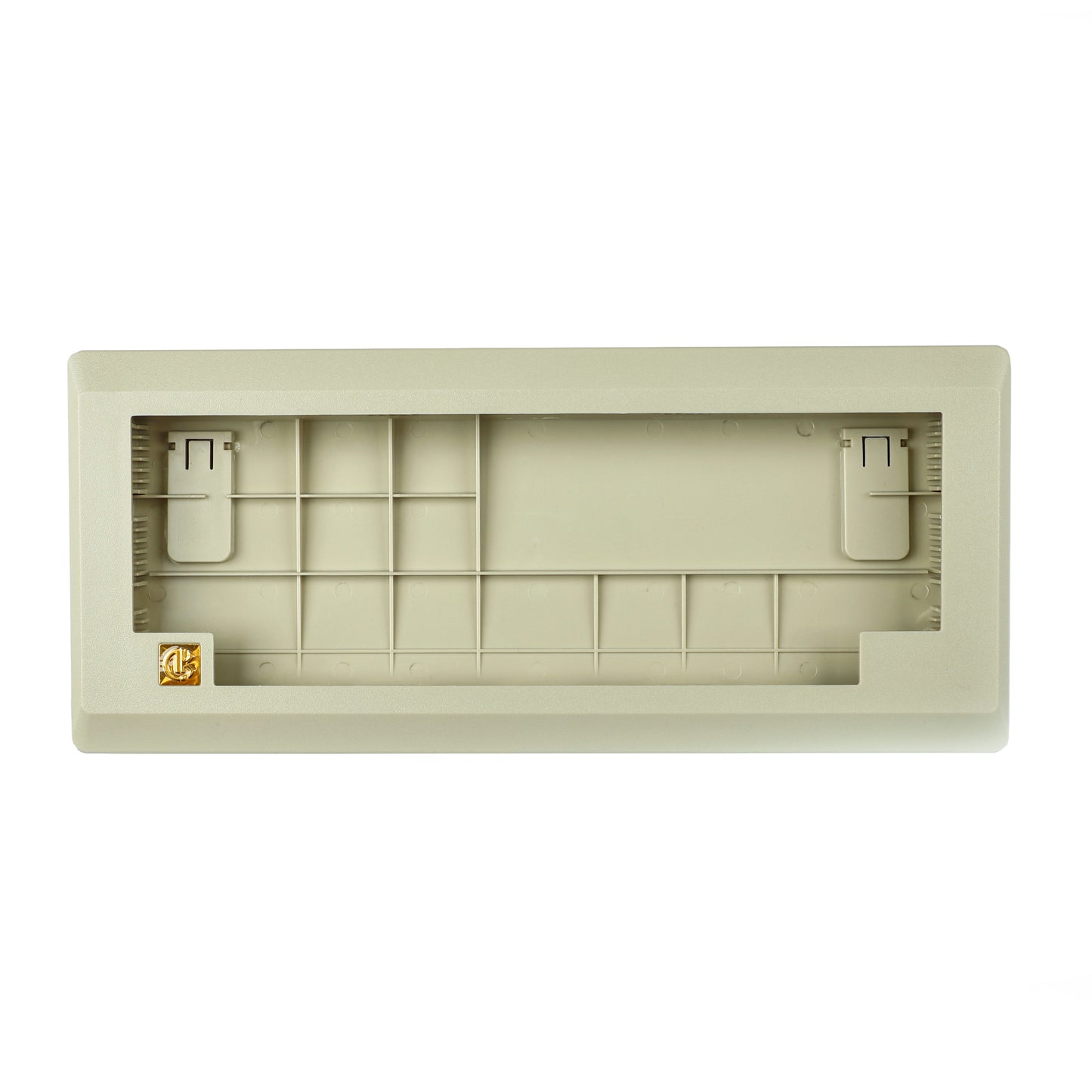

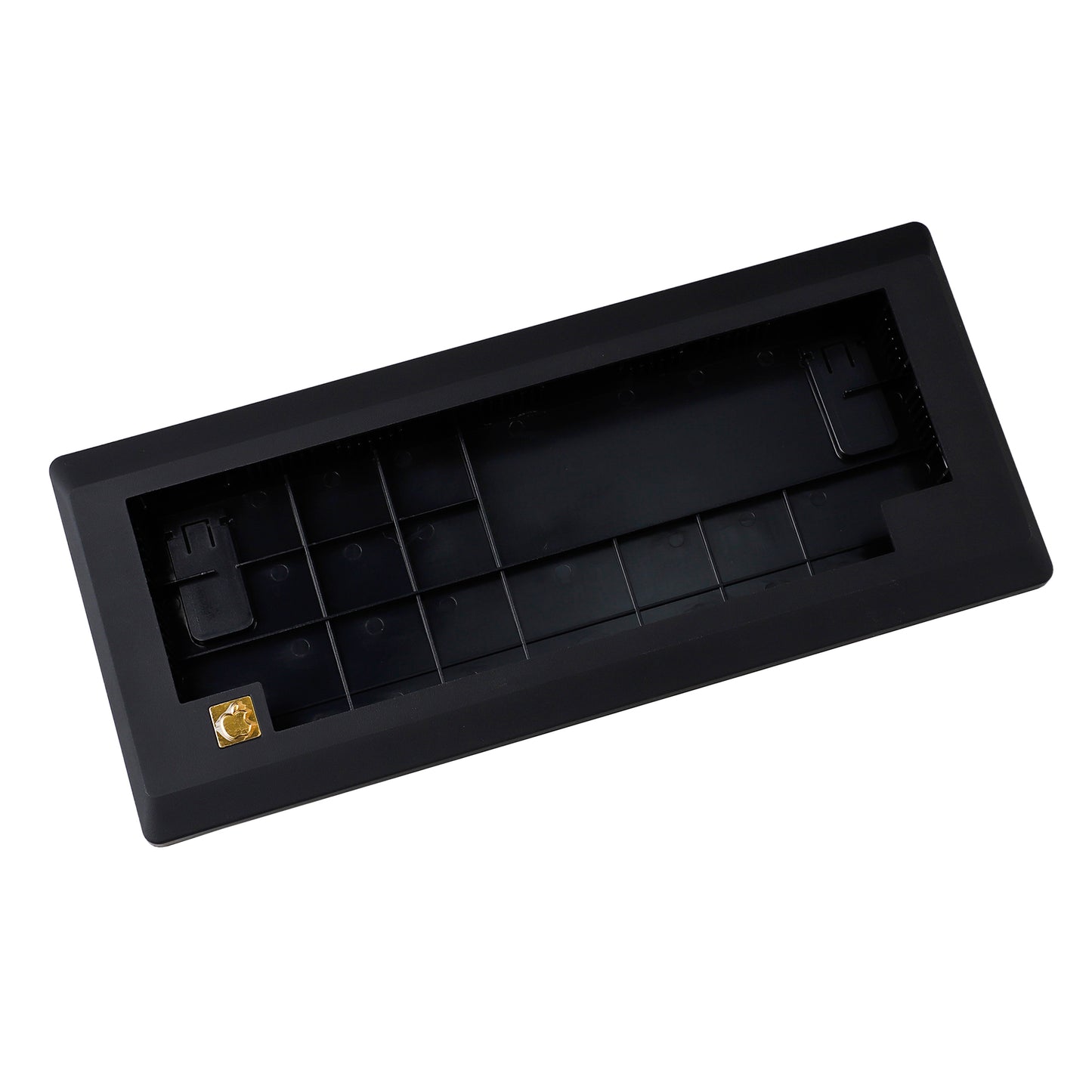

Base Kit：Beige Plastic Case （Black）+ FR4 Plate + Wired Hot Swap Type C PCB + PCB Stabilizers + USB Detachable Module + Screws +Rubber Feet + Cable +Switch puller

(No Keycaps and switch-leds,need to assemble yourself)

(This PCB can support many layout,can choose the exact layout as your wish,if you have solder iron,can change yourself)

(The stabilizers is 1x7u + 3x2u)

(Capslock support Lcaps Rcaps both,no need to cut the the switch stem anymore)

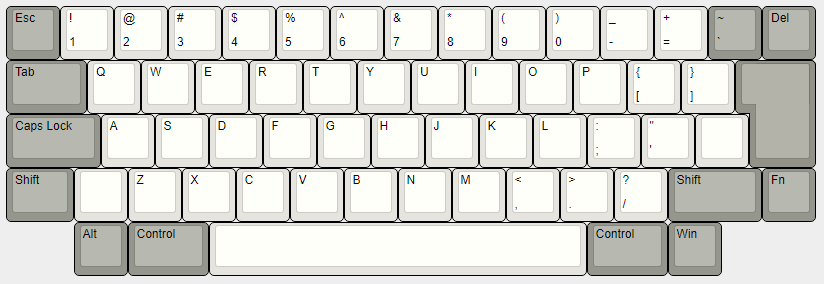

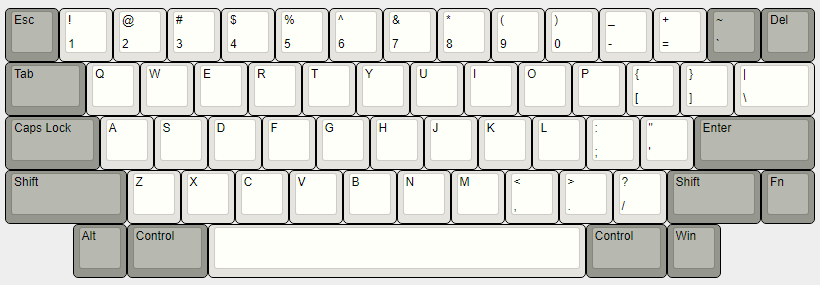

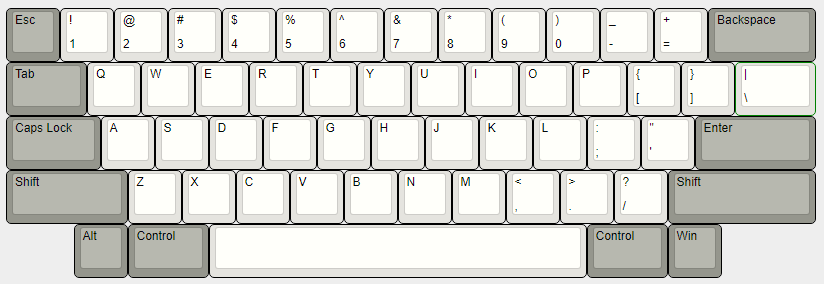

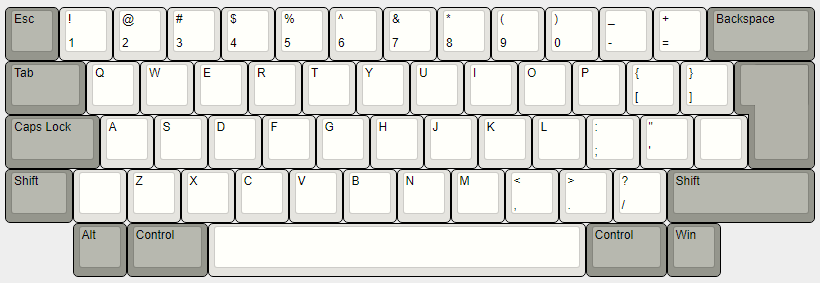

Layout

Details

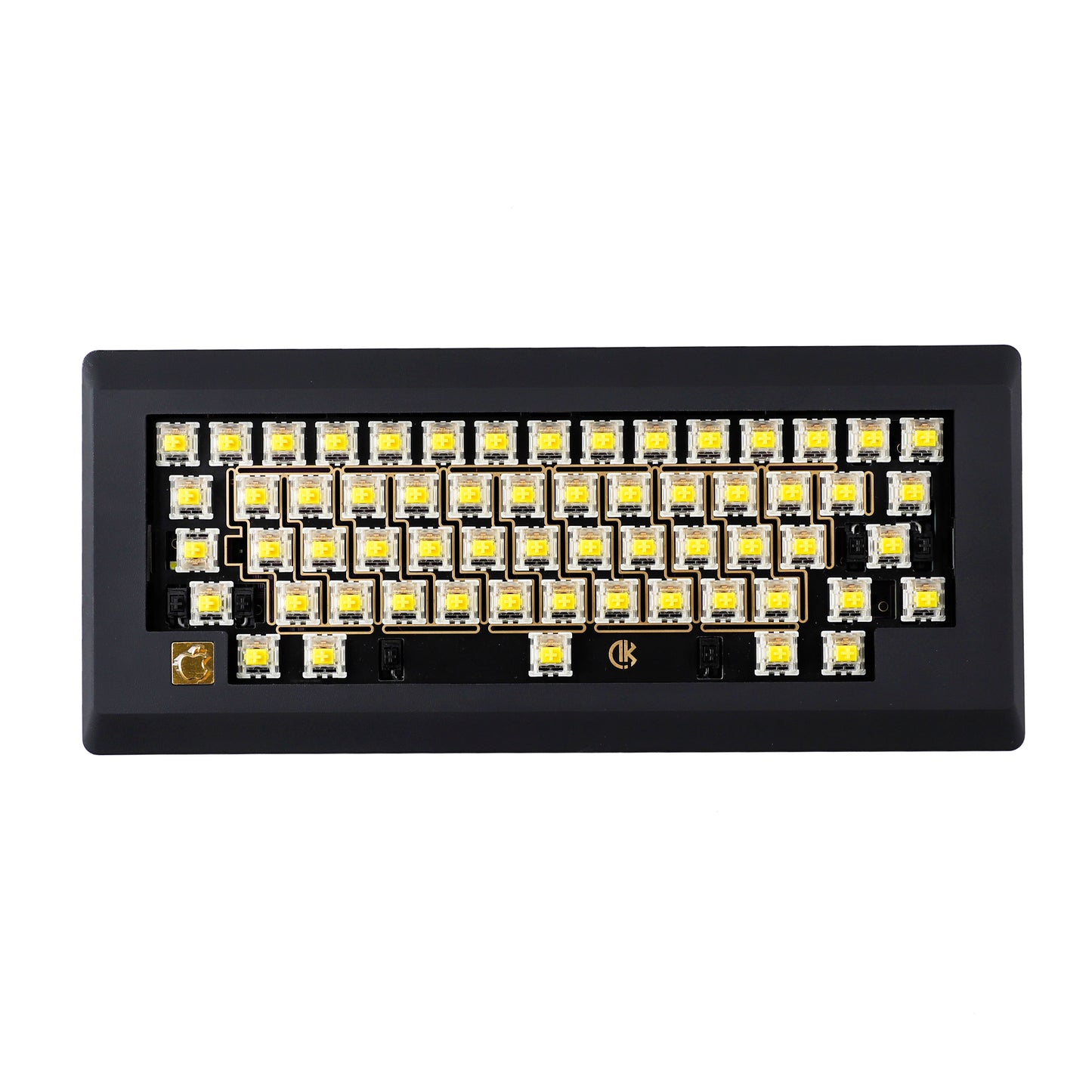

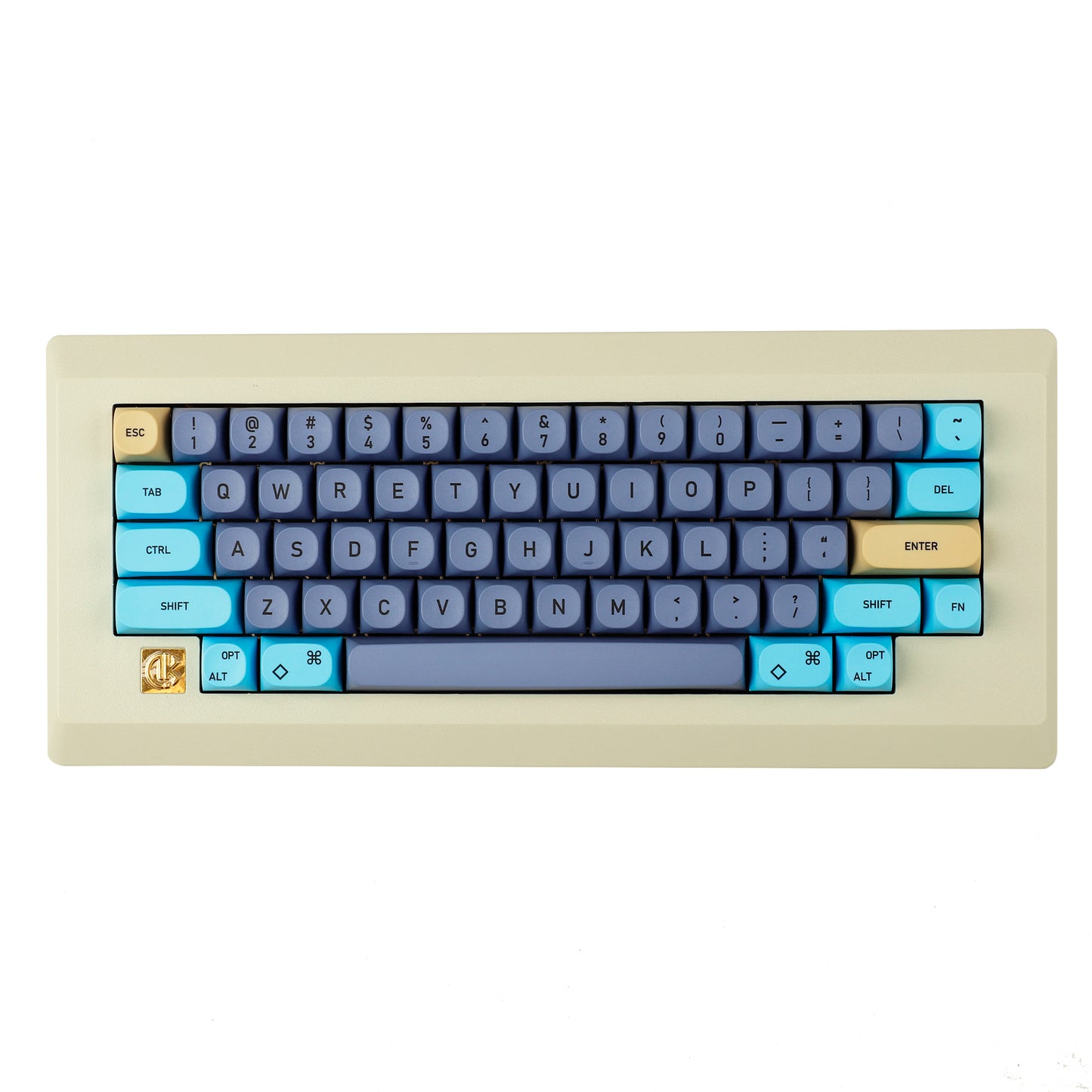

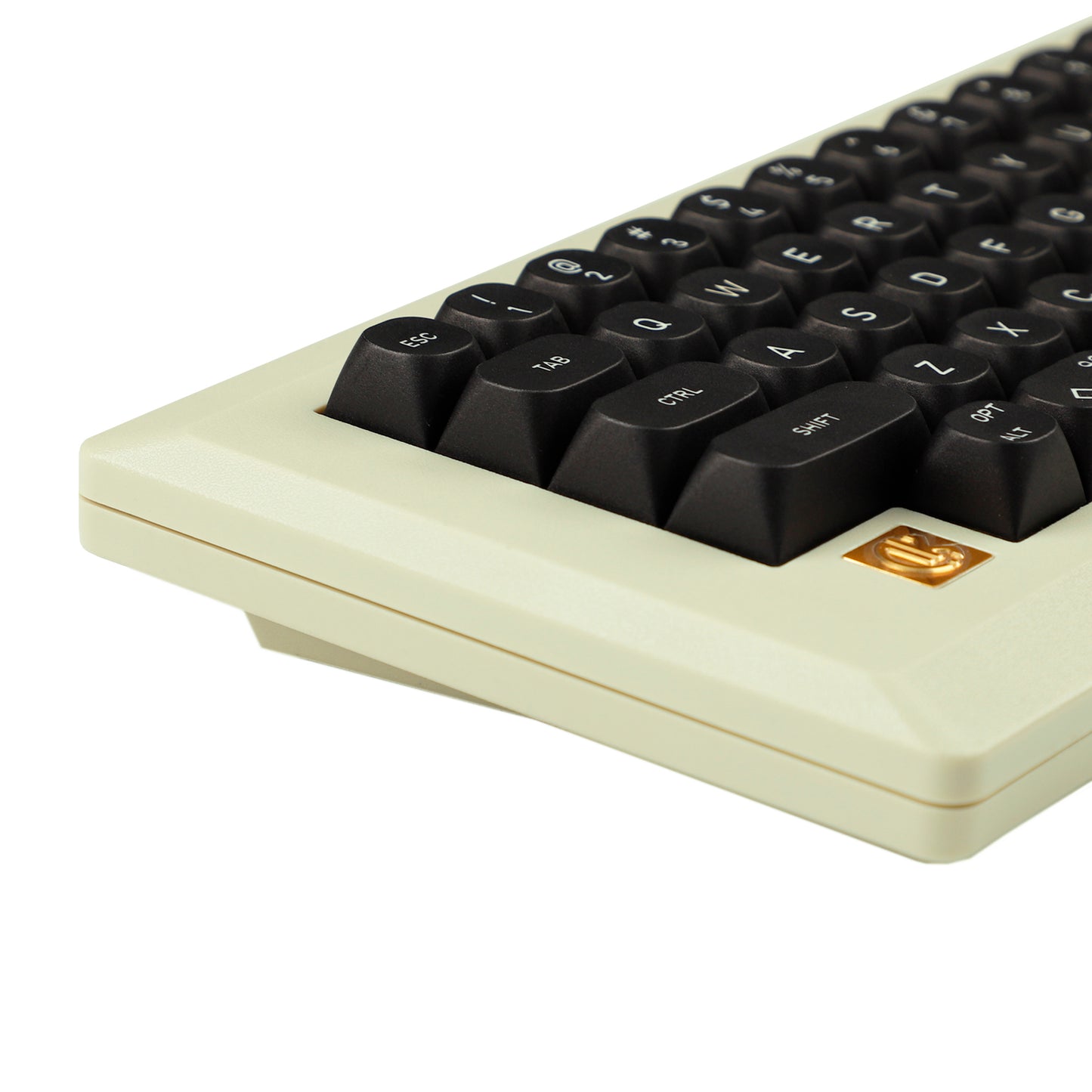

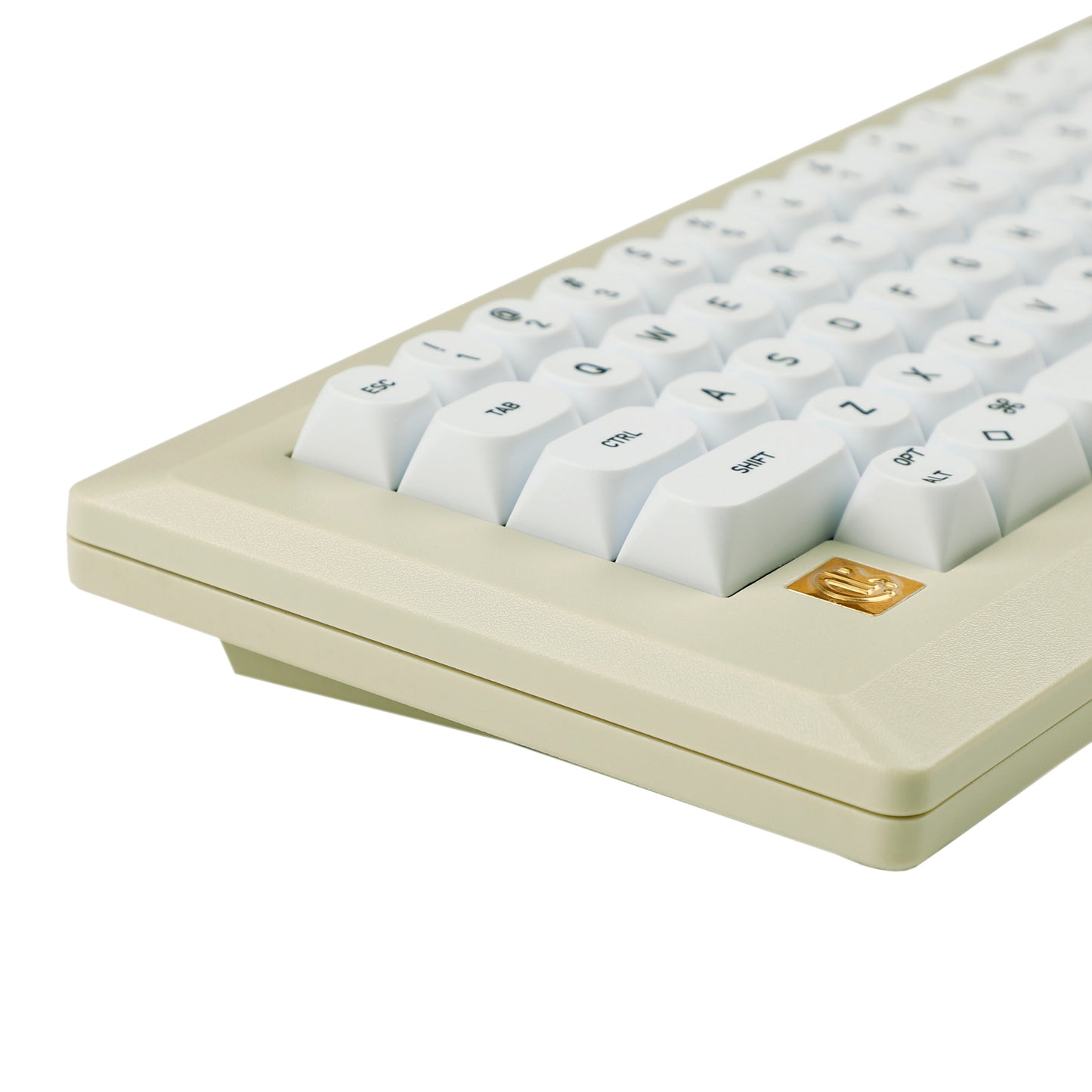

This link is for 60% M0110 hotswap keyboard kit.This YMDK customized edition is called D0110 which is after sales by YMDK only.

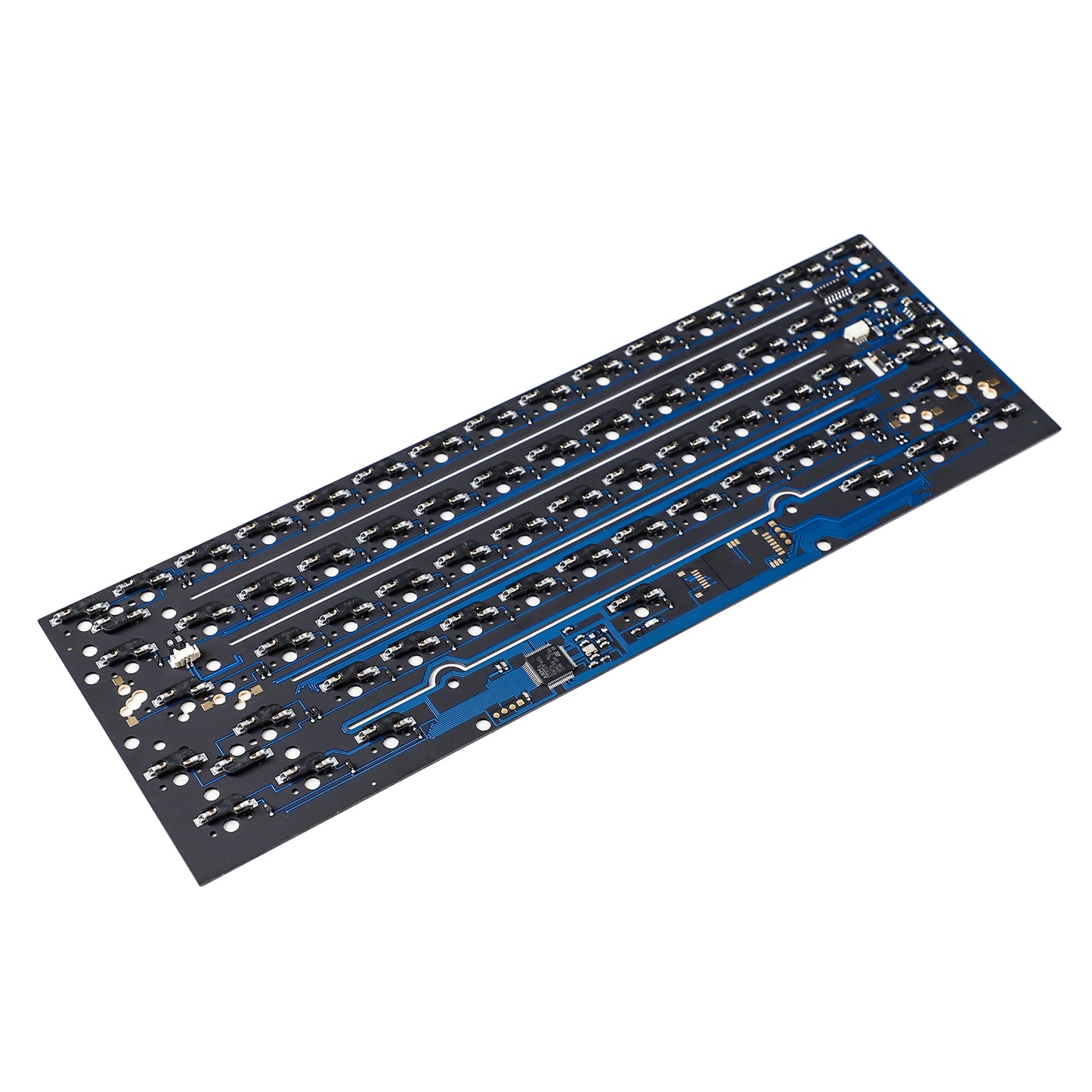

The new PCB is STM chipset which get bigger flash memory.It does't need qmk toolbox.Can drag file to PCB directly.

The PCB is fully programmable and support VIA VIAL

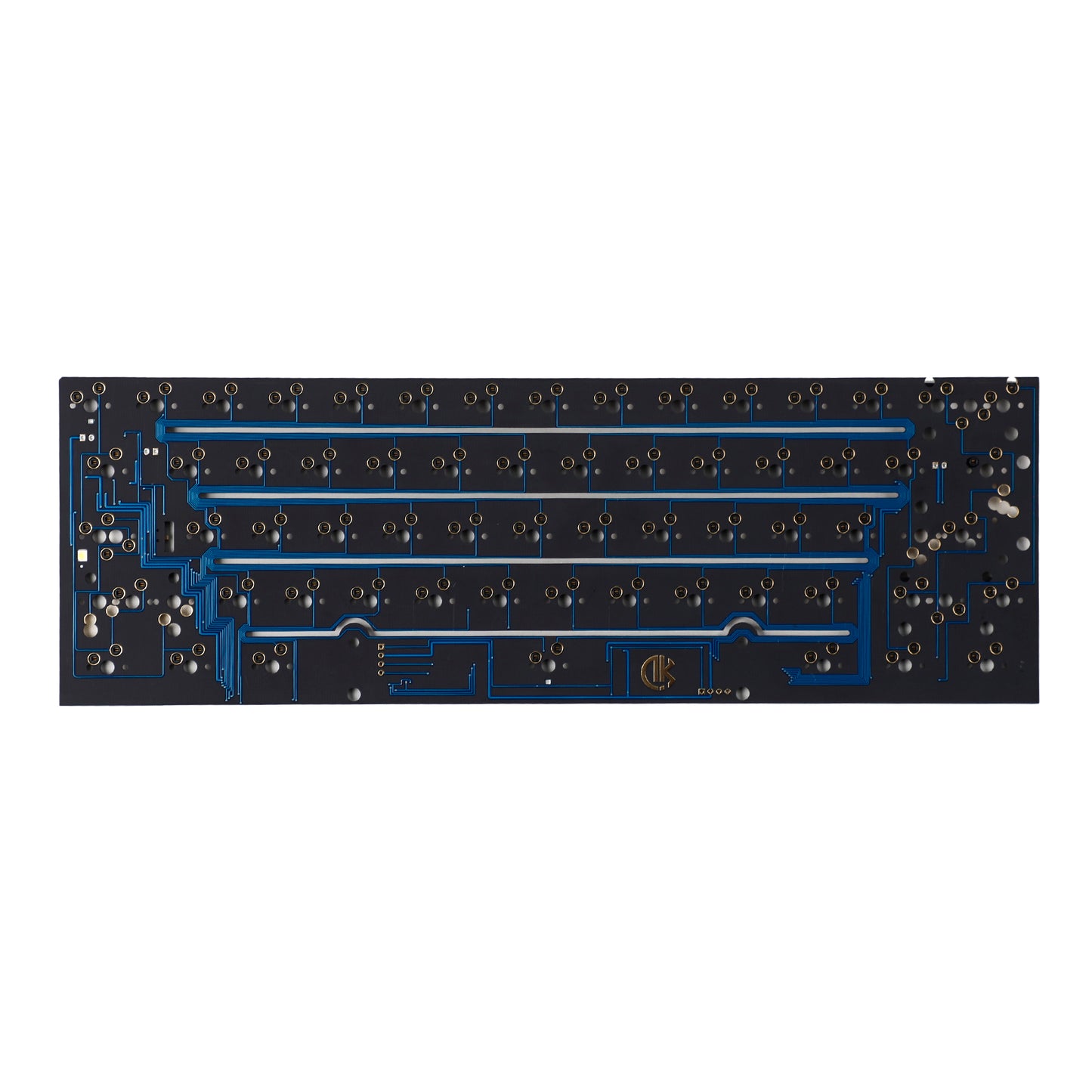

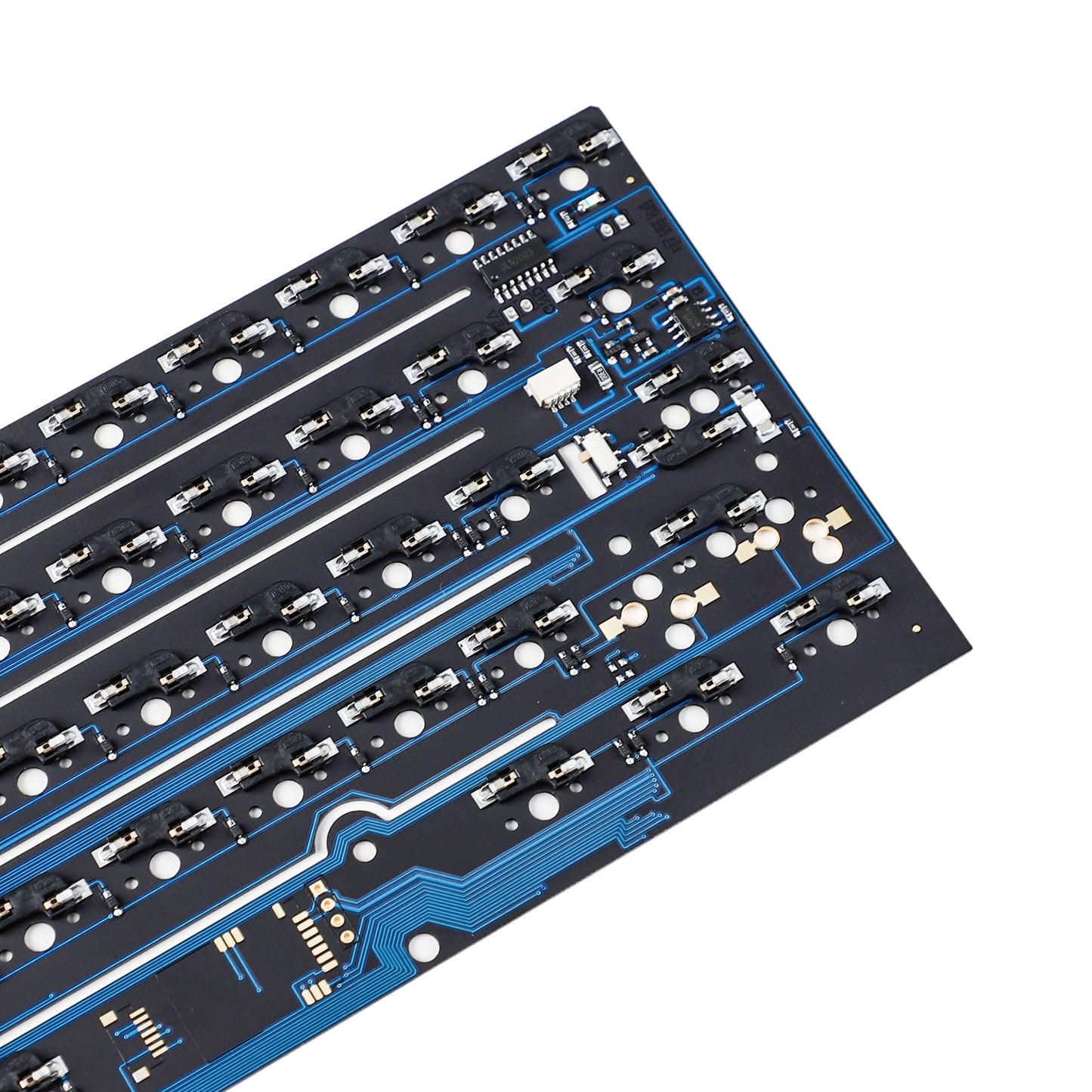

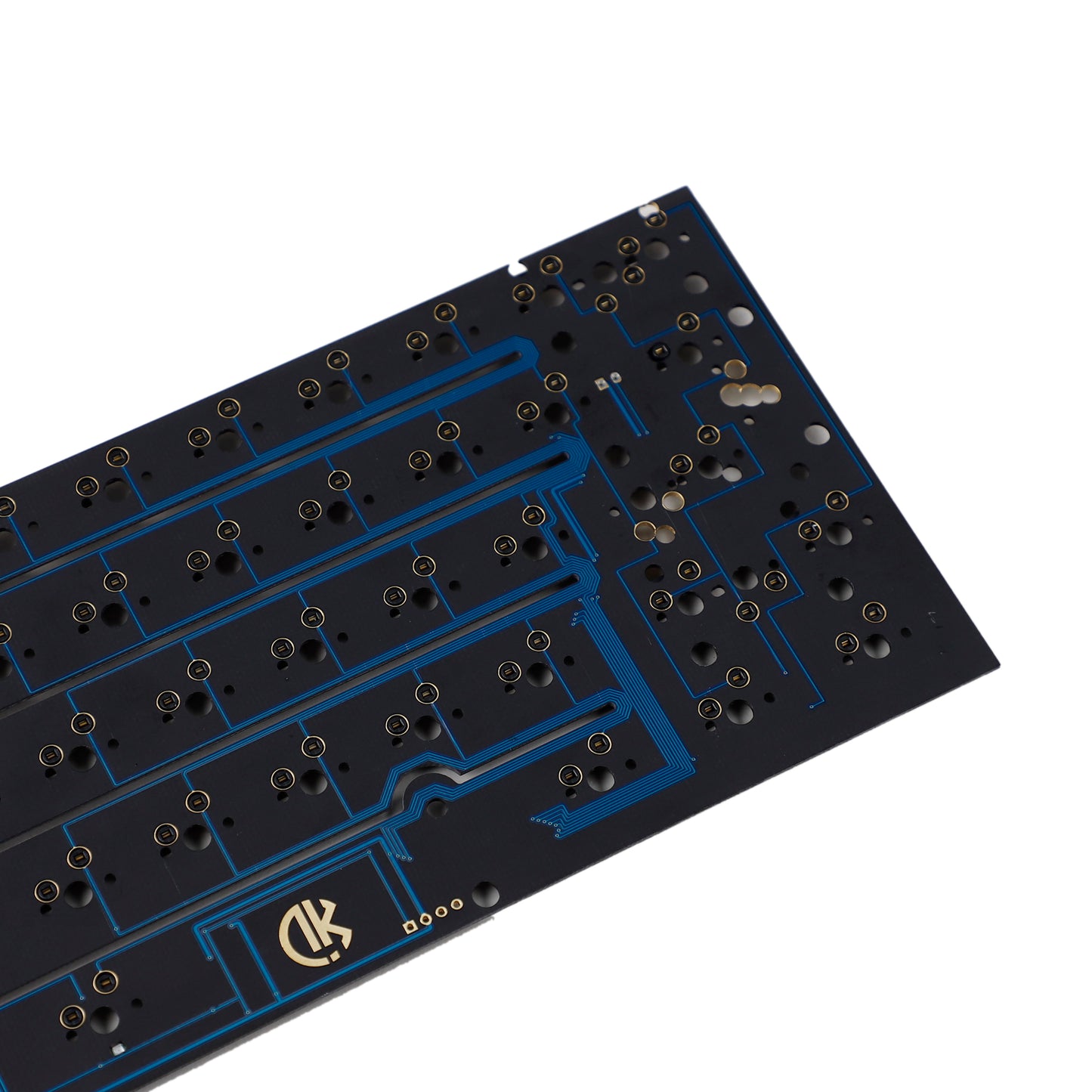

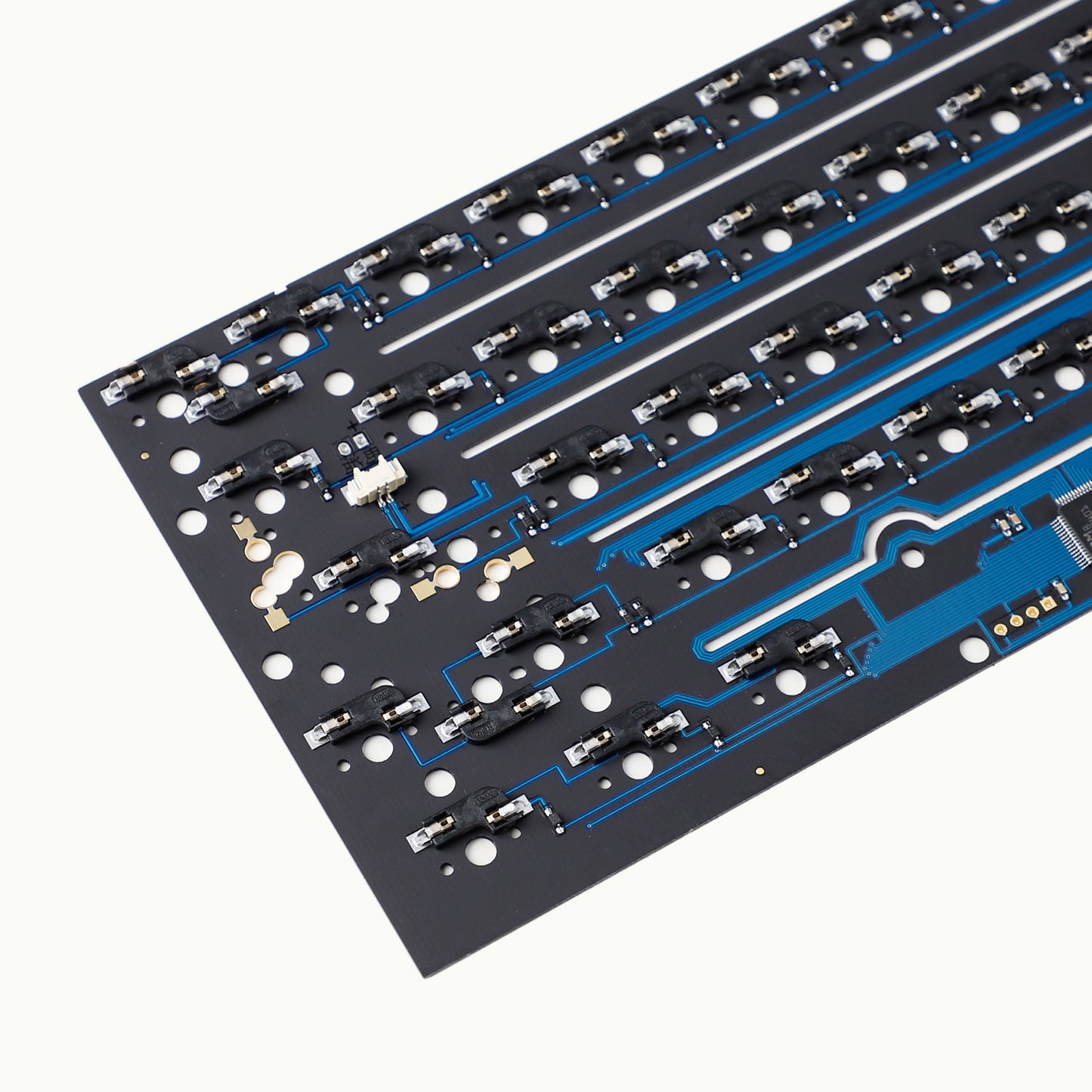

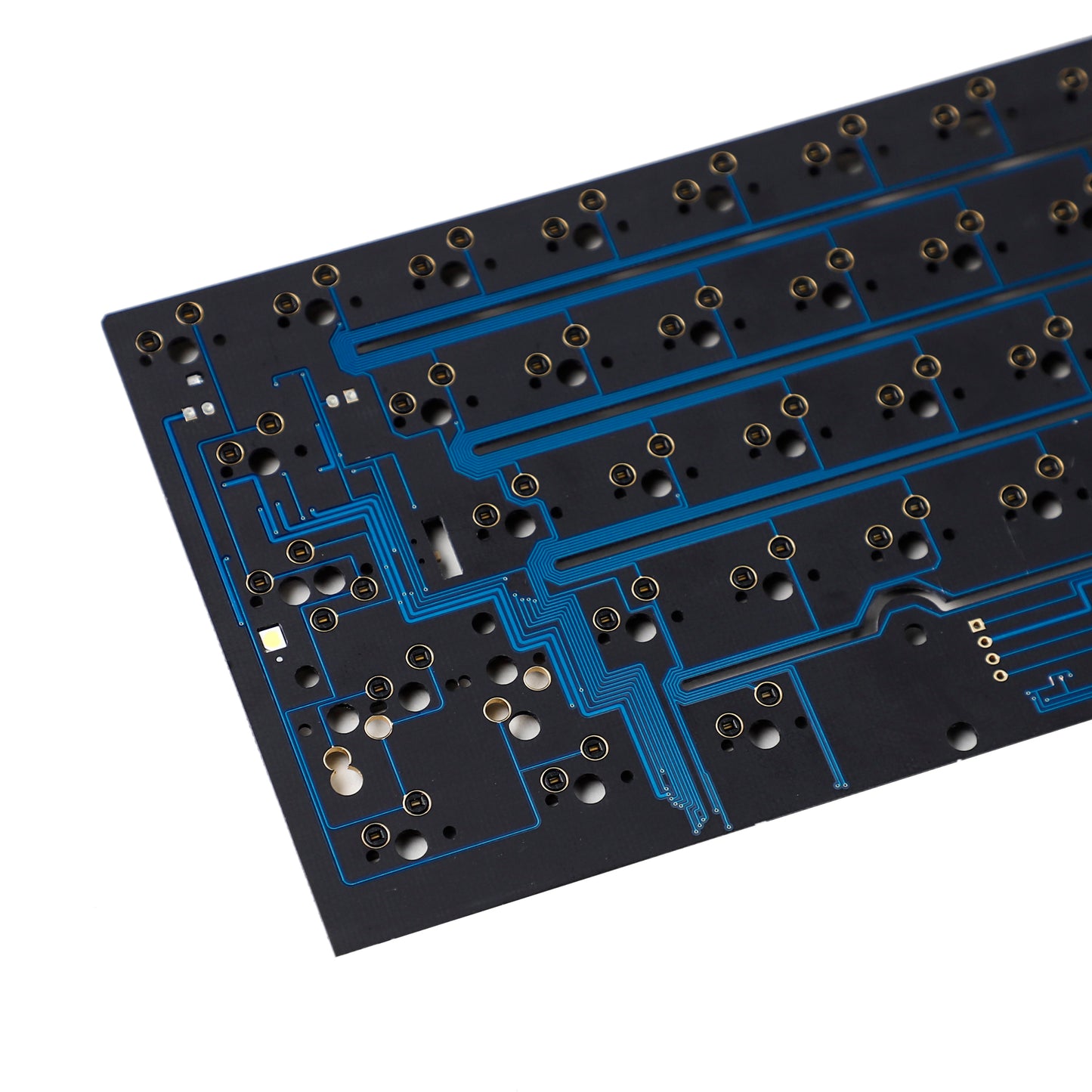

The PCB is gold pad and Type C USB port.The USB port is detachable


Manuals
Just download VIAL software to change keycode /layout is ok.No need to reset PCB. (Can use VIA as well,however VIA need to pass on a json file to get to the software.If you want to use VIA,just message us is ok)

Win System: drive.google.com/file/d/134pbPlonLtRwuDfBxpeSjdlnG7RoL5by/view?usp=share_link

Mac System: drive.google.com/file/d/1aSLBPtg4_ZoOzyx1OihaqwiLq9d-JfLY/view?usp=sharing
