[In Selling]NCR-80 NCR80 R3 VINTAGE Beige Black Case MECHANICAL KEYBOARD KIT(ANSI ISO TKL Hotswap or Soldering VIA Supported/Wired)

[In Selling]NCR-80 NCR80 R3 VINTAGE Beige Black Case MECHANICAL KEYBOARD KIT(ANSI ISO TKL Hotswap or Soldering VIA Supported/Wired)

Regular price $119.99 USD
Regular price Sale price $119.99 USD
Sale Sold out
Shipping calculated at checkout.
Case Color
Layout
PCB Model

This is a keyboard kit. Each option is a keyboard kit. For the hot-swappable PCB version, you only need to prepare switches and keycaps to assemble and use it completely.

For the soldering PCB version, you only need to prepare soldering equipment, soldering iron, keycaps and switches to use it completely.



Package Included

Option 1:(Hotswap PCB)
NCR-80 R3 Beige Case(Or Black Case)+NCR-80 R3 Hotswap PCB+FR4(Glass Fiber/Carbon Fiber) Plate+PCB Snap Stabilizers+Screws+Switch Puller+Cable

Option 2:(Soldering PCB)
NCR-80 R3 Beige Case(Or Black Case)+NCR-80 R3 Soldering PCB+FR4(Glass Fiber/Carbon Fiber) Plate+PCB Snap Stabilizers+Screws+Switch Puller+Cable



Details

Reimagination of the classic rebranded Cherry G81-3000 by NCR.

NCR-80 is an affordable keyboard kit inspired by iconic vintage keyboards.

R3 Support three different layouts(6.25u ANSI ISO,7u ANSI).

Use TKL and WKL as R3 retro theme keyboard of layout but change three keys as indicator ldes,keep the standard using of situation from 100% full size standard layout.R3 restro keep more retro factors after this.

Better plastic case with beige color.

North facing hotswap R3 hotwap pcb,only supports VIA now.

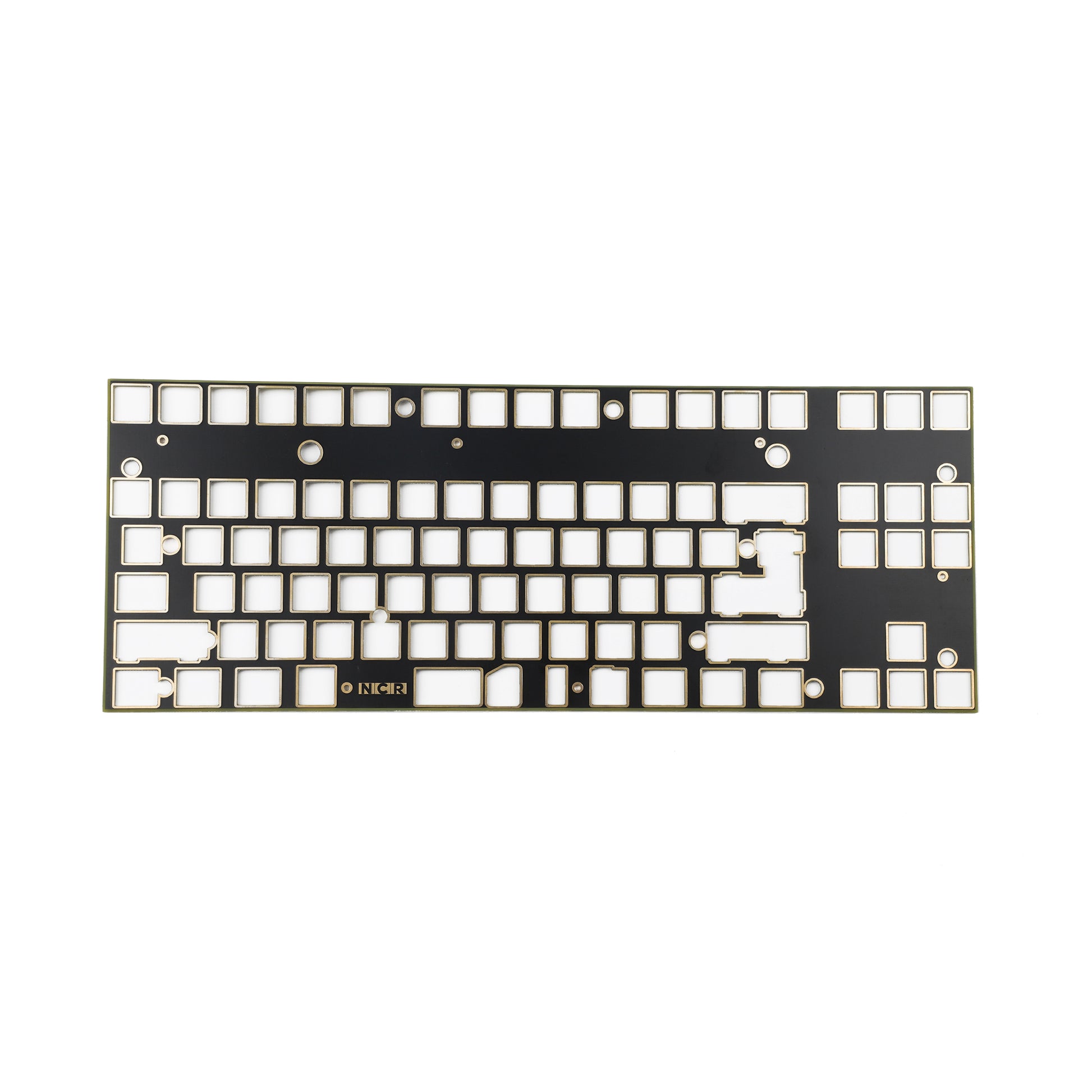

Plate is glass fiber or carbon fiber now for R3 TKL layout.(If you need choose it,just leave a message in cart of page)

Kit size: 382*299*19-41 mm.

Note

The hotswap PCB be north facing now,and it doesn't support backlit.

Only Soldering PCB support Alps switch.

If you need 7u ISO layout,can leave a message to us in cart page.Because the keycap of using,we had not listed it.

The capslock has 2 sockets to support both stepped and unstepped edition.

The hotswap pcb only supports VIA now.If you need use qmk for it,need create the file by MSYS.And we can provide the source file for MSYS.

For three indicator ldes,you still need a soldering iron to install it normal.But if you order switches with kit,we will install all parts for you directly.So there will include the leds of installing.

If you need to weld three indicator lights, please leave us a message and we will prepare them for you in advance.

Hotswap PCB VIA Manuals

https://drive.google.com/file/d/1skLRD1HuupZNEEFTm20wjknWkMP_i_nU/view?usp=sharing

Soldering PCB can open with VIAL directly (VIAL downloaded below)
drive.google.com/file/d/1aqC8gCOtIR78xXHB06zljaR8Dn7PBhW5/view?usp=sharing



Images Display

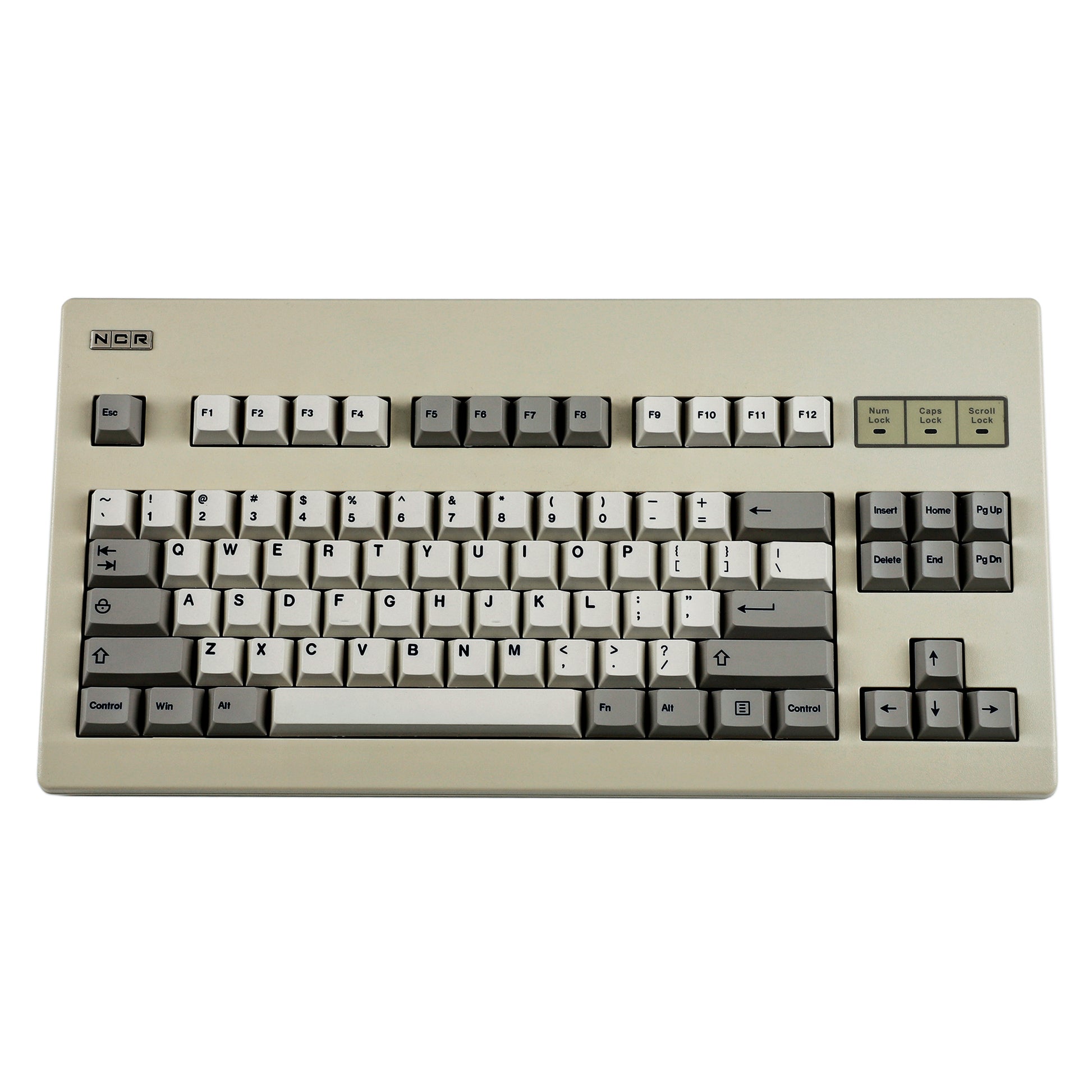

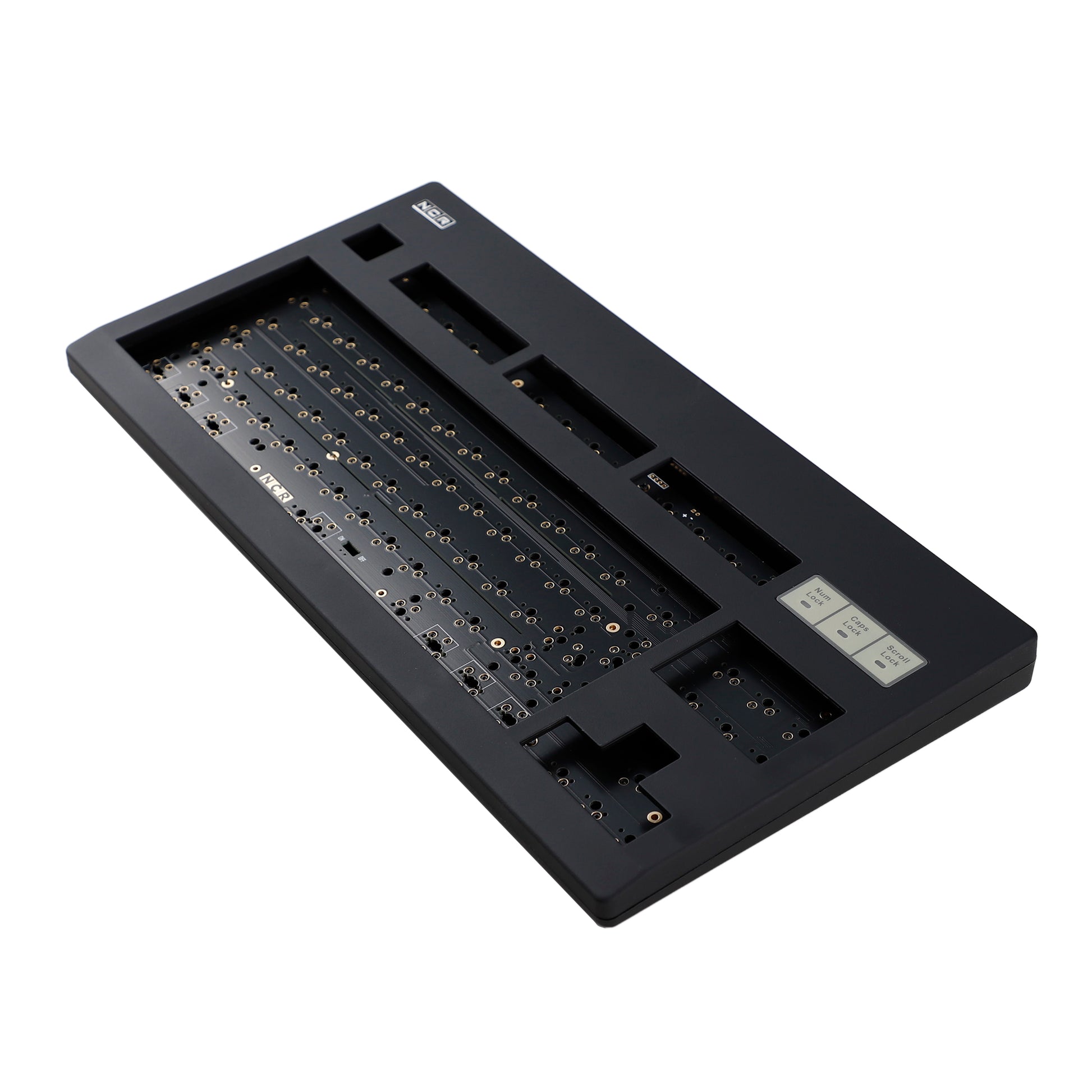

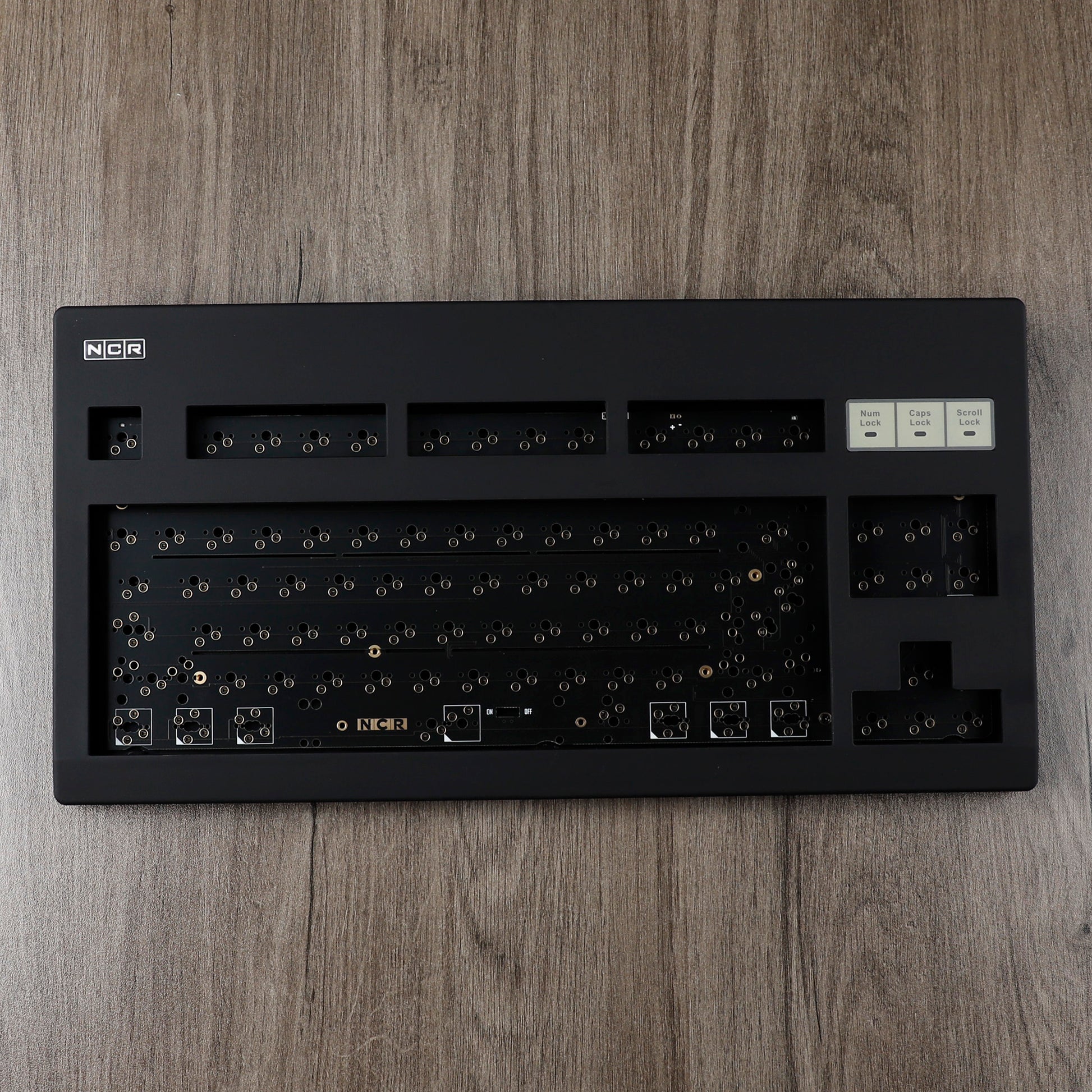

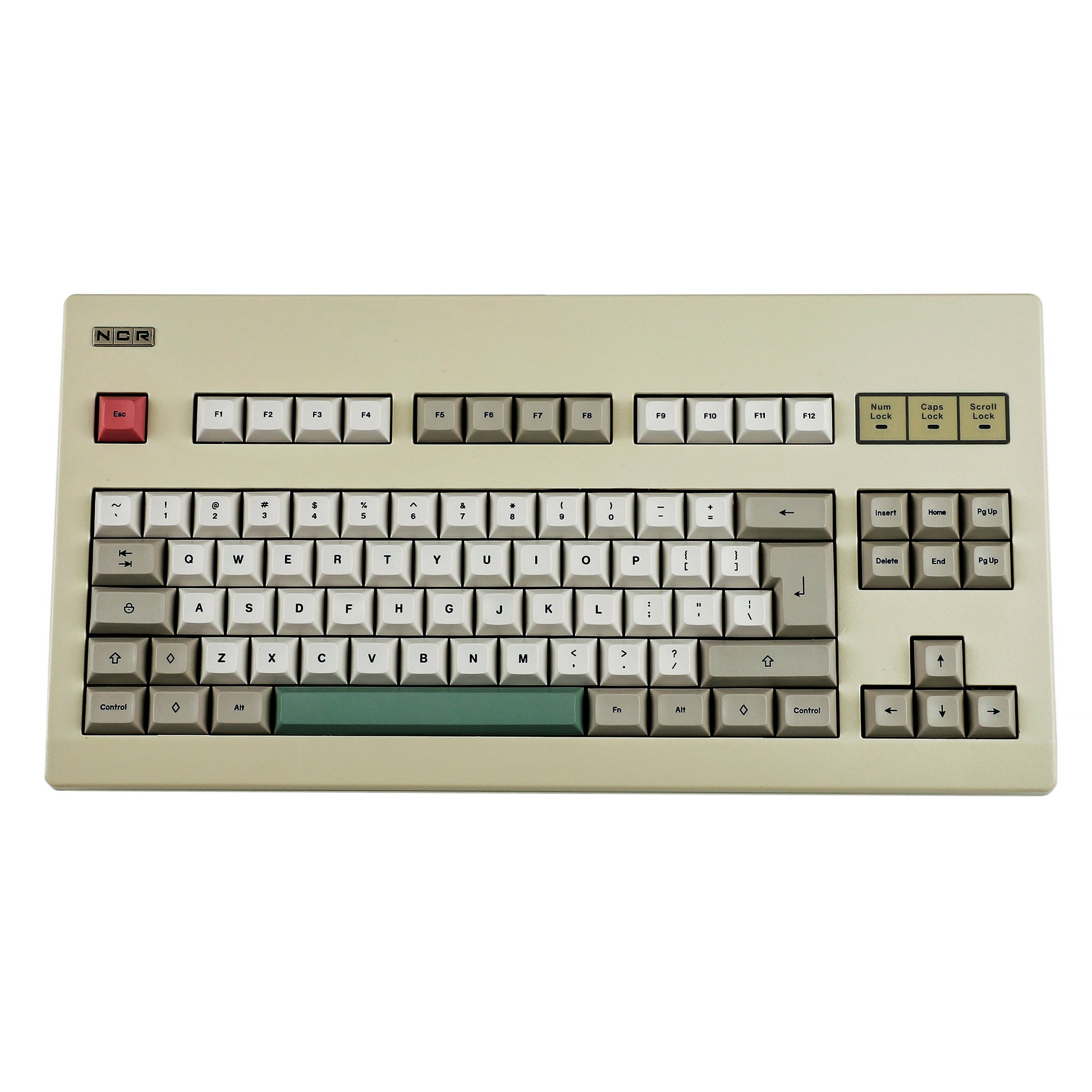

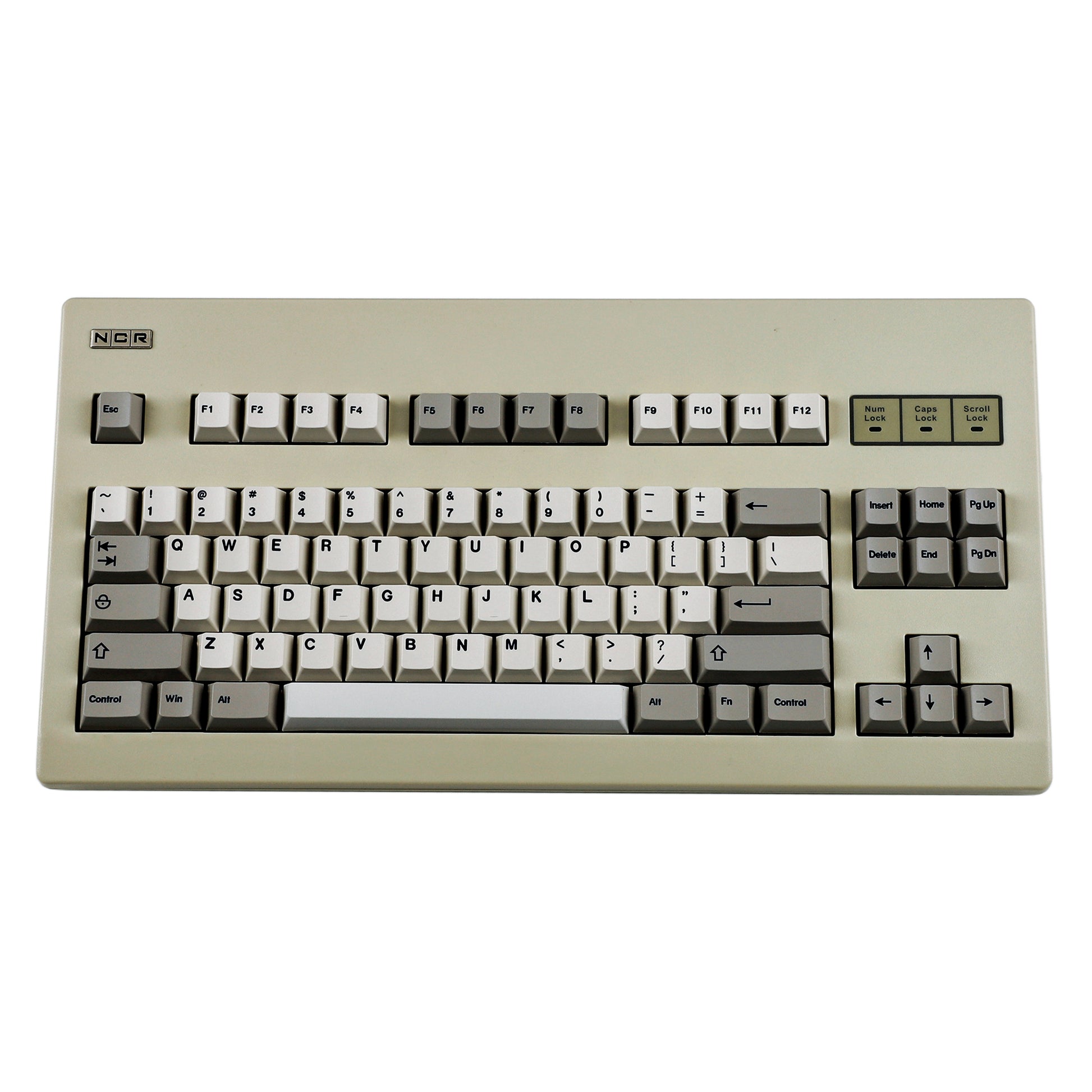

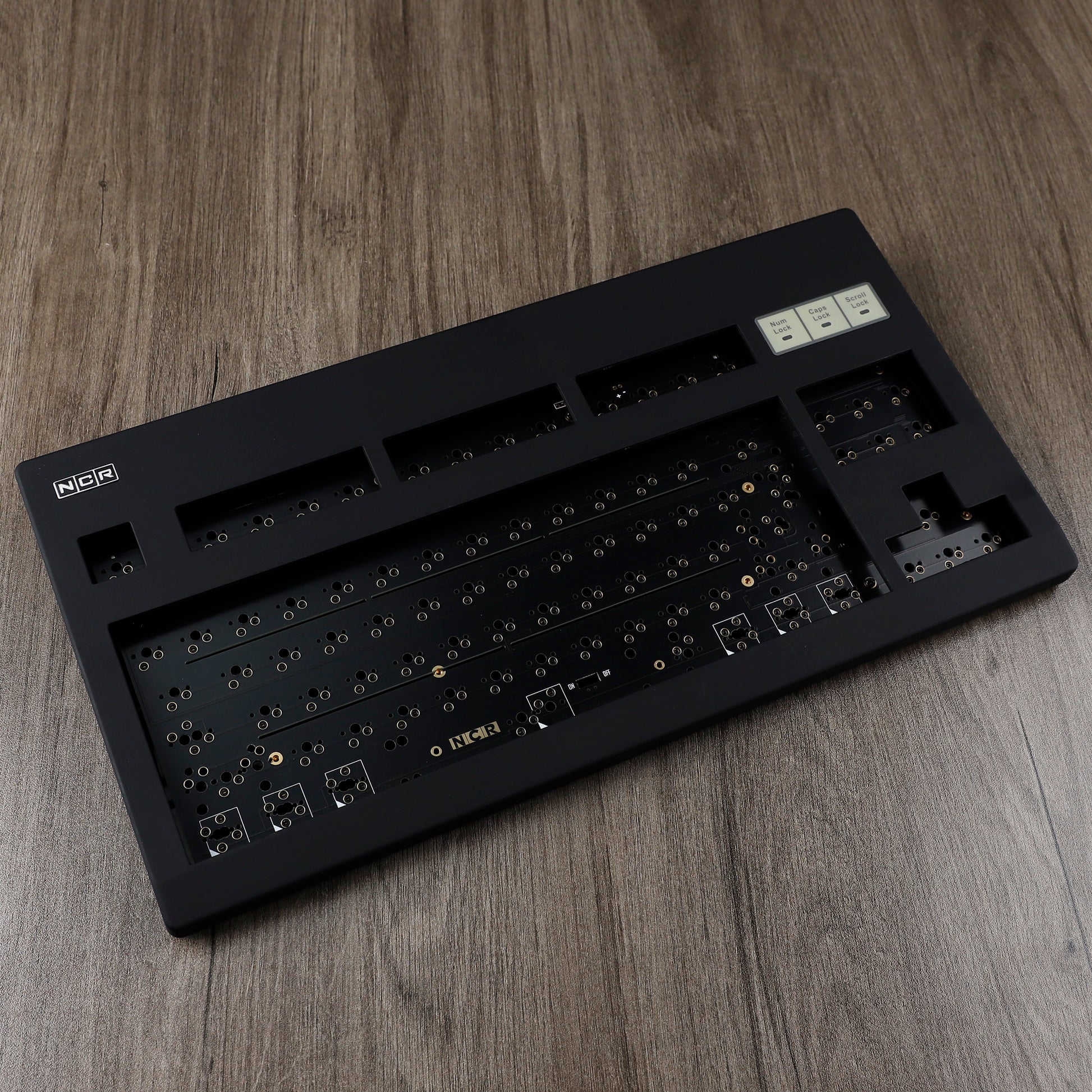

Kit

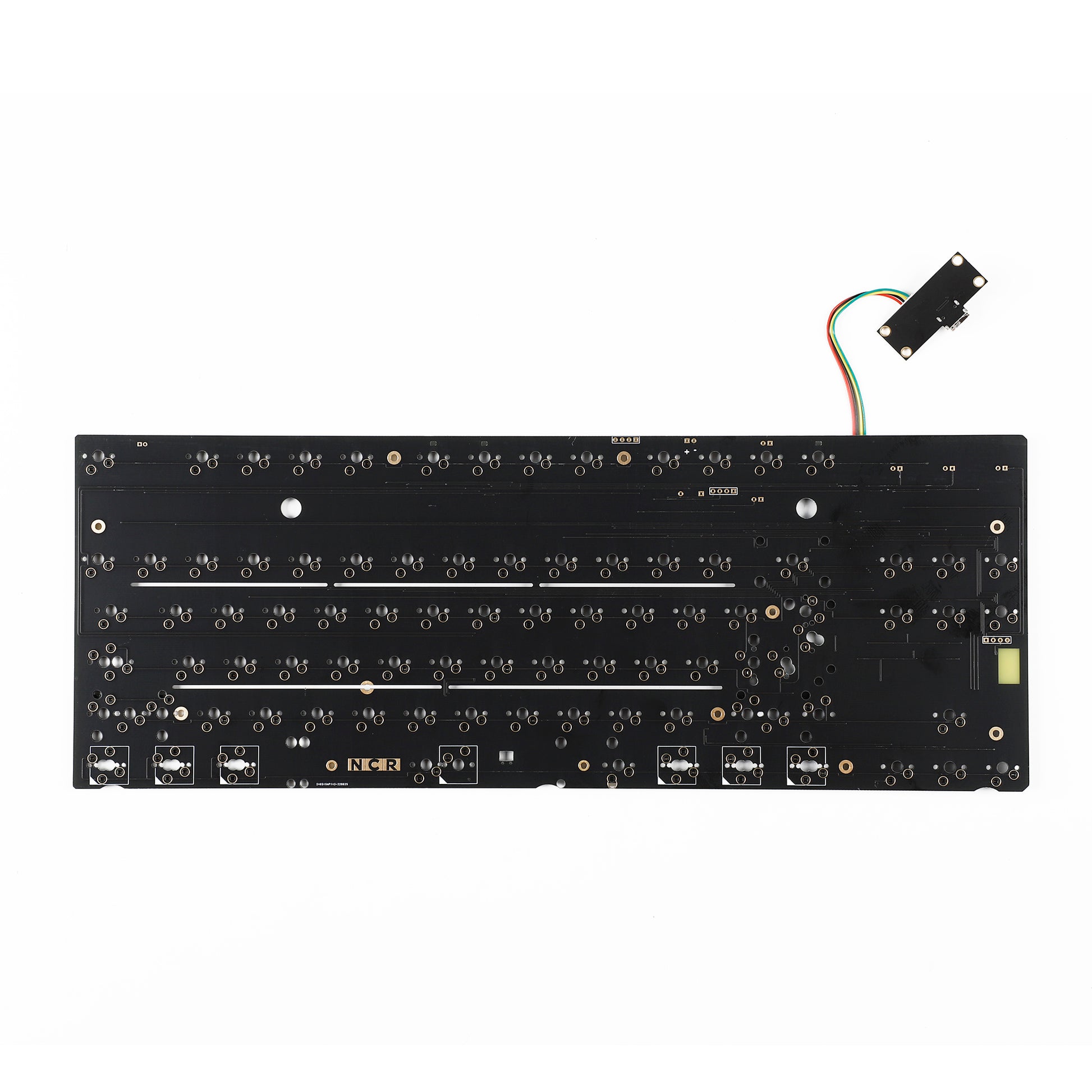

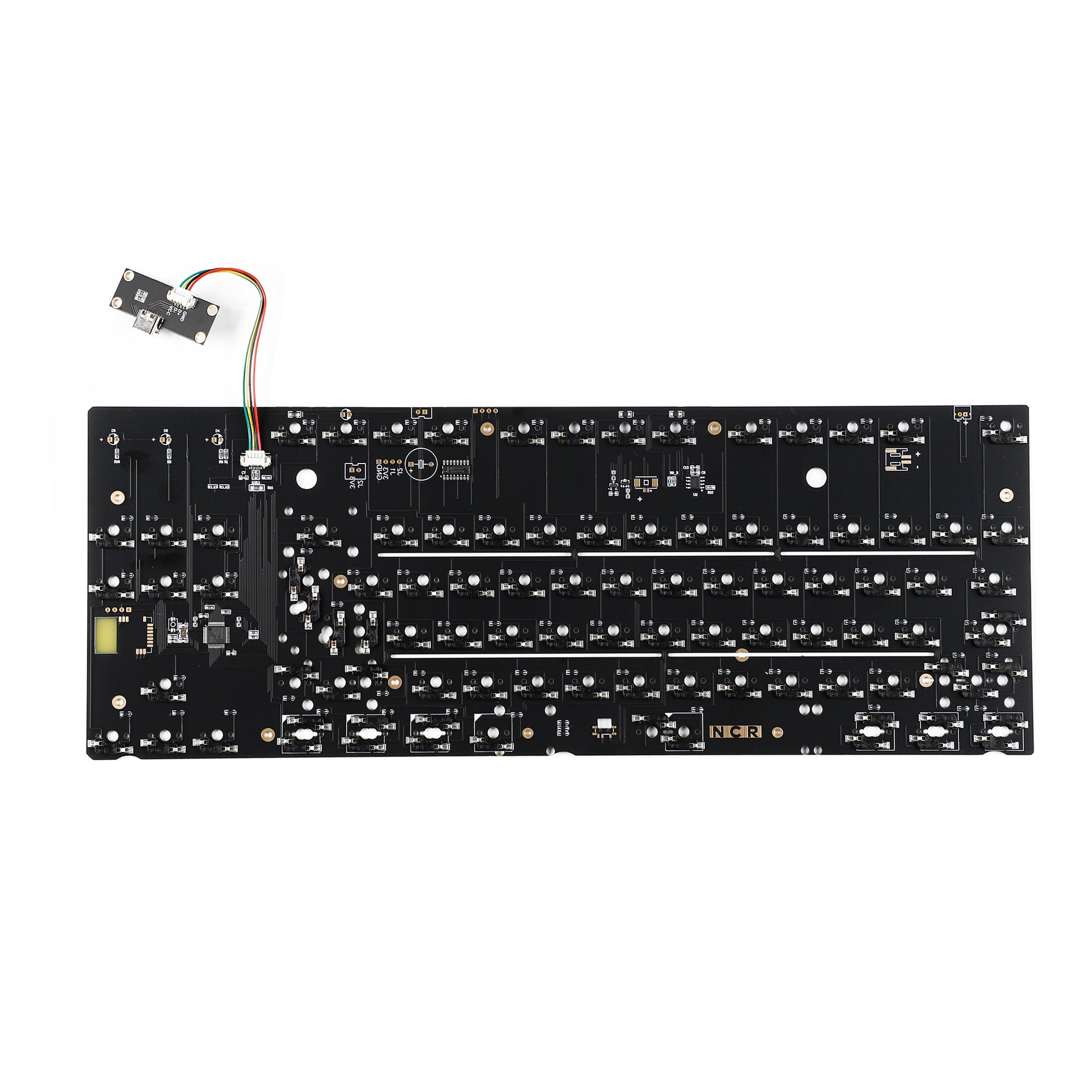

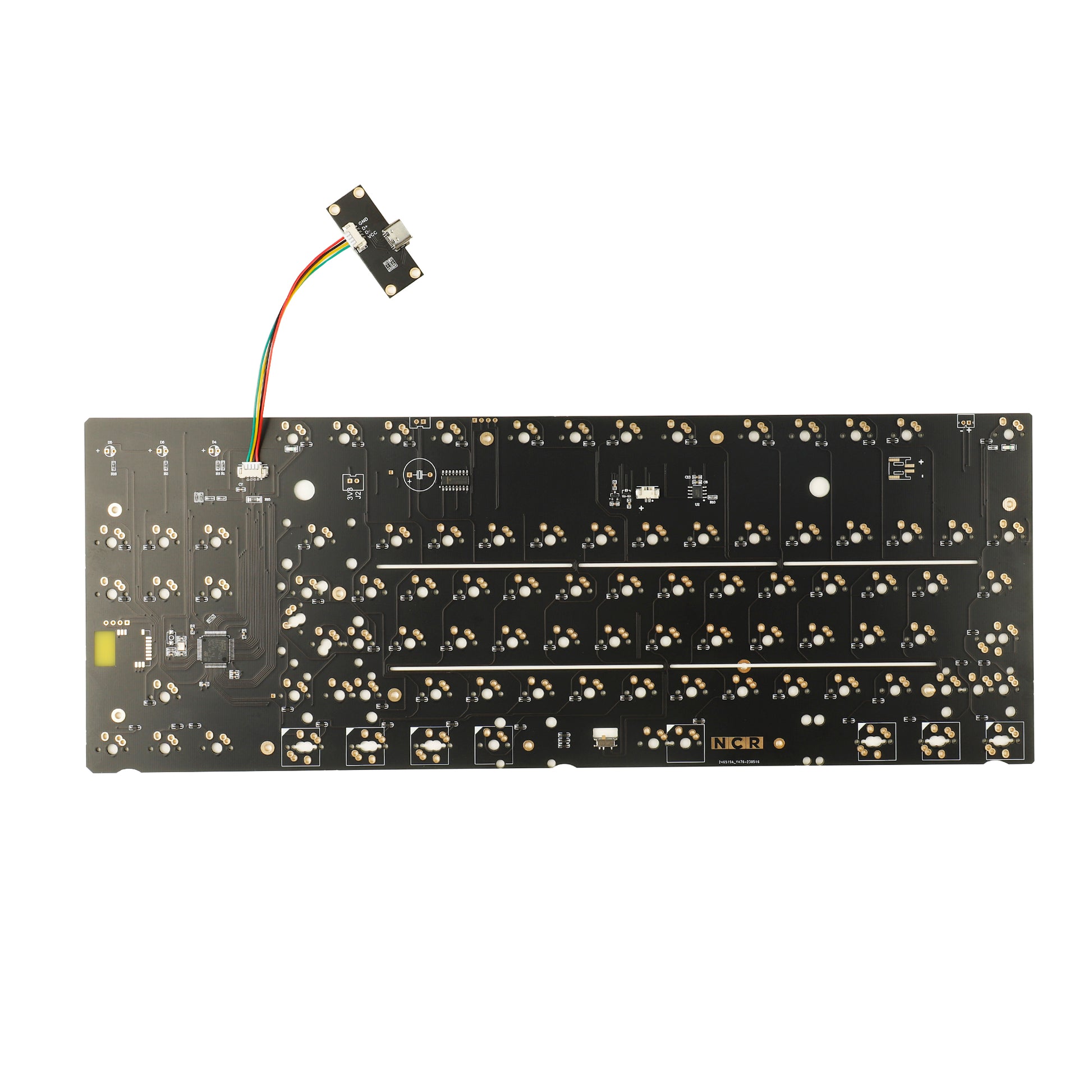

Only PCB(to clarify the pcb of facing and sockets)

Soldering PCB
