TTC Silent Red(SMD Silent 3pin 45g Linear Switches)

Package Included(TTC Silent Red)

Switch*quantities(12/65/90/110 as options)

Details

TTC Silent Red Switch

Operating force:45±10gf

Pre-travel:1.9±0.6mm

Total travel:3.7-0.4mm

Leaf spring: Gold contact

Terminal: Gold contact

Characteristics: Linear

Note

Silent: It adopts double-safety silencing structure design-the upper cover,the base has a large impact contact area,and the elastic deformation is small.The mute effect is obvious and the pressing is smooth.

Stable: It adopts double side wall structure patent.When the shaft core is pressed down,it fits tightly with the upper cover,and the shaft core moves up and down as stable as a rock.

Crystal clear.The switch use transparent upper and down covers,backlight can trough it,have beatiful backlight.

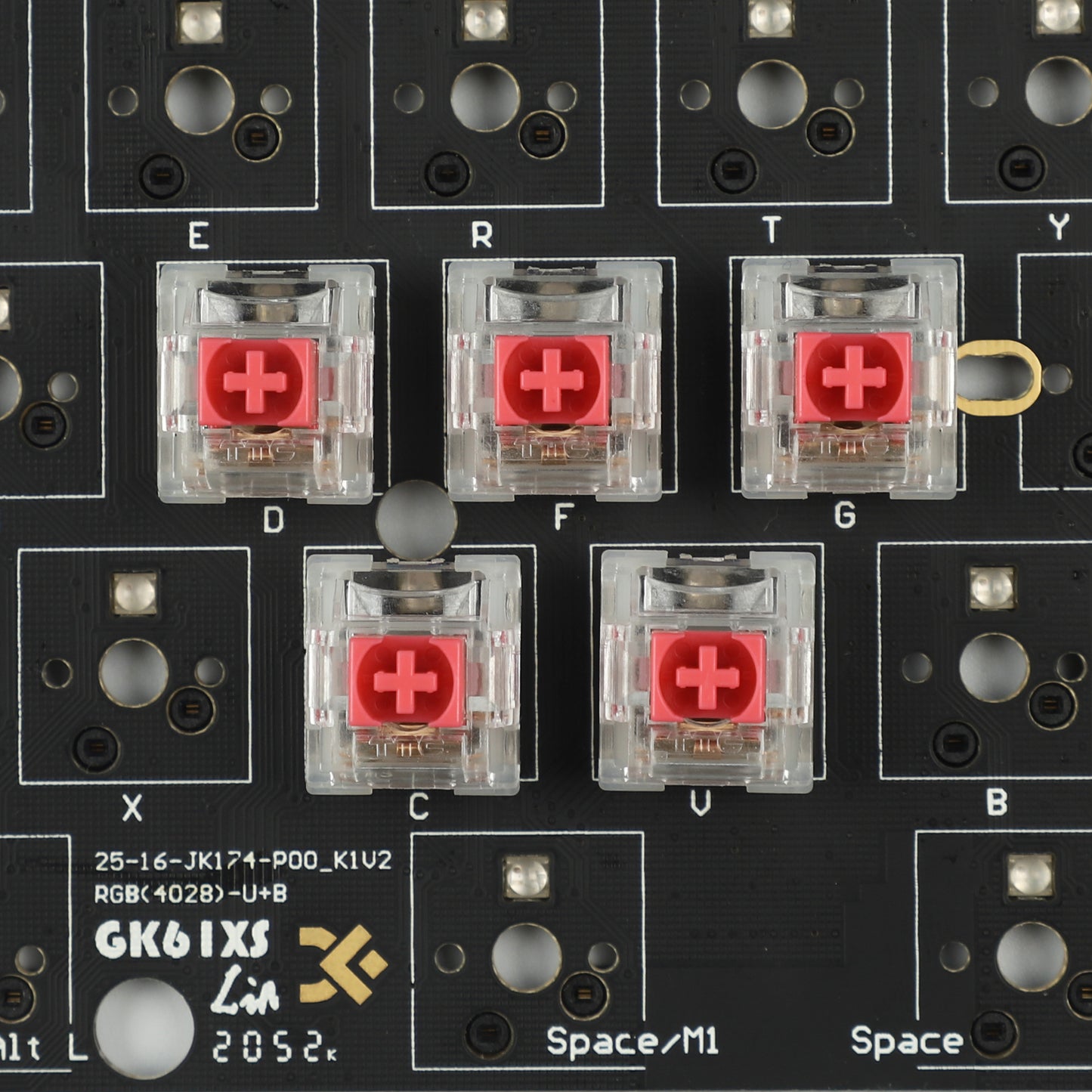

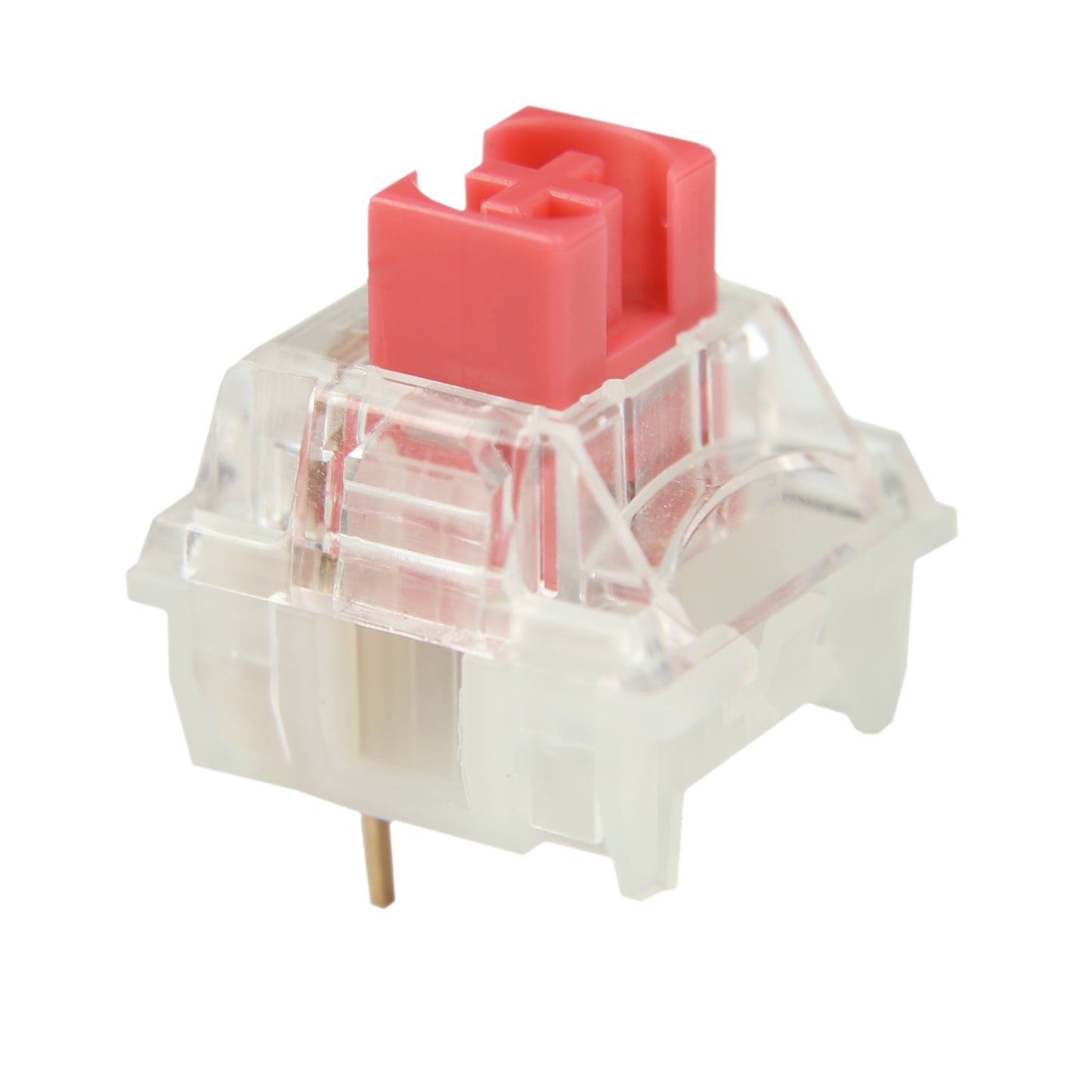

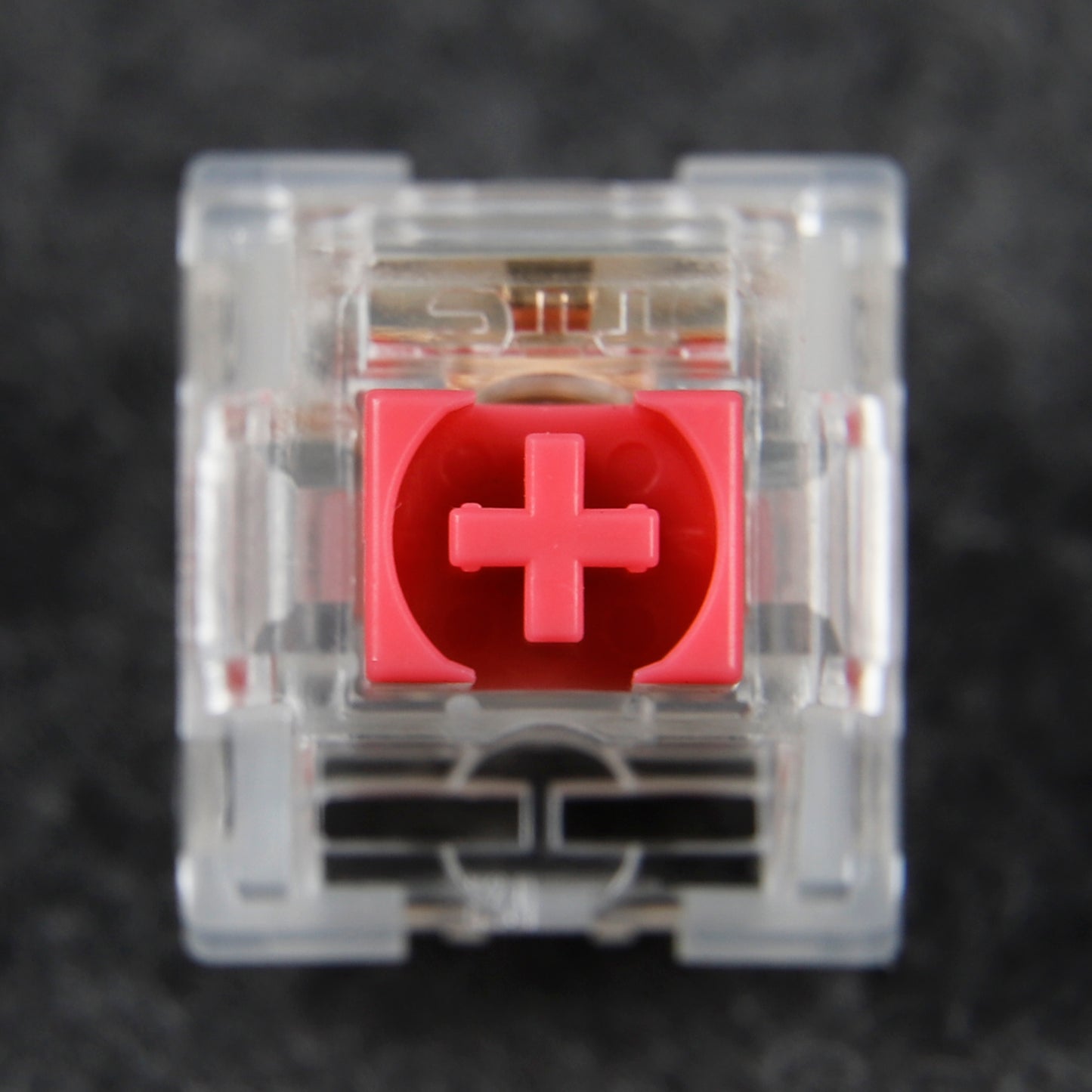

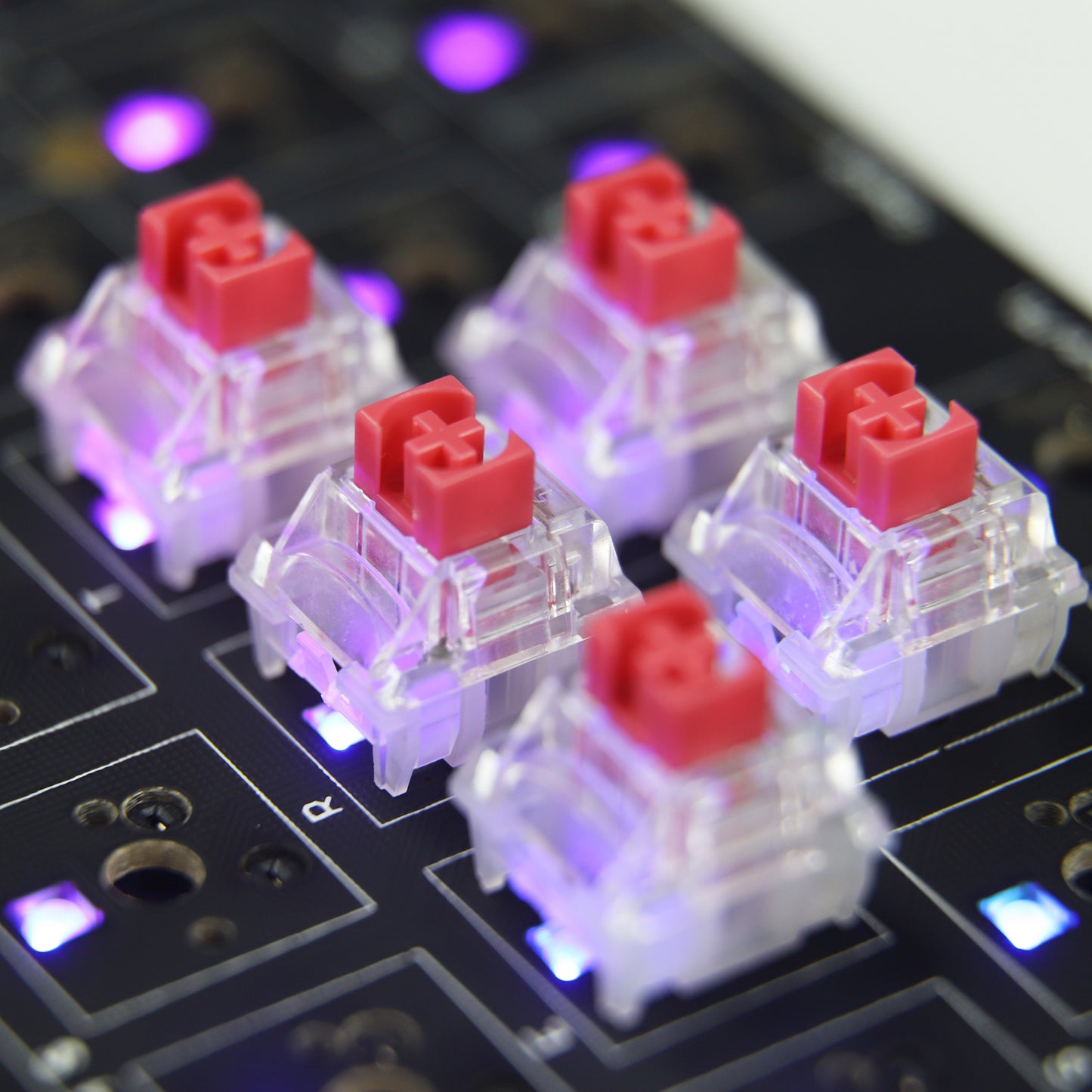

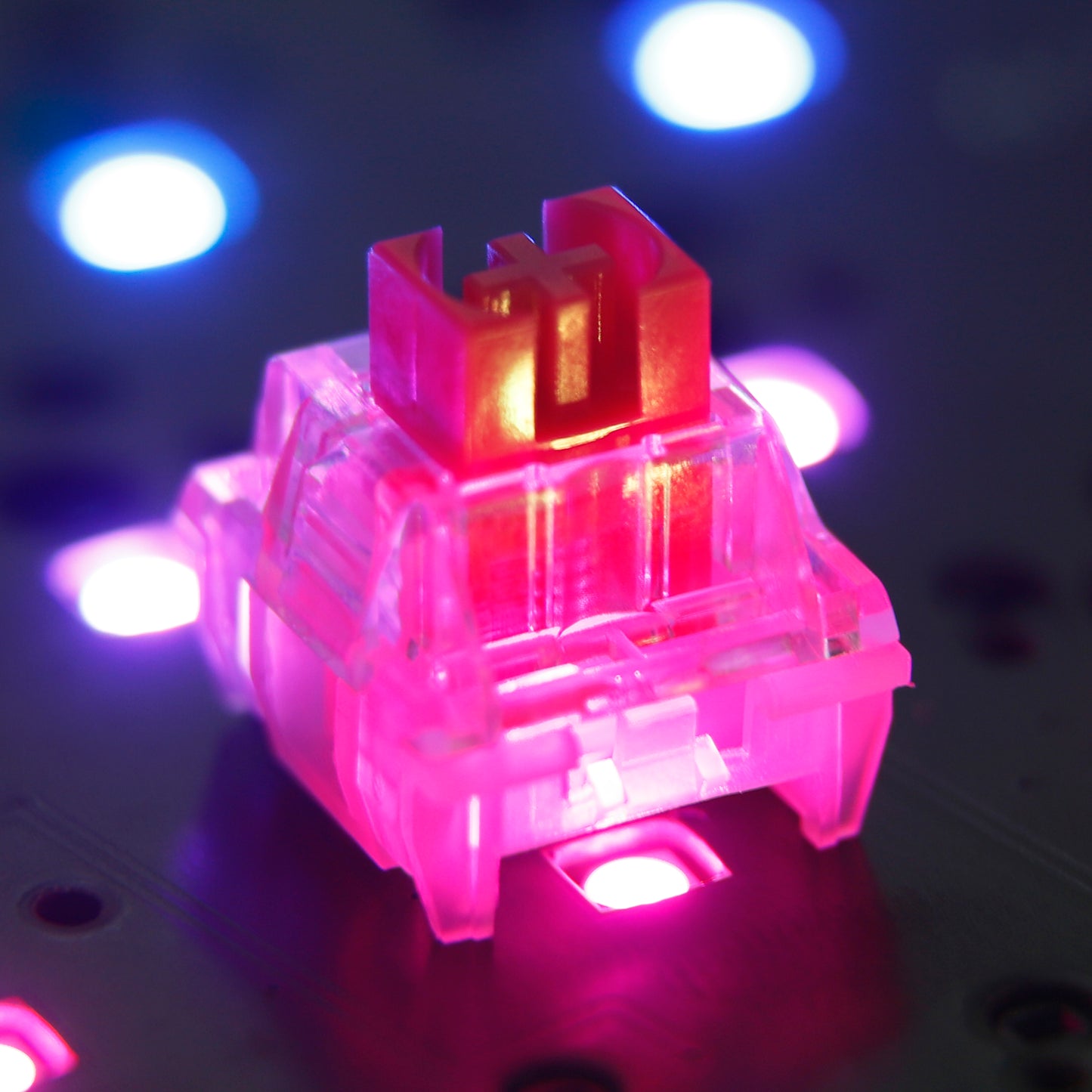

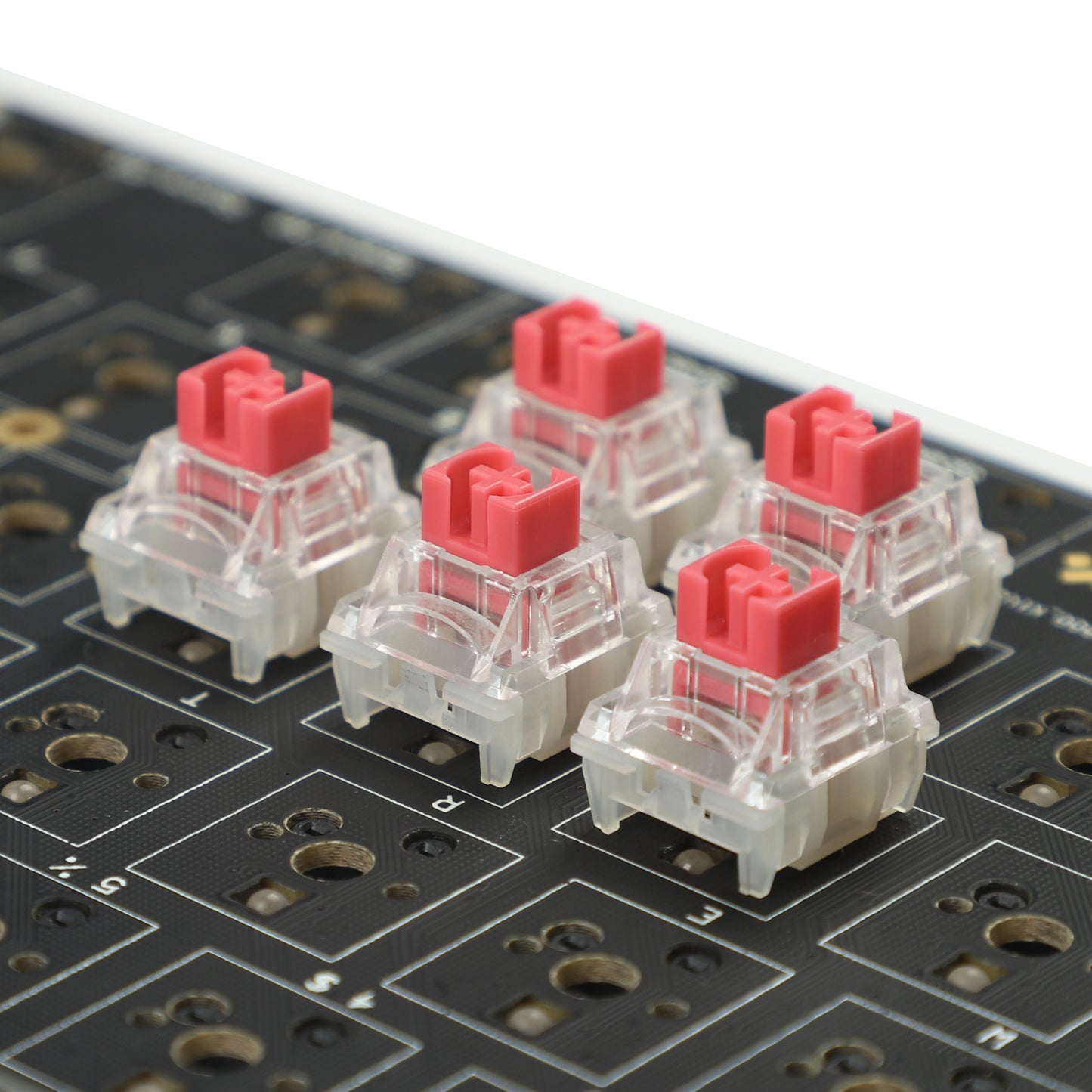

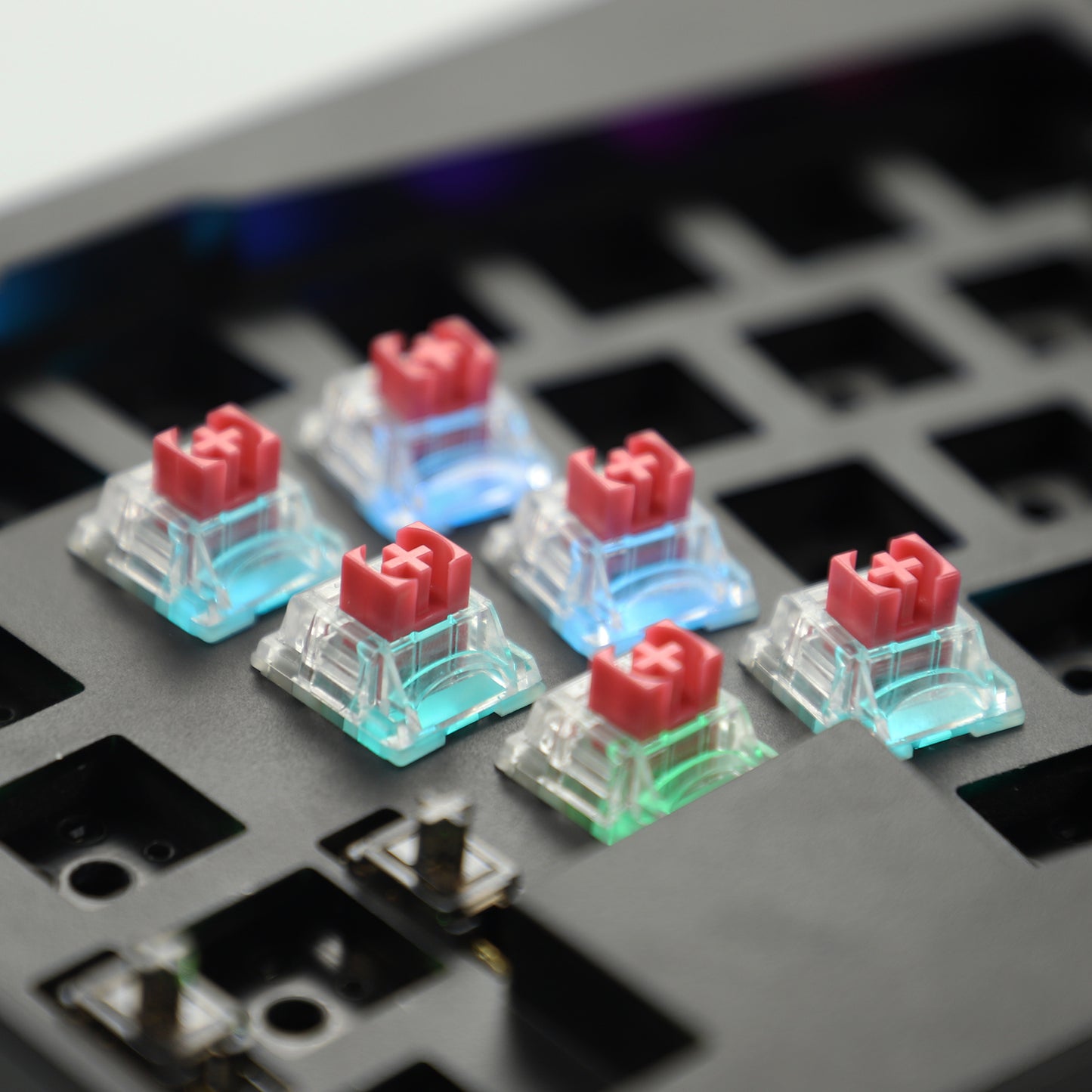

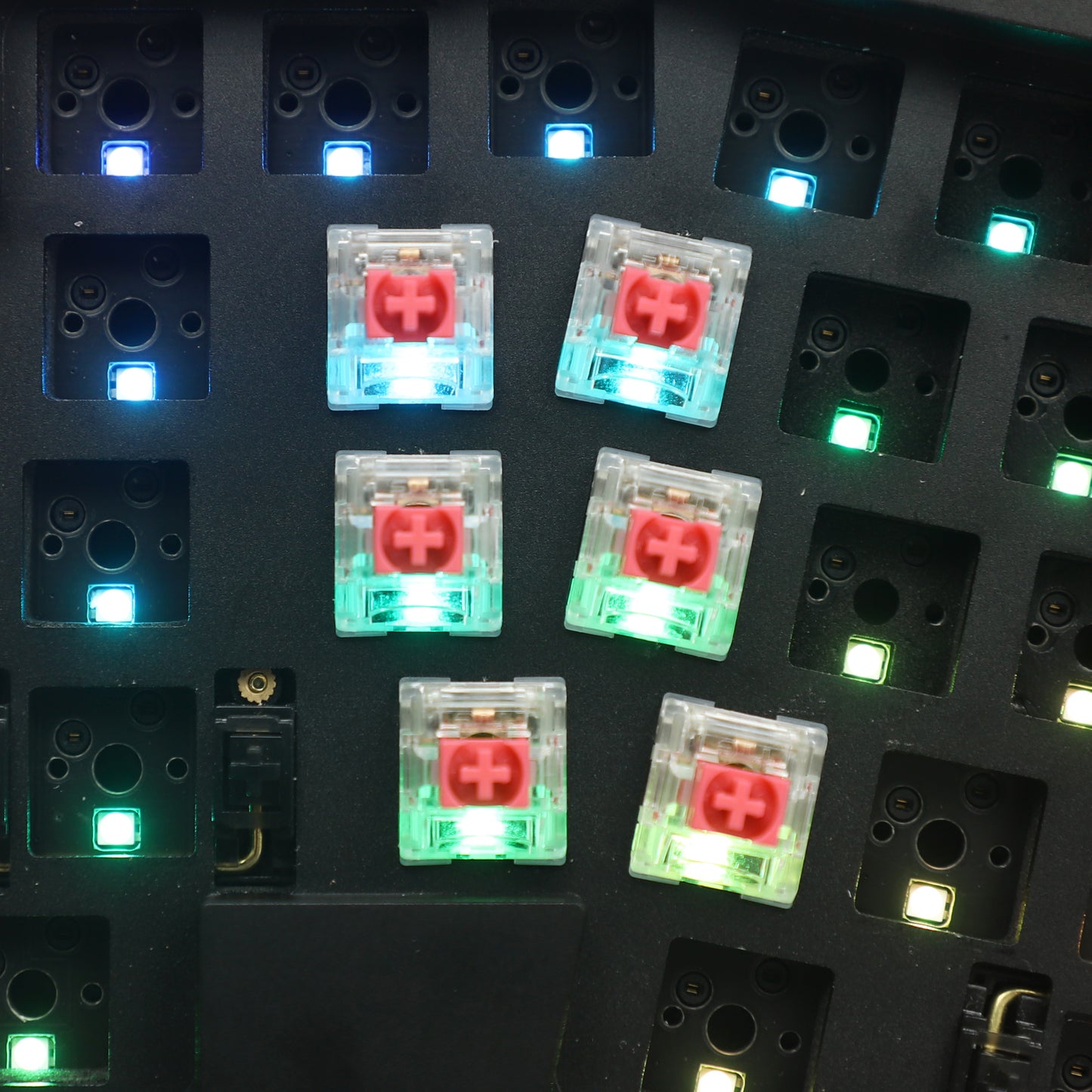

Images Display
