YMD-75% 84 Wood Kit(Standard QMK YMD-75% 84 V3 Hotswap Kit/ANSI And ISO Supported)

Package Included

YMD-75% 84 Wood Kit: Walnut Wood + Plate + YMD75 v3 Hotswap QMK Type C PCB + Switch puller + Enough PCB Stabilizers + Rubber Pads

Add wrist for the better using if you need.

Details

From 108 TKL etc to 75%,75% as the standard middle size layout keyboard,fits working and gaming of situation better for some special spaces.

Customized walnut wood case,walnut wood of the surface pattern is different because of the material.

Walnut wood of the different lifes will create the different touches and temperature differences,so wood case of feature all is different in using.

PCB supports QMK and VIA programmable with type C port for connections in PC Windows Phone etc.And we have given 4 layouts as options,it is A-D north facing with rgb underglow hotswap pcb.

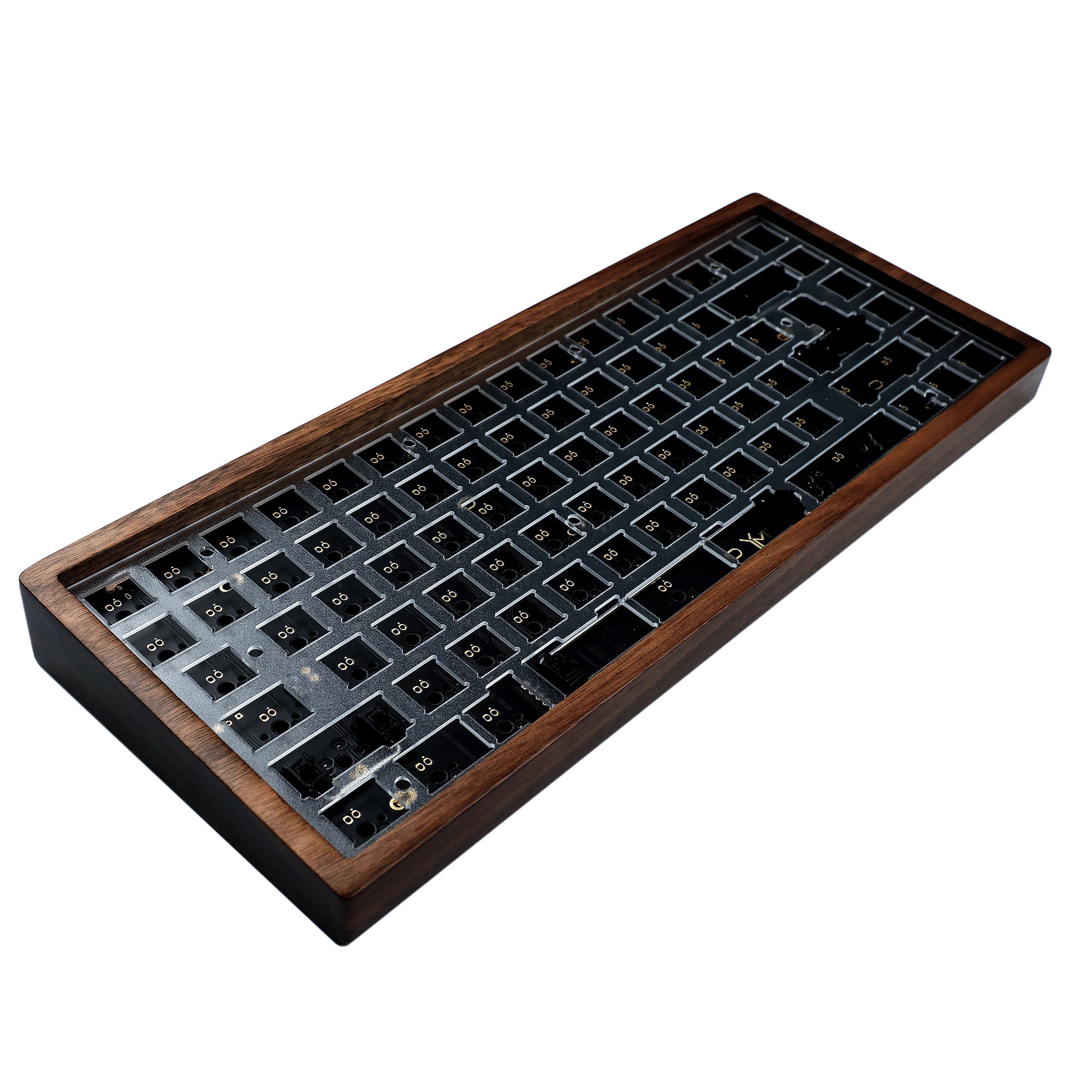

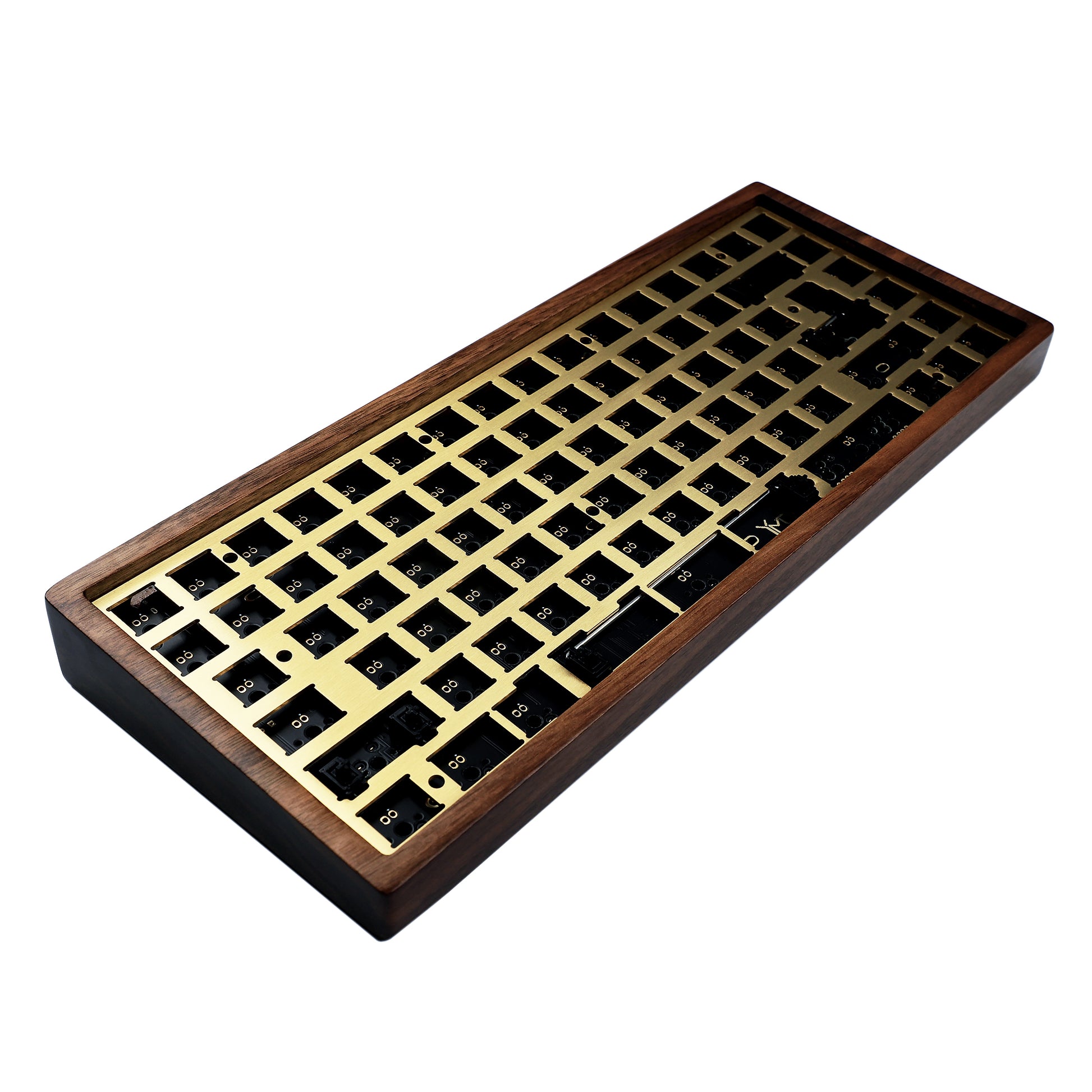

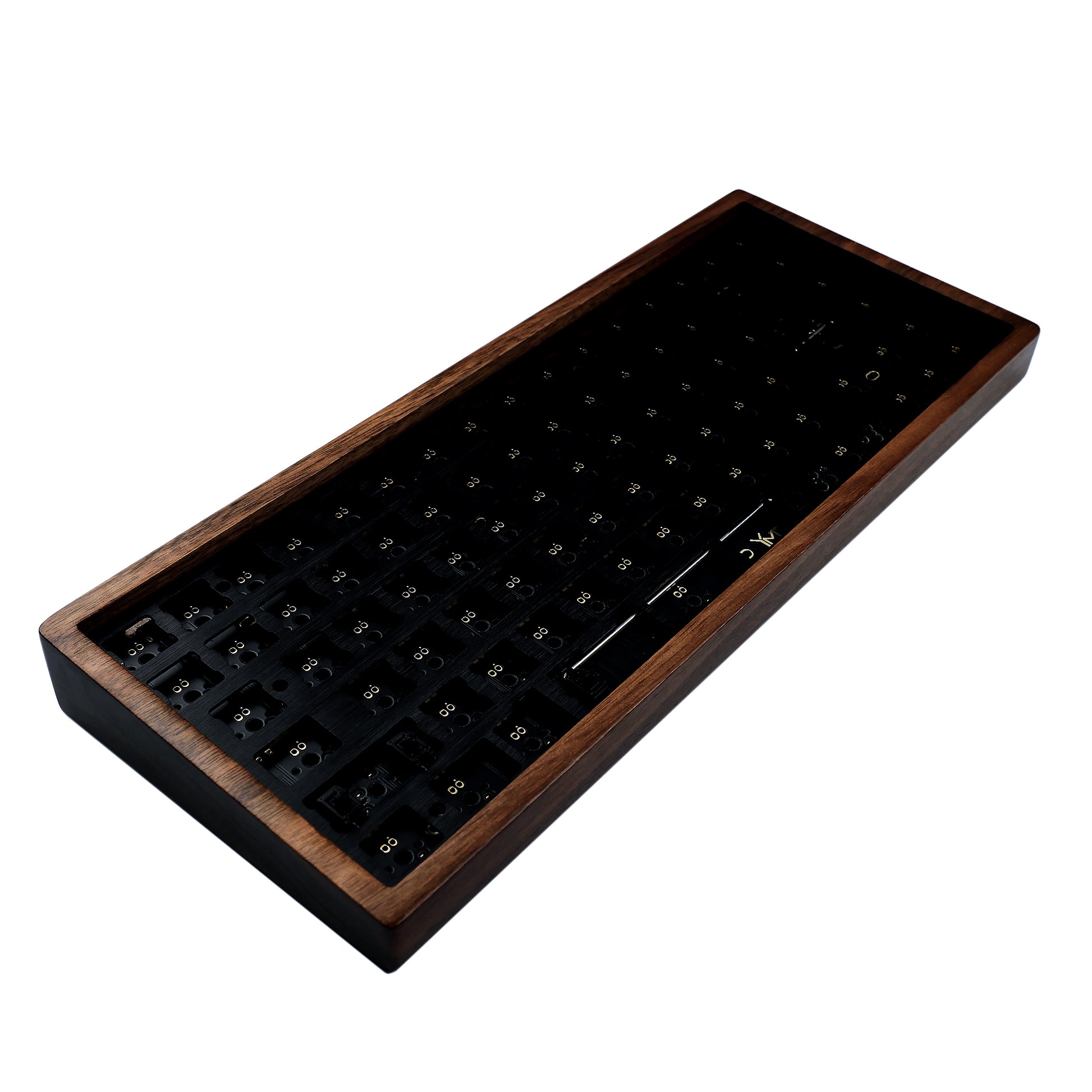

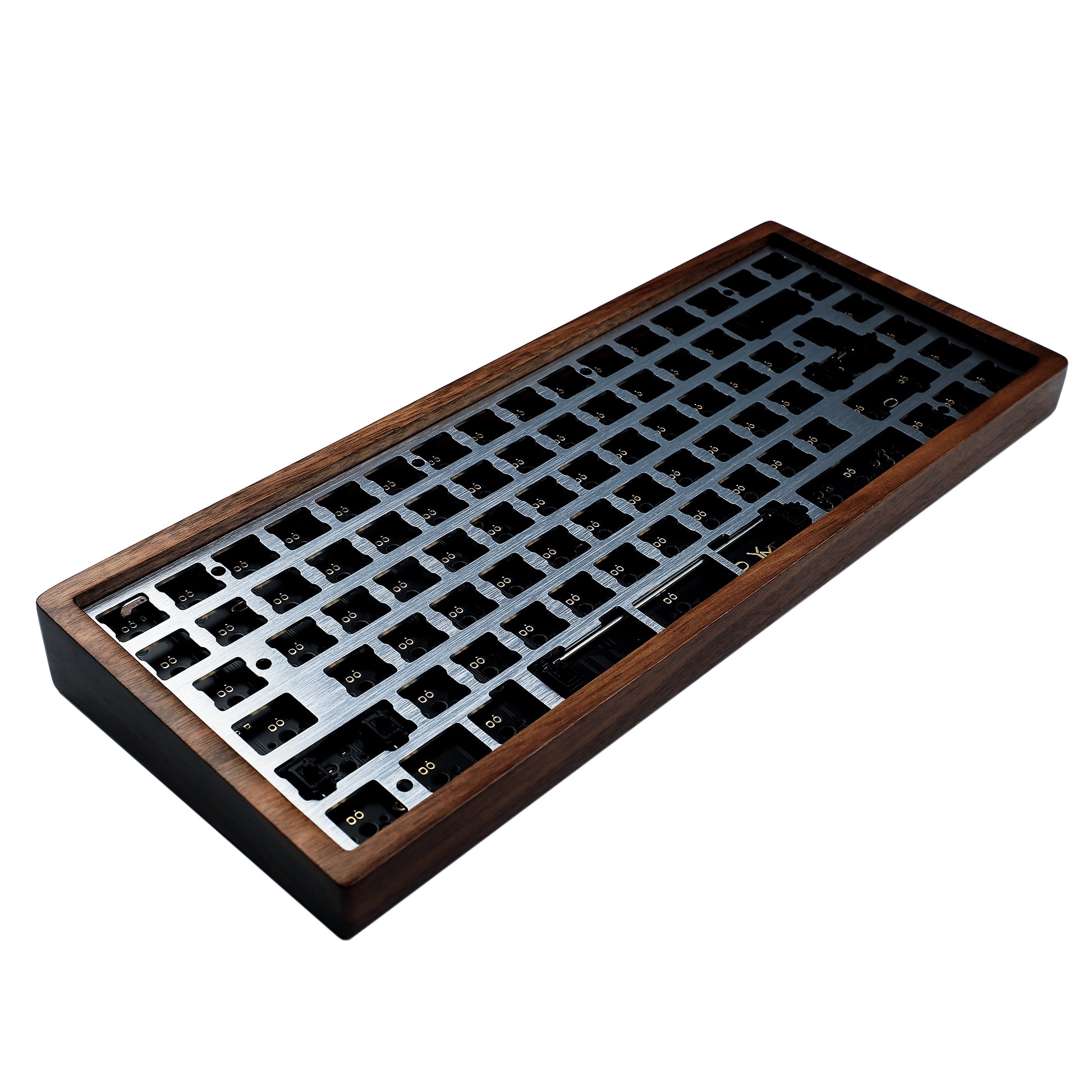

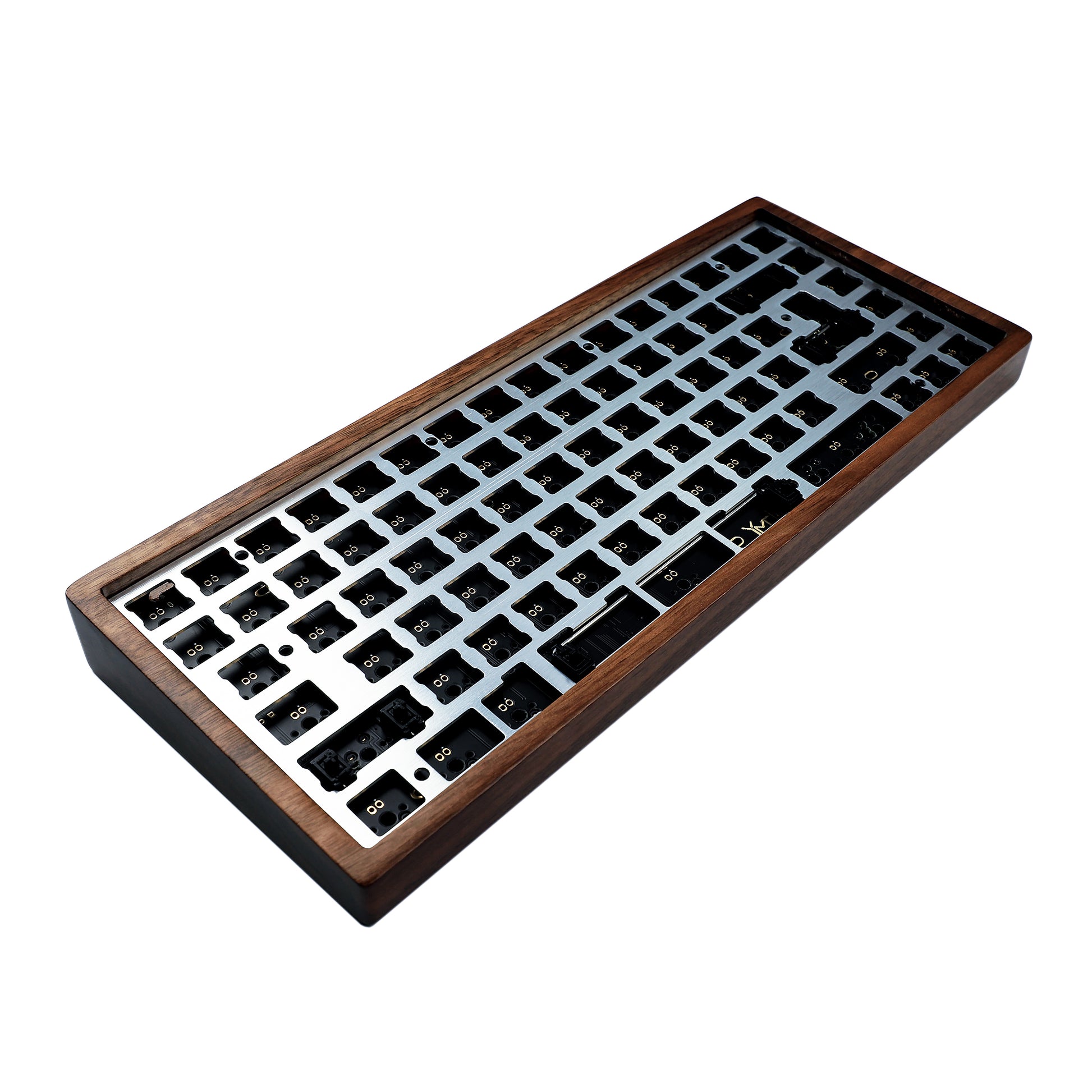

Plate still is aluminum/Brass/PC as the material to fix switches with pcb.Keep more options for handle feel of switches.

Note

If you need add leds yourself,please note that it only supports one color now for backlit.And some keys of places are different in leds of direction for hotswap pcb,like right 1u alt ctrl,left 2.25u shift etc keys.

Add foam better for handle feels.

VIA manuals

drive.google.com/file/d/1Wb30VnqHMV0dIVNKqcVWVaVzL5ZZgRxM/view?usp=sharing

Layout Supported

Images Display

Kit
