Package Included(Kailh Box Silent Brown / Pink)
Switch*quantities(10/65/90/110 as options)
Details
1.This link is only the shaft and switches for mechanical keyboard.
2.It can only be used with SMD led,can't use switch led.
It can be compatible with 2x3x4mm led and 1.8mm led,however need to solder led to PCB at first,then solder switches on.3mm round can't use even you solder led before switches.
3.The life-time is around 80 million times which is longer than usual switches.
4.This switch is IP56 water-proof and dirt-proof.Has used 18k gold crosspoint technology which makes press feeling better.

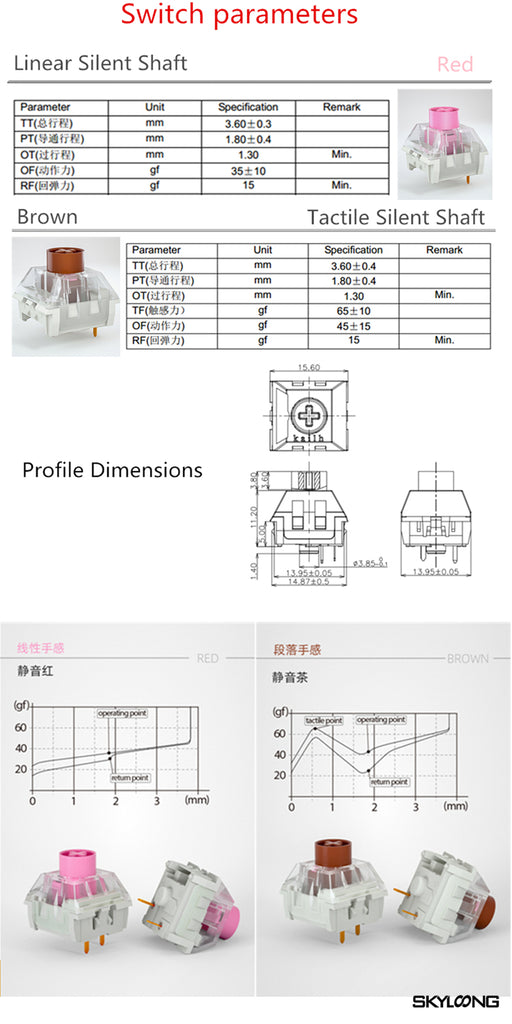

Parameter

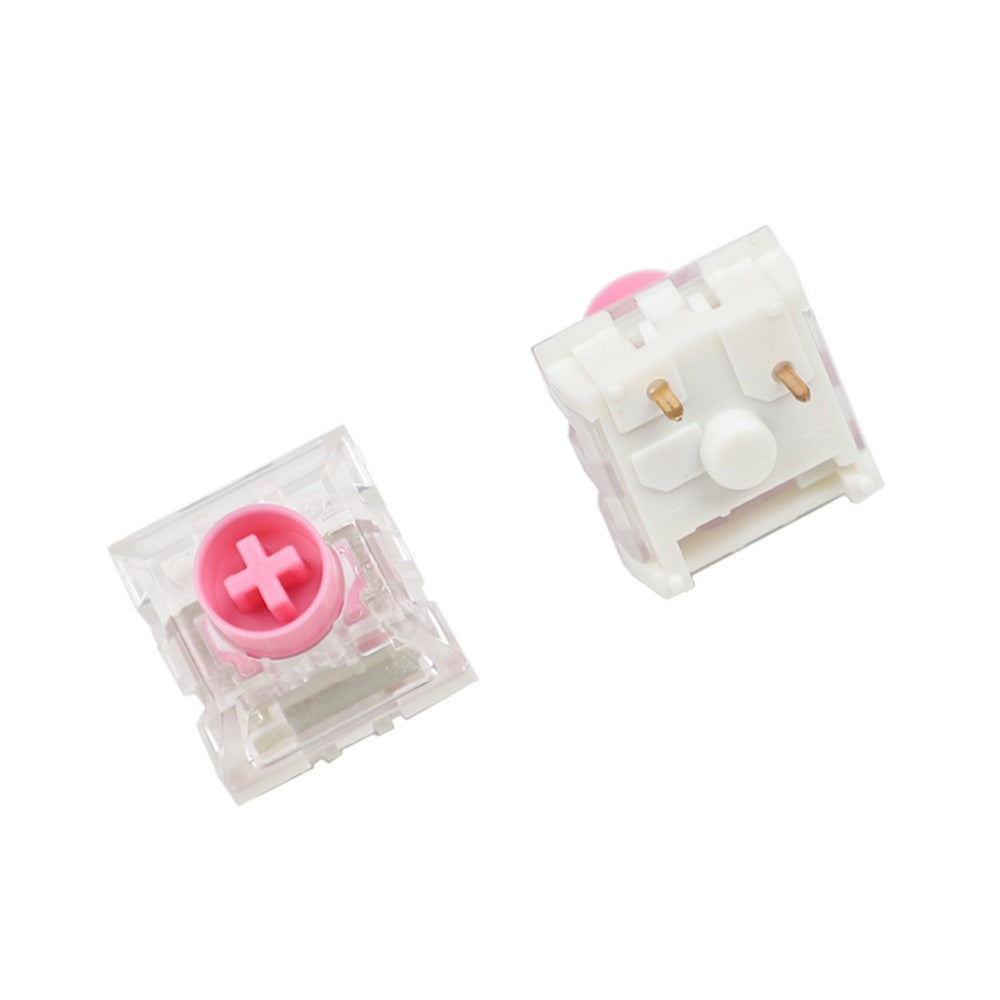

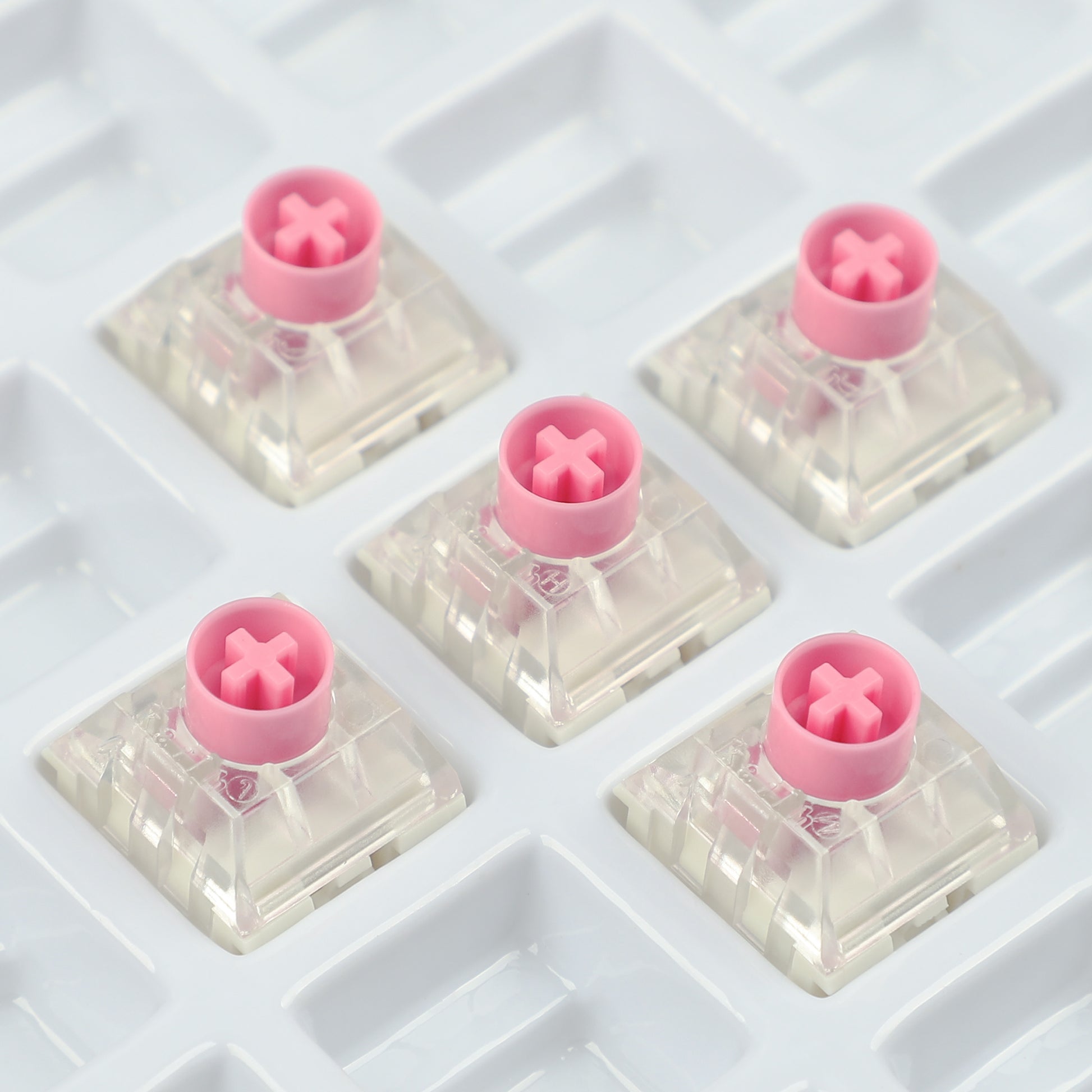

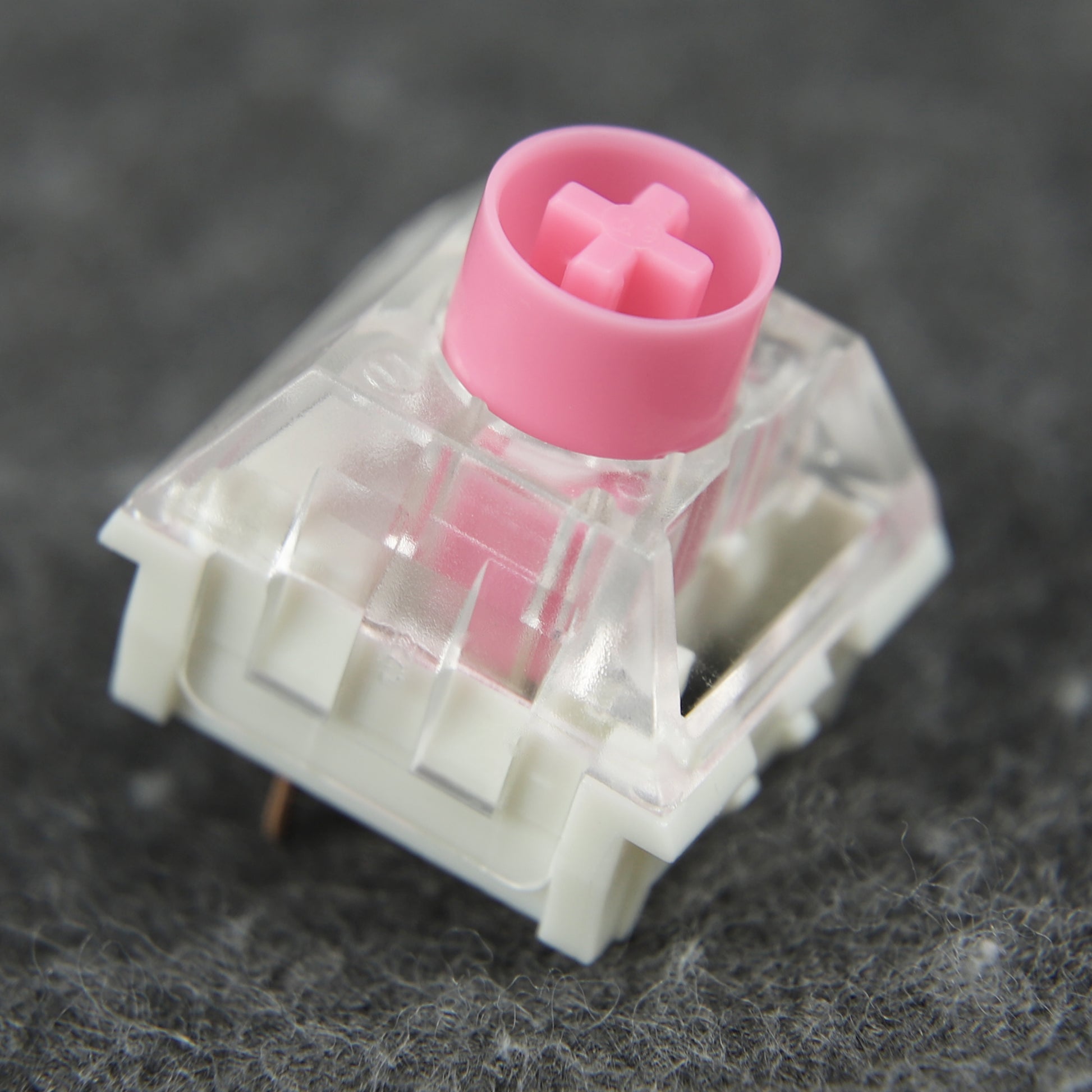

Box Silent Pink
Operating Force:35gf±10gf
Pre travel: 1.8mm±0.4mm
Total Travel: 3.6mm±0.4mm
Life:70 million

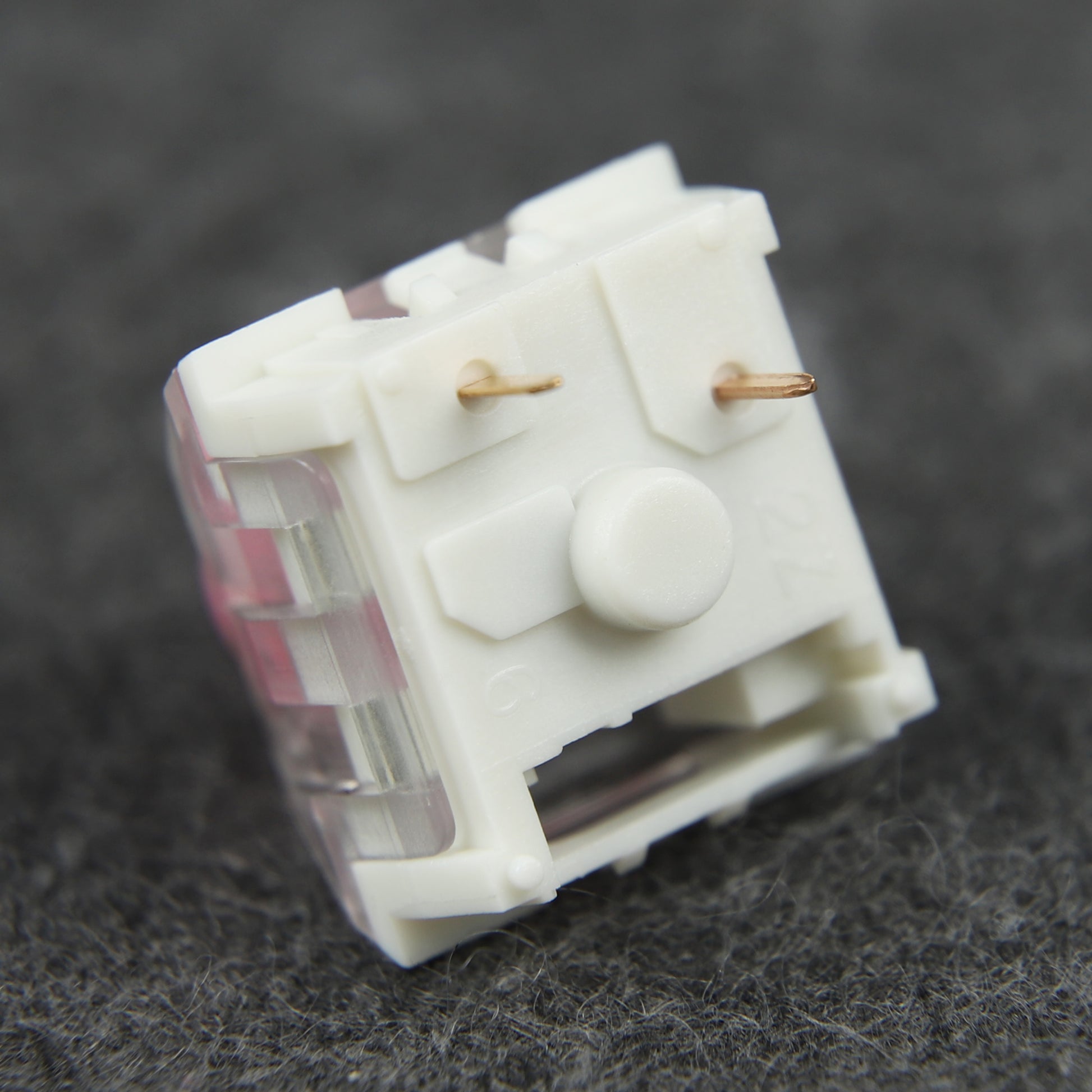

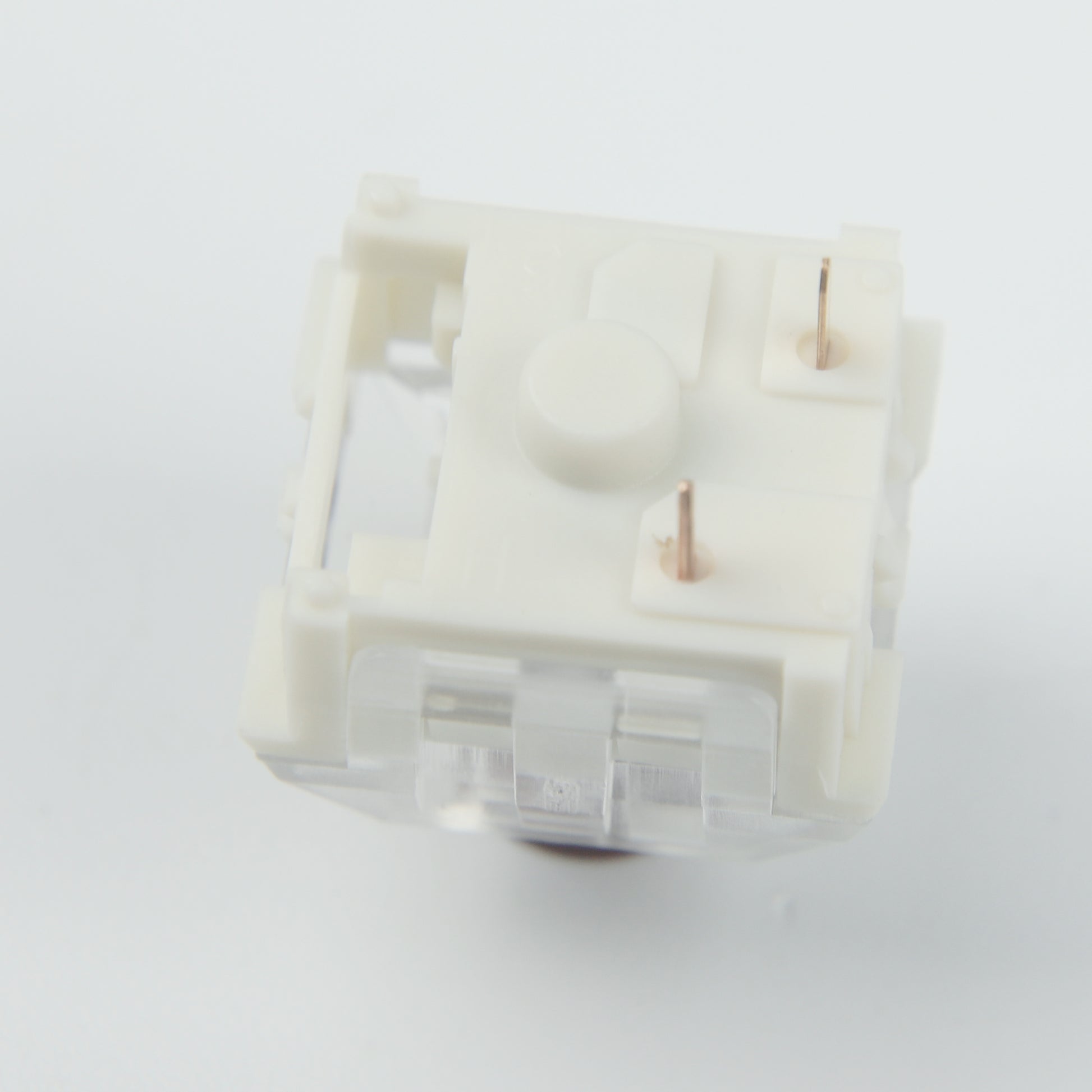

3 Pin Switch

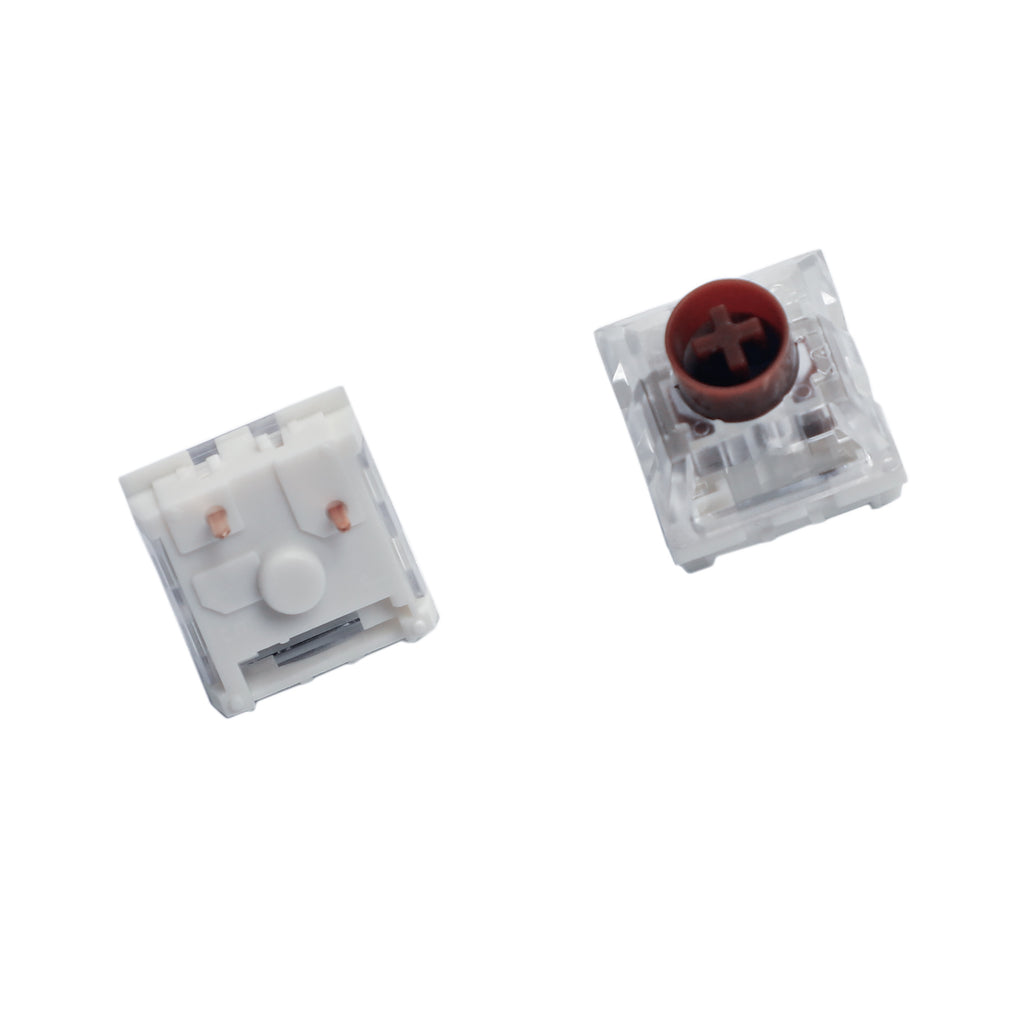

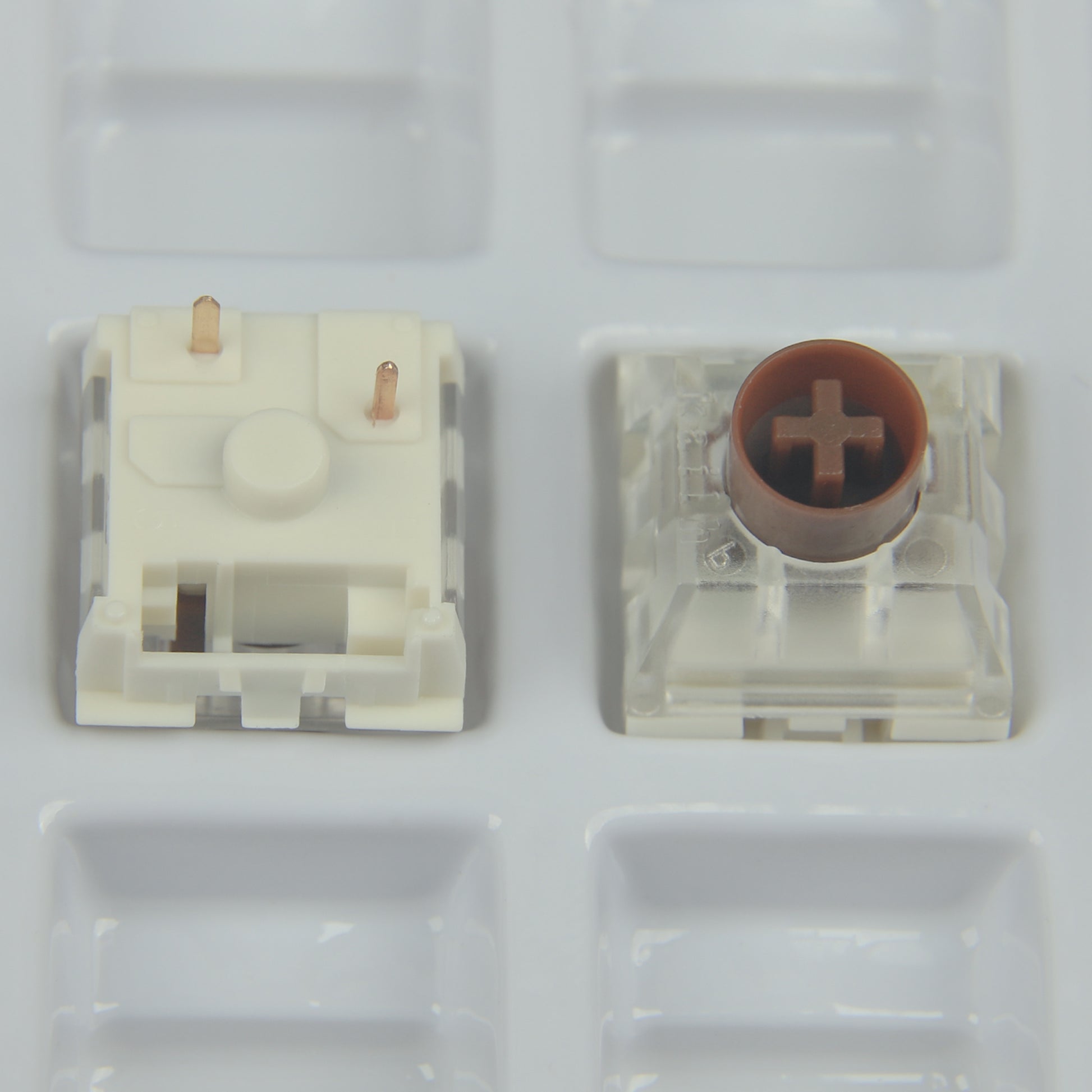

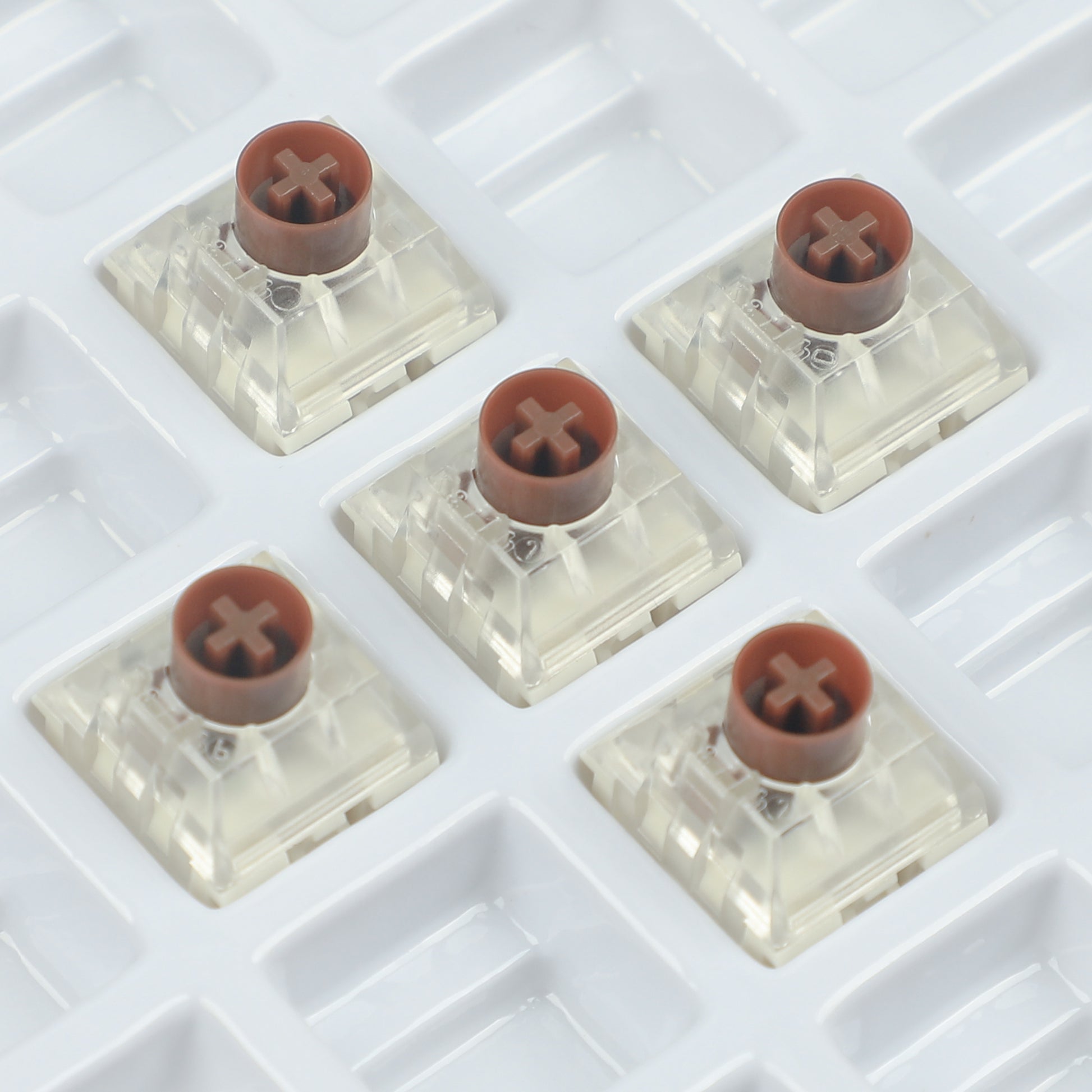

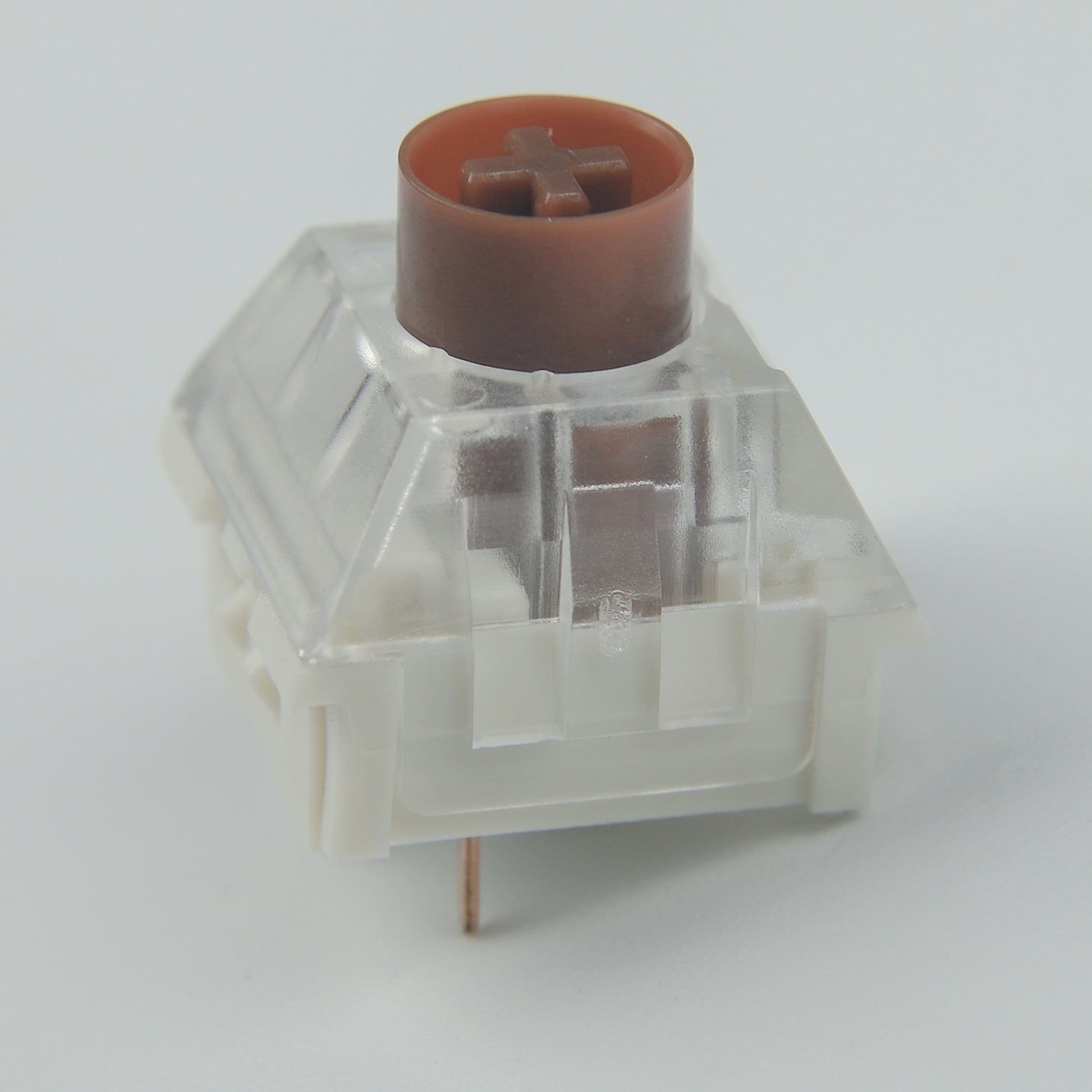

Box Silent Brown
Operating Force:45gf±10gf
Tactile Force:65gf±10gf
Pre travel: 1.8mm±0.4mm
Total Travel: 3.6mm±0.4mm
Life:70 million
3 Pin Switch

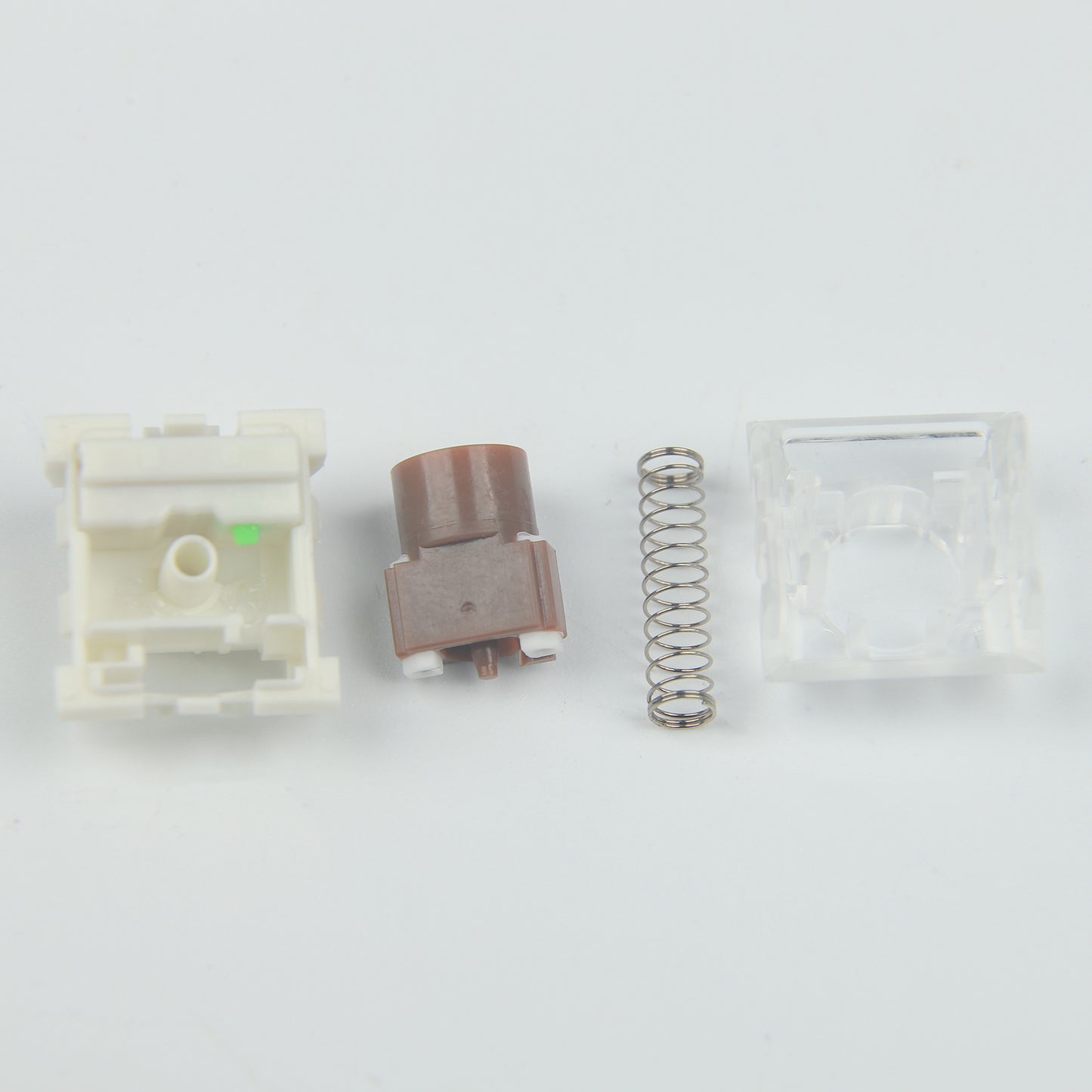

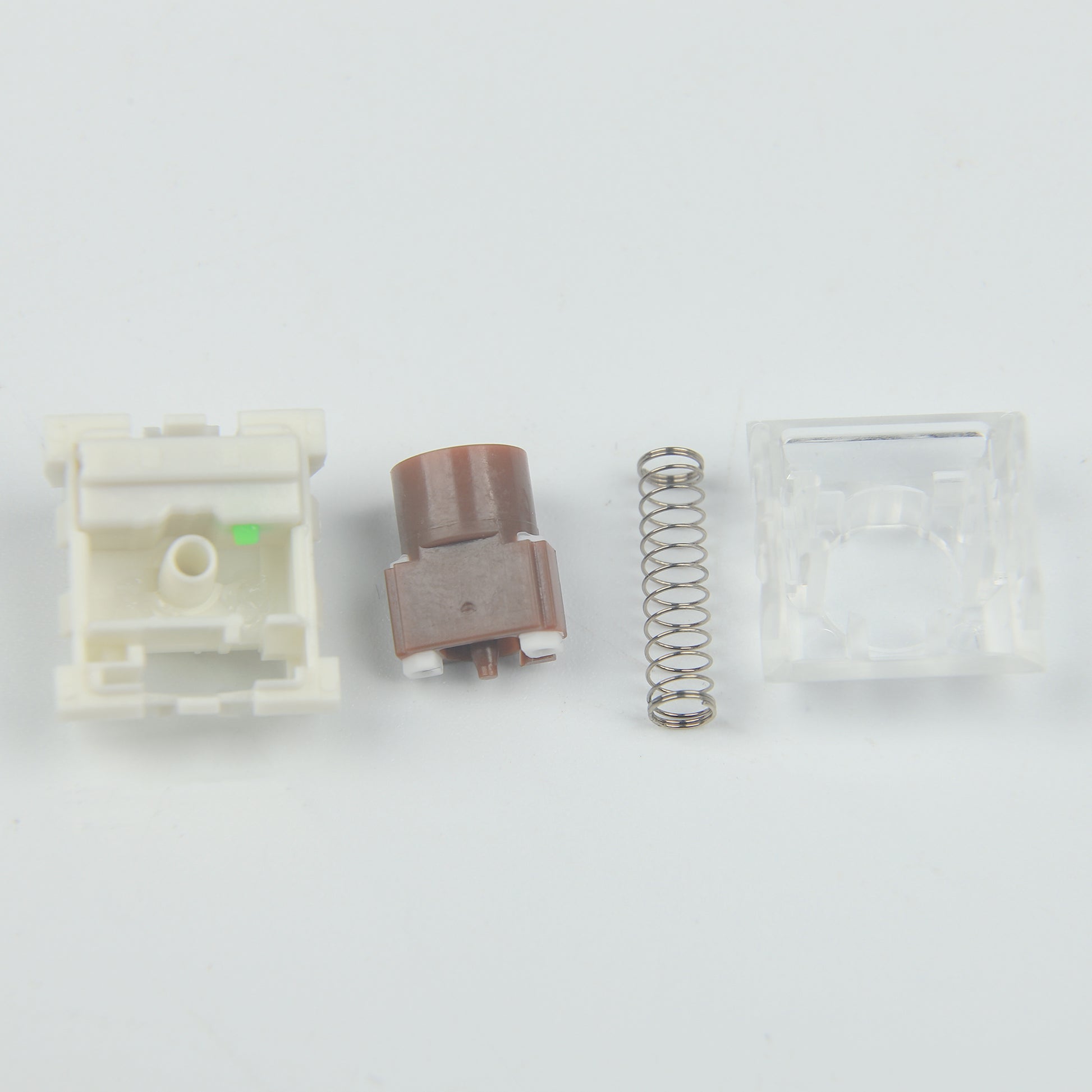

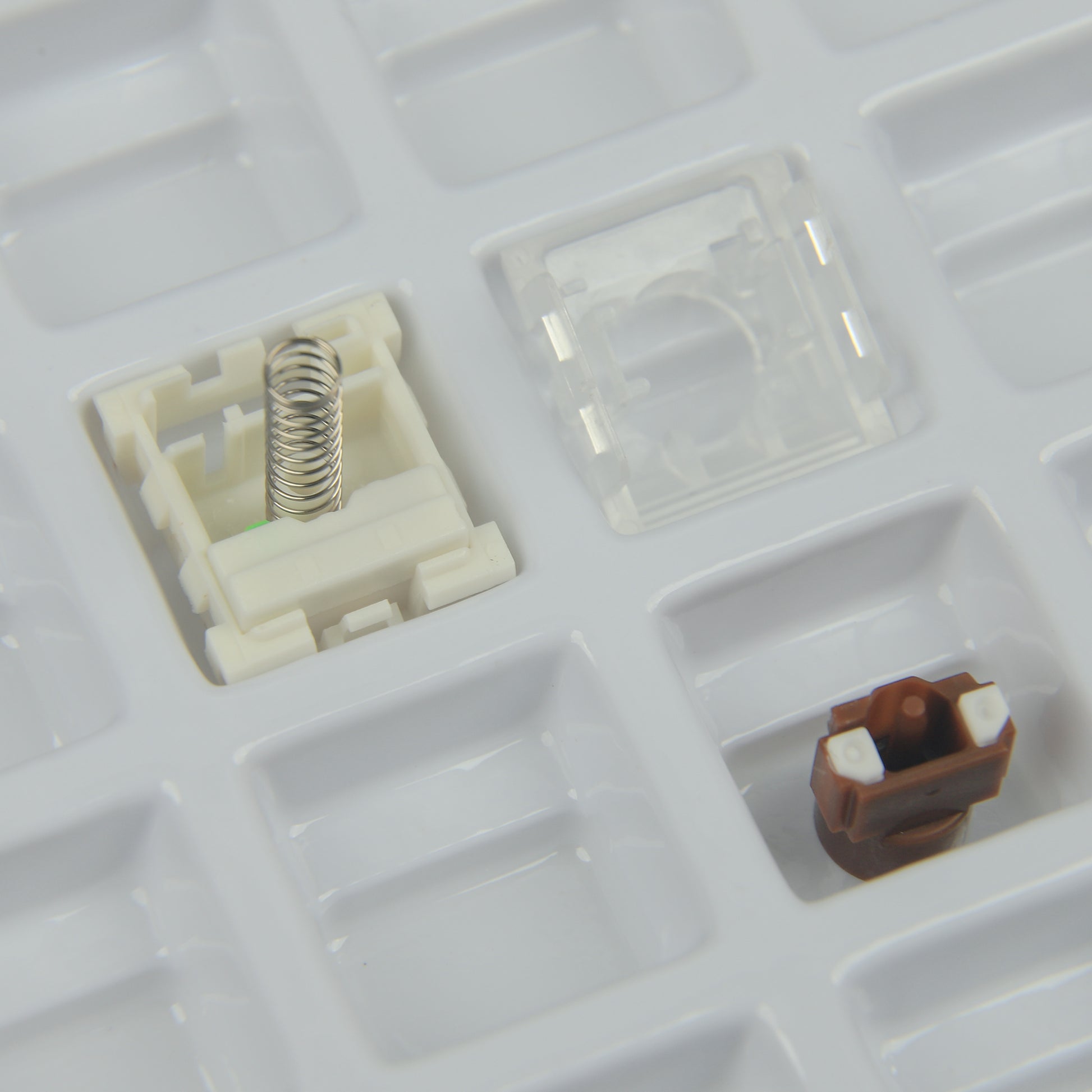

Images Display
