YMD-60% GH60 Splitted Wood Case Kit(QMK Soldering Supported/ANSI ISO Multi-Layout Supported)
YMD-60% GH60 Splitted Wood Case Kit(QMK Soldering Supported/ANSI ISO Multi-Layout Supported)
Package Included
YMD-60% GH60 Spillited Wood Case Kit: Case + Plate + QMK 60 PCB + Stabilizers + Screw + Feets
Details
Standard 60% layout with GH60,the kit will support many layouts for GH60%.Like poker/pure/7u WKL/Standard ISO.For 60% layout,use it for gaming better.
CNC splitted bamboo wood case,wood case of the surface pattern is different because of the material.
Wood case of the different lifes will create the different touches and temperature differences,so wood case of feature all is different in using.
QMK 60% YD60MQ south facing soldering pcb,fits qmk and via programmable.
Non rgb underglow installed.If you need add it for the kit,can add more 3 usd by ordering 6 pcs this links with kit and leave a message to us in cart of page for it.
Anodized aluminum plate,fit poker/pure/7u WKL/Standard ISO layouts.
Kit size: Top case 301*109*25 mm,bottom case 301*109*16 mm.
Note
If you need use it in minila/HHKB/2u shift 64/2.25u shift 64 layouts,need change the plate for it because plate of these layouts are different with this kit.
You need a soldering iron to install it.
Only support one color for backlit now,even you solder it yourself.
VIA manuals
drive.google.com/file/d/1iHBv3uwBLPdGaUBeAcrGn9RgJLEhqn0k/view?usp=sharing
Images Display

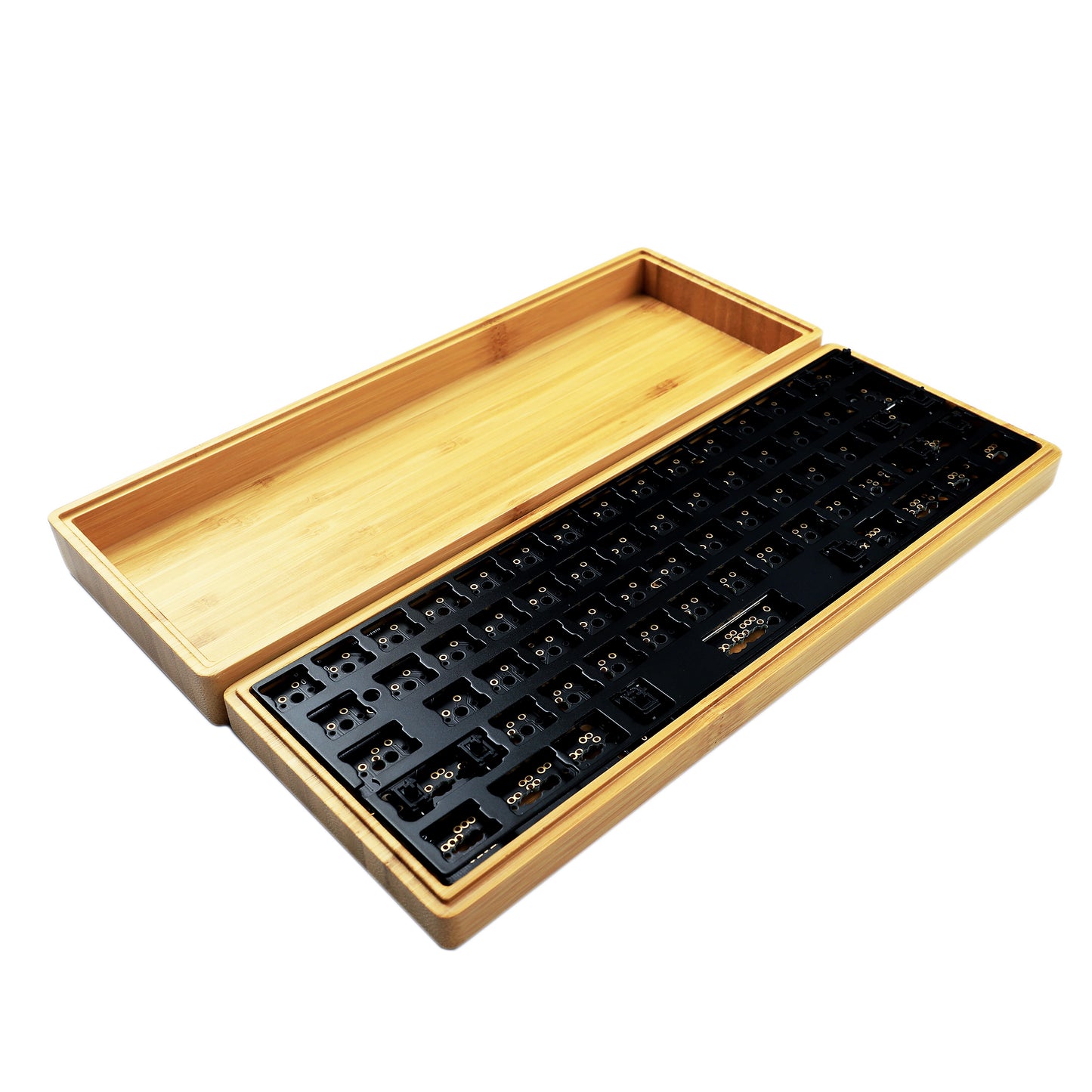

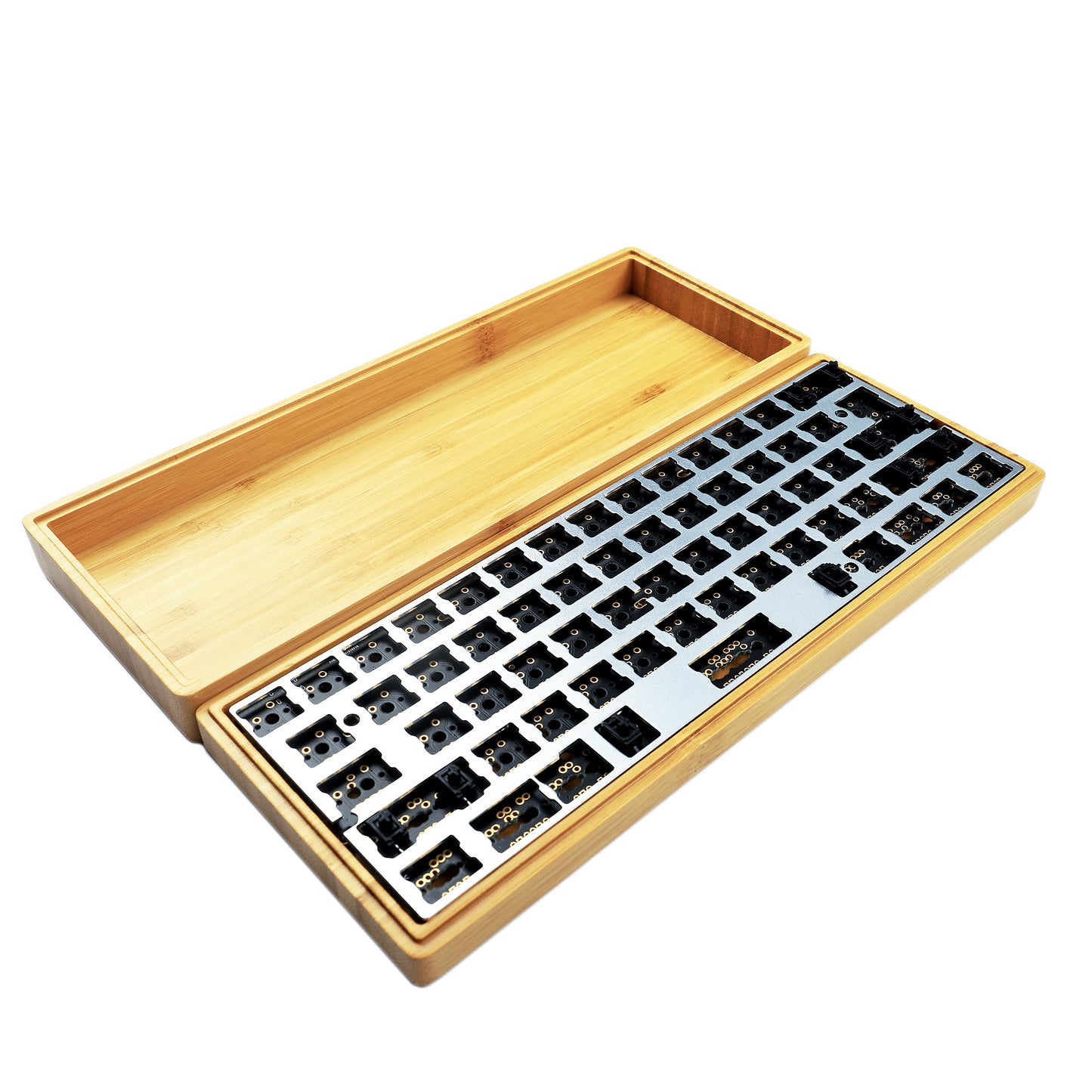

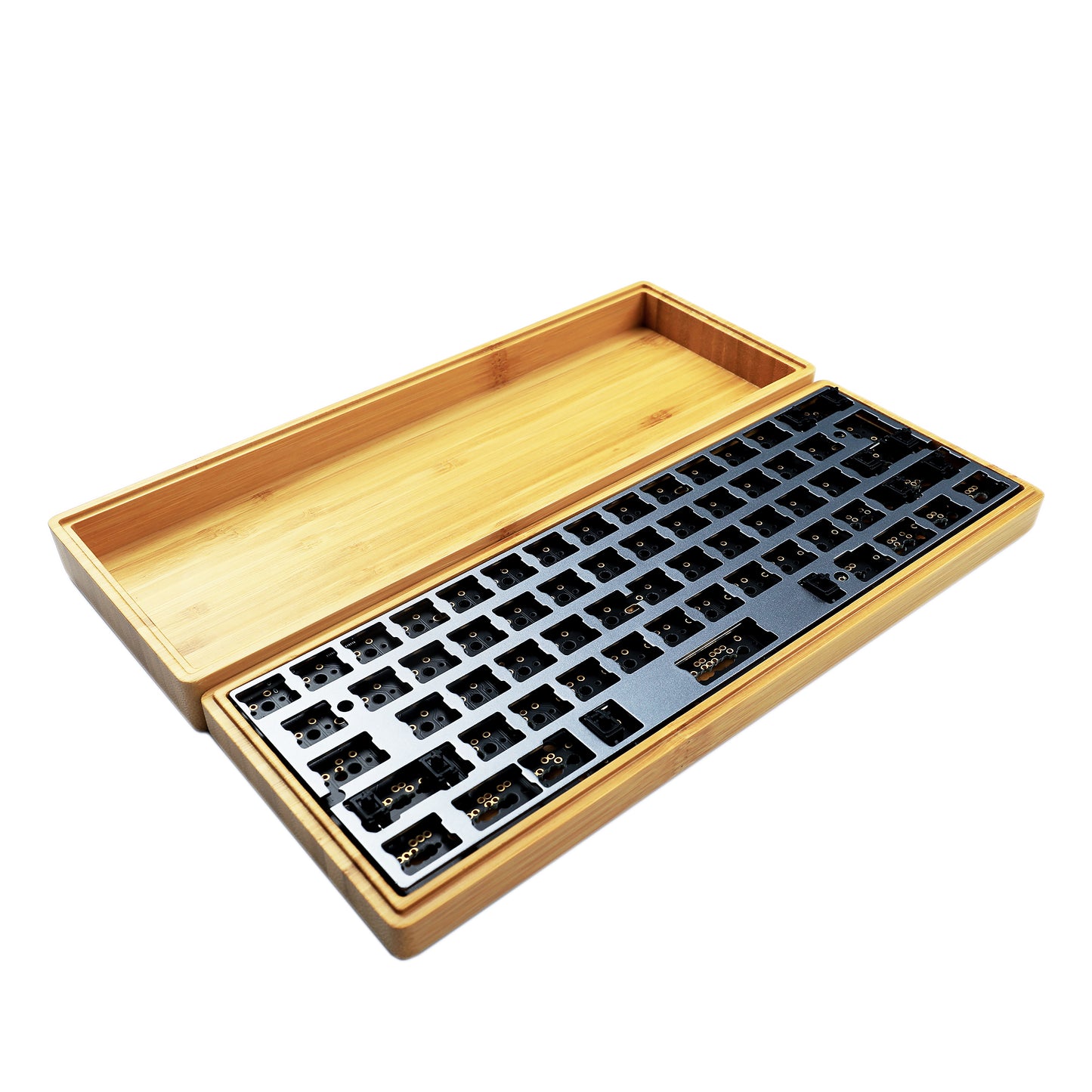

Kit
