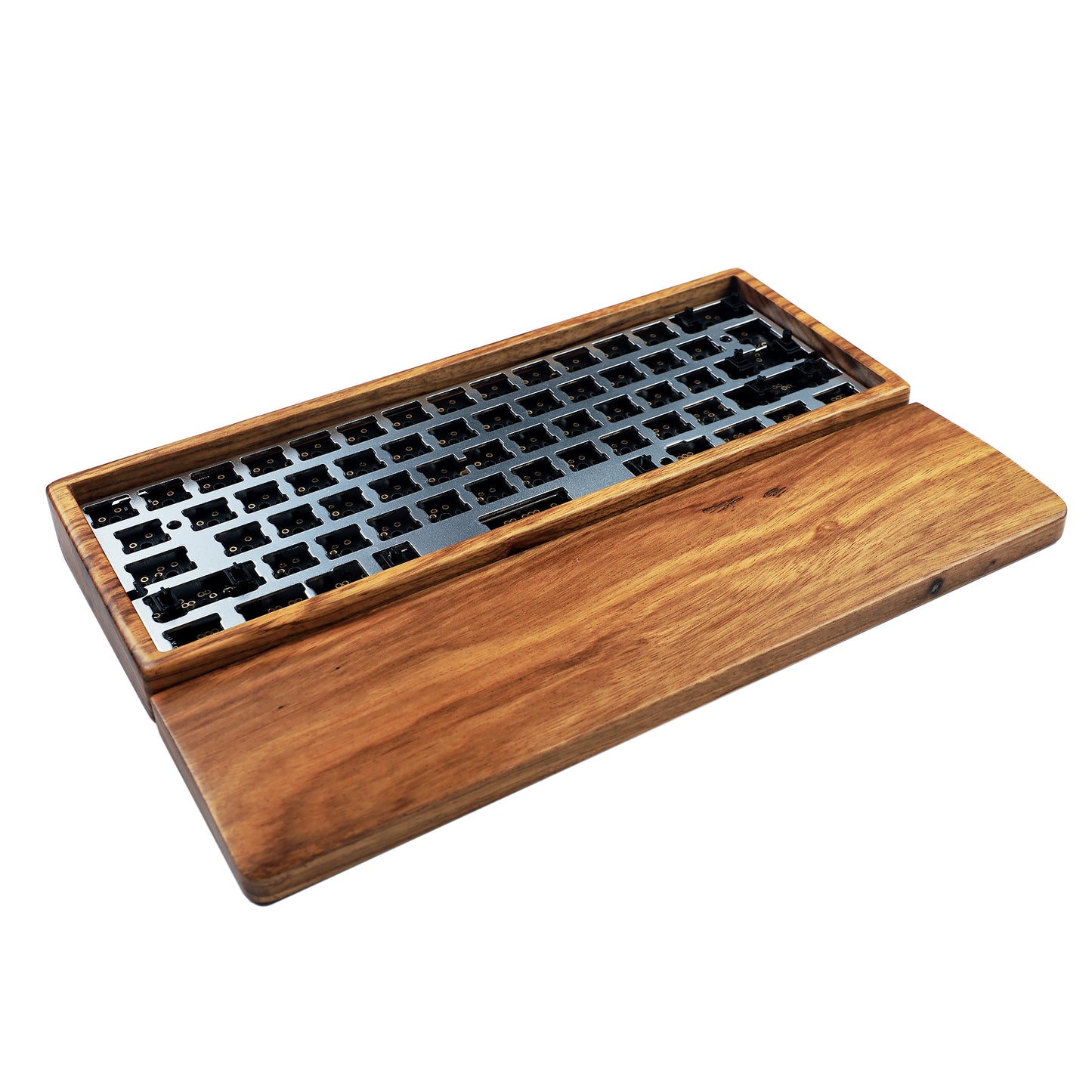

YMD-60% GH60 Wood Case And Wrist Kit(QMK Soldering Supported/ANSI ISO Multi-Layout Supported)

Package Included

YMD-60% GH60 Wood Case And Wrist Kit: Case + Plate + QMK Black No underglow PCB + PCB Stabilizers + Screws + Feets

If you only need case,please choose "Only Case".

Details

Standard 60% layout with GH60,the kit will support many layouts for GH60%.Like poker/pure/7u WKL/Standard ISO.For 60% layout,use it for gaming better.

CNC wood case with wrist,wood case of the surface pattern is different because of the material.Zebra wood/walnut/yellow rosewood as options.

Wood case of the different lifes will create the different touches and temperature differences,so wood case of feature all is different in using.

QMK 60% YD60MQ south facing soldering pcb,fits qmk and via programmable.

Non rgb underglow installed.If you need add it for the kit,can add more 3 usd by ordering 6 pcs this links with kit and leave a message to us in cart of page for it.

Anodized aluminum plate,fits poker/pure/7u WKL/Standard ISO layouts.

Kit size: 304*114*22-32 mm(Had not added switches,keycaps and wrist size)

Note

If you need use it in minila/HHKB/2u shift 64/2.25u shift 64 layouts,need change the plate for it because plate of these layouts are different with this kit.

You need a soldering iron to install it.

Only support one color for backlit now,even you solder it yourself.

Please note
Case and rest height are not the same
Case short side 24mm
Rest hand rest high side 19mm

VIA Manuals

drive.google.com/file/d/1iHBv3uwBLPdGaUBeAcrGn9RgJLEhqn0k/view?usp=sharing

Image Display

Zebra wood

Yellow Rosewood

Walnut Wood
