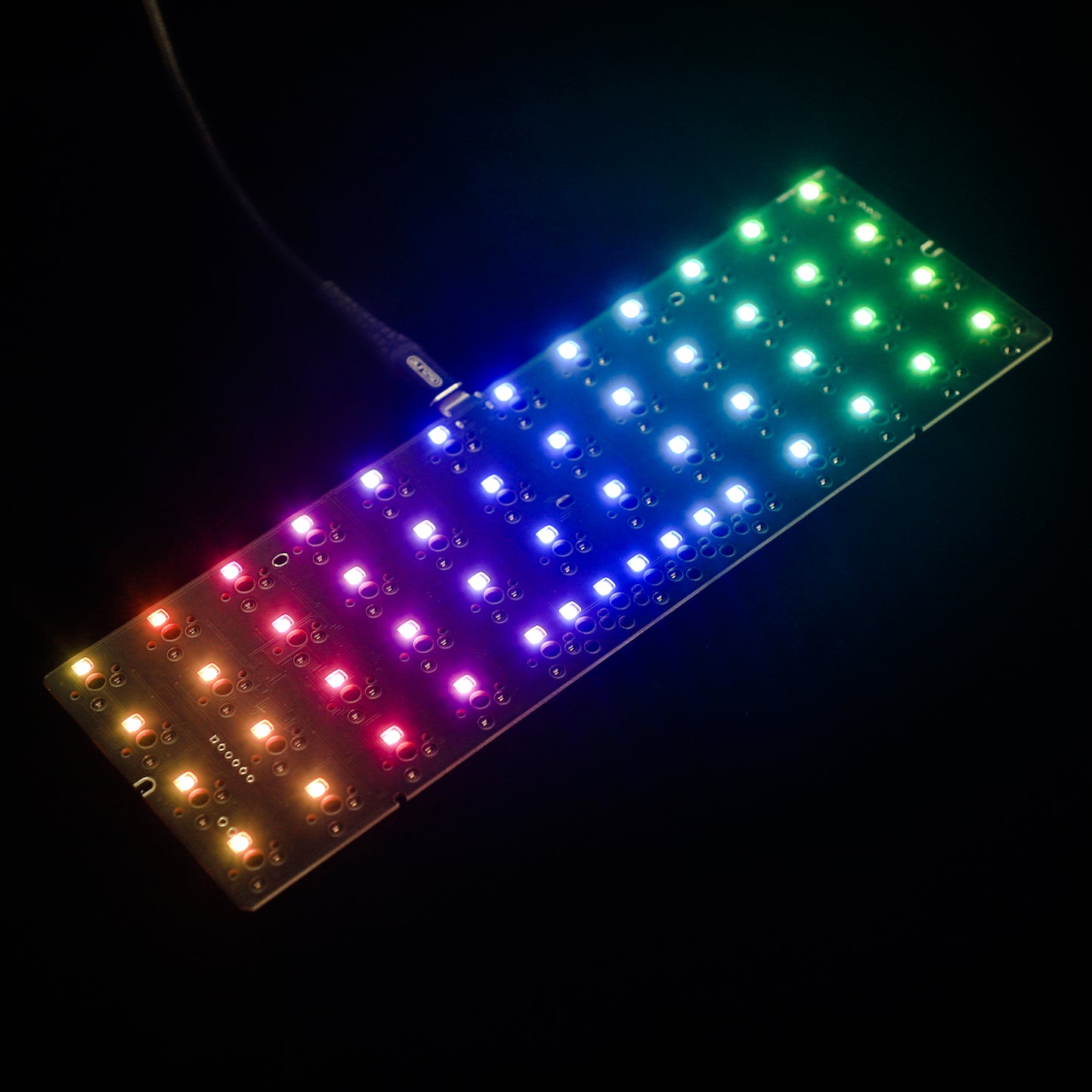

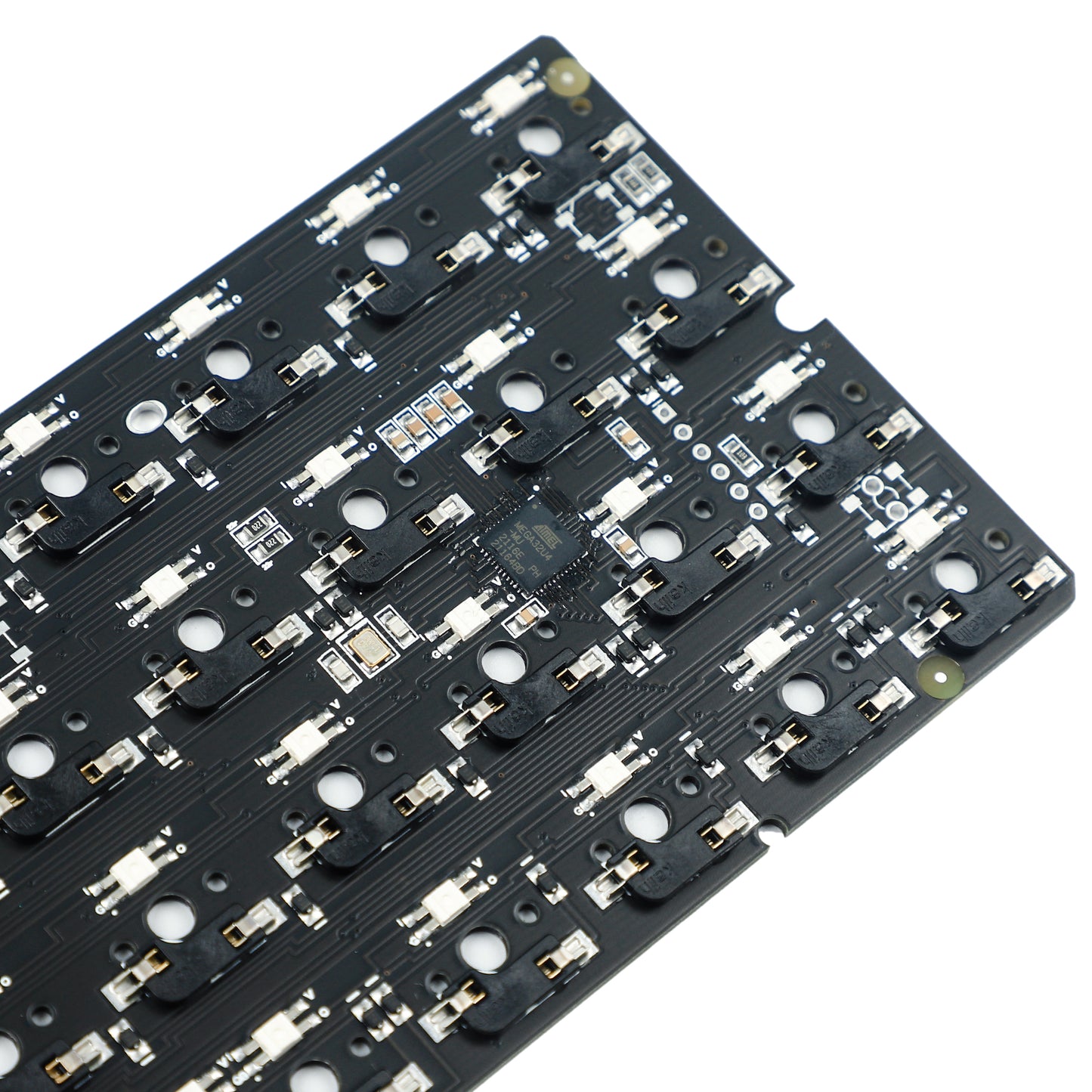

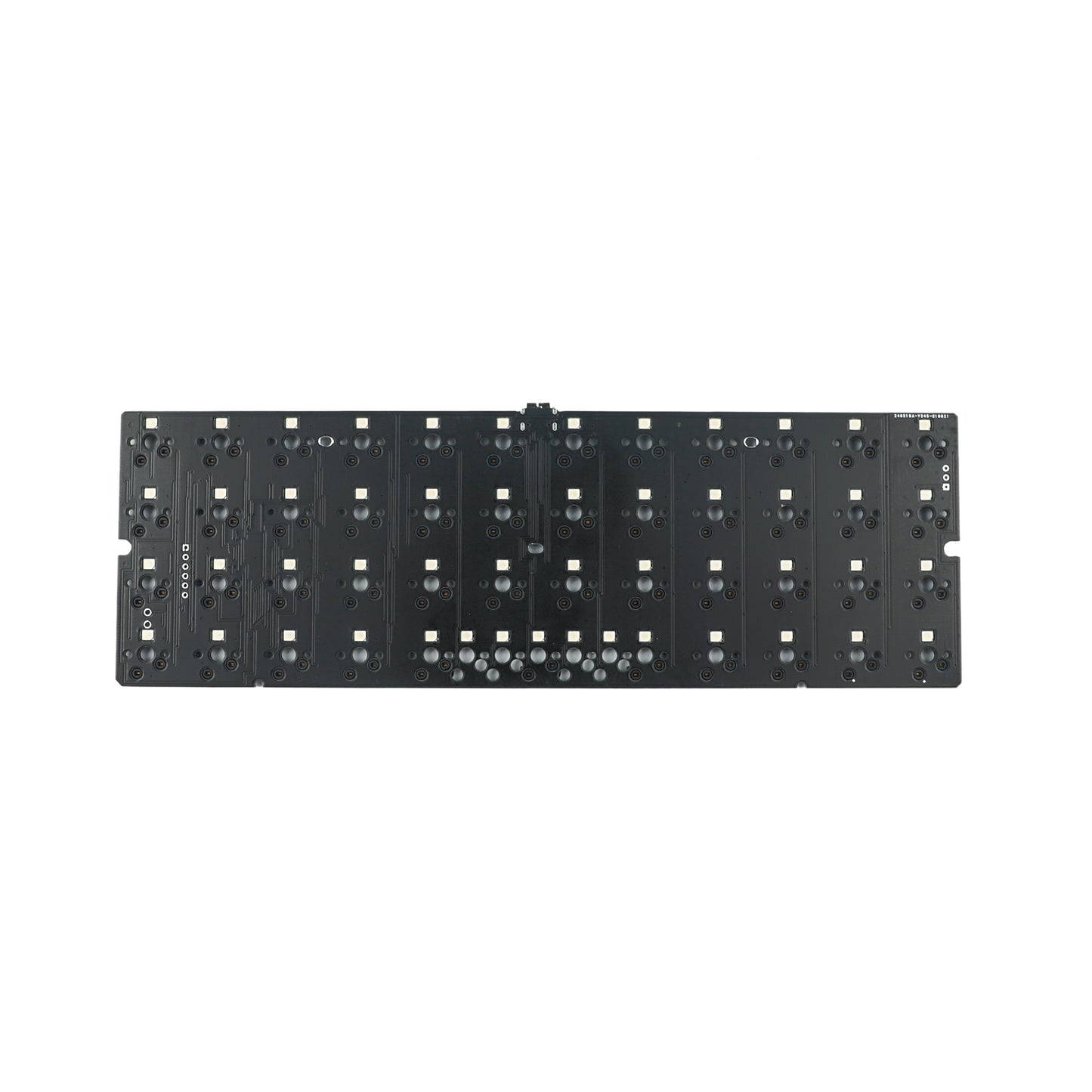

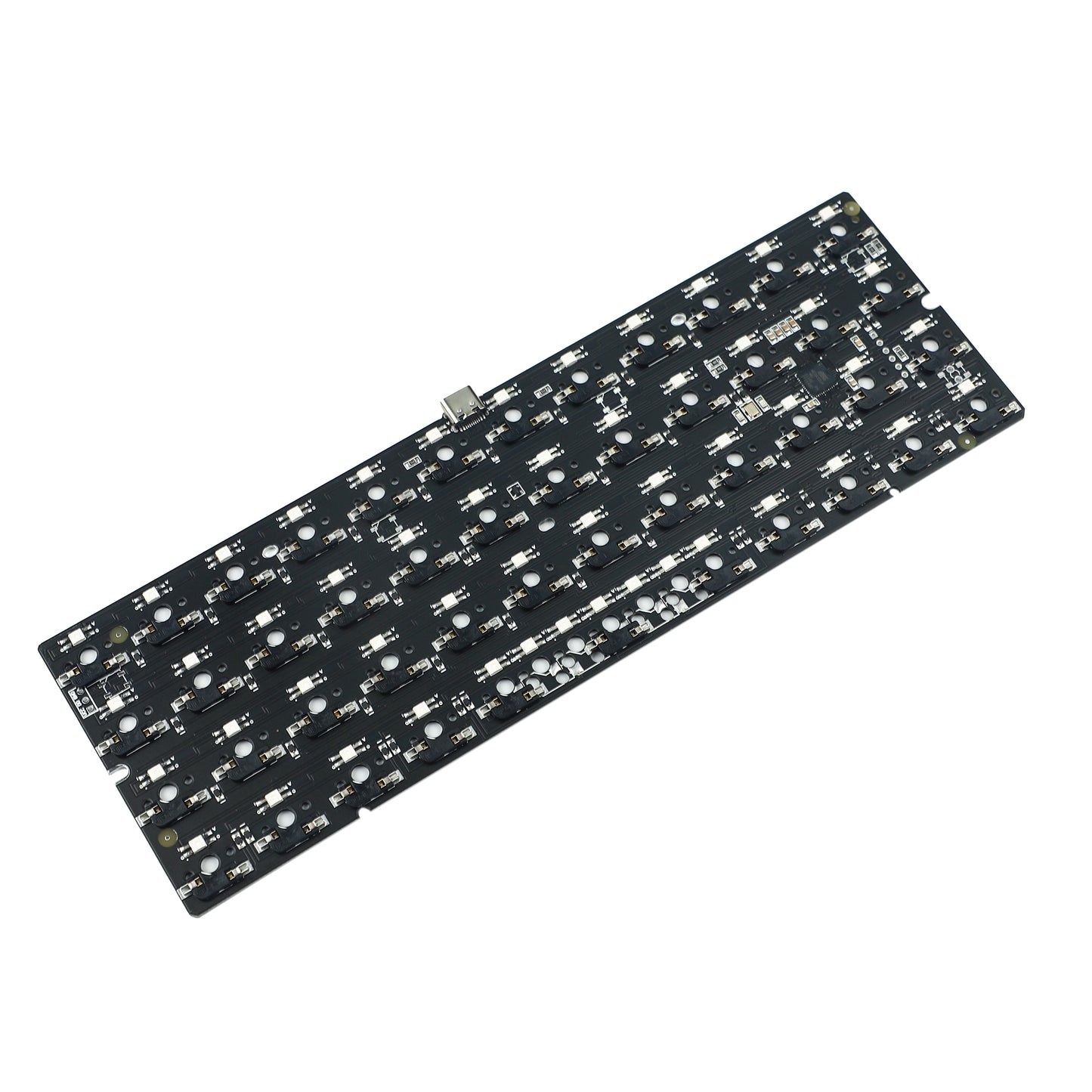

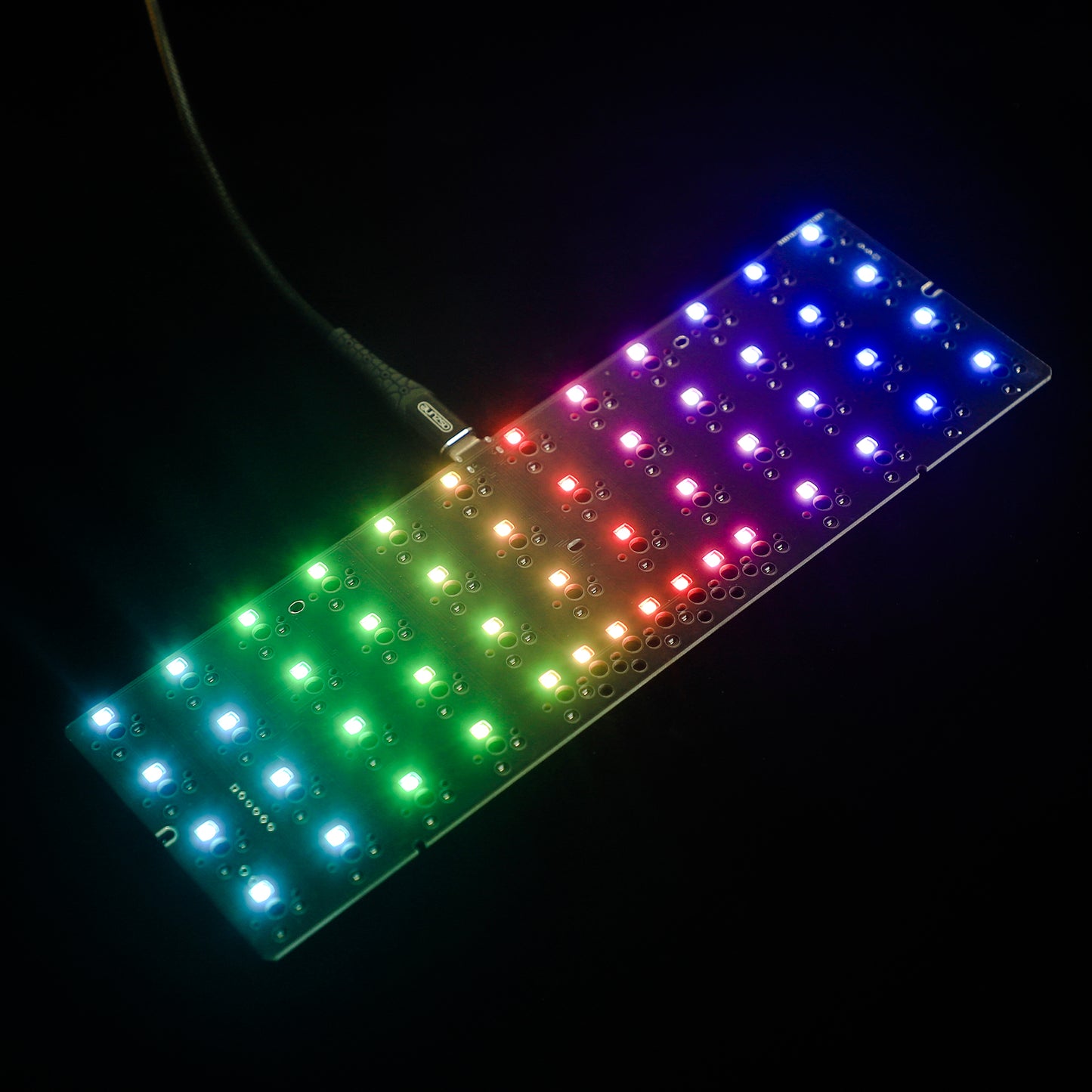

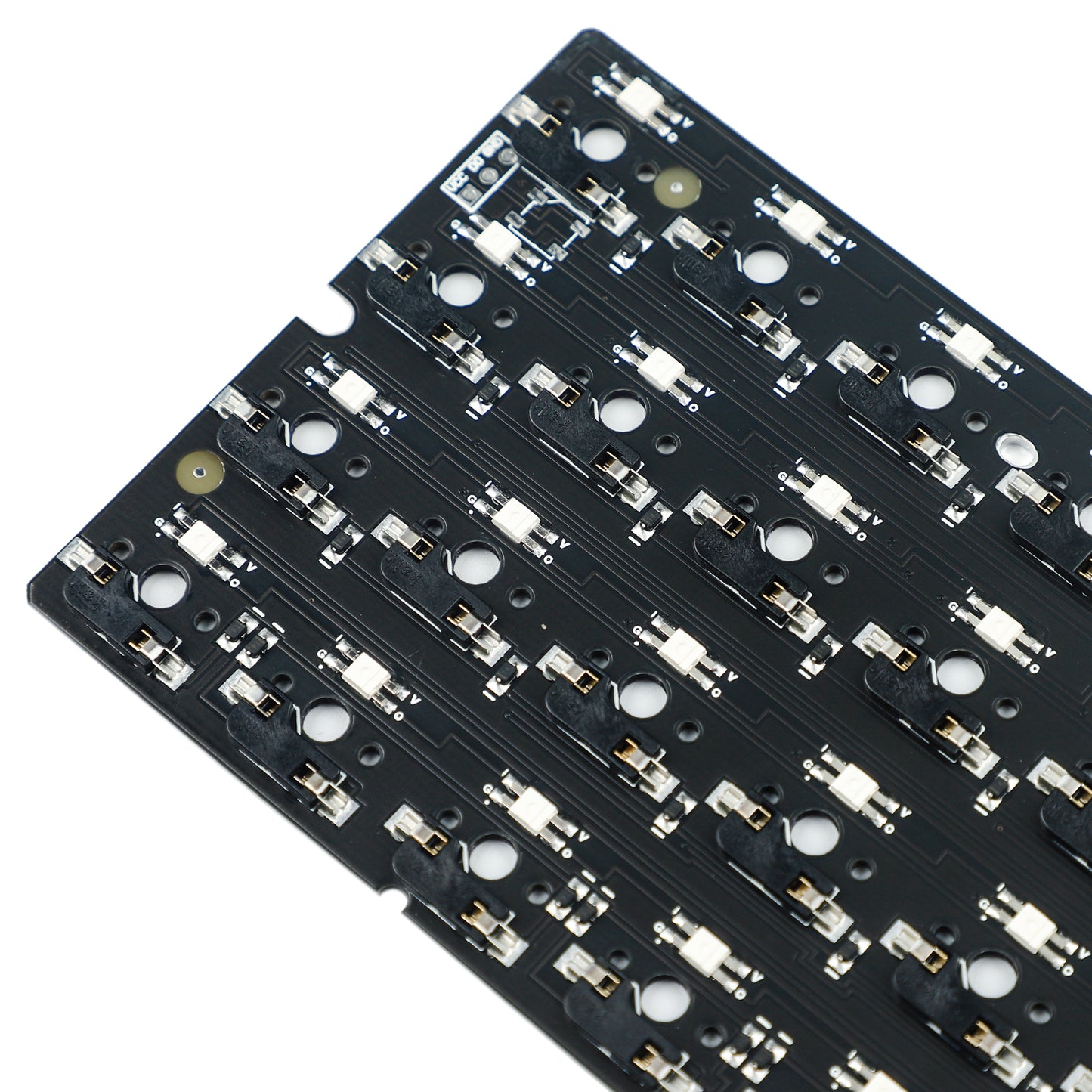

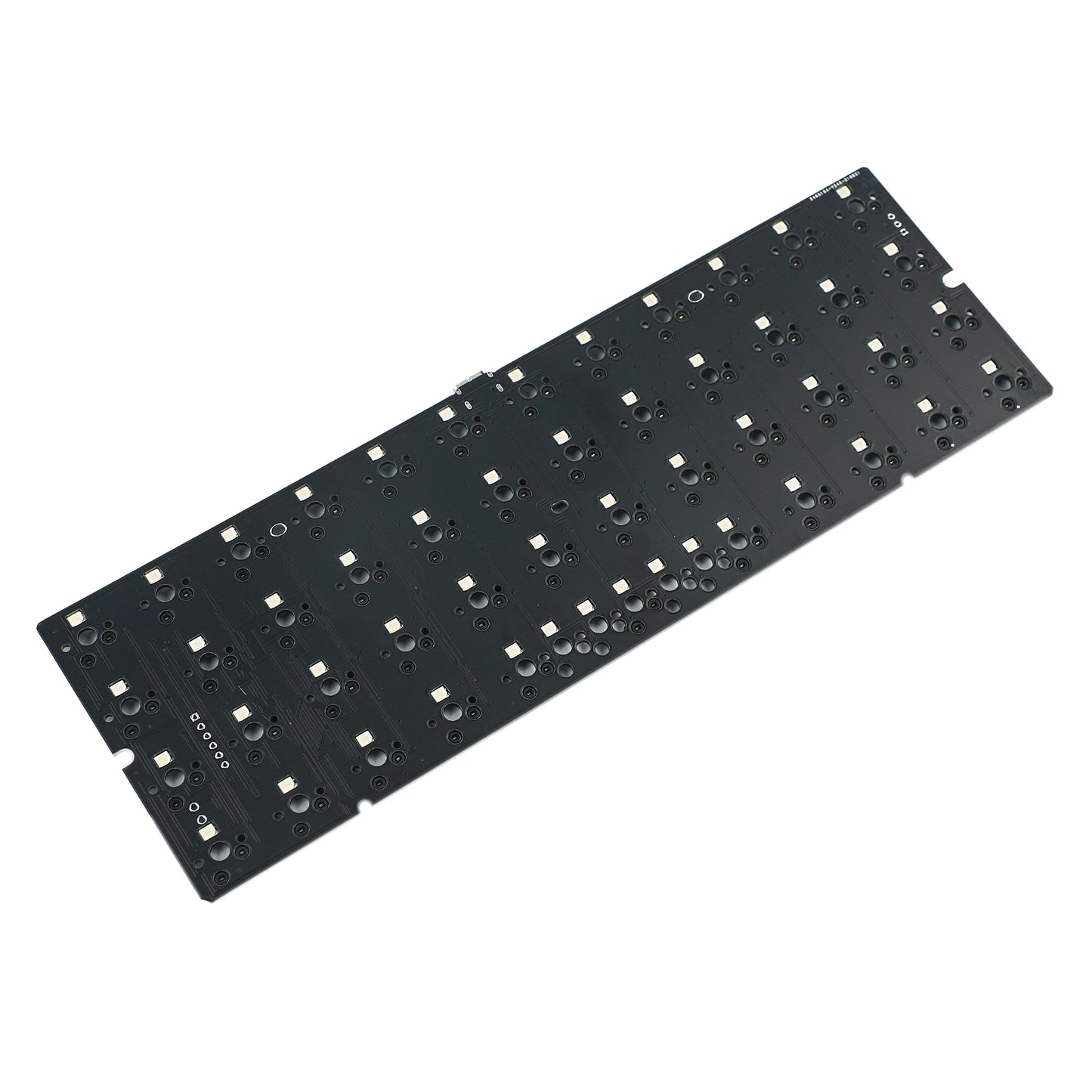

YMD40 Air40 RGB Hot swap PCB

Package Included

Option 1：Only YMD40 Hotswap RGB PCB

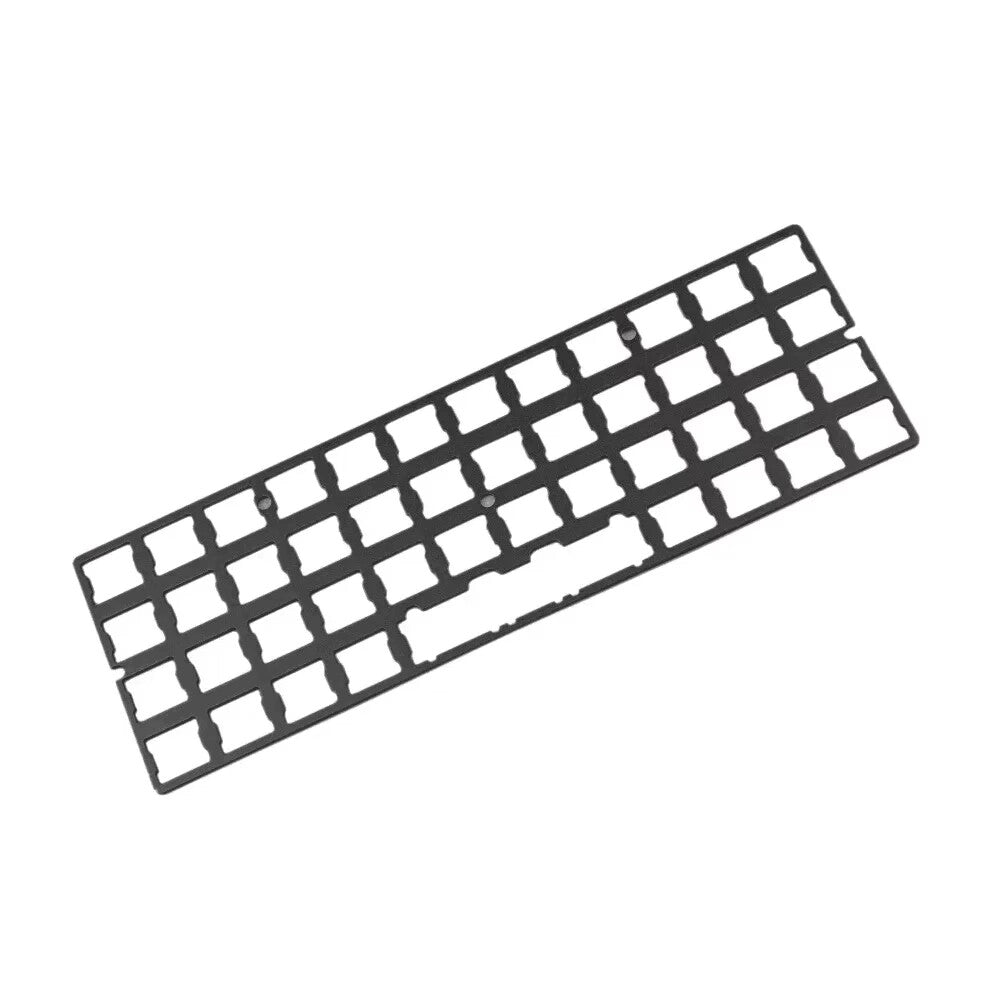

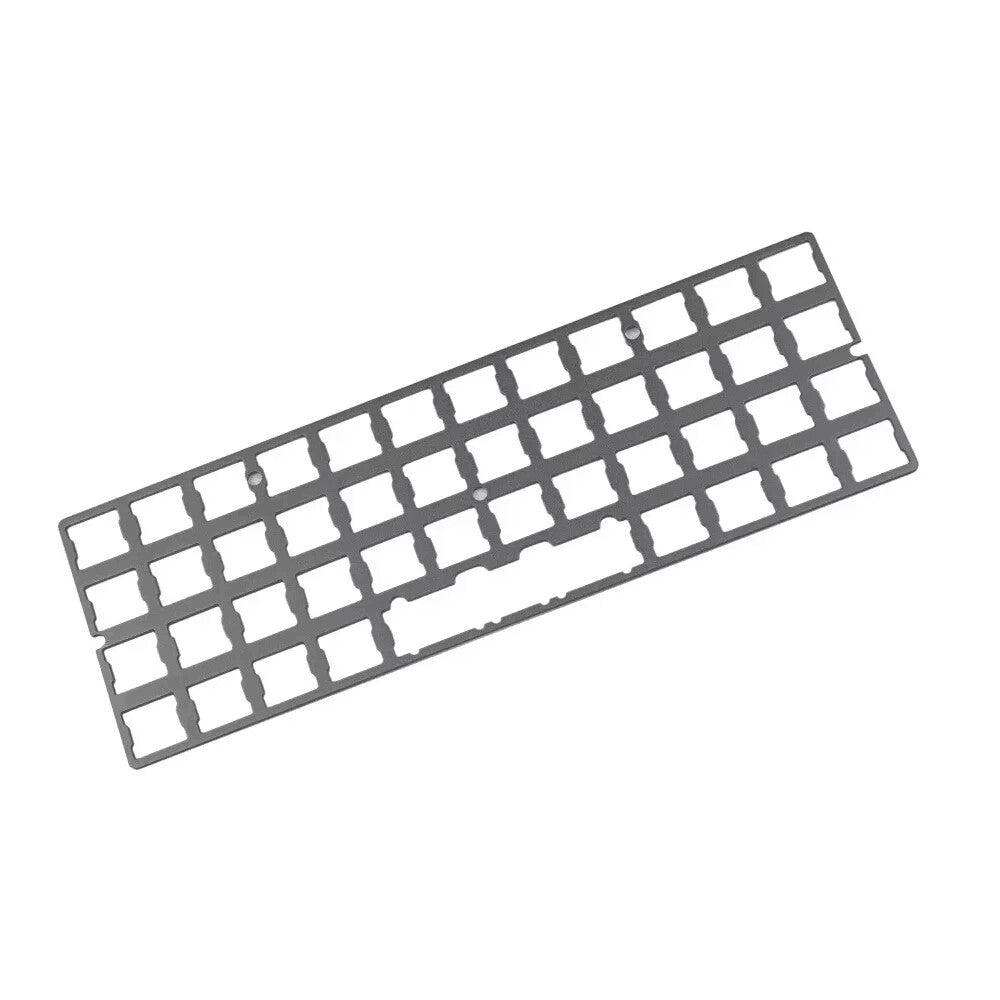

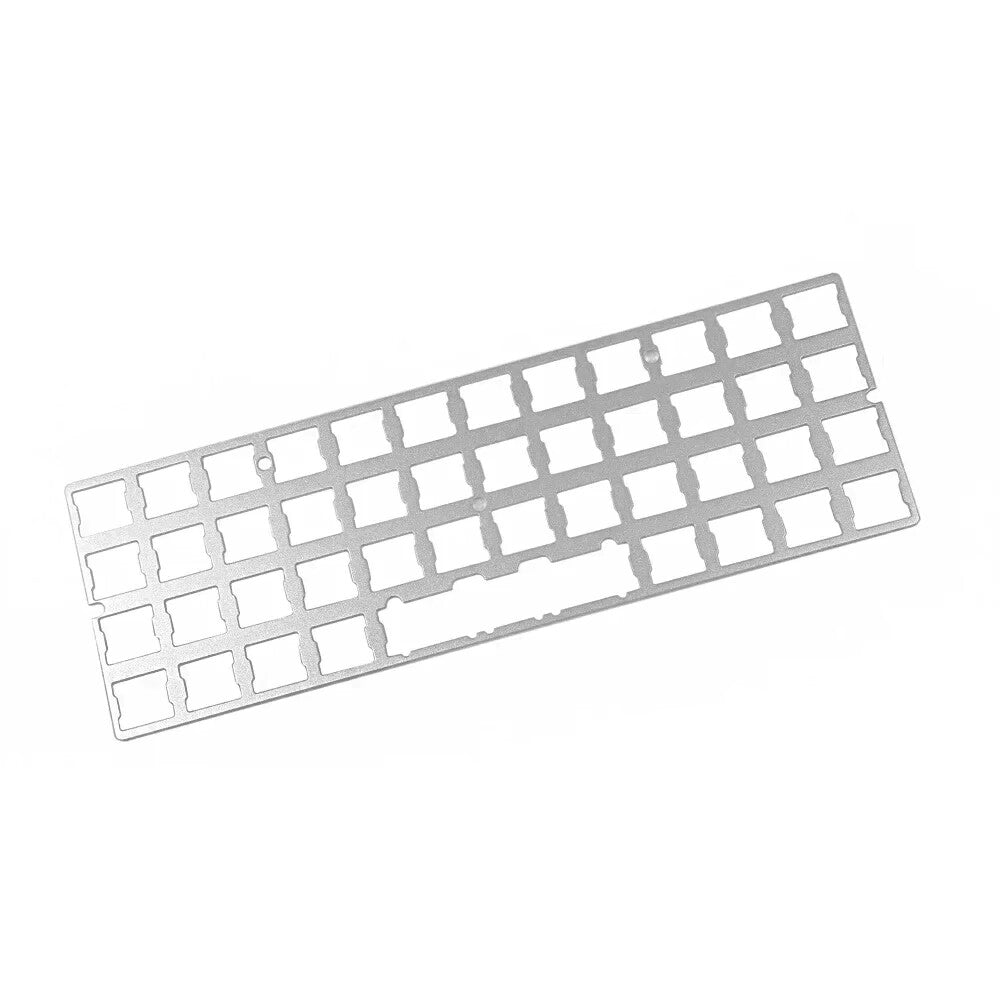

Option 2：Only YMD40 Hotswap RGB PCB+ YMD40 Plate

Please note: This PCB only fits the YMD40 case

if you need an aluminum case kit, please click
Or click

If you need a walnut case, please click

If you need mute cotton, you can add 5usd, you can add 10pcs this link, click

 Below are the layout pictures, please select the layout you like








Why we call it Air40?


This kit is designed without stabilizers needed which is on base of our YMDK Numpad kit.The tactile feeling is more smooth.It may be little little unstable compared with stabilizers mounted,however it felt more relaxable without stabilizers for 2u keys.If you care about this much,please not order it is ok


Besides,this PCB is designed to support some layout in one.If you have soldering experience,you can change layout as your wish.If you don't want to solder,can just choose 1 layout which prefer to directly when ordering

How to Assemble the kit

1.Put around 4-5 switches into plate corners and middle part.Then plug these swithces pin into PCB socket

2.After PCB plate fixed,put other switches on one by one is ok.Take care to plug in the top 90 degree and avoid to use used switches which may affect the hot socket.

3.When you meet big resistance when plugging switches in,please stop and check whether the switch pin is bent and bend it over and try again.


VIA Manuals


https://drive.google.com/file/d/1Qkl5d9mM2rJwVB2PbeaMOcToEGl7N0AM/view?usp=sharing
