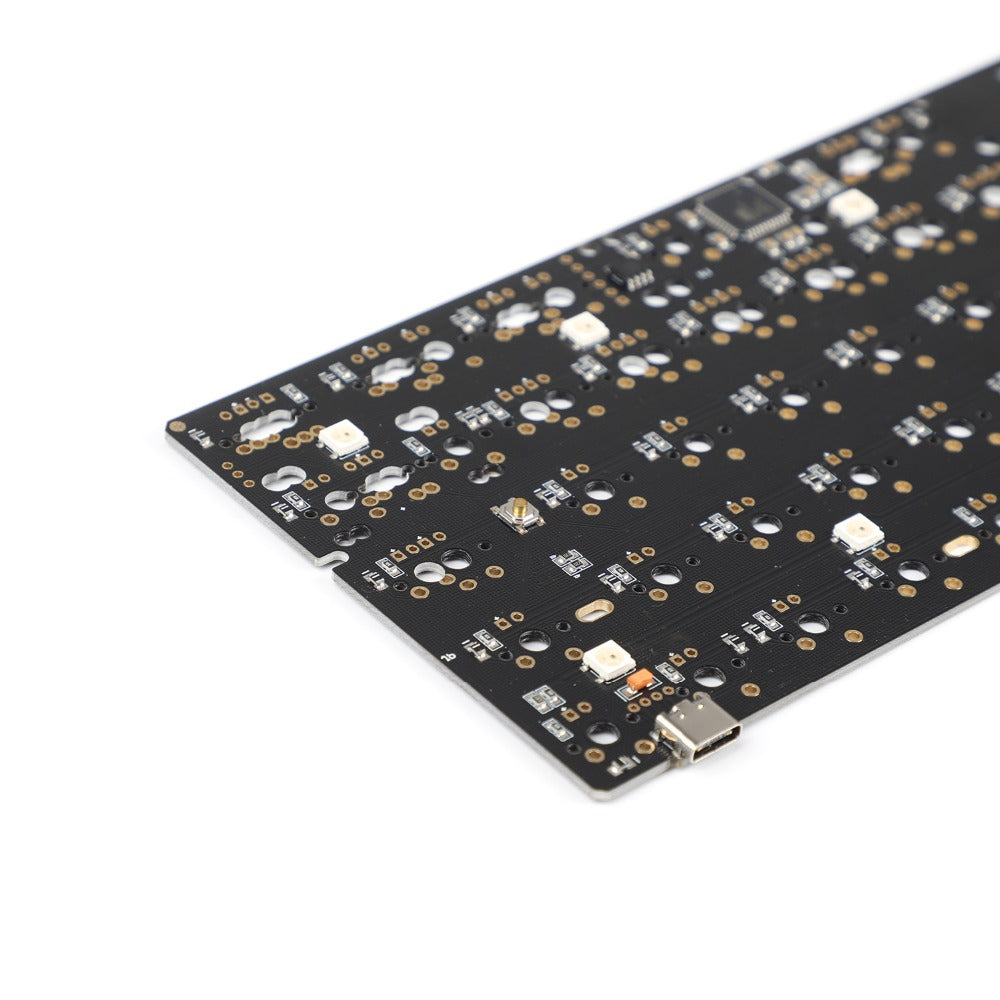

Only 1× YMD60XS soldering PCB(+Plate)

This is the link only for keyboard PCB board,no keyboard included.

If you ordered the Plate Add-on option.The default color of the plate is silver. If you need other colors, please leave us a message.

Currently the source file is not available, so you can only use our default file. If you need to change it, please modify it on the vial, because after using the source file to make the file refresh, you can only use the single mode, and cannot use the Bluetooth mode. If you cannot accept it, please do not order it

Details

Model ：YMD60XS Ble

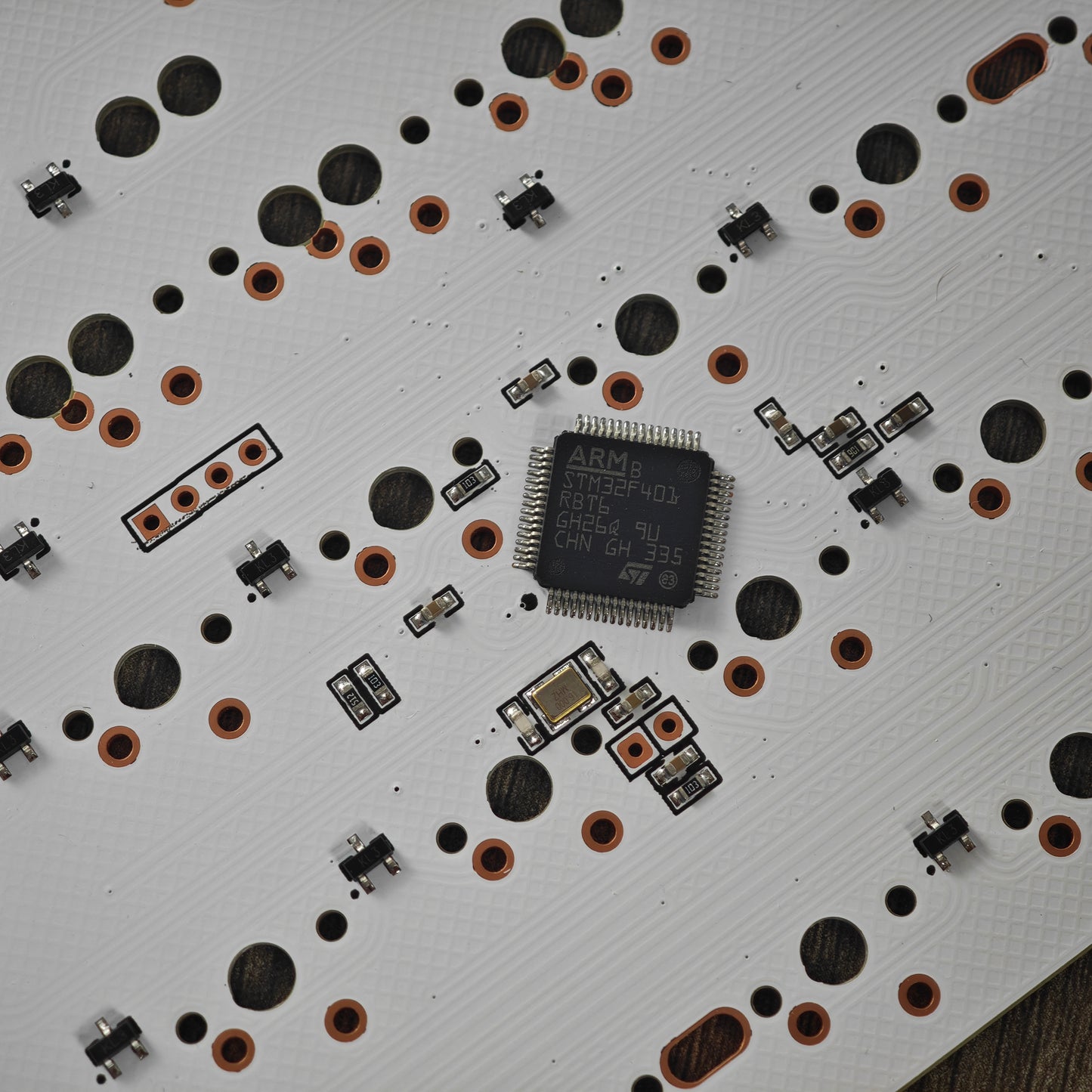

Memory：32MB

Support 60%  61 64 HH-KB Poker Minila Layout

Supports most mx switches. (Low profile switch is not supported)

No underglow leds and switches leds.

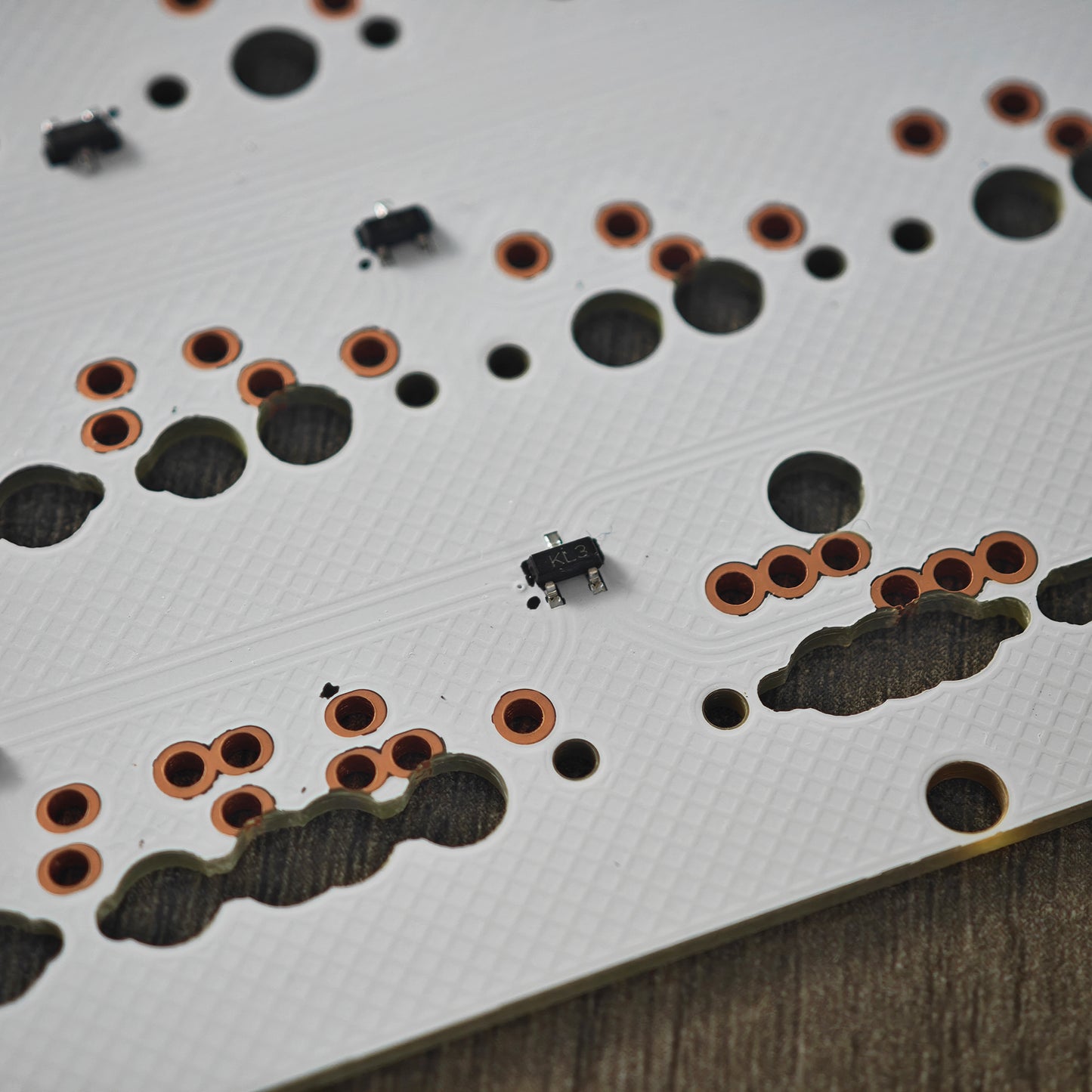

White PCB is silver pad QMK.

All Type C PCB.

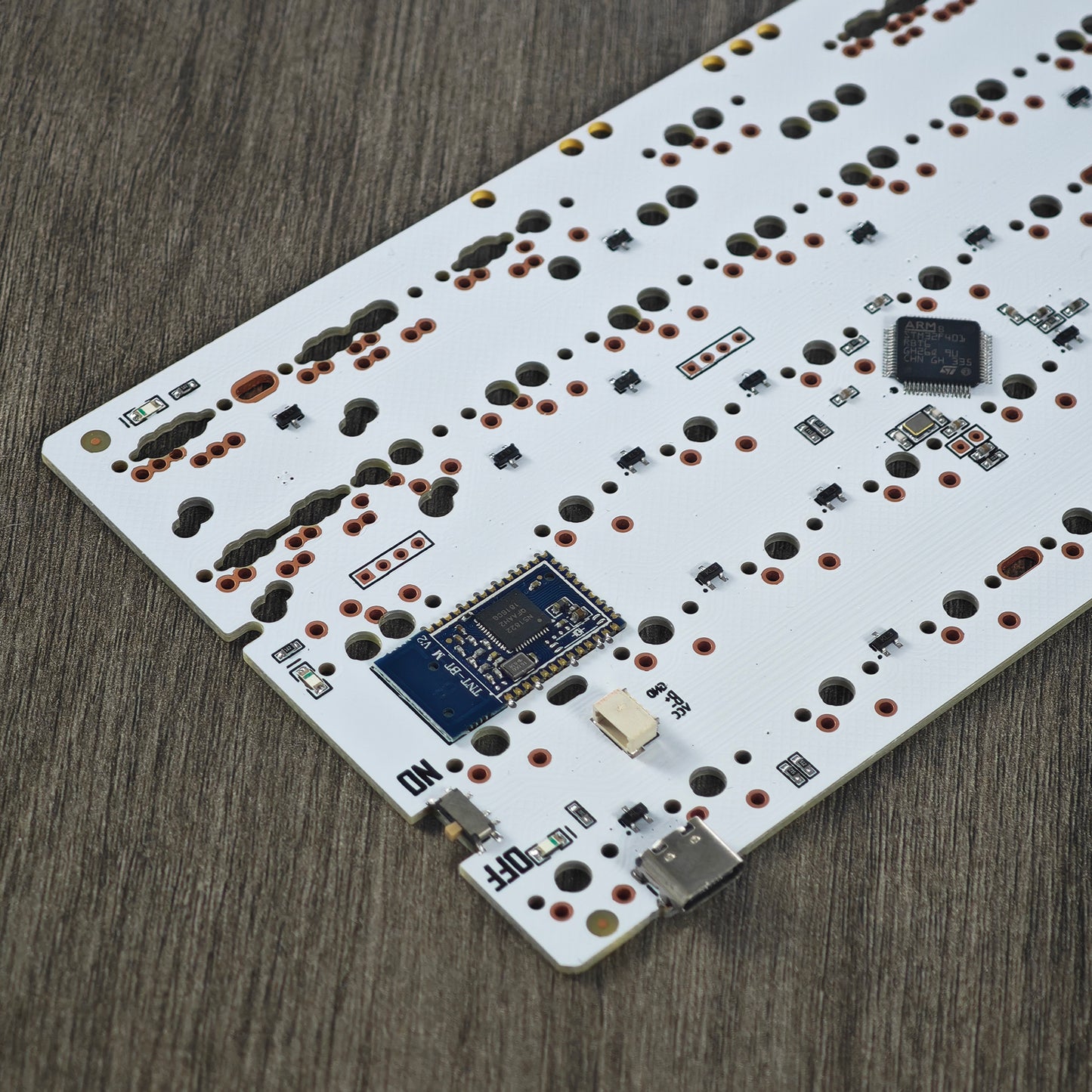

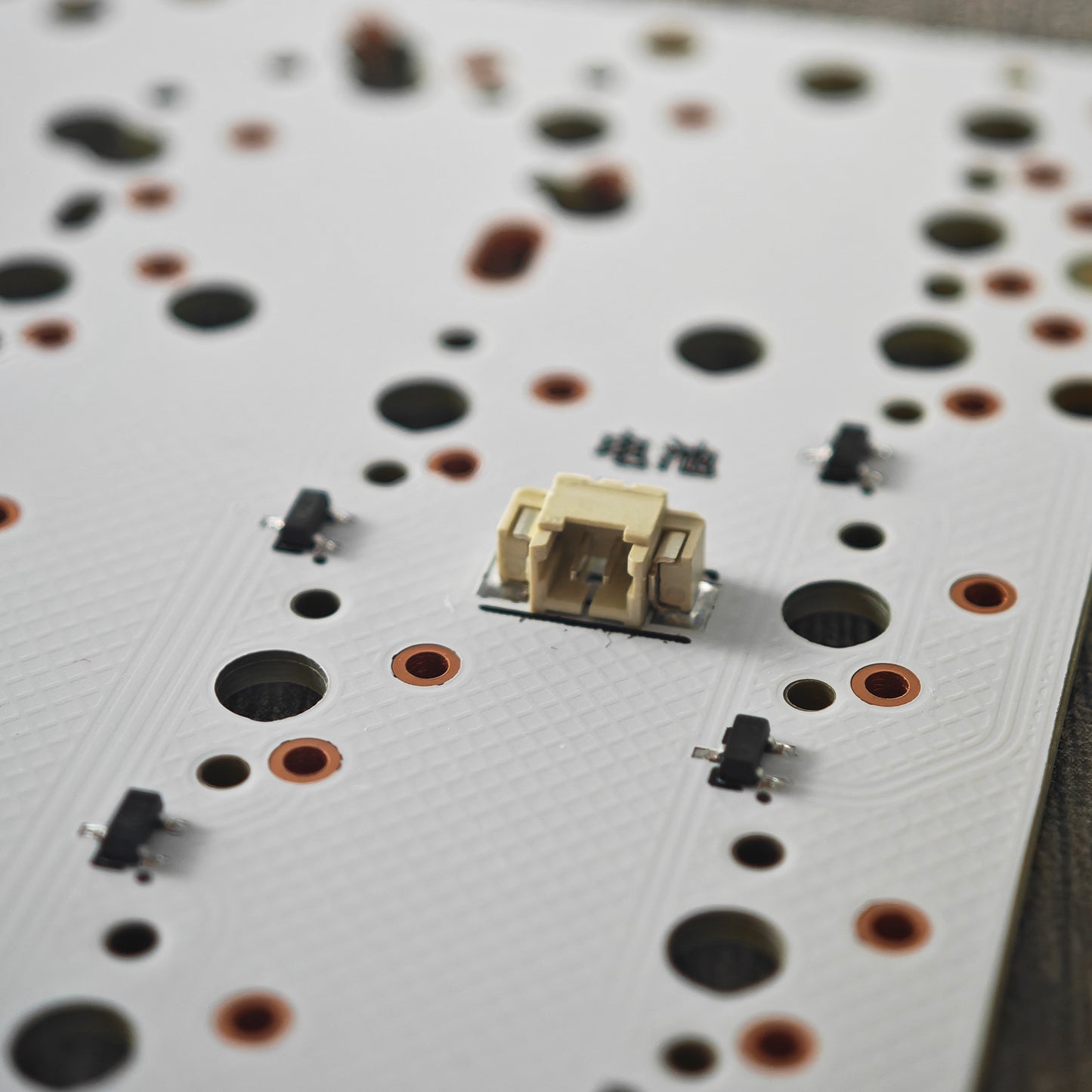

The PCB support polymer battery with 1.25 pin Red Black connectors.

As default,when you connect to PC with USB,it goes into wired mode.If you pull the cable off,it will go to bluetooth mode.

The following are the default file key combinations:

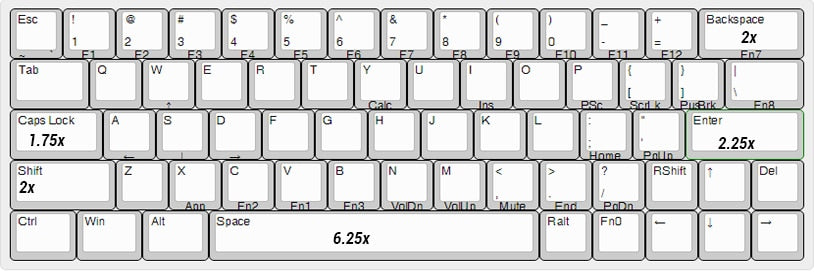

M0(1) in the figure is equivalent to FN

FN+I =Bluetooth channel 1
FN+O =Bluetooth channel 2
FN+P =Bluetooth channel 3
FN+Tab =Bluetooth delete
FN+ESC = Reset

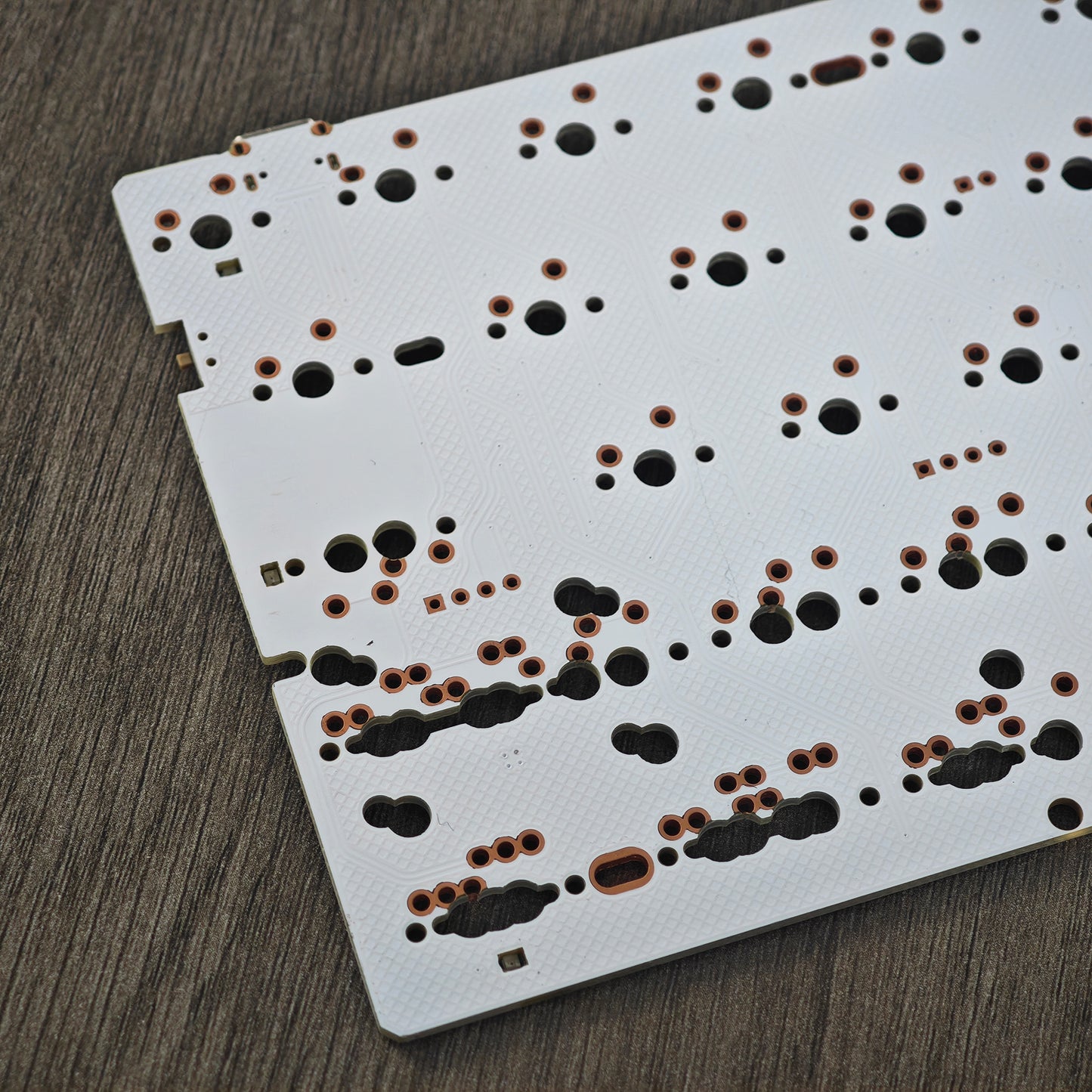

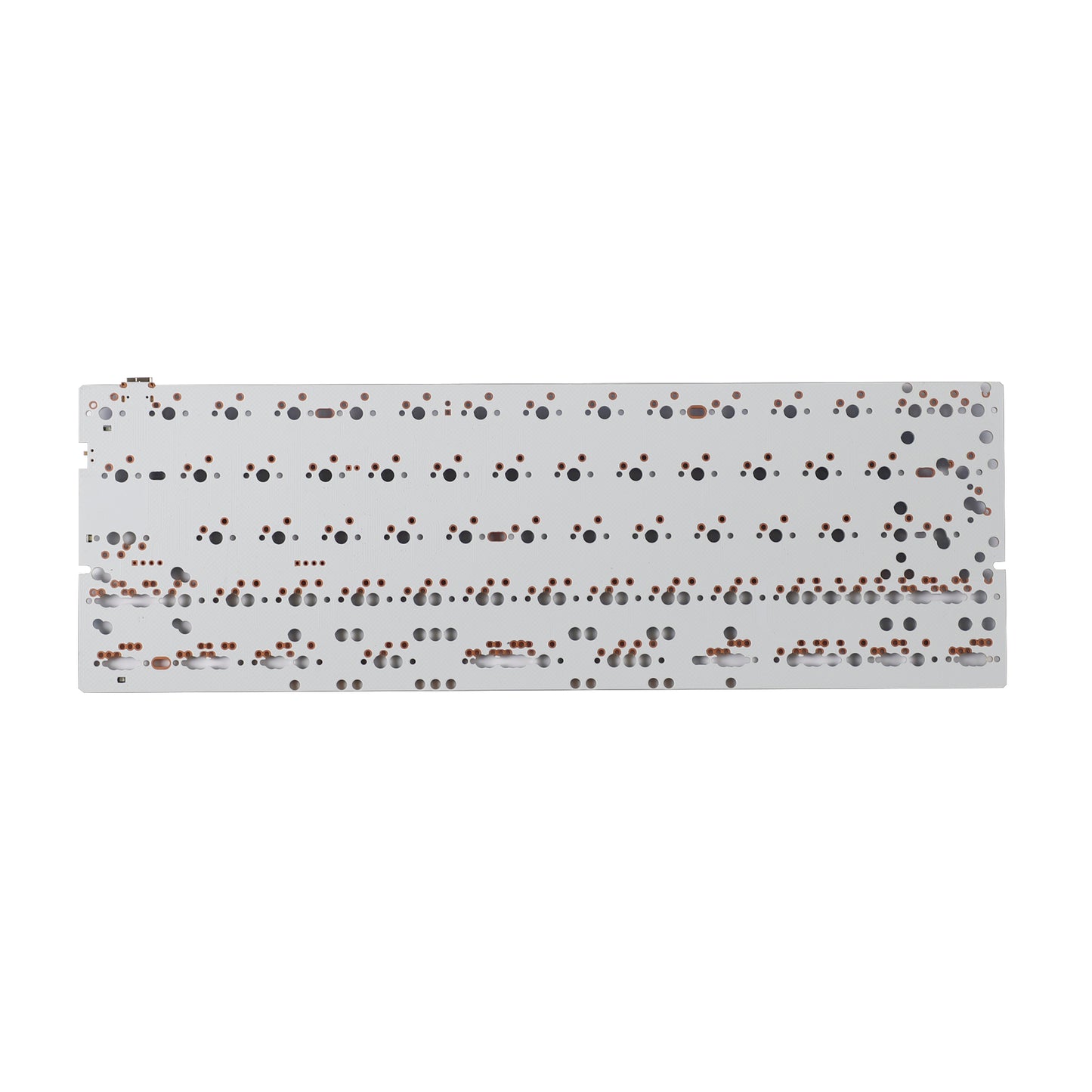

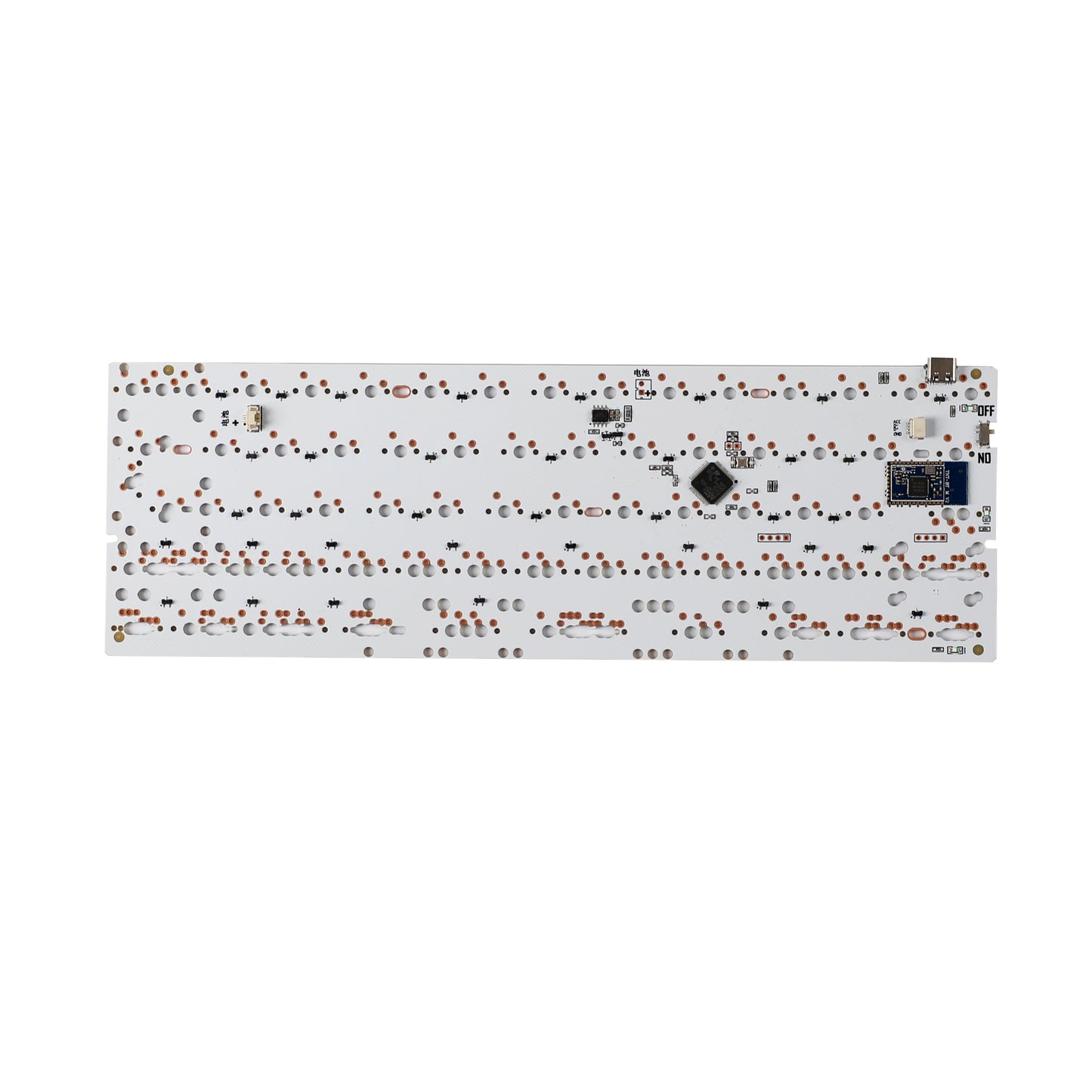

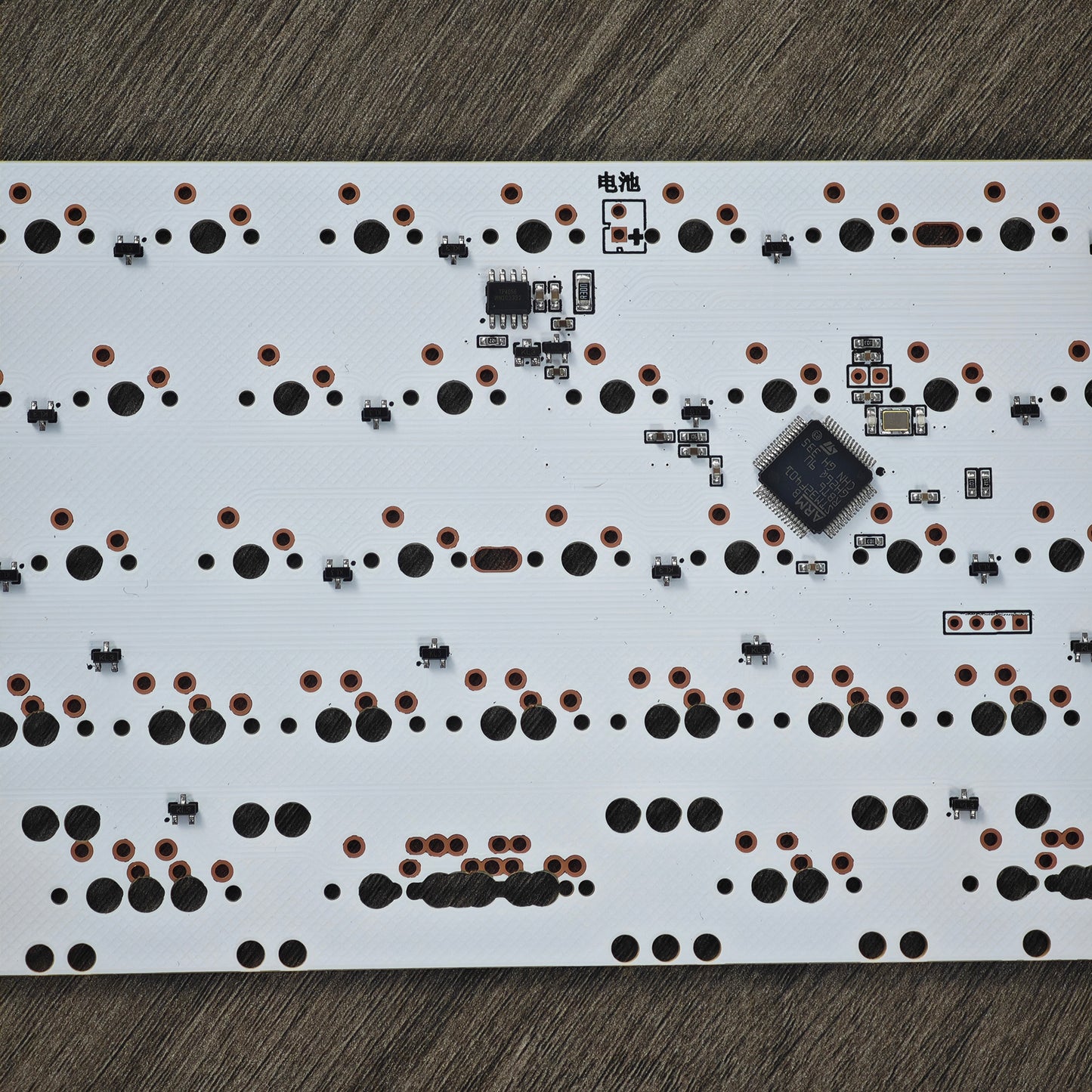

This is the link only soldering PCB board,it requires soldering switches to be able to use.It's flashed with firmware already and support LED adding.It supports both ANSI and ISO layout.

YMD60XS soldering pcb can combine GH60 plate with GH60 case to do many layouts of keyboards

Plate is different for different layouts,so you can choose the needing of layout to finish the keyboard.All plate is anodized aluminum.

The reset 2 pin is moved to the place as the image shown.If you install the case,you can try some other methods in the manuals to get it to bootloader mode.

Fit GH60 aluminum/wooden/acrylic case in our store.

If you want to get it hotswap,you can buy below hot pin to install on according to the layout you prefer.

https://ymdkey.com/products/diy-crystal-base-switch-hot-plug-hot-swap-sip-socket-for-wings-ymd40v2-ymd21v2-yd64mq-ymd75v2?variant=39294546509885

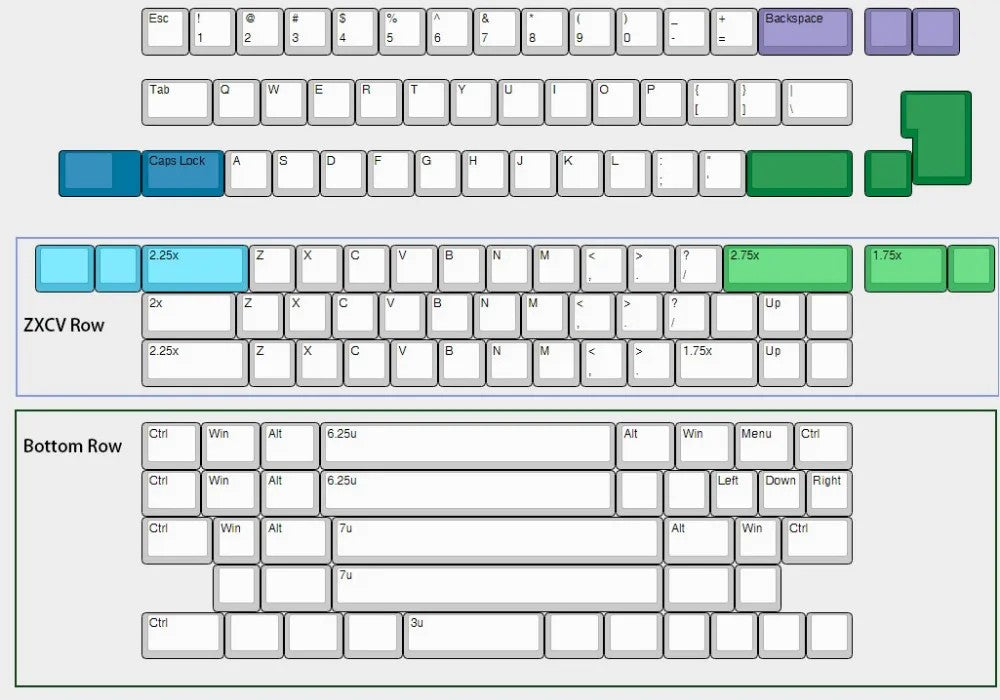

The PCB USB port is Type C.Newest edition support nearly all 60 layout as below (including split layout)

You only need the plate to support these layout is ok.



The following are compatible case

Wooden case
https://ymdkey.com/products/gh60-60-wood-case-gk64-gk61-60-pok3r-dz60-yd60mq-xd64?variant=39480131354685

Aluminum case
https://ymdkey.com/products/gh60-aluminum-case-60-poker2-pok3r-faceu-60-yd60mq-qmk-pcb-gk61-gk64?_pos=20&_sid=4001ed8b4&_ss=r

Big wooden case
https://ymdkey.com/products/gh60-bamboo-walnut-wooden-case-wrist-rest-2-in-1-for-60-pok3r-dz60-yd60mq-xd64?variant=39480088625213

Layout Picture

Here is the plate which support all these layouts

https://ymdkey.com/products/gh60-60-universal-brush-aluminum-positioning-plate?variant=39477924659261

https://ymdkey.com/products/gh60-60-universal-brass-positioning-plate-ansi-iso?variant=30994938560573

https://ymdkey.com/products/gh60-60-universal-sandblast-aluminum-positioning-plate?_pos=20&_sid=9bc1d20c9&_ss=r

VIAL link

https://drive.google.com/file/d/1aqC8gCOtIR78xXHB06zljaR8Dn7PBhW5/view?usp=sharing
