YMDK

YMD-75% 84 Acrylic Kit(Standard QMK YMD-75% 84 V3 Hotswap Kit Or V2 Soldering Kit/ANSI And ISO Supported)

YMD-75% 84 Acrylic Kit(Standard QMK YMD-75% 84 V3 Hotswap Kit Or V2 Soldering Kit/ANSI And ISO Supported)

Regular price $107.99 USD
Regular price Sale price $107.99 USD
Sale Sold out
Shipping calculated at checkout.
KIt
PCB Style
Add Assembly Service with switches

Package Included(YMD-75% 84 Acrylic Kit)

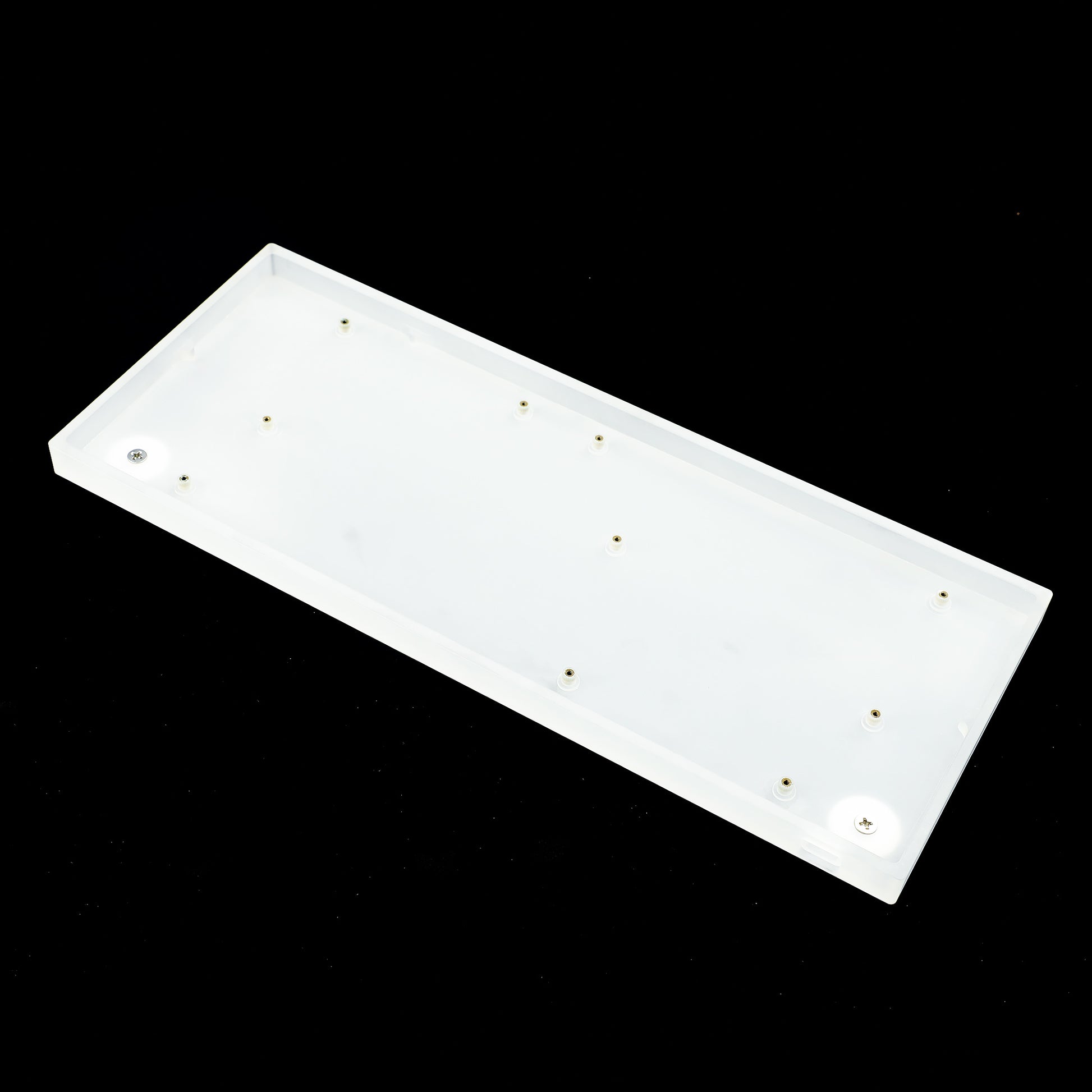

 Option 1:Only Case+Screws+Aluminum Feets

 Option 2:Case+Plate+PCB+PCB Stabilizers+Screws+Aluminum Feets+Non Assembly Service

 Option 3:  Case+Plate+PCB+PCB stabilizers+Screws+Aluminum Feets+Switches+Assembly Service

If you only need case,please choose "only case" option

Details

From 108 TKL etc to 75%,75% as the standard middle size layout keyboard,fits working and gaming of situation better for some special spaces.

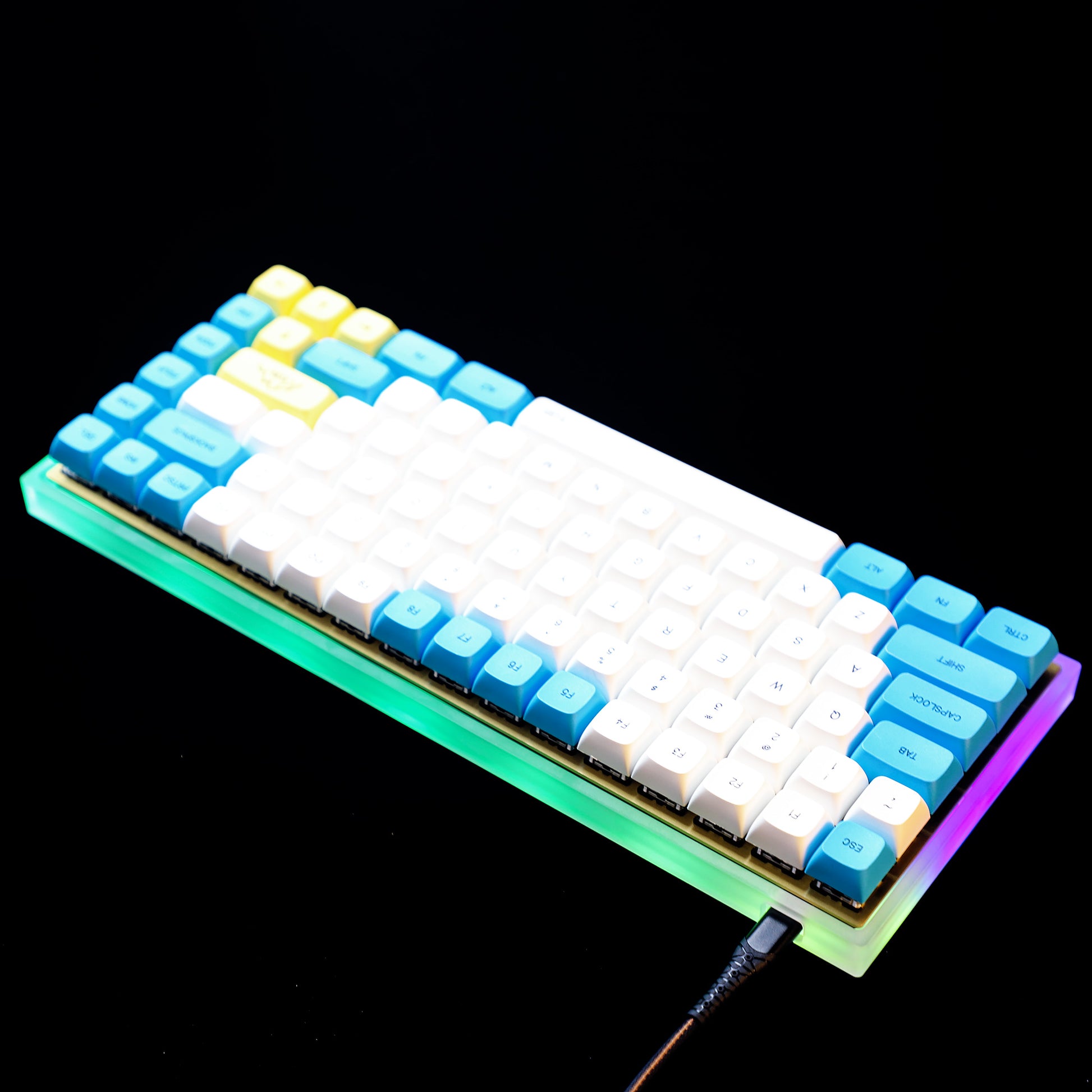

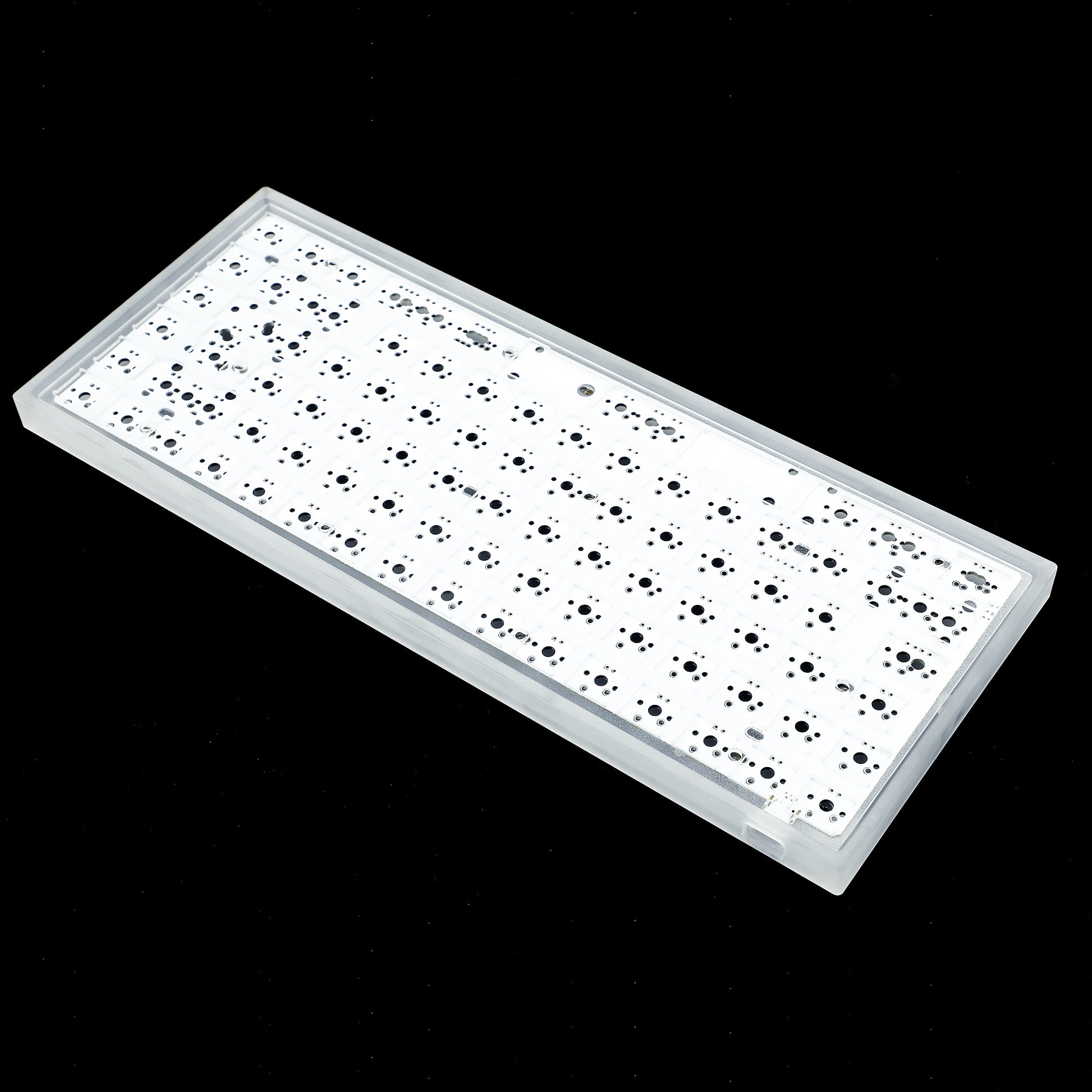

This acylirc case with RGB underglow PCB will make the underglow leds of working so better,so we adivse you use it in private environment.

If you need the better rgb,can consider the V4 RGB link kit.

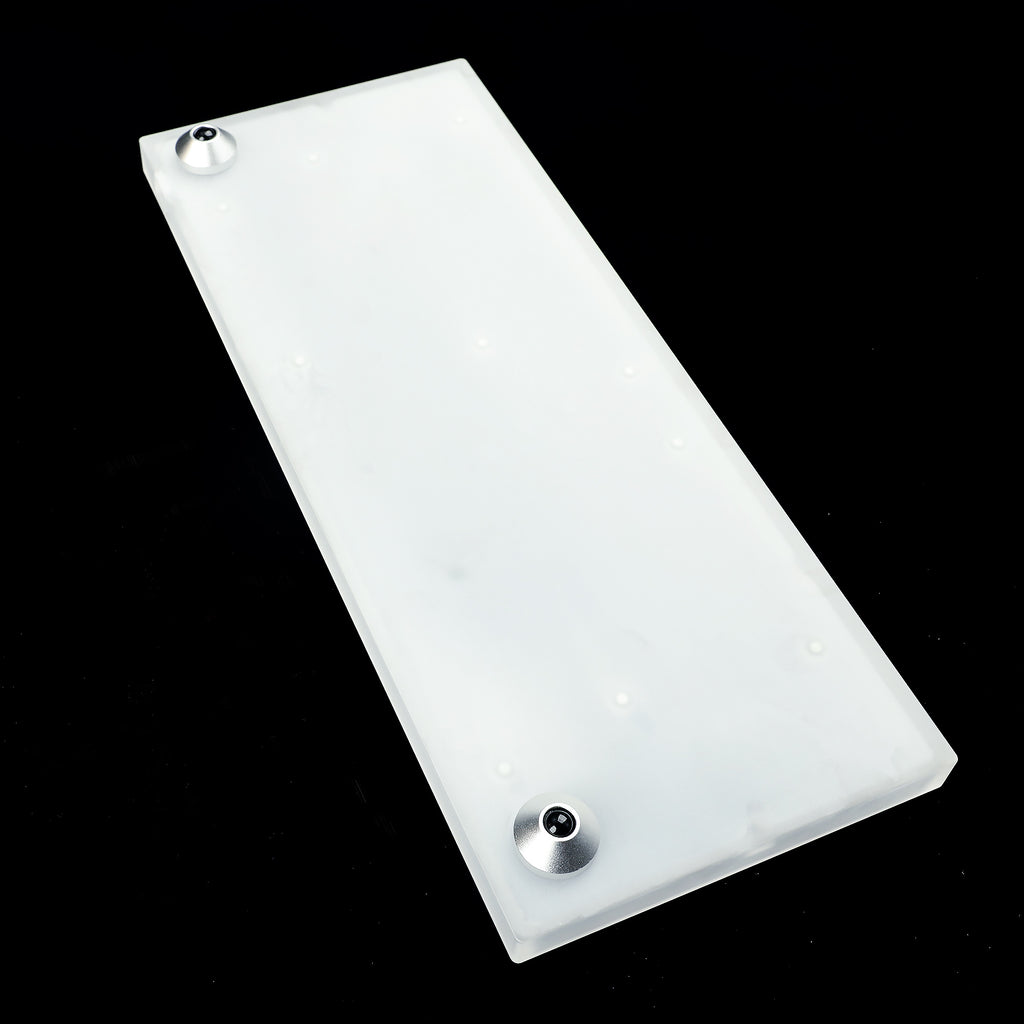

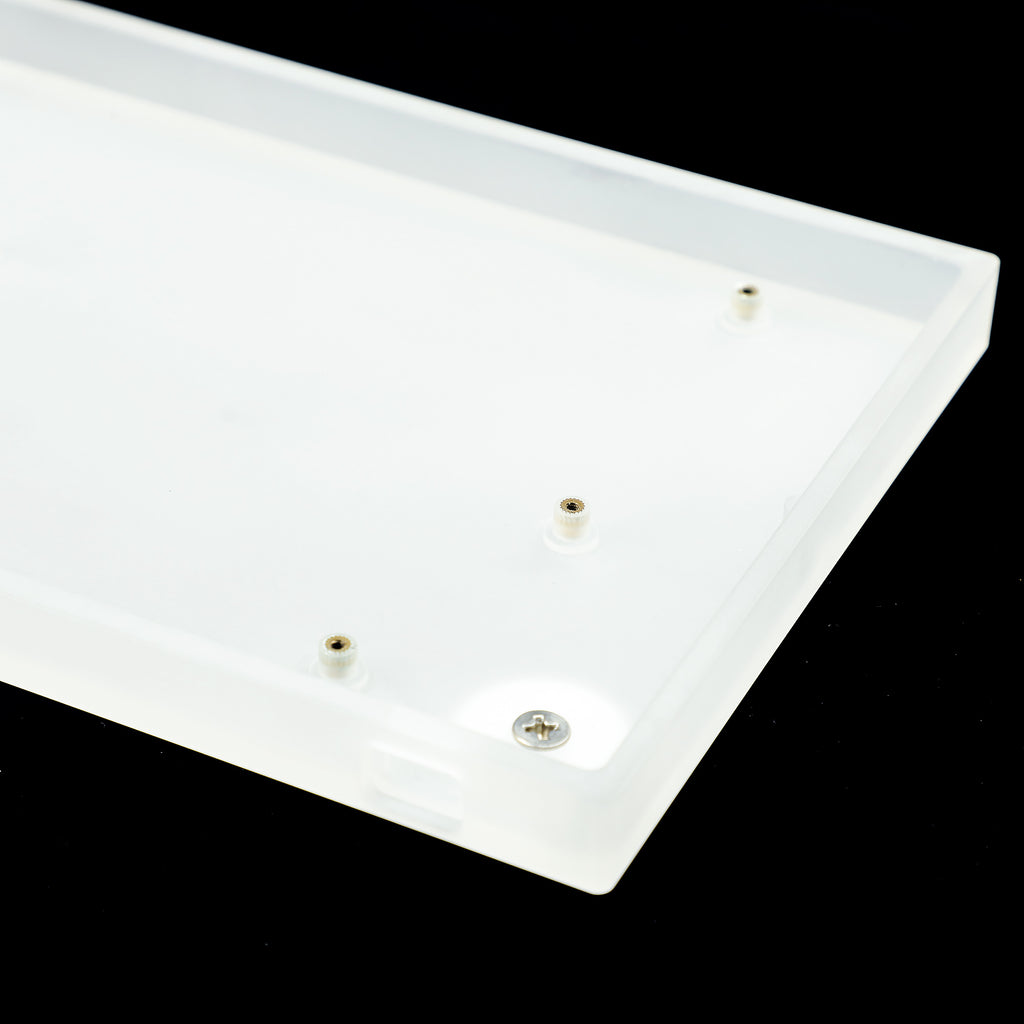

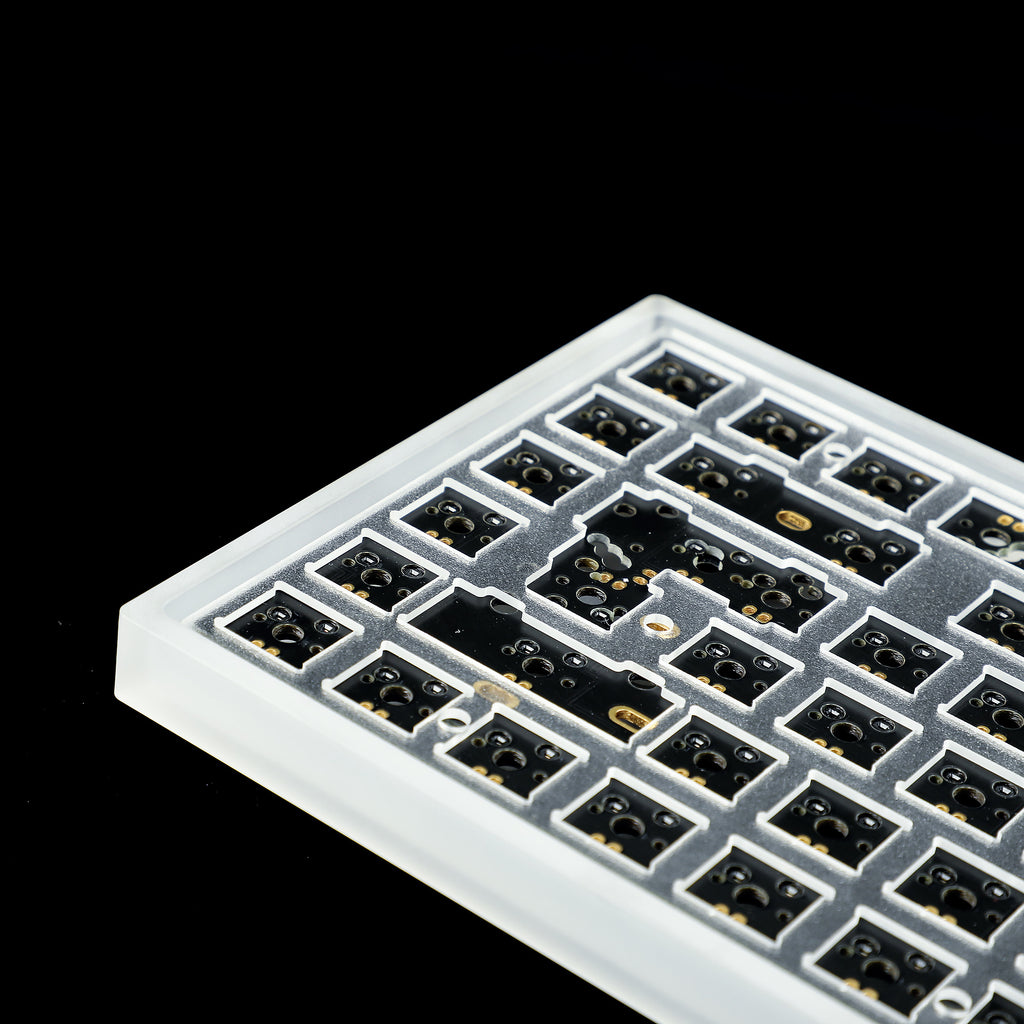

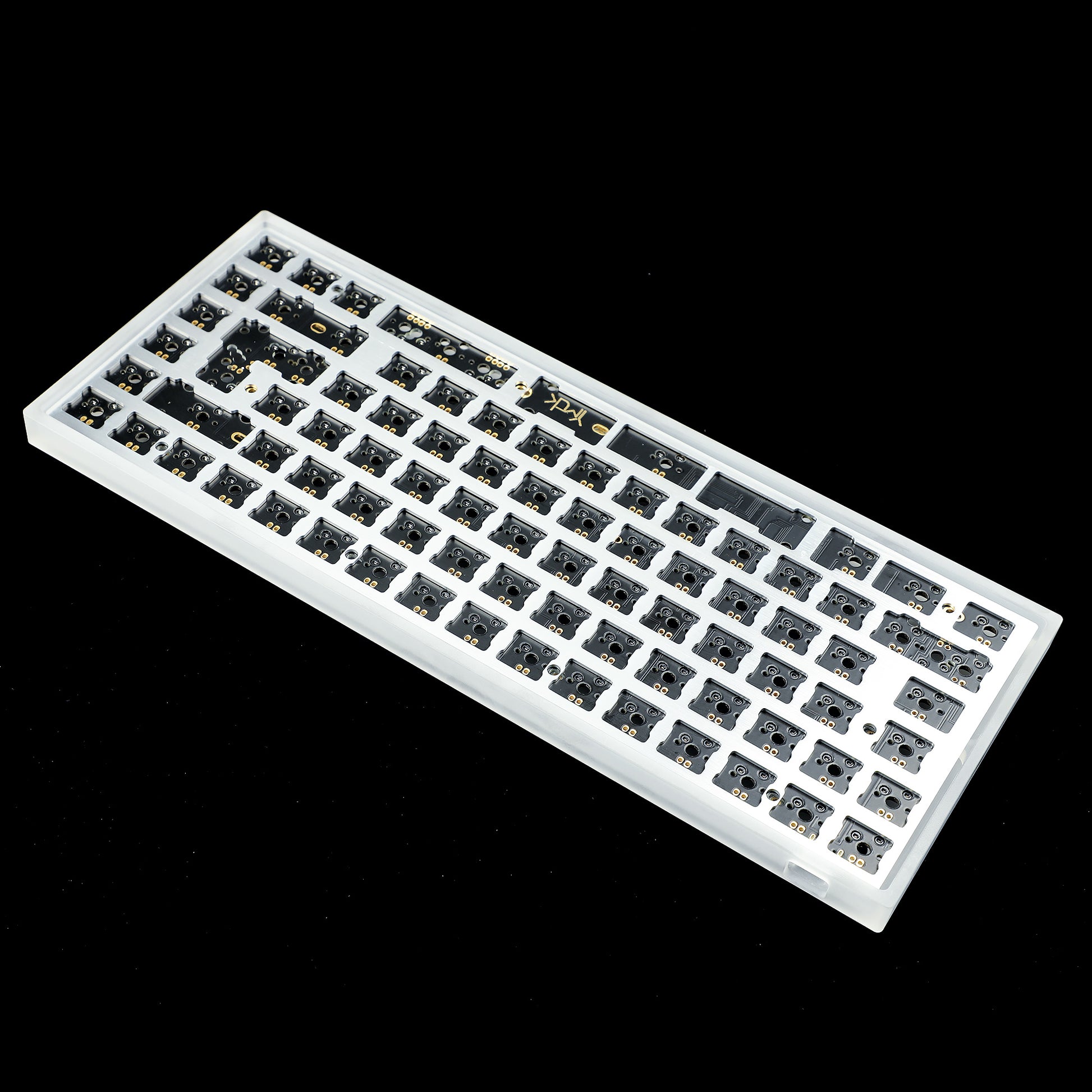

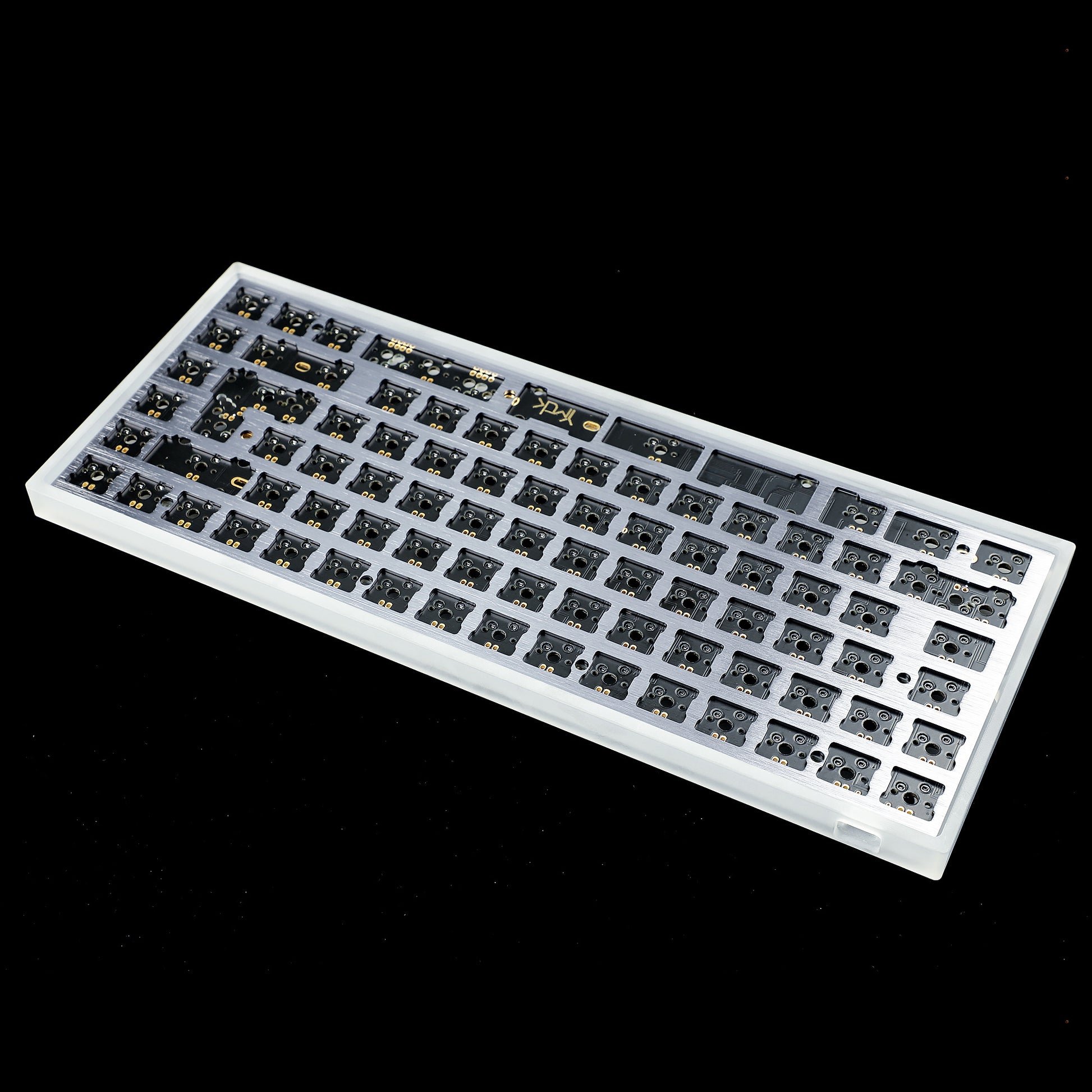

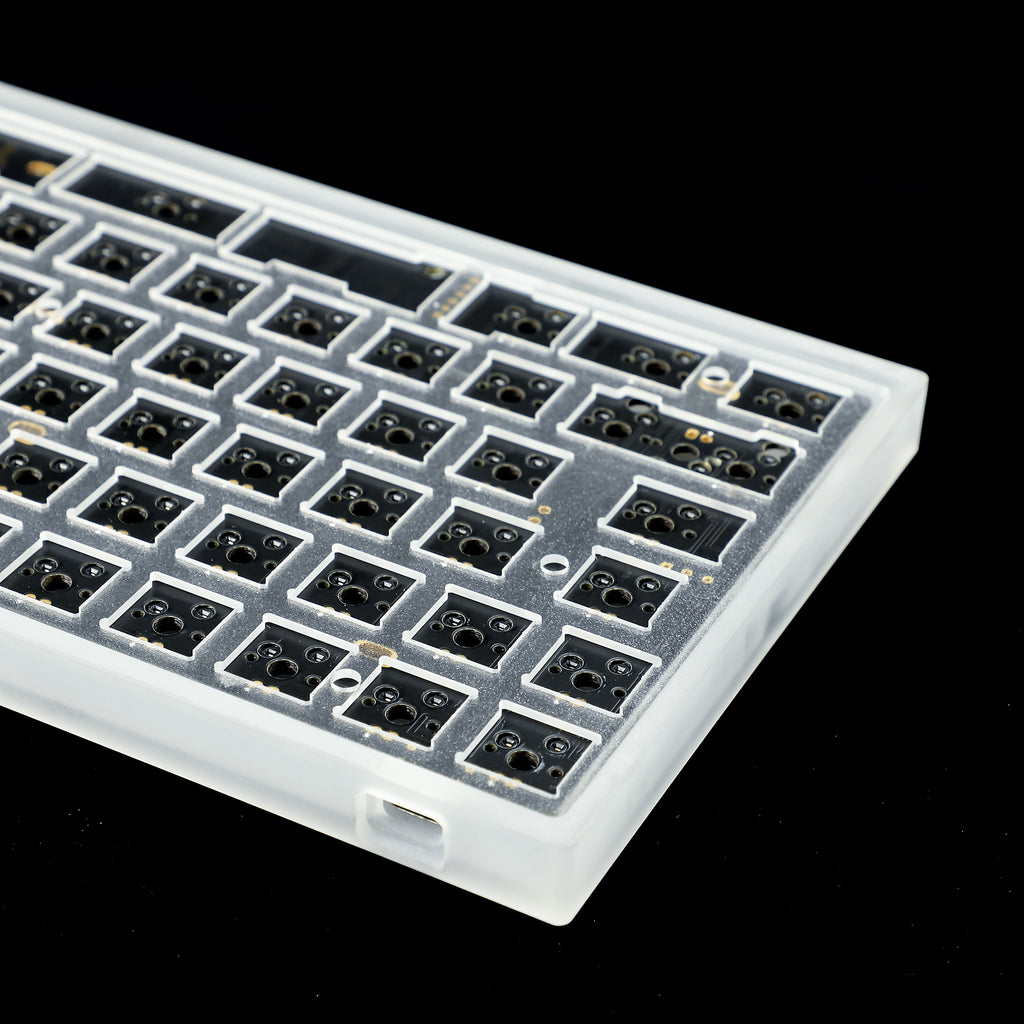

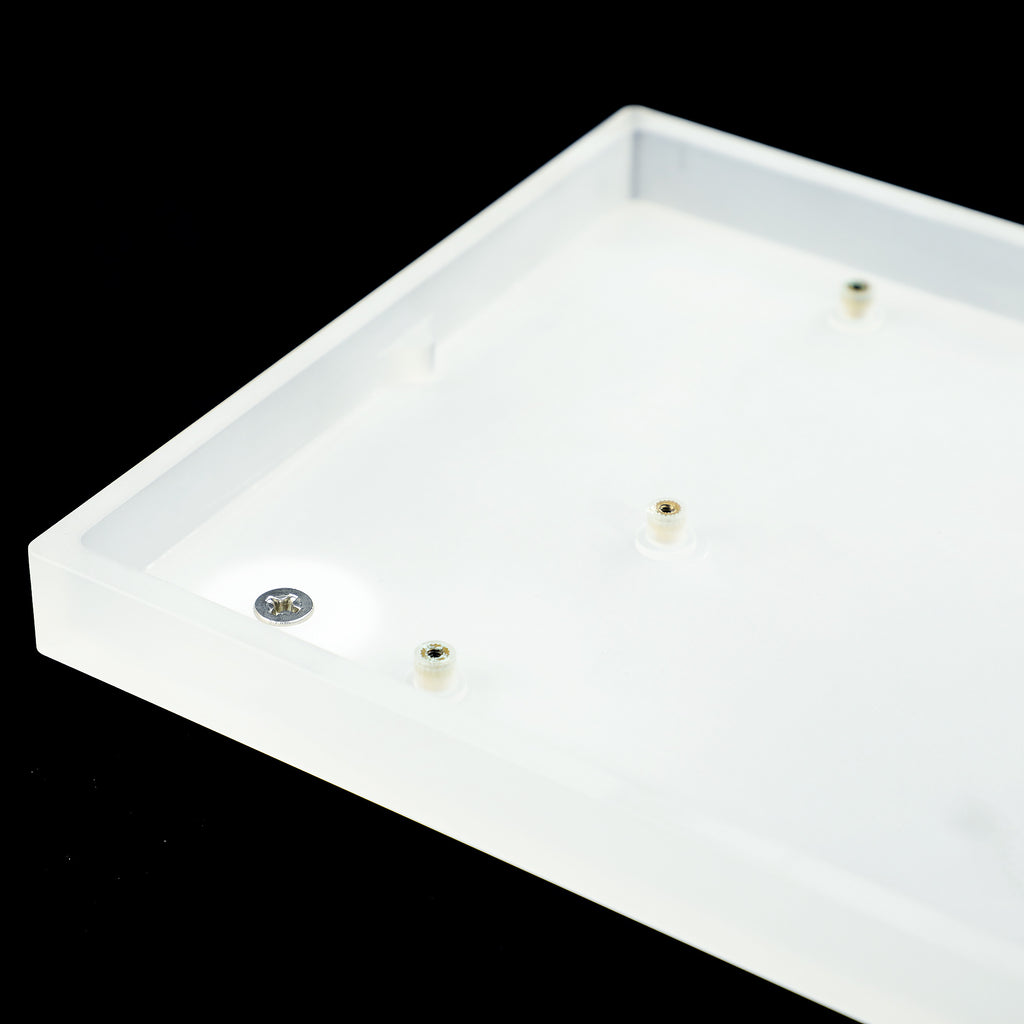

CNC full acrylic case has the material of influences in hardness but keeps better underglow for PCB.

Soldering south facing with rgb underglow PCB only supports bootmapper now,so if you choose it,please note that.And it still needs a soldering iron to install switches.Of course,it support ANSI ISO together.

Hotswap north facing with rgb underglow pcb supports qmk and via together,but we only give one layout for it.It is layout B ANSI.

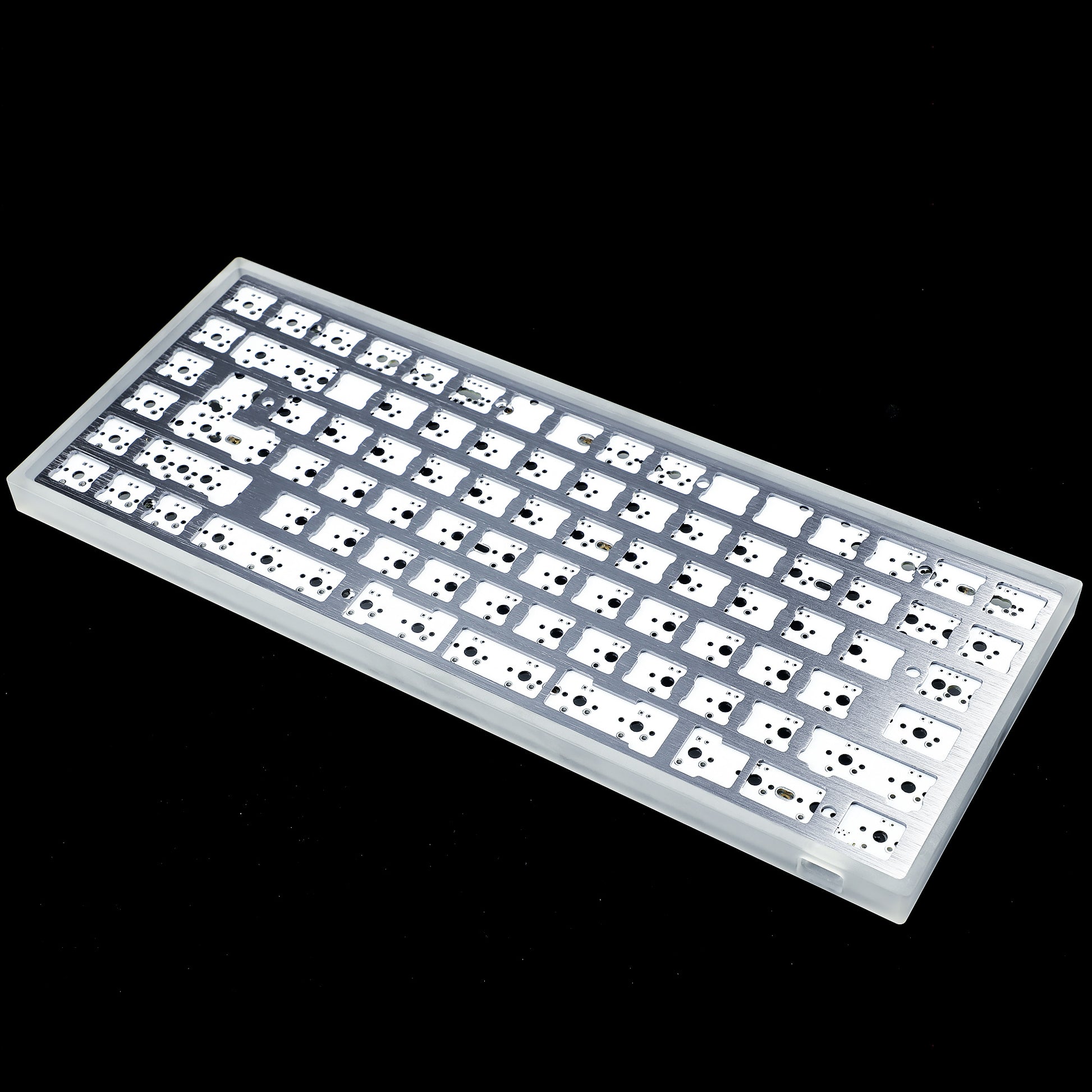

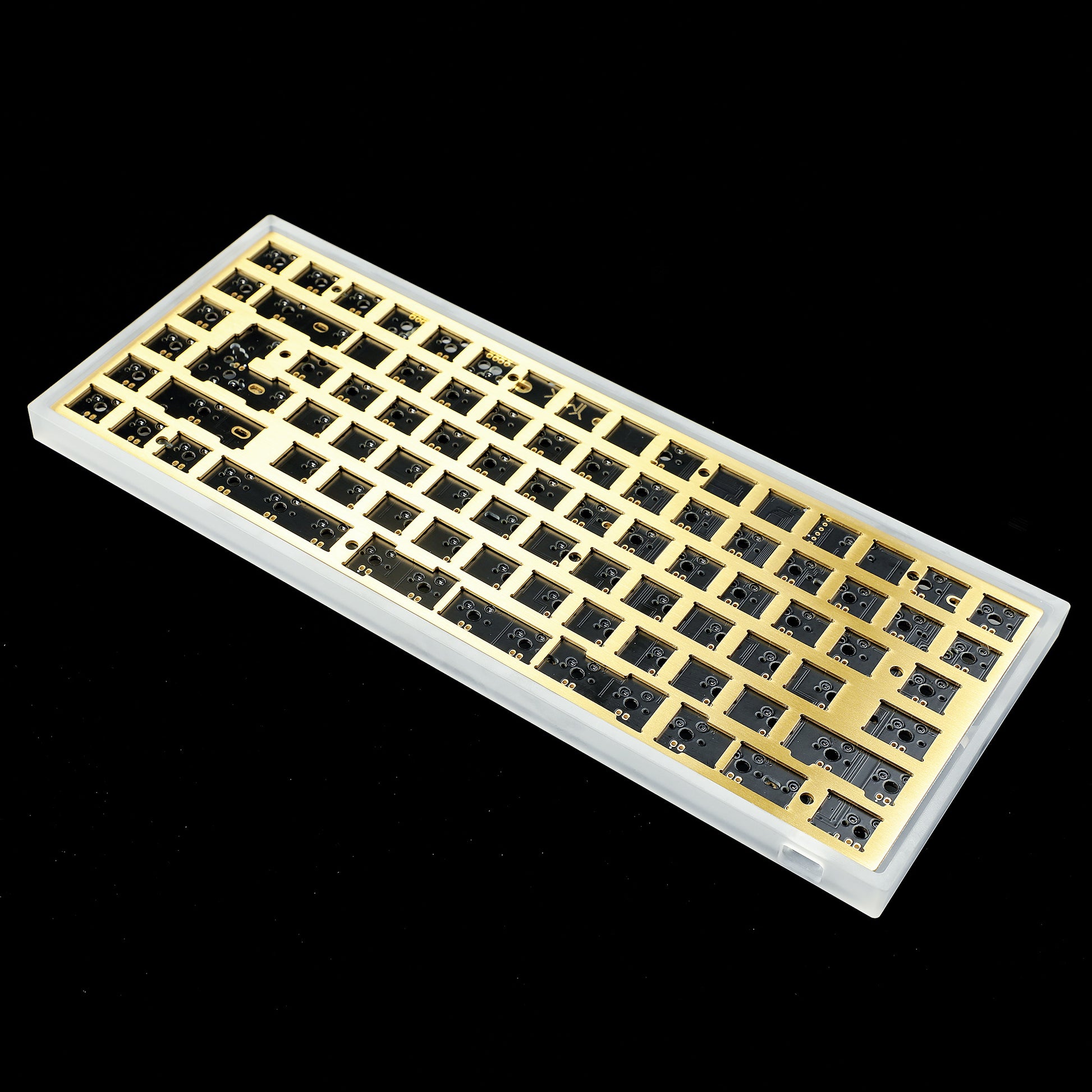

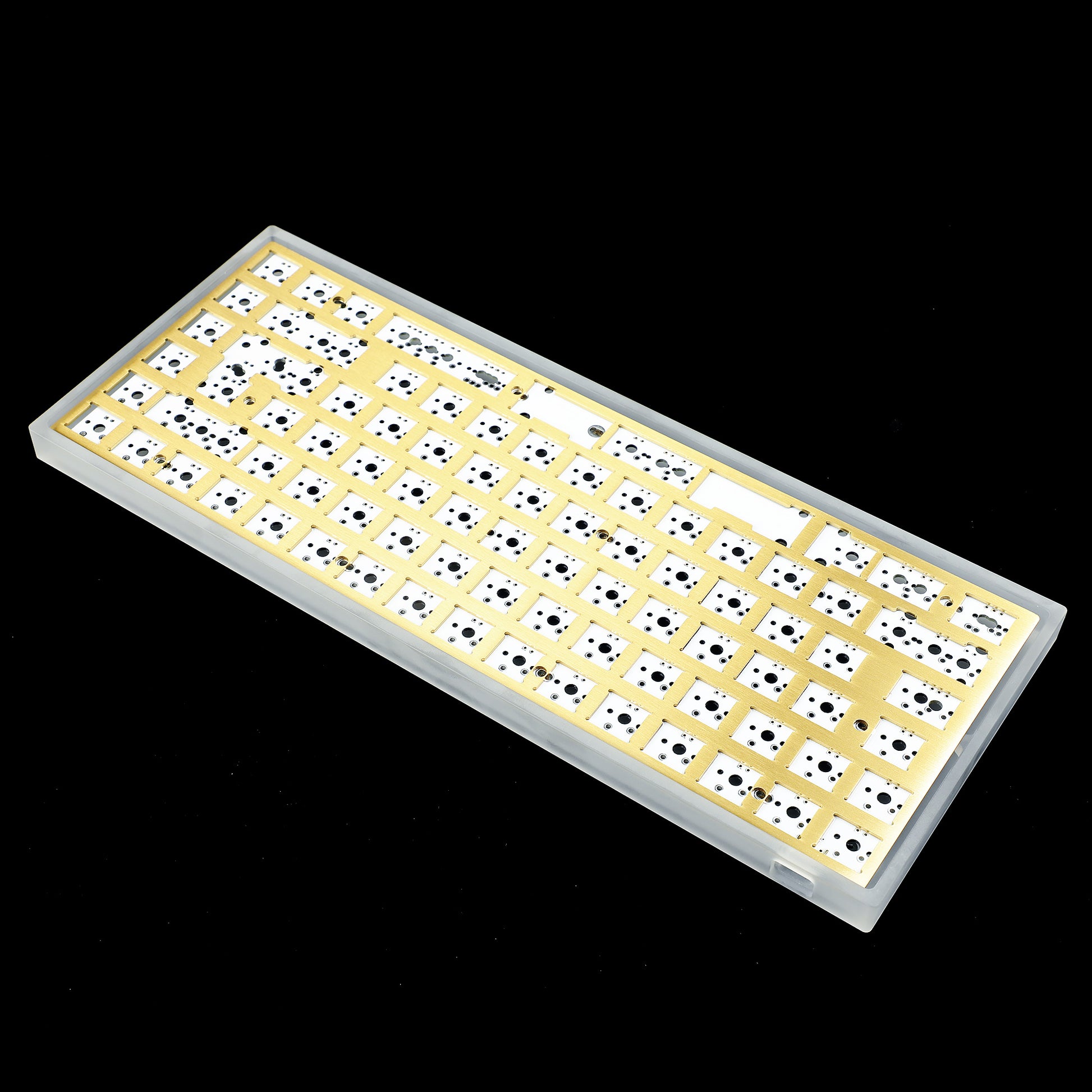

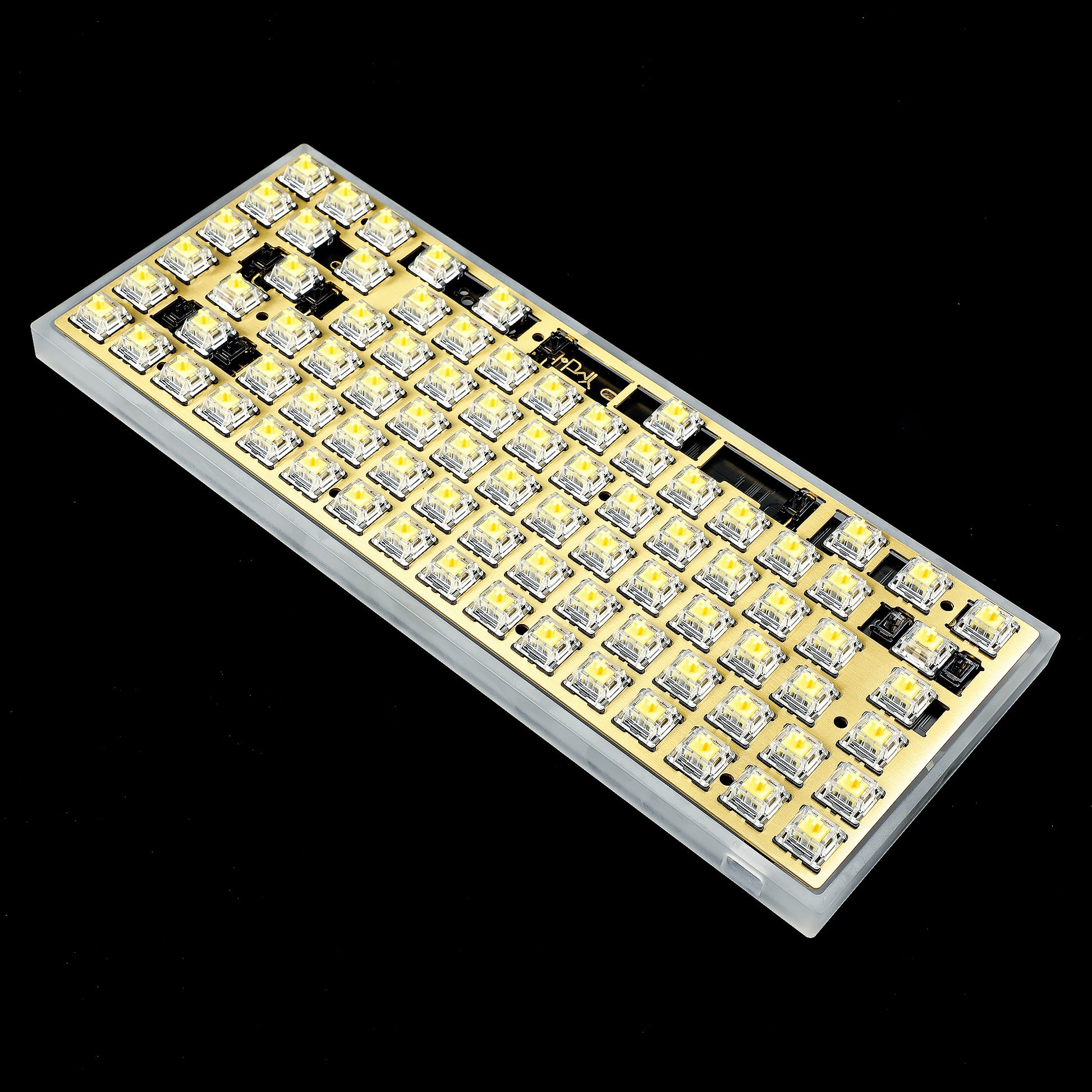

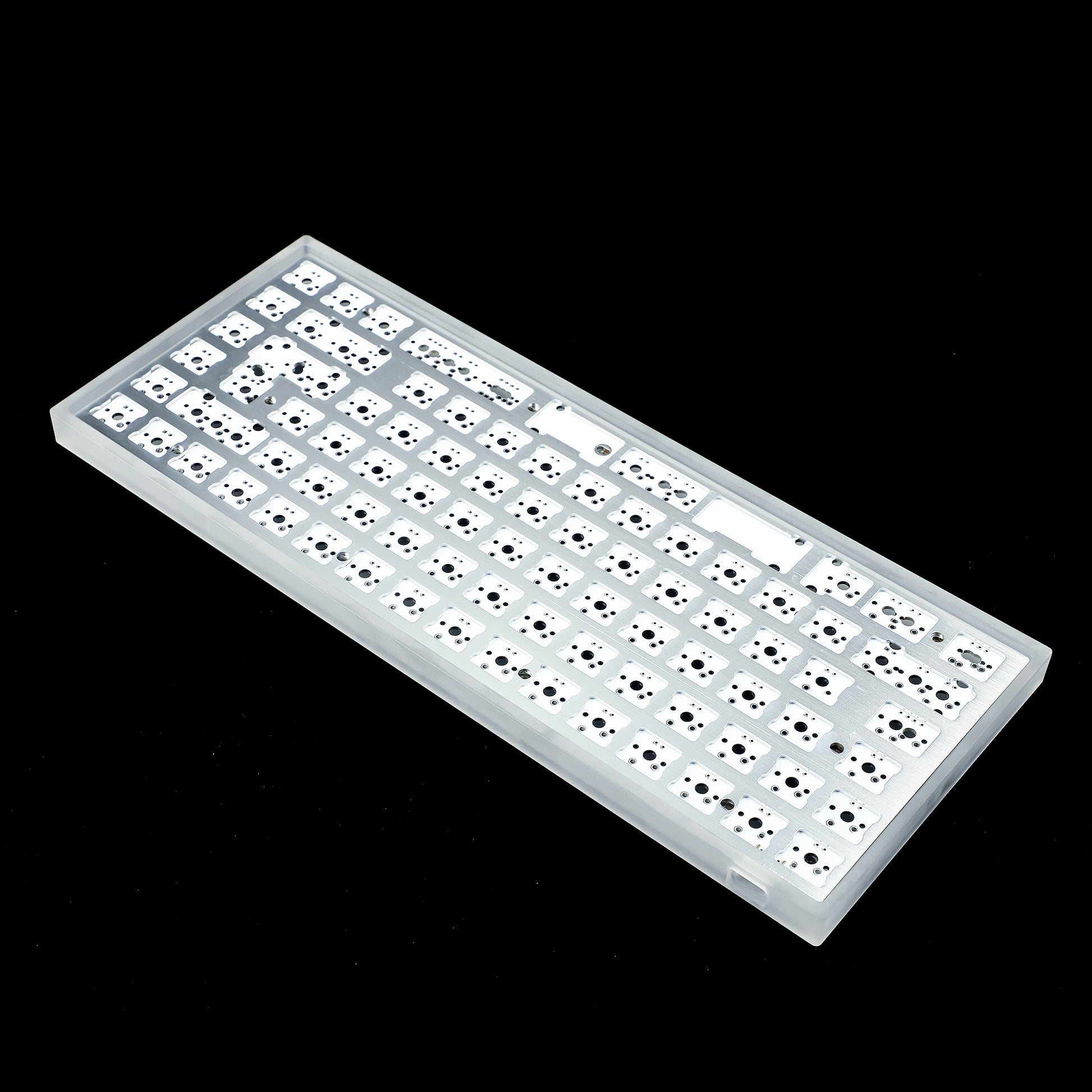

Plate still is aluminum/Brass/PC as the material to fix switches with pcb.Keep more options for handle feel of switches.

Keyboard Szie: 317*129*14 mm(Had not added the switches,keycaps,aluminum feets of heights)

Note

If you need change the hotswap pcb of layout with this kit,can just leave a message in cart of page for kit.

For soldering pcb,you still need a soldering iron to install switches.And it only can use bootmapper to program now.So if you flash it with others,can contact us to get the way that reset pcb.

Soldering and hotswap pcb all only support one backlit led now if you solder it yourself.So if you consider the rgb of working,can try this rgb pcb for it.Of course,we still have some kits for it.

Case Size(Unit:mm)

PCB Manuals

YMD75 V2 Soldering PCB

https://drive.google.com/file/d/1vMUbjzyKlsihNI8jNVvvqAk7vpWzmBqr/view?usp=sharing

YMD75 V3 Hotswap PCB

VIA Manuals: drive.google.com/file/d/1Wb30VnqHMV0dIVNKqcVWVaVzL5ZZgRxM/view?usp=sharing

This kit support the layout as below(Soldered V2 PCB)

Images Display

Option 1

Option 2

Option 3
