Package Included

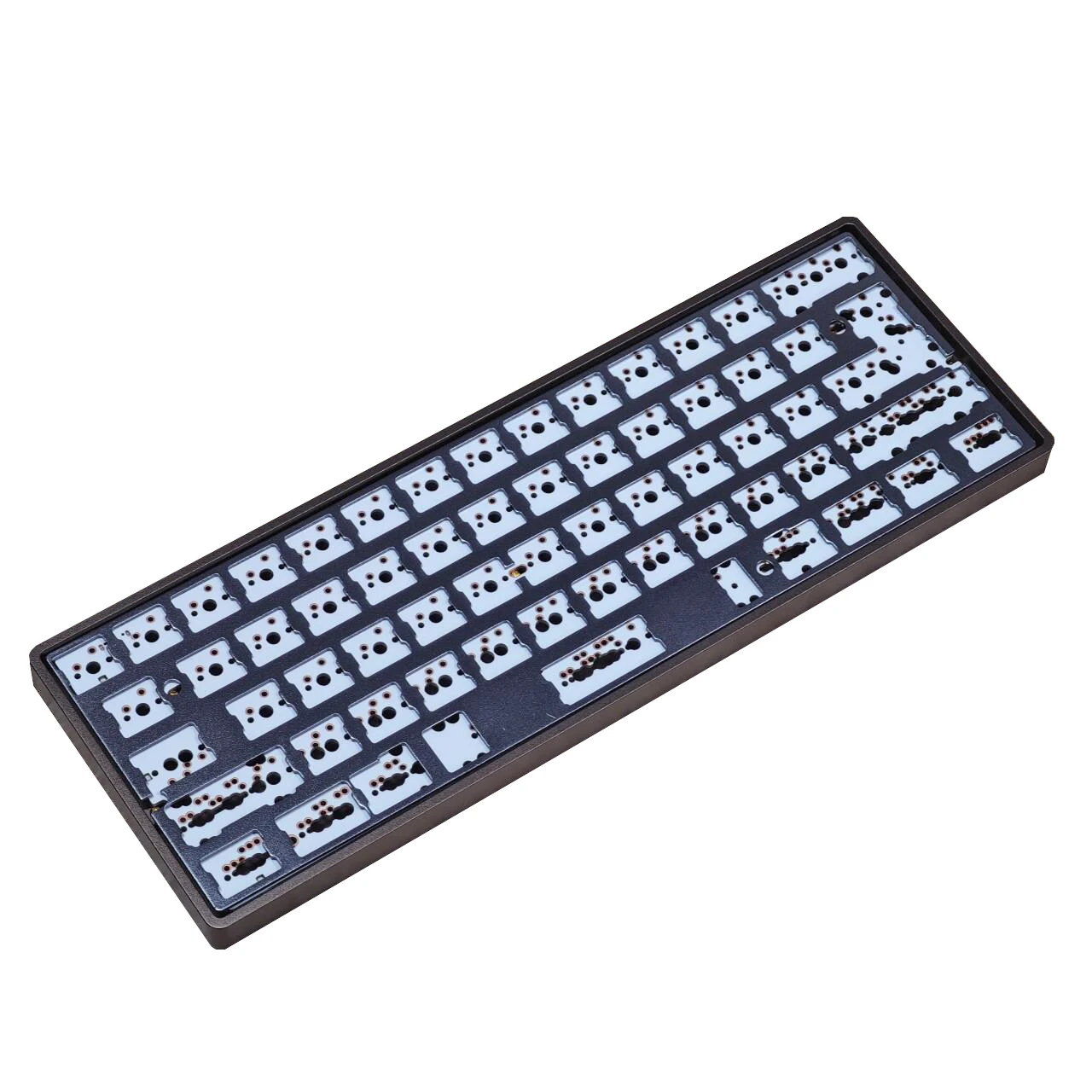

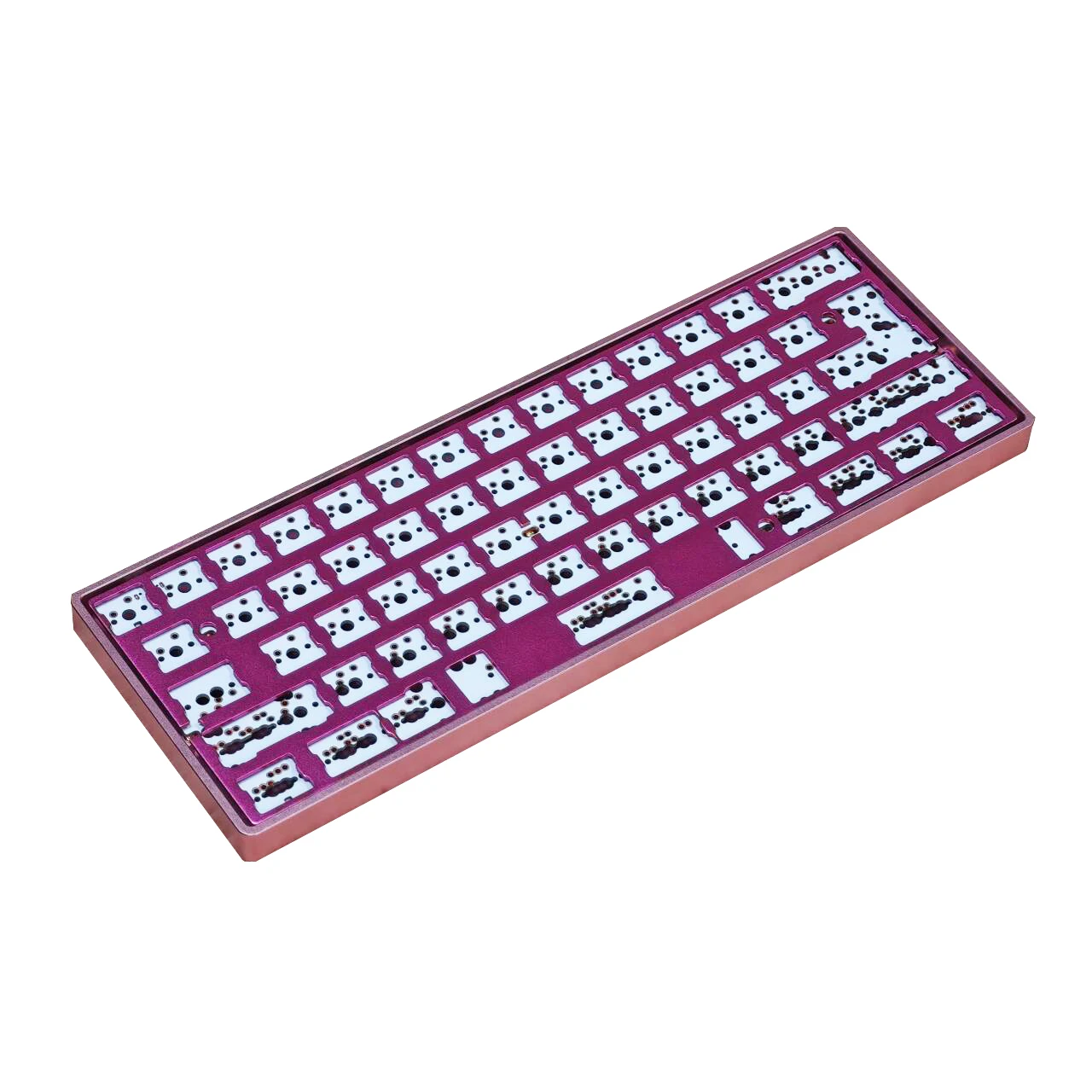

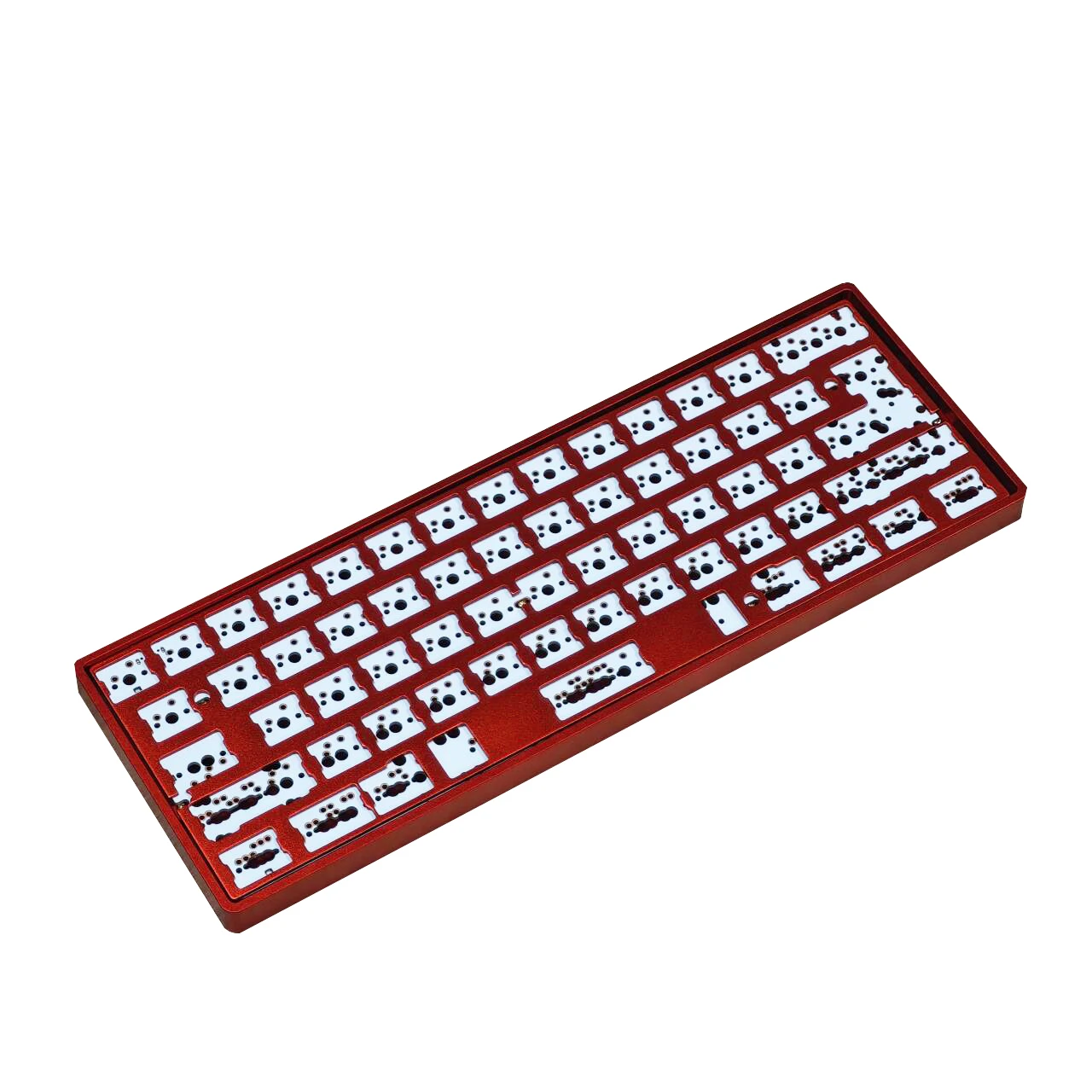

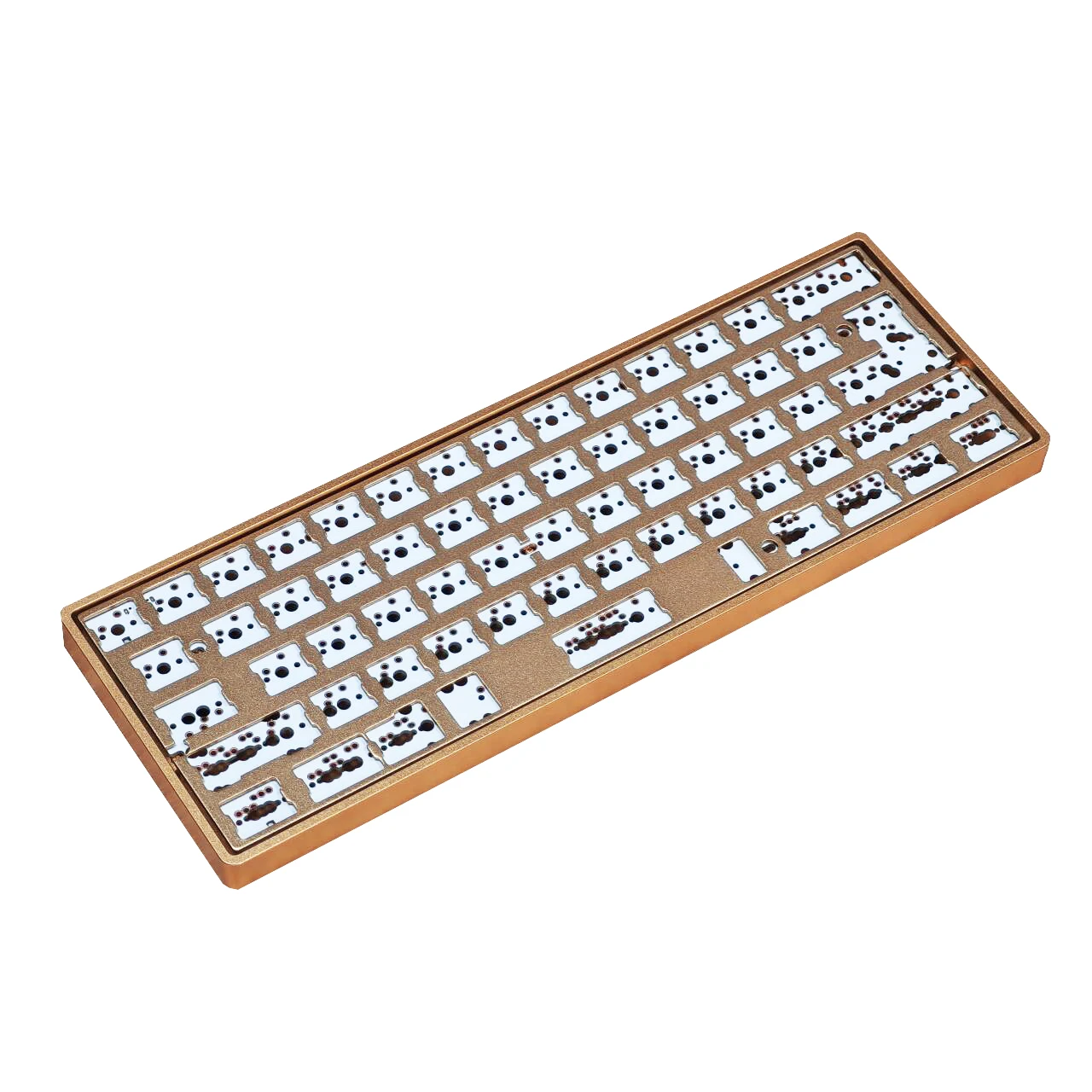

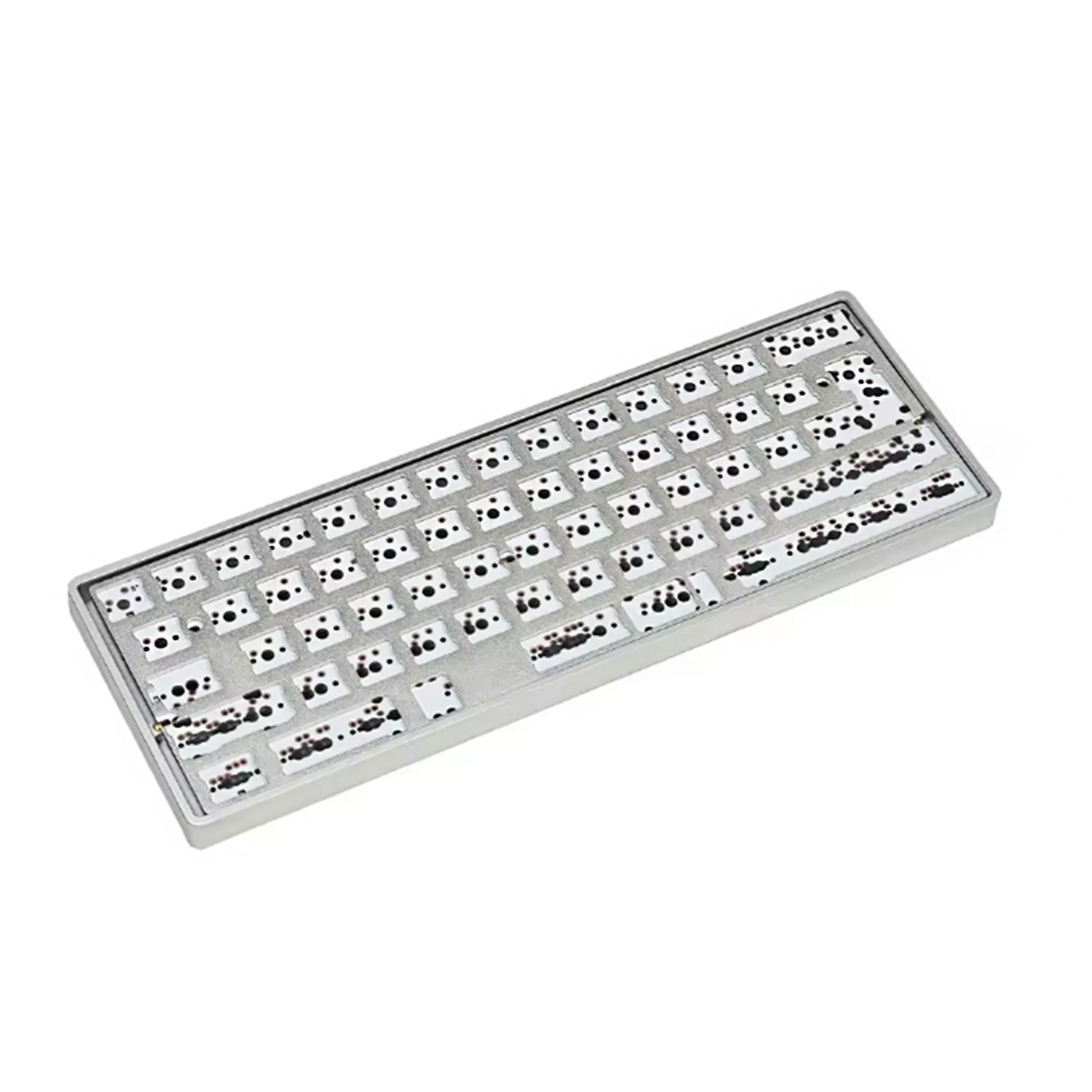

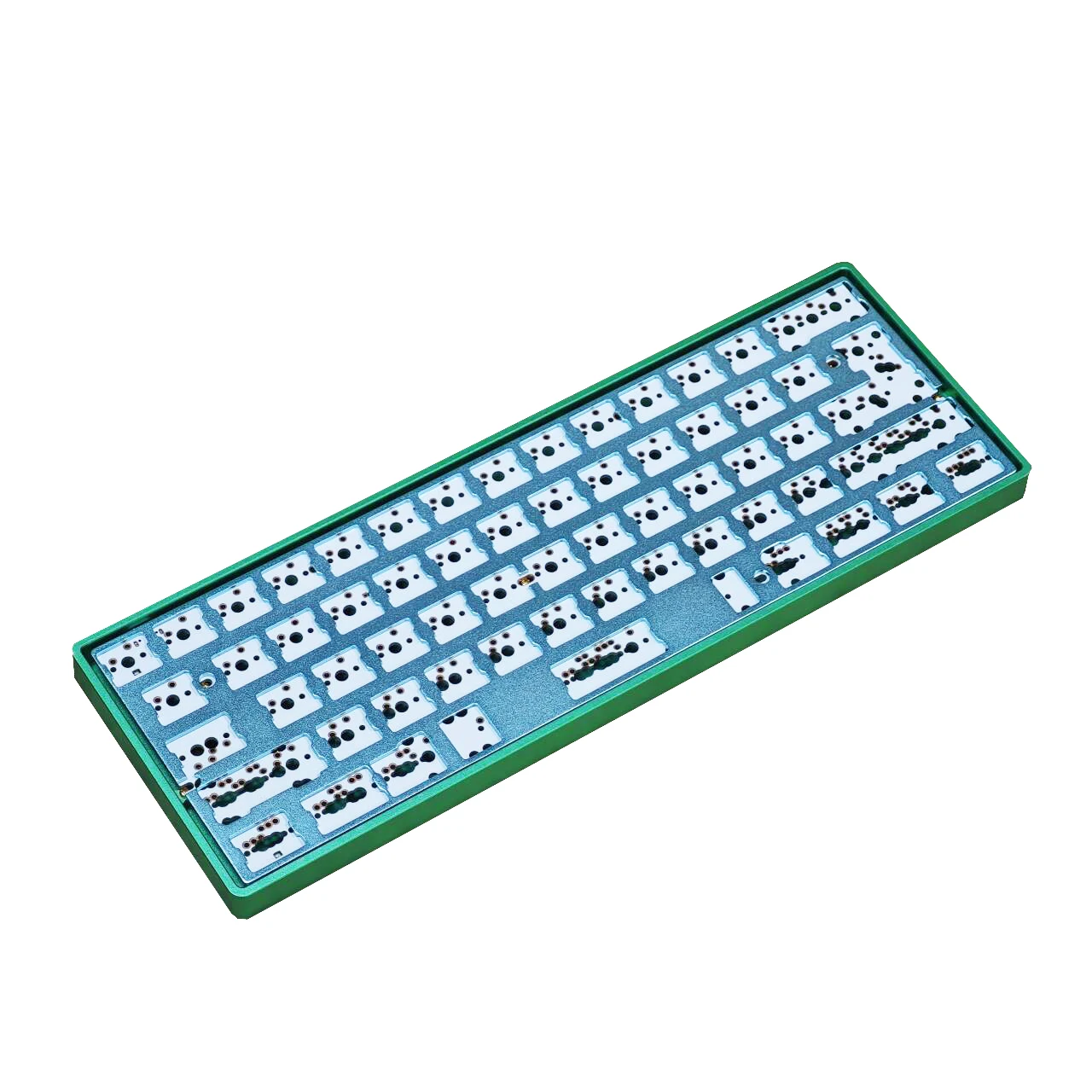

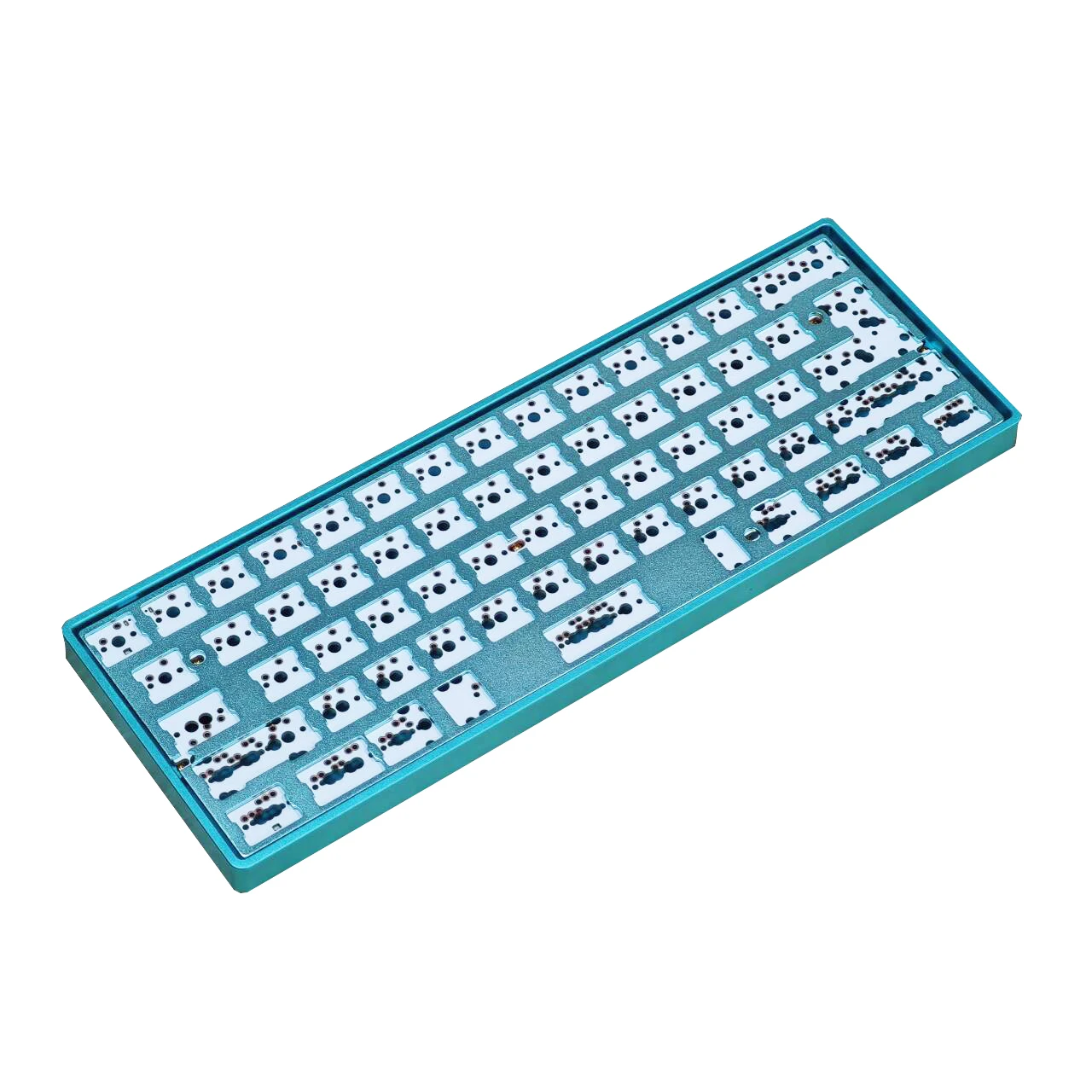

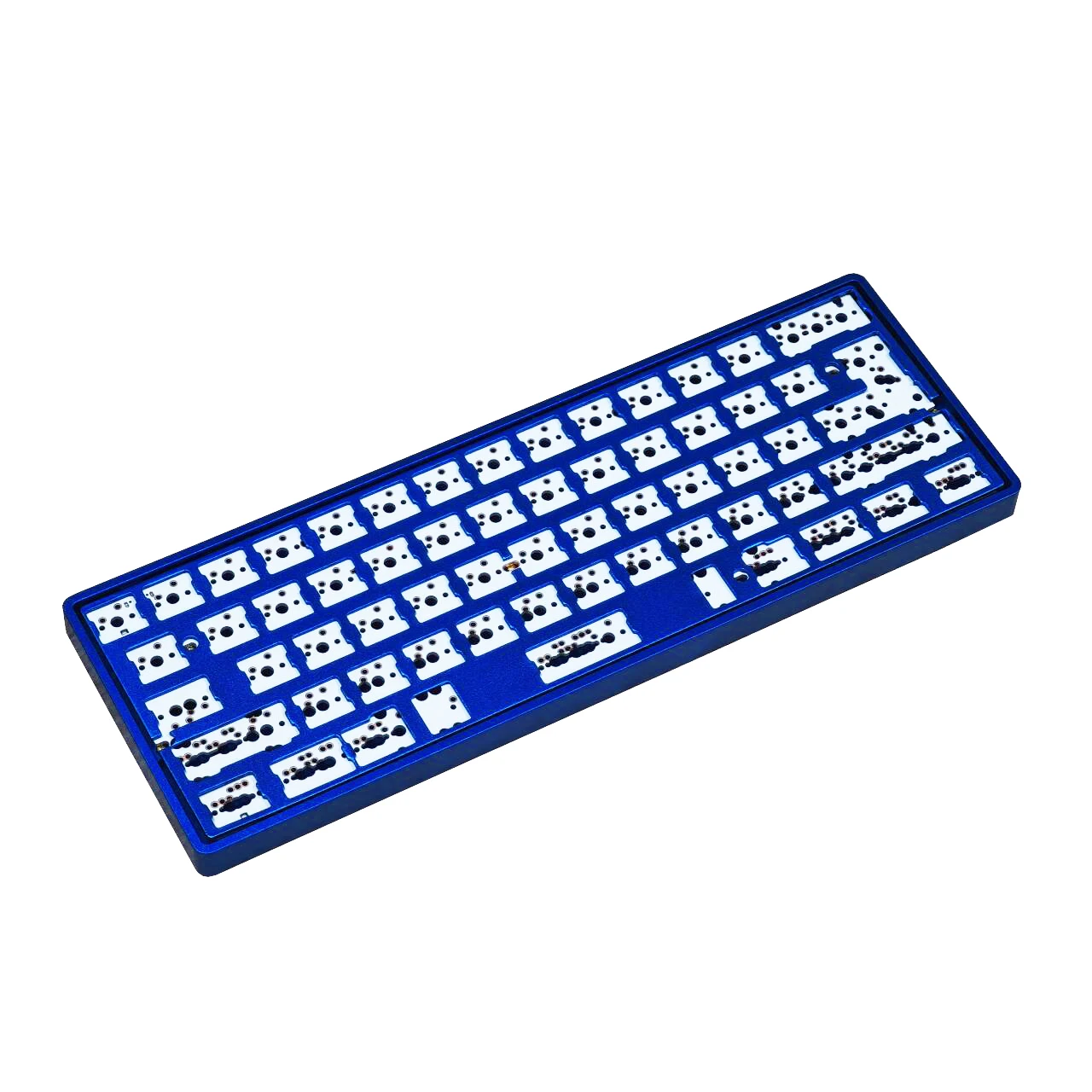

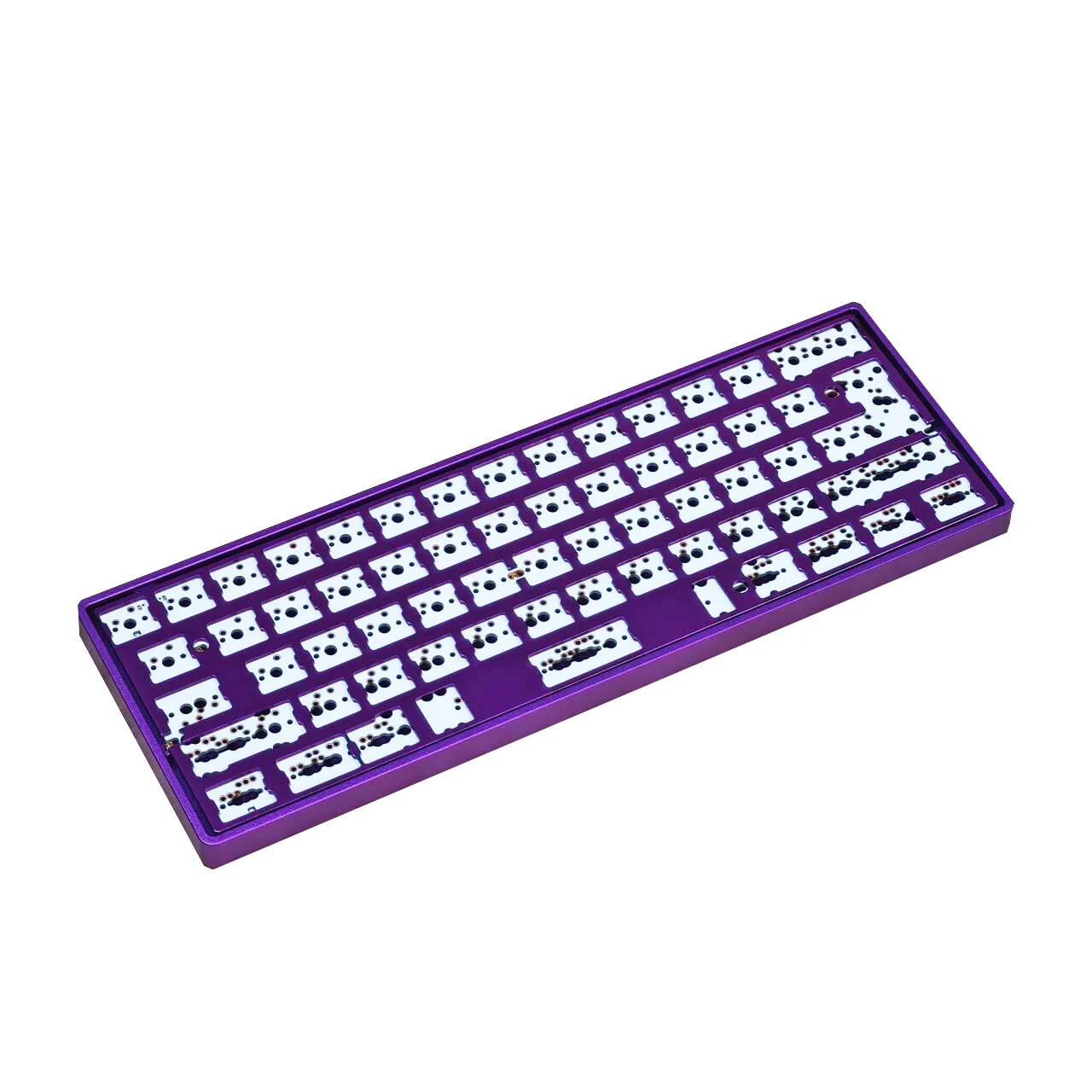

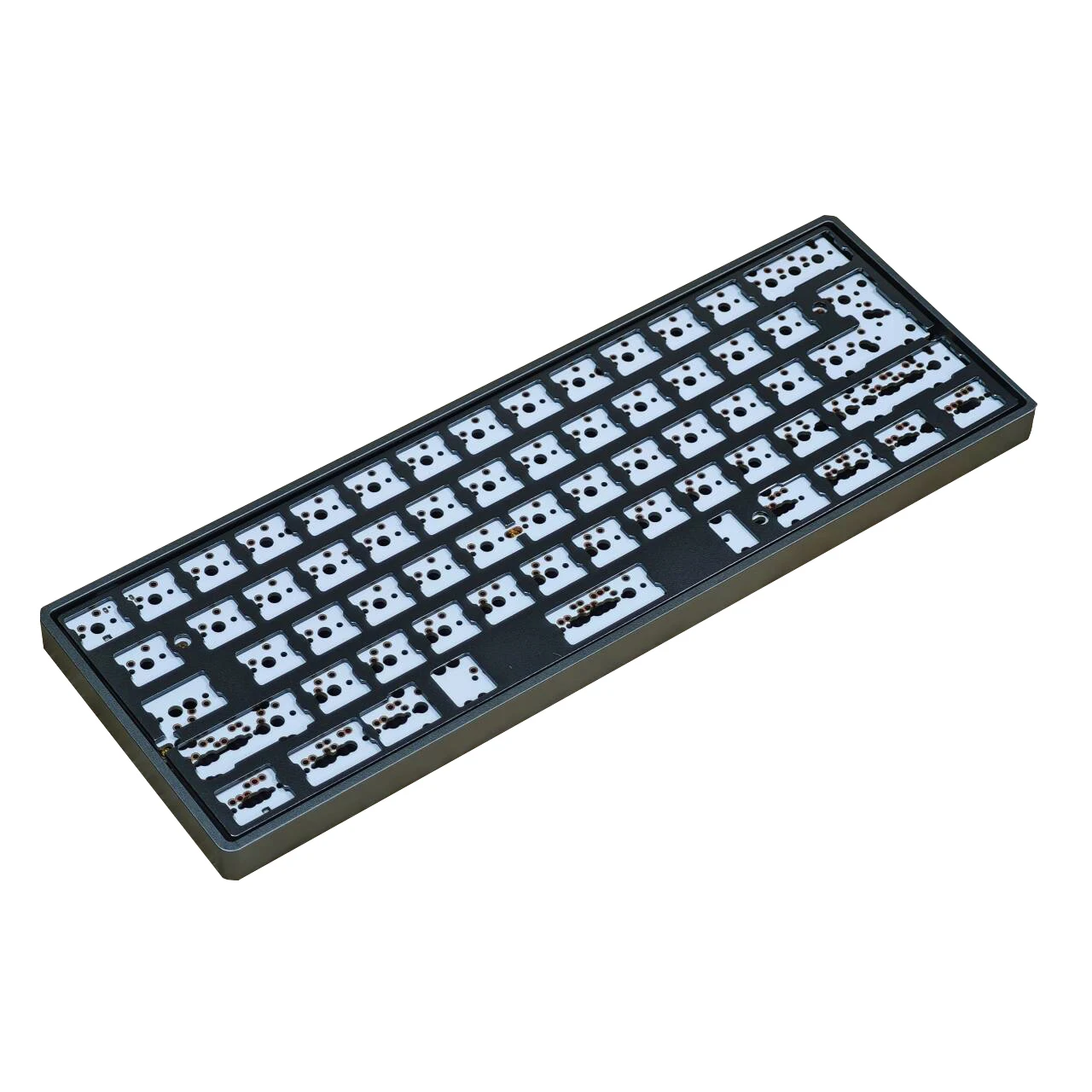

GH60 Aluminum Case + YMD64XS Bluetooth Soldering PCB + CNC Feet + Minila Aluminum Plate + OEM snap PCB Stabilizers + USB A to C cable + 2000mAh battery

The default plate is silver. If you need to change to gray or black, please leave a message.

No switches and keycaps included in the kit

Need to prepare the switch, welding equipment and keycaps to assemble a complete keyboard.

(If you don't like the above combination, please leave a message and we will change it to your favorite color.)

(If you want brass plate,can message us to add usd20 difference is ok)

The PCB is soldering PCB which require to solder switch to use.It's not hotswap ones.You can buy the hot pin in our store to get it hotswap.

https://ymdkey.com/products/diy-crystal-base-switch-hot-plug-hot-swap-sip-socket-for-wings-ymd40v2-ymd21v2-yd64mq-ymd75v2?variant=39294546509885

Details

Model ：YMD64XS bluetooth aluminum kit

PCB Memory：32MB

All cases are low profile, with the height of the case marked below

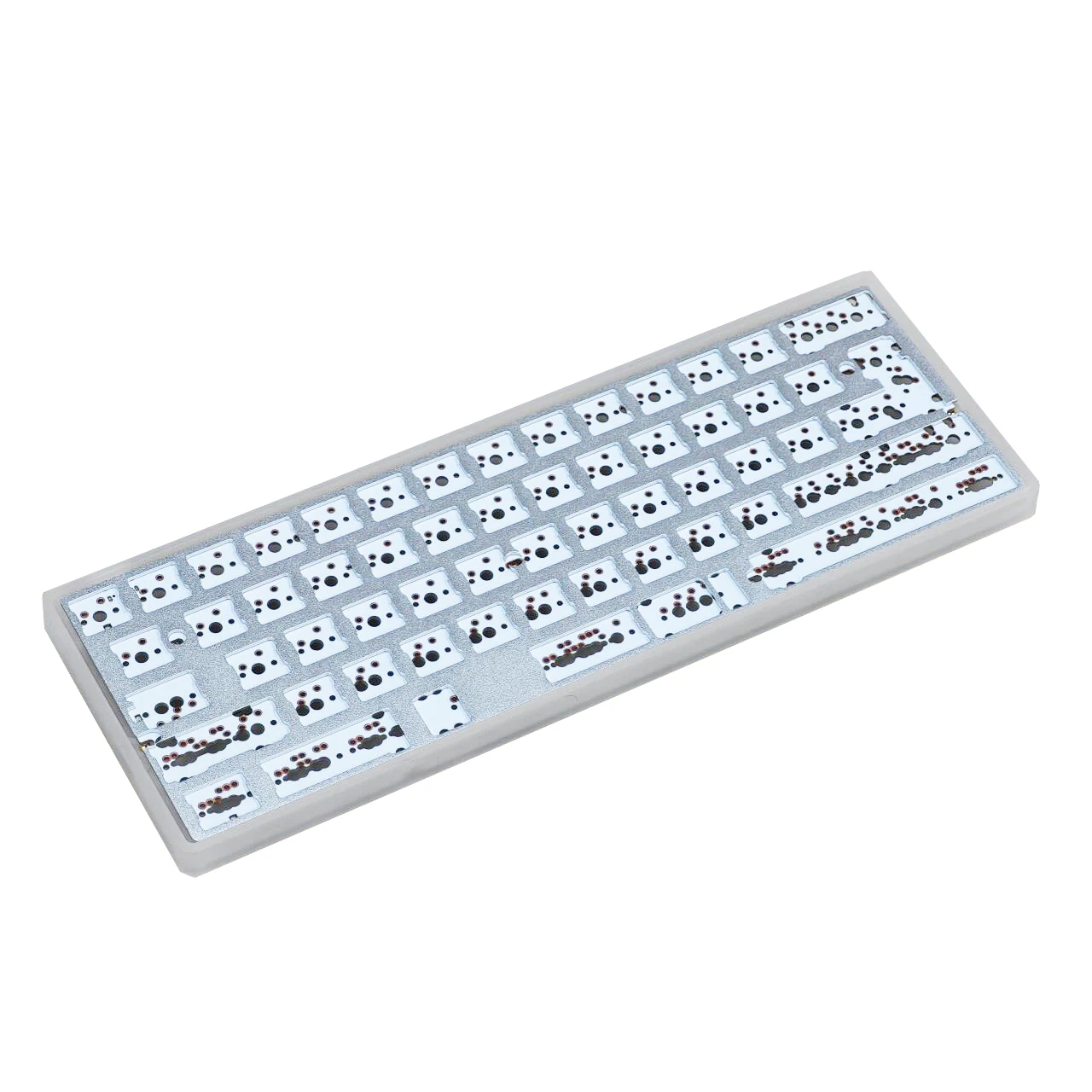

Except for the acrylic case, the rest are all aluminum cases

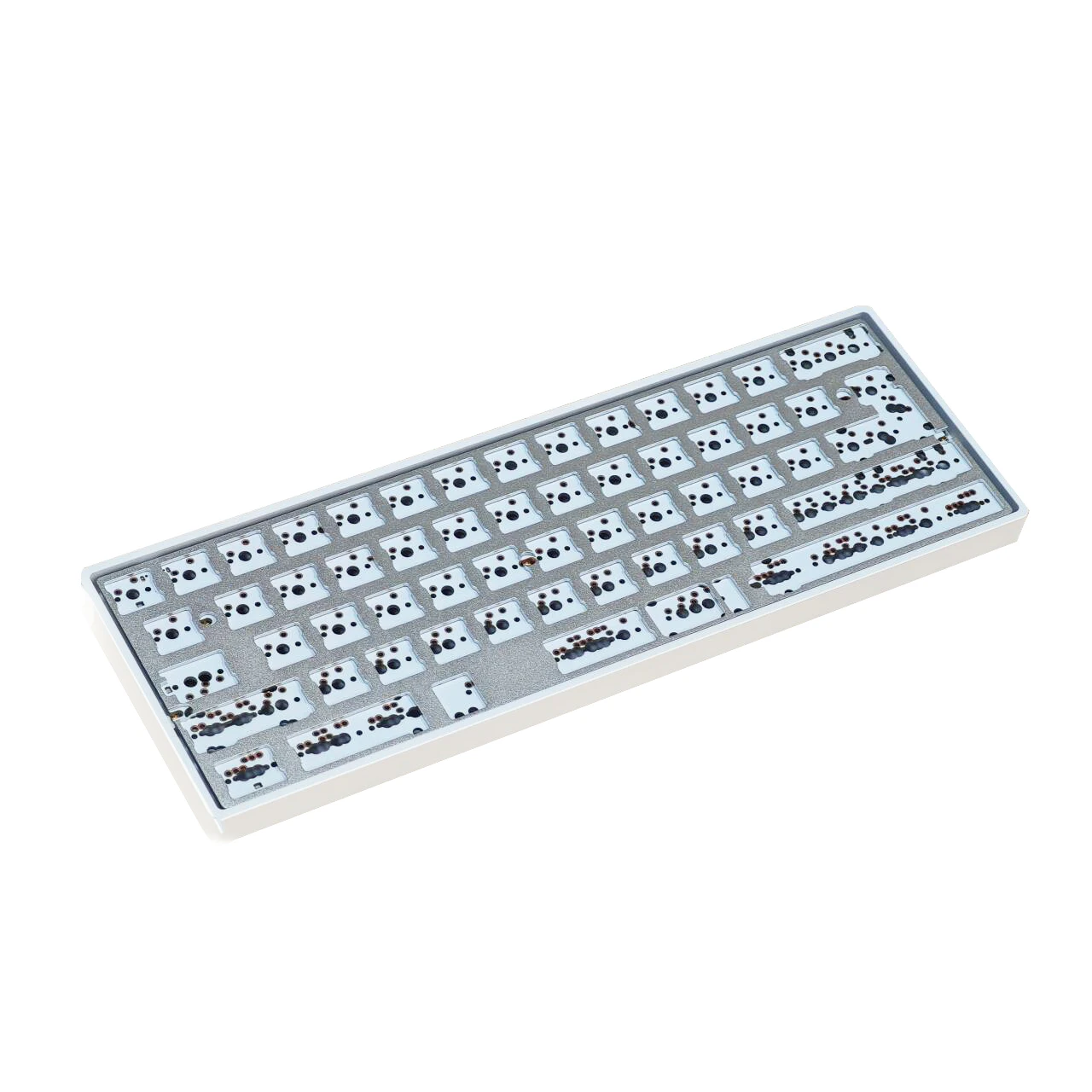

All case is CNC anodized except white case is powder coated.

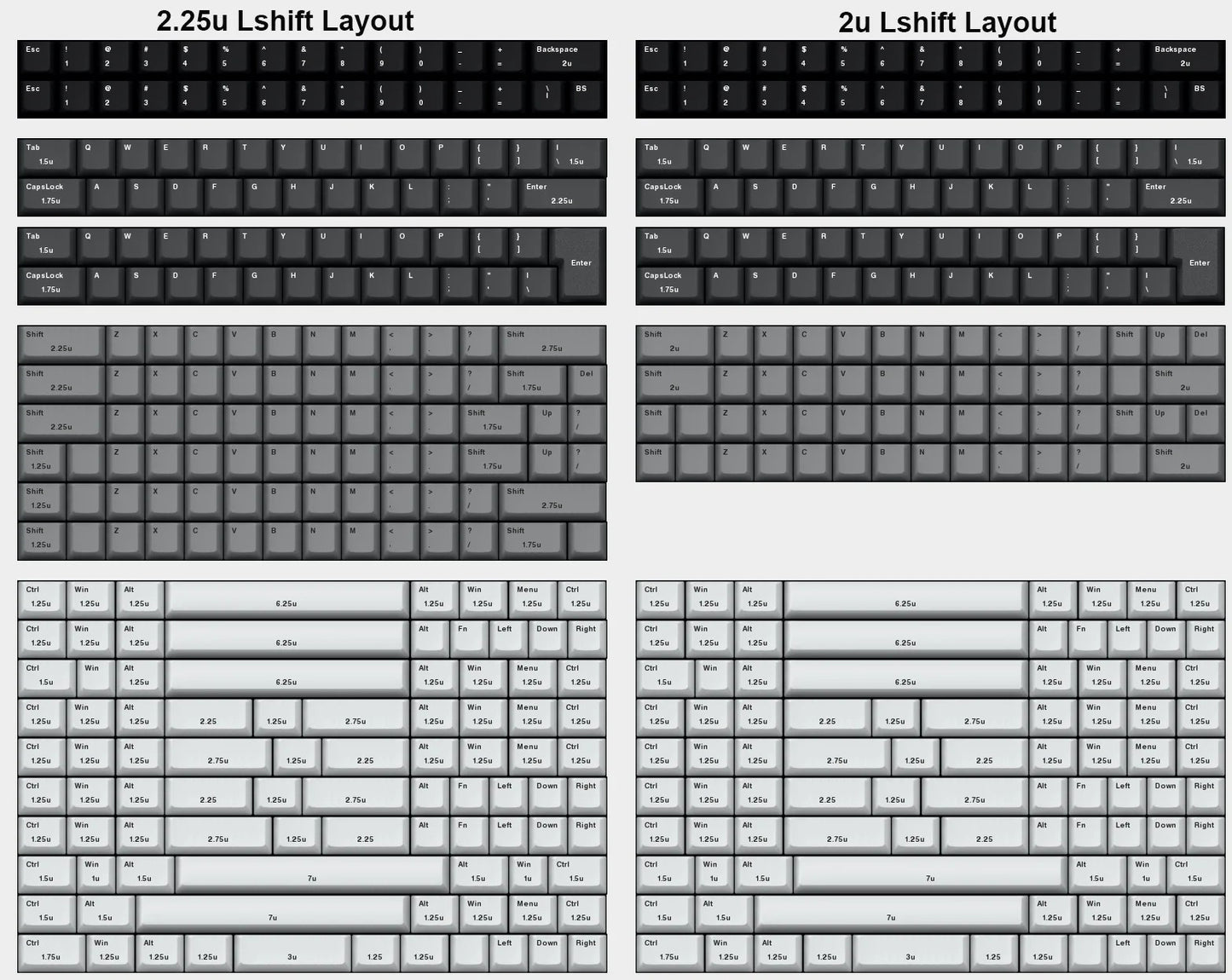

Support 60% 61 64 Layout，please refer to the picture below for the layout

Supports most MX switches. (Low profile switch is not supported)

No underglow leds and switches leds.

White PCB is silver pad QMK.

All Type C PCB.

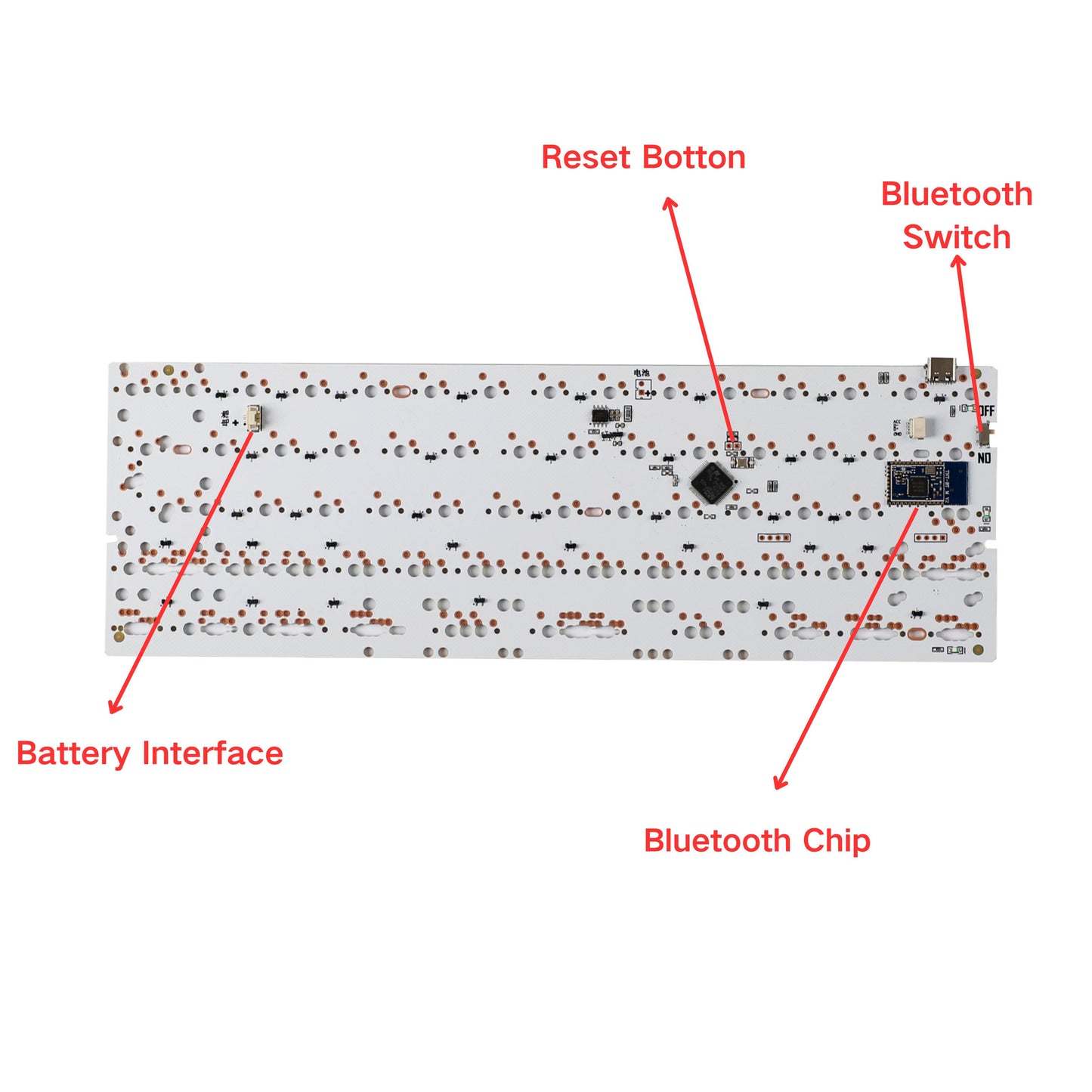

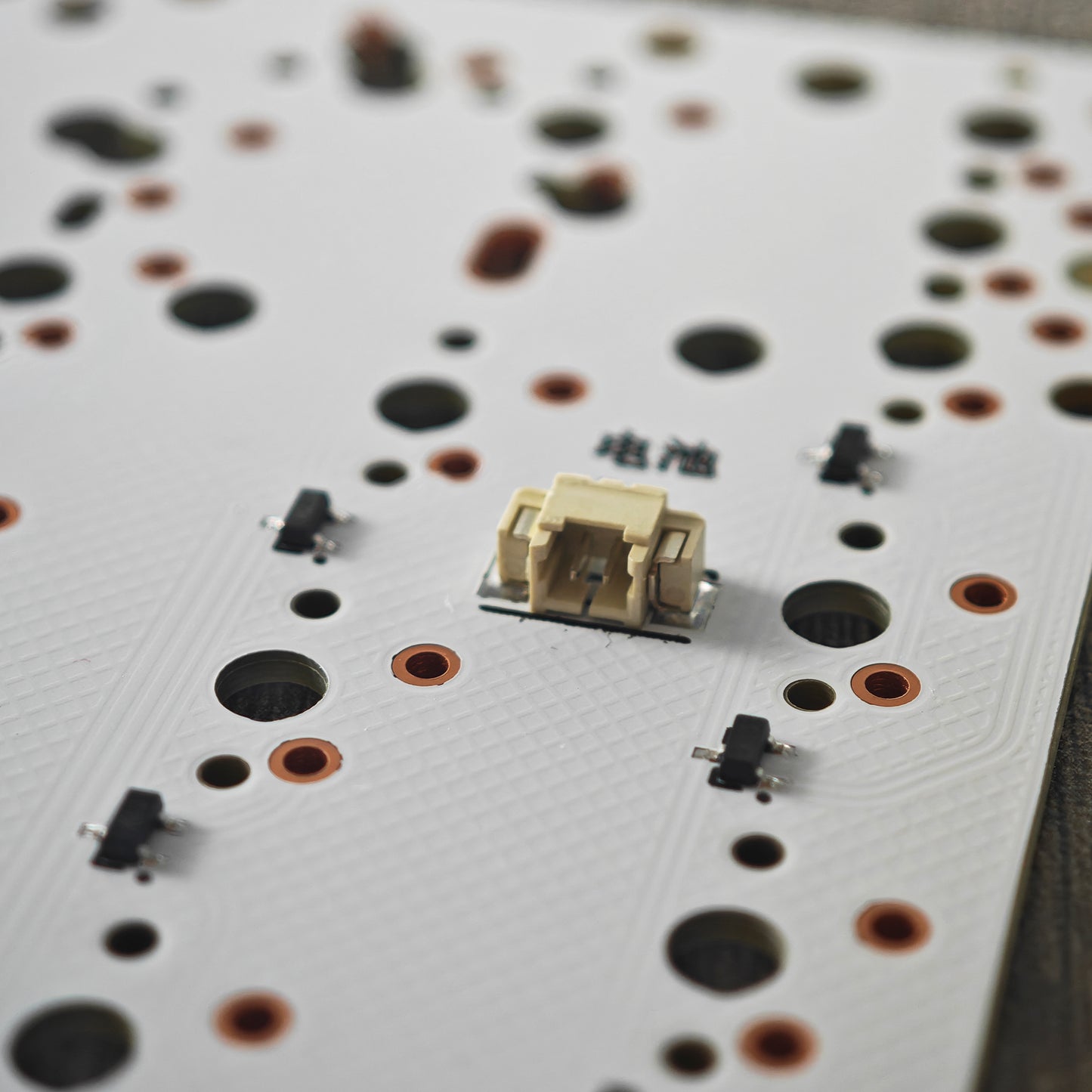

The PCB support polymer battery with 1.25 pin Red Black connectors.

As default,when you connect to PC with USB,it goes into wired mode.If you pull the cable off,it will go to bluetooth mode.

The following are the default file key combinations:



M0(1) in the figure is equivalent to FN

FN+I =Bluetooth channel 1

FN+O =Bluetooth channel 2

FN+P =Bluetooth channel 3

FN+Tab =Bluetooth delete

FN+ESC = Reset

Manual

The PCB can be directly connected to the vial and programmed on the vial. Here is the vial link

https://vial.rocks/

Additional Parts you can add (Optional)

Switches

https://ymdkey.com/products/cherry-gateron-silent-zealio-kailh-box-outemu-ice-purple-switches-shaft-for-mechanical-keyboard-gh60-ymd75-ymd96-diy?variant=31301756649533

Hot Pin

https://ymdkey.com/products/diy-crystal-base-switch-hot-plug-hot-swap-sip-socket-for-wings-ymd40v2-ymd21v2-yd64mq-ymd75v2?_pos=7&_sid=4971aea34&_ss=r

All layout support (just choose the proper plate can get the layout you prefer)
