YMDK Customized YMD60XS GH60 DIY Kit Aluminum CNC Case Plate Bluetooth Soldering PCB For 60% ANSI ISO Mechanical Keyboard Kit

YMDK Customized YMD60XS GH60 DIY Kit Aluminum CNC Case Plate Bluetooth Soldering PCB For 60% ANSI ISO Mechanical Keyboard Kit

Regular price $65.00 USD
Regular price $0.00 USD Sale price $65.00 USD
Sale Sold out
Shipping calculated at checkout.
Case Color

Package Included



GH60 Aluminum Case + YMD60XS Bluetooth Soldering PCB + CNC Feet + Aluminum Plate + OEM snap PCB Stabilizers + USB cable + 2000mAh battery



No switches and keycaps included in the kit


Need to prepare the switch, welding equipment and keycaps to assemble a complete keyboard.

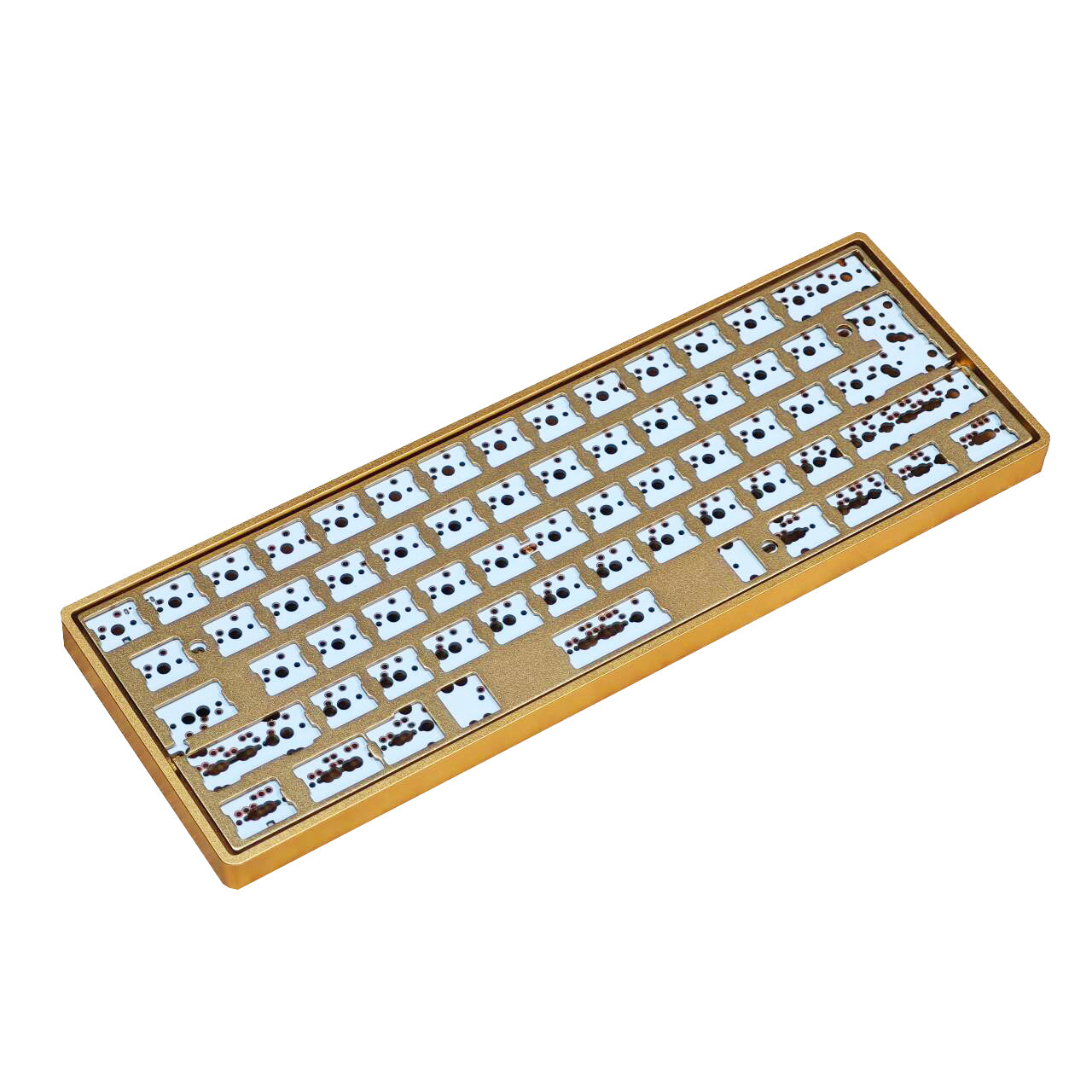

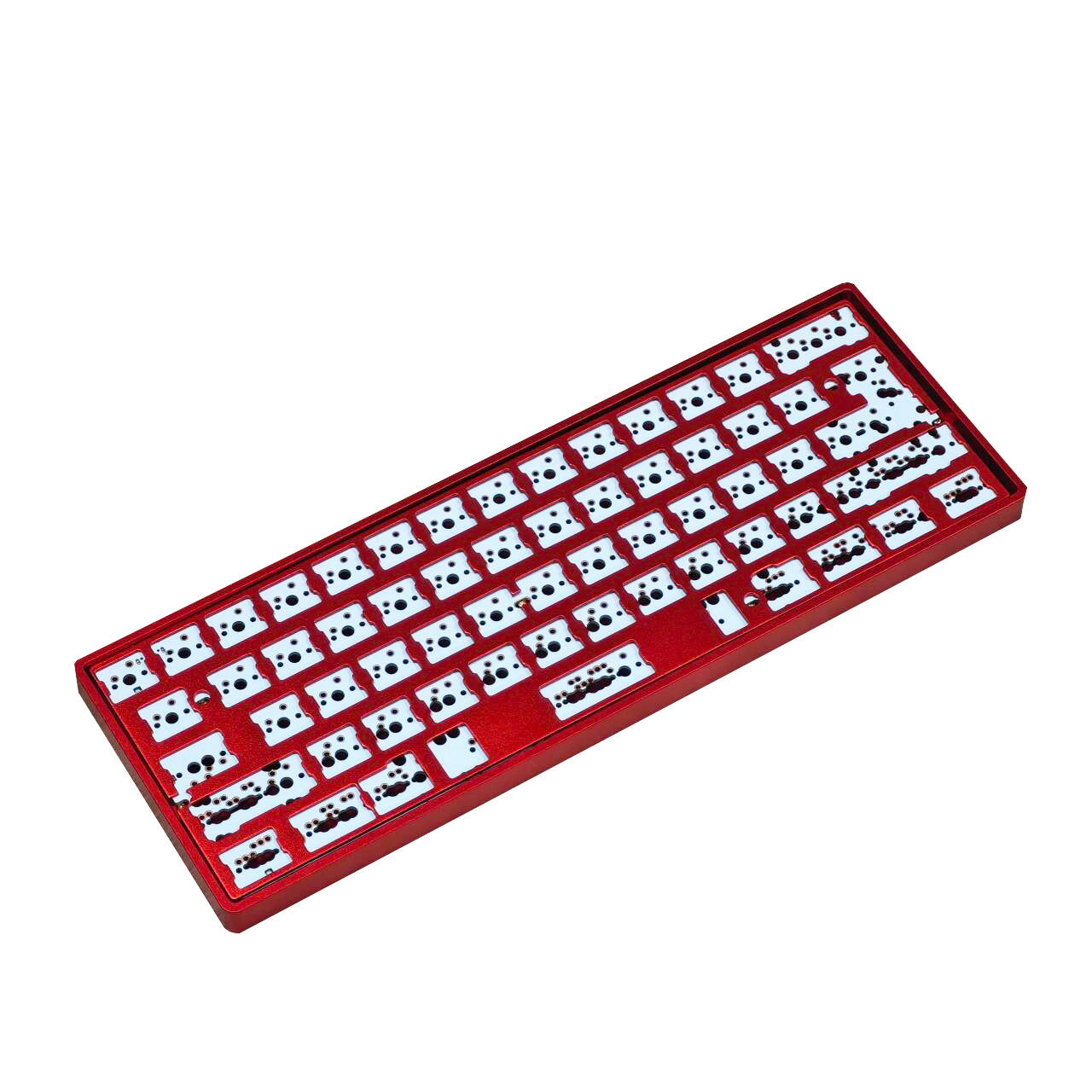

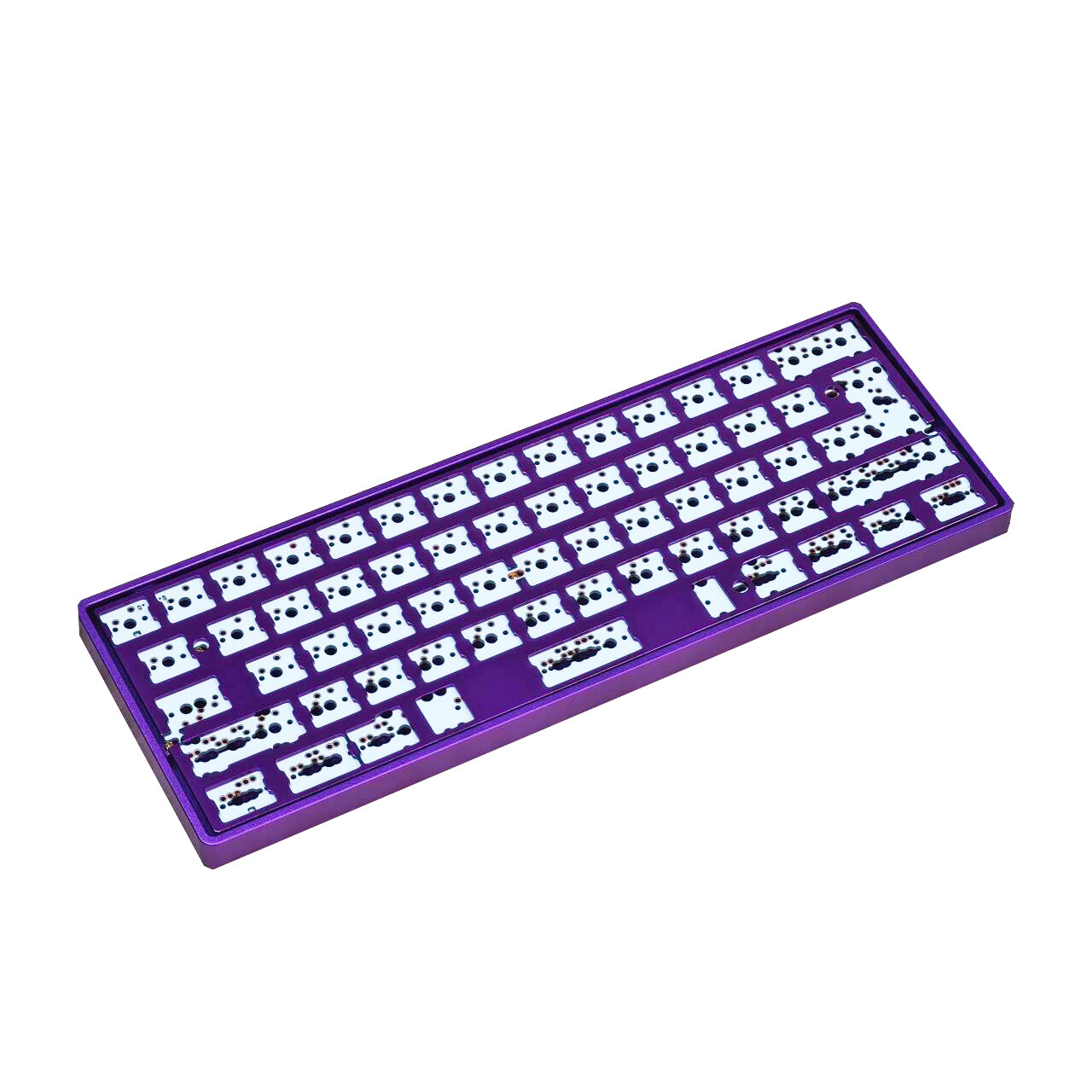

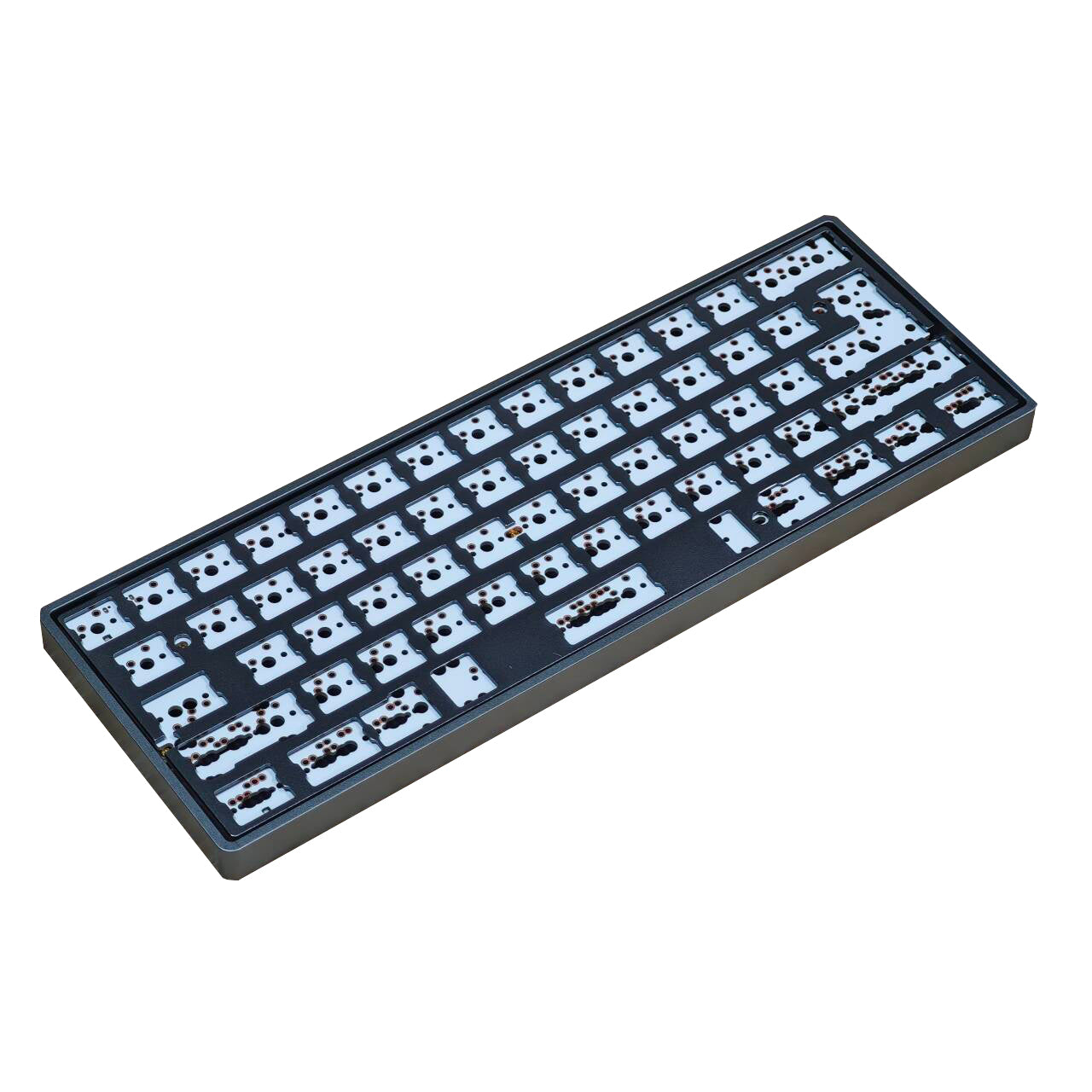

By default, the color of the plate we use is the color shown in the picture, except for some colors, which are explained below.

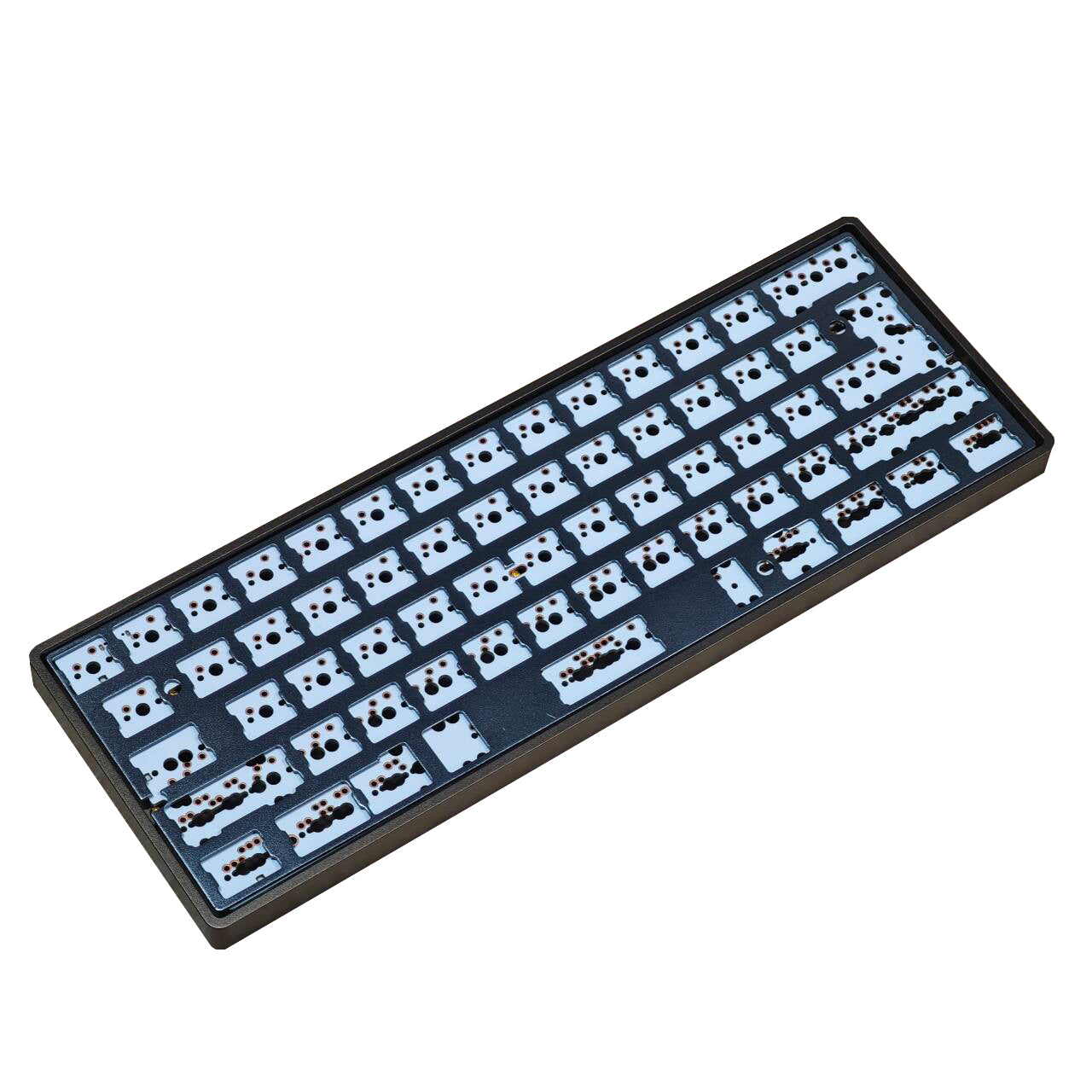

The coffee case uses a gray plate

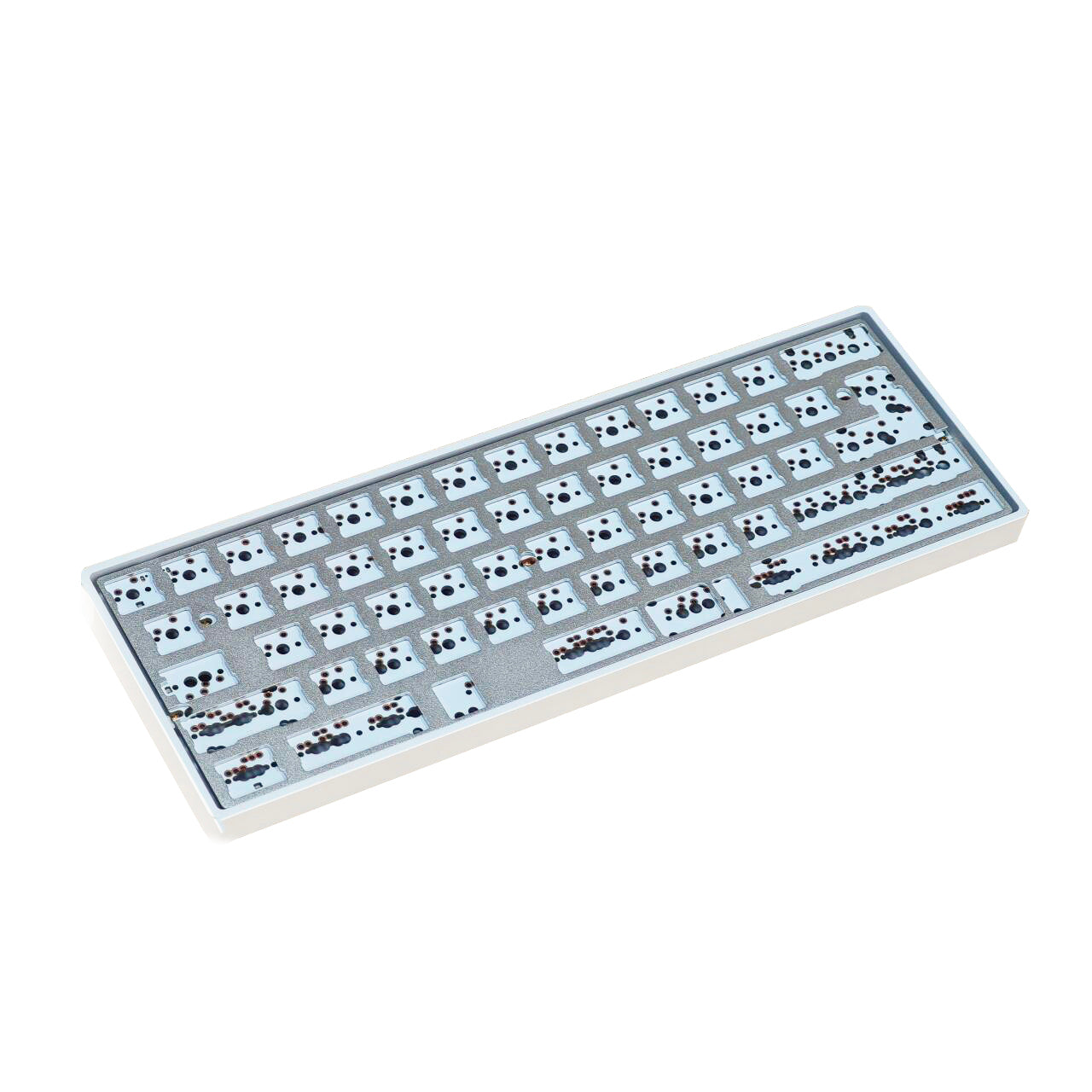

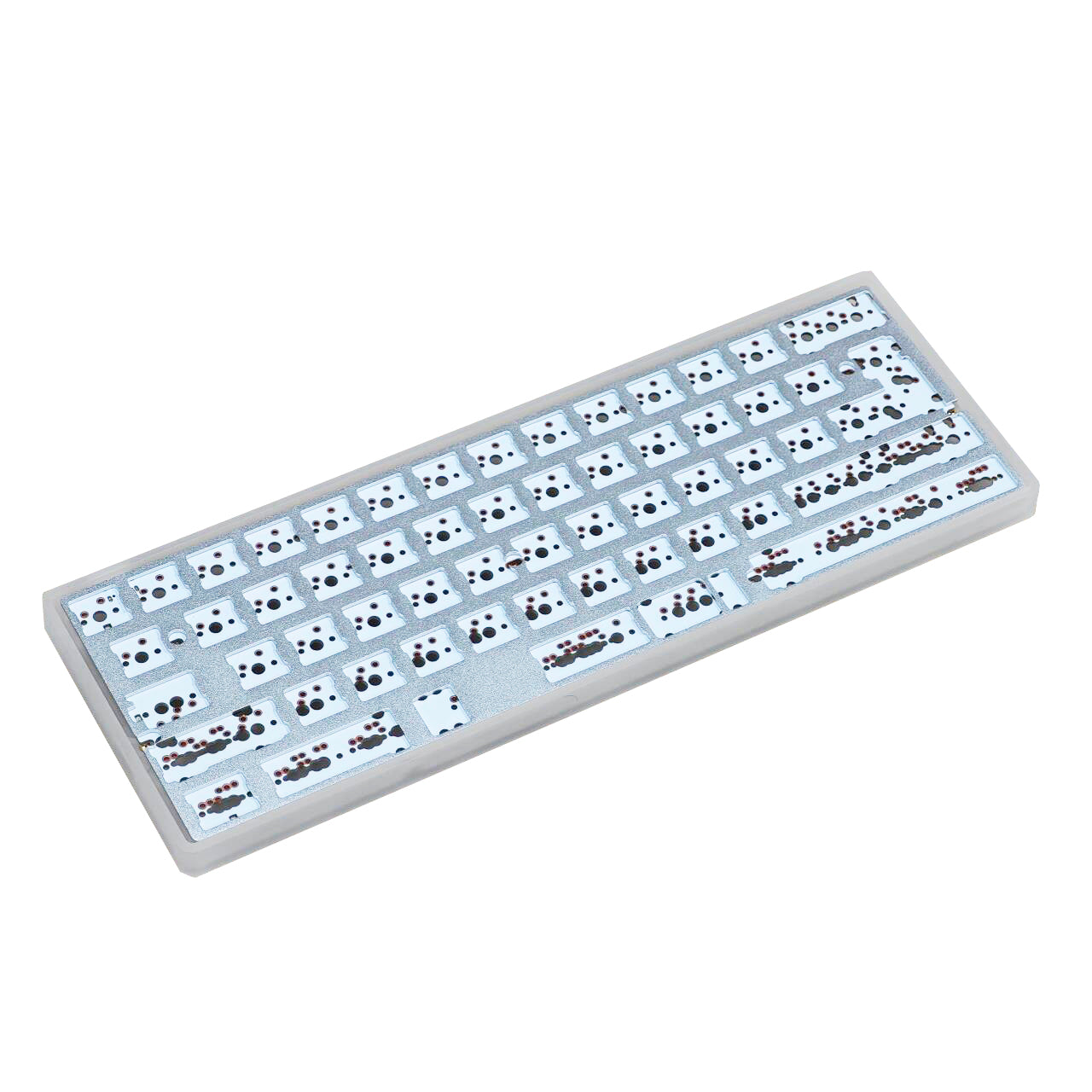

The acrylic case and white case use a silver plate

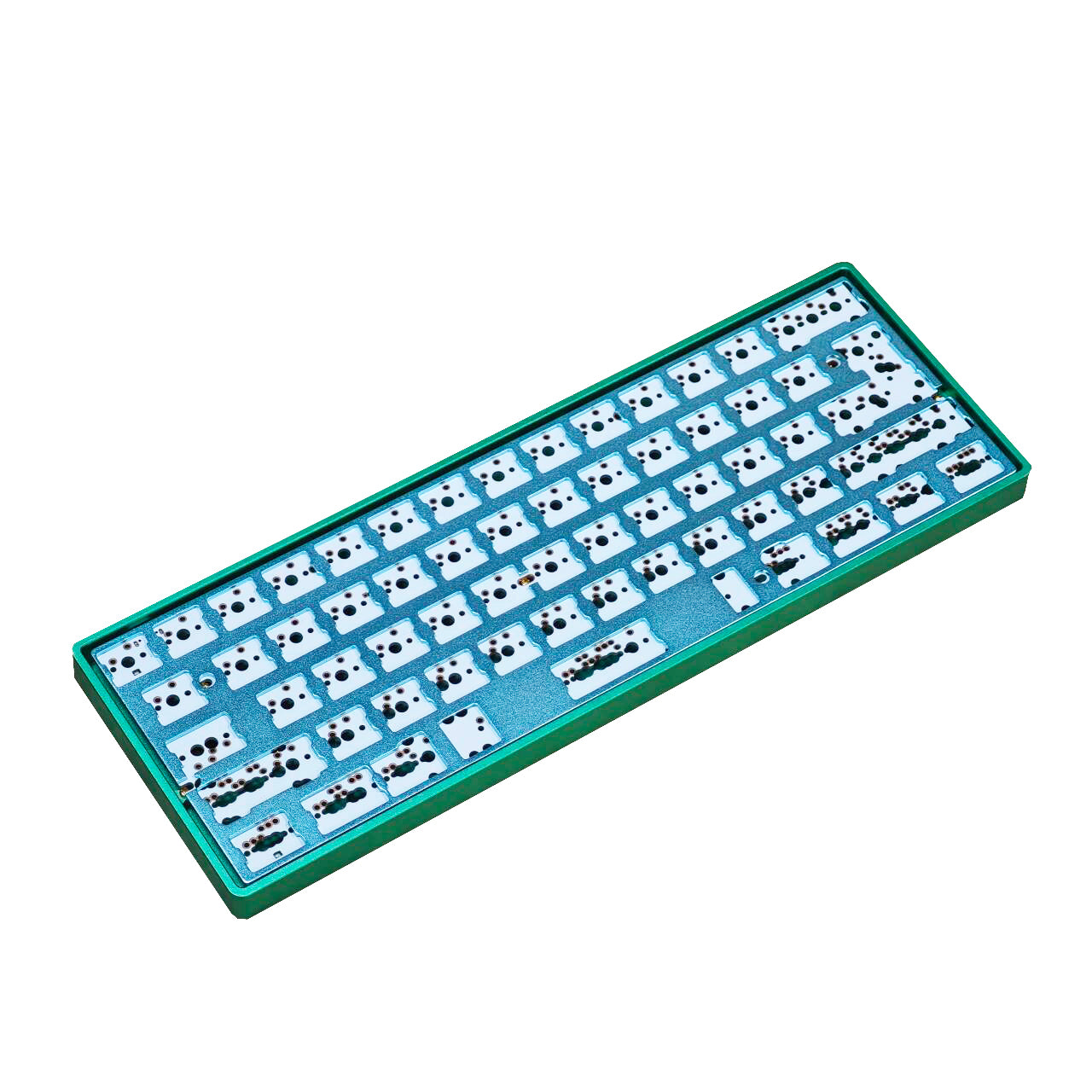

The green case uses a cyan plate


(If you don't like the above combination, please leave a message and we will change it to your favorite color.)


(If you want brass plate,can message us to add usd20 difference is ok)


The PCB is soldering PCB which require to solder switch to use.It's not hotswap ones.You can buy the hot pin in our store to get it hotswap.

https://ymdkey.com/products/diy-crystal-base-switch-hot-plug-hot-swap-sip-socket-for-wings-ymd40v2-ymd21v2-yd64mq-ymd75v2?variant=39294546509885




Details



Model :YMD60XS bluetooth aluminum kit


PCB Memory:32MB


All cases are low profile, with the height of the case marked below


Except for the acrylic case, the rest are all aluminum cases


All case is CNC anodized except white case is powder coated.

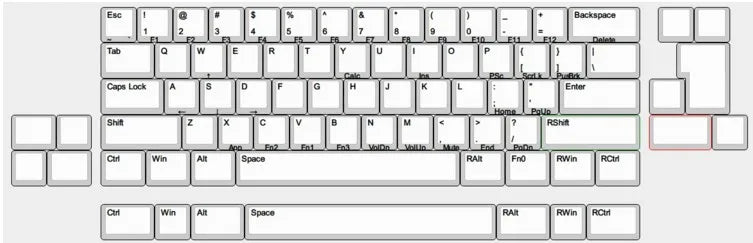

Support 60% 61 Layout,please refer to the picture below for the layout


Supports most mx switches. (Low profile switch is not supported)


No underglow leds and switches leds.


White PCB is silver pad QMK.


All Type C PCB.


The PCB support polymer battery with 1.25 pin Red Black connectors.


As default,when you connect to PC with USB,it goes into wired mode.If you pull the cable off,it will go to bluetooth mode.

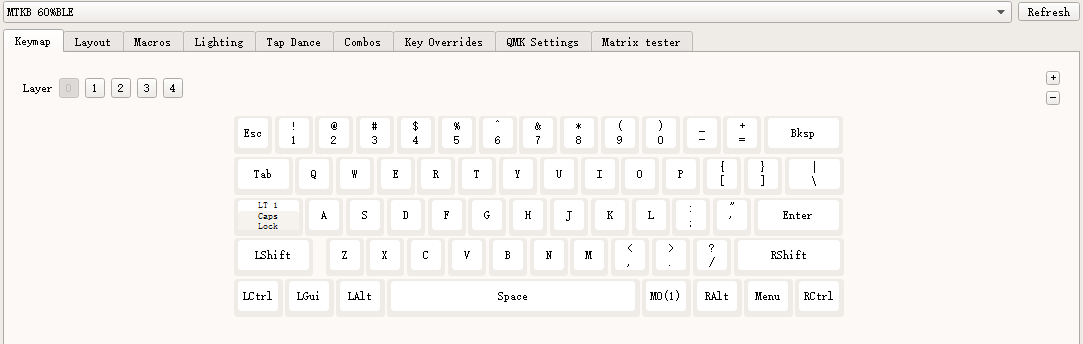

The following are the default file key combinations:

M0(1) in the figure is equivalent to FN


FN+I =Bluetooth channel 1

FN+O =Bluetooth channel 2

FN+P =Bluetooth channel 3

FN+Tab =Bluetooth delete

FN+ESC = Reset


Manual


The PCB can be directly connected to the vial and programmed on the vial. Here is the vial link

https://vial.rocks/



Additional Parts you can add (Optional)


Switches

https://ymdkey.com/products/cherry-gateron-silent-zealio-kailh-box-outemu-ice-purple-switches-shaft-for-mechanical-keyboard-gh60-ymd75-ymd96-diy?variant=31301756649533


Hot Pin


https://ymdkey.com/products/diy-crystal-base-switch-hot-plug-hot-swap-sip-socket-for-wings-ymd40v2-ymd21v2-yd64mq-ymd75v2?_pos=7&_sid=4971aea34&_ss=r


All layout support (just choose the proper plate can get the layout you prefer)
