Package Included

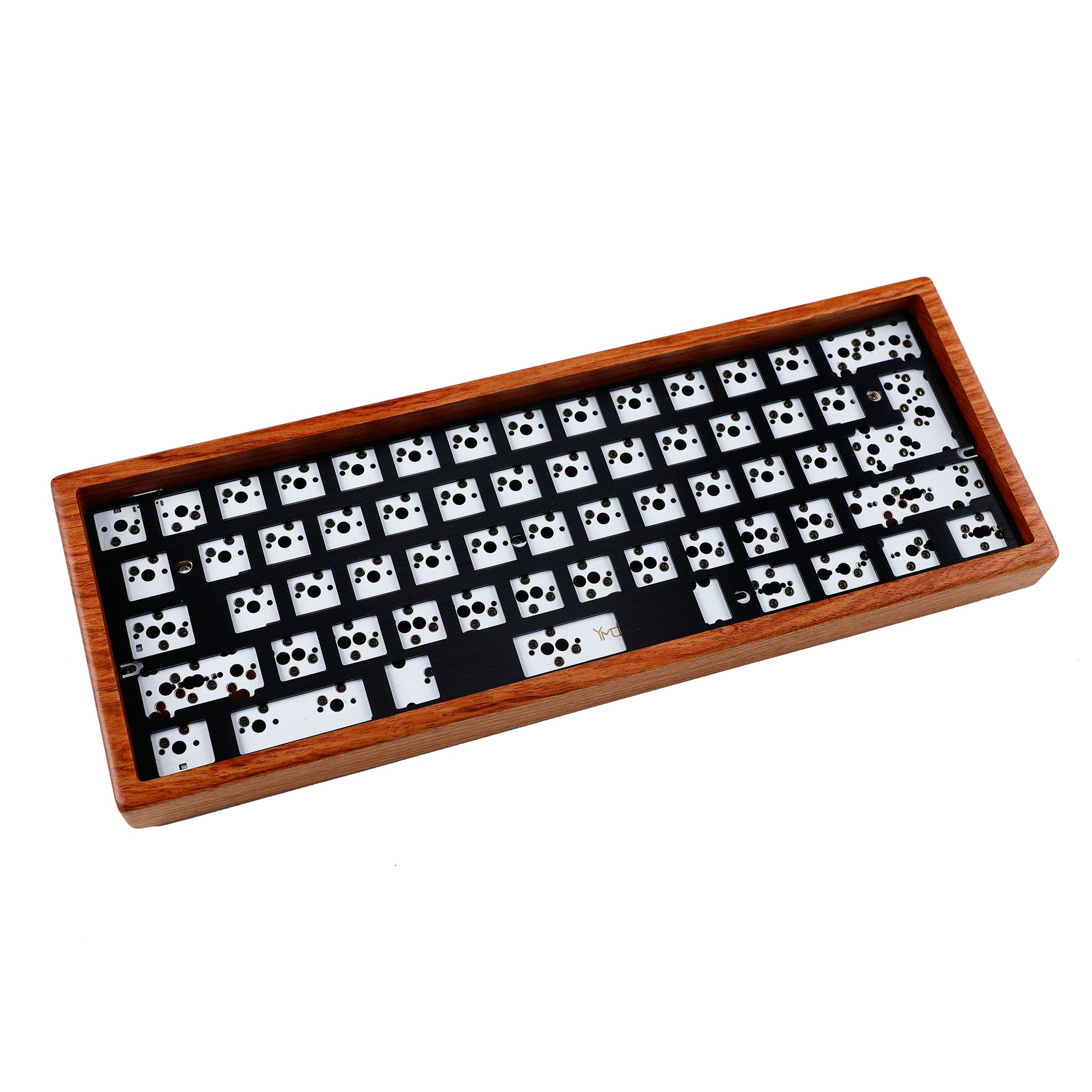

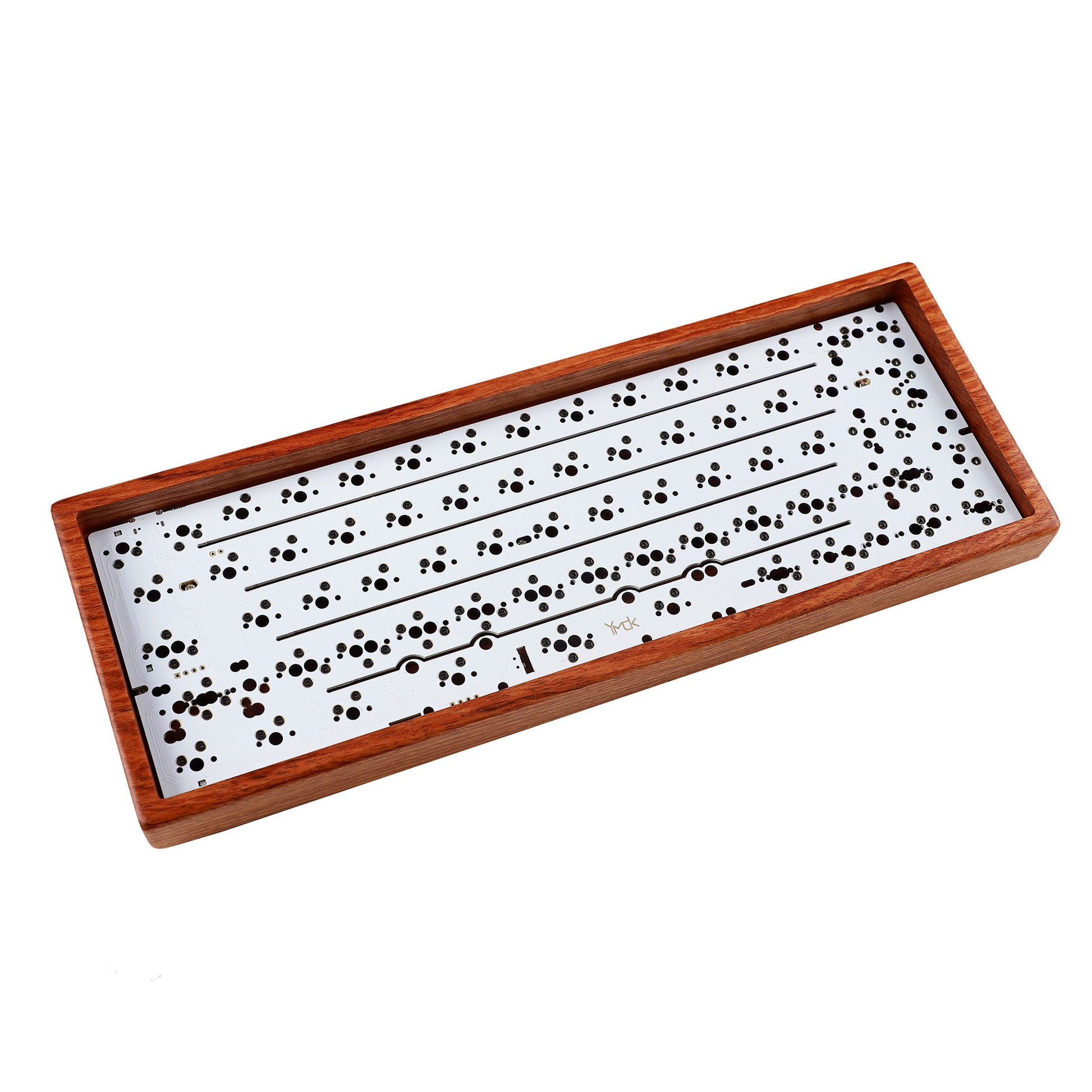

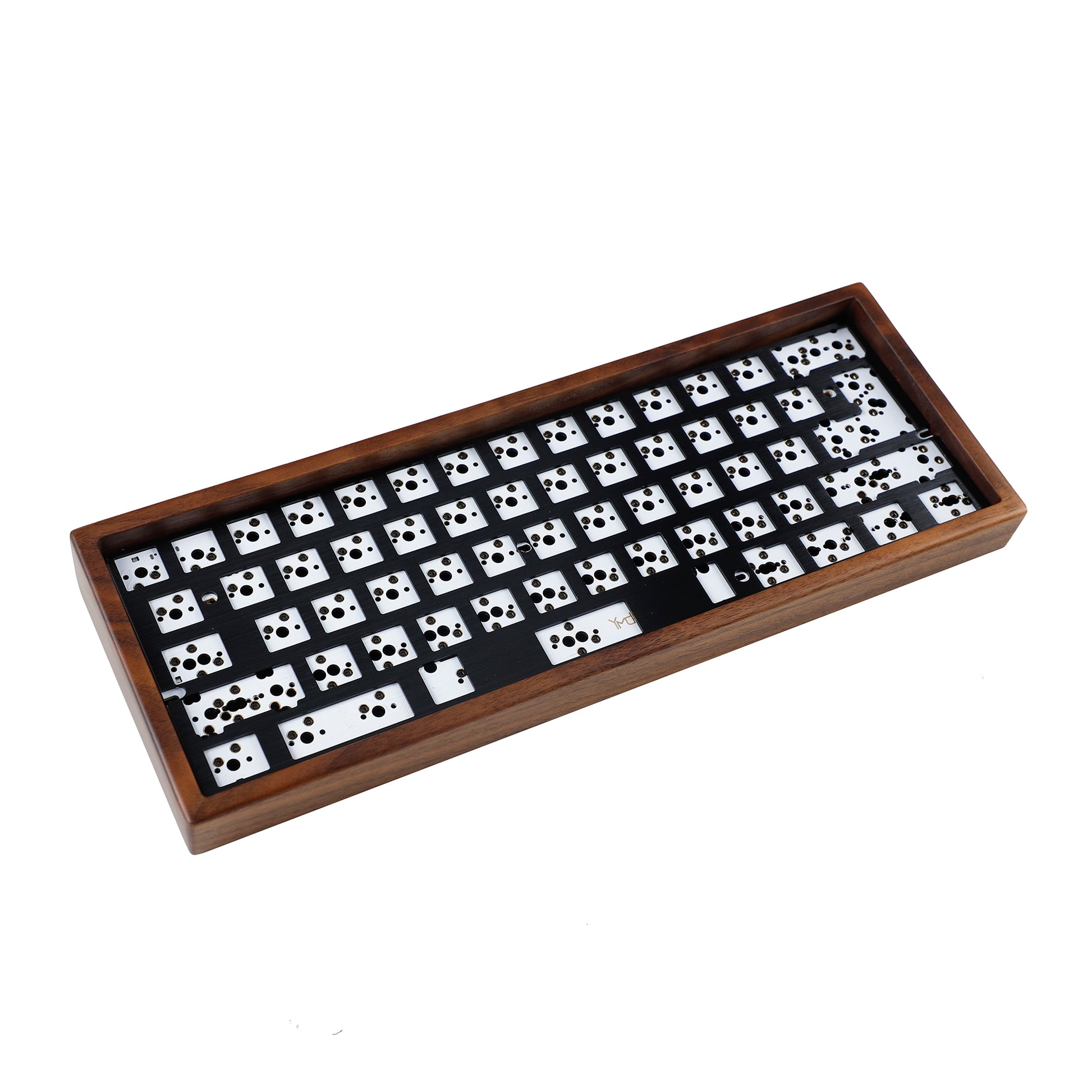

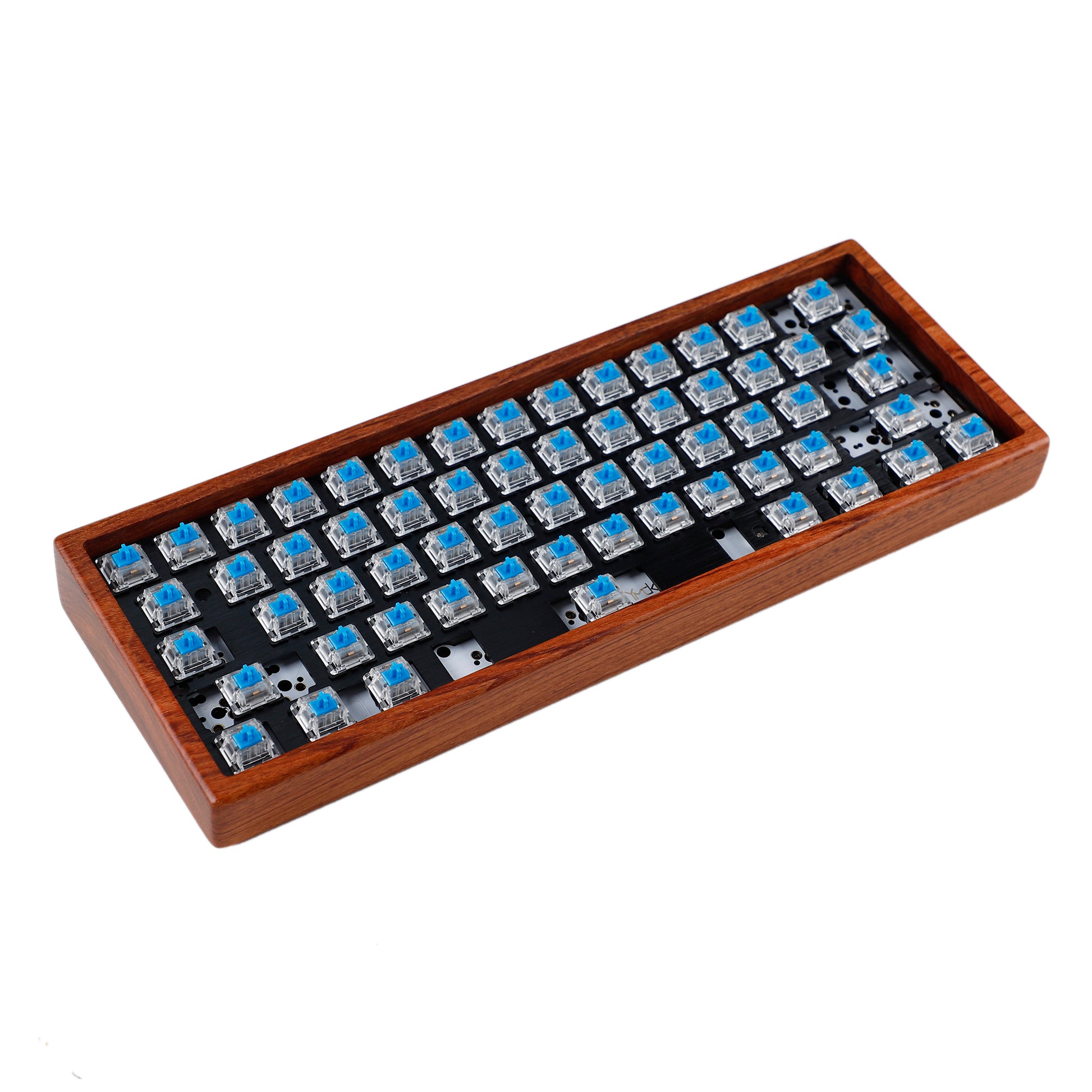

Base Kit：Wooden Case +DK61Hotswap PCB（No Switch RGB included） + Switch puller+ Alu Black plate+ USB C cable+ PCB snap stabilizer

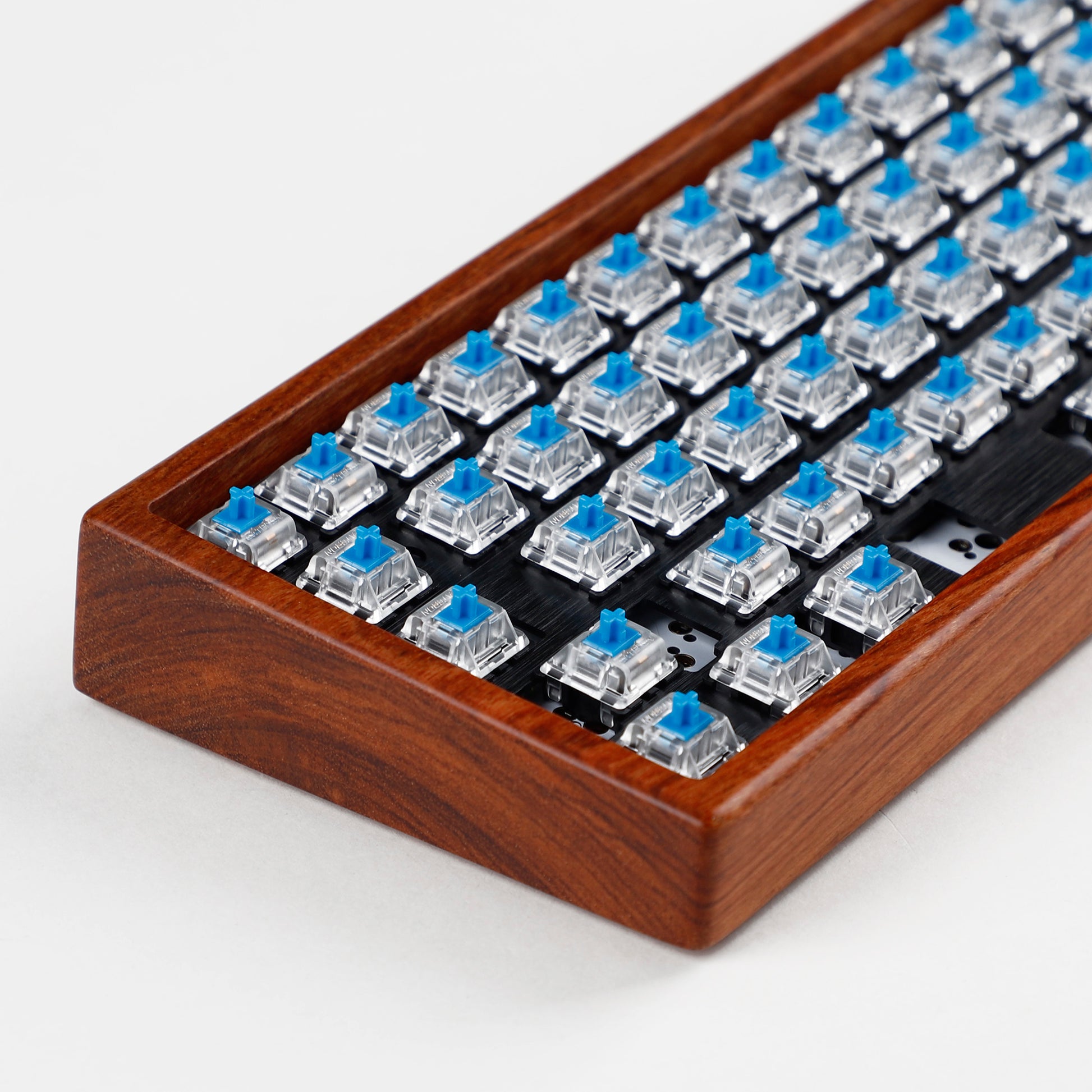

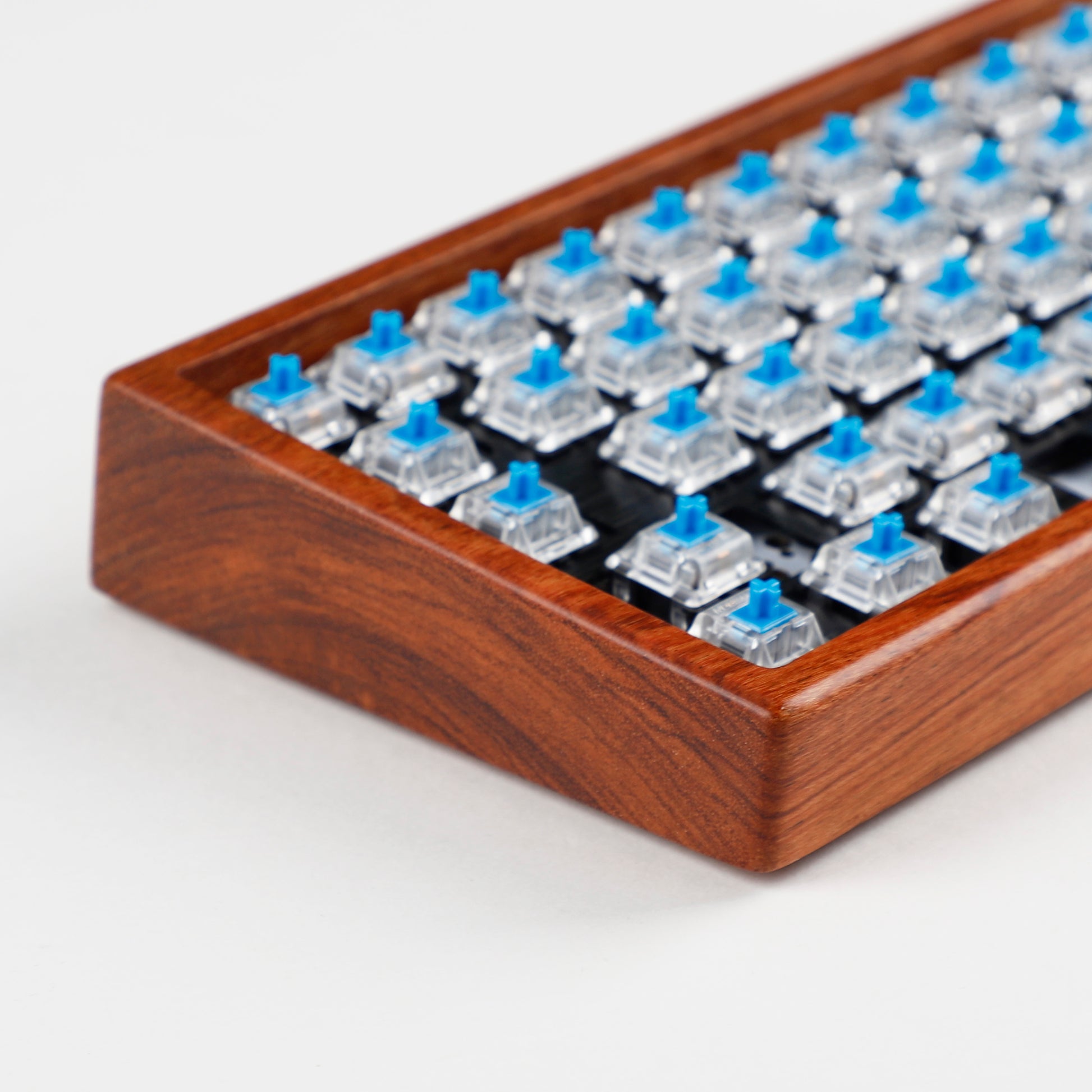

About the switch: You need to select the switch you want in the corresponding switch options below and leave a message. You can also contact us for a note. If you do not leave a message, we will send the first switch of each option by default.We have prepared different switches on the market, divided into Kit 1-4, you can choose the switch in the details below（If you order a switch, we will assemble it for you for free）



Switch support both 3 pin 5 pin.But it is recommended to use 5pin because it will be more stable.

Kit 1：Base Kit+enough switch（You need to leave us a message or note your favorite switch）
Gateron SMD：Black /Yellow /Blue /Red /Brown /White /Green
Gateron Pro： Pro Yellow /Pro Red/Pro Milky Yellow/Pro Milky Red
Kailh Speed：Silver /Copper /Bronze /Pink /Gold
Kailh：Box White /Box Brown /Box Black /Box Red/Box White V2
JWK：C v2 Black /C v2 Blue/Ultimate black 58.5g

Kit 2：Base Kit+enough switch（You need to leave us a message or note your favorite switch）
Kailh Box ：Crystal Jade /Crystal Navy /Crystal Pink/Burnt orange/Pale Blue/Dark Yellow /Chinese red/Ancient gray/Noble Yellow/Owl White/Red Bean Pudding/Summer
Kailh Super Speed：Silver /Copper /Bronze /Red
Gateron Pro 3.0：White 2 spring/Silver 2 spring/Yellow/red/brown
Gateron：Silent Brown/Silent Red/Silent Black/baby racoon
DNDKB JingWei

Kit 3：Base Kit+enough switch（You need to leave us a message or note your favorite switch）
Kailh：Crystal Royal/Hako Clear/Hako True/Hako Violet/Silent Brown /Silent Pink/Kailh Polia/Eif Tactile/Eif Linear
JWK：Piano
Cherry：RGB Silver /Pink /Silent Black/Silent Red/Nixie/ RGB Ergo clear
Gateron CJ：Dark Blue/Light Blue/Box Dark Blue 3pin/Box Dark Blue 5pin
TTC ACE V2/Gold Pink V2/Blush White/Silent Red/Speed Silver V2/Silent Brown V2
Water King 55g/62g/67g
Gateron：Azure Dragon V3/Oil king 3.0/North Pole V2.5/Baby Kangaroo/Beer/CM 3.0/Luciola

Kit 4：Base Kit+enough switch（You need to leave us a message or note your favorite switch）
Kailh Novelty Cream/Box Cream Pro V2/Jellyfish Tactile/Jellyfish Linear
Gateron Black Ink/Box Black ink/Box Pink Ink/silent Black Ink/Blue Ink/Red Ink/Yellow Ink
TTC Frozen

Here are some additional additions
If you want a better stabilizer (white transparent screw stabilizer Link) you can add 10 pcs, please click（A total of 5 dollars）

If you want a better Plate, you can add 36 pcs and we will upgrade the brass Plate for you, please click
A total of 18 US dollars

For separate case link, please click

For separate PCB link please click

If you would like to add keycaps, please leave us a message and we will give you a quote

Detail

This PCB support all layout shown in the images.We split it to 5 options.You can choose the favorite layout you want.

If you have soldering iron,this PCB can support all 5 options in the listing.If you don't have soldering skills,can just choose the ANSI or ISO 61 64 layout you prefer.

This PCB is better to use with screw in stabilizers,the left stabilizer hole is little big which is loose for clip in stabilizers.
Details

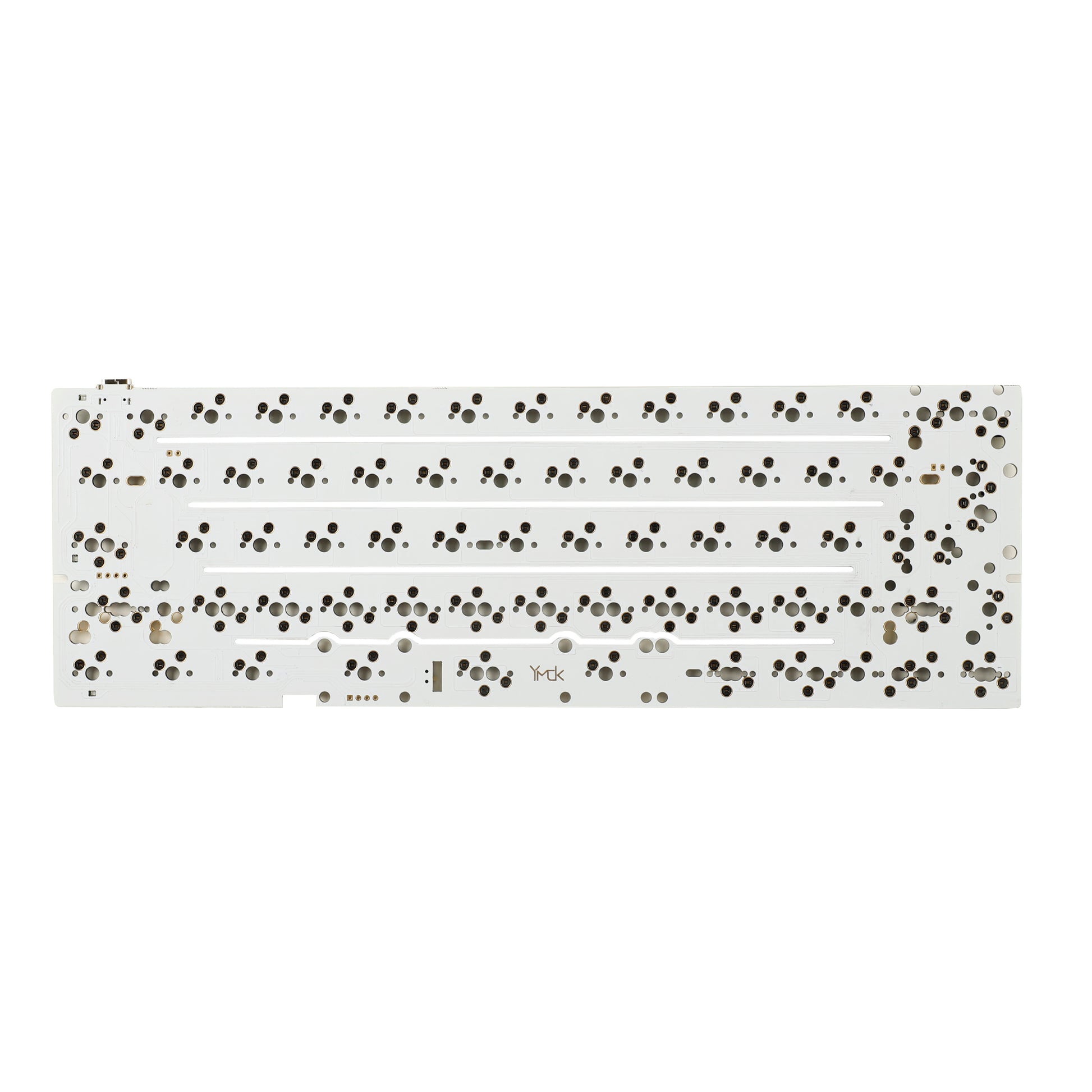

The chipset is stm which has 128k flash memory.

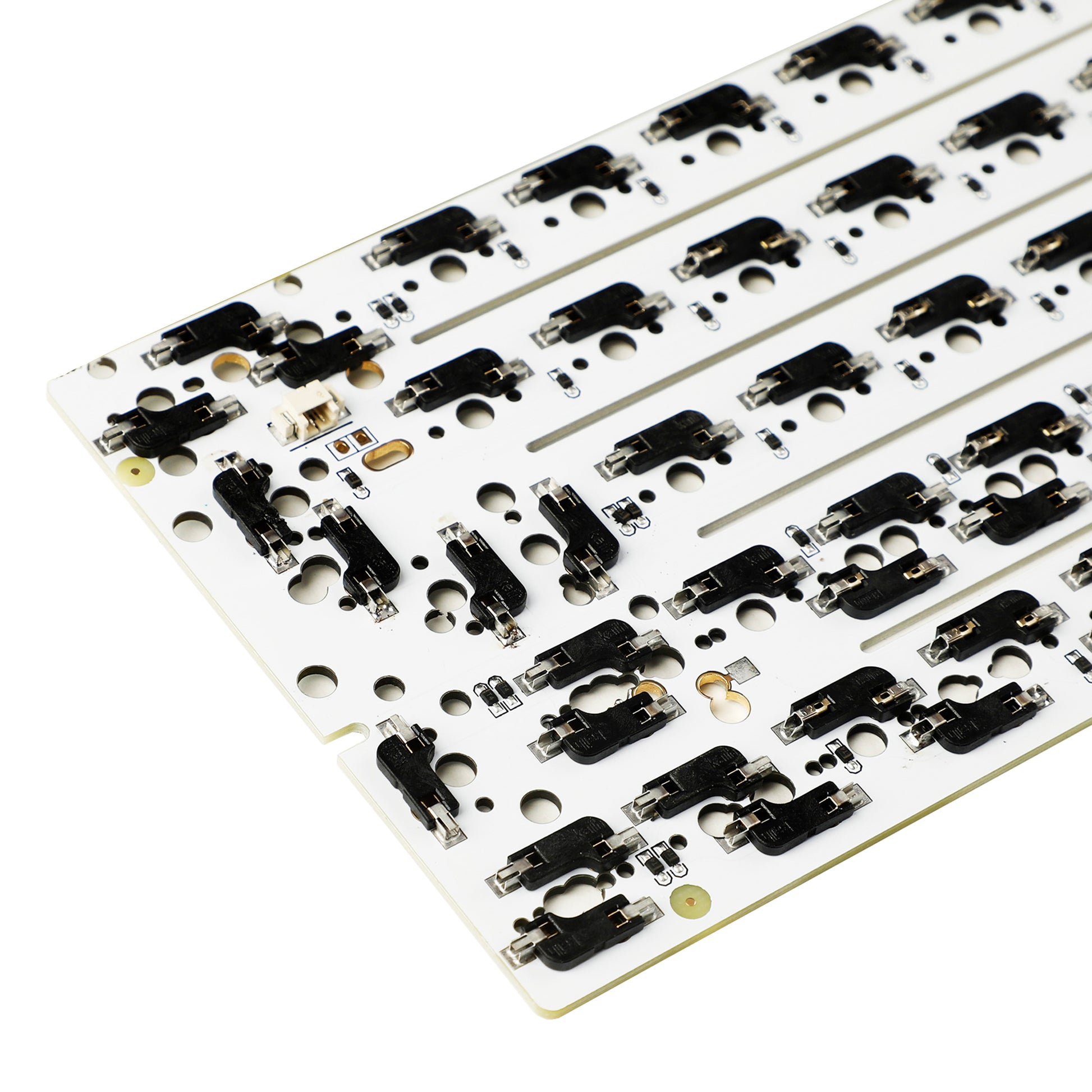

PCB is presoldered with Kailh socket and diodes resisotors.You can plug switches to use directly.

PCB is fully programmable with VIA and VIAL software.If you need special functions to be added,inquire us is ok.

Manuals

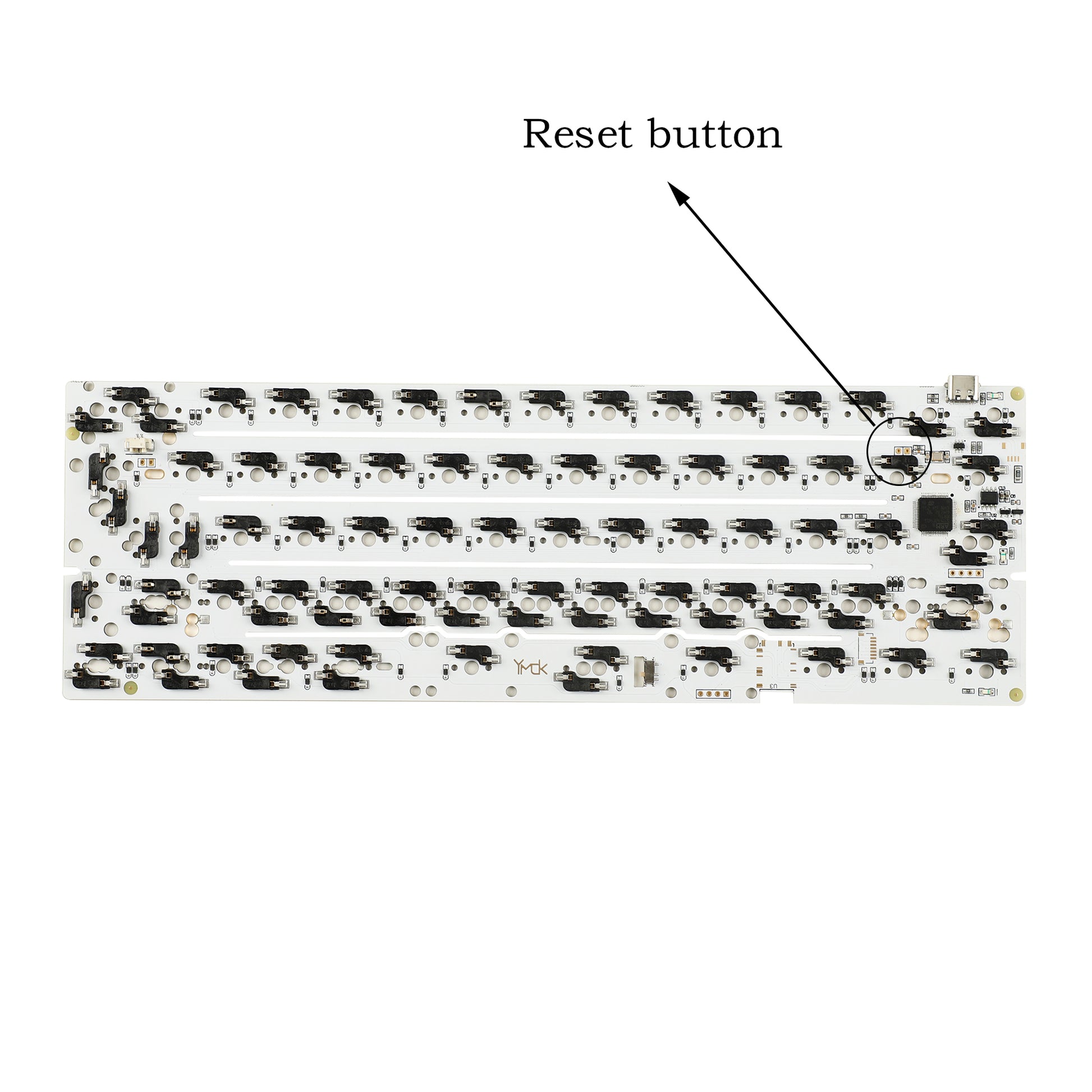

Just download VIAL software below and then open it,change the keycode directly is ok.No need to reset PCB. (If you want Mac edition software,message us is ok)

VIAL: drive.google.com/file/d/134pbPlonLtRwuDfBxpeSjdlnG7RoL5by/view?usp=share_link

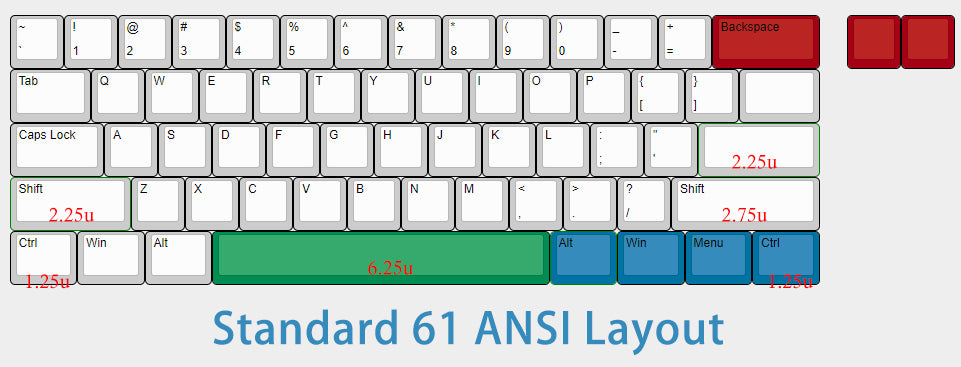

Standard 61 ANSI

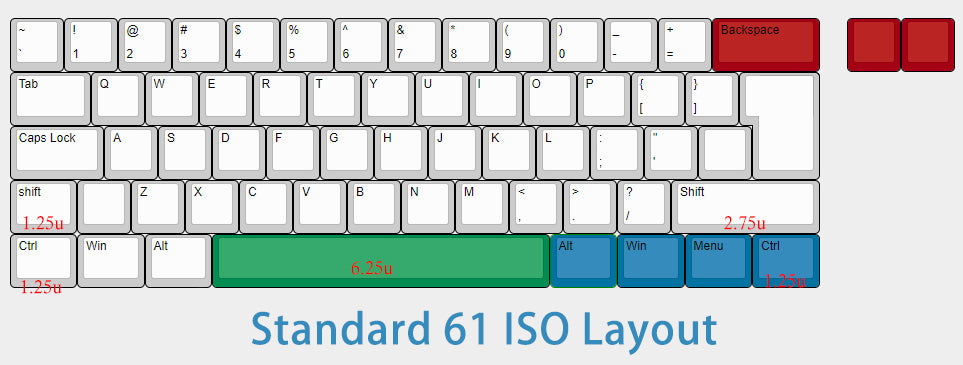

Standard 61 ISO
