YMD-HHKB Pro Aluminum And Acrylic Layer Kit(QMK Soldering Or VIA Hotswap Programmable)

Package Included

YMD-HHKB Pro Aluminum And Acrylic Layer Kit: Case + PCB +Screw in Stabilizers +Feets + Screws + Feets + Switches + Assembly Service + Cable

Details

HHKB as the special 60% layout,it is better for working in some places.

CNC anodized aluminum case with acrylic layer for rgb underglow.Integrated plate of top part can make the switches of pressing directly.

Soldering 60% qmk south facing rgb underglow pcb with Type C port.If you need backlit for it,need soldering yourself.Support qmk and VIA together for soldering one.

Hotswap HHKB south facing rgb backlit and underglow pcb with type C port,fits VIA programmable only.If you choose hotswap option.

Keyboard size: 301*113*21-31 mm(Had not added switches and keycaps of height)

Note

Soldering pcb of backlit only supports one color now if you solder it yourself.

You need prepare a soldering iron for soldering of non switches kit to finish the installing of switches.

Hotswap option needs not soldering for installing.

VIA Manuals

Soldering PCB

drive.google.com/file/d/1iHBv3uwBLPdGaUBeAcrGn9RgJLEhqn0k/view?usp=sharing

Hotswap RGB PCB

https://drive.google.com/file/d/1wSdlFWjAk_TE_0wvCkHNl98odwOUnl6u/view?usp=sharing

Images Display

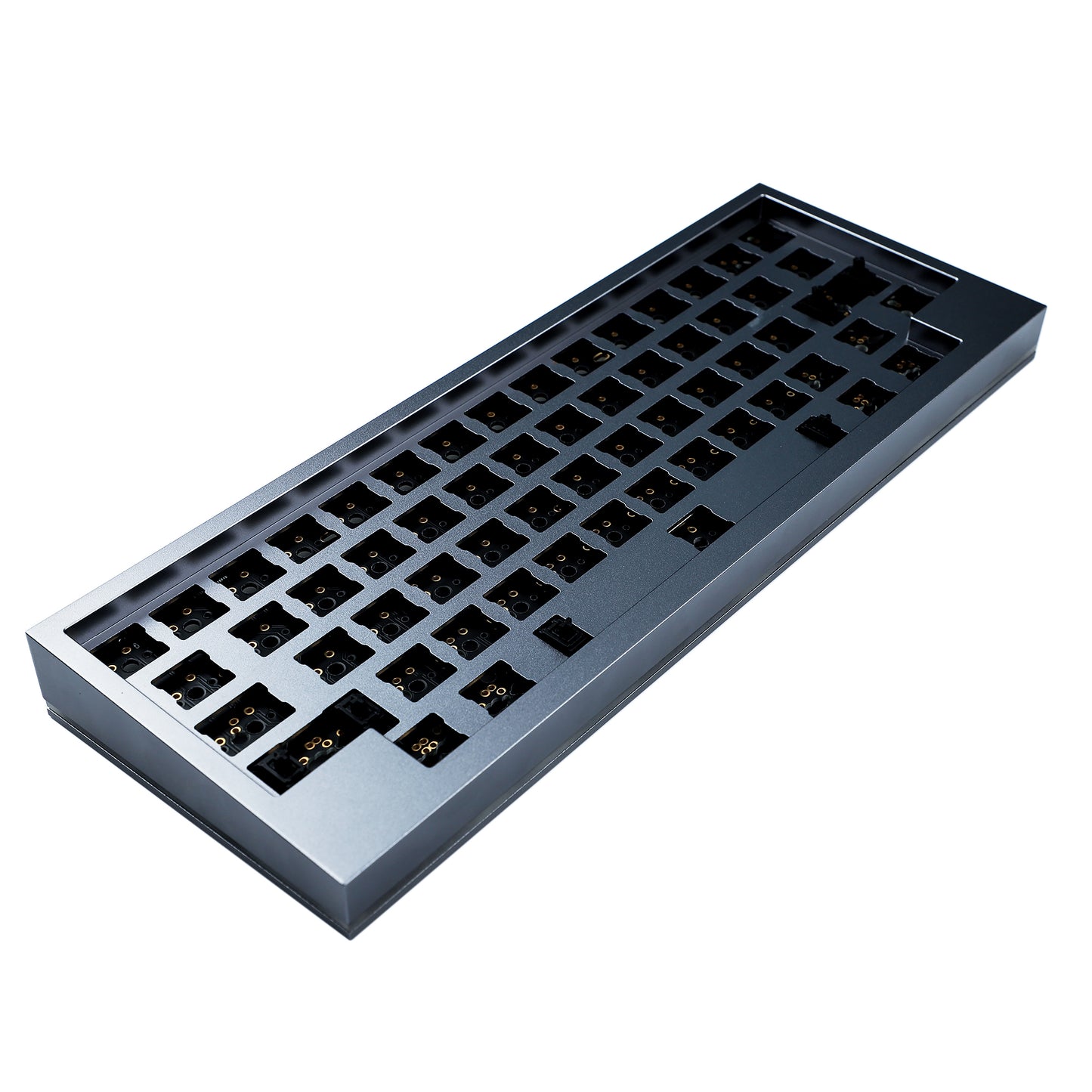

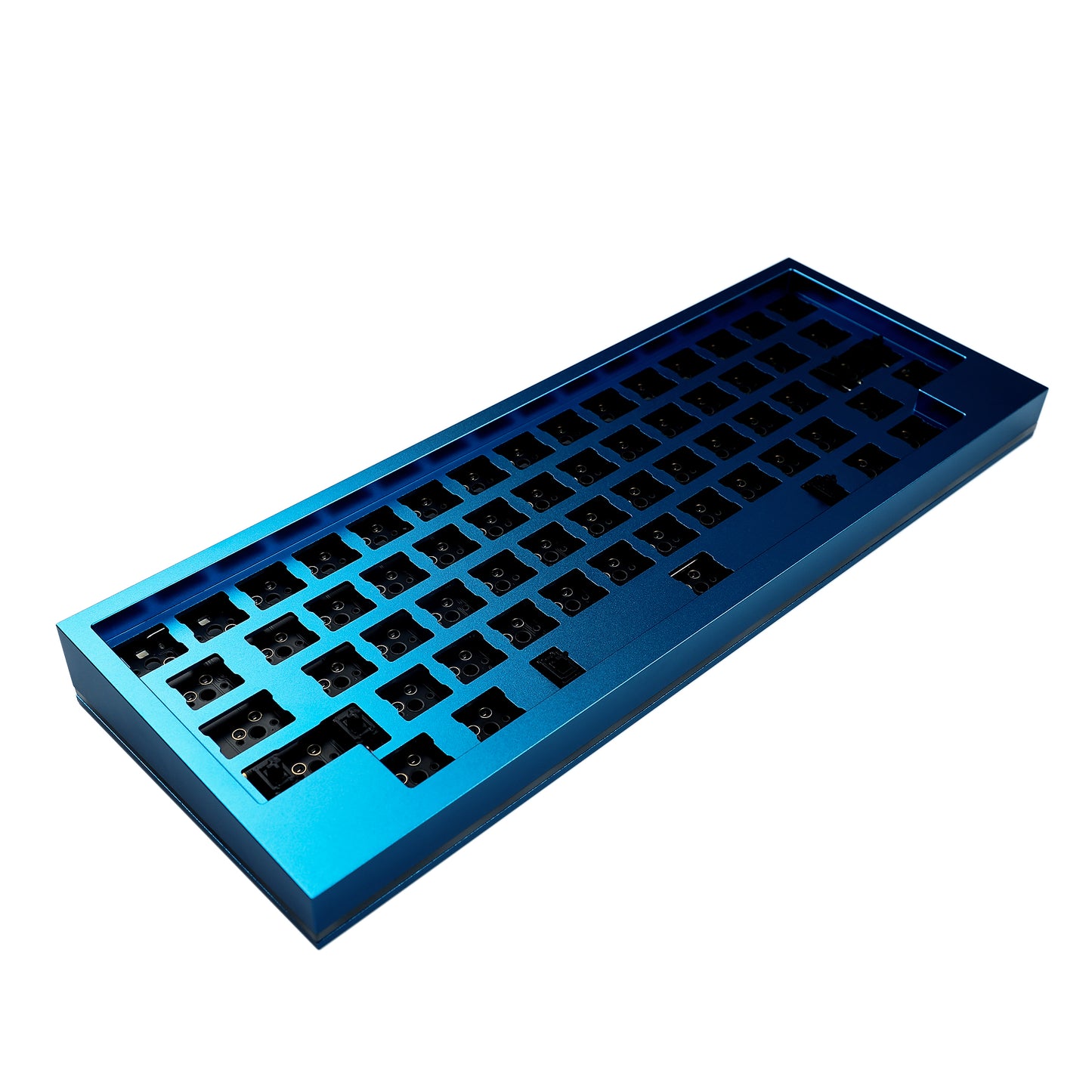

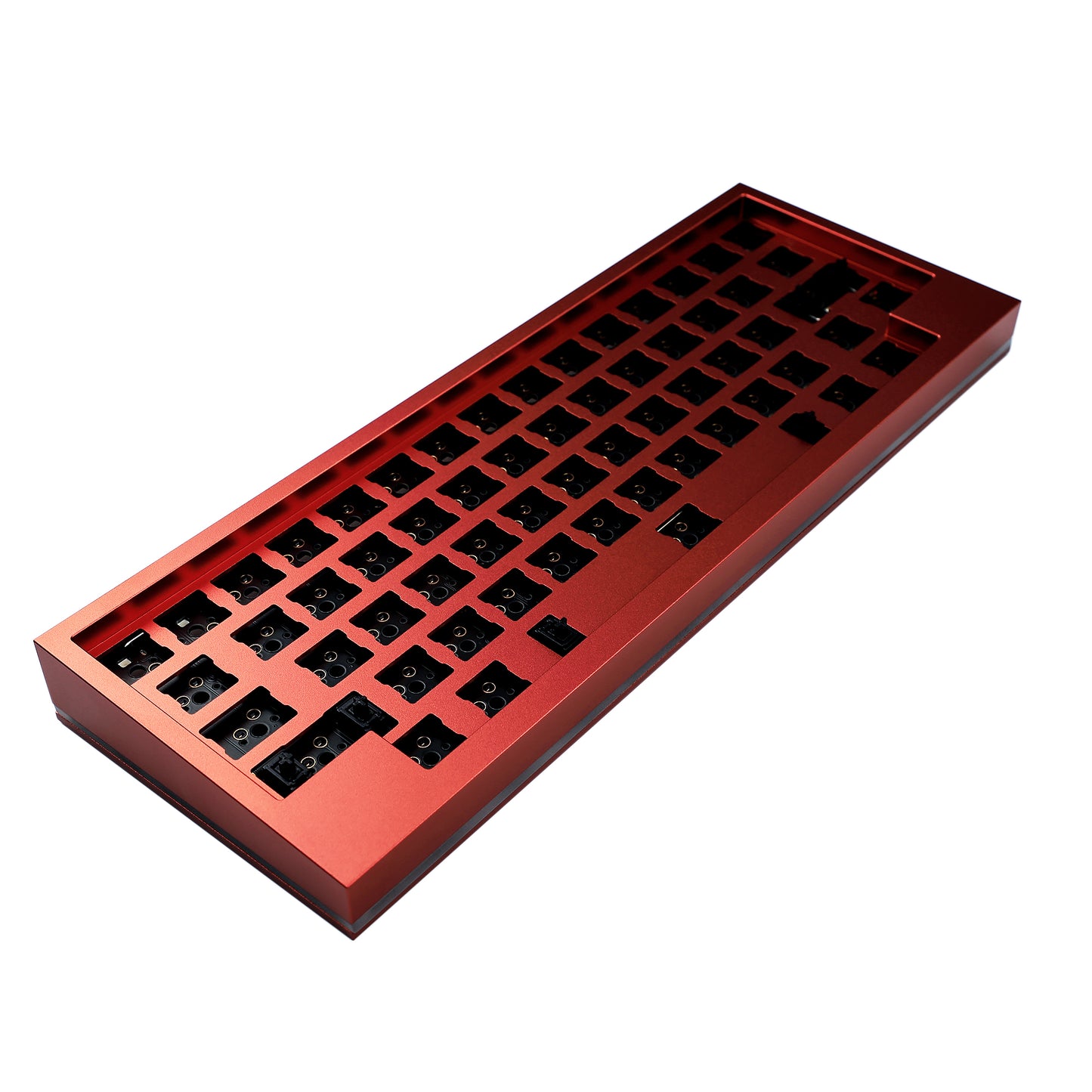

Kit(Hotswap pcb)

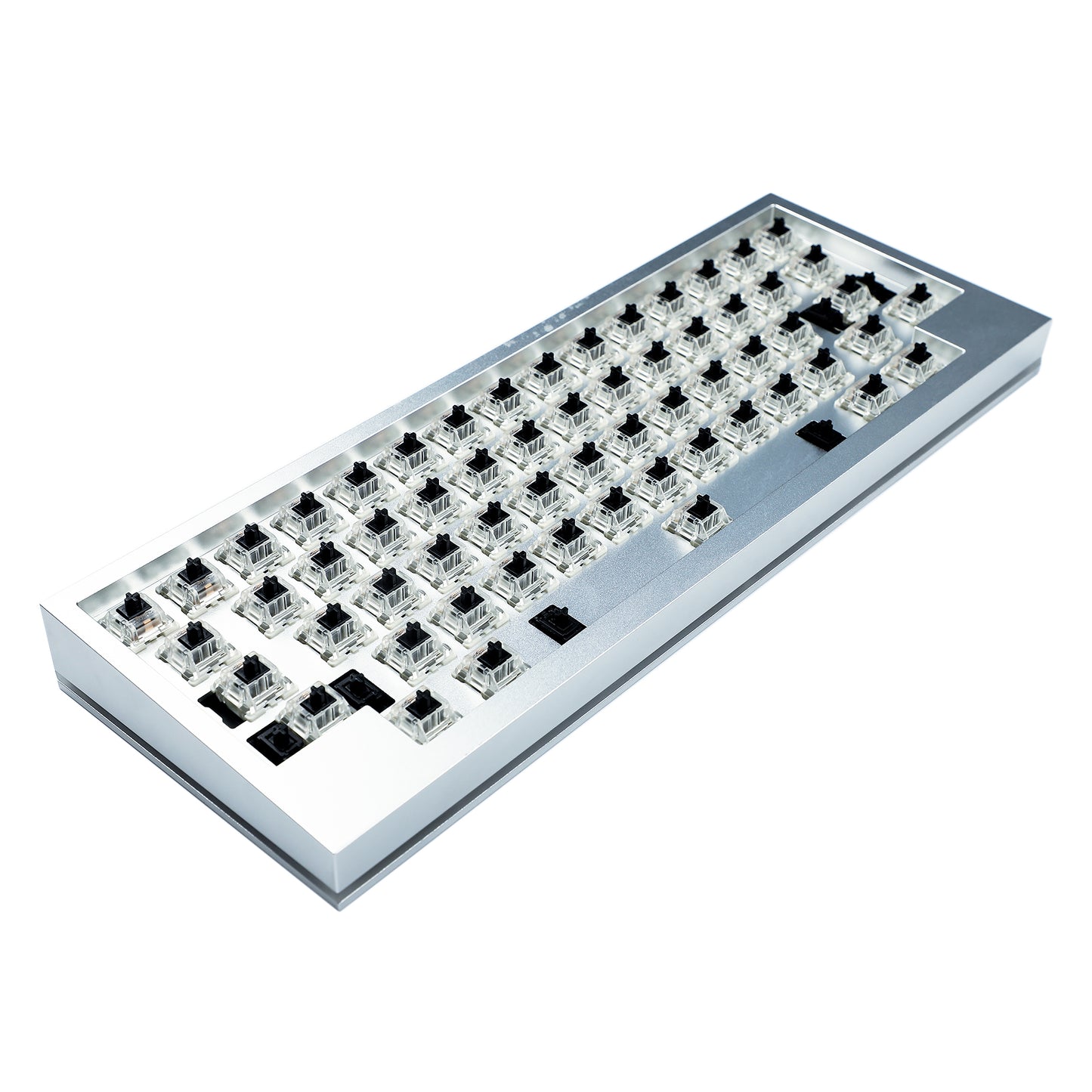

Add Switches installed(Selled)

Add Keycaps installed
