Package Included(YMD-96 Hotswap QMK Underglow PCB)
Hotswap 96 V1: The led direction is south except ESC /F1 /ISO Shift /1u Fn is North led
Hotswap 96 V2: ESC F1 direction is same with F2 F3 etc already.Led direction is North except Lshift \| Ralt RCtrl place is south to support 4 layout in one PCB.
Details
For 96 case and kit in our store,the only pcb still is needed as the replacement when the pcb is damaged because some reasons,so we list it alone.This one is V1 and V2 QMK VIA version.
PCB use kailh socket,that supports many mx switches.
B and C are ANSI layout,A and D are ISO layout.
V1 is south facing,it is better for cherry keycaps.
V2 is north facing,it is better for backlit keycaps if you add leds by soldering.

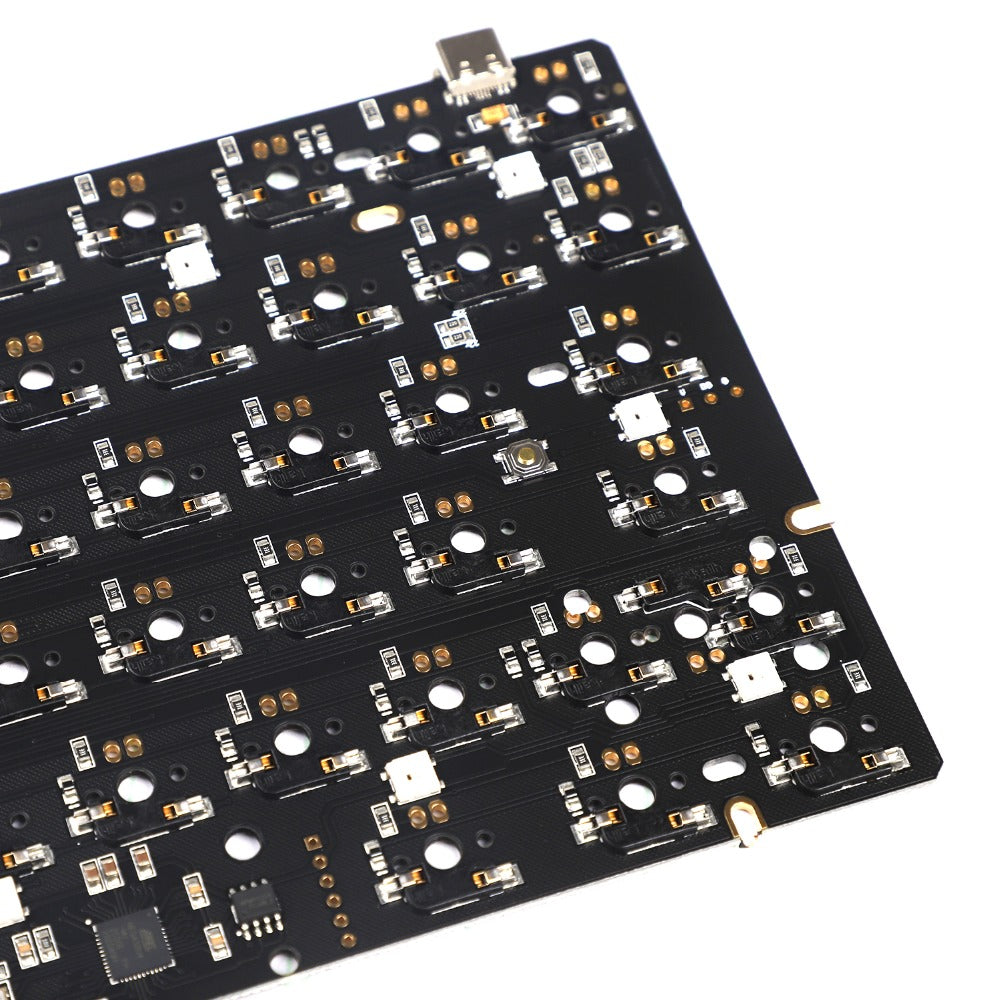

Hotswap rgb underglow type-C port PCB,supports many 96 cases.Like our store of wood/melody case.
Note
Switch led can only support 2x3x4 square and 1.8mm butterfly,and you need to solder yourself.To add switch leds,please solder switch led into PCB at first and then put on SMD switches,or it will affect hot swap functions.Only SMD led is ok.
To fit existed case plate,this PCB size is limited and Esc F1 Rcrtl switch led hole is put reserved .Except you use side lit keycaps,there will be no influence.
VIA Manuals
drive.google.com/file/d/18RPcr01UgIxzFhyI94FR7OwCYUdHYH_y/view?usp=sharing (The keycode for Enter \| need to reversed in soldering pcb)

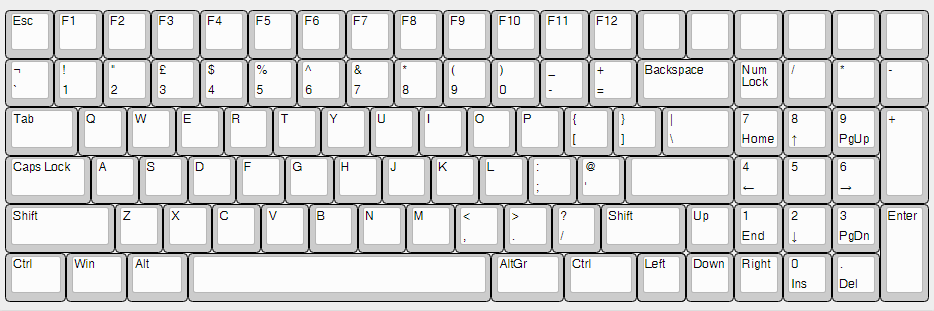

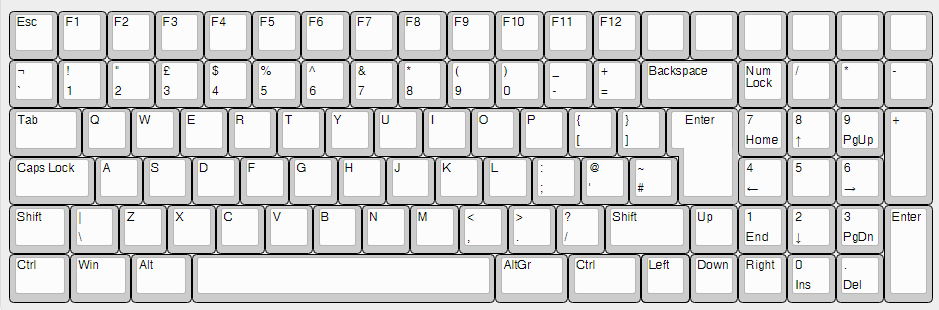

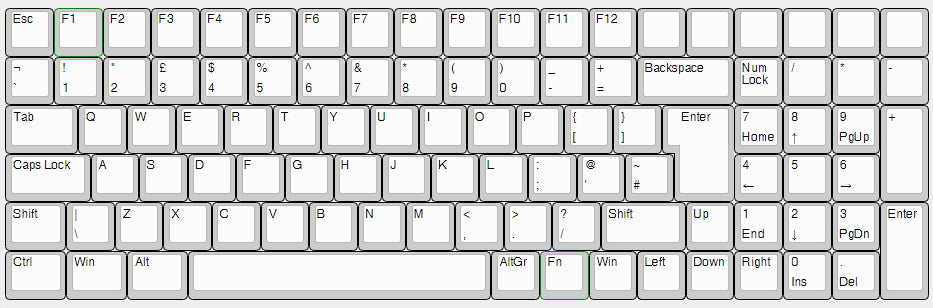

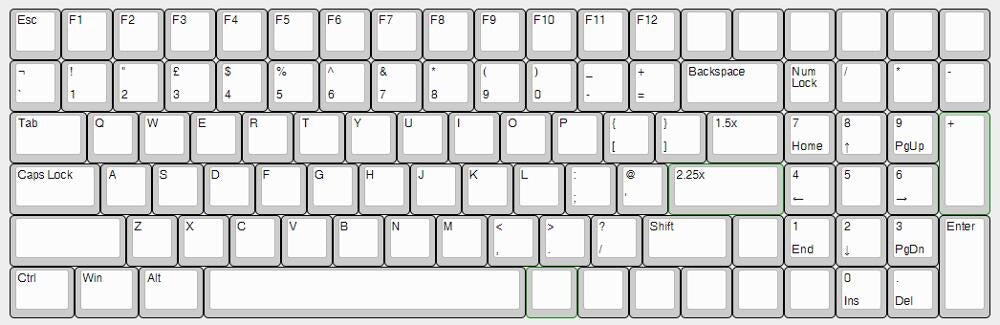

Layout Description
Images Disaply

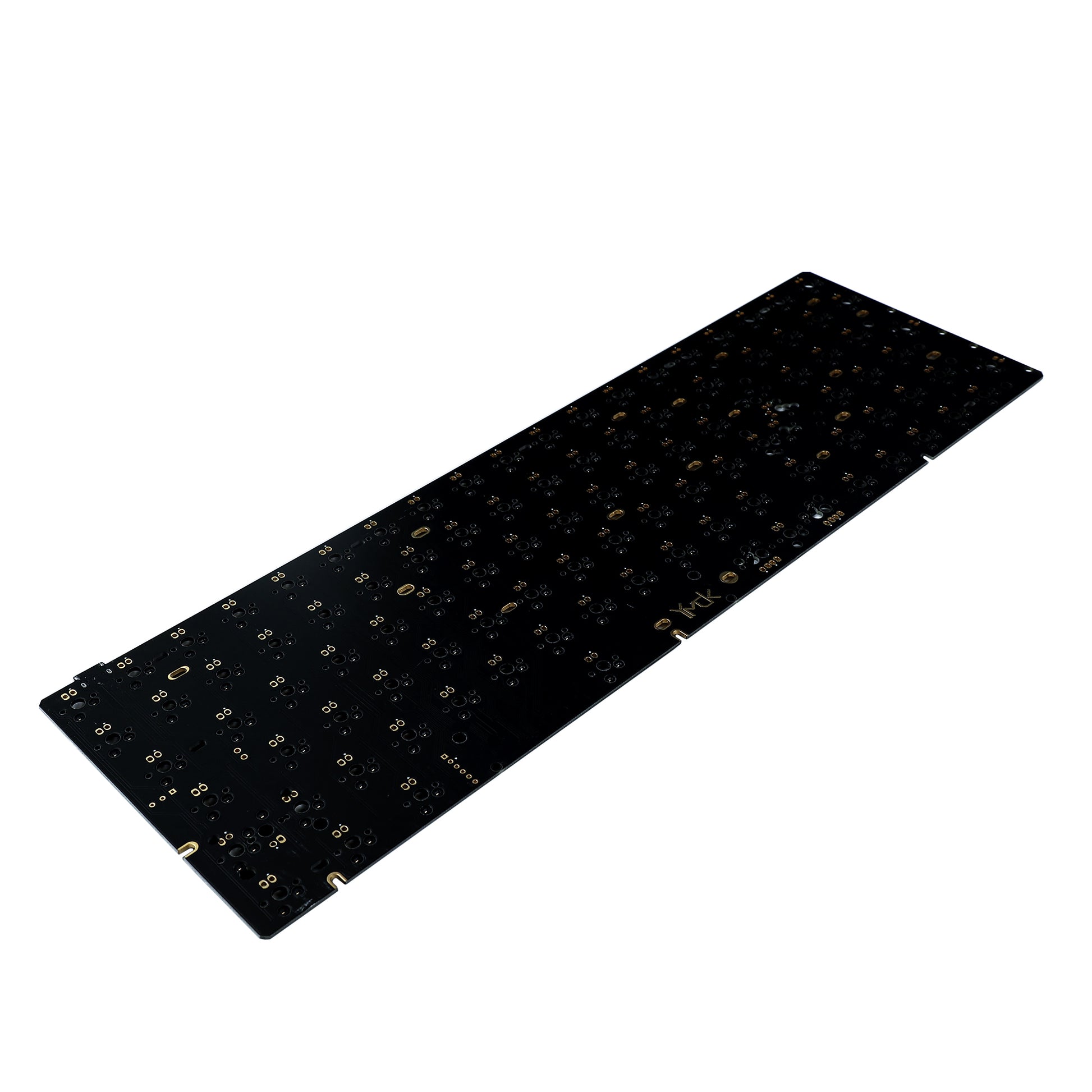

Hotswap V2-North Facing

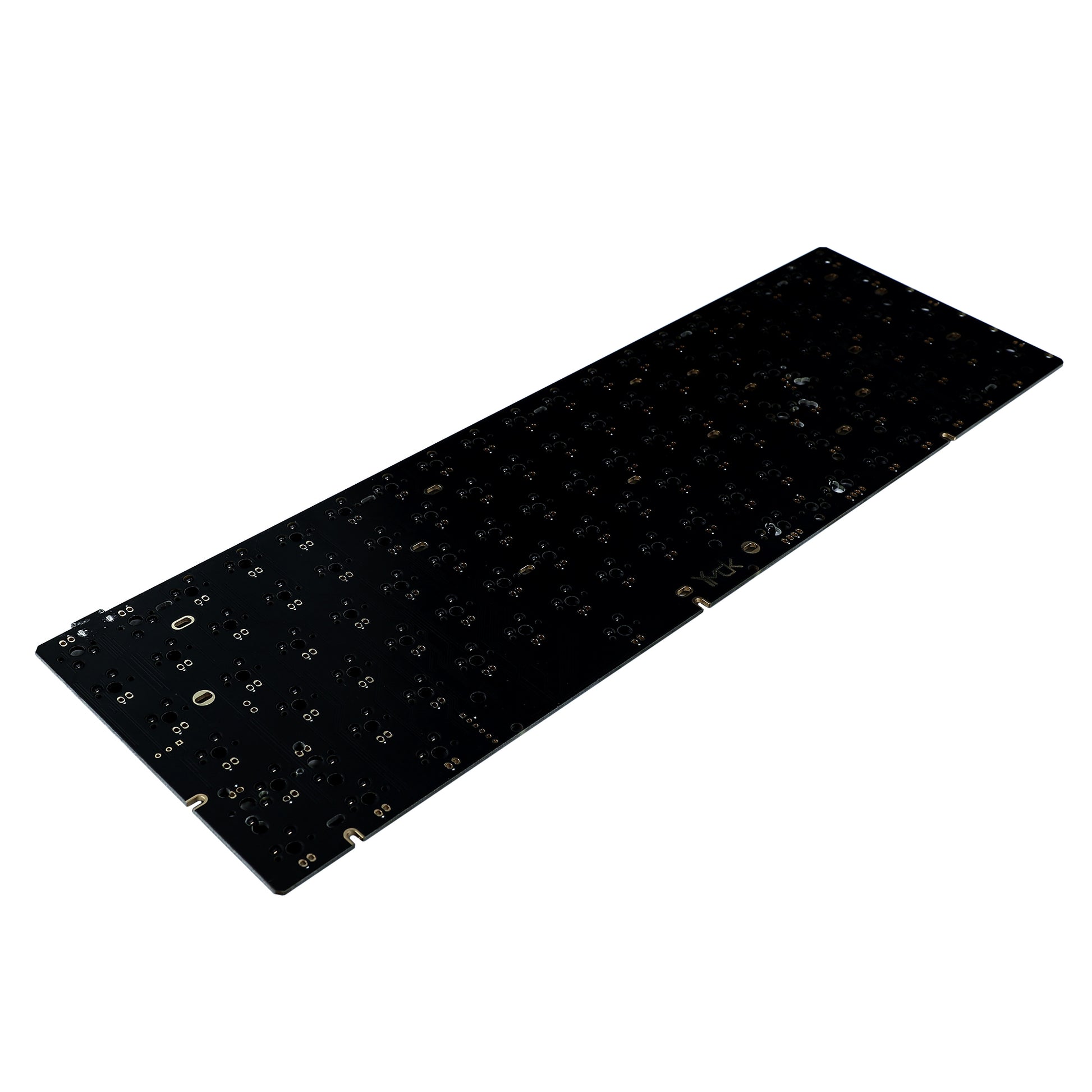

Hotswap V1-South Facing
Note 1
Ymdkey only support paypal now,thanks for understanding.
Note 2
Kindly note all price listed in page don't include destination taxes since every country is different policy.
If you located in EU,will charge VAT for orders under Euro150 when checkout.
If your order is over Euro150,please pay VAT/customs fee yourself in destination.
For shipping and invoice details,just message us directly is ok.
Note 3
We have the installing and software of manuals for Kits or PCBs,please use it with the PCB of model rightly.
