YMD-96 NYM-96 Aluminum Kit(Standard ANSI ISO QMK Hotswap 96 Kit)

Package Included

YMD-96 NYM-96 Aluminum Kit: Aluminum Case + Plate + Hot Swap PCB (Type C Connector) + Stabilizers needed + Rubber Feets + Screws + Switch Puller

Please check the box whether it's in good edition before signing for the parcel.If the box has some hole outside,please request to open the box to check the case.Express shipping company all can check before signature.If it's broken,please refuse to sign for it.

Upgraded Parts

Upgrade brass plate add 40 pcs this links

Change OEM PCB Stabilizers to Clear Gold screw-in stabilizers, add 10pcs links

If you want Kit 2,Click Here

Add Walnut Wrist Click Here

Details

From 100% to 90%-96 layout,keep some function keys but make the keyboard of size smaller.Create a full integrated keyboard from 100% to the new version-90% special layout.Change the way in keyboard of using totally,96 will be a better layout.

CNC anodized full aluminum case,keeps the weight but with a reasonable fee in material.

South facing solderin pcb supports many layouts,fits qmk and via together.

Hotswap PCB has two version,V1 south facing or V2 north facing.It is different in some keys of direction,but all fits qmk and via.You can check the link for pcb.

Anodized aluminum plate,black/gray/silver for case of color.

Kit Size: 381*138*19-31 mm.

Note

If you need add leds yourself,please note that it only supports one color now for backlit.And some keys of places are different in leds of direction for hotswap pcb,like right 1u alt ctrl,left 2.25u shift etc keys.

Soldering PCB supports many layouts,but you need prepare a soldering iron to install switches.

Hotswap doesn't need soldering for installing.

Soldering and hotswap pcb all have rgb underglow.

VIA Manuals

drive.google.com/file/d/18RPcr01UgIxzFhyI94FR7OwCYUdHYH_y/view?usp=sharing   (The keycode for Enter \| need to reversed in soldering PCB)

Layout

Images Display

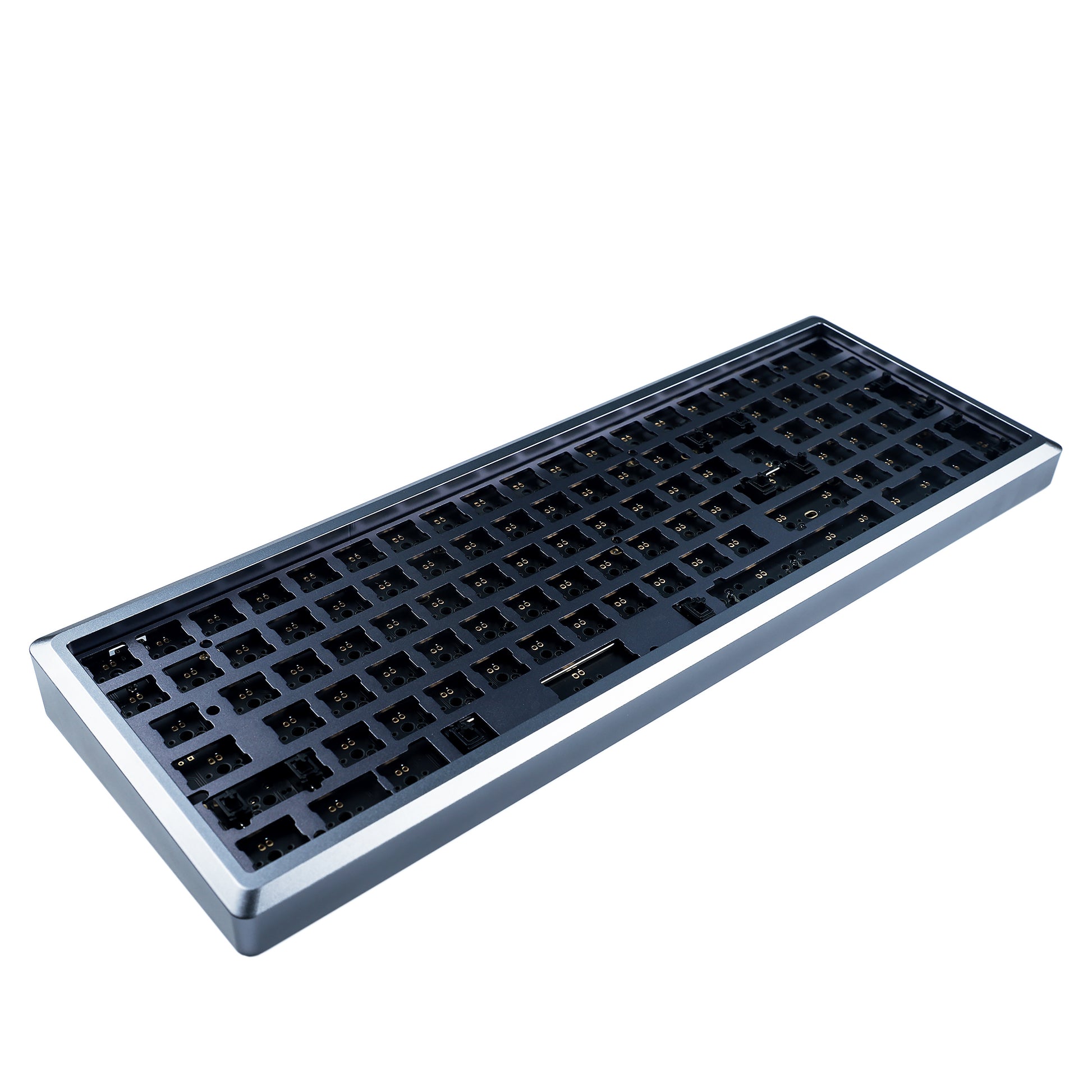

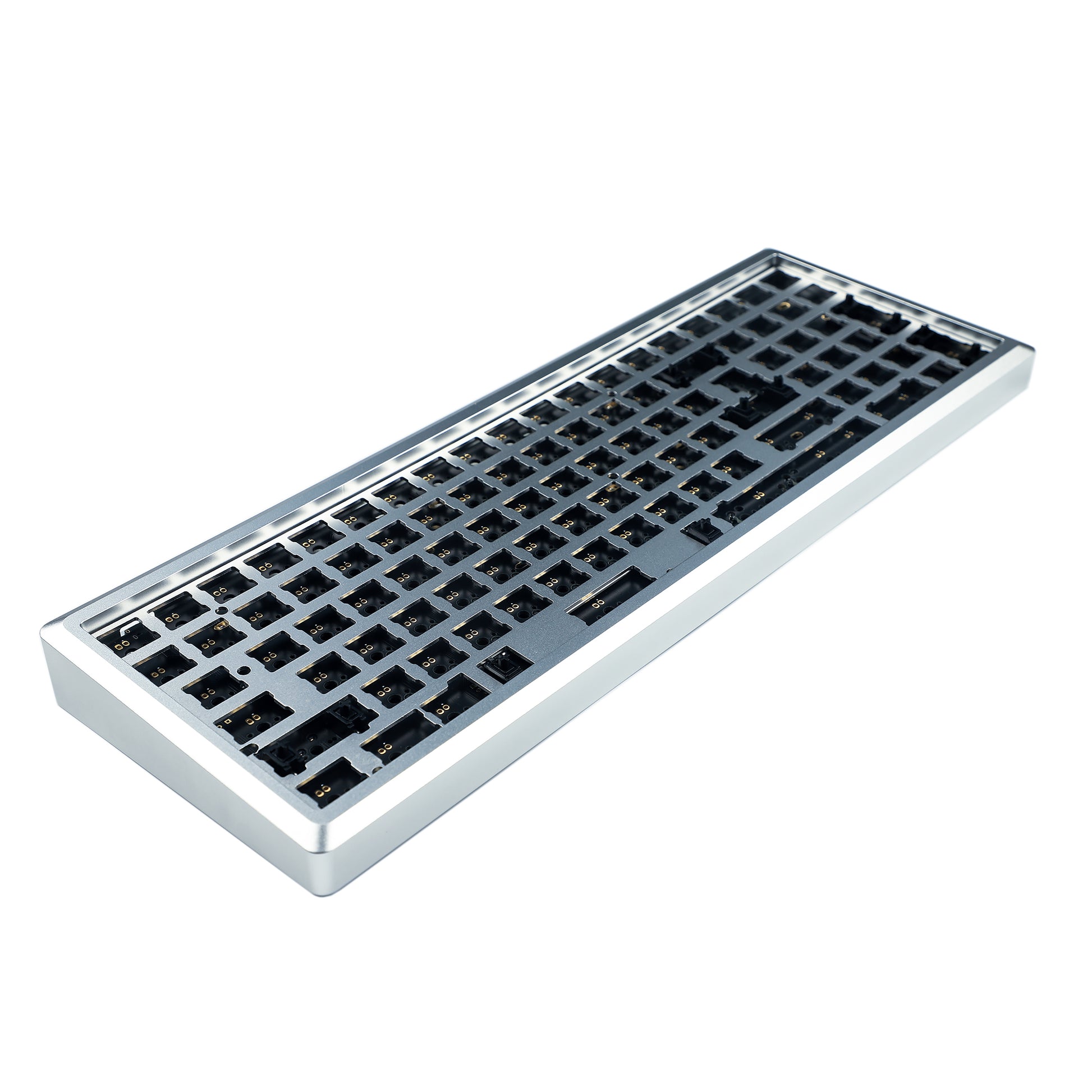

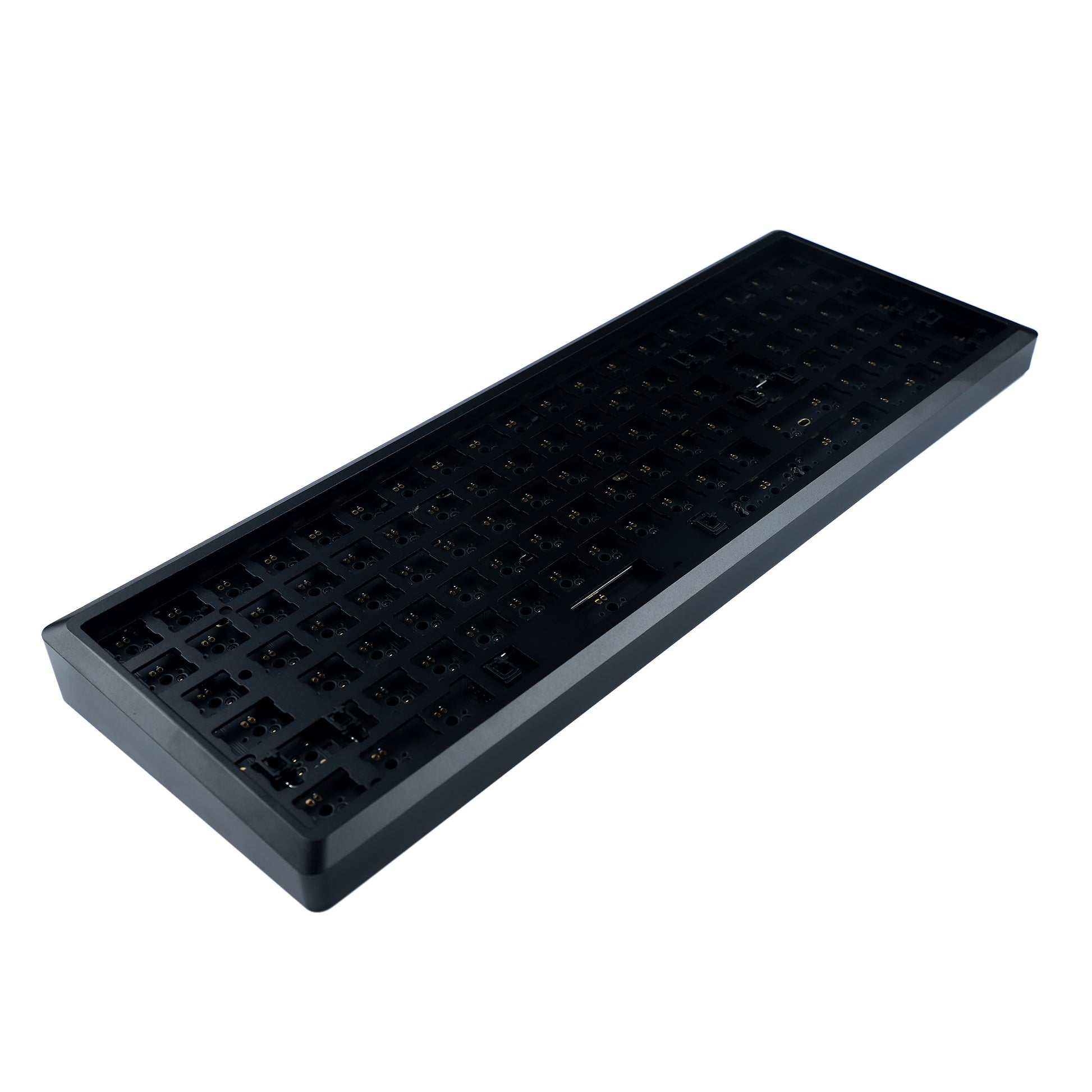

Kit

Upgrade to brass plate

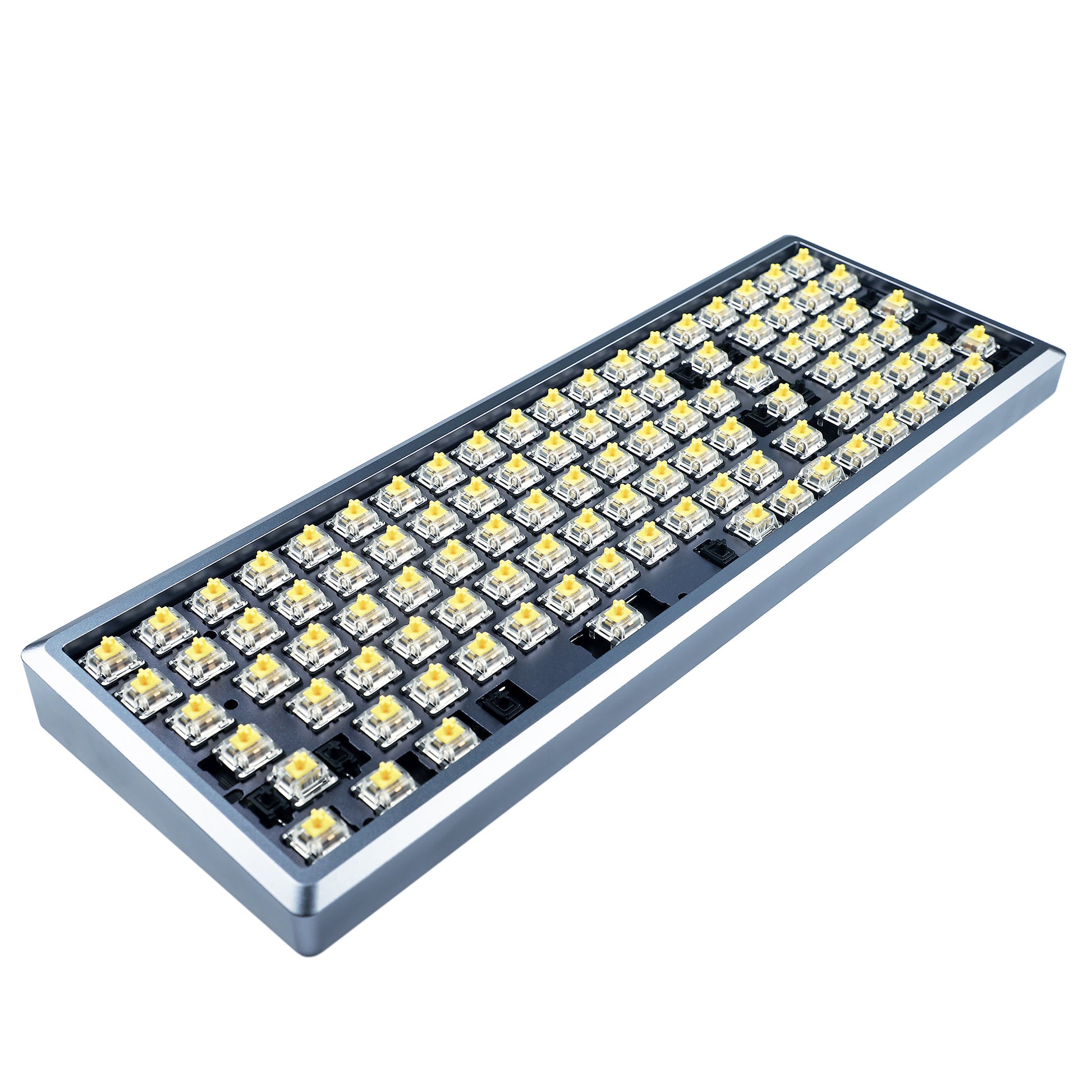

Add Switches installed

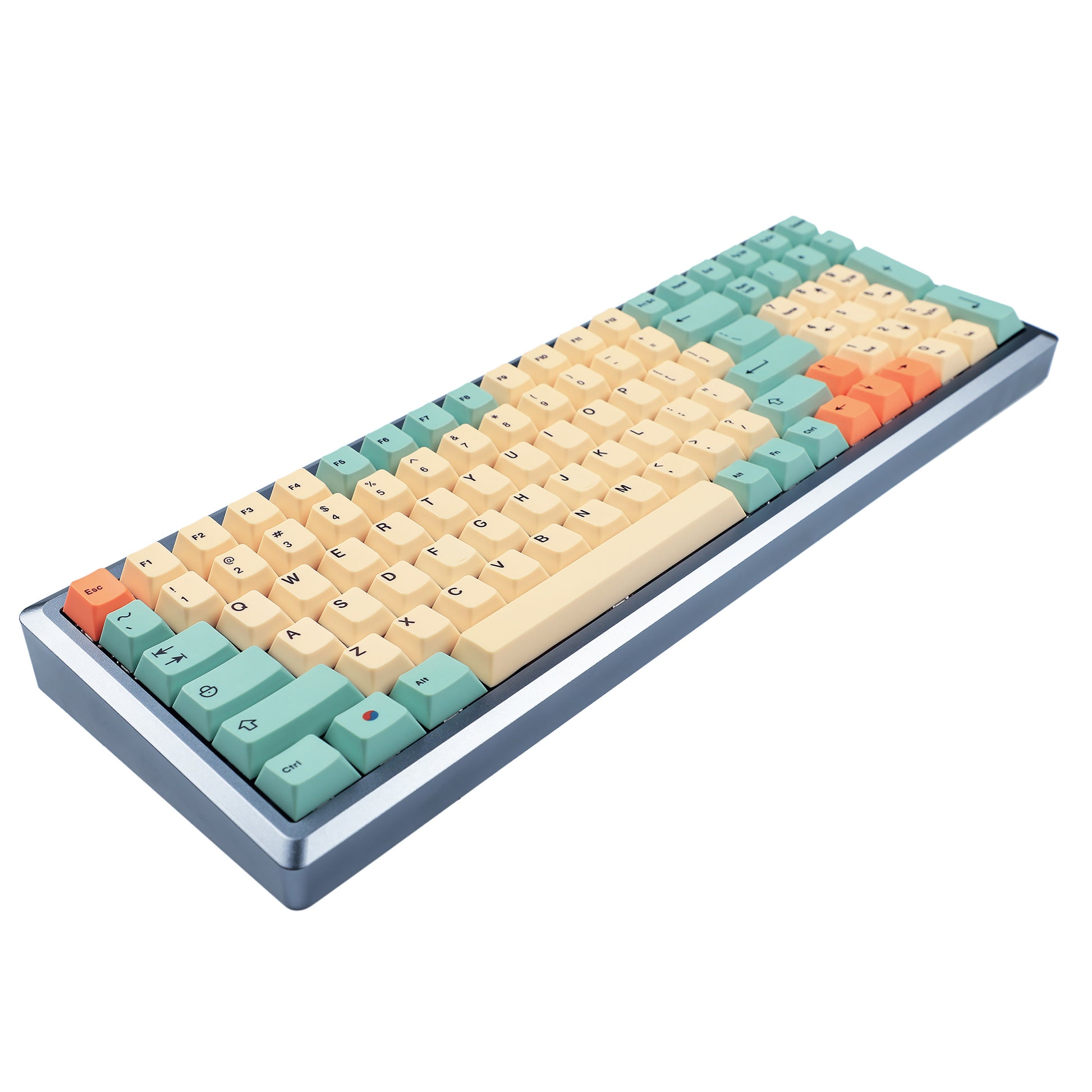

Add Keycaps installed
