Package Included：

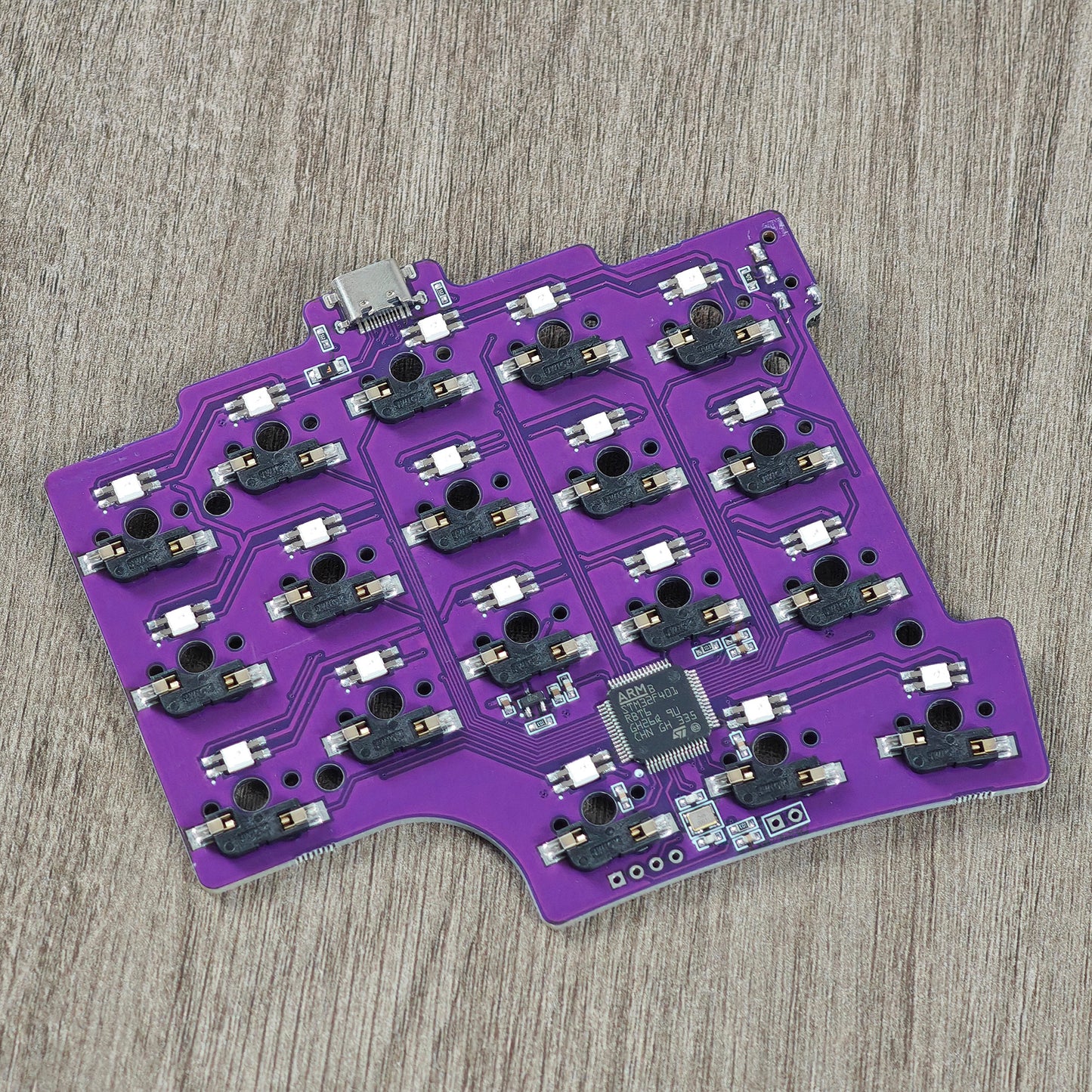

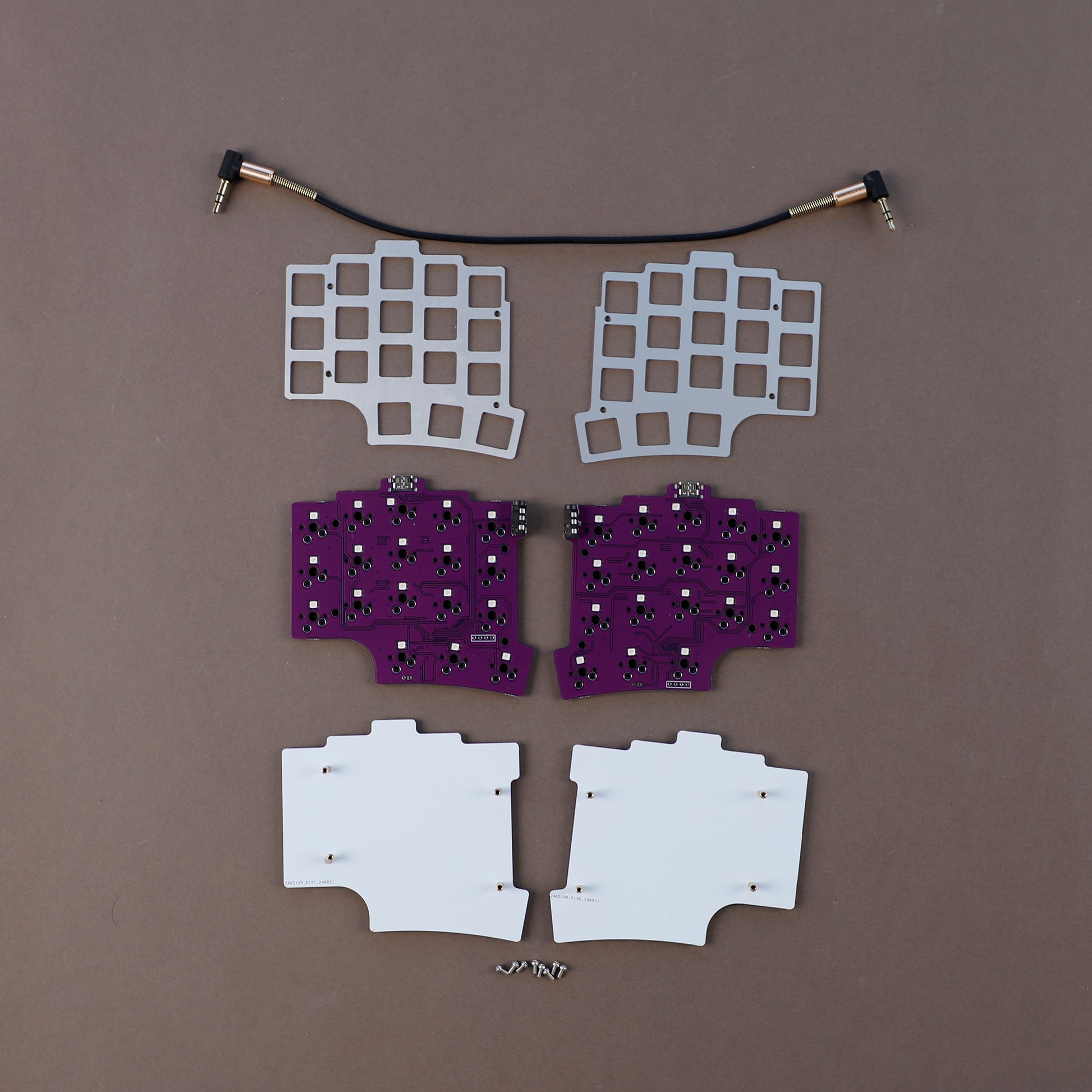

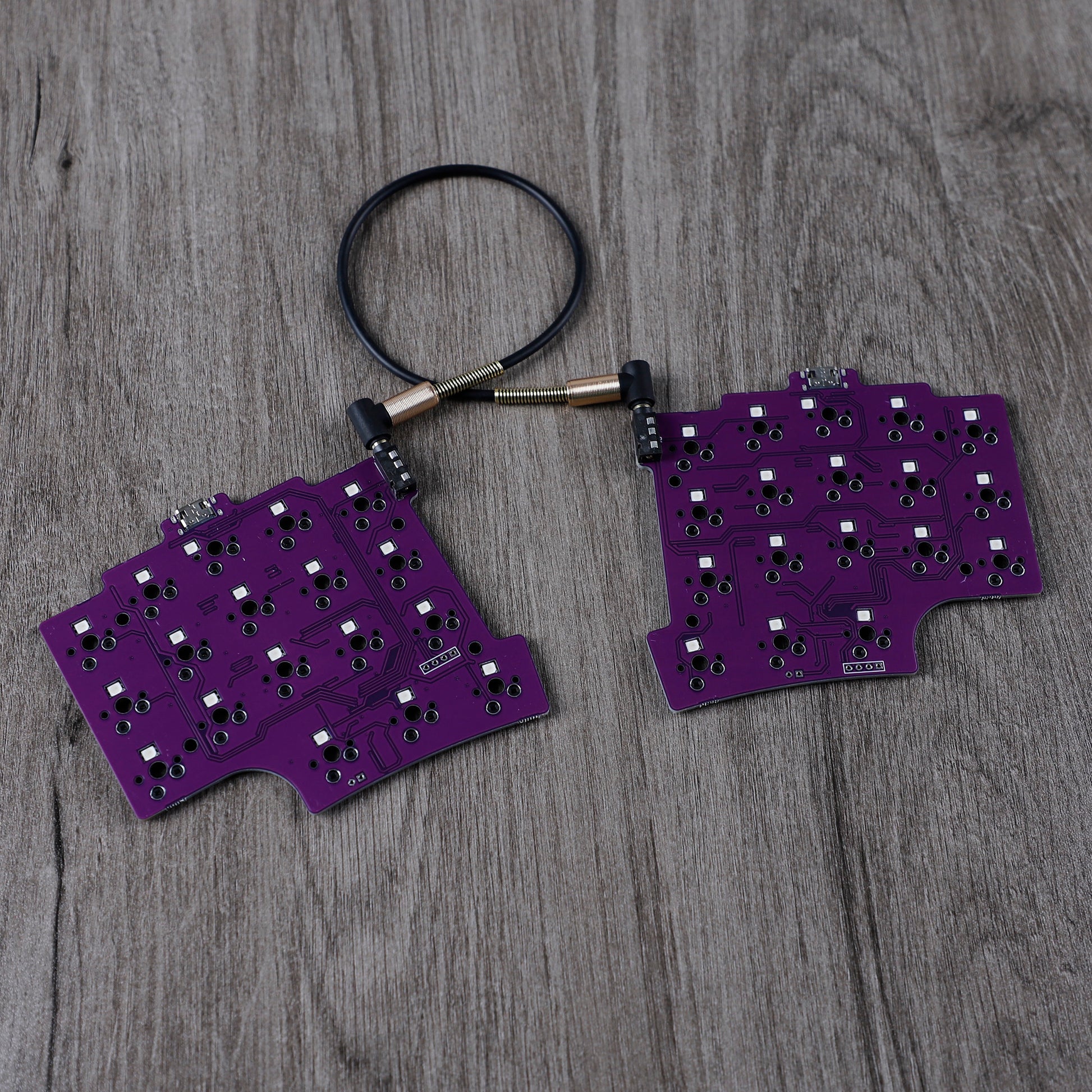

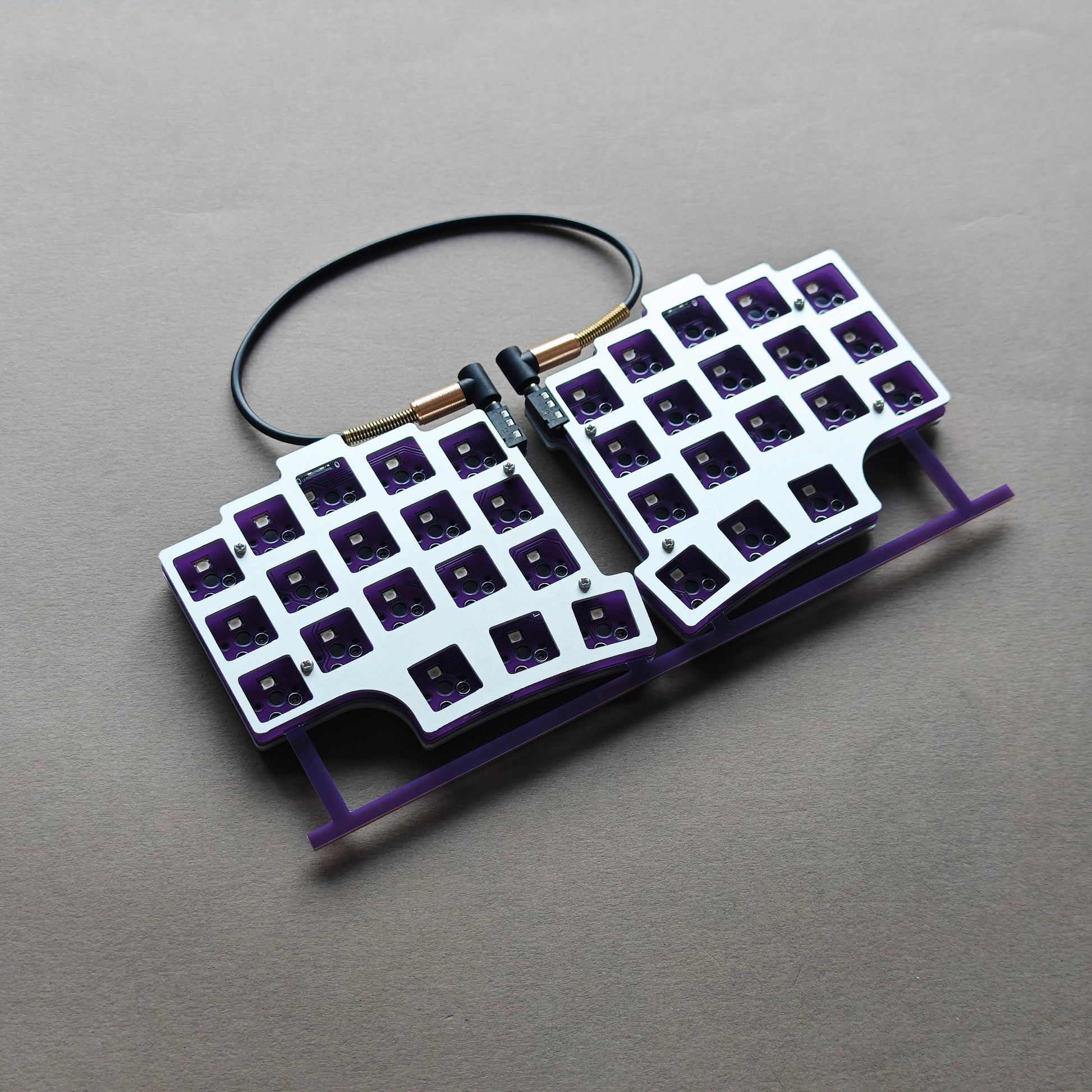

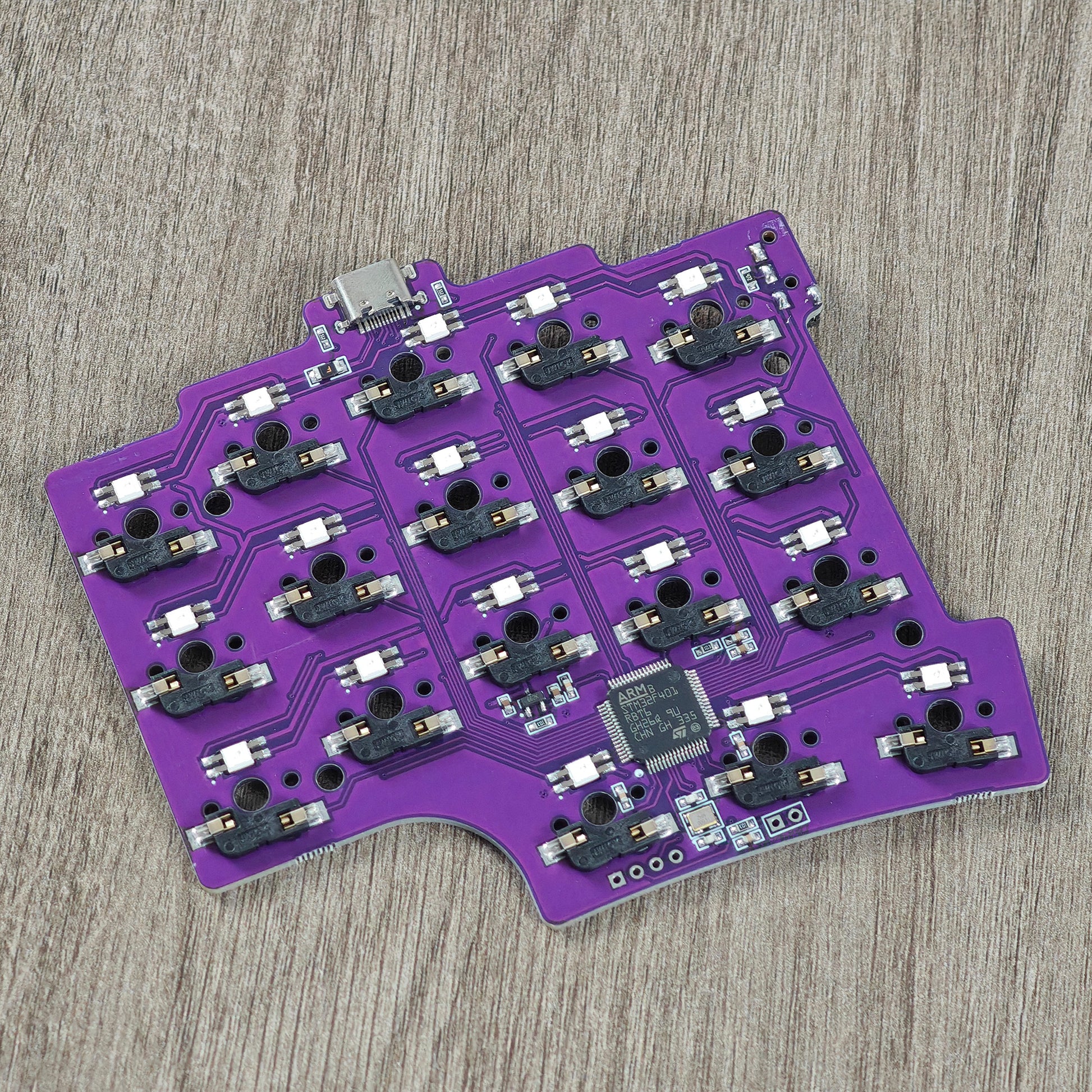

Bottom aluminum plate × 2 + Hotswap PCB × 2 + top aluminum plate + PCB connection data cable + USB cable

Note：You need to prepare the switches and keycaps yourself to form a complete and usable keyboard

Details

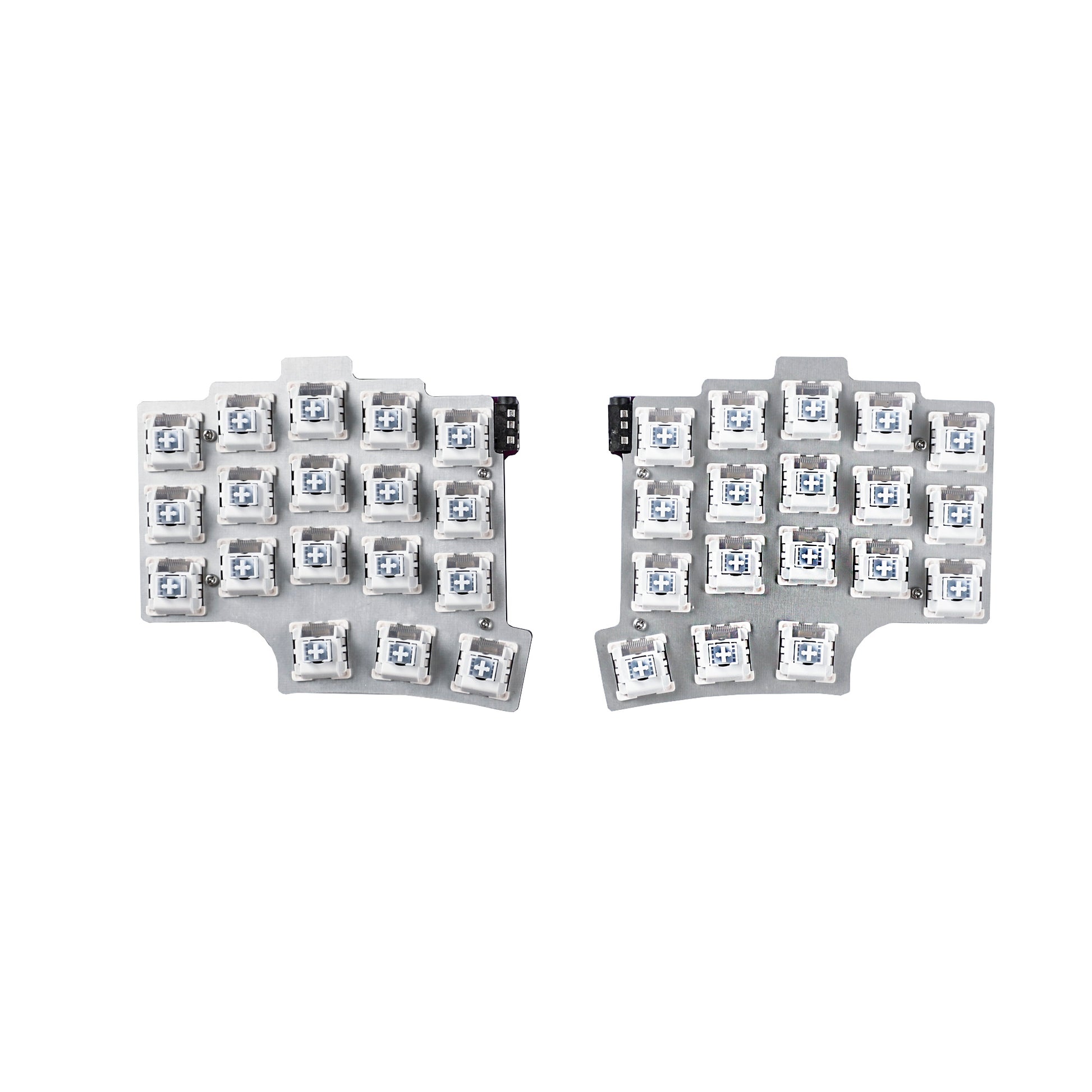

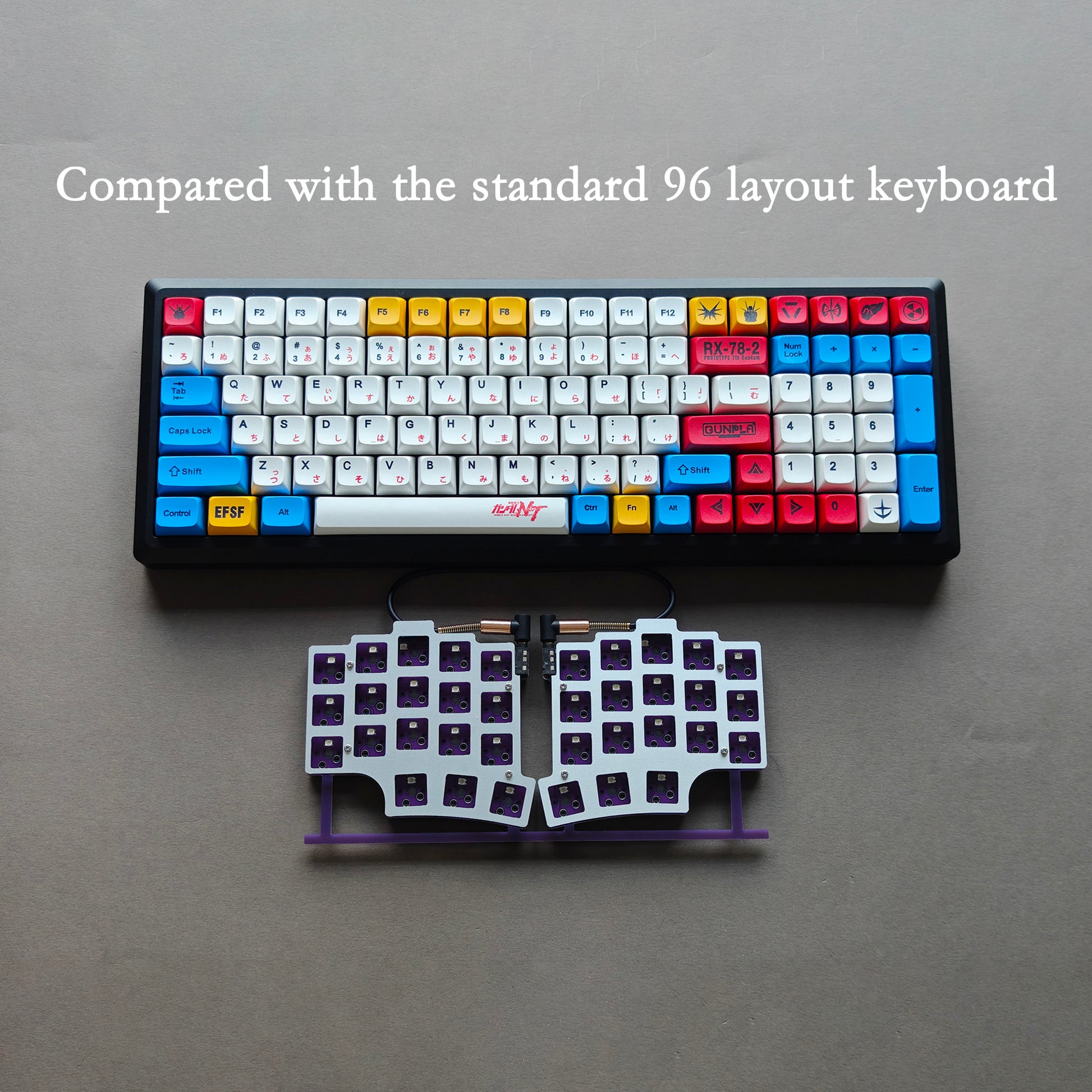

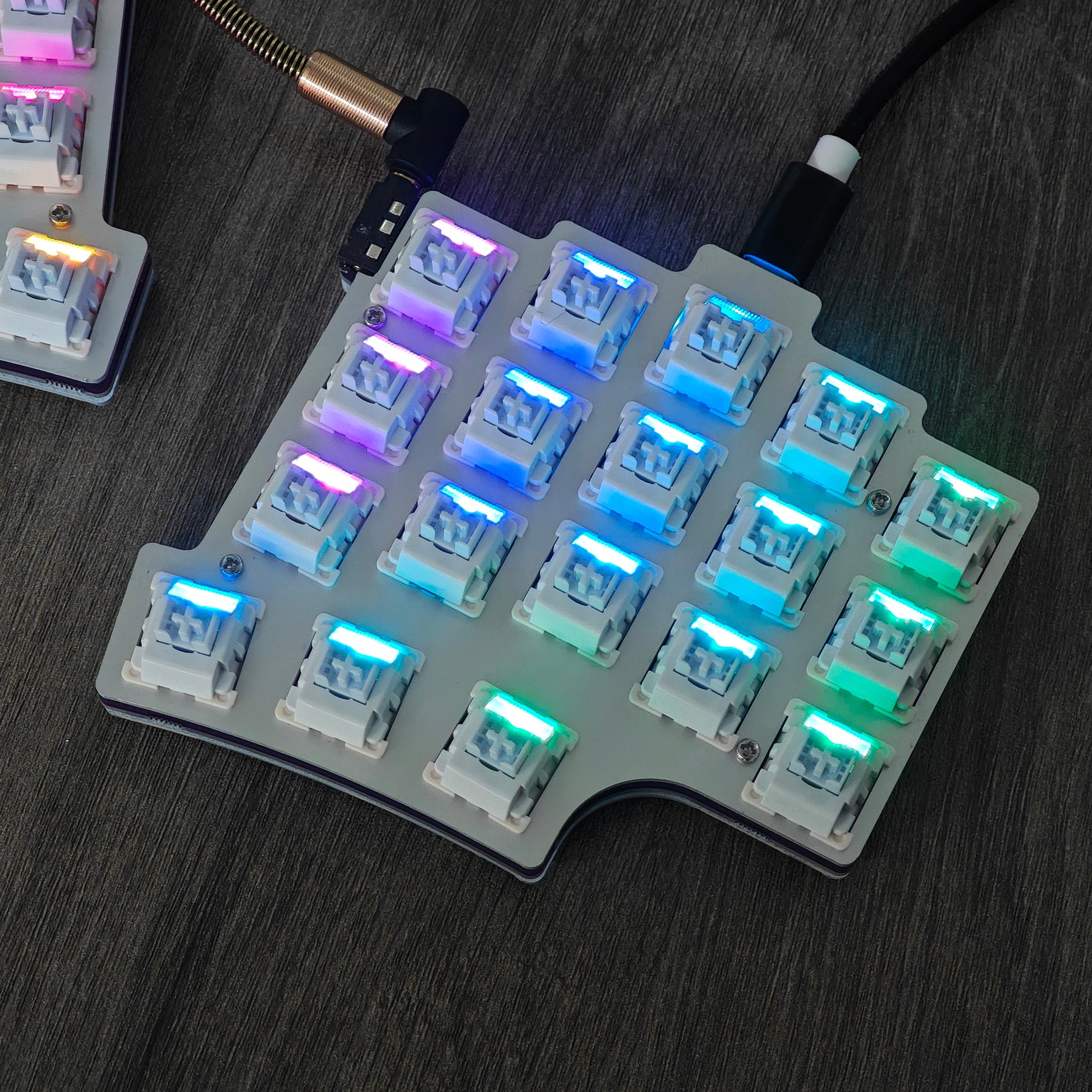

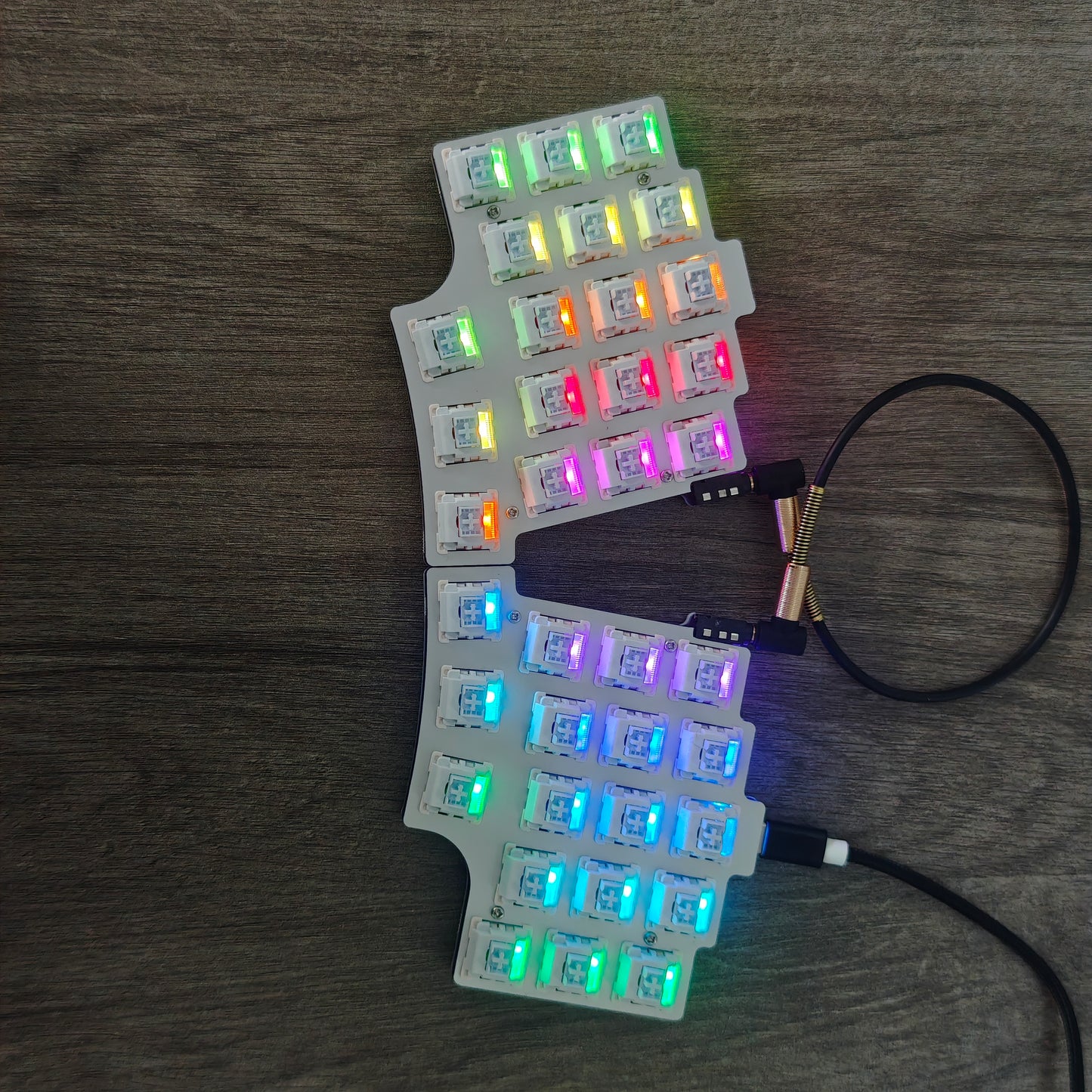

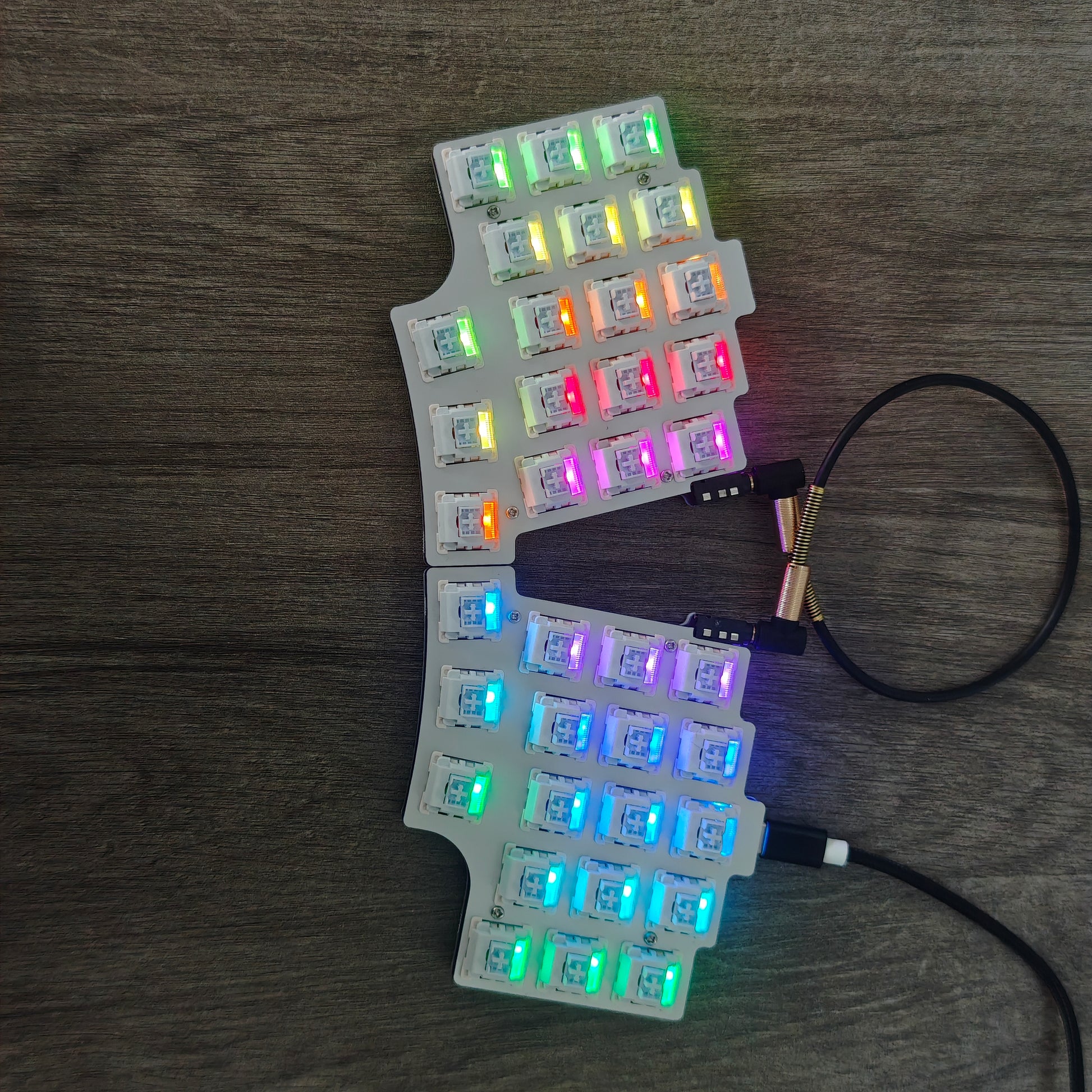

Name:Ergonomics 40 layout 36keys Split Mechanical Keyboard

Model Name：YMDK Split 36 Keyboard

1、The keyboard can directly open Vial for programming

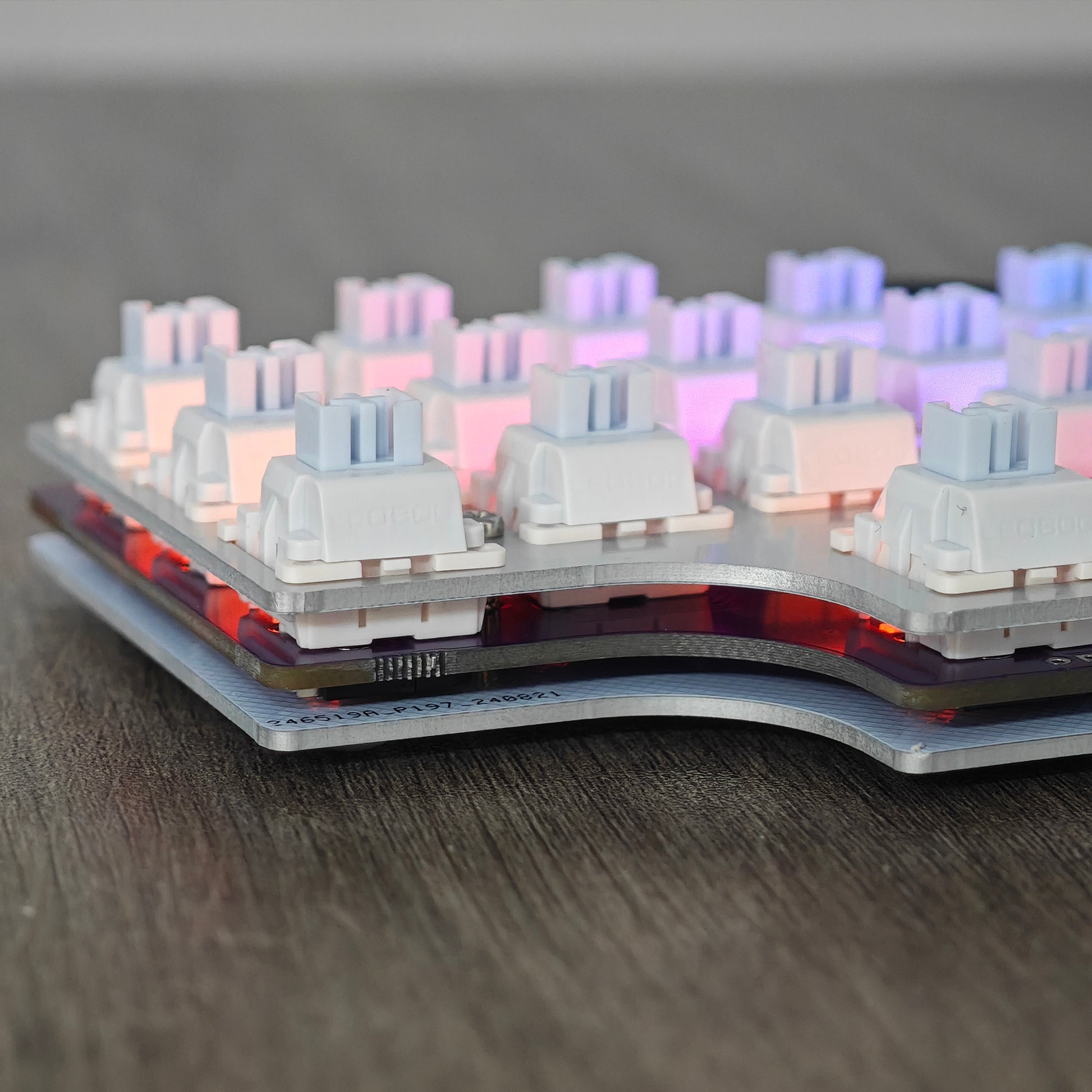

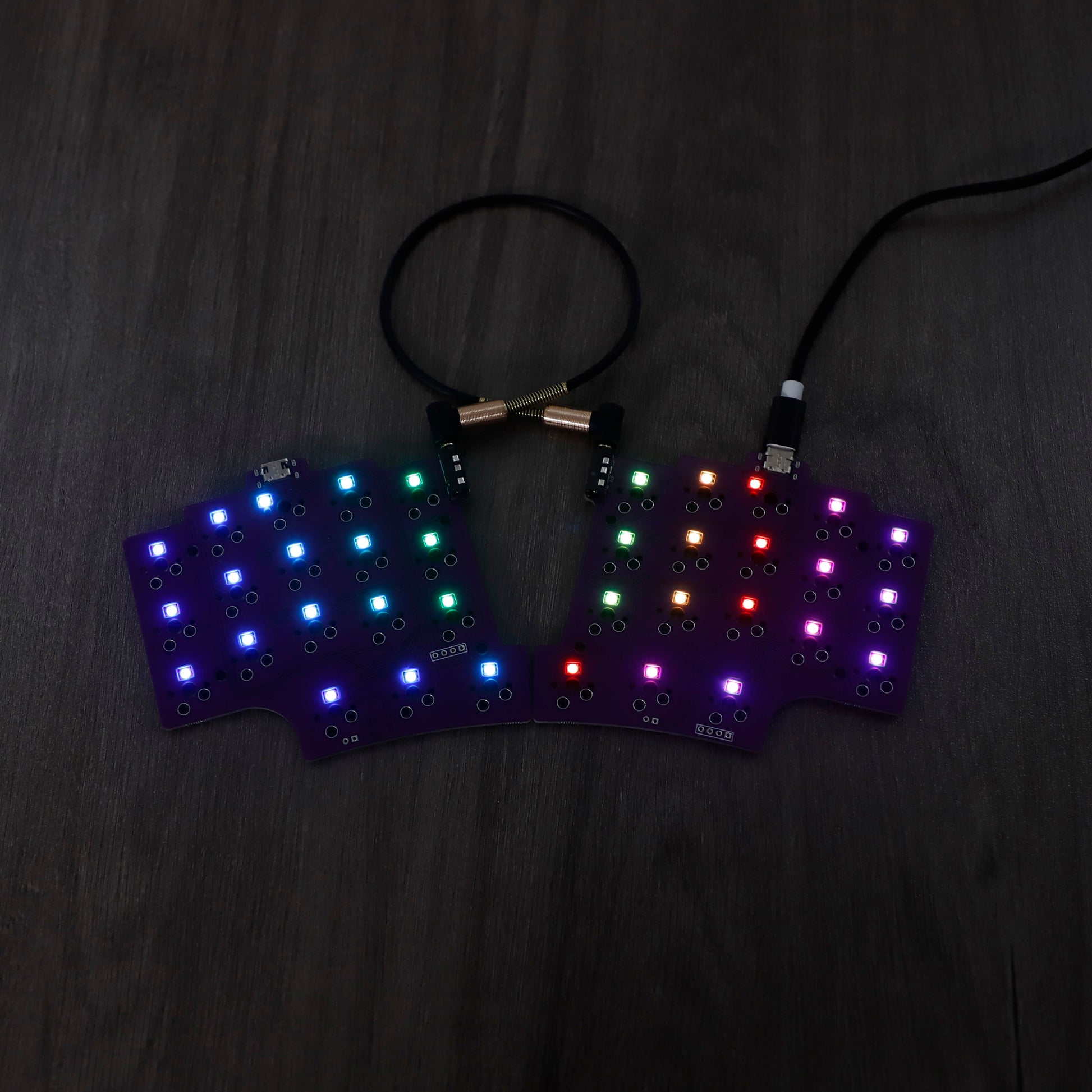

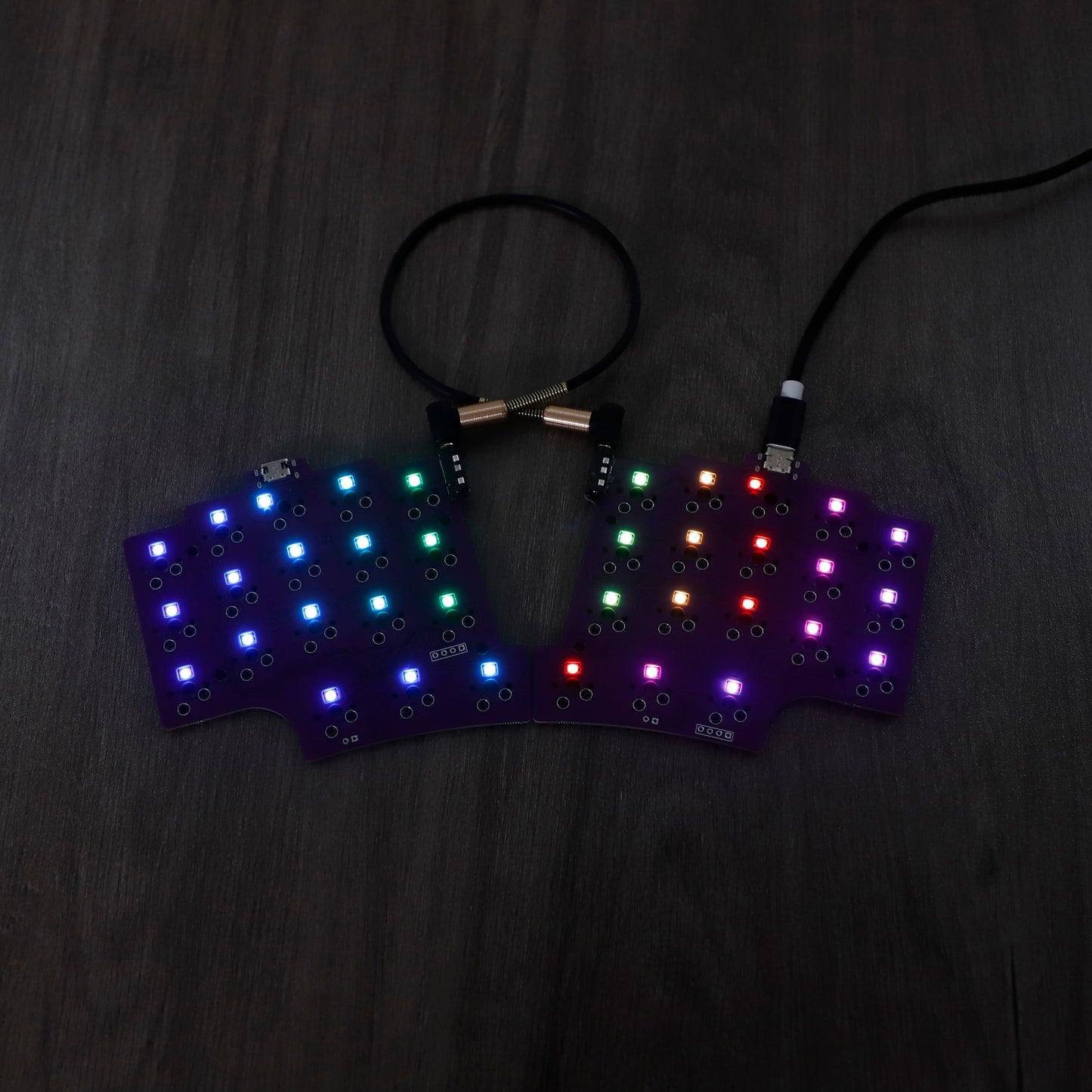

2、Typ-c Wired single-mode, full key north RGB and could ne programmed by QMK VIAL

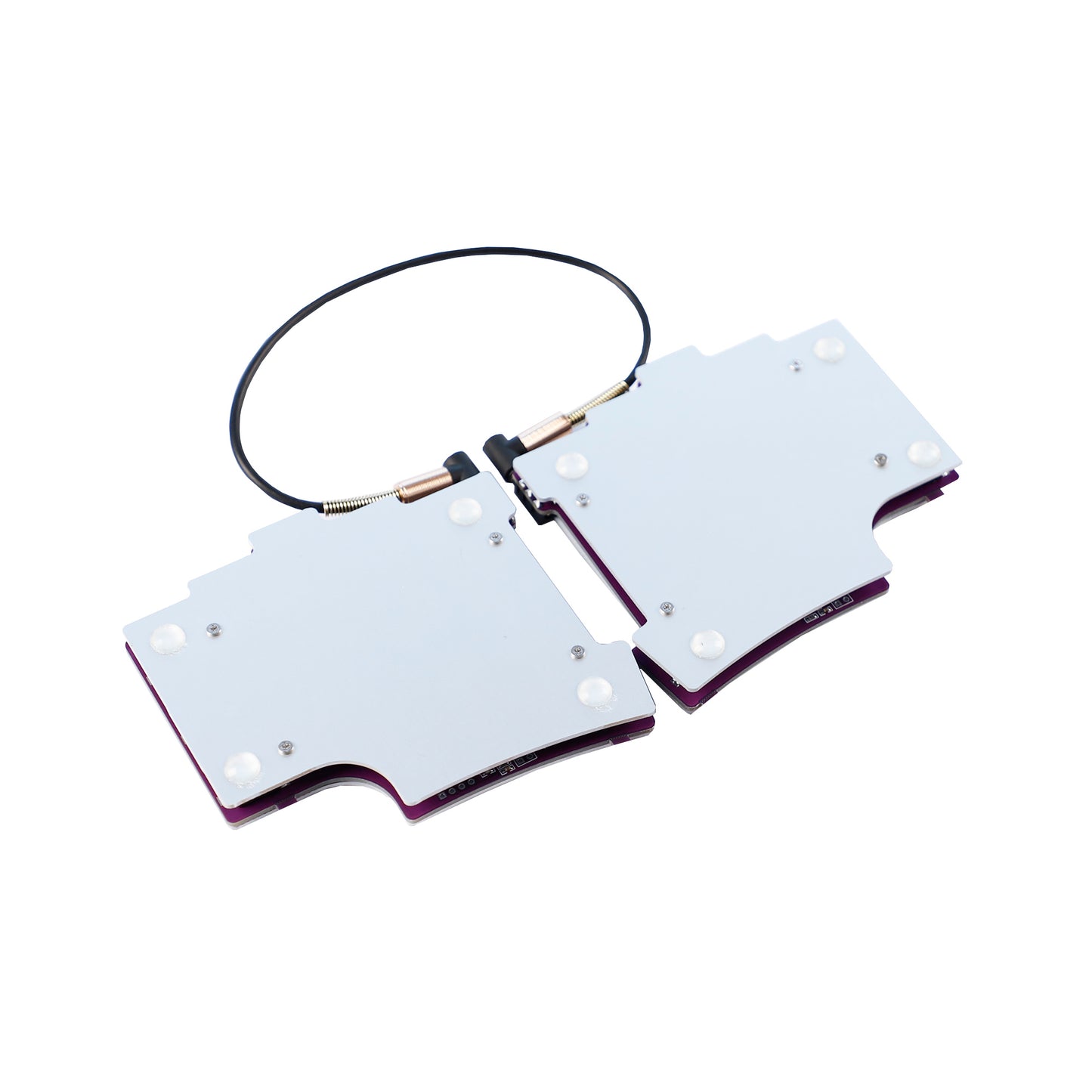

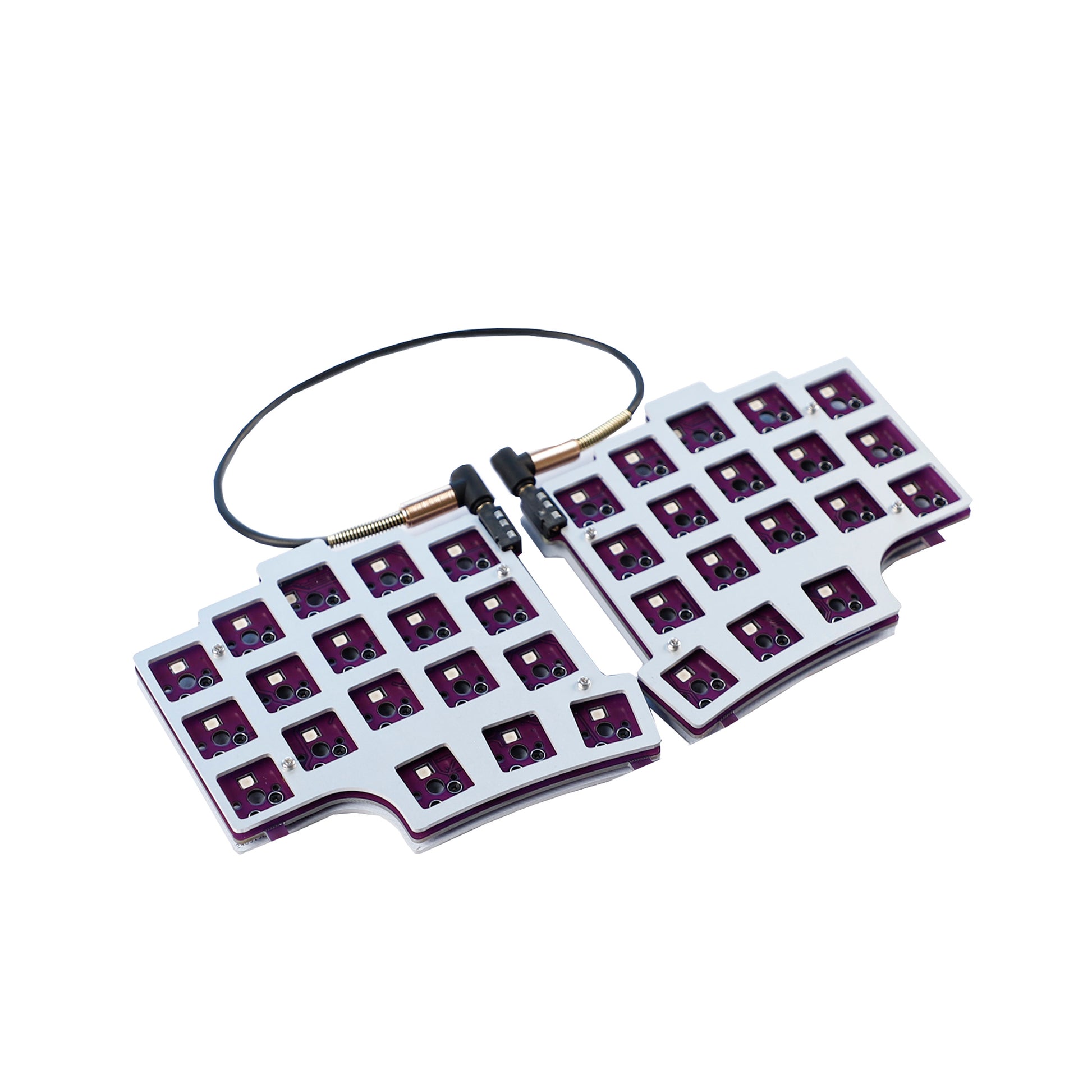

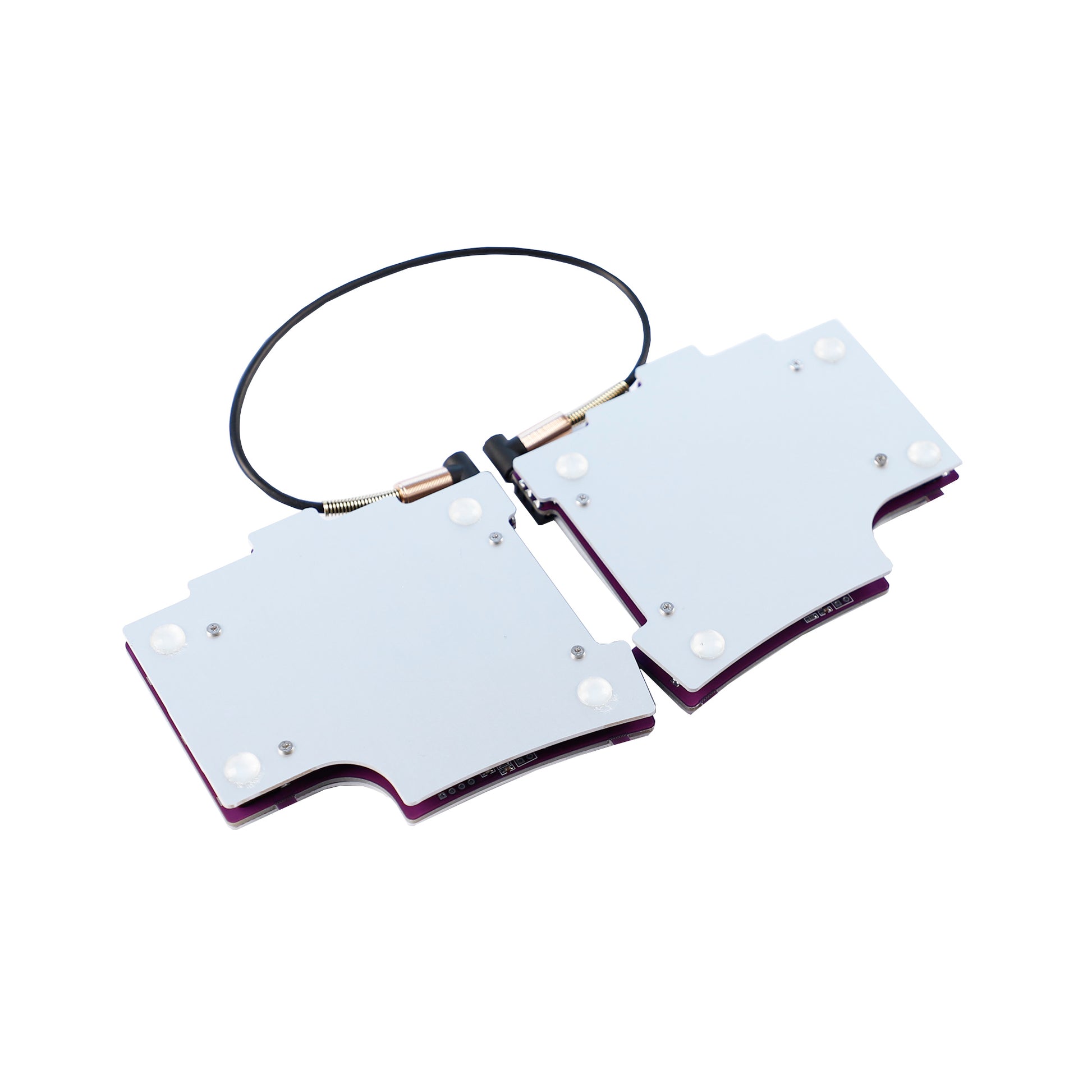

3.Contains two parts and a TRS cable. Note: The TRS cable connecting the two parts does not support hot plugging, so do not plug or unplug the keyboard when it is powered on. The Type C cable can be plugged into either part.

This keyboard can use as 2 separate board.If you connect far left and right USB C to computer separately,it needs to modify 2 board separately on VIAL.If you have connected 2 PCB halves already,don’t plug far left and right USB to PC at the same time,or it won’t work.

Base Kit

Bottom aluminum plate × 2 + Hotswap PCB × 2 + top aluminum plate + PCB connection data cable + USB cable
(No Keycaps,need to assemble yourself)

Kit 1
Base kit + 36 pcs Switches below

(No Keycaps,message switch type after ordering.If there is no note, we will send the first default switch. After the goods are delivered to the logistics provider, the switch cannot be changed.)

Switch options
Gateron SMD：Yellow \Brown \Black \Red \White \Blue \Green (Can Mix)
Gateron Pro ：Pro Yellow /Pro Red/Pro milky yellow/Pro milky red
Gateron Milky Black\Red\Brown\Blue\Yellow\White\Green
Kailh Speed ​​​​Silver \Bronze \Gold \Pink \Copper
Kailh Super：Speed Silver\Bronze\copper\red
Kailh Pro purple \Light Green \Burgundy
Kailh Box White \Brown \Black \Red \Pale Blue \Burnt Orange \Dark Yellow
Kailh box Noble Yellow\Glazed Green\Ancient Grey\Chinese Red
Outemu SMD Black \Red \Brown\ Blue\Silver\Gold

Kit 2
Base kit + 36 pcs Switches below

(No Keycaps,message switch type after ordering.If there is no note, we will send the first default switch. After the goods are delivered to the logistics provider, the switch cannot be changed.)

Switch options
Kailh Box Jade /Navy \Pink /Royal
Kailh Box V2 White\Brown
Kailh Box pro red/Red Bean pudding/Owl White
Kailh Hako Ture /Hako Violet /Hako Clear
Kailh Polia
kailh Cream
Gateron SMD Silent：black\red\brown
Gateron CJ Dark Blue/Light Blue
Gateron baby kangaroo/Racoon

Kit 3
Base kit + 36 pcs Switches below

(No Keycaps,message switch type after ordering.If there is no note, we will send the first default switch. After the goods are delivered to the logistics provider, the switch cannot be changed.)

Switch options
Cherry silver /Pink / Clear /Tactile Gray /Milk white /Silent Black
Kailh Polia
Kailh Box Royal /Box Silent Brown /Box Silent Pink
Gateron Oil King V3
JWK Matcha
Equalz Macho

Kit 4
Base kit + 36 pcs Switches below

(No Keycaps,message switch type after ordering.If there is no note, we will send the first default switch. After the goods are delivered to the logistics provider, the switch cannot be changed.)

Switch options :Kailh Box Cream /North Pole V3
