YMD-Split 64 Aluminum Case With Acrylic Layer Kit(RGB Underglow Hotswap Kit/Bface Programmable)

Package Included(YMD-Split 64 Aluminum Case With Acrylic Layer kit)

Option 1: CNC case plate + Hot Swap PCB + Acrylic Frame + 8 Rubber Feet + Screws + 5 pin cable to connect 2 split board+ PCB stabilizers (5x2u)

Option 2: CNC case plate + Hot Swap PCB + Acrylic Frame + 8 Rubber Feet + Screws + 5 pin cable to connect 2 split board+ PCB stabilizers (5x2u) +Switches*70 pcs

Option 3: CNC case plate + Hot Swap PCB + Acrylic Frame + 8 Rubber Feet + Screws + 5 pin cable to connect 2 split board+ PCB stabilizers (5x2u) +Switches*70 pcs+ZDA Dots Keycaps*1

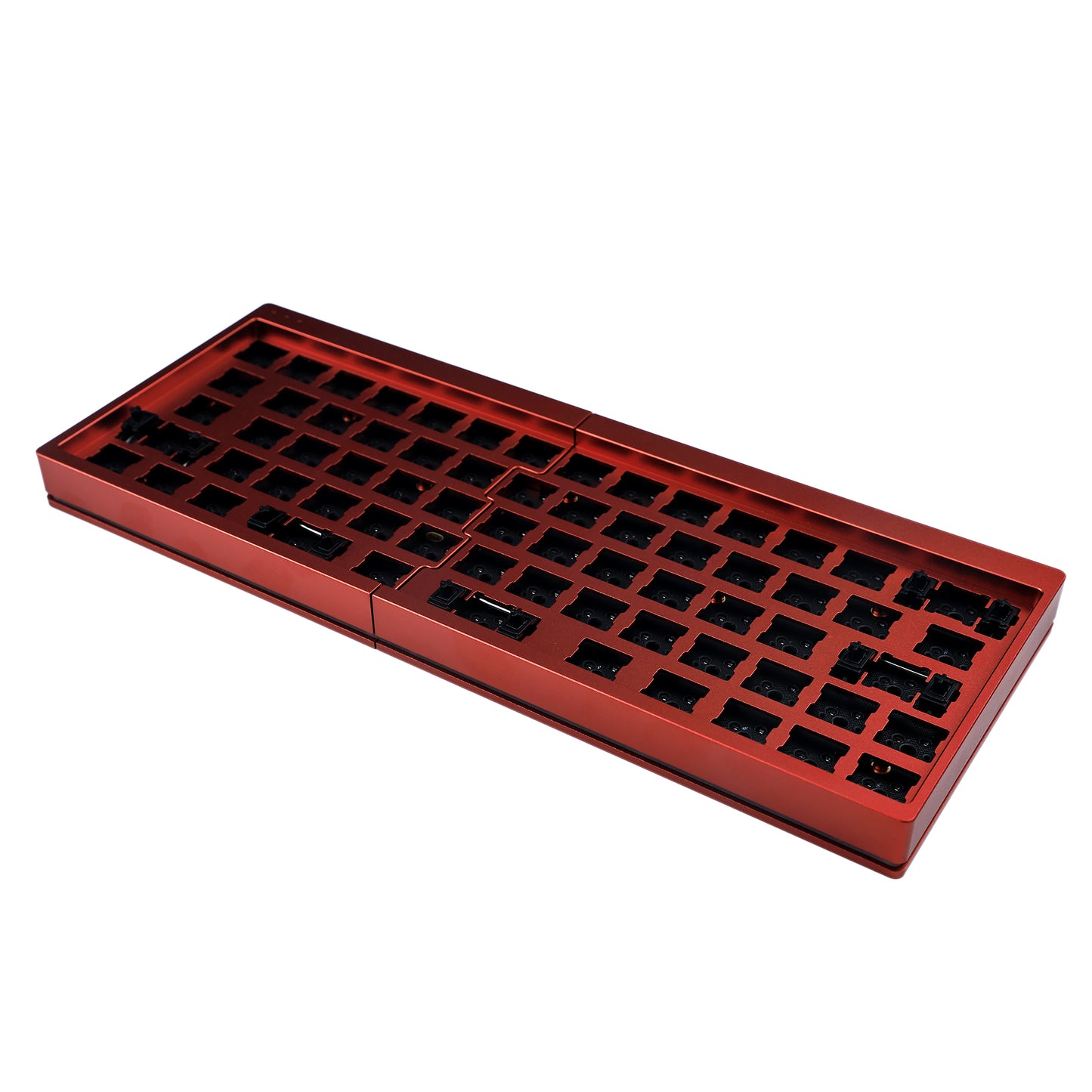

For the case color,the name is mixed with upper case and bottom case.

Details

From 60% to Split 64,consider the ergonomic structure.A split keyboard can help us protect our typing space of flexibility,so split 64 is used in lifes better.

Split 64 layout will have the special spacebar,so need use the special keycaps that fit the layout.The bottom row is 1.25u 1u 1.25u 2.25u 1u 2.75u 1.25u 1.25u 1u 1u 1u.The left space is 2.25u,right space is 2.75u.And it still has a 2u shift in left side.

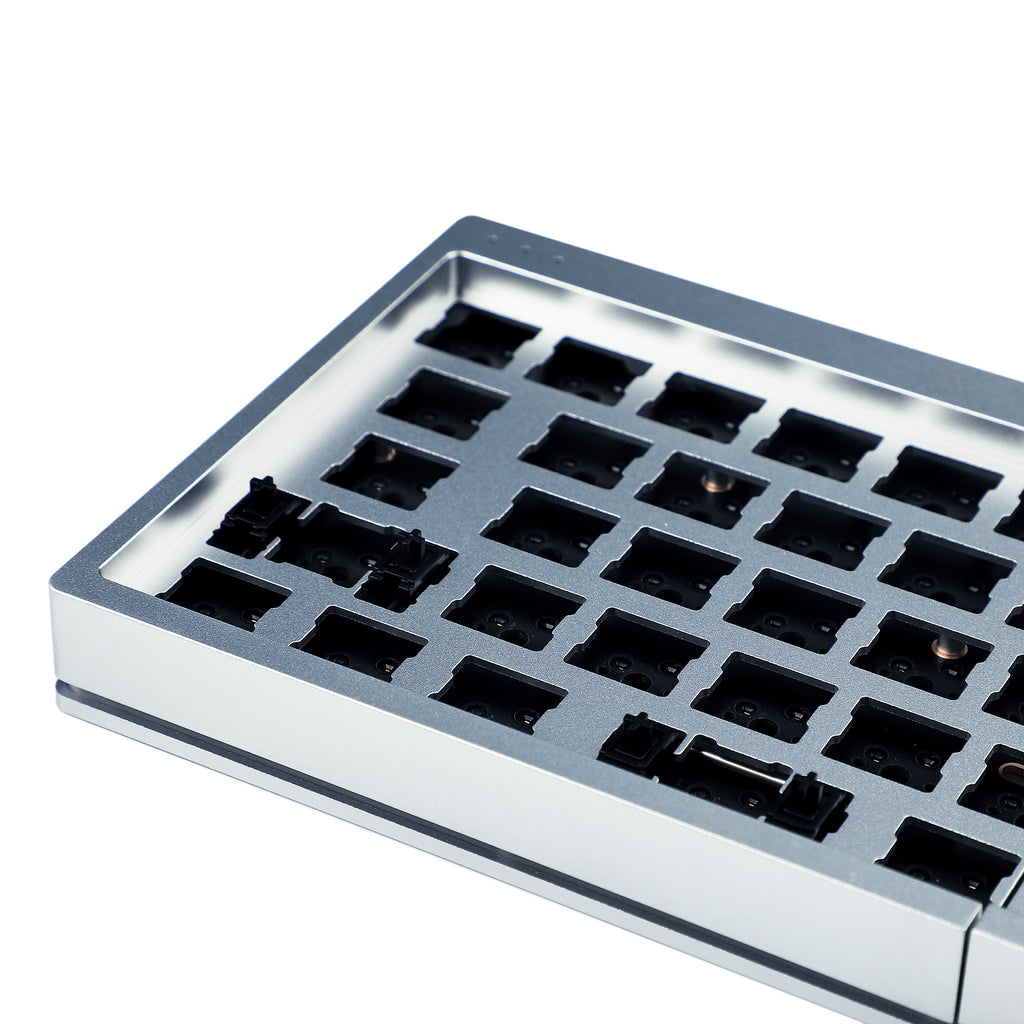

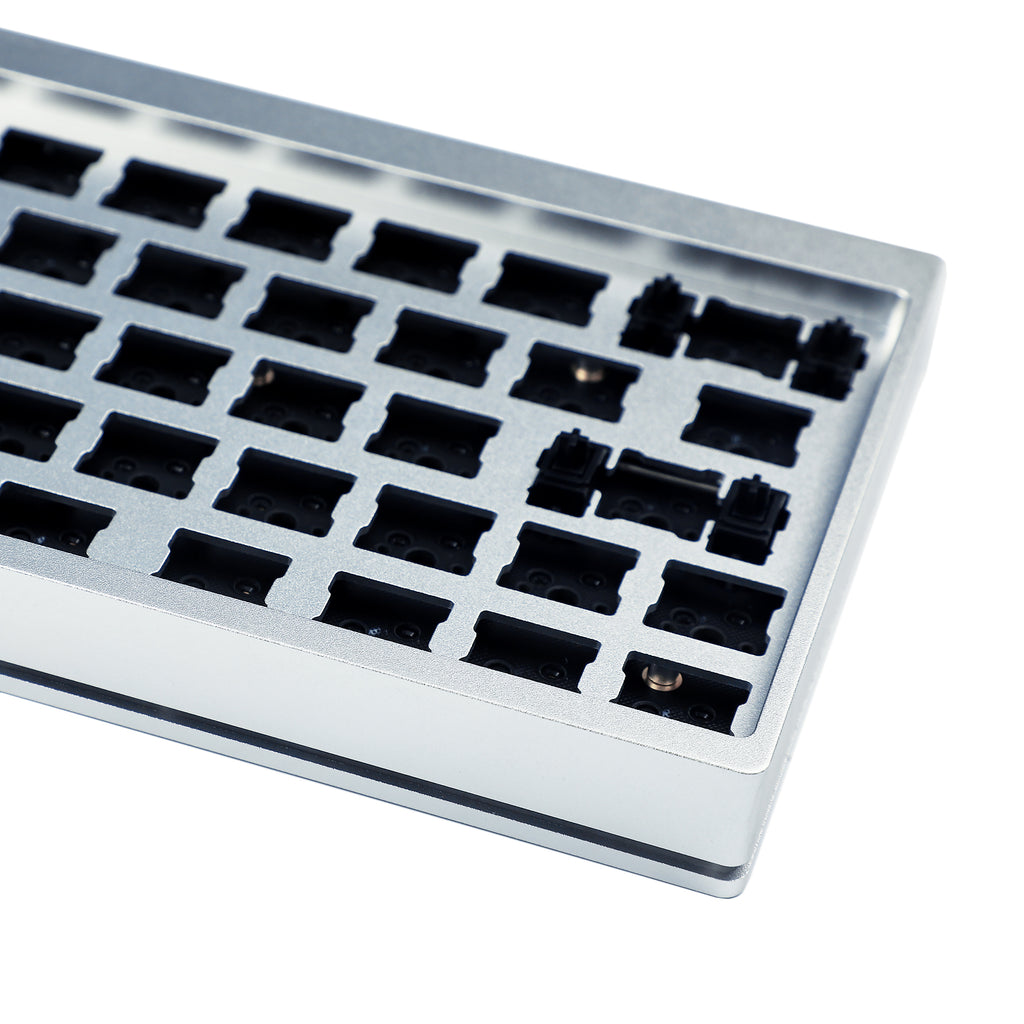

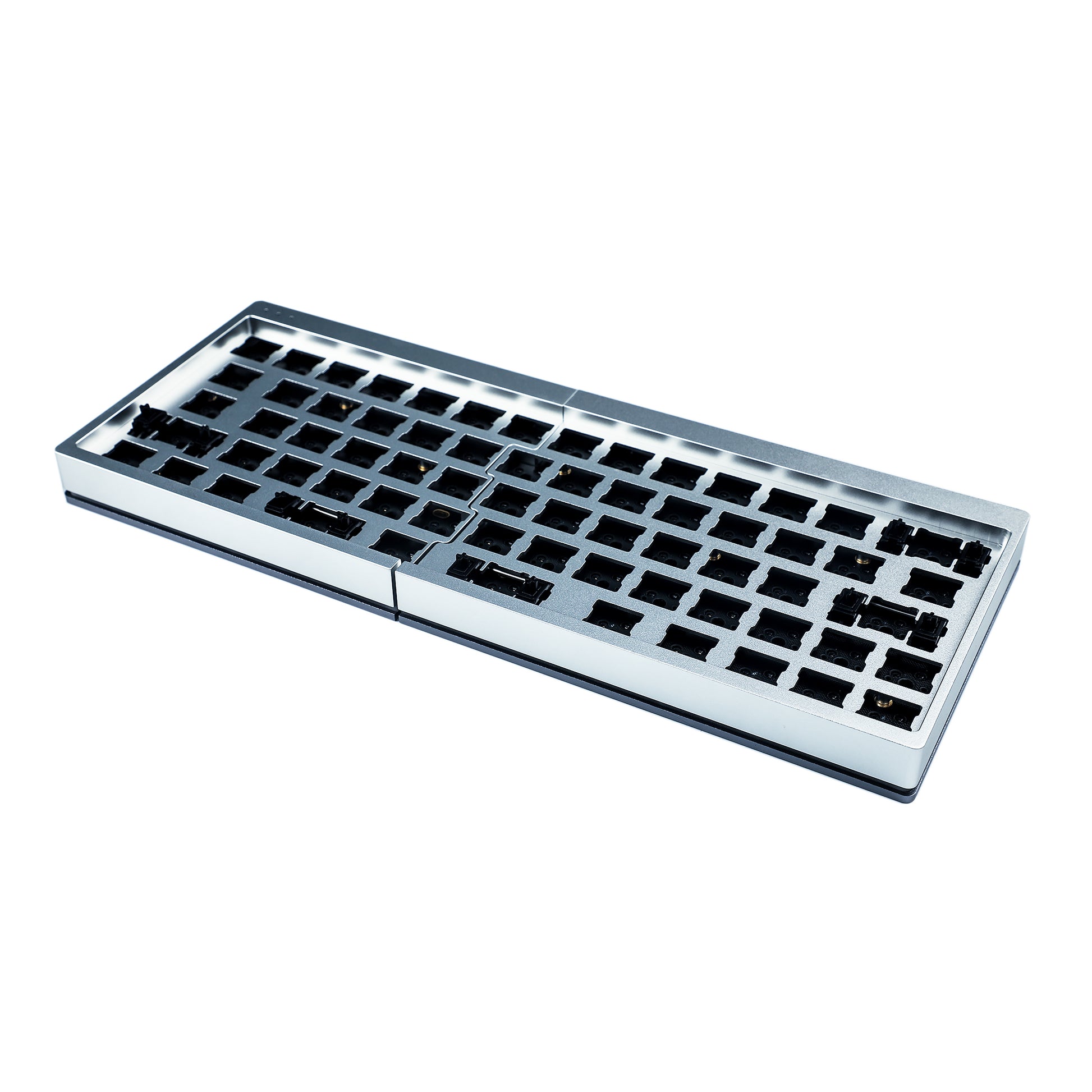

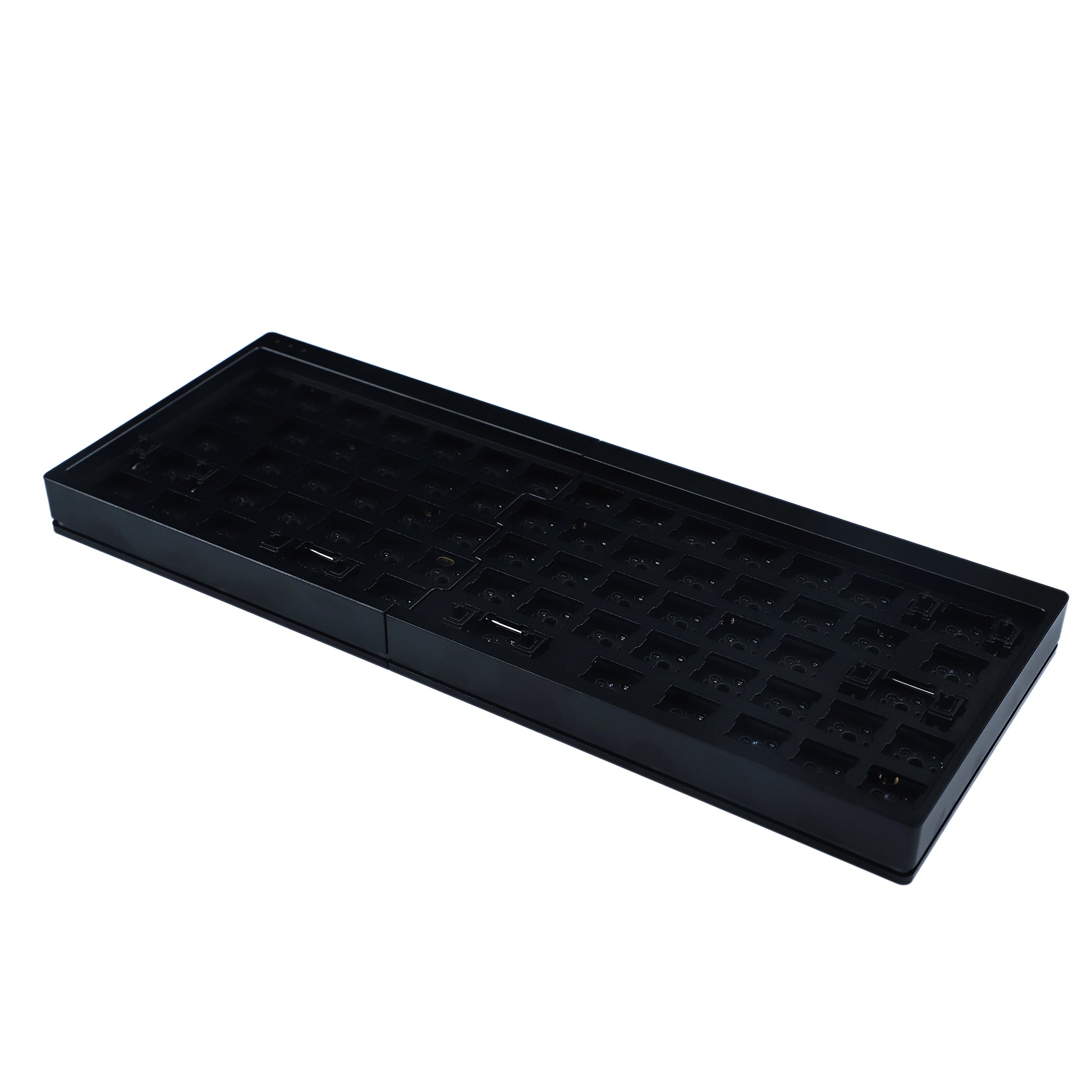

CNC anodized aluminum case with acrylic layer for rgb underglow,and integrated plate can make switches of pressing directly in case of top part.

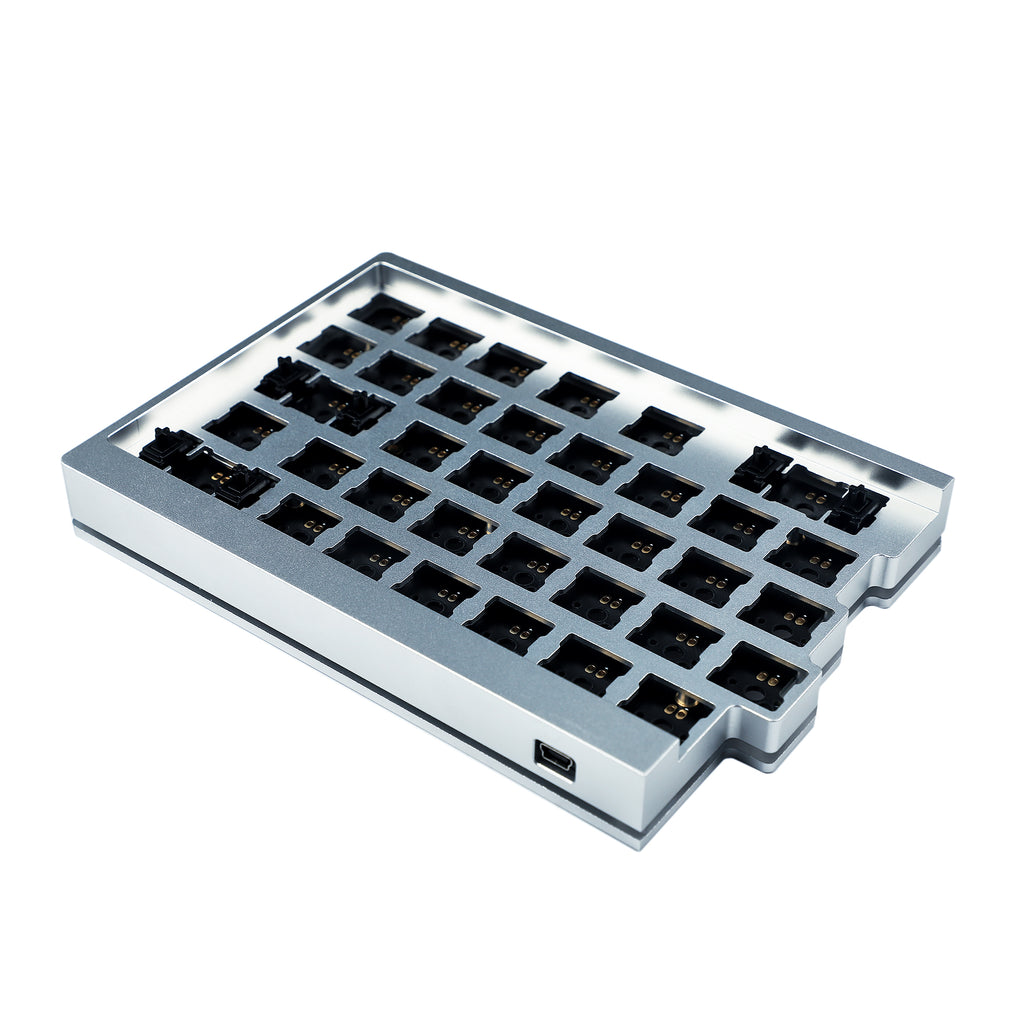

Hotswap south facing rgb underglow mini USB port PCB,only supports bootmapper programmable now.

We upgrade the case of stabilizers to pcb stabilizers now,so screw in stabilizers supports it normal.

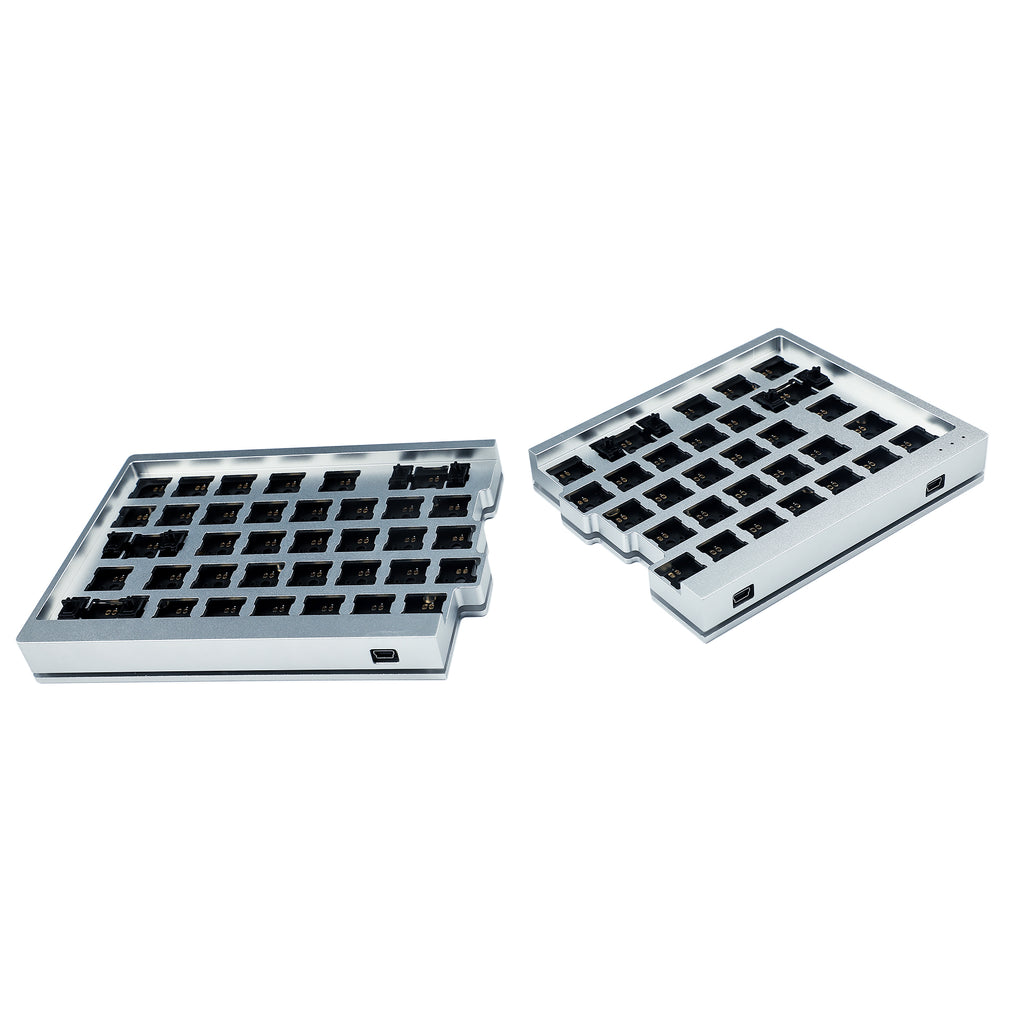

Keyboard Size: left 131*114*16 mm,right 161*113*16 mm.(Had not added the switches and keycaps of height)

Note

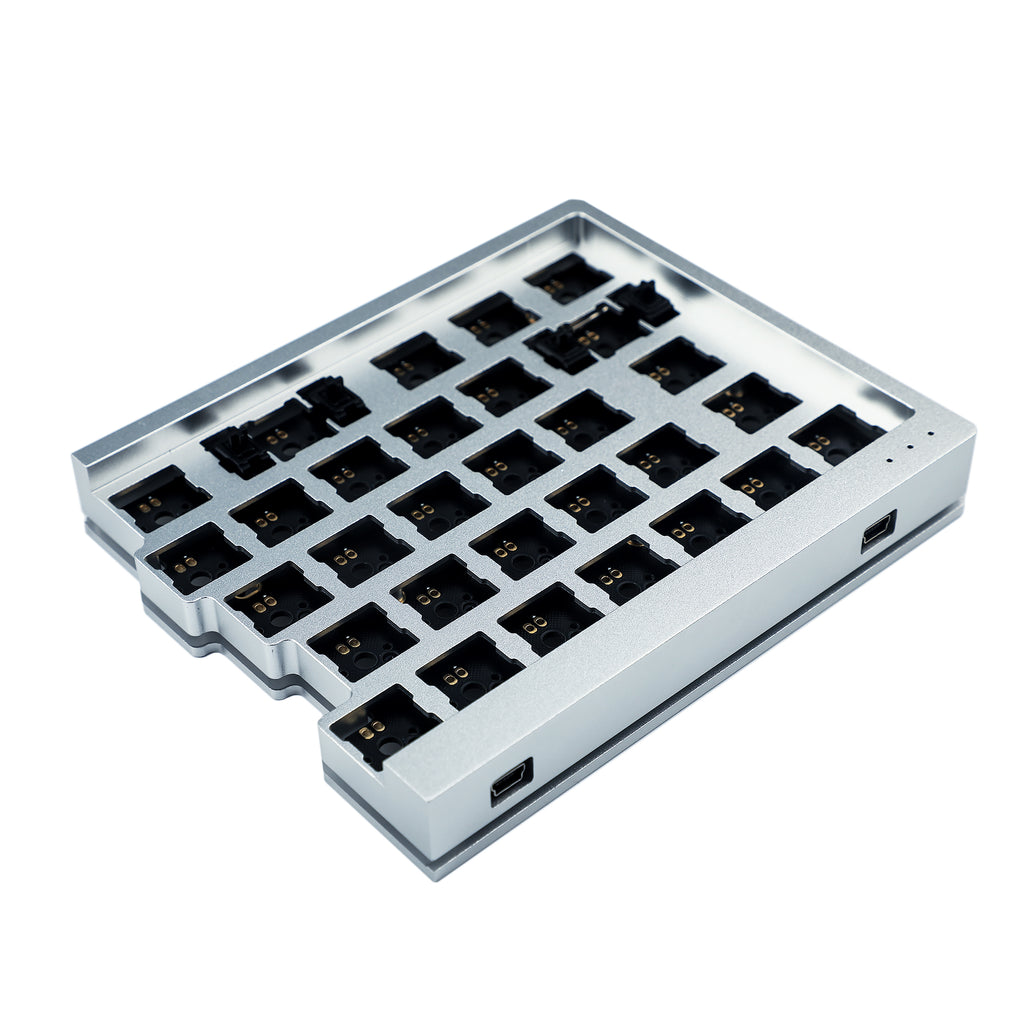

There is 3 indicator led hole at the left top.Numlock,Caps,Scrl.You can install led onto PCB yourself.Of course,you need prepare a soldering iron for it if you need add the leds.

PCB Manuals

https://drive.google.com/file/d/1vMUbjzyKlsihNI8jNVvvqAk7vpWzmBqr/view?usp=sharing

Images Display

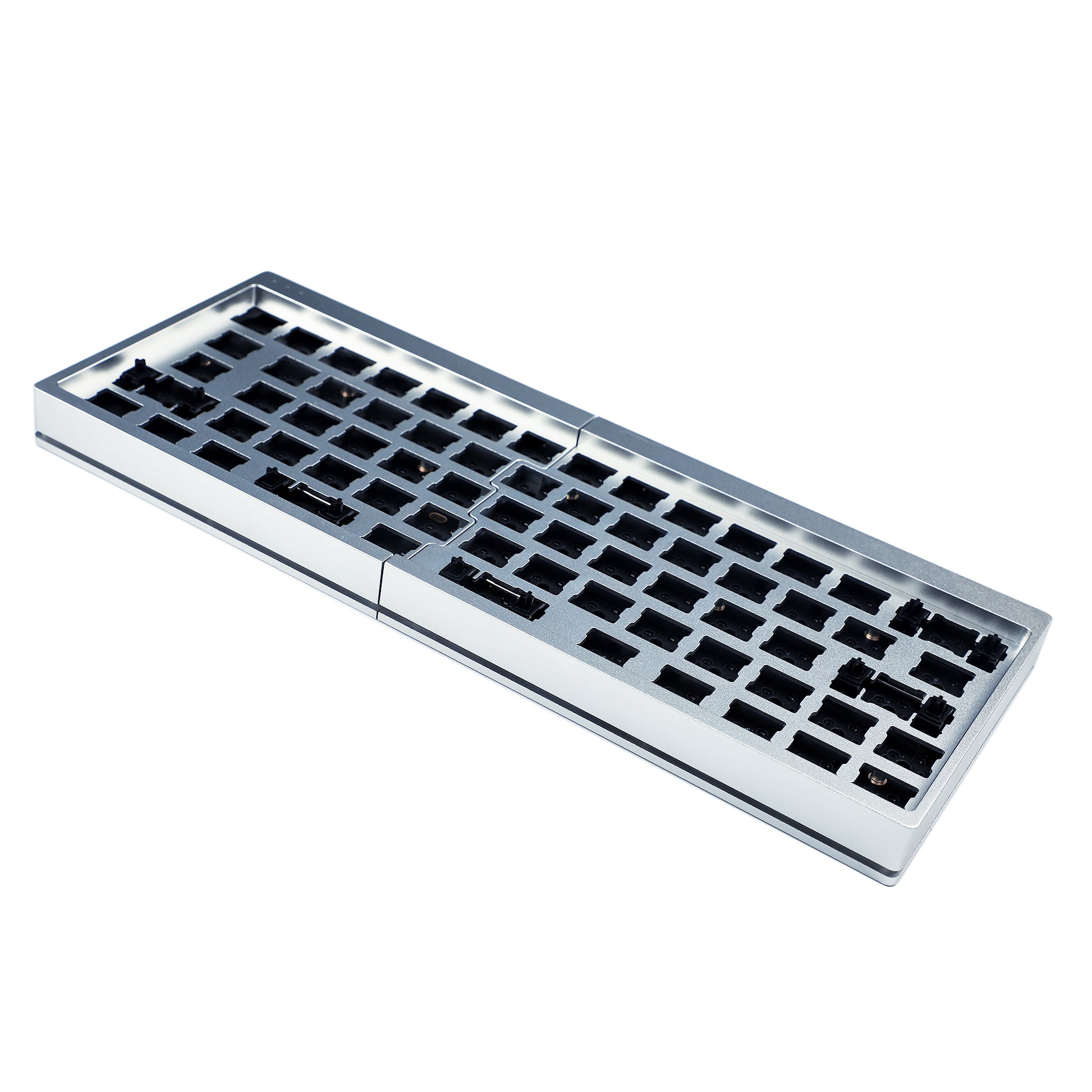

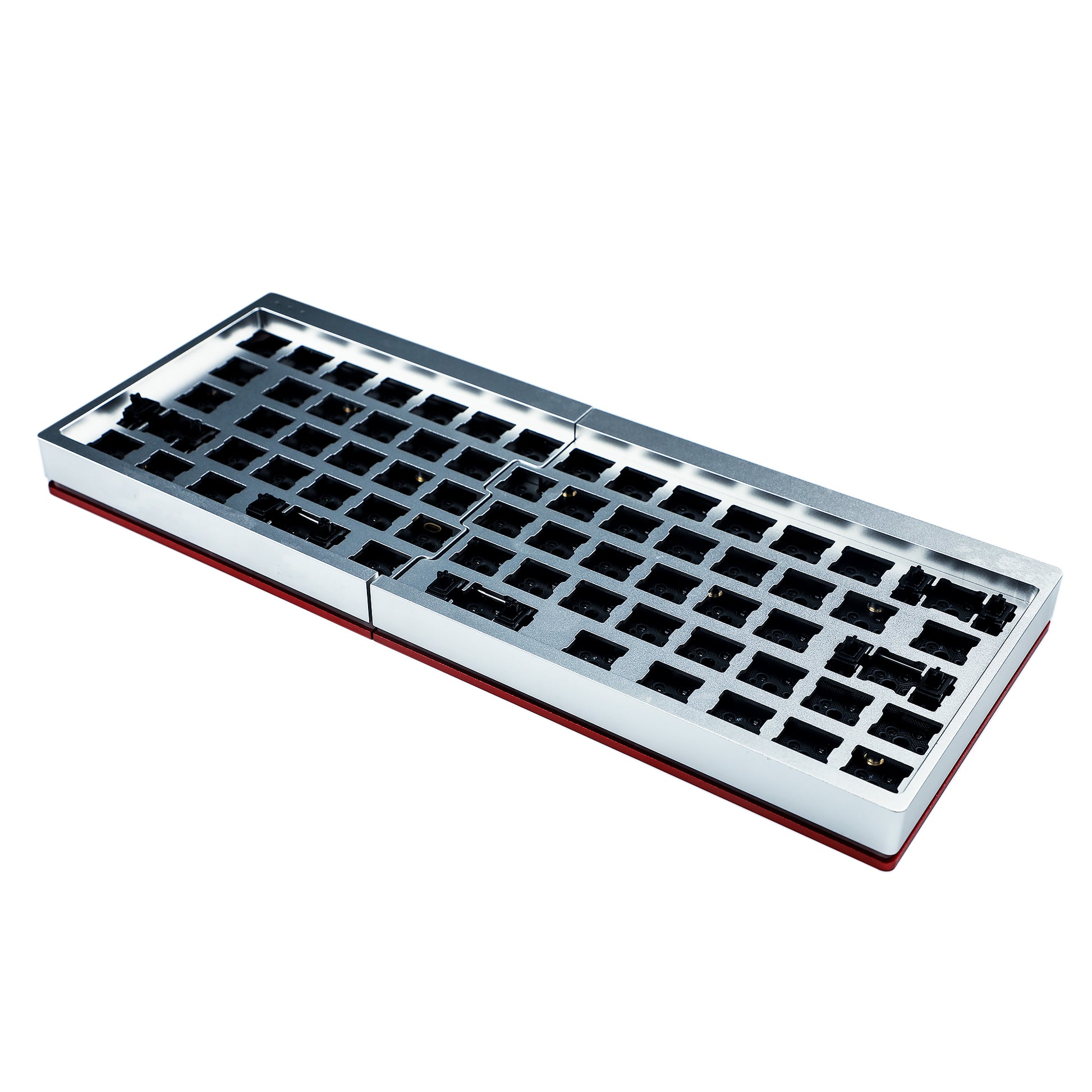

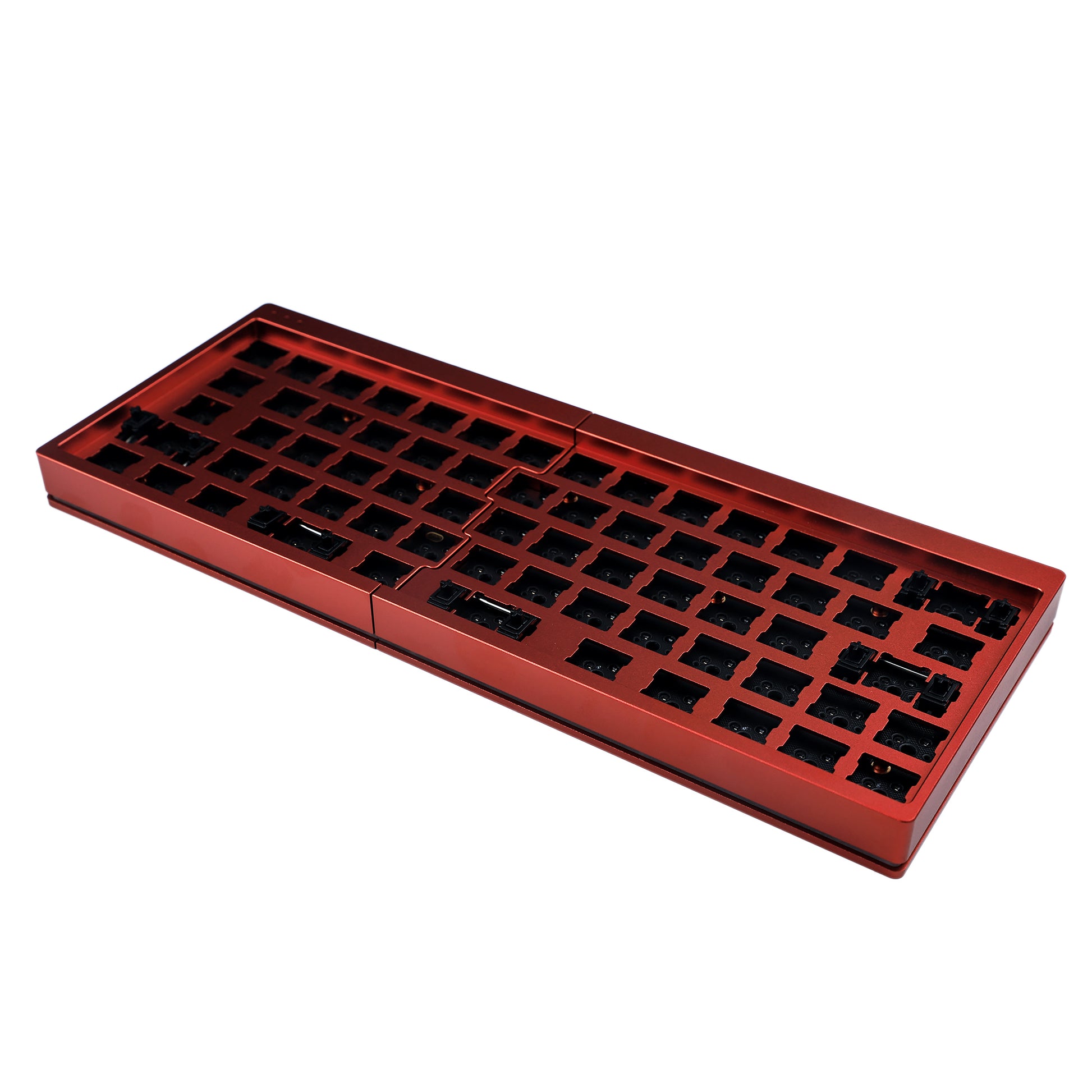

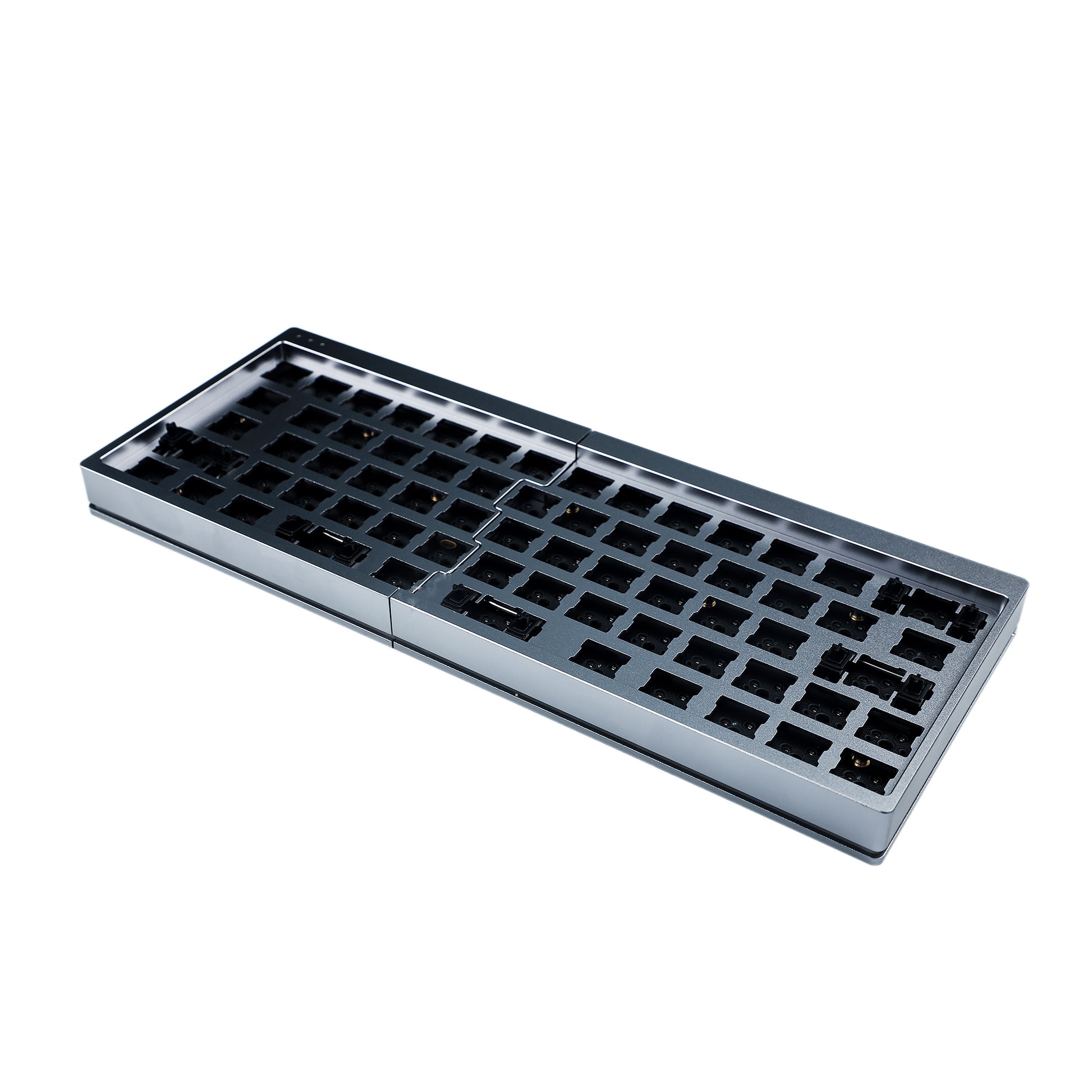

Option 1

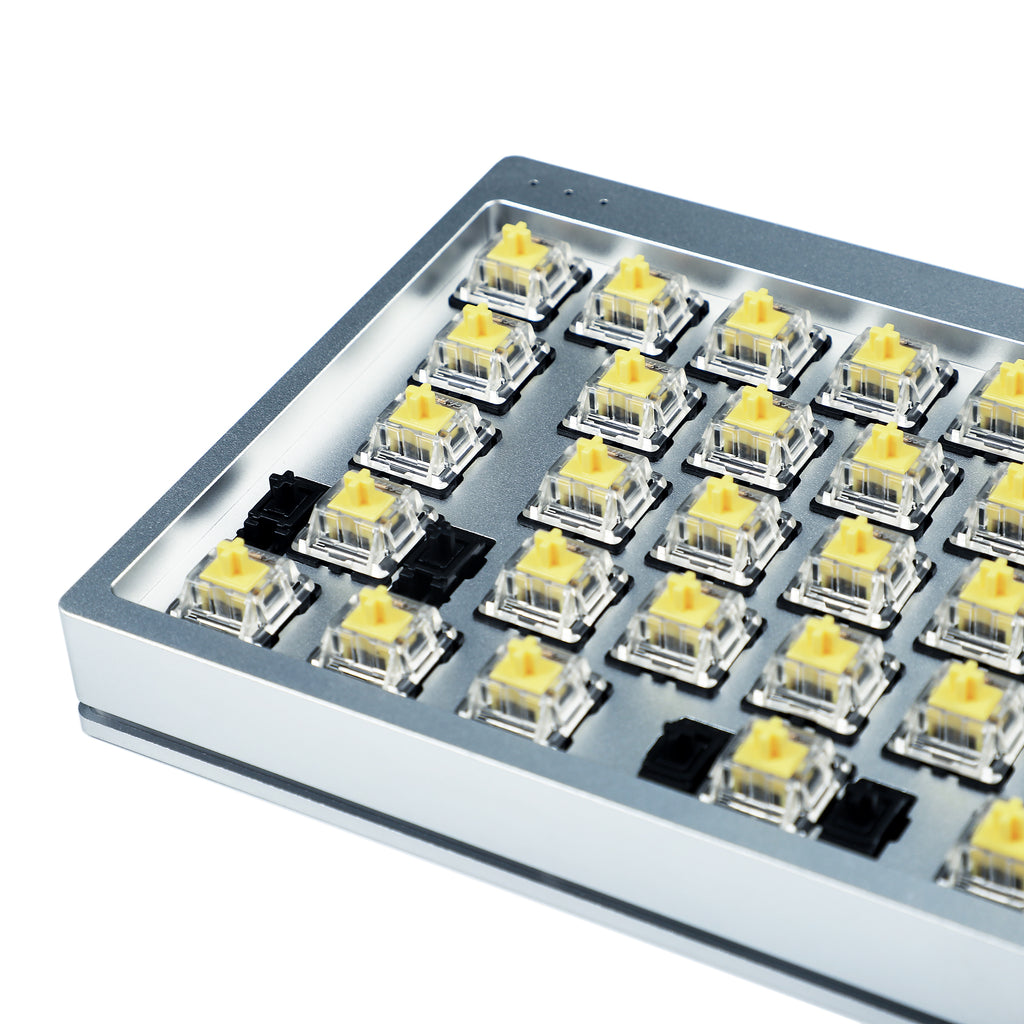

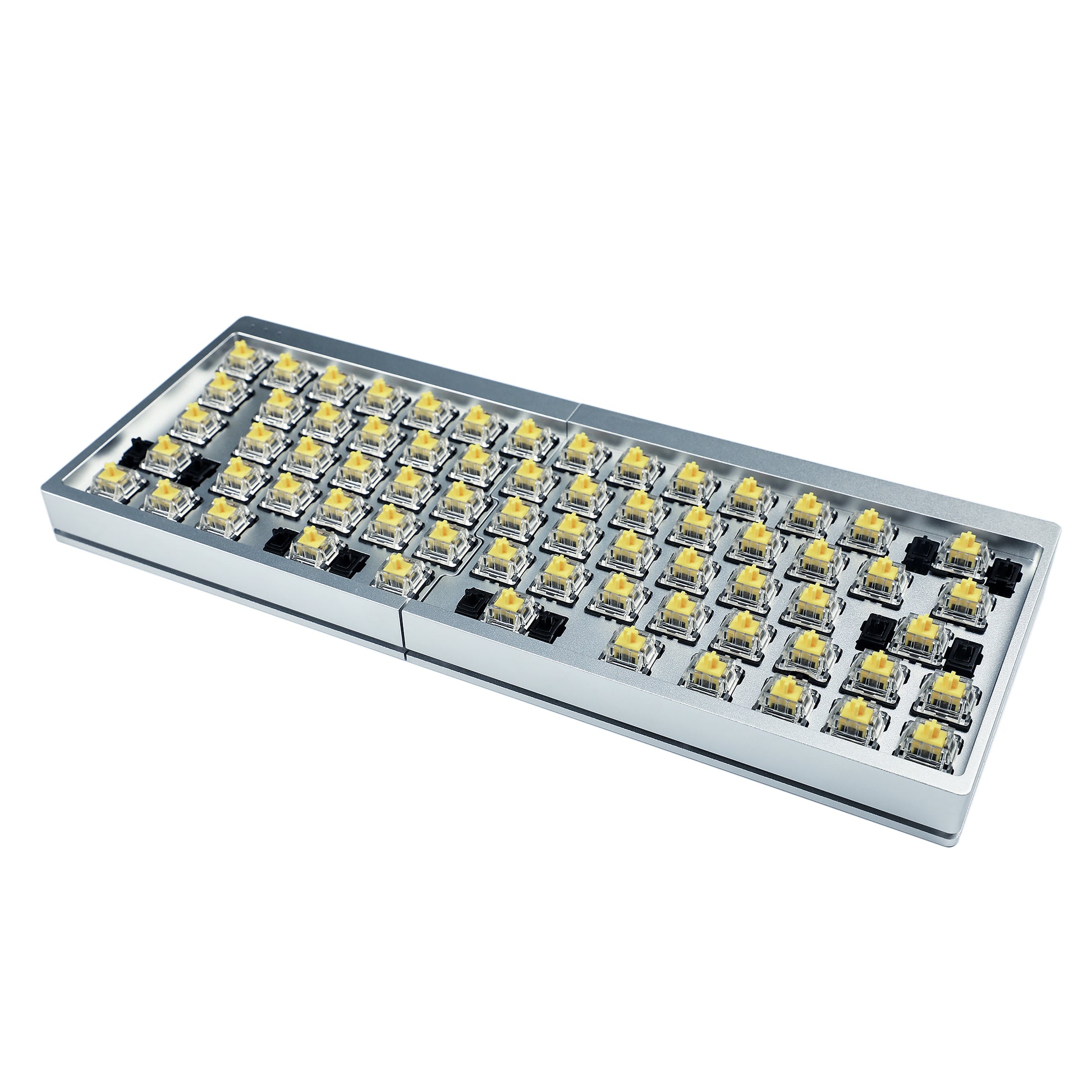

Option 2

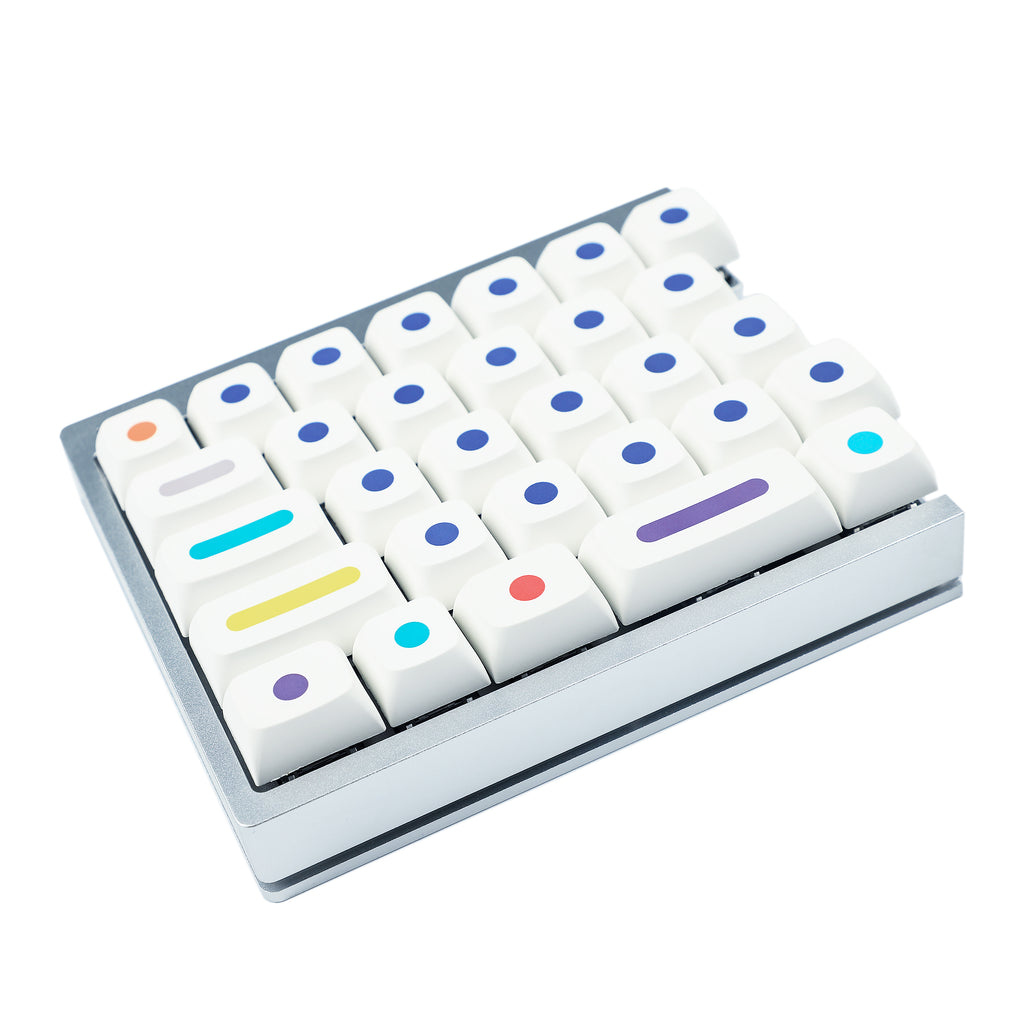

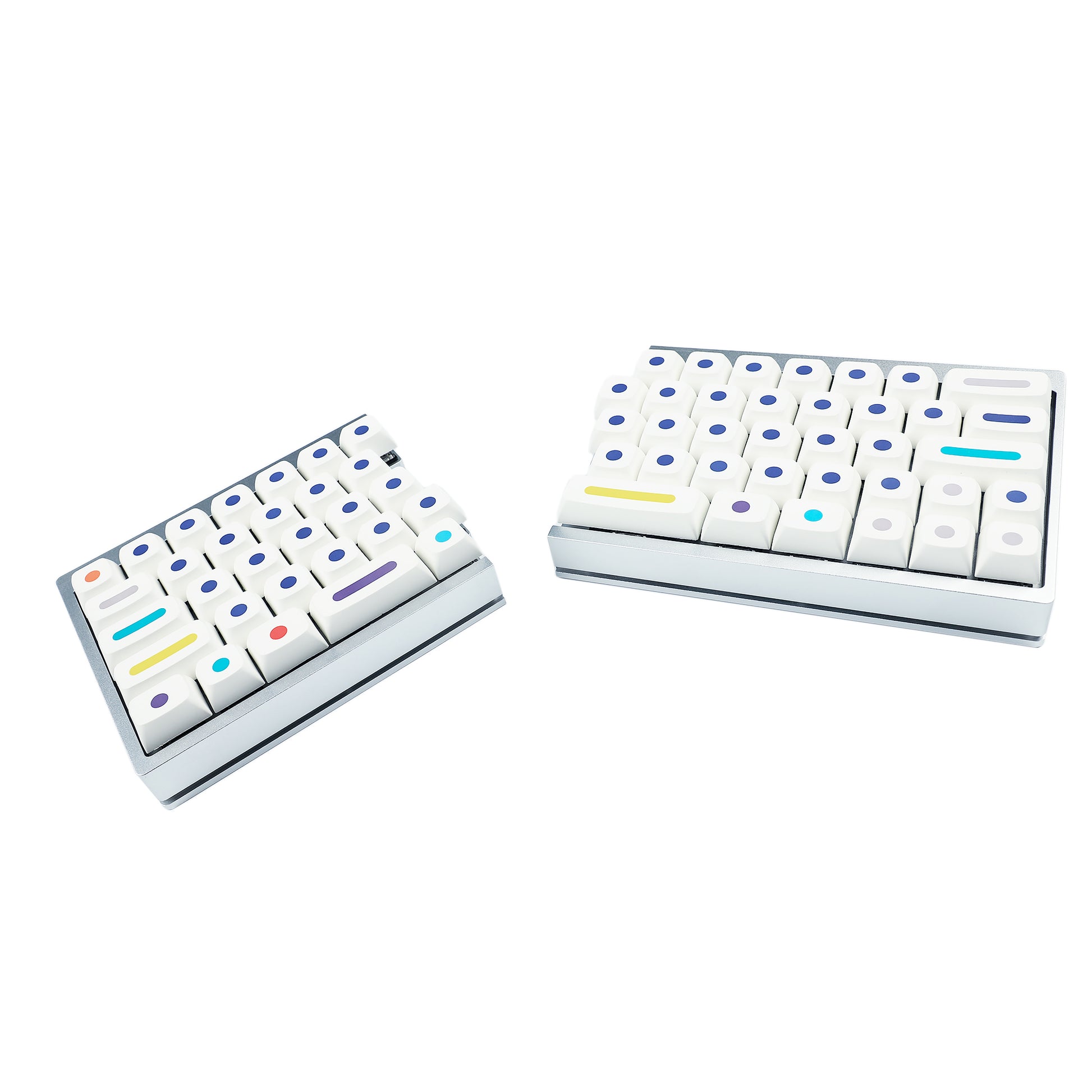

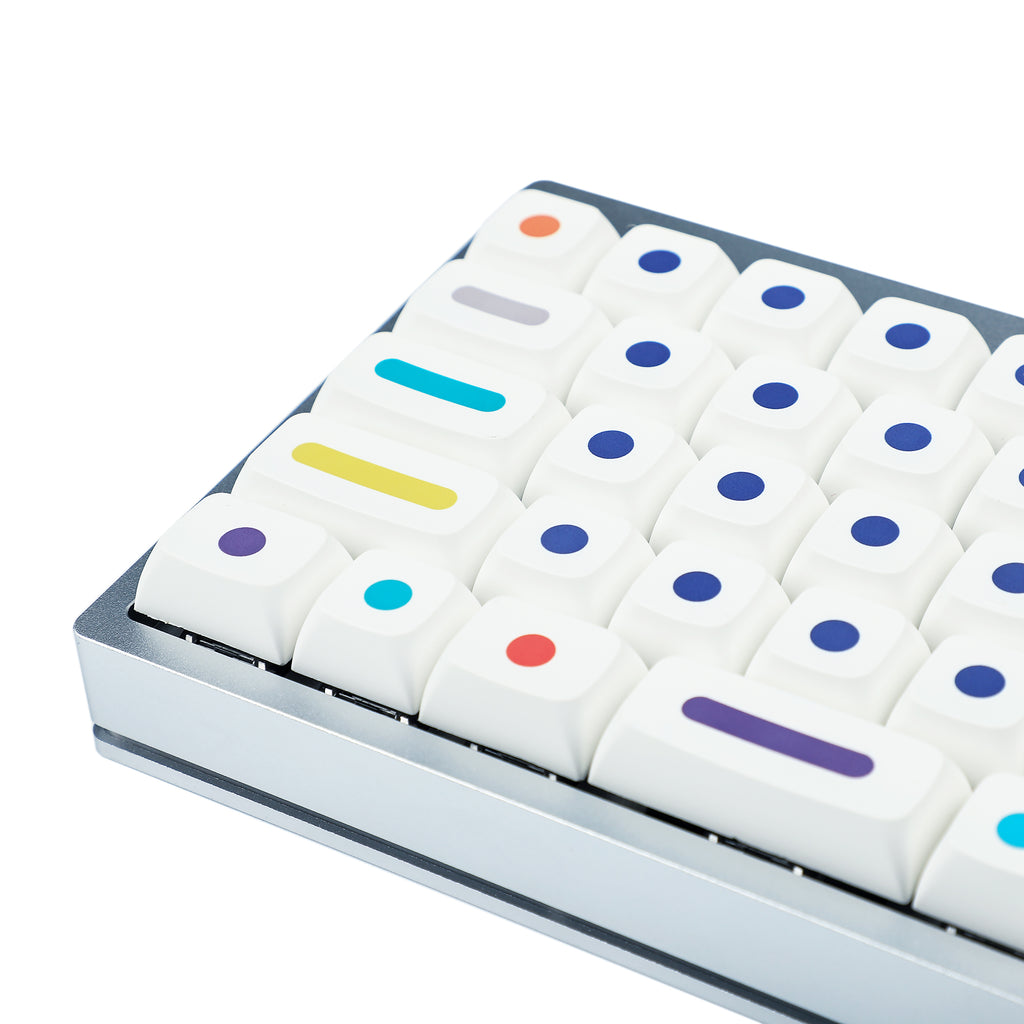

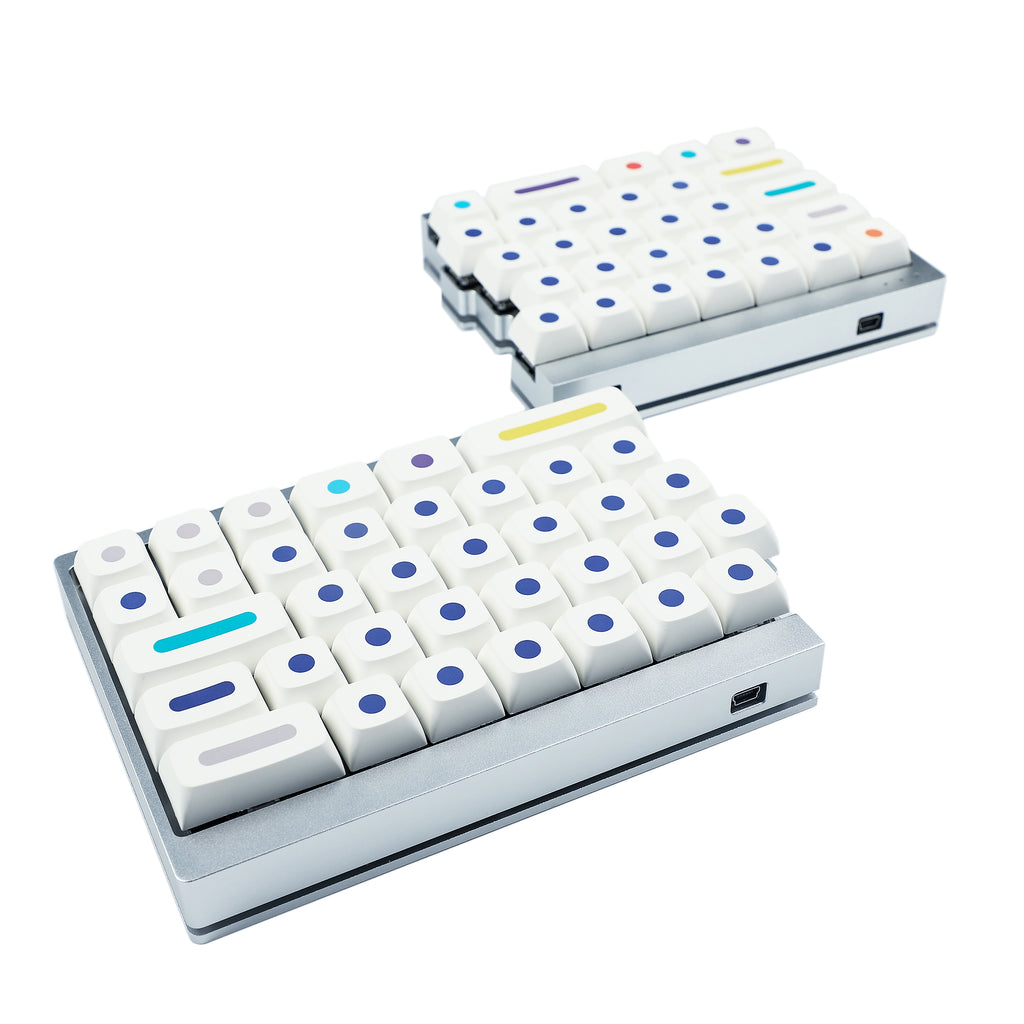

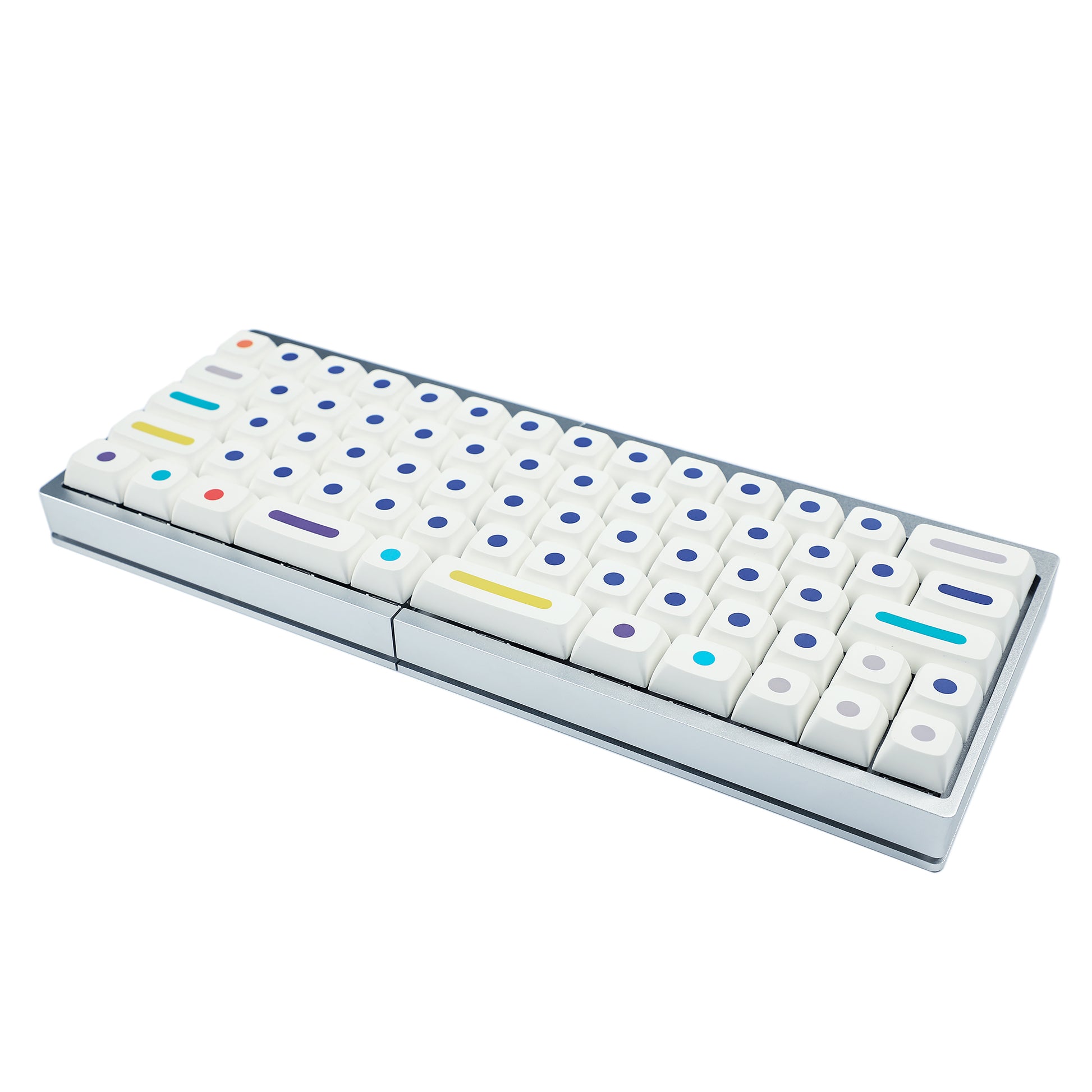

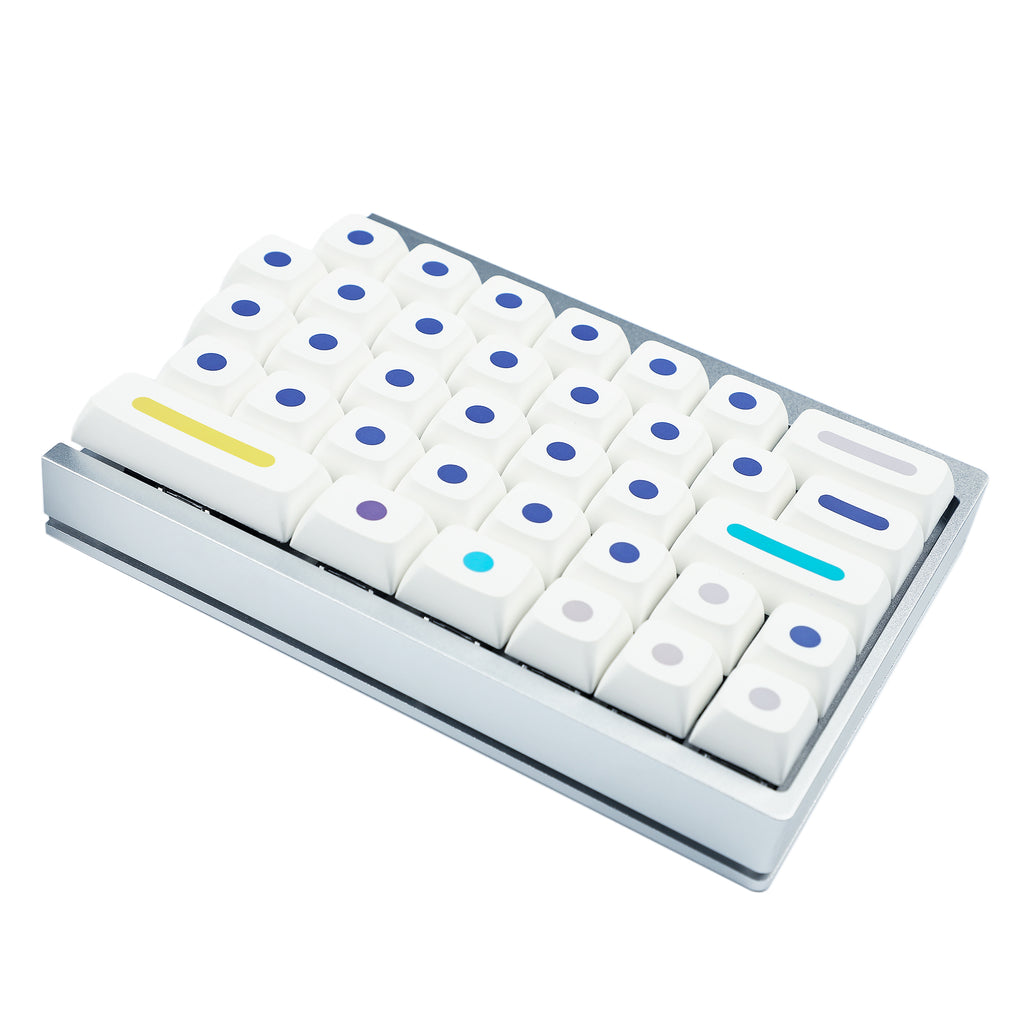

Option 3
