YMD-Split 75% 84 Acrylic Kit(ANSI ISO Supported/Bface Programmable)

YMD-Split 75% 84 Acrylic Kit(ANSI ISO Supported/Bface Programmable)

Regular price $81.90 USD
Regular price $0.00 USD Sale price $81.90 USD
Sale Sold out
Shipping calculated at checkout.
Stabilizer

Package Included

YMD-Split 75% 84 Acrylic Kit: Acrylic case + Plate +PCB+ 4 CNC Aluminum Feets + Screws + 5 pin cable to connect 2 split board+ PCB stabilizers (5x2u) + PC Cable

If you only need PCB,please choose"Only PCB"

Only PCB:PCB+Cable to connect 2 parts

Details

From 75% to split-75% 84,we add the number keys in pcb of left side.

Consider the designing of ergonomics,splitted designing is a better feature.And it can keep the splitted spacebar keys for using.Keep the 75% of spaces in using,but more comfortable.

Split 84 layout will have the special spacebar layout,so needs use the special keycaps that fit the layout.The bottom row is 1.25u 1.25u 1.25u 2u 1u 2.75u 1.25u 1u 1.25u 1u 1u 1u.The left space is 2u,right space is 2.75u.And it still have a 2.25u shift in left side.

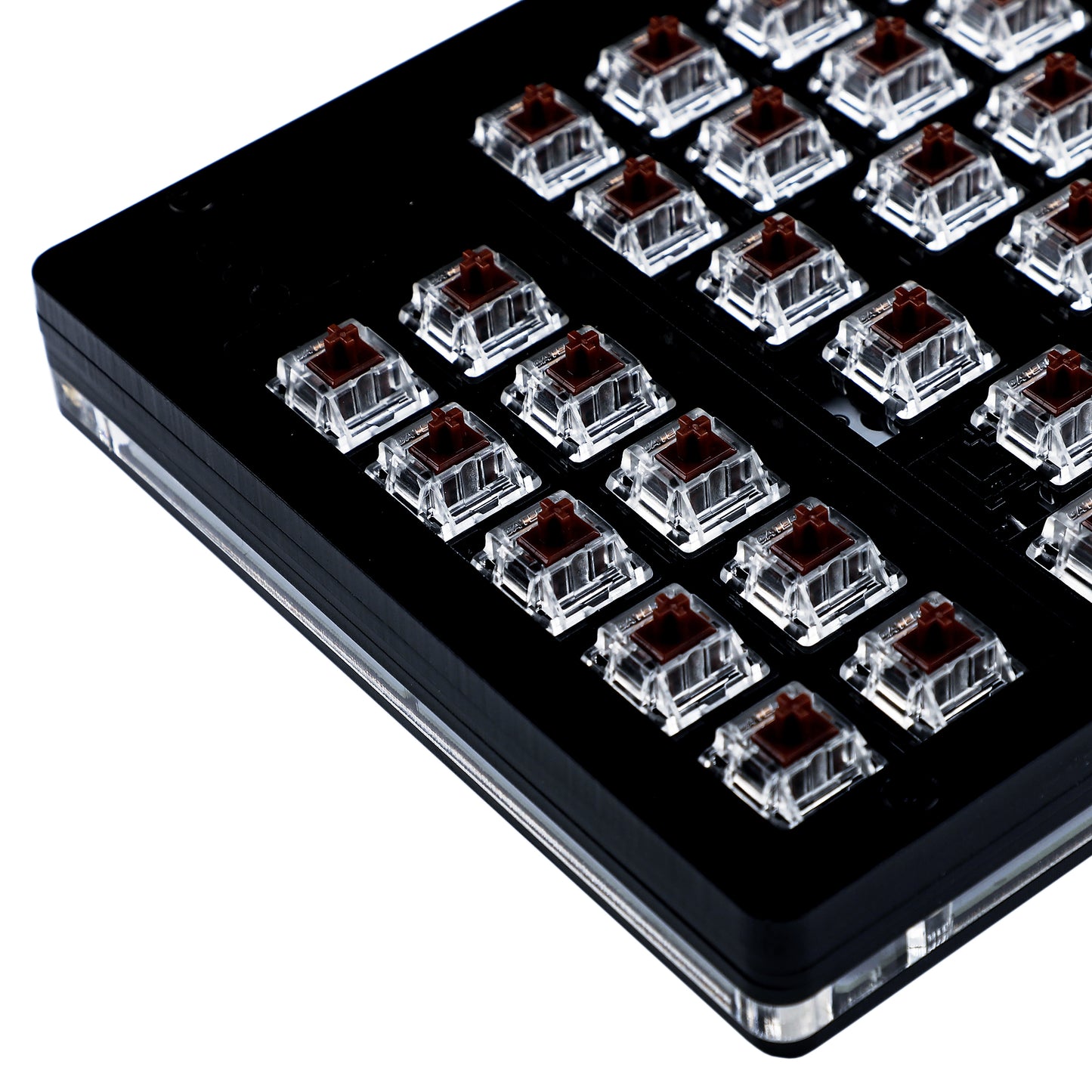

CNC full acrylic case with clear layer for rgb underglow.

USB Mini B port split 84 soldering south facing pcb with rgb underglow,supports bootmapper programmable only now.

Aluminum feets for the ergonomics angle,about 10 mm height.

Kit Size: Left 185*135*20 mm,right 180*135*20 mm.(Had not added the aluminum feet of height)

Note

There is a indicator led hole at the left top for numlock,caps,scrl.You can install leds onto PCB yourself.Of course,you need prepare a soldering iron for it if you need add the leds.

This pcb support ANSI ISO layout together,but you need install the keys in the right places.Of course,need install stabilizers firstly for layout.

Because it is soldering kit,so still need a soldering iron for switches of installing.

Bootmapper Manuals

https://drive.google.com/file/d/1vMUbjzyKlsihNI8jNVvvqAk7vpWzmBqr/view?usp=sharing

Tips For Assembly

There are 3 layers of acrylic for this kit.3 layers is movable in a degree.When you assemble the case,pls make screw in one side little loose,adjust the case in good place and then screw in tightly.

Sometimes the keycaps in the coner may stuck little,you can adjust it the same way as above.It's very easy to make it.
