YMDK Wings V2 Alice Layout Case（Only case）

Package Included

YMDK Wings V2 Case: New wings case+Enough Screws+Aluminum Feets

New wings case will support 1u and 2u backspace key,but hotswap wings pcb only supports 2u backspace key now.

If you need wood wrist for it,click here.

Details

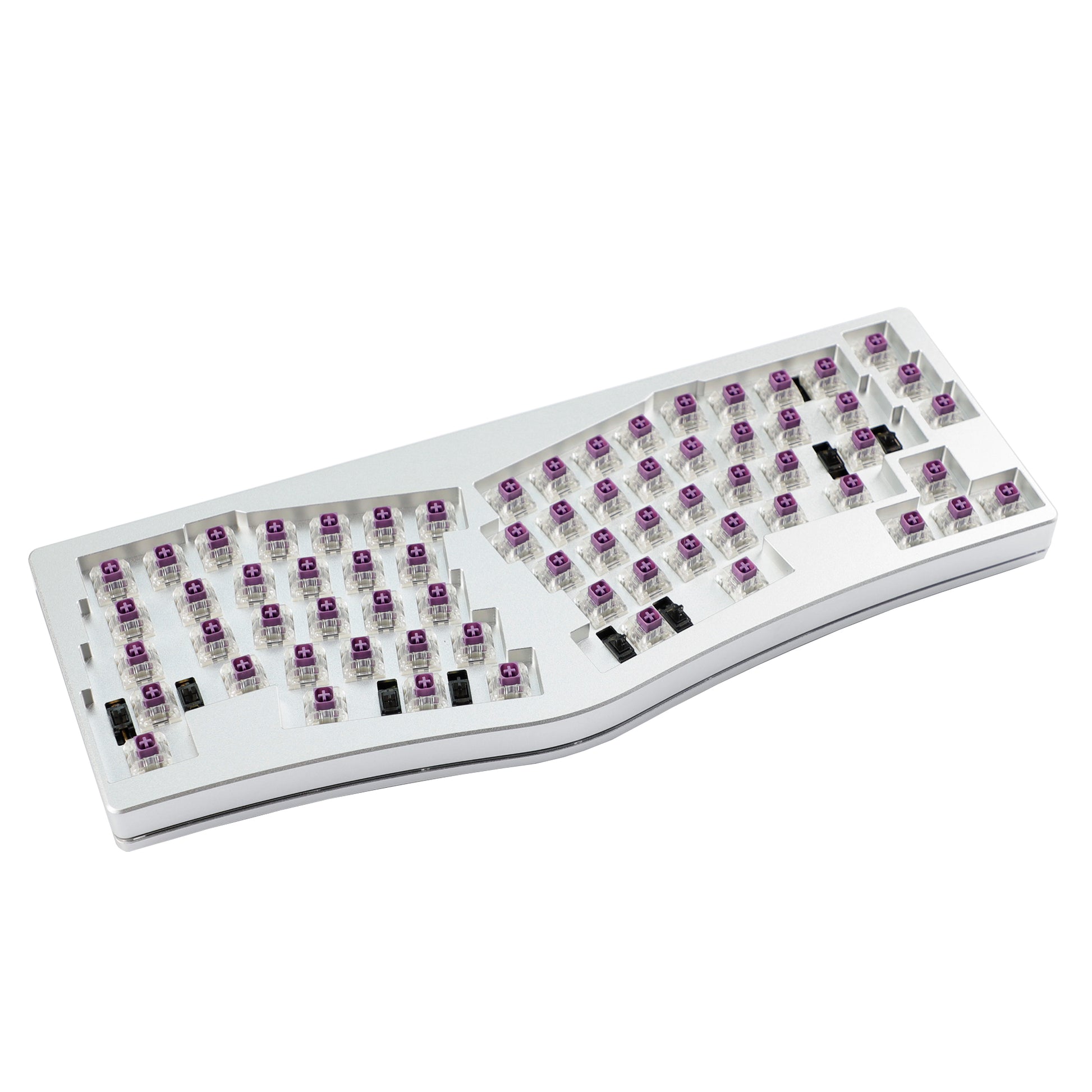

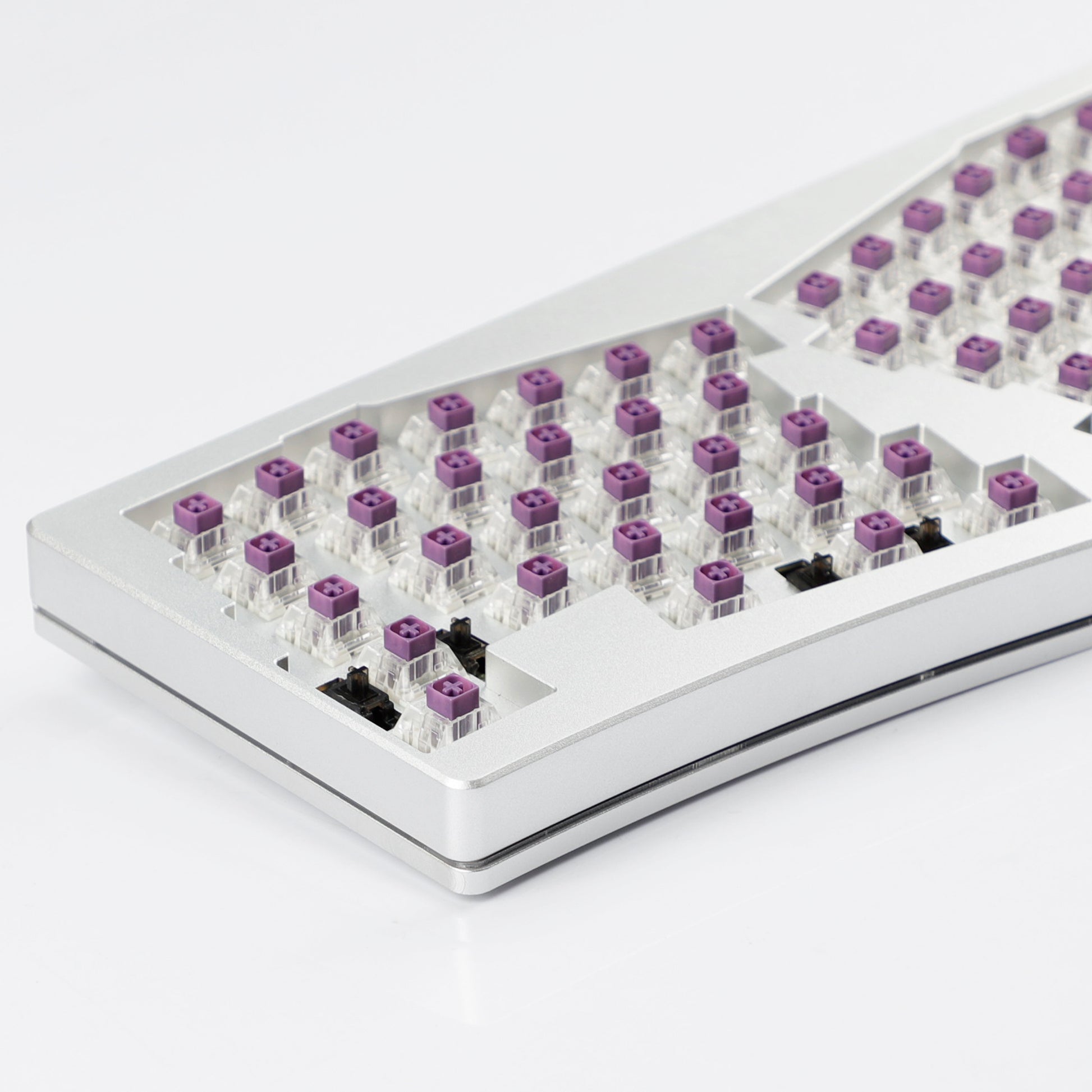

Silver Case Soldering Kit

This unit is brand new, only used for PCB soldering tests. Switches are pre-soldered. It works perfectly once fitted with keycaps and is fully compatible with VIA.

Switches: Kailh Box Royal
Typing feel: Tactile, no crisp click sound
Actuation force: 45gf
Actuation travel: 1.8±0.3mm
Bottom-out force: 75gf
Rebound force: ≥15gf
Total travel: 3.6±0.3mm
Lifespan: 50 million keystrokes

Consider the ergonomics needing in keyboard,and upgrade the 60% to 65% of using in working,we finish the designing in 65% alice wings keyboard.

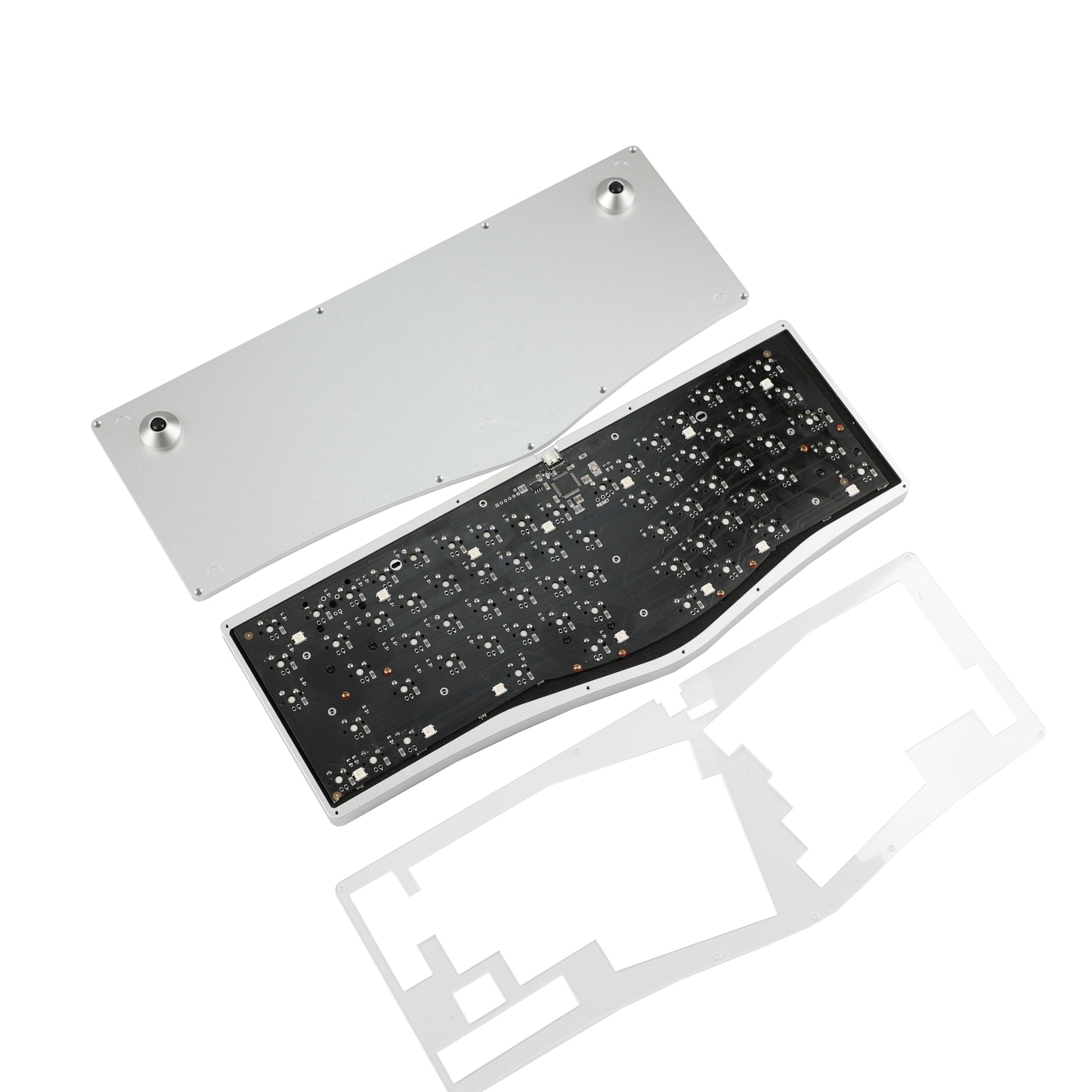

CNC anodized aluminum case with acrylic layer for rgb underglow,supports 2u backspace or 1u backspace add 1u `~ together.

Only support 2u backspace now.

Aluminum feets for the ergonomics angle,about 10 mm for height.

Note

Add foam better for handle feels.

Case Size(unit:mm)

PCB Layout(Only support 2u backspace key)

Images Display
